3-58 Fuel, Emissions, and Exhaust

___________________________________________

EXHAUST SYSTEM

The 6.6L turbo diesel exhaust system consists of two cast iron manifolds a turbocharger, turbo down pipe, intermediate pipe,
catalytic converter and tailpipe. All exhaust components are made from stainless steel and assembled using grade 8 hardware.
Service to the exhaust system is replacement only  (Figures 3-43 and 3-44).

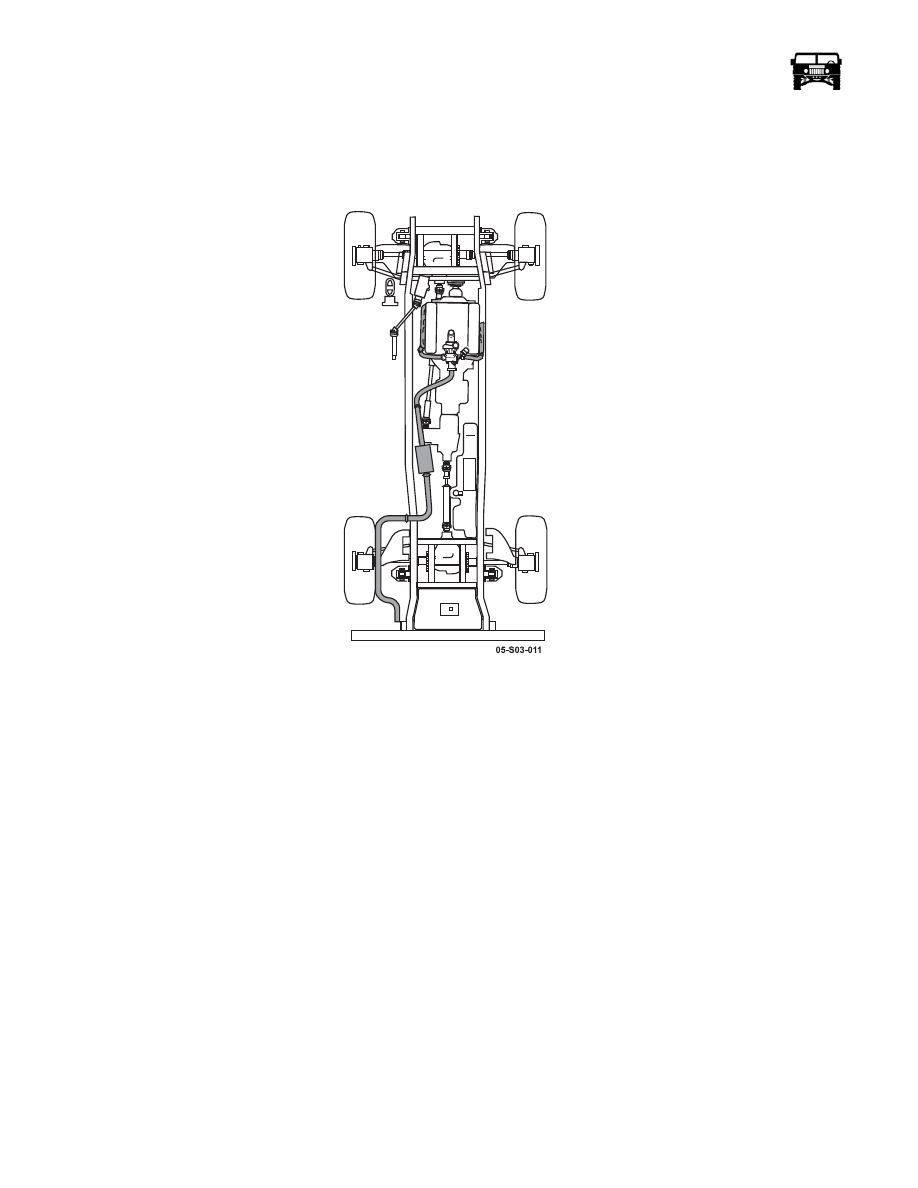

Figure 3-43:   Turbo Diesel

Turbo Down Pipe Replacement

Removal

1.

Remove the engine cover.

2.

Remove the intermediate pipe heat shield.

3.

Remove the exhaust clamps from the turbo to the down pipe, and from the down pipe to the intermediate pipe (Figure 3-44).

4.

Loosen the transfer case to exhaust pipe bracket bolt.

5.

Remove the down pipe and gasket.

6.

Remove all of the gasket material from the intermediate pipe.

Installation

7.

With new gaskets, position the new down pipe on the turbo and intermediate pipe. Tighten the clamps to 11 lb-ft. (15 N·m).

8.

Tighten the exhaust bracket bolt at the transfer case to 26 lb-ft. (35 N·m).

9.

Install the heat shield.

10. Install the engine cover and the console.

11. Start and run the engine. Verify that the exhaust components are clear of the body, frame and driveline components.

Catalytic Converter Replacement

Removal

___________________________________________

 Fuel, Emissions, and Exhaust  3-59

1.

Loosen or remove the necessary frame brackets and clamps that retain the converter and the pipe (Figure 3-44).

2.

Remove the clamp attaching the converter to the intermediate pipe.

3.

Remove the flange bolts attaching the converter to the tail pipe.

4.

Remove the bolt at the transfer case bracket.

5.

Remove the converter and gaskets.

Installation

6.

With new gaskets position, the new converter assembly in the vehicle and loosely install the flange bolts and clamp.

7.

Connect the necessary exhaust brackets and clamps to the frame as required.

8.

Torque the exhaust flange bolts to 26 lb-ft. (35 N•m).

9.

Torque the clamp to 11 lb-ft. (15 N·m).

10. Tighten the frame bracket bolts.

11. Tighten the transfer case exhaust bracket bolt to 26 lb-ft. (35 N•m).

3-60 Fuel, Emissions, and Exhaust

___________________________________________

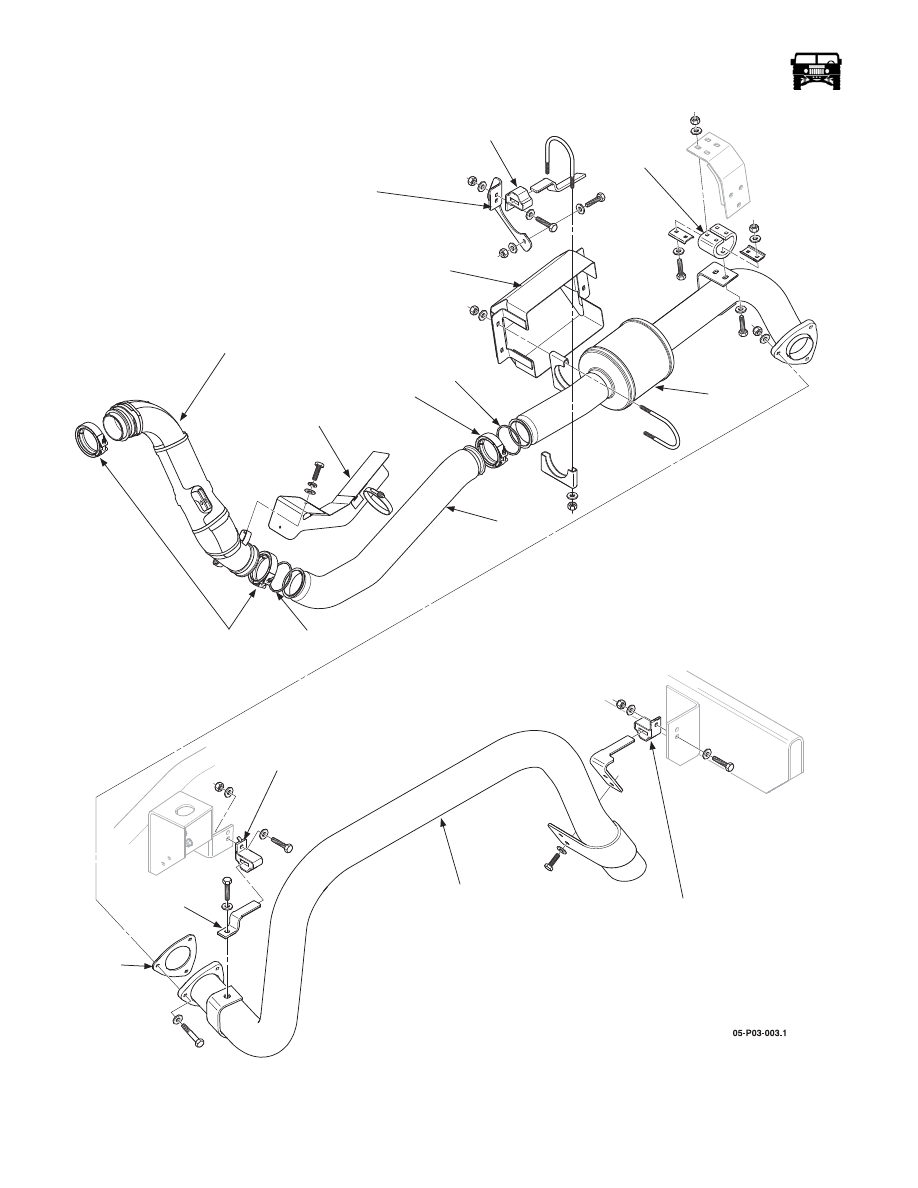

Figure 3-44:   Exhaust System For VIN 6E226860 And Numerically Lower

HEATSHIELD

CATALYTIC

CONVERTER

GASKET

INSULATOR

TRANSFER CASE TO

EXHAUST PIPE

BRACKET

FRONT

TAILPIPE

HEATSHIELD

CUSHIONED

LOOP ASSEMBLY

TAILPIPE

BRACKET

CUSHIONED

LOOP ASSEMBLY

CUSHIONED

LOOP ASSEMBLY

GASKET

GASKET

CLAMP

CLAMP

TURBO DOWN

PIPE

INTERMEDIATE

PIPE

___________________________________________

 Fuel, Emissions, and Exhaust  3-61

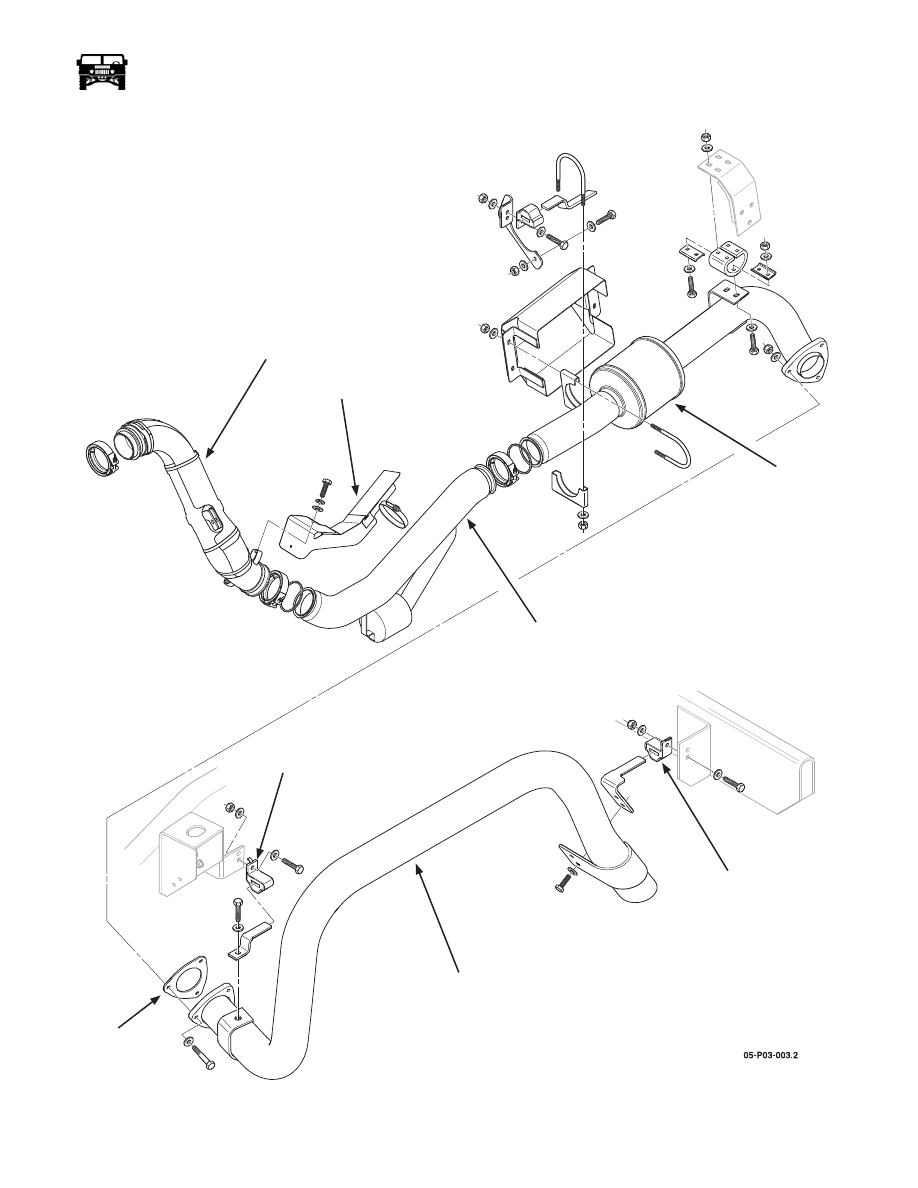

Figure 3-45:   Exhaust System For VIN 6E226861 and Numerically Higher

TAILPIPE

CUSHIONED

LOOP ASSEMBLY

CUSHIONED

GASKET

TURBO DOWN

PIPE

HEATSHIELD

INTERMEDIATE

PIPE

CATALYTIC

CONVERTER

LOOP ASSEMBLY
