Hummer H1 (2006+). Manual - part 50

OBD-44

On-Board Diagnostics

_______________________________________________

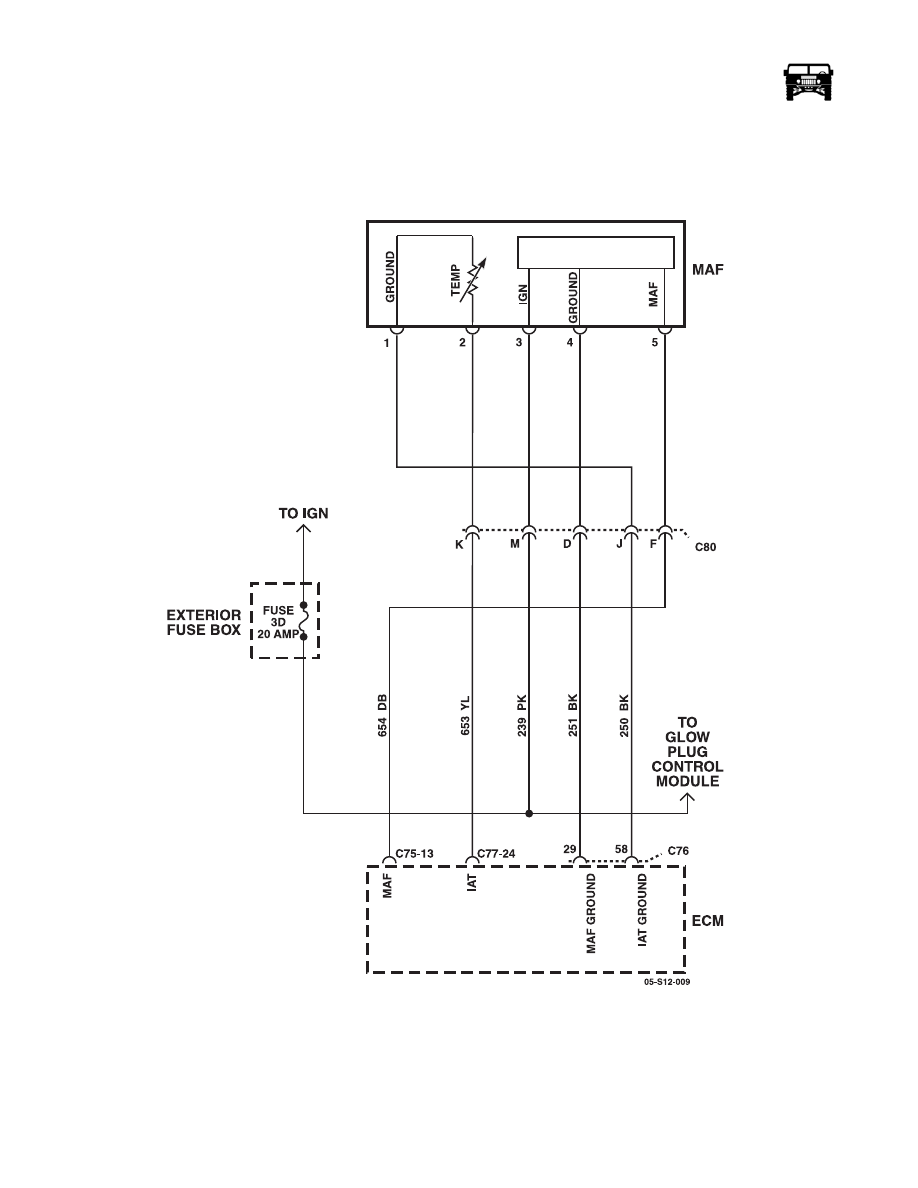

Figure OBD-11:   Mass Air Flow/Air Intake Temperature Sensor

______________________________________________

 On-Board Diagnostics  OBD-45

5745804

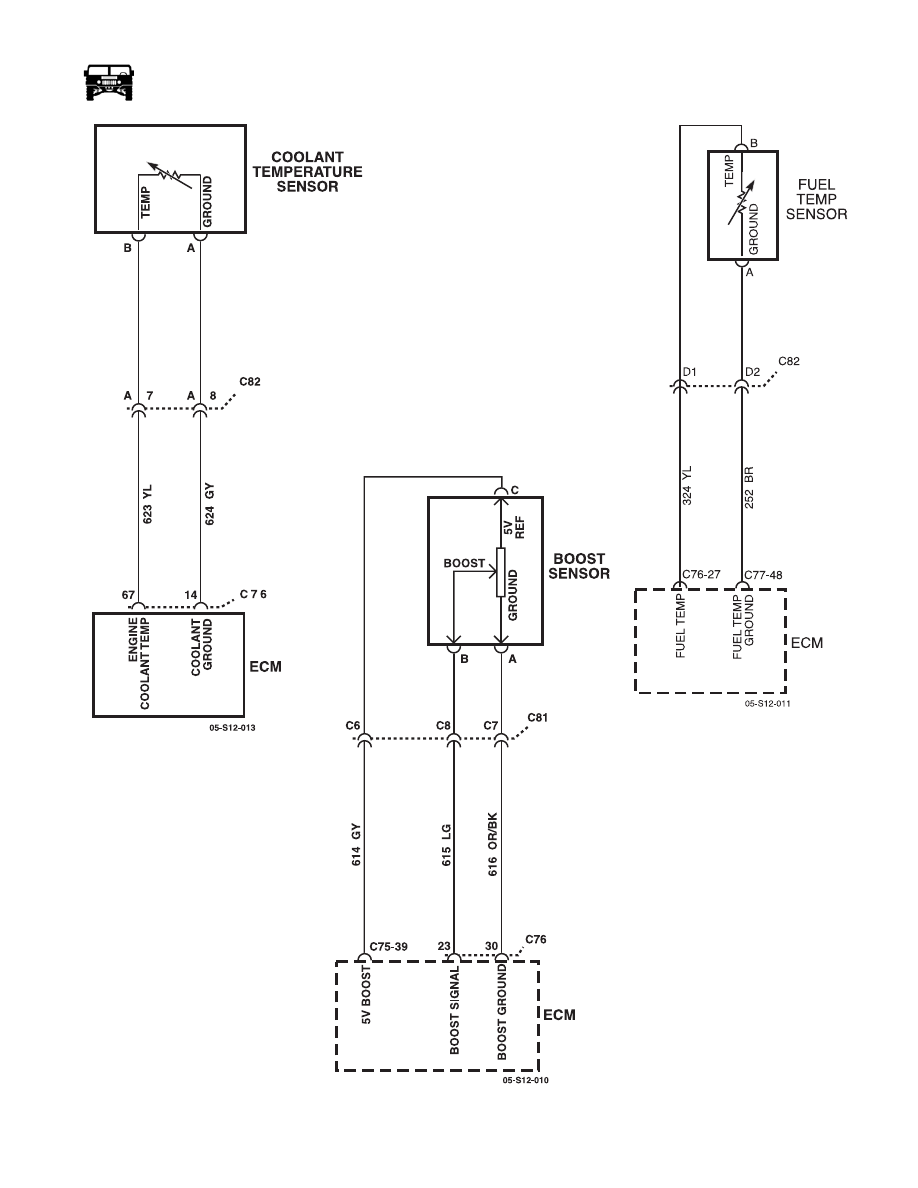

Figure OBD-12:   Coolant Temperature, Fuel Temperature and Boost Sensors

OBD-46

On-Board Diagnostics

_______________________________________________

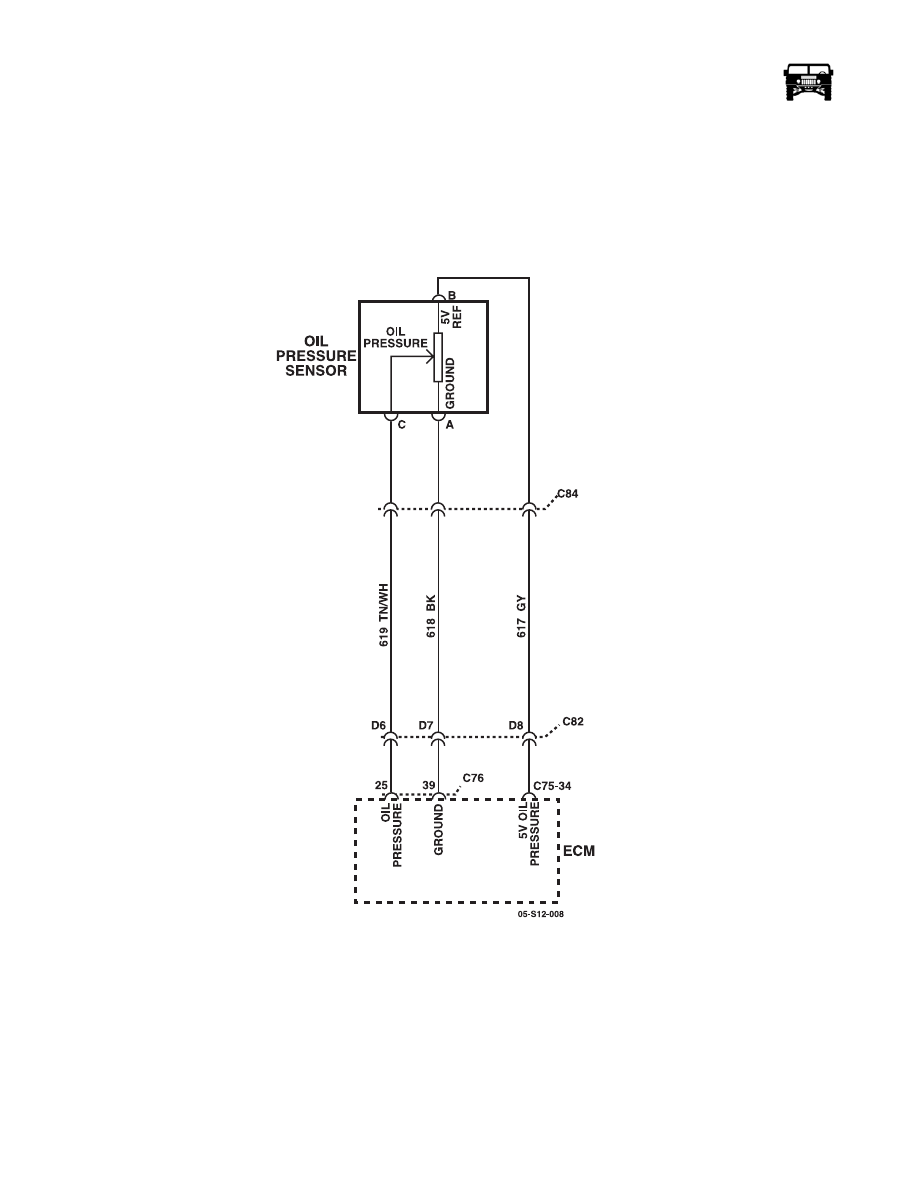

Figure OBD-13:   Oil Pressure Sensor

______________________________________________

 On-Board Diagnostics  OBD-47

5745804

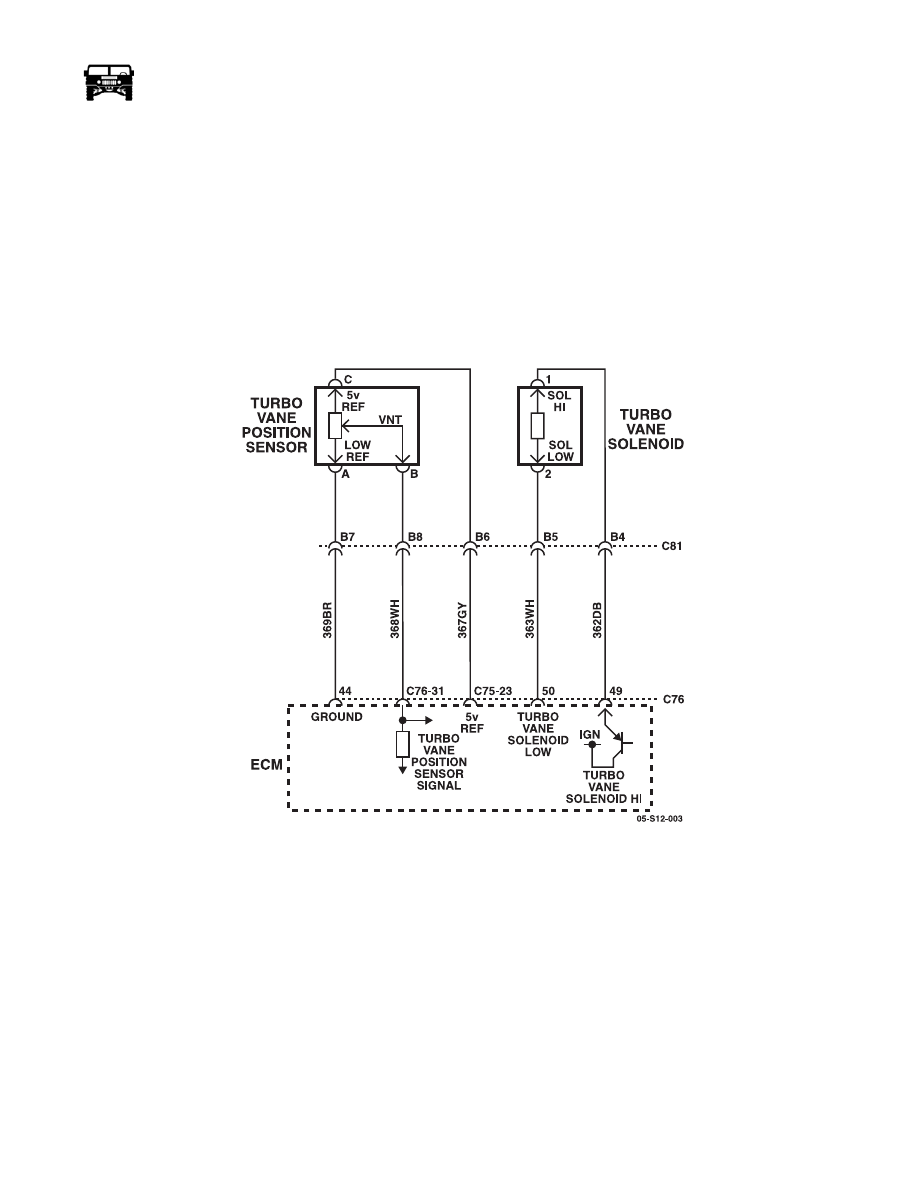

Figure OBD-14:   Turbo Vane Position Sensor
