Hummer H1 (2002+). Manual - part 236





_____________________________________________________

 Electrical System  12-165

®

05745159

D1

338

DB

Glow plug wait lamp activation

D2

2

LG

Right turn indicator lamp activation

D3

961

PP

TT4 indicator lamp activation

E1

42

BR

Brake indicator lamp activation

E2

603

RD

ABS indicator lamp activation

E3

793

YL

Low washer fluid activation

E4

943

TN

Rear Wiper feed (not used 99)

F1

12

OR

High Beam indicator lamp activation

F2

3

LB

Left turn indicator lamp activation

F3

658

BR

Check engine lamp activation

F4

327

YL

Drain Filter lamp activation

G1

517

PK

Power mirror switch battery feed

G2

210

DG

Transfer case lock lamp activation

G3

794

RD

Low coolant lamp activation

G4

428

PK

Low tire air lamp activation

G5

714

DB

Check throttle lamp activation

H6

14

LB

Headlamp switch feed

H7

65

YL

Ignition feed to intermittent wiper switch

H8

61

RD

High speed windshield wiper signal

H9

17

PP

+ from dimmer module

J6

63

DG

Low speed windshield wiper signal

J7

27

OR

Intermittent wiper signal

J8

948

DG/YL

Left hand power mirror up/down signal

J9

947

DB/YL

Left hand power mirror left/right signal

K6

942

OR/BK

Left hand power mirror common +/–

K7

19

YL

Power supply to dimmer module

K8

944

OR

Right hand power mirror common +/–

K9

644

YL

Tachometer signal

L6

476

GY

Clock battery feed

L7

31

TN

Oil pressure signal to gauge

L8

952

DB

Right hand power mirror left/right signal

M6

789

BR

Fuel selector valve control

M7

786

RD

Fuel selector valve control

PIN

CKT

COLOR

DESCRIPTION

12-166

Electrical System

______________________________________________________

®

M8

787

GY

Fuel selector switch feed from fuel pump relay

M9

953

DG

Right hand power mirror up/down signal

N6

59

BK

Ground

N7

30

GY

Ignition feed to gauges

N8

941

TN

Windshield wiper washer pump activation

N9

945

BR

Intermittent wiper relay activation

P6

55

OR

Rear cargo lamp activation

P7

29

PK

Fuel gauge signal

P8

39

DG

Engine temperature gauge signal

P9

353

YL

Speedometer signal

P10

59

BK

Ground

PIN

CKT

COLOR

DESCRIPTION



_____________________________________________________



 Electrical System  12-167





®



05745159



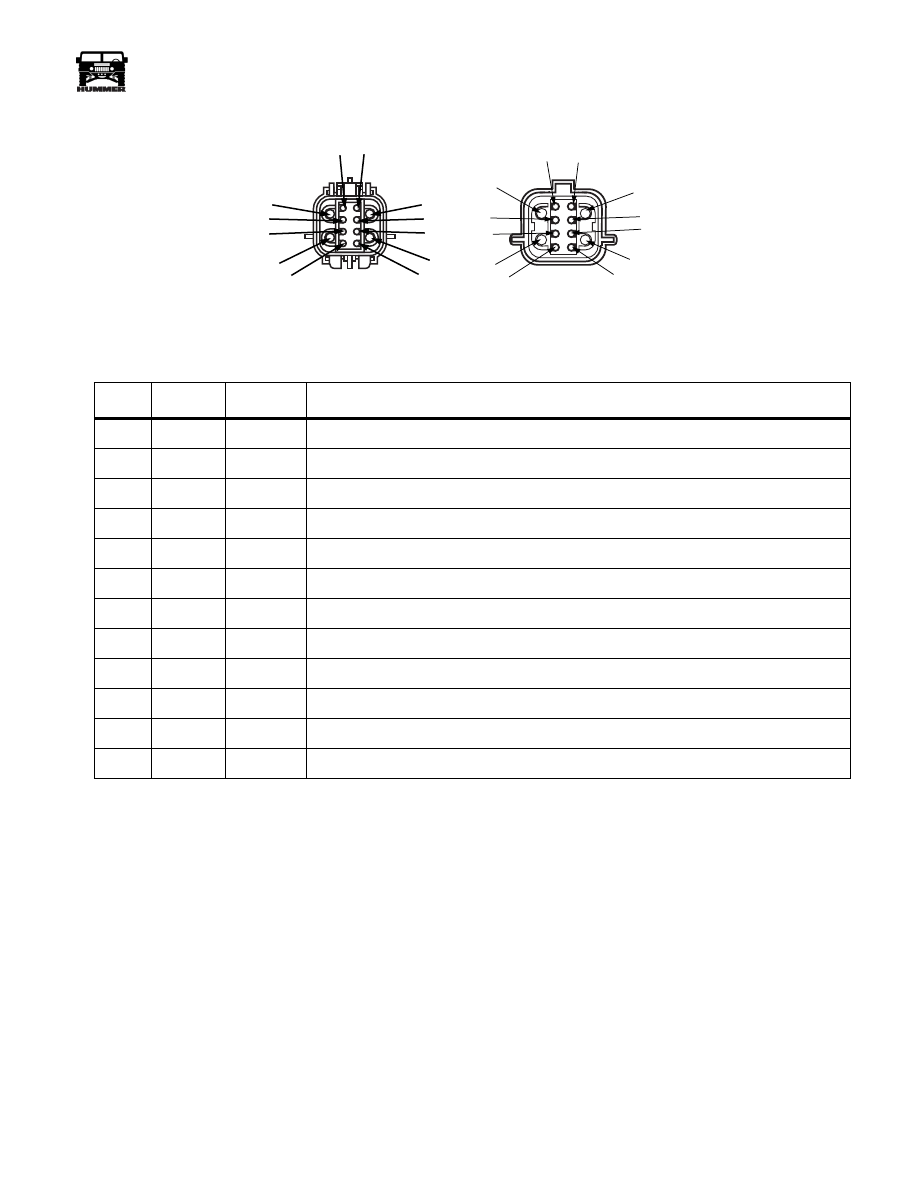

12 WAY AMG ENGINE



LOCATION: LEFT INTAKE MANIFOLD

9-S12-072

1

2

3

4

5

7

8

6

9

10

11

12

C4 MALE

9-S12-077

3

2

1

6
8

12

11

10

9

7

5

4

C4 FEMALE



PIN

CKT

COLOR

DESCRIPTION



1

34

LB

Starter solenoid activation

2

198

TN

A/C request from control head

3

291

PK

Ignition feed to alternator and low coolant sensor

4

5

439

YL

A/C request to PCM

6

7

8

348

BR

A/C compressor clutch activate

9

10

11

794

RD

Low coolant lamp activation

12



4-1-00



Section 12   Electrical System



12-168

Electrical System



______________________________________________________





®



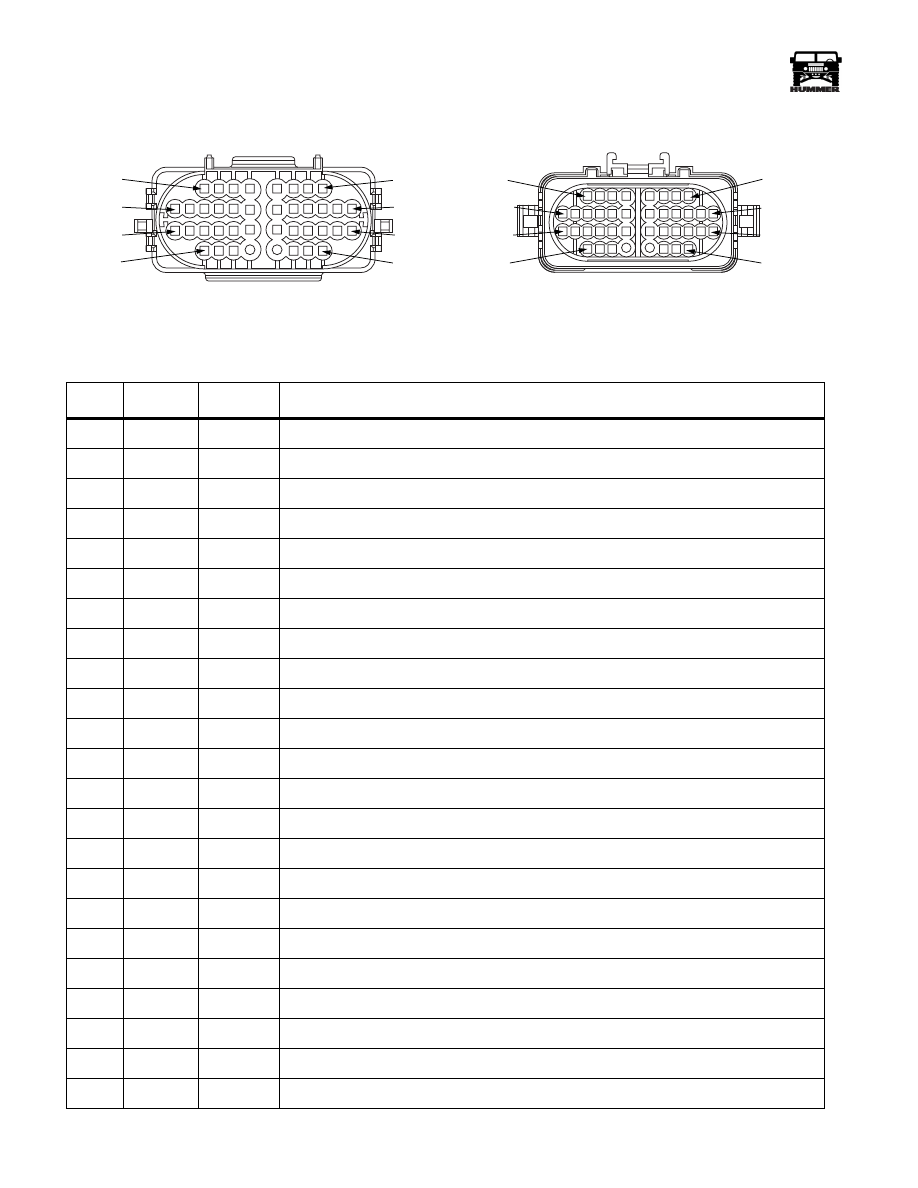

40 WAY GM ENGINE



LOCATION: LEFT INTAKE MANIFOLD

9-S12-020

9-S12-019

PIN A1

PIN B1

PIN C1

PIN D1

PIN A8

PIN B12

PIN C12

PIN D8

CAV A8

CAV B12

CAV C12

CAV D8

CAV A1

CAV B1

CAV C1

CAV D1

C5 MALE

C5 FEMALE



PIN

CKT

COLOR

DESCRIPTION



A1

39

DG

Engine temperature signal to gauge

A2

708

TN

Injection timing stepper motor LO

A3

709

RD

Injection timing stepper motor HI

A4

239

PK

Engine ignition feed

A5

291

PK

Engine ignition feed

A6

710

OR

Injection timing stepper motor LO

A7

711

YL

Injection timing stepper motor HI

A8

713

RD

Closure signal to solenoid driver

B1

712

LG

Fuel inject signal to solenoid driver

B2

491

BK

Closure ground to solenoid driver

B3

701

DB

Engine shutoff solenoid enable

B4

466

YL

Glow plug controller enable

B5

651

PP

Crankshaft position sensor ground

B6

57

BK

Ground

B7

B8

442

BR

CAM signal

B9

349

YL

Crankshaft position signal

B10

394

LG

Boost Pressure Signal

B11

359

BK

Sensor ground

B12

350

GY

Sensor 5 volt reference

C1

703

OR

High resolution signal

C2

225

YL

Fuel temperature signal

C3

375

GY

Optical Sensor 5 volt reference



4-1-00
