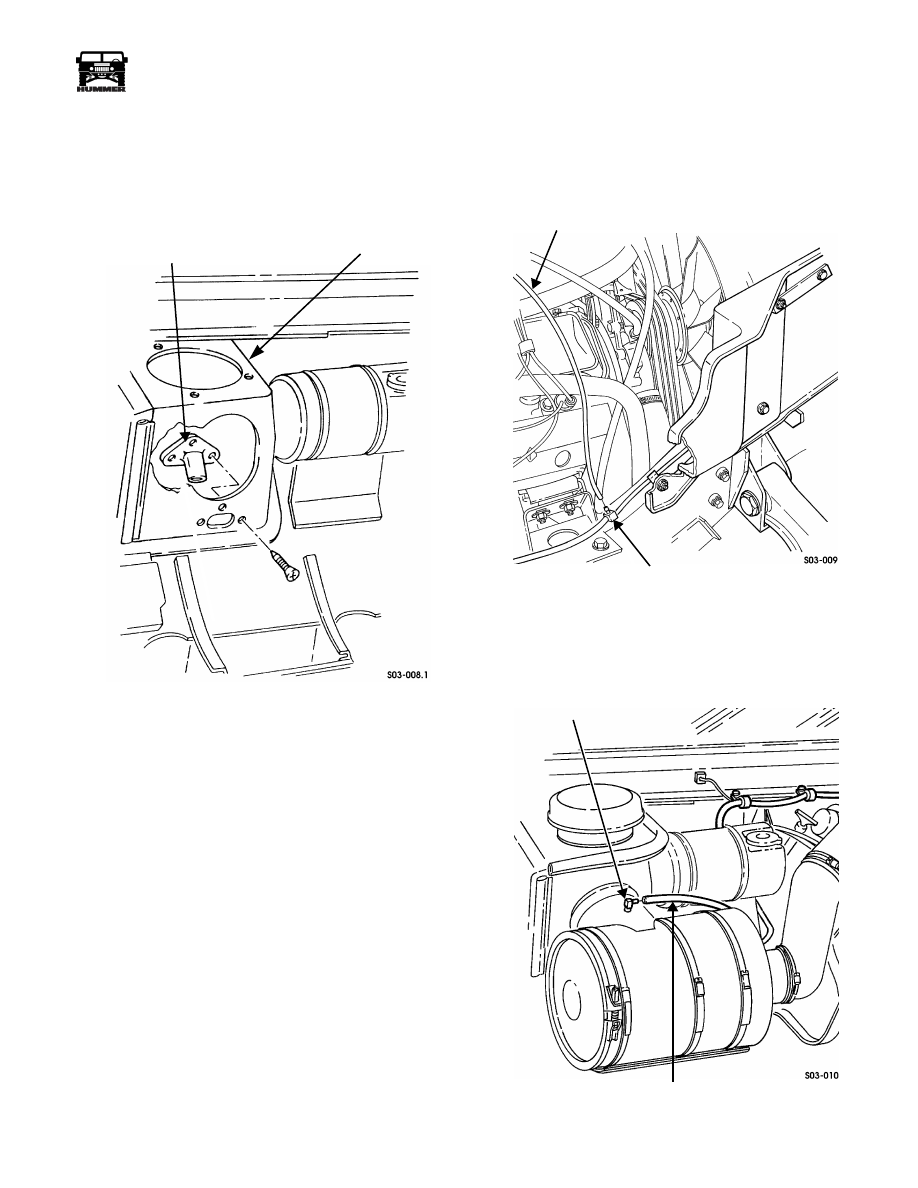

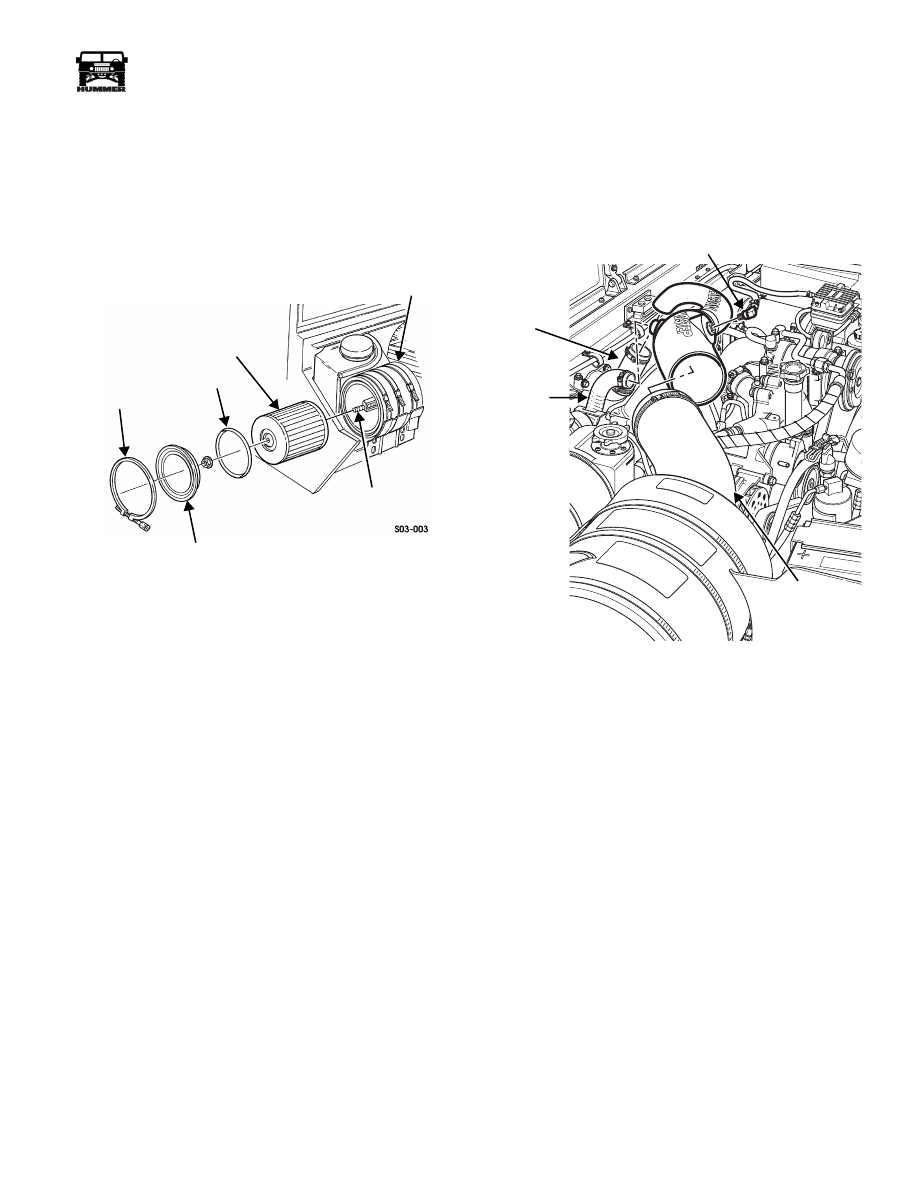

___________________________________________ Fuel, Emissions, and Exhaust 3-21 ® 5745159 Air Cleaner Filter Element Service Removal 1. Remove ring clamp, cover, and gasket from air cleaner 2. Remove nut and washer assembly and filter element from Figure 3-24: Air Cleaner Filter Element Removal/Installation Inspection 1. Clean components with compressed air, examine for wear 2. Remove dust or sand by gently tapping around filter 3. Remove dirt and dust from filter element by directing flow Installation 1. Slide filter element onto air cleaner stud and install nut and NOTE: To avoid damage to hood, ensure ring clamp bolt is 2. Install gasket, cover, and ring clamp on air cleaner AIR HORN Removal 1. Loosen clamp and remove air induction hose from air horn Figure 3-25: Air Horn Mounting 2. Remove CTIS air inlet hose and elbow from air horn. 3. Loosen clamps that secure the air horn to the CDR valve 4. Remove air horn. 5. Cover turbo charger opening to prevent dirt entry. Installation 1. Connect air induction hose to air horn (Figure 3-25). 2. Connect air horn to turbo inlet. Tighten clamp to 44 lb-in 3. Tighten air induction clamp to air horn. Tighten clamp to 4. Connect CDR hose to CDR tube on air horn. Tighten to 44 5. Apply sealant to CTIS air inlet elbow and install into RING CLAMP COVER GASKET FILTER ELEMENT AIR CLEANER STUD AIR CLEANER 9-S03-002 AIR INDUCTION CTIS AIR INLET ELBOW TUBRO CDR |
