General Information, Lubrication and Maintenance 1-5
¨
05745159
EPA NOISE EMISSION CONTROL INFORMA-
TION LABEL
The EPA noise emission control information label is located on
the passenger side B-pillar (door latch post). The label is re-
quired by the EPA and includes a tamper-proof feature. If the
label is tampered with, a void pattern will appear across the la-
bel. Notify the dealer or the manufacturer if the label is missing
or displays a void pattern (Figure 1-6).
The label contains the name of the manufacturer, the month
and year the vehicle was manufactured, a statement regarding
vehicle conformance to applicable U.S. EPA regulations, and a
description of acts prohibited by the Noise Control Act of
1972.

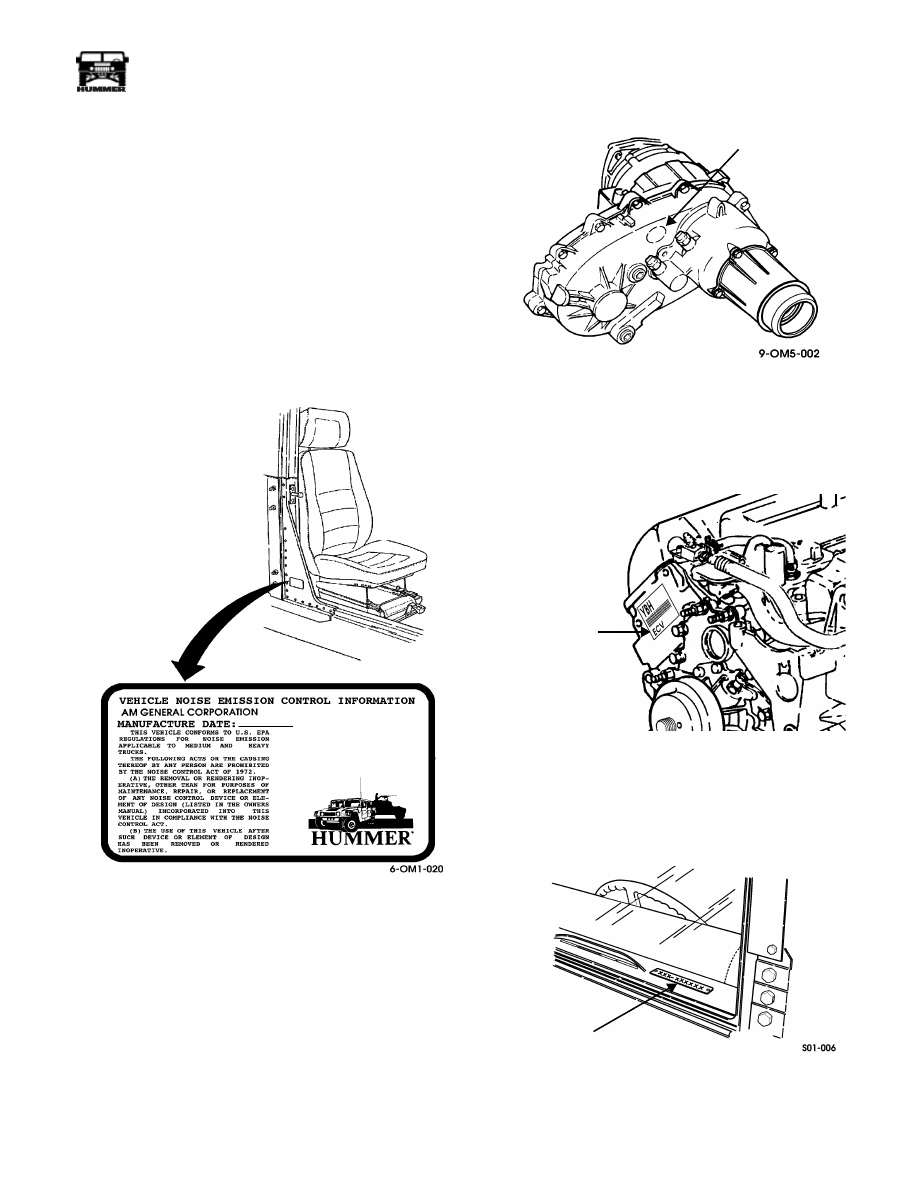

Figure 1-6: EPA Noise Emission Control
Information Label Location
TRANSFER CASE IDENTIFICATION
The transfer case serial and assembly numbers are located on a
tag attached to the rear case (Figure 1-7).
Figure 1-7: Transfer Case I.D. Plate Location
ENGINE IDENTIFICATION
The engine serial number label is located at the rear of the left
cylinder head (Figure 1-8).
Figure 1-8: Engine I.D. Label Location
VEHICLE IDENTIFICATION NUMBER (VIN)
The VIN plate is located at the upper left front corner of the
dashpad (Figure 1-9).
Figure 1-9: VIN Plate Location
The first twelve digits of the seventeen digit VIN are explained
in the chart on the following page.
TRANSFER CASE SERIAL NUMBER
(ON ID PLATE)
ENGINE SERIAL
NUMBER LABEL
VIN PLATE
