№		Номер детали	Наименование запчасти
-		1-99-964-007 [Protection cap]	Protection cap
1		AZ9100618001 [12R22.5 tire]	12R22.5 tire
1		DE9114610025 [14.00R20 tire]	14.00R20 tire
1		WG7600616010 [10.00-20-16PR tire]	10.00-20-16PR tire
1		WG7600616020 [9.00-20-16PR tire]	9.00-20-16PR tire
1		WG9100610024 [11.00-20-18PR tire]	11.00-20-18PR tire
1		WG9112619012 [12.00-20-18PR tire]	12.00-20-18PR tire
1		WG9114619015 [12.00-24-18PR tire]	12.00-24-18PR tire
4		AZ9100610062 [8.25x22.5 Disc wheel]	8.25x22.5 Disc wheel
4		AZ9100610065 [9.0x22.5 Disc wheel]	9.0x22.5 Disc wheel
4		BZ9100610161 [8.0-20 Disc wheel]	8.0-20 Disc wheel
4		DZ9114610024 [Disc wheel]	Disc wheel
4		WG9100610061 [7.50V-20 Disc wheel]	7.50V-20 Disc wheel
4		WG9112610062 [8.5-20 Disc wheel]	8.5-20 Disc wheel
4		WG9114610061 [8.5-24 Disc wheel]	8.5-24 Disc wheel
5		WG9100610011-1 [8.0-20 Side ring]	8.0-20 Side ring
5		WG9100610061-1 [7.50V-20 Side ring]	7.50V-20 Side ring
5		WG9112610062-1 [8.5-20 Side ring]	8.5-20 Side ring
5		WG9114610061-1 [8.5-24 Side ring]	8.5-24 Side ring
6		17600610014 [Plate for valve]	Plate for valve
6		AZ9100610014 [Plate for valve]	Plate for valve
6		AZ9112610014 [Plate for valve]	Plate for valve
7		WG9100610001 [Valve extension]	Valve extension
7		WG9100610001 [Valve extension]	Valve extension
8		AZ9100617001 [Valve extension]	Valve extension
8		AZ9100617001 [Valve extension]	Valve extension
9		AZ9112610090 [Cover for front wheel]	Cover for front wheel
9		AZ9112610090 [Cover for front wheel]	Cover for front wheel
10		AZ9112610083 [Protection cap]	Protection cap

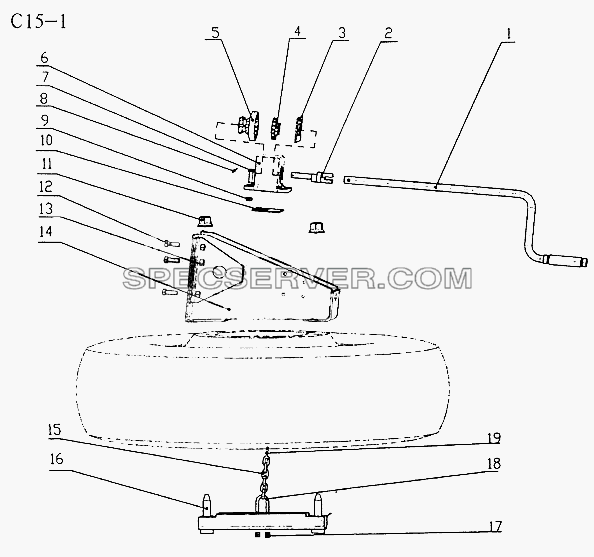

SPARE WHEEL CARRIER (C15-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9719860018 [Drive device]	Drive device
1		AZ9719860014 [Cranker]	Cranker
2		AZ9719860012 [Shaft]	Shaft
3		17017860022 [Locking sheet]	Locking sheet
4		17017860023 [Drive wheeI]	Drive wheeI
5		17017860024 [Driven wheel]	Driven wheel
6		AZ9719860007 [Housing]	Housing
7		Q150B1035 [Screw]	Screw
8		Q5004030 [Split pin]	Split pin
9		Q33210 [Nut]	Nut
10		17017860027 [Cover]	Cover
11		WG9003884160 [Wheel nut]	Wheel nut
12		Q150B1235 [Screw]	Screw
13		Q33212 [Nut]	Nut
14		AZ9719860021 [Bracket]	Bracket
15		17017860031 [Cable]	Cable
16		AZ9112860046 [Screw]	Screw
17		Q340B08 [Nut]	Nut
18		AZ9112860097 [Hook]	Ноок
19		Q5004030 [Split pin]	Split pin

TRAILING AXLE WITH AIR SUSPENSION, SELF STEERING, PNEUMATIC LIFTING DEVICE (C16-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003888457 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888467 [Nut]	Nut
-		190003888467 [Nut]	Nut
-		190003888749 [Nut]	Nut
-		AZ9636410060 [Bracket right]	Bracket right
-		AZ9636520024 [Positioning pin]	Positioning pin
-		AZ9636520033 [Top brace rod right]	Top brace rod right
-		AZ9636520034 [Bottom brace rod right]	Bottom brace rod right
-		AZ9738520000 [HOWO air suspension assembly]	HOWO air suspension assembly
-		AZ9738520009 [Bracket right]	Bracket right
-		AZ9738520013 [Support right]	Support right
-		AZ9738520014-1 [Spring]	Spring
-		Q151B0825 [Screw]	Screw
-		Q151B0825 [Screw]	Screw
-		Q151B1245 [Screw]	Screw
-		Q151B1460 [Screw]	Screw
-		Q151B1460 [Screw]	Screw
-		Q151B20120TF2 [Screw]	Screw
-		Q151B20200TF2 [Screw]	Screw
-		Q2541020 [Screw]	Screw
-		Q40108 [Washer]	Washer
-		Q40108 [Washer]	Washer
-		WG9636520029 [Washer]	Washer
-		WG9636520048 [Washer]	Washer
1		AZ9738520011 [Cross member]	Cross member
2		AZ9738520001 [Stop bracket]	Stop bracket
3		WG9012520011 [Stop]	Stop
4		AZ9636520009 [Siphon C]	Siphon C
5		AZ9738520006 [Top cover]	Top cover
6		AZ9738520010 [Support left]	Support left
7		AZ9636520024 [Top brace rod left]	Top brace rod left
8		AZ9636520027 [Bottom brace rod left]	Bottom brace rod left
9		AZ9636520007 [Lifting siphon]	Lifting siphon
10		AZ9738520008 [Bracket left]	Bracket left
11		AZ9636520021 [Plastic washer]	Plastic washer
12		Q151B1660 [Screw]	Screw
13		190003888459 [Nut]	Nut
14		AZ9636520028 [Bolt]	Bolt
15		AZ9738520014 [Shock absorber]	Shock absorber
16		AZ9636520035 [Bracket right]	Bracket right
17		AZ9636520036 [Bracket left]	Bracket left
18		AZ9636520019 [Spring seat left]	Spring seat left
19		AZ9636520045 [Spring seat right]	Spring seat right
20		AZ9636520046 [Bush]	Bush
21		AZ9636520022 [Bolt]	Bolt
22		Q381B18 [Nut]	Nut
23		Q5000445 [Split pin]	Split pin
24		AZ9636410061 [Bracket left]	Bracket left
25		AZ9100430218 [Tie rod]	Tie rod
26		AZ9128710002 [Pneutronic valve]	Pneutronic valve
27		AZ9632710001 [Bracket for pneutronic valve]	Bracket for pneutronic valve

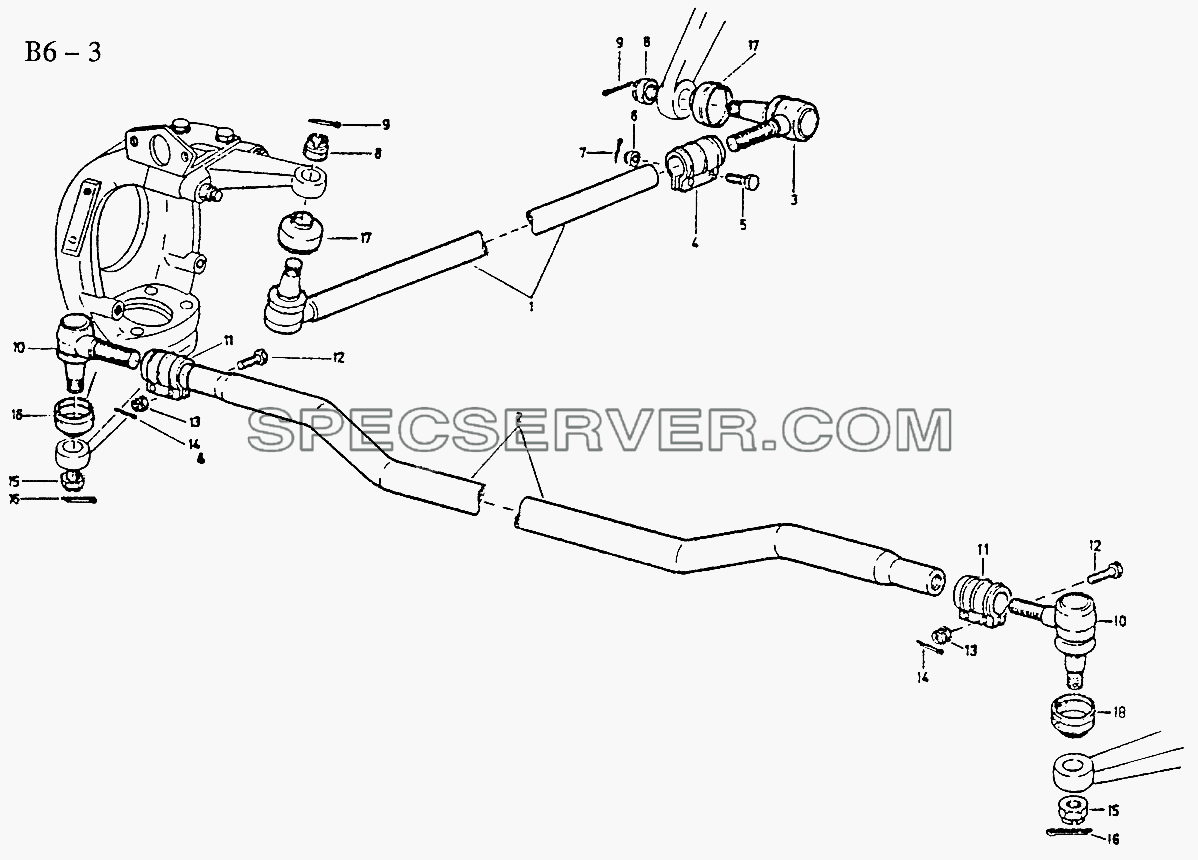

4x4, 6x6 STEERING LINK (B6-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9100430014 [Drag link]	Drag link
2		AZ9100430021 [Tie rod]	Tie rod
3		199100430701 [Ball pin kit]	Ball pin kit
4		199100430703 [Adjusting adaptor kit]	Adjusting adaptor kit
8		190003872369 [Nut]	Nut
9		Q5005040 [Spilt pin]	Spilt pin
10		199100430704 [Ball pin kit]	Ball pin kit
11		1589G 430718 [Adujsting adaptor kit]	Adujsting adaptor kit
15		190003872369 [Nut]	Nut
16		Q5005040 [Spilt pin]	Spilt pin
17		199100430702 [Sealant-cover]	Sealant-cover
18		199100430719 [Sealant-cover]	Sealant-cover

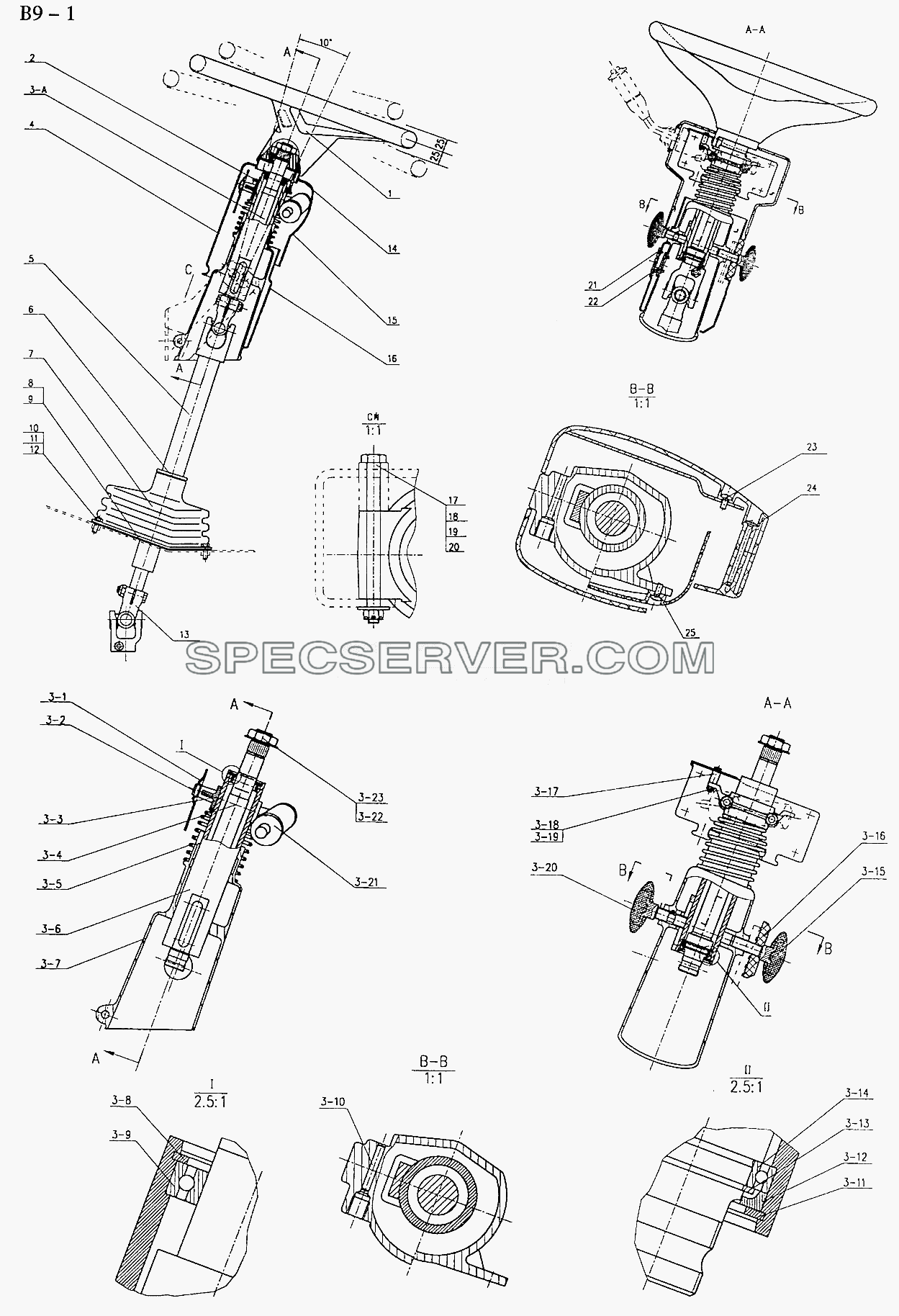

STEERING DEVICE (B9-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		81.46111.0066 [Chafe ring]	Chafe ring
-		81.46433.0005 [Fixative clip]	Fixative clip
-		81.91710.0459 [Ring]	Ring
-		81.95801.0071 [Ball]	Ball
-		81.97602.0729 [Compress spring]	Compress spring
-		AZ9003320012 [Ball cage]	Ball cage
-		AZ9003320013 [Ball cage]	Ball cage
-		AZ9100470422 [Steering tube]	Steering tube
-		AZ9100470424 [Support]	Support
-		AZ9100470425 [Steering tube]	Steering tube
-		AZ9100470428 [Telescopic shaft]	Telescopic shaft
-		AZ9100470438 [Hand wheel]	Hand wheel
-		AZ9100470439 [Hand wheel]	Hand wheel
-		Q150B0530 [Screw]	Screw
-		Q150B0865 [Screw]	Screw
-		Q340B05 [Nut]	Nut
-		Q351B22T15 [Nut]	Nut
-		Q41822 [Washer]	Washer
-		Q43042 [Snap Ing]	Snap Ing
-		Q43042 [Snap Ing]	Snap Ing
-		Q43130 [Snap Ing]	Snap Ing
-		Q5220632 [Columnm pin]	Columnm pin
-		WG9130583018 [Ring]	Ring
-		WG9130583019 [Start switch]	Start switch
1		WG9100470430 [Steering wheel]	Steering wheel
1		WG9100470450 [Steering wheel]	Steering wheel
2		AZ9130583024 [Touch ring]	Touch ring
3		WG9100470420 [Steering tube assembly]	Steering tube assembly
4		AZ9100470401 [The cover of the steering column(rear)]	The cover of the steering column(rear)
5		AZ9100470403 [Gimbal]	Gimbal
6		AZ9100470410 [Lining]	Lining
7		AZ9100470409 [Turning pole protect set]	Turning pole protect set
8		AZ9100470406 [Left joint board]	Left joint board
9		AZ9100470407 [Right joint board]	Right joint board
10		Q150B0625 [Screw]	Screw
11		Q40306 [Spring washer]	Spring washer
12		Q40206 [Washer]	Washer
13		AZ9100470102 [Gimbal-assembly]	Gimbal-assembly
14		AZ9130583018 [Return ring]	Return ring
15		AZ9100470402 [The cover of the steering column(front)]	The cover of the steering column(front)
16		81.46113.0085 [Cover of turning pole(front)]	Cover of turning pole(front)
17		AZ9100470414 [Pin]	Pin
18		Q387B08 [Nut]	Nut
19		Q40208 [Washer]	Washer
20		Q5002016 [Hatch pin]	Hatch pin
21		81.96410.0560 [Cover]	Cover
22		81.96410.0353 [Cover]	Cover
23		Q2720412 [Bolt]	Bolt
24		Q2714250 [Bolt]	Bolt

4x2, 4x4, 6x4, 6x6 HYDRAULIC STEERING SYSTEM (B9-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199100470089 [Delivery line]	Delivery line
-		AZ9100470090 [Delivery line]	Delivery line
1		AZ9100470150 [Steering gear(ZF8098)]	Steering gear(ZF8098)
1		AZ9100470225 [Steering gear(ZF8095)]	Steering gear(ZF8095)
1		AZ9100470228 [Steering gear(ZF8098)]	Steering gear(ZF8098)
2		WG9100470155 [Cross joint]	Cross joint
2		WG9112470155 [Cross joint]	Cross joint
3		Q151B2045TF2 [Screw]	Screw
3		WG9100470190 [Drop arm]	Drop arm
3		WG9100470235 [Drop arm]	Drop arm
3		WG9100470295 [Steering bracket]	Steering bracket
3		WG9100470298 [Drop arm]	Drop arm
5		WG9100470180 [Steering bracket]	Steering bracket
6		Q151B1655TF2 [Screw]	Screw
7		Q151B1670TF2 [Screw]	Screw
8		190003888627 [Nut]	Nut
9		WG9100470033 [Oil tank]	Oil tank
10		AZ9100470040 [Suport]	Suport
10		AZ9100470049 [Suport]	Suport
11		Q150B1020 [Screw]	Screw
12		Q33210 [Nut]	Nut
13		AZ9100470200 [Bracket assembly]	Bracket assembly
13		AZ9100470205 [Bracket assembly]	Bracket assembly
14		Q151B1230 [Screw]	Screw
15		Q340B12 [Screw]	Screw
16		Q40312 [Spring washer]	Spring washer
17		Q150B0835 [Screw]	Screw
18		Q33208 [Nut]	Nut
19		WG9100470082 [Hose]	Hose
19		WG9100470140 [Hose]	Hose
20		AZ9100470084 [Spring protect ring]	Spring protect ring
21		WG9100130037 [Hydraulic pump]	Hydraulic pump
21		WG9619470080 [Hydraulic pump]	Hydraulic pump
21		WG9631470060 [Hydraulic pump]	Hydraulic pump
22		190003989301 [Hose clamp]	Hose clamp
23		WG9100470076 [Nipple]	Nipple
24		190003962651 [Female screw]	Female screw
25		190003098031 [Gasket]	Gasket
26		WG9100470110 [Screwing]	Screwing
27		AZ9100479107 [Hight pressure hose]	Hight pressure hose
27		AZ9123479027 [Hight pressure hose]	Hight pressure hose
28		199100470029 [Delivery line]	Delivery line
28		AZ9100470130 [Delivery line]	Delivery line
28		AZ9100470229 [Delivery line]	Delivery line
28		AZ9132470030 [Delivery line]	Delivery line
29		190003962632 [Female screw]	Female screw
29		WG9100470157 [Tie-in]	Tie-in
30		T071600 [Gasket]	Gasket
30		T071800 [Gasket]	Gasket
31		Q150B0620 [Screw]	Screw
32		Q40306 [Spring washer]	Spring washer
33		Q340B06 [Nut]	Nut
34		1397 350169 [Angle]	Angle
35		138091360181 [Clamp]	Clamp
36		161000060211 [Rubber hose]	Rubber hose
37		Q150B0630 [Screw]	Screw
38		Q340B06 [Nut]	Nut
39		Q40206 [Washer]	Washer
40		Q40306 [Spring washer]	Spring washer
41		252-3407056 [Nozle]	Nozle
42		252-3407054 [Gasket]	Gasket
43		252-3407055 [Nut]	Nut
44		WG9100470078 [Nipple]	Nipple
45		190003989336 [Hose clamp]	Hose clamp
46		190003883242 [Nut]	Nut
47		199100470087 [Rubber hose]	Rubber hose
47		WG9100470094 [Rubber hose]	Rubber hose
48		17017470015 [Spring protect ring]	Spring protect ring
