№		Номер детали	Наименование запчасти
-		AZ9100420044 [Front axle driving C]	Front axle driving C
-		AZ9112320184 [Gasket]	Gasket
-		DZ9100420040 [Front axle driving C]	Front axle driving C
-		DZ9100420042 [Front axle driving C]	Front axle driving C
-		DZ9100420043 [Front axle driving C]	Front axle driving C
1		199014320091 [Diff. spider]	Diff. spider
2		199012320010 [Planetary pinion]	Planetary pinion
3		199012320150 [Middle sheet shim-planetary]	Middle sheet shim-planetary
4		199012320009 [Gear-axle shaft]	Gear-axle shaft
5		11800 320012 [Adjuster washer]	Adjuster washer
5		11800 320131 [Adjuster washer]	Adjuster washer
5		11800 320132 [Adjuster washer]	Adjuster washer
5		13809 320169 [Adjuster washer]	Adjuster washer
5		199012320129 [Adjuster washer]	Adjuster washer
6		199012320198 [Diff. case]	Diff. case
7		190003326148 [Roller bearing]	Roller bearing
8		13809 320159 [Adjusting nut-diff. bearing]	Adjusting nut-diff. bearing
9		Q151B1480TF2 [Screw]	Screw
12		Q151B1635TF2 [Screw]	Screw
13		199012320098 [Axle housing C]	Axle housing C
14		199000420054 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420055 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420056 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420057 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420058 [Crown wheel/pinion]	Crown wheel/pinion
16		199012320121 [Ring]	Ring
17		199012320103 [Bearing bush]	Bearing bush
18		199012320133 [Gasket]	Gasket
19		190003326547 [Roller bearing]	Roller bearing
20		199012320173 [Shim]	Shim
20		199012320174 [Shim]	Shim
20		199012320175 [Shim]	Shim
20		199012320176 [Shim]	Shim
21		Q150B1230TF2 [Screw]	Screw
22		1880 320002 [Shim]	Shim
22		1880 320003 [Shim]	Shim
22		1880 320004 [Shim]	Shim
22		1880 320005 [Shim]	Shim
22		1880 320006 [Shim]	Shim
22		1880 320007 [Shim]	Shim
22		1880 320008 [Shim]	Shim
22		1880 320009 [Shim]	Shim
22		1880 320010 [Shim]	Shim
22		1880 320011 [Shim]	Shim
22		1880 320011 [Shim]	Shim
22		1880 320013 [Shim]	Shim
22		1880 320014 [Shim]	Shim
22		1880 320015 [Shim]	Shim
23		190003326236 [Roller bearing]	Roller bearing
24		199012320121 [Ring]	Ring
25		AZ9112320030 [Casket]	Casket
28		179000320010 [Flange Ф=150]	Flange Ф=150
28		199012320110 [Flange Ф=165]	Flange Ф=165
29		179000320013 [Nut]	Nut
30		Q5005055 [Copper pin]	Copper pin
31		179000320027 [Thrust block]	Thrust block
32		Q40308 [Spring washer]	Spring washer
33		Q150B0816 [Screw]	Screw
34		Q5004028 [Cotter pin]	Cotter pin
35		Q12316120 [Stud]	Stud
36		Q381B16 [Nut]	Nut
37		Q5210820 [Cyl. pin]	Cyl. pin

PLANETARY DRIVE OF FRONT DRIVE AXLE (A10-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000420029 [Front wheel hub]	Front wheel hub
-		AZ9100410019 [Gasket]	Gasket
1		1880 410076 [Shaft end-front axle]	Shaft end-front axle
2		1880 410102 [Pin-lock]	Pin-lock
3		1880 410109 [Pipe]	Pipe
4		1880 410069 [Needle bearing]	Needle bearing
5		Q43870 [Circlip]	Circlip
6		AZ9100410018 [Gasket]	Gasket
7		199000410107 [Gasket housing]	Gasket housing
8		1880 420012 [O-ring]	O-ring
9		199000420052 [Front wheel hub C]	Front wheel hub C
10		199000410103 [Wheel bolt]	Wheel bolt
11		199000410103 [Wheel bolt]	Wheel bolt
14		1406 060011 [O-ring]	O-ring
15		1880 420028 [Loop]	Loop
16		AZ9100410015 [Gasket]	Gasket
17		190003326443 [Roller beating]	Roller beating
18		190003326445 [Roller beating]	Roller beating
19		199112340021 [For intermed.ring]	For intermed.ring
21		1880 420034 [Thrust washer]	Thrust washer
22		1680 340015 [Thrust washer]	Thrust washer
23		1680 340016 [Shim]	Shim
23		1680 340017 [Shim]	Shim
23		1680 340018 [Shim]	Shim
23		1680 340019 [Shim]	Shim
23		1680 340187 [Shim]	Shim
24		1680 340013 [Nut]	Nut
25		1880 420022 [Shim spacer]	Shim spacer
26		1880 420003 [Helical gear]	Helical gear
27		1880 440010 [Shim]	Shim
28		190003933300 [Circlip]	Circlip
29		1880 420027 [Oil drip pan]	Oil drip pan
30		199100420003 [Planetary carrier]	Planetary carrier
31		Q151C1265TF2 [Cap screw]	Cap screw
32		190003901704 [Cyl.pin]	Cyl.pin
33		1880 420024 [Bolt]	Bolt
34		WG99-934-013 [Needle]	Needle
35		199000420050 [Planetary pinion]	Planetary pinion
36		199012340075 [Stop ring]	Stop ring
37		190003330148 [Ball]	Ball
38		WG1880 420014 [Snap ring]	Snap ring
39		199000420049 [Inter ring gear]	Inter ring gear
40		199000420019 [Flange planetary carrier]	Flange planetary carrier
42		Q2541020 [Screw]	Screw
43		199112340001 [Cover]	Cover
44		Q40310 [Spring washer]	Spring washer
45		Q150B1018 [Cap washer]	Cap washer
46		190003961309 [Locking screw]	Locking screw
47		WG90003884160 [Nut]	Nut

FRONT AXLE FORK OF FRONT DRIVE AXLE (A10-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000410016 [Front axle fork]	Front axle fork
-		AZ9100410110 [Gasket]	Gasket
-		Q151B18100TF2 [Screw]	Screw
1		199100410007 [Front axle fork C]	Front axle fork C
2		190003078645 [Gasket]	Gasket
3		190003311467 [Ball bearing]	Ball bearing
4		1880 410065 [Washer]	Washer
5		190003934520 [Circlip]	Circlip
6		1880 420030 [Washer]	Washer
7		190003933482 [Circlip]	Circlip
8		190003810002 [Stud]	Stud
9		Q151B1645TF2 [Screw]	Screw
10		190003888627 [Nut]	Nut
11		199000410039 [Steering knuckle]	Steering knuckle
12		WG9000410033 [Steering arm]	Steering arm
13		Q151B18130TF2 [Cap screw]	Cap screw
15		199100410006 [Knuckle pin]	Knuckle pin
16		1880 410052 [O-ring]	O-ring
17		199100410009 [Bearing bush]	Bearing bush
18		199100410002 [Bush]	Bush
19		Q5210814 [Cyl.pin]	Cyl.pin
20		199000410023 [Shim]	Shim
20		199000410024 [Shim]	Shim
20		199000410025 [Shim]	Shim
20		199000410026 [Shim]	Shim
21		1880 410073 [Bracket]	Bracket
22		Q40314 [Spring washer]	Spring washer
23		Q151B1440 [Screw]	Screw
24		190003963114 [Grease nipple]	Grease nipple
25		190003098026 [Gasket]	Gasket
26		199000410120 [Air breather assembly]	Air breather assembly
27		Q5211626 [Cyl.pin]	Cyl.pin
28		199012410005 [Nut]	Nut
29		1880 410059 [Screw]	Screw
30		199100410003 [Knuckle pin]	Knuckle pin
31		199000410022 [Patch]	Patch
32		1586 340002 [Gasket]	Gasket
33		WG880 410049 [Thrust roller beating]	Thrust roller beating
34		199000410031 [Tie rod arm assembly L.]	Tie rod arm assembly L.
35		199000410032 [Tie rod arm assembly R.]	Tie rod arm assembly R.
36		1880 410029 [Bush]	Bush
37		Q151B1660TF2 [Screw]	Screw
40		1880 410068 [Bush]	Bush
41		199000410021 [Cover]	Cover
42		Q40308 [Spring washer]	Spring washer
43		Q150B0818 [Screw]	Screw
44		190003963114 [Grease nipple]	Grease nipple
45		Q5211635 [Cyl.pin]	Cyl.pin

BRAKE FOR FRONT WHEEL DRIVE AXLE (A10-5) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000440018 [Brake shoe]	Brake shoe
-		199000440027 [Brake lining]	Brake lining
-		199100360059 [Chamber (right)]	Chamber (right)
-		DZ9100440001 [Bracket for chamber (left)]	Bracket for chamber (left)
-		DZ9100440002 [Bracket for chamber (right)]	Bracket for chamber (right)
-		WG9100340057 [Brake adjusting arm (right)]	Brake adjusting arm (right)
1		199112440003 [Brake drum]	Brake drum
2		Q2141020 [Screw]	Screw
3		1880 440019 [Sheet cover]	Sheet cover
4		Q150B0816 [Cap screw]	Cap screw
5		Q40308 [Spring washer]	Spring washer
6		199000440031 [Brake shoe C]	Brake shoe C
7		199000440029 [Brake lining]	Brake lining
8		WG880 340039 [Rivet]	Rivet
9		1880 440006 [Bearing bush]	Bearing bush
10		WG80 440008 [Distance plate]	Distance plate
11		190003872369 [Nut]	Nut
12		Q5005040 [Cotter pin]	Cotter pin
13		AZ910034 0012 [Spring]	Spring
14		1880 44 0032 [Bolt]	Bolt
21		1880 44 0010 [Washer]	Washer
22		1880 34 0023 [Gasket]	Gasket
24		1880 34 0022 [Washer]	Washer
25		1803 2 0046 [Washer]	Washer
25		1880 32 0028 [Adujsting Washer]	Adujsting Washer
25		1880 32 0029 [Adujsting Washer]	Adujsting Washer
25		1880 32 0030 [Adujsting Washer]	Adujsting Washer
26		190003933116 [Circlip]	Circlip
27		199100360058 [Chamber (left)]	Chamber (left)
28		Q41216 [Washer]	Washer
29		Q341B16 [Nut]	Nut
34		1880 340037 [Plug]	Plug
35		1880 440031 [Bearing bush]	Bearing bush
36		1880 440025 [Pin-brake shoe]	Pin-brake shoe
37		1880 440016 [Brake splider L.]	Brake splider L.
38		1880 440018 [Brake splider R.]	Brake splider R.
39		Q40314 [Spring washer]	Spring washer
40		Q151B1455 [Screw]	Screw
41		Q5211220 [Cyl.pin]	Cyl.pin
42		190003963114 [Grease nipple]	Grease nipple
43		1880 440035 [Adapter]	Adapter
44		Q72308T5F [Gasket]	Gasket
45		1880 440020 [Lever l.]	Lever l.
46		1880 440021 [Lever r.]	Lever r.
47		WG9100340017 [Bush]	Bush
48		WG9100340056 [Brake adjusting arm (left)]	Brake adjusting arm (left)
49		Q351B18T15 [Nut]	Nut
50		Q151B1870 [Screw]	Screw
51		190003933300 [Ring]	Ring
52		1880 44 0022 [Bracket-cam shaft]	Bracket-cam shaft
53		1880 44 0026 [Washer]	Washer
53		1880 44 0027 [Washer]	Washer
53		1880 44 0028 [Washer]	Washer
54		AZ9100440012 [Washer]	Washer
55		Q151C1230 [Screw]	Screw
56		190003963114 [Grease nipple]	Grease nipple
57		1880 440023 [Brake camshaft]	Brake camshaft
58		1880 440024 [Brake camshaft]	Brake camshaft
59		199000340027 [Pressure roller]	Pressure roller

INTEGRATED BREATHER (A10-6) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003559563 [Thread adapter]	Thread adapter
2		199000410050 [Tube right]	Tube right
3		199000410051 [Tube left]	Tube left
4		190003559561 [Bush]	Bush
5		190003559516 [Nut]	Nut
6		199000330017 [Pipe]	Pipe
7		Q72312T5F [Gasket]	Gasket
8		1680 330172 [Ventilative plug]	Ventilative plug
9		199000330015 [Linker]	Linker
10		190003098026 [Locking screw]	Locking screw
11		1780 360072 [Tube nip]	Tube nip
12		Q151B1216 [Screw]	Screw
13		Q40312 [Spring washer]	Spring washer
14		190003171697 [Plastic pull strap]	Plastic pull strap
15		138091360181 [Tube nip]	Tube nip
16		161000060211 [Tube]	Tube
17		Q150B0616 [Screw]	Screw
18		Q40506 [Spring washer]	Spring washer
19		Q340B06 [Nut]	Nut

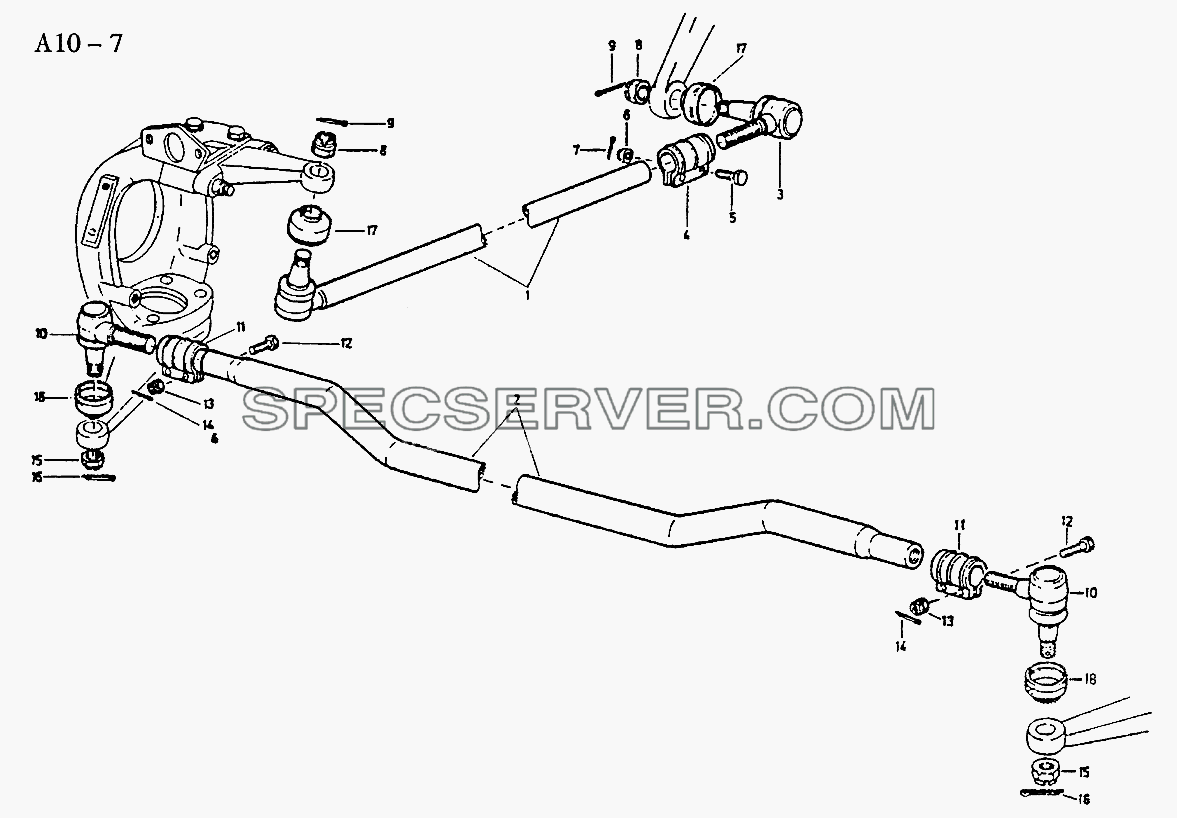

4x4, 6x6 TIE ROD (A10-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9100430021-1 [Tie rod]	Tie rod
2		AZ9100430021 [Tie rod C]	Tie rod C
10		AZ9100430021-4 [Ball joint right]	Ball joint right
11		AZ9100430021-5 [Ball joint left]	Ball joint left
12		AZ9100430021-6 [Clip]	Clip
13		AZ9100430021-7 [Packing bellows]	Packing bellows
15		190003872369 [Nut]	Nut
16		Q5005040 [Split pin]	Split pin
