№		Номер детали	Наименование запчасти
-		1126 306 001 [1/2G.Sliding Pad]	1/2G.Sliding Pad
-		1240 306 242 [Articulat Bolt]	Articulat Bolt
1		115 306 009 [5/6G.Gear Shift Fork]	5/6G.Gear Shift Fork
2		115 206 006 [3/4G.Gear Shift Fork]	3/4G.Gear Shift Fork
3		1268 206 040 [1/2G.Gear Shift Fork]	1/2G.Gear Shift Fork
4		115 306 006 [Sliding Pad]	Sliding Pad
5		0730 300 005 [Spring Washer]	Spring Washer
6		1252 306 077 [Articulat Bolt]	Articulat Bolt
8		1268 306 035 [Sliding Bow]	Sliding Bow
9		1246 206 008 [Dang Link]	Dang Link
10		1269 306 022 [3/4G.Dang Link]	3/4G.Dang Link
11		1268 306 096 [1/2G.Dang Link]	1/2G.Dang Link
12		1240 306 214 [Rg.Gear Shift Fork]	Rg.Gear Shift Fork

S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0637 011 532 [Locking Nut]	Locking Nut
-		1240 307 339 [5/6G.Driver]	5/6G.Driver
1		1250 307 450 [Gear shift Cover]	Gear shift Cover
2		1250 306 182 [Gasket]	Gasket
3		0630 302 091 [Spring Washer B10]	Spring Washer B10
4		0636 010 172 [Hexagon Screw]	Hexagon Screw
5		0636 010 174 [Hexagon Screw]	Hexagon Screw
6		0636 010 200 [Hexagon Screw]	Hexagon Screw
7		0636 010 190 [Hexagon Screw]	Hexagon Screw
8		0636 010 179 [Hexagon Screw]	Hexagon Screw
10		0736 303 005 [Screw Plug]	Screw Plug
11		112 365 064 [Type Plate]	Type Plate
12		0630 603 010 [Locking Platte]	Locking Platte
13		1250 207 254 [Spring loaded screw]	Spring loaded screw
14		0501 203 944 [Switch]	Switch
15		0501 309 183 [Gasket]	Gasket
16		0636 015 020 [Hexagon Screw]	Hexagon Screw
17		1240 307 441 [Plate]	Plate
19		0630 302 090 [Spring washer]	Spring washer
20		0630 015 092 [Hexagon Screw]	Hexagon Screw
22		0635 300 053 [Niddle bearing]	Niddle bearing
25		0636 301 041 [Screw]	Screw
26		1240 307 424 [Cover]	Cover
27		1252 307 060 [Gasket]	Gasket
28		1250 307 600 [Detent Bolt]	Detent Bolt
29		0732 041 244 [Compression Spring]	Compression Spring
30		1240 307 346 [Shaft]	Shaft
31		0730 361 073 [Sealing Cap]	Sealing Cap
33		0735 470 007 [Roller]	Roller
34		115 307 001 [Detent Secment]	Detent Secment
35		1240 307 338 [Driver]	Driver
36		1240 307 374 [Driver]	Driver
37		0631 329 072 [Slotted Spring Pin]	Slotted Spring Pin
38		0631 329 145 [Slotted Spring Pin]	Slotted Spring Pin
39		0730 061 091 [Stop Bush]	Stop Bush
40		0630 532 138 [V-Ring]	V-Ring
41		0730 104 083 [Washer]	Washer
42		0730 001 156 [Washer]	Washer
43		0732 040 022 [Compression Spring]	Compression Spring
44		0732 040 237 [Compression Spring]	Compression Spring
45		0501 204 714 [Ball Joint]	Ball Joint
49		1240 207 113 [Connect Ion Part]	Connect Ion Part
50		0637 011 527 [Locking Nut]	Locking Nut
51		0732 107 019 [Ball joint (left)]	Ball joint (left)
52		0637 006 091 [Hexagon Nut]	Hexagon Nut
53		0736 620 056 [Draw Bar]	Draw Bar
54		0637 006 027 [Hexagon Nut]	Hexagon Nut
55		0732 107 018 [Ball joint (left)]	Ball joint (left)
56		1269 307 350 [Support Plate]	Support Plate
57		0630 001 014 [Washer]	Washer
58		0636 010 192 [Hexagon Screw]	Hexagon Screw
67		1250 307 634 [Gear Shift Housing]	Gear Shift Housing
79		1240 307 433 [Gear shift Lever]	Gear shift Lever
80		1238 307 411 [Gear shift Shaft]	Gear shift Shaft
81		0636 010 159 [Protecting Cap]	Protecting Cap
82		0637 006 102 [Hexagon Screw]	Hexagon Screw
83		1250 307 662 [Hexagon Nut]	Hexagon Nut
84		0635 300 053 [Needle Sleeve]	Needle Sleeve
86		0634 300 302 [Shaft Seal]	Shaft Seal
89		0634 307 367 [Rod Wiper]	Rod Wiper
91		0732 612 005 [Breather]	Breather

5S-111GP, 5S-150GP, 4S-130GP GEARBOX HOUSING (A6-1) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
4		1269301125 [Transm.Housing]	Transm.Housing
11		0736301022 [Screw plug]	Screw plug
13		0736305016 [Screw plug]	Screw plug
43		0634801044 [Seal ring]	Seal ring
44		0636302016 [Screw plug]	Screw plug
46		0730361103 [Sealing cover]	Sealing cover
51		0501202407 [Suction otrainer]	Suction otrainer
54		0630531387 [Triangular ret.]	Triangular ret.
55		1269301124 [Injector tube]	Injector tube
75		0636301048 [Screw plug]	Screw plug
76		0736303005 [Screw plug]	Screw plug
80		2159107502(B) [Bracket C]	Bracket C
81		2159207003(B) [Bracket]	Bracket
82		2159307002 [Plate]	Plate
83		2159307001 [Pin]	Pin
84		2159307007 [Bracket]	Bracket
85		2159307004 [Pin]	Pin
86		2159107002(S) [Pneu.assist.Operating]	Pneu.assist.Operating
87		2159307006 [Lever]	Lever
88		0627207001 [Assist.power cylinder]	Assist.power cylinder
89		2159207003 [Bracket]	Bracket
90		Q150B1225 [Screw]	Screw
91		Q40312 [Washer]	Washer

CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1096302089 [Clutch Housing]	Clutch Housing
1		2159302008 [Clutch Housing]	Clutch Housing
2		Q151B1895TF2 [Screw]	Screw
3		1096302076 [Bearing]	Bearing
4		312322002 [Screw]	Screw
5		0634801152 [Gasket]	Gasket
6		99012210065 [Hose]	Hose
7		109301075 [Nozzel joint]	Nozzel joint
8		Q700B01 [Grease nippel]	Grease nippel
9		1156302010 [Fork]	Fork
9		2159302009 [Fork]	Fork
10		1156302011 [Screw]	Screw
11		1156302013 [Spring]	Spring
12		1156302014 [Spring]	Spring
13		2159202001 [Fork Shaft]	Fork Shaft
13		2159302013 [Fork Shaft]	Fork Shaft
14		1156302006 [Cotter]	Cotter
15		1156302012 [Bush]	Bush
15		2159302012 [Bush]	Bush
16		108302062 [Gasket]	Gasket
17		108302052 [Plate]	Plate
17		2159302052 [Plate]	Plate
18		0636015020 [Screw]	Screw
19		2159302011 [Bracket]	Bracket
20		116302027 [Snap ring]	Snap ring

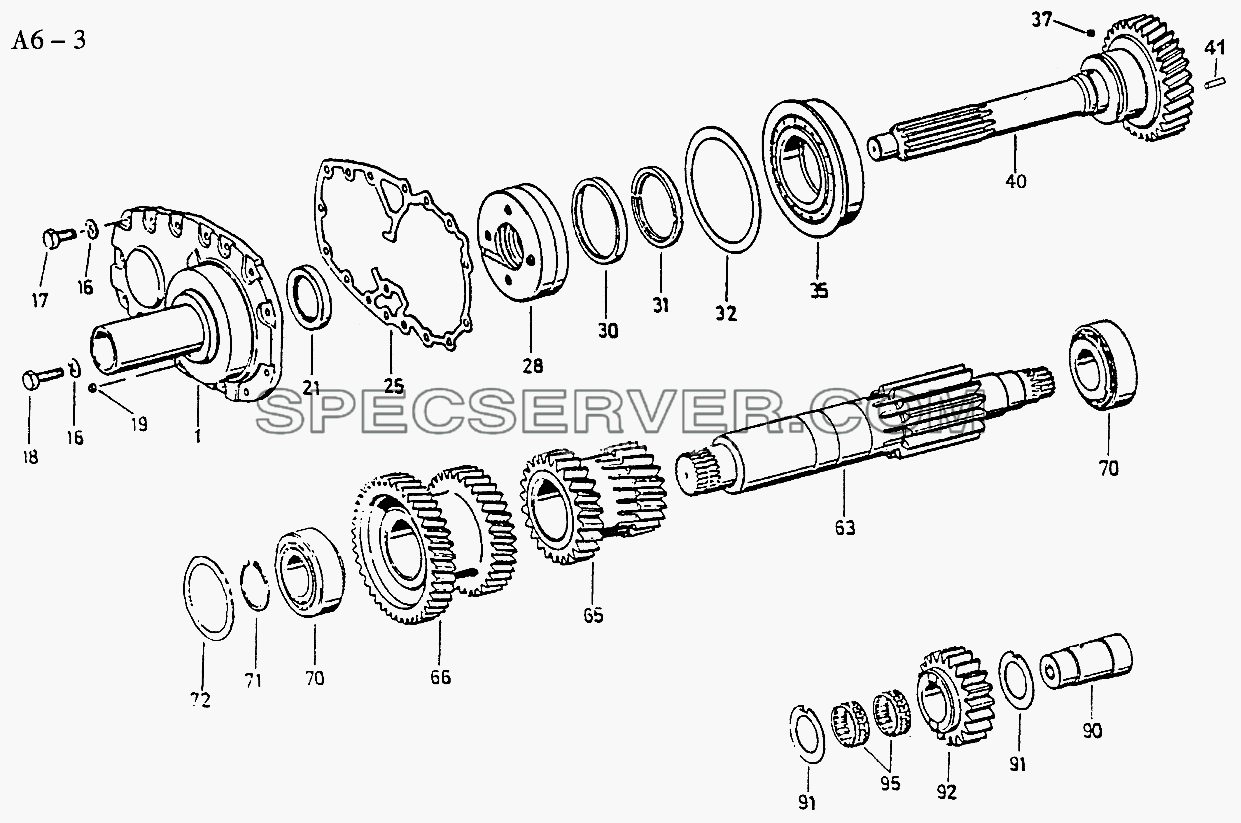

5S-111GP, 5S-150GP, 4S-130GP INPUTSHAFT, LAYSHAFF AND WHEELS (A6-3) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269302159 [Cover]	Cover
1		1269302275 [Cover]	Cover
1		2159302003 [Cover]	Cover
17		0636015110 [Screw]	Screw
18		0636015120 [Screw]	Screw
19		0630361065 [Plug]	Plug
21		0734310110 [Shaft seal]	Shaft seal
21		0750111002 [Shaft seal]	Shaft seal
25		1269302161 [Gasket]	Gasket
26		1269202027 [Pump]	Pump
26		1269202104 [Pump]	Pump
30		0730061890 [Locking ring]	Locking ring
31		0769145010 [Spilt ring]	Spilt ring
32		0730102503 [Spacer dise series]	Spacer dise series
32		0769140013 [Spacer dise series]	Spacer dise series
35		0735410237 [Roller bearing]	Roller bearing
35		0750118129 [Roller bearing]	Roller bearing
35		0750118129-1 [Roller bearing]	Roller bearing
37		0635470012 [Cyl.roller]	Cyl.roller
40		1269296912 [Input shaft set]	Input shaft set
40		2128221001 [Drive shaft set]	Drive shaft set
40		2128221002 [Drive shaft set]	Drive shaft set
40		2159303004 [Input shaft set]	Input shaft set
63		1292303004 [Lay shaft]	Lay shaft
63		1292303004-1 [Lay shaft]	Lay shaft
63		2128303006 [Lay shaft]	Lay shaft
65		1292303006 [Gear 1-2gear]	Gear 1-2gear
65		1292303006 [Gear 1-2gear]	Gear 1-2gear
65		2159303002 [Gear 1-2gear]	Gear 1-2gear
66		1292303005 [Gear 3, 4 gear]	Gear 3, 4 gear
66		2128303001 [Double gear]	Double gear
66		2128303008 [Double gear]	Double gear
66		2159303003 [Gear 3, 4 gear]	Gear 3, 4 gear
70		0735370011 [Roller bearing]	Roller bearing
70		0750117010 [Roller bearing]	Roller bearing
71		0769144033 [Locking ring]	Locking ring
72		1269140004 [Spacer disc]	Spacer disc
90		1269305003 [Reverse gear]	Reverse gear
91		0730150064 [Guard plate]	Guard plate
92		1292305002 [Reverse gear]	Reverse gear
92		2128305001 [Reverse gear]	Reverse gear
95		0735320492 [Needle roller bearing]	Needle roller bearing
95		0750115011 [Needle roller bearing]	Needle roller bearing

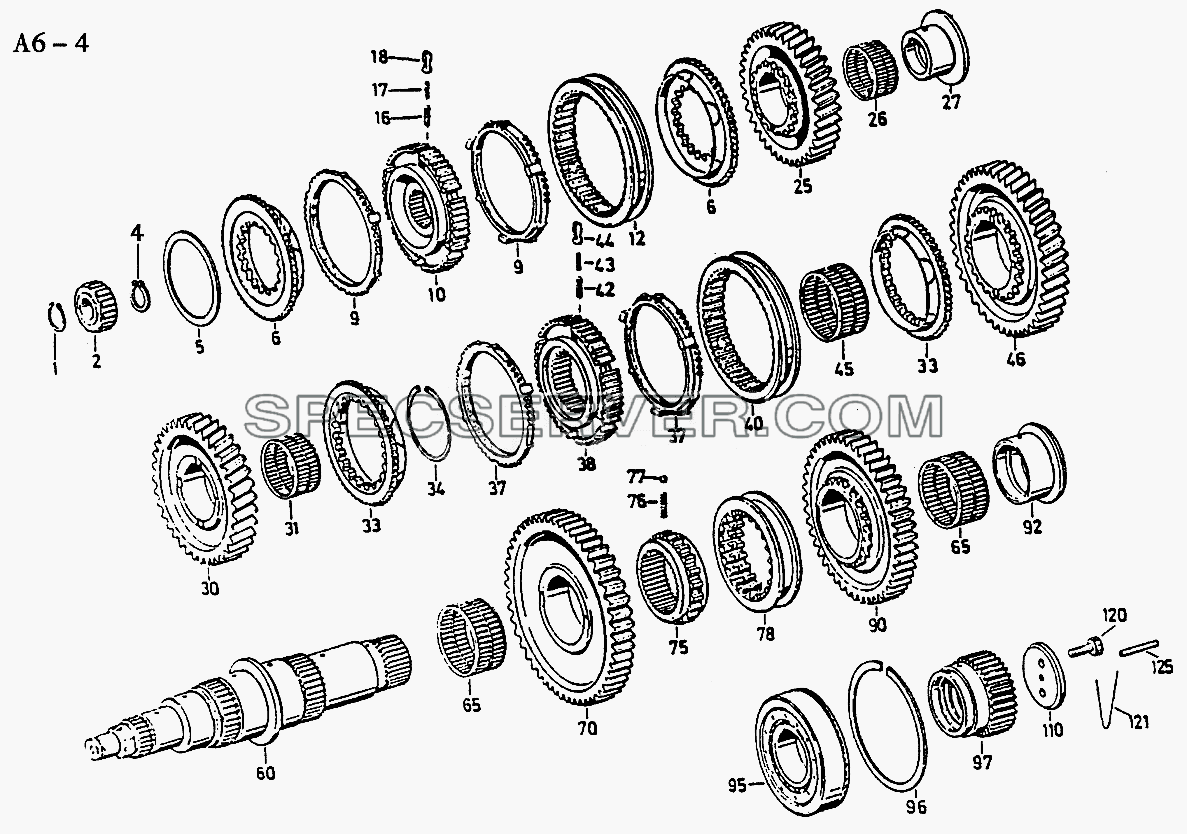

5S-111GP, 5S-150GP, 4S-130GP MAIN SHAFT AND WHEELS (A6-4) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		2159304012 [Sleeve]	Sleeve
-		K808835 [Needle bearing rev. gear]	Needle bearing rev. gear
1		0630501028 [Locking ring]	Locking ring
2		0570304002 [Roller bearing]	Roller bearing
2		0735355014 [Roller bearing]	Roller bearing
2		0750116019 [Roller bearing]	Roller bearing
4		0769144033 [Circlip]	Circlip
5		0769140115 [Washer]	Washer
6		1268304142 [Clutch hub 4th gear]	Clutch hub 4th gear
6		1269304196 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
6		1310302045 [Clutch hub 3, 4 gear]	Clutch hub 3, 4 gear
7		1250304292 [Clutch hub 3rd gear]	Clutch hub 3rd gear
9		1268304594 [Synchr. ring]	Synchr. ring
9		1272304076 [Synchr. ring]	Synchr. ring
10		1268304143 [Detend]	Detend
10		1292304041 [Detend 3, 4 gear]	Detend 3, 4 gear
10		1310304158 [Detend 3, 4 gear]	Detend 3, 4 gear
12		1272304077 [Sliding sleeve]	Sliding sleeve
12		1310304195 [Sliding sleeve]	Sliding sleeve
16		0732040385 [Helical spring]	Helical spring
16		1311304021 [Helical spring]	Helical spring
17		0732040386 [Helical spring]	Helical spring
18		1240304278 [Pressure piece]	Pressure piece
18		1311304020 [Pressure piece]	Pressure piece
25		1292304047 [Gear 3rd gear]	Gear 3rd gear
25		2128304001 [Helical gear]	Helical gear
25		2129304005 [Gear 3rd gear]	Gear 3rd gear
26		0735320314 [Needle bearing 3rd gear]	Needle bearing 3rd gear
26		0735320499 [Needle bearing 3rd gear]	Needle bearing 3rd gear
27		115304009 [Bush]	Bush
27		1269304197 [Bush]	Bush
27		2159304010 [Bush]	Bush
30		1292304046 [Gear 2nd gear]	Gear 2nd gear
30		2128304016 [Helical gear]	Helical gear
30		2159304004 [Gear 2nd gear]	Gear 2nd gear
31		0735320418 [Needle cage]	Needle cage
31		0735320465 [Needle beating 2nd gear]	Needle beating 2nd gear
31		K808840 [Needle beating 2nd gear]	Needle beating 2nd gear
33		1250304351 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
33		1312304027 [Clutch hub 1, 2 gear]	Clutch hub 1, 2 gear
34		115144034 [V-ring]	V-ring
37		1272304076 [Synchr.ring]	Synchr.ring
37		1297304402 [Synchr.ring]	Synchr.ring
38		115304045 [Detend]	Detend
38		1292304052 [Detend 1st-2nd gear]	Detend 1st-2nd gear
38		2159304011 [Detend 1st-2nd gear]	Detend 1st-2nd gear
40		1240304375 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
40		1272304077 [Sliding sleeve]	Sliding sleeve
40		1312302057 [Sliding sleeve 1, 2 gear]	Sliding sleeve 1, 2 gear
42		0732040385 [Helical spring]	Helical spring
42		1311304021 [Helical spring]	Helical spring
43		0732040386 [Helical spring]	Helical spring
44		1240304278 [Pessure piece]	Pessure piece
44		1311304020 [Pessure piece]	Pessure piece
45		0735320401 [Needle bearing 1st gear]	Needle bearing 1st gear
45		0735320418 [Needle beating 1st gear]	Needle beating 1st gear
46		1292304045 [Gear 1st gear]	Gear 1st gear
46		2128304017 [Gear 1st gear]	Gear 1st gear
46		2159304003 [Gear 1st gear]	Gear 1st gear
60		1292304069 [Main shaft]	Main shaft
60		2128304007 [Main shaft]	Main shaft
60		2159304001 [Main shaft]	Main shaft
65		0735320466 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
65		K808840 [Needle bearing slow gear]	Needle bearing slow gear
65		K909822.5 [Needle bearing low, rev. gear]	Needle bearing low, rev. gear
70		1292304018 [Gear slow gear]	Gear slow gear
70		2159304014 [Gear slow gear]	Gear slow gear
75		1292304026 [Detend low. rev. gear]	Detend low. rev. gear
75		2159304015 [Detend low. rev. gear]	Detend low. rev. gear
76		0732040497 [Spring]	Spring
77		0635460010 [Ball]	Ball
78		1292304025 [Sliding sleeve]	Sliding sleeve
78		2128304006 [Sliding sleeve]	Sliding sleeve
78		2159304017 [Sliding sleeve slow-rev. gear]	Sliding sleeve slow-rev. gear
90		1292304017 [Gear reveser gear]	Gear reveser gear
90		2128304005 [Gear reveser gear]	Gear reveser gear
90		2159304016 [Gear reveser gear]	Gear reveser gear
92		1292304027 [Bush]	Bush
92		2159304009 [Bush]	Bush
95		0528304001 [Roller bearing]	Roller bearing
95		0750115081 [Roller bearing]	Roller bearing
95		2159304013 [Roller bearing]	Roller bearing
96		0630503020 [Snap ring]	Snap ring
96		115144034 [Snap ring]	Snap ring
97		1269304055 [Sun gear]	Sun gear
97		1286304022 [Sun gear]	Sun gear
110		1269304070 [Washer]	Washer
110		2128304010 [Washer]	Washer
120		0630015195 [Screw]	Screw
121		0666890004 [Wire]	Wire
125		0730061842 [Pipe]	Pipe
