№		Номер детали	Наименование запчасти
-		A-C03001 [Double H operation C]	Double H operation C
-		A-C03001-1 [Double H operation C]	Double H operation C
-		JS100-1703012 [Pin]	Pin
1		F96194 [Housing]	Housing
1		JS100-1702051 [Housing]	Housing
2		F91345 [Sliding bearing]	Sliding bearing
3		F91444 [Oil seal]	Oil seal
4		F99983 [Spring]	Spring
5		F99673 [Spring seat]	Spring seat
6		F99679 [Gear shift shaft]	Gear shift shaft
6		JS100-1702017 [Gear shift shaft]	Gear shift shaft
7		F99675 [Stop ring]	Stop ring
8		Q5000635 [Flexibility column pin]	Flexibility column pin
9		F99585 [Plug]	Plug
9		JS100A-1702072 [Plug]	Plug
10		C03030 [Pin]	Pin
10		JA100A-1702073 [Pin]	Pin
11		F99674 [Washer]	Washer
12		C03004 [Screw]	Screw
13		F99672 [Gasket]	Gasket
14		F99666 [Board]	Board
15		M8x12 [Screw]	Screw
16		F99670 [Plug]	Plug
17		F96037 [Spring]	Spring
18		F96140 [Gasket]	Gasket
19		F96141 [Cover]	Cover
20		M8x12 [Bolt]	Bolt
21		Q40108 [Washer]	Washer
22		99012710041 [Switch]	Switch
22		Q61518 [Plug]	Plug
23		17179 [Gasket]	Gasket
24		15900 [Gasket]	Gasket
25		15917 [Plug]	Plug
26		15276 [Plug]	Plug
27		Q61302 [Plug]	Plug
28		F99669 [Cover]	Cover
29		F96035 [LRC shift pole]	LRC shift pole
30		M10x1x50 [Bolt]	Bolt
31		Q40310 [Washer]	Washer
32		M10x1x50 [Screw]	Screw
33		Q72224 [Plug]	Plug
34		F91353 [Joint]	Joint
35		F99660 [Double H valve]	Double H valve
36		M6x18 [Screw]	Screw
37		7935 [Plug]	Plug
38		55518 [Pipe]	Pipe
39		55522 [Pipe]	Pipe
40		F96036 [Spring]	Spring
41		12881 [Nozzle]	Nozzle
42		12880 [Joint]	Joint
43		12769 [Joint]	Joint
44		F99702 [Pin]	Pin
45		15899 [Pin]	Pin
46		55523 [Pipe]	Pipe
47		F99681 [Control block for reverse switch]	Control block for reverse switch
47		JS100-1702052 [Control block for reverse switch]	Control block for reverse switch
48		M10x1 [Nut]	Nut
49		M10x1 [Nut]	Nut
50		79100710068 [Reverse switch]	Reverse switch
51		C03015 [Gasket]	Gasket
52		15917 [Plus]	Plus
54		C03015 [Gasket]	Gasket

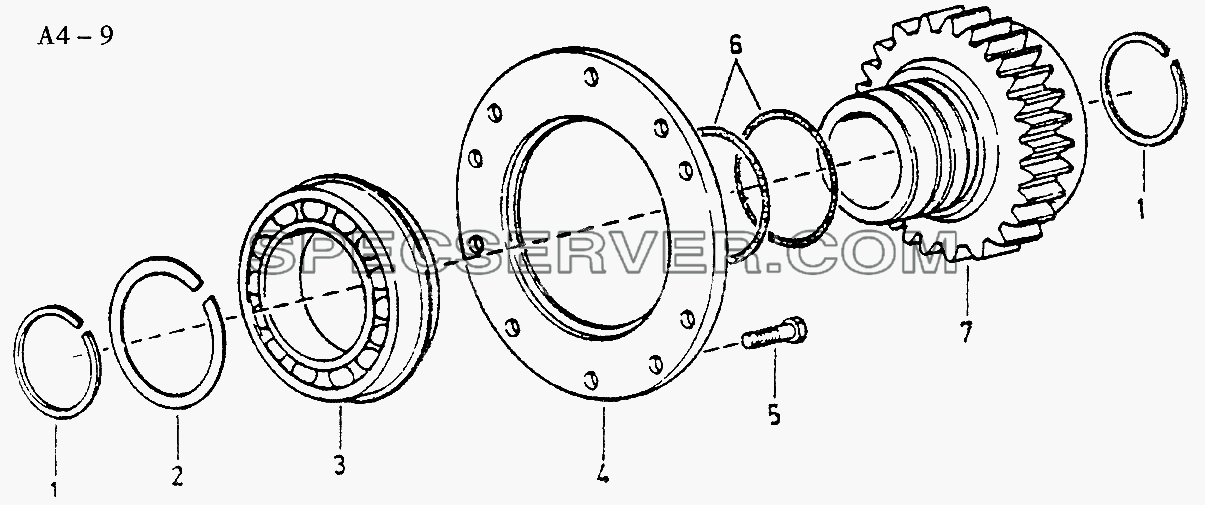

Fuller aux. Gearbox DRIVE GEAR (A4-9) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-C09002 [Drive gear housing C]	Drive gear housing C
-		JS180T-1707025 [Drive gear housing C]	Drive gear housing C
1		16763 [Snap ring]	Snap ring
2		16628 [Snap ring]	Snap ring
3		50118 [Bearing]	Bearing
3		C01019 [Locking ring]	Locking ring
4		16138 [Retainer]	Retainer
5		M10x22 [Screw]	Screw
7		18869 [Drive gear]	Drive gear
7		19254 [Drive gear]	Drive gear
7		19275 [Drive gear]	Drive gear
7		JS180-1707030 [Drive gear]	Drive gear
7		JS180T- 1707030 [Drive gear]	Drive gear

Fuller aux. Gearbox OUTPUT SHAFT (A4-10) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		F99882 [Main shaft]	Main shaft
1		JS180-1707105 [Main shaft]	Main shaft
2		14332 [Main shaft washer]	Main shaft washer
2		JS180-1707107 [Main shaft washer]	Main shaft washer
3		14331 [Main shaft washer]	Main shaft washer
4		19165 [Release gear]	Release gear
4		19665 [Release gear]	Release gear
4		19726 [Release gear]	Release gear
4		JS100T-1707121 [Release gear]	Release gear
4		JS130T-1707121 [Release gear]	Release gear
4		JS180-1707106 [Release gear]	Release gear
4		JS180T-1707121 [Release gear]	Release gear
5		F14327 [Snap ring]	Snap ring
6		19466 [Washer]	Washer
6		JS180-1707108 [Washer]	Washer
7		F96006 [Flange nut]	Flange nut

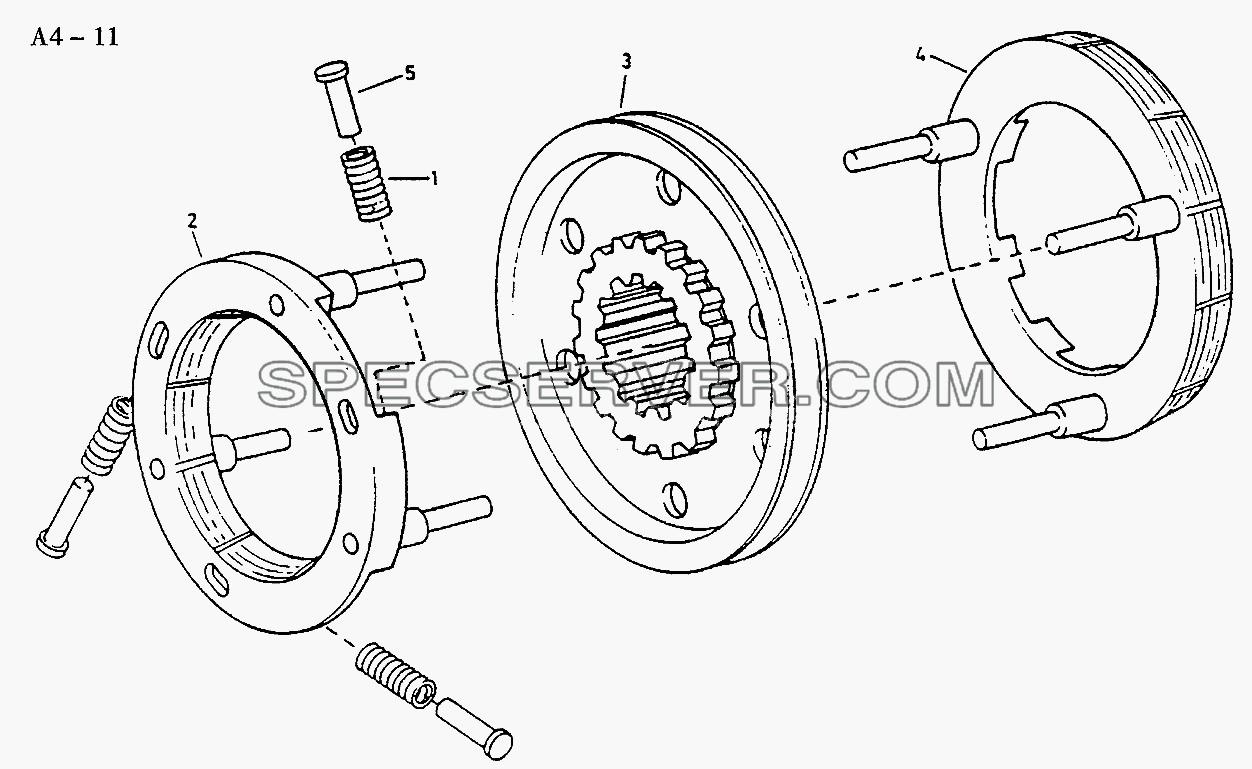

Fuller SYNCHRONISATION (A4-11) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-5056 [Synchronization]	Synchronization
1		14897 [Spring]	Spring
2		A-4938 [Syn.high gear]	Syn.high gear
2		JS130T-1701150 [Syn.high gear]	Syn.high gear
3		20323 [Sleeve]	Sleeve
4		A-4937 [Syn.low gear]	Syn.low gear
4		JS130T-1701140 [Syn.low gear]	Syn.low gear
5		19154 [Spring uidance]	Spring uidance

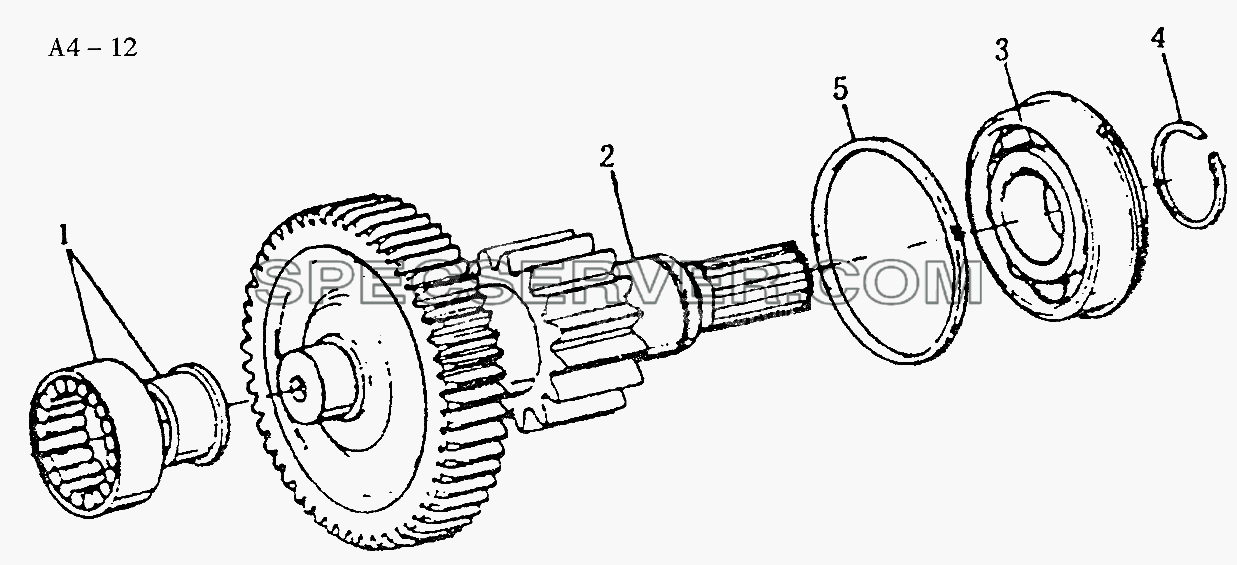

Fuller Aux.gearbox LAYSHAFT (A4-12) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		42307E [Bearing]	Bearing
2		18222 [Long lay shaft]	Long lay shaft
2		18870 [Driven gear]	Driven gear
2		19255 [Driven gear]	Driven gear
2		19276 [Driven gear]	Driven gear
2		19998 [Long lay shaft]	Long lay shaft
2		20002 [Long lay shaft]	Long lay shaft
2		JS130T-1707047 [Long lay shaft C]	Long lay shaft C
2		JS180-1707053 [Long lay shaft]	Long lay shaft
2		JS180T-1707048 [Long lay shaft]	Long lay shaft
2		JS180T-1707049 [Driven gear]	Driven gear
3		192310E [Learing]	Learing
3		192311E [Learing]	Learing
4		16723 [Snap ring]	Snap ring
5		17384 [Ring]	Ring
5		C01020 [Snap ring]	Snap ring

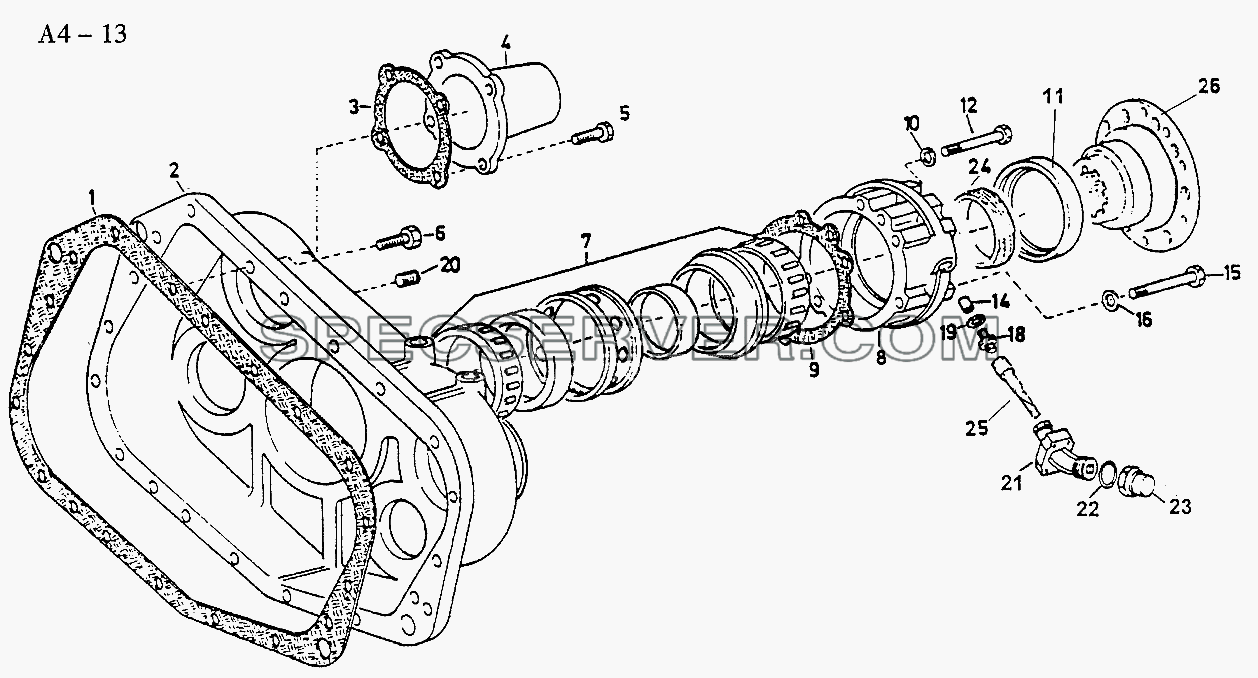

Fuller REAR COVER (A4-13) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		14335 [Gasket]	Gasket
2		F99975 [Housing]	Housing
2		JS130T-1707010 [Housing]	Housing
2		JS180-1701015 [Housing]	Housing
3		17352 [Gasket]	Gasket
4		17376 [Bearing cover]	Bearing cover
5		A-C09008 [Screw]	Screw
6		M10x45 [Screw]	Screw
6		M10x50 [Screw]	Screw
7		71813 [Bearing]	Bearing
7		JS180-1707109 [Bearing]	Bearing
8		F99967 [Bearing cover]	Bearing cover
8		JS180-1707155 [Bearing cover]	Bearing cover
9		15532 [Gasket]	Gasket
10		Q40310 [Washer]	Washer
11		19109 [Oil seal]	Oil seal
12		M10x70 [Screw]	Screw
14		7992 [Bush]	Bush
15		M10x70 [Screw]	Screw
16		17016 [Gasket]	Gasket
16		19709 [Gasket]	Gasket
18		F93060 [Joint]	Joint
19		F96005 [Gasket]	Gasket
21		116E-3802032 [Joint]	Joint
24		F91054 [Drive gear]	Drive gear
25		F91055 [Drive gear]	Drive gear
26		F99900 [Plane flange(option)]	Plane flange(option)
26		F99900-1 [Toothed flange(option)]	Toothed flange(option)
26		F99902 [Plane flange(option)]	Plane flange(option)
26		F99902-5 [Plane flange(option)]	Plane flange(option)
26		JS180-1707159 [Toothed flange(option)]	Toothed flange(option)
26		JS180-1707159-1 [Toothed flange(option)]	Toothed flange(option)
