№		Номер детали	Наименование запчасти
-		AZ9112550120 [Return line]	Return line
-		Q72314T5F [Gasket]	Gasket
-		WG9112550002-1 [Prefilter]	Prefilter
1		WG9100550120 [Fuel tank]	Fuel tank
2		WG9100550101 [Fuel gauge]	Fuel gauge
3		199100550101 [Cover]	Cover
4		199100550006 [Support]	Support
4		BZ9112550050 [Support]	Support
5		199100550009 [Base]	Base
6		Q150B1445 [Screw]	Screw
7		19000388458 [Nut]	Nut
8		Q40314 [Spring washer]	Spring washer
9		WG9100550011 [Strap]	Strap
10		WG9100550081 [Base]	Base
11		Q33210 [Nut]	Nut
12		Q5101075 [Bolt]	Bolt
13		Q40110 [Washer]	Washer
14		Q5003214 [Split pin]	Split pin
15		WG9014230017 [Joint]	Joint
16		190003962621 [Screw]	Screw
17		Q33210 [Nut]	Nut
18		AZ9112550120 [Suction line]	Suction line
19		WG9112550002 [Feul fielter C]	Feul fielter C
20		190003171393 [Cable wrench]	Cable wrench
21		199000770296 [Cilps]	Cilps

380L FUEL TANK (B1-6) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9112550002-1 [Profiter]	Profiter
1		WG9112550001 [Fuel tank]	Fuel tank
2		WG9114550125 [Fuel gauge]	Fuel gauge
3		AZ9112550121 [Pipe]	Pipe
4		190003179030 [Base]	Base
5		WG9114550292 [Support]	Support
6		199100550012 [Plate]	Plate
6		199114550293 [Plate]	Plate
7		Q151B1650TF2 [Screw]	Screw
8		190003888627 [Nut]	Nut
9		199114550012 [Base]	Base
9		WG9114550113 [Base]	Base
10		WG9114550011 [Strap]	Strap
11		WG9100550089 [Base]	Base
12		190003962621 [Screw]	Screw
13		Q33210 [Nut]	Nut
14		190003903197 [Bolt]	Bolt
14		Q5101070 [Bolt]	Bolt
15		Q40110 [Washer]	Washer
16		Q5003214 [Split pin]	Split pin
17		WG9114550015 [Base]	Base
18		AZ9112550120 [Suction line]	Suction line
19		AZ9112550120 [Return line]	Return line
20		WG9014230017 [Joint]	Joint
21		Q150B1060 [Screw]	Screw
22		Q72314T5F [Gasket]	Gasket
23		Q33210 [Nut]	Nut
24		WG9112550002 [Fuel filter C]	Fuel filter C
25		199000770296 [Clips]	Clips
26		190003171697 [Cable binder]	Cable binder
30		WG9100558002 [Change valve]	Change valve
31		WG9130580190 [Change switch]	Change switch

400L FUEL TANK (B1-7) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9114550042 [Fuel tank]	Fuel tank
2		AZ9114550043 [Support]	Support
2		WG9114550041 [Support]	Support
3		AZ9118550014 [Base]	Base
4		AZ9112550121 [Pipe]	Pipe
5		AZ9224550001 [Plate]	Plate
6		Q151B1655TF2 [Screw]	Screw
7		190003888627 [Nut]	Nut
8		WG9118550016 [Tension strap]	Tension strap
9		190003888457 [Nut]	Nut
10		Q5101670 [Bolt]	Bolt
11		Q40016 [Washer]	Washer
12		Q5004028 [Split pin]	Split pin
13		190003171697 [Cable wrench]	Cable wrench
14		WG9014230017 [Joint]	Joint
15		190003962621 [Screw]	Screw
16		Q72314T5F [Washer]	Washer
17		Q33210 [Nut]	Nut
18		AZ9112550120 [Suction line]	Suction line
19		AZ9112550120 [Return line]	Return line
20		WG9112550002 [Fuel filter C]	Fuel filter C
21		WG9112550002-1 [Pre filter]	Pre filter

380L FUEL TANK FROM AL (B1-8) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1397 350169 [Angle]	Angle
-		Q340806 [Nut]	Nut
-		Q40106 [Washer]	Washer
-		WG9100360134 [Climp]	Climp
-		WG9112550002-1 [Profilter]	Profilter
1		AZ9112550210 [Fuel tank]	Fuel tank
2		AZ9112550220 [Support]	Support
3		199112550128 [Plate]	Plate
4		Q150B165TF2 [Screw]	Screw
5		190003888627 [Nut]	Nut
6		AZ9112550226 [Base]	Base
7		AZ9112550225 [Strap]	Strap
8		AZ9112550227 [Tension bolt]	Tension bolt
9		AZ9112550228 [Tension bolt]	Tension bolt
10		AZ9112550229 [Tension bolt]	Tension bolt
11		AZ9112550230 [Screw]	Screw
12		WG9014230017 [Joint]	Joint
13		190003962621 [Screw]	Screw
14		Q72314T5F [Washer]	Washer
15		Q33210 [Nut]	Nut
16		AZ9112550120 [Suction line]	Suction line
17		AZ9112550120 [Return line]	Return line
18		AZ9112550121 [Pipe]	Pipe
19		WG9112550002 [Fuel filter C]	Fuel filter C
20		190003171697 [Cable binder]	Cable binder

EXHAUST PIPING FOR FRAME HEIGHT 243MM (B1-9) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9112540015 [Gasket]	Gasket
2		AZ9100540320 [Exhaust pipe(cast)]	Exhaust pipe(cast)
2		AZ9112540255 [Exhaust pipe]	Exhaust pipe
3		Q150B1045Q [Screw]	Screw
4		Q33210 [Nut]	Nut
5		AZ9112540147 [Corrugated flexibie metal tube]	Corrugated flexibie metal tube
6		199112540146 [Angle]	Angle
7		Q150B1030 [Screw]	Screw
8		199112540162 [Clamp]	Clamp
9		AZ9100540321 [Exhaust pipe]	Exhaust pipe
9		WG9100540200 [Exhaust pipe]	Exhaust pipe
10		WG9112540161 [Clamp]	Clamp
11		Q150B1040 [Screw]	Screw
12		190003999960 [Pipe clamp]	Pipe clamp
13		WG9000540061 [Clamp]	Clamp
14		WG9112540137 [Bracket]	Bracket
15		Q150B1035 [Screw]	Screw
16		WG9112540002 [Muffler]	Muffler
16		WG9112540003 [Muffler]	Muffler
17		Q33208 [Nut]	Nut
18		Q150B0830 [Screw]	Screw
19		WG9000540064 [Fixing strap]	Fixing strap
20		199112540140 [Sheet]	Sheet
21		Q150B1025 [Screw]	Screw
22		Q40310 [Spring washer]	Spring washer
23		WG84D 410007 [Rubber cushion]	Rubber cushion
24		Q150B1022 [Screw]	Screw
25		Q150B1018 [Screw]	Screw
26		199100540144 [Bracket]	Bracket
27		199112540113 [Pipe clamp]	Pipe clamp
27		WG9112540329 [Pipe clamp]	Pipe clamp
28		AZ9112540490 [Tail pipe]	Tail pipe
28		WG9112540040 [Tail pipe]	Tail pipe
28		WG9112540105 [Tail pipe]	Tail pipe
29		AZ9100540320-1 [Operating cylinder]	Operating cylinder

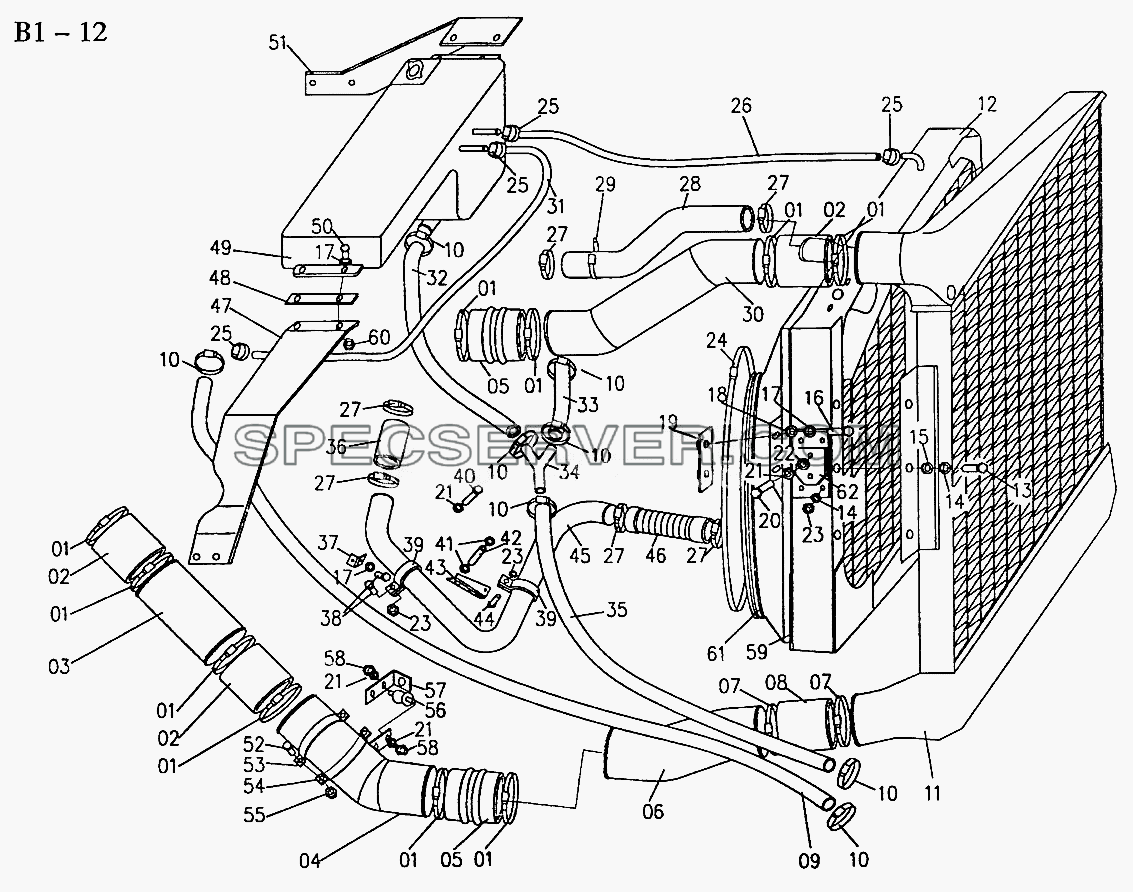

COOLING SYSTEM FOR WD615.62/87(EXPANSION TANK ON THE ENGINE) (B1-12) для Sinotruk 6x6 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003989315 [Clamp]	Clamp
2		WG9112530148 [Hose]	Hose
3		199112530008 [Pipe]	Pipe
3		AZ9112531051 [Pipe]	Pipe
4		199112530049 [Pipe]	Pipe
5		WG9112530188 [Hose Joint]	Hose Joint
6		199112530047 [Pipe]	Pipe
7		190003989318 [Clamp]	Clamp
8		WG9112530149 [Hose]	Hose
9		WG1600840031 [Hose]	Hose
10		1900043989301 [Clamp]	Clamp
11		WG9112530237 [Aftercooler]	Aftercooler
11		WG9112530269 [Aftercooler]	Aftercooler
12		WG9112530323 [Radiator]	Radiator
12		WG9112530385 [Radiator]	Radiator
13		Q150B0816 [Bolt]	Bolt
14		Q40008 [Washer]	Washer
15		Q41208 [Spring washer]	Spring washer
16		Q150B0820 [Bolt]	Bolt
17		Q40308 [Spring washer]	Spring washer
18		Q40108 [Plain washer]	Plain washer
19		1780 530009 [Fastening rail]	Fastening rail
20		Q150B1018 [Bolt]	Bolt
21		Q40310 [Spring washer]	Spring washer
22		Q40110 [Plain washer]	Plain washer
23		Q33208 [Check nut]	Check nut
24		190003980204 [Clamp]	Clamp
25		190003989300 [Clamp]	Clamp
26		WG9114530138 [Hose]	Hose
27		190003989308 [Clamp]	Clamp
28		WG9100530130 [Hose]	Hose
29		190003171697 [Wire fastener]	Wire fastener
30		199112530302 [Pipe]	Pipe
31		WG9114530139 [Hose]	Hose
32		WG9112530451 [Hose]	Hose
33		WG9112530470 [Hose]	Hose
34		WG9100530126 [Junction pipe]	Junction pipe
35		WG9112530451 [Hose]	Hose
35		WG9112530469 [Hose]	Hose
36		WG1000060237 [Hose]	Hose
37		199112530315 [Bracket]	Bracket
38		Q150B0830 [Bolt]	Bolt
39		190003990005 [Clamp]	Clamp
40		Q150B0875 [Bolt]	Bolt
41		190003932961 [Washer]	Washer
42		135700730116 [Spacer sleeve]	Spacer sleeve
43		199100530146 [Bracket]	Bracket
44		Q150B0850 [Bolt]	Bolt
45		199100530145 [Water pipe]	Water pipe
46		199114530117 [Hose]	Hose
47		AZ9112530401 [Right bracket]	Right bracket
47		AZ9619530401 [Right bracket]	Right bracket
48		AZ9112530402 [Shim]	Shim
49		WG9112530355 [Expansion tank]	Expansion tank
50		Q150B0825 [Bolt]	Bolt
51		AZ9112530475 [Left bracket]	Left bracket
51		AZ9619530002 [Left bracket]	Left bracket
52		Q150B1030 [Bolt]	Bolt
53		WG9112540161 [Clamp]	Clamp
54		199112530118 [Bracket]	Bracket
55		Q33210 [Cheek nut]	Cheek nut
56		WG80A 540083 [Rubber cushion]	Rubber cushion
57		199112530117 [Bracket]	Bracket
58		Q340B10 [Nut]	Nut
59		190003129804 [Seal belt]	Seal belt
60		Q340B08 [Nut]	Nut
61		WG9112530313 [Shroud]	Shroud
61		WG9112530700 [Shroud]	Shroud
62		199100530161 [Rubber cushion]	Rubber cushion
