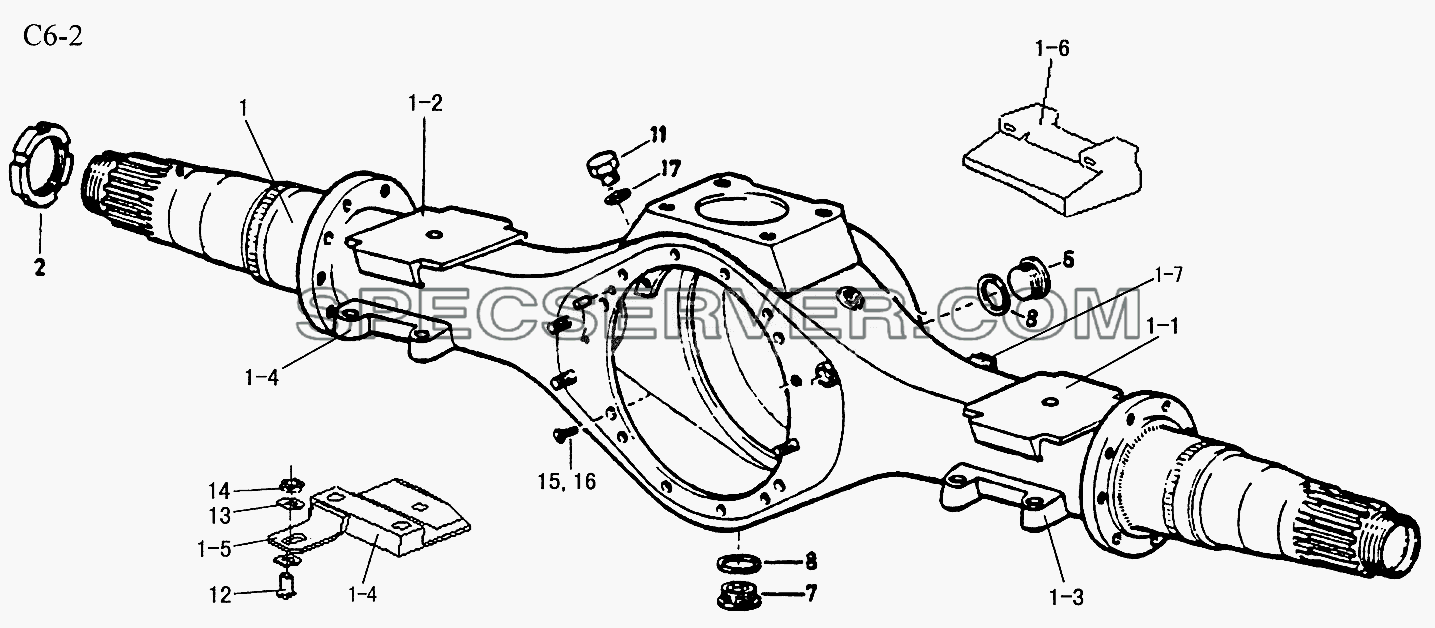

Запчасти: REAR AXLE HOUSING (C6-2) для Sinotruk 6x4 Tractor (371)

REAR AXLE HOUSING (C6-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

REAR AXLE HOUSING (C6-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330015 [Bracket for stabilizer] Bracket for stabilizer
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS216120 [Screw] Screw
1 AZ9761330065 [HW1667 single rear axle housing] HW1667 single rear axle housing
1 AZ9761330660 [Second rear axle housing of HW1697 double axle] Second rear axle housing of HW1697 double axle
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 181500010163 [Screw] Screw
7 1586 330015 [Magnet plug] Magnet plug
8 Q72336 [Gasket] Gasket
11 199000330006 [Breather] Breather
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS216060 [Screw] Screw
16 MWA516 [Washer] Washer

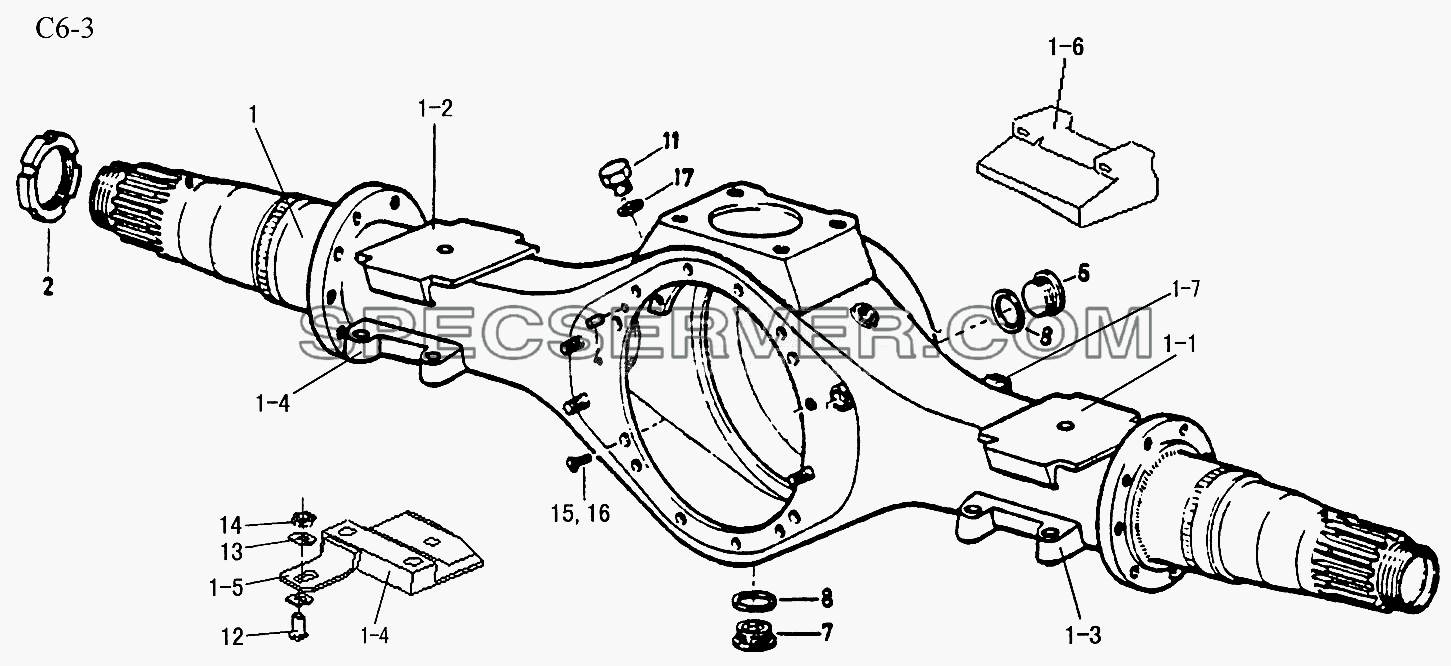

Запчасти: FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x4 Tractor (371)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x4 Tractor (371) (список запасных частей)

FIRST REAR AXLE HOUSING (C6-3) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1227P1186 [Outer adjusting nut] Outer adjusting nut
- AZ9118330013 [Upper base left] Upper base left
- AZ9118330014 [Bottom base left] Bottom base left
- AZ9118330019 [Upper base right] Upper base right
- AZ9118330020 [Bottom base right] Bottom base right
- AZ9761330001 [Base for brace rod] Base for brace rod
- AZ9761330002 [Base for brace rod] Base for brace rod
- AZ9761336005 [Support for sensor] Support for sensor
- MS2161201 [Screw] Screw
1 AZ9761330560 [HW1697 first rear axle housing] HW1697 first rear axle housing
1 AZ9761330662 [HW1697 first rear axle housing] HW1697 first rear axle housing
2 1227N1184 [Inter adjusting nut] Inter adjusting nut
6 199000330006 [Breather] Breather
7 190003962021 [Screw] Screw
8 1586 330015 [Magnet plug] Magnet plug
9 Q72336 [Gasket] Gasket
12 WG41X1090 [Screw] Screw
13 WG1229N1626 [Washer] Washer
14 WG40X1182 [Locking nut] Locking nut
15 MS2160601 [Screw] Screw
16 MWA516 [Washer] Washer

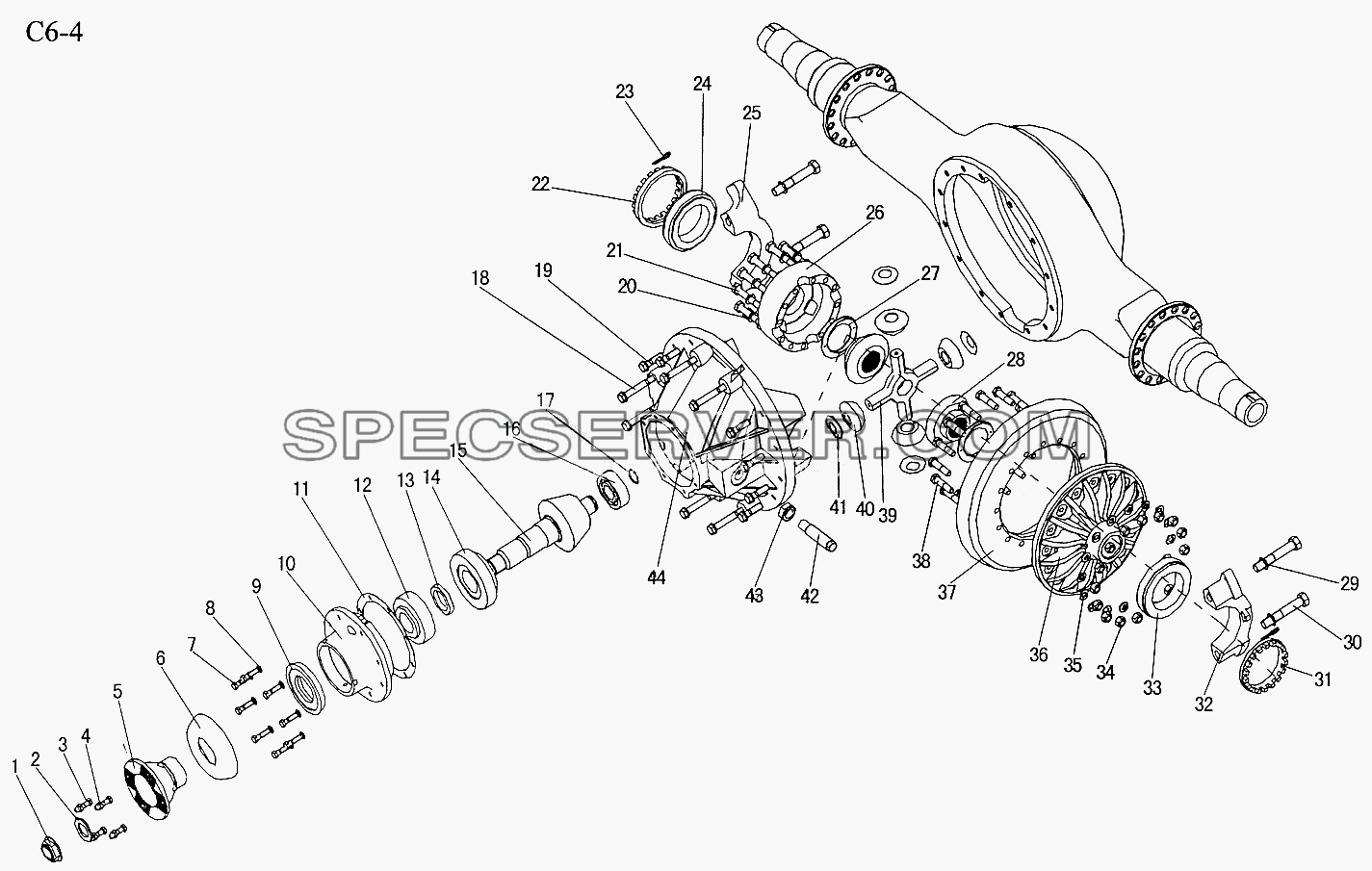

Запчасти: REAR AXLE DRIVE (C6-4) для Sinotruk 6x4 Tractor (371)

REAR AXLE DRIVE (C6-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

REAR AXLE DRIVE (C6-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AC71313200660 [Rear axle drive (i=4.22, TF180)] Rear axle drive (i=4.22, TF180)
- AC71613200130 [Rear axle drive (i=4.22, TF165)] Rear axle drive (i=4.22, TF165)
- AC71613200662 [Rear axle drive (i=4.22, PF165)] Rear axle drive (i=4.22, PF165)
- AC71613200663 [Rear axle drive (i=3.73, PF165)] Rear axle drive (i=3.73, PF165)
- AZ9118320281 [Ф180 Toothed flange body] Ф180 Toothed flange body
- AZ9761320168 [Ф165 plane flange body] Ф165 plane flange body
- AZ9761320381 [Ф165 toothed flange body] Ф165 toothed flange body
- AZ9761321899 [Drive housing] Drive housing
1 WG40X1233 [Locking nut] Locking nut
2 1229N1730 [Washer] Washer
3 Q151C1245 [Screw] Screw
4 190003888457 [Locking nut] Locking nut
5 AZ9118320280 [Ф180 Toothed flange C] Ф180 Toothed flange C
5 AZ9761320167 [Ф165 plane flange C] Ф165 plane flange C
5 AZ9761320380 [Ф165 toothed flange C] Ф165 toothed flange C
6 3264G189 [Cover] Cover
7 41X1408 [Screw] Screw
8 1229C1511 [Gasket] Gasket
9 A1205Q2591 [Oil sealing] Oil sealing
10 AZ9761320001 [Bearing seat] Bearing seat
11 2803A2757 [Shim] Shim
11 2803B2758 [Shim] Shim
11 2803Y2755 [Shim] Shim
11 2803Z2756 [Shim] Shim
12 HY15311-H715334 [Bearing] Bearing
13 S2203H8536 [Adjusting shim set] Adjusting shim set
14 9220-9278 [Bearing] Bearing
15 AZ9118321014 [Pinion and crown wheel 38/9] Pinion and crown wheel 38/9
15 AZ9761321014 [Pinion and crown wheel 41/11] Pinion and crown wheel 41/11
16 WG1228S1267 [Roller bering] Roller bering
17 1229L1624 [Snap ring] Snap ring
18 MS2161201 [Screw] Screw
19 MS2160601 [Screw] Screw
20 1229U1503 [Washer] Washer
21 WG41X1275 [Screw] Screw
22 2214S1137 [Adjusting nut] Adjusting nut
23 1199R2176 [Split pin] Split pin
24 JM822010-JM822049 [Bearing] Bearing
25 A3212X1194 [Cover] Cover
26 3235F2138 [Diff. half housing without flange] Diff. half housing without flange
27 1229L3002 [Spacer] Spacer
28 2234Z1066 [Bevel pinion] Bevel pinion
29 42X1024 [Washer] Washer
30 41X1018 [Screw] Screw
31 2214G1125 [Adjusting nut] Adjusting nut
32 A3212Z1196 [Cover] Cover
33 NP022042-NP579116 [Bearing] Bearing
34 WG40X1182 [Locking nut] Locking nut
35 1229W1557 [Washer] Washer
36 AZ9761322143 [Diff.half housing with flange] Diff.half housing with flange
38 AZ9118321334 [Screw] Screw
39 3278W335 [Diff.spider] Diff.spider
40 AZ9118321001 [Bevel pinion] Bevel pinion
41 1229K3001 [Spacer] Spacer
42 AZ9761321167 [Screw] Screw
43 1227D472 [Nut] Nut
44 AZ9761321890 [Drive housing C.] Drive housing C.
45 A23235K2143I [DIFF.Assembly] DIFF.Assembly
46 A13235K2143I [DIFF.Housing C] DIFF.Housing C
47 KIT2318 [DIFF.Parts] DIFF.Parts

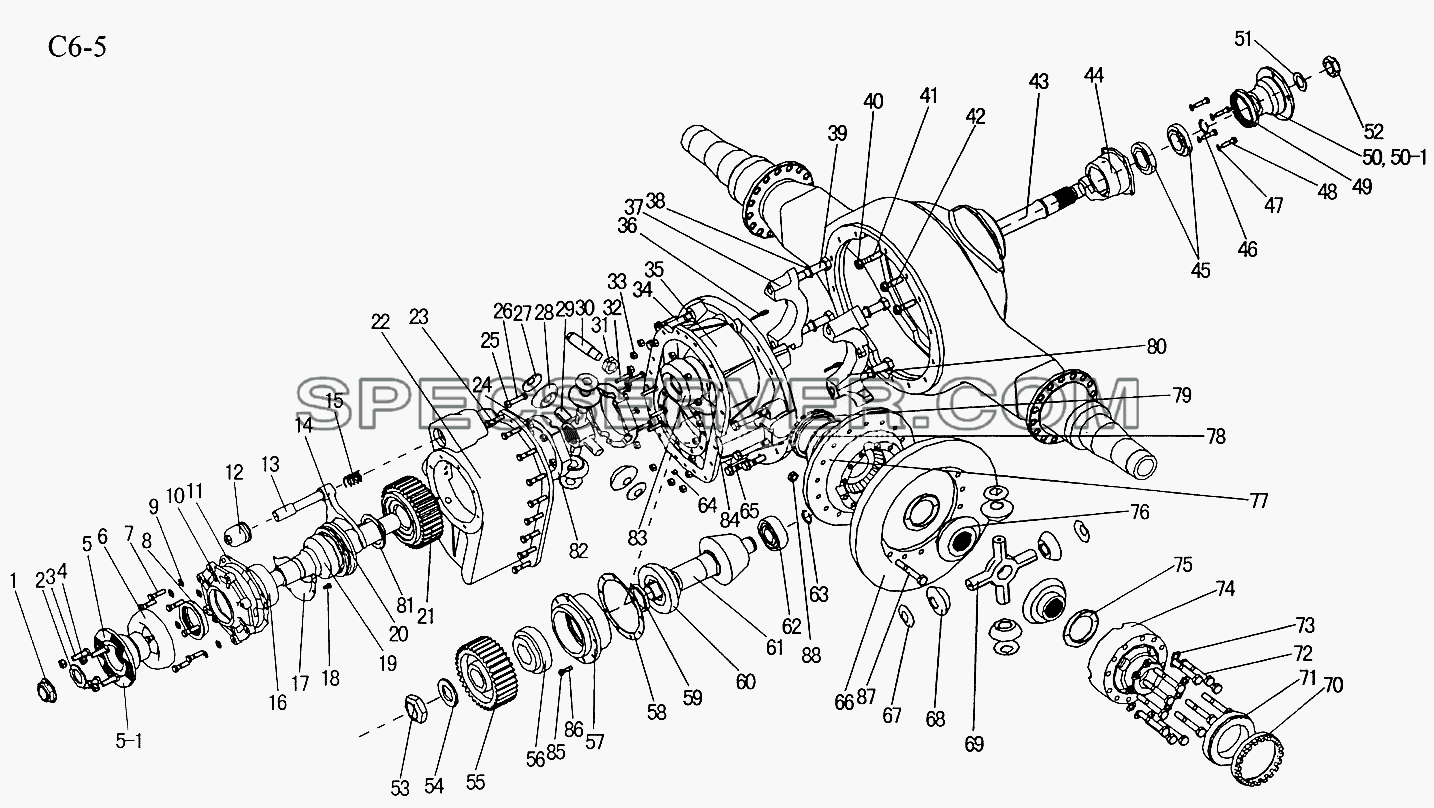

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

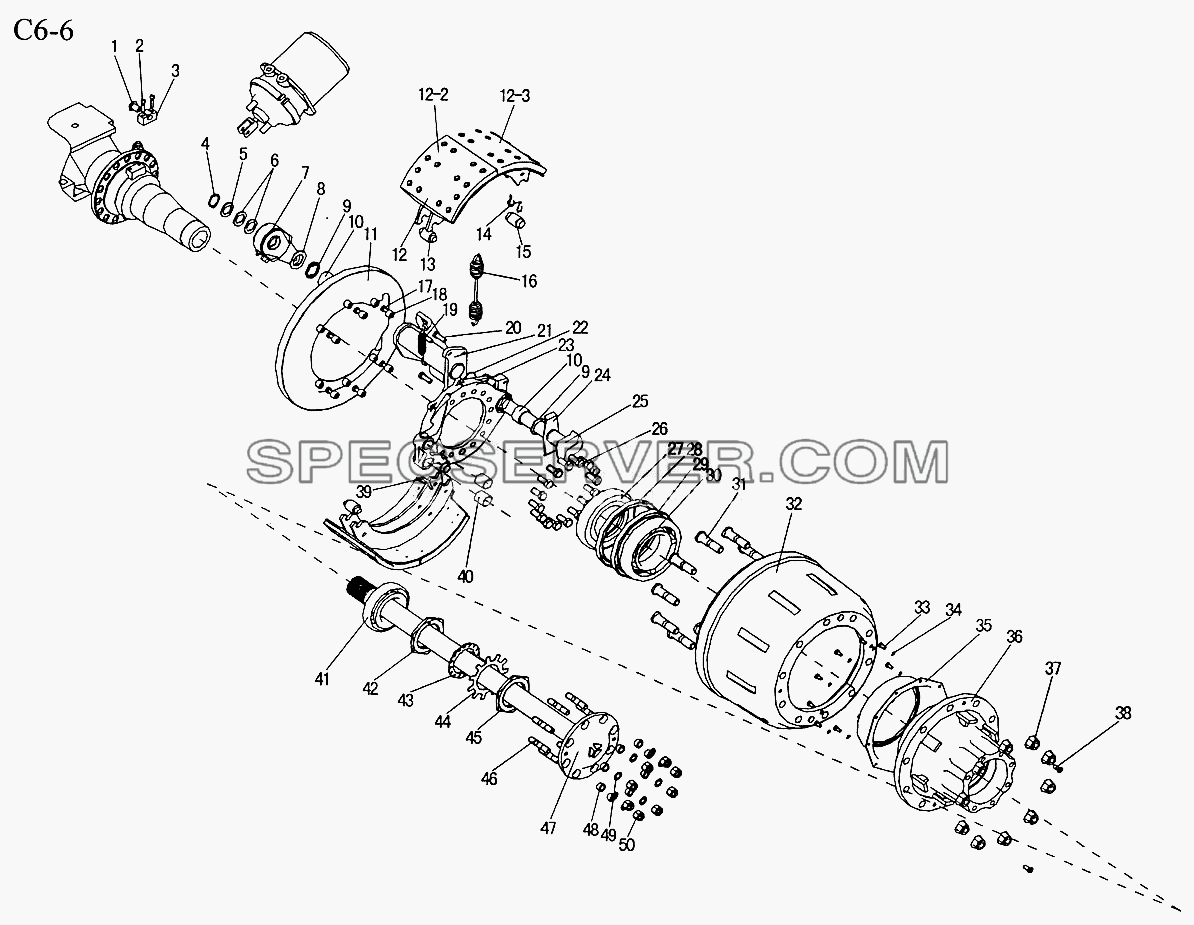

REAR BRAKE (C6-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

REAR BRAKE (C6-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

REAR BRAKE (C6-6) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 1228K37 [Steel ball] Steel ball
- 1229K1597 [Washer] Washer
- 1229W1557 [Washer] Washer
- 2230J1180 [Piston] Piston
- 3226H1126 [Bearing seat] Bearing seat
- 3261Q1057 [Cylinder] Cylinder
- 5X1198 [O-ring] O-ring
- AC71613200110 [First rear axle drive I=4.22 TF180(input),TF165(output)] First rear axle drive I=4.22 TF180(input),TF165(output)
- AC71613200111 [First rear axle drive I=4.22 PF165(input),TF165(output)] First rear axle drive I=4.22 PF165(input),TF165(output)
- AC71613200112 [First rear axle drive I=4.22 TF165(input),TF165(output)] First rear axle drive I=4.22 TF165(input),TF165(output)
- AC71613200113 [First rear axle drive I=4.22 PF180(input),TF165(output)] First rear axle drive I=4.22 PF180(input),TF165(output)
- AC71613200114 [First rear axle drive I=3.73 PF165(input),TF165(output)] First rear axle drive I=3.73 PF165(input),TF165(output)
- AZ9161321196 [Input shaft] Input shaft
- AZ9761320086 [Drive gear] Drive gear
- AZ9761320124 [Pinion 9] Pinion 9
- AZ9761320125 [Crown wheel 38] Crown wheel 38
- AZ9761320163 [Ф165 Toothed flange body] Ф165 Toothed flange body
- AZ9761320164 [Ф165 plane flange body] Ф165 plane flange body
- AZ9761320183 [Ф180 Plane flange body] Ф180 Plane flange body
- AZ9761320224 [Pinion 11] Pinion 11
- AZ9761320225 [Crown wheel 41] Crown wheel 41
- AZ9761320281 [Ф180 toothed flange body] Ф180 toothed flange body
- AZ9761320282 [Ф165 toothed flange body] Ф165 toothed flange body
- AZ9761320283 [Cover] Cover
- AZ9761320421 [First rear axle drive I=3.73 without flange] First rear axle drive I=3.73 without flange
- AZ9761320422 [First rear axle drive I=4.22 without flange] First rear axle drive I=4.22 without flange
- AZ9761321894 [Housing] Housing
- HM813820 [Outer ring of bearing] Outer ring of bearing
- Q40308 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q5005060 [Split pin] Split pin
- WG9761320084 [Bush] Bush
1 WG40X1233 [Locking nut] Locking nut
2 1229N1730 [Washer] Washer
3 Q150B1445TF2 [Screw] Screw
4 Q33414T13F2 [Locking nut] Locking nut
5 AZ9761320165 [Ф165 Plane flange C] Ф165 Plane flange C
5 AZ9761320166 [Ф165 Toothed flangeC] Ф165 Toothed flangeC
5 AZ9761320182 [Ф180 Plane flangeC] Ф180 Plane flangeC
5 AZ9761320280 [Ф180 toothed flange C] Ф180 toothed flange C
6 3264G189 [Cover] Cover
7 MS2120451 [Screw] Screw
8 A1205J2428 [Gasket] Gasket
9 1229D4632 [Washer] Washer
10 A3226H1126 [Bearing seat C] Bearing seat C
11 2203K9241 [Shim] Shim
11 2203L9242 [Shim] Shim
11 2203M9243 [Shim] Shim
12 A23261Q1057 [Cylinder C] Cylinder C
13 2244K1025 [Push rod] Push rod
14 AZ9761321086 [Shifting fork] Shifting fork
15 2258U411 [Spring] Spring
16 HM813810-HM813844 [Bearing] Bearing
17 AZ9111320020 [Cover] Cover
18 Q150B0816 [Screw] Screw
19 AZ9761321195 [Input shaft C] Input shaft C
20 3107U1061 [Shifting dog] Shifting dog
21 AZ9761320085 [Drive gear C] Drive gear C
22 AZ9761321312 [Housing] Housing
23 Q150B1250 [Screw] Screw
24 Q340B10 [Nut] Nut
25 MN3121 [Nut] Nut
26 41X1208 [Screw] Screw
27 1229Q2929 [Spacer] Spacer
28 2233K245 [Bevel pinion] Bevel pinion
29 3278N300 [Diff.spider] Diff.spider
30 AZ9761321167 [Screw] Screw
31 1227D472 [Nut] Nut
32 MS210080A1 [Screw] Screw
33 Q340B12 [Nut] Nut
34 MS2161201 [Screw] Screw
35 AZ9761320411 [Housing C] Housing C
36 1199R2176 [Split pin] Split pin
37 A321221196 [Cover] Cover
38 42X1024 [Washer] Washer
39 41X1018 [Screw] Screw
40 MN3161 [Nut] Nut
41 4X1746 [Stud] Stud
42 4X1740 [Stud] Stud
43 AZ9761321010 [Driving shaft] Driving shaft
44 AZ9761321112 [Bearing seat] Bearing seat
45 385A-382A [Bearing] Bearing
46 AZ9761322590 [Circlip set] Circlip set
47 Q40110 [Washer] Washer
48 Q150B1025 [Screw] Screw
49 AZ9761322430 [Oil sealing] Oil sealing
50 AZ9761320285 [Ф165 toothed flange C] Ф165 toothed flange C
51 1229T1736 [Washer] Washer
52 AZ9761321237 [Nut] Nut
53 WG40X1145 [Locking nut] Locking nut
54 1229G4063 [Washer] Washer
55 AZ9761320016 [Driven gear] Driven gear
56 H715311-H715341 [Bearing] Bearing
57 AZ9761320017 [Bearing seat] Bearing seat
58 AZ9761322785 [Shim set] Shim set
59






№ Номер детали Наименование запчасти
- 3211W6004 [Brake anchor right] Brake anchor right
- 5-60730 [Brake spacer] Brake spacer
- A3236Q2123 [Brake cover] Brake cover
- AZ9111340025 [Support] Support
- AZ9761340103 [Brake lining] Brake lining
- AZ9761340104 [Brake lining] Brake lining
- AZ9761340105 [Shoe] Shoe
- AZ9761341010 [Drive shaft right] Drive shaft right
- AZ9761345542 [Bracket right] Bracket right
- AZ9761345544 [Bracket right] Bracket right
- AZ9761345556 [Bracket right] Bracket right
- AZ9761348143 [Brake camshaft right] Brake camshaft right
- Q33208 [Nut] Nut
- WG9112340008 [Gear ring] Gear ring
- WG9761340108 [Rivet] Rivet
1 AZ9107346010 [ABS sensor bellows] ABS sensor bellows
2 Q218B0835 [Screw] Screw
3 AZ9107346006 [ABS sensor bracket] ABS sensor bracket
4 1229D2942 [Circlip] Circlip
5 1229W3117 [Washer] Washer
6 1229J3130 [Washer] Washer
7 AZ9111340040 [Rod adjusting device] Rod adjusting device
7 WG9111340045 [Self rod adjusting device] Self rod adjusting device
8 1229H4090 [Washer] Washer
9 A1205V1556 [Oil seaI] Oil seaI
10 WG122511208 [Bush] Bush
11 A3236R2124 [Brake cover] Brake cover
12 AZ9761340106 [Brake shoe C] Brake shoe C
13 1259N274 [Bolt] Bolt
14 3105B210 [Support] Support
15 1779R18 [Roller] Roller
16 2258W803 [Spring] Spring
17 Q150B1028 [Screw] Screw
18 AZ9118340012 [Spacer] Spacer
19 2258H1230 [Spring] Spring
20 Q150B1235 [Screw] Screw
21 AZ9761345541 [Bracret left] Bracret left
21 AZ9761345543 [Bracret left] Bracret left
21 AZ9761345555 [Bracret left] Bracret left
22 1205G761 [O-ring] O-ring
23 3211W6003 [Brake anchor left] Brake anchor left
24 1229G4089 [Washer] Washer
25 AZ9761348144 [Brake camshaft left] Brake camshaft left
26 Q151B1635TF2 [Screw] Screw
27 AZ9111340017 [Spacer] Spacer
28 WG9112340114 [Oil seal] Oil seal
29 WG9112340113 [Oil seal] Oil seal
30 190003326067 [Bevel roller bearing] Bevel roller bearing
31 WG9107340002 [Wheel stud] Wheel stud
32 AZ9118340006 [Brake drum] Brake drum
33 Q150B0816 [Screw] Screw
34 Q40308 [Washer] Washer
35 AZ9761340021 [Cover] Cover
36 AZ9761340082 [Rear wheeI hub] Rear wheeI hub
37 WG9003884160 [Wheel nut] Wheel nut
38 Q2541025 [Screw] Screw
39 1218G85 [Pin] Pin
40 WG1225L1208 [Bush] Bush
41 32217 [Bevel roller bearing] Bevel roller bearing
42 1227N1184 [Inter adjusting nut] Inter adjusting nut
43 1229M3003 [Locking sheet] Locking sheet
44 AZ9107334673 [Locking sheet] Locking sheet
45 1227P1186 [Outer adjusting nut] Outer adjusting nut
46 WG9107340003 [Stud] Stud
47 AZ9761341020 [Drive shaft left] Drive shaft left
48 1246V1166 [Bevel sleeve] Bevel sleeve
49 1229X518 [Locking sheet] Locking sheet
50 190003888627 [Locking nut] Locking nut
CHASSIS FRAME FOR 6x4 TRACTOR TRUCK (B7-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

CHASSIS FRAME FOR 6x4 TRACTOR TRUCK (B7-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

CHASSIS FRAME FOR 6x4 TRACTOR TRUCK (B7-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199114512670 [Chassis frame] Chassis frame
- AZ9114510200 [Chassis frame] Chassis frame
- AZ9632510150 [Chassis frame] Chassis frame
1 199014512015 [Cross member] Cross member
2 199014510038 [Bracket] Bracket
3 WG9114510015 [Bracket] Bracket
3 WG9114512080 [Bracket] Bracket
4 199014510226 [Bracket] Bracket
5 199100510048 [Cross member] Cross member
6 199114512875 [Plate] Plate
7 199114512876 [Plate] Plate
8 199114512873 [Plate] Plate
8 AZ9632510028 [Plate] Plate
9 199114512874 [Plate] Plate
9 AZ9632510029 [Plate] Plate
10 199114512665 [Cross member] Cross member
10 AZ9114510215 [Cross member] Cross member
11 199100510110 [Cross member] Cross member
11 199112510080 [Cross member] Cross member
11 AZ9114510210 [Cross member] Cross member
12 199114512870 [Cross member] Cross member
13 199114512671 [Left longeron] Left longeron
13 AZ9114510220 [Left longeron] Left longeron
13 AZ9632510151 [Left longeron] Left longeron
14 199114512672 [Right longeron] Right longeron
14 AZ9114510221 [Right longeron] Right longeron
14 AZ9632510152 [Right longeron] Right longeron
