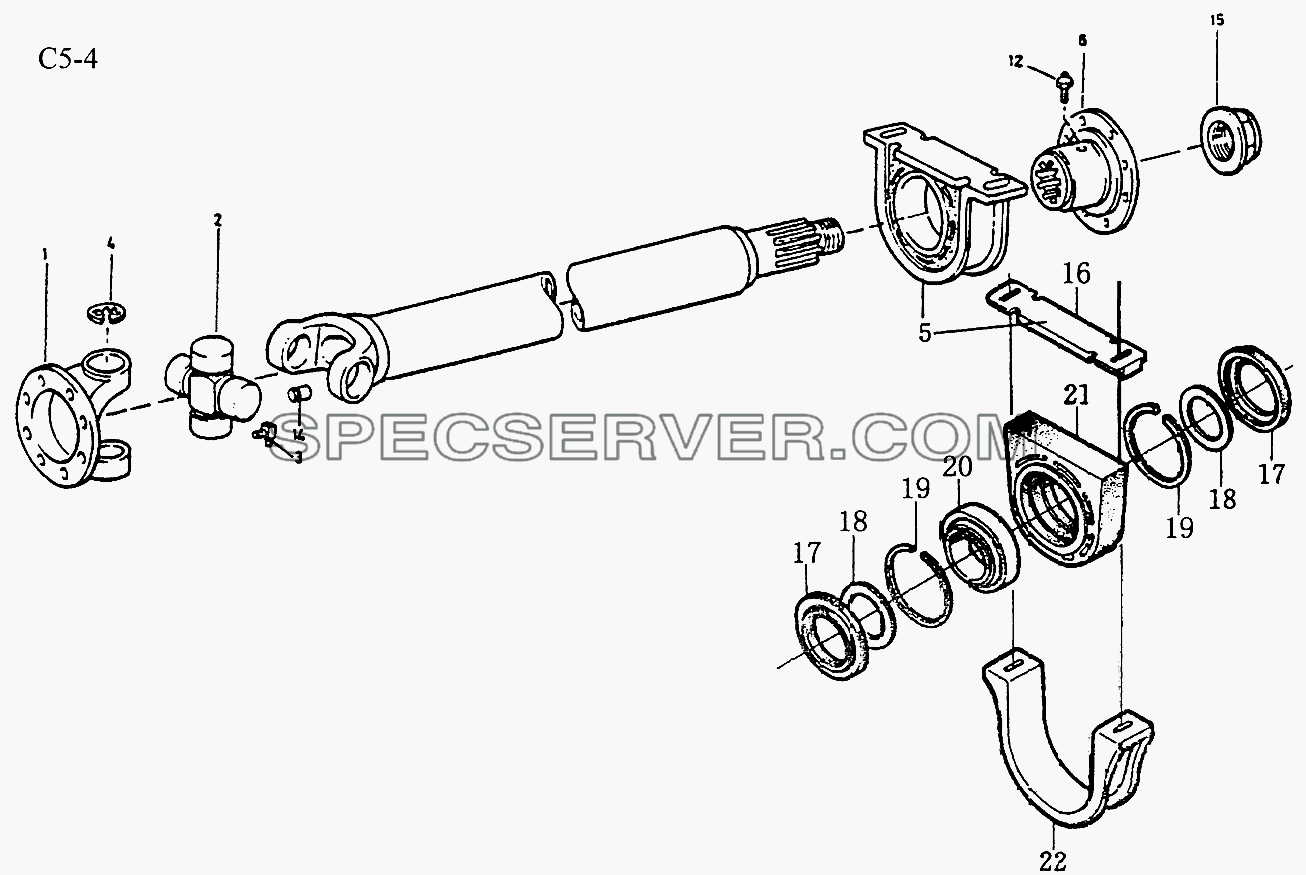

№		Номер детали	Наименование запчасти
1		19036311062 [Ф165 Plane Flange]	Ф165 Plane Flange
1		AZ9114311062 [Ф180 Plane Flange]	Ф180 Plane Flange
1		AZ9136311062 [Ф165 toothed flange]	Ф165 toothed flange
2		19036311080 [Spider]	Spider
4		19036311063 [Circlip]	Circlip
4		19036311064 [Circlip]	Circlip
4		19036311065 [Circlip]	Circlip
4		19036311066 [Circlip]	Circlip
4		19036311067 [Circlip]	Circlip
5		26013314030 [Bearing Assemble]	Bearing Assemble
6		26013314051 [Ф165 plane flange]	Ф165 plane flange
6		AZ9114314051 [Ф180 plane flange]	Ф180 plane flange
12		Q700B01 [Grease Nipple]	Grease Nipple
15		26013314052 [Nut]	Nut
16		26013314042 [Plate]	Plate
17		26013314032 [Gasket]	Gasket
18		26013314033 [Scraper]	Scraper
19		26013314037 [Circlip]	Circlip
20		26013314045 [Bearing]	Bearing
21		26013314035 [Bearing assembly]	Bearing assembly
22		26013314020 [Connecting plate]	Connecting plate

FRONT AXLE BRACKET OF FRONT DRIVE AXLE (A10-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AH71141500101 [Plantetary type front axle]	Plantetary type front axle
-		AH7141.600101 [Plantetary type front axle]	Plantetary type front axle
-		AH7141.600102 [Plantetary type front axle]	Plantetary type front axle
-		AH7141.600103 [Plantetary type front axle]	Plantetary type front axle
-		AH7141.600109 [Plantetary type front axle]	Plantetary type front axle
-		WG9112420001 [Propeller shaft C]	Propeller shaft C
1		199112410075 [Front axle bracket]	Front axle bracket
1		AZ9112410075 [Front axle housing]	Front axle housing
2		Q5211016 [Cyl. pin]	Cyl. pin
3		181500010163 [Locking screw]	Locking screw
4		1586 330015 [Magnetic plug]	Magnetic plug
5		AZ9003090001 [Gasket]	Gasket
6		190003812630 [Stud]	Stud
7		Q340B12 [Nut]	Nut
8		Q40312 [Spring washer]	Spring washer
9		1880 410066 [Gasket]	Gasket
10		199000330006 [Air breather assemly]	Air breather assemly
11		199000420701 [Driver ring]	Driver ring
12		199000420702 [Universal joint]	Universal joint
13		199000420703 [Needle bearing sleeve]	Needle bearing sleeve
14		199000420704 [Needle bearing sleeve]	Needle bearing sleeve
15		199000420705 [Universal joint shaft]	Universal joint shaft
16		199000420706 [Gasket]	Gasket
17		Q72310 T5F [Gasket]	Gasket
18		199000420709 [Screw]	Screw
19		199000420710 [Circlip]	Circlip
20		199000420712 [Driving shaft inside (long)]	Driving shaft inside (long)
21		199000420701 [Driving shaft outside (short)]	Driving shaft outside (short)
23		199112410040 [Locating plate left]	Locating plate left
24		199112410041 [Locating plate right]	Locating plate right

FRONT WHEEL DRIVE OF FRONT DRIVE AXLE (A10-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9100420044 [Front axle driving C]	Front axle driving C
-		AZ9112320184 [Gasket]	Gasket
-		DZ9100420040 [Front axle driving C]	Front axle driving C
-		DZ9100420042 [Front axle driving C]	Front axle driving C
-		DZ9100420043 [Front axle driving C]	Front axle driving C
1		199014320091 [Diff. spider]	Diff. spider
2		199012320010 [Planetary pinion]	Planetary pinion
3		199012320150 [Middle sheet shim-planetary]	Middle sheet shim-planetary
4		199012320009 [Gear-axle shaft]	Gear-axle shaft
5		11800 320012 [Adjuster washer]	Adjuster washer
5		11800 320131 [Adjuster washer]	Adjuster washer
5		11800 320132 [Adjuster washer]	Adjuster washer
5		13809 320169 [Adjuster washer]	Adjuster washer
5		199012320129 [Adjuster washer]	Adjuster washer
6		199012320198 [Diff. case]	Diff. case
7		190003326148 [Roller bearing]	Roller bearing
8		13809 320159 [Adjusting nut-diff. bearing]	Adjusting nut-diff. bearing
9		Q151B1480TF2 [Screw]	Screw
12		Q151B1635TF2 [Screw]	Screw
13		199012320098 [Axle housing C]	Axle housing C
14		199000420054 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420055 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420056 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420057 [Crown wheel/pinion]	Crown wheel/pinion
14		199000420058 [Crown wheel/pinion]	Crown wheel/pinion
16		199012320121 [Ring]	Ring
17		199012320103 [Bearing bush]	Bearing bush
18		199012320133 [Gasket]	Gasket
19		190003326547 [Roller bearing]	Roller bearing
20		199012320173 [Shim]	Shim
20		199012320174 [Shim]	Shim
20		199012320175 [Shim]	Shim
20		199012320176 [Shim]	Shim
21		Q150B1230TF2 [Screw]	Screw
22		1880 320002 [Shim]	Shim
22		1880 320003 [Shim]	Shim
22		1880 320004 [Shim]	Shim
22		1880 320005 [Shim]	Shim
22		1880 320006 [Shim]	Shim
22		1880 320007 [Shim]	Shim
22		1880 320008 [Shim]	Shim
22		1880 320009 [Shim]	Shim
22		1880 320010 [Shim]	Shim
22		1880 320011 [Shim]	Shim
22		1880 320011 [Shim]	Shim
22		1880 320013 [Shim]	Shim
22		1880 320014 [Shim]	Shim
22		1880 320015 [Shim]	Shim
23		190003326236 [Roller bearing]	Roller bearing
24		199012320121 [Ring]	Ring
25		AZ9112320030 [Casket]	Casket
28		179000320010 [Flange Ф=150]	Flange Ф=150
28		199012320110 [Flange Ф=165]	Flange Ф=165
29		179000320013 [Nut]	Nut
30		Q5005055 [Copper pin]	Copper pin
31		179000320027 [Thrust block]	Thrust block
32		Q40308 [Spring washer]	Spring washer
33		Q150B0816 [Screw]	Screw
34		Q5004028 [Cotter pin]	Cotter pin
35		Q12316120 [Stud]	Stud
36		Q381B16 [Nut]	Nut
37		Q5210820 [Cyl. pin]	Cyl. pin

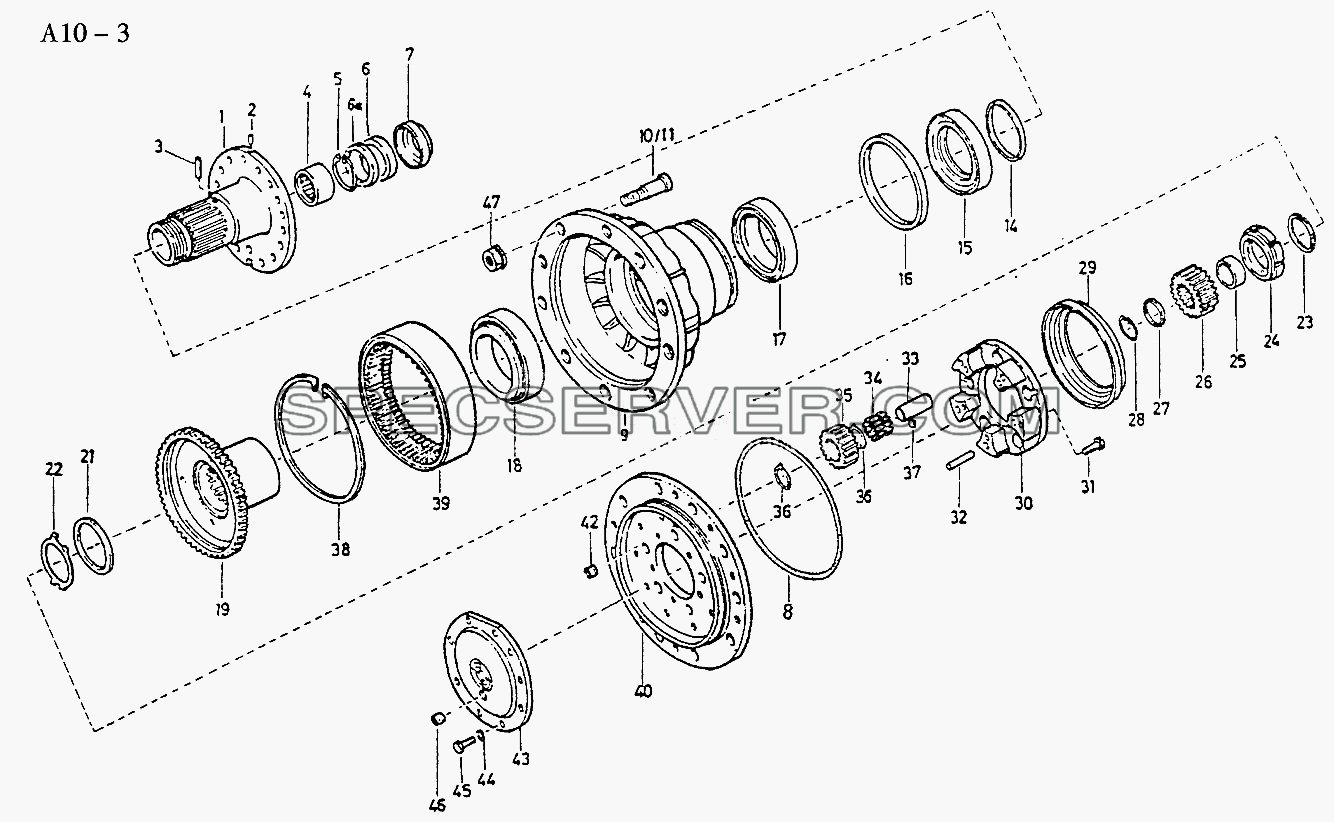

PLANETARY DRIVE OF FRONT DRIVE AXLE (A10-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000420029 [Front wheel hub]	Front wheel hub
-		AZ9100410019 [Gasket]	Gasket
1		1880 410076 [Shaft end-front axle]	Shaft end-front axle
2		1880 410102 [Pin-lock]	Pin-lock
3		1880 410109 [Pipe]	Pipe
4		1880 410069 [Needle bearing]	Needle bearing
5		Q43870 [Circlip]	Circlip
6		AZ9100410018 [Gasket]	Gasket
7		199000410107 [Gasket housing]	Gasket housing
8		1880 420012 [O-ring]	O-ring
9		199000420052 [Front wheel hub C]	Front wheel hub C
10		199000410103 [Wheel bolt]	Wheel bolt
11		199000410103 [Wheel bolt]	Wheel bolt
14		1406 060011 [O-ring]	O-ring
15		1880 420028 [Loop]	Loop
16		AZ9100410015 [Gasket]	Gasket
17		190003326443 [Roller beating]	Roller beating
18		190003326445 [Roller beating]	Roller beating
19		199112340021 [For intermed.ring]	For intermed.ring
21		1880 420034 [Thrust washer]	Thrust washer
22		1680 340015 [Thrust washer]	Thrust washer
23		1680 340016 [Shim]	Shim
23		1680 340017 [Shim]	Shim
23		1680 340018 [Shim]	Shim
23		1680 340019 [Shim]	Shim
23		1680 340187 [Shim]	Shim
24		1680 340013 [Nut]	Nut
25		1880 420022 [Shim spacer]	Shim spacer
26		1880 420003 [Helical gear]	Helical gear
27		1880 440010 [Shim]	Shim
28		190003933300 [Circlip]	Circlip
29		1880 420027 [Oil drip pan]	Oil drip pan
30		199100420003 [Planetary carrier]	Planetary carrier
31		Q151C1265TF2 [Cap screw]	Cap screw
32		190003901704 [Cyl.pin]	Cyl.pin
33		1880 420024 [Bolt]	Bolt
34		WG99-934-013 [Needle]	Needle
35		199000420050 [Planetary pinion]	Planetary pinion
36		199012340075 [Stop ring]	Stop ring
37		190003330148 [Ball]	Ball
38		WG1880 420014 [Snap ring]	Snap ring
39		199000420049 [Inter ring gear]	Inter ring gear
40		199000420019 [Flange planetary carrier]	Flange planetary carrier
42		Q2541020 [Screw]	Screw
43		199112340001 [Cover]	Cover
44		Q40310 [Spring washer]	Spring washer
45		Q150B1018 [Cap washer]	Cap washer
46		190003961309 [Locking screw]	Locking screw
47		WG90003884160 [Nut]	Nut

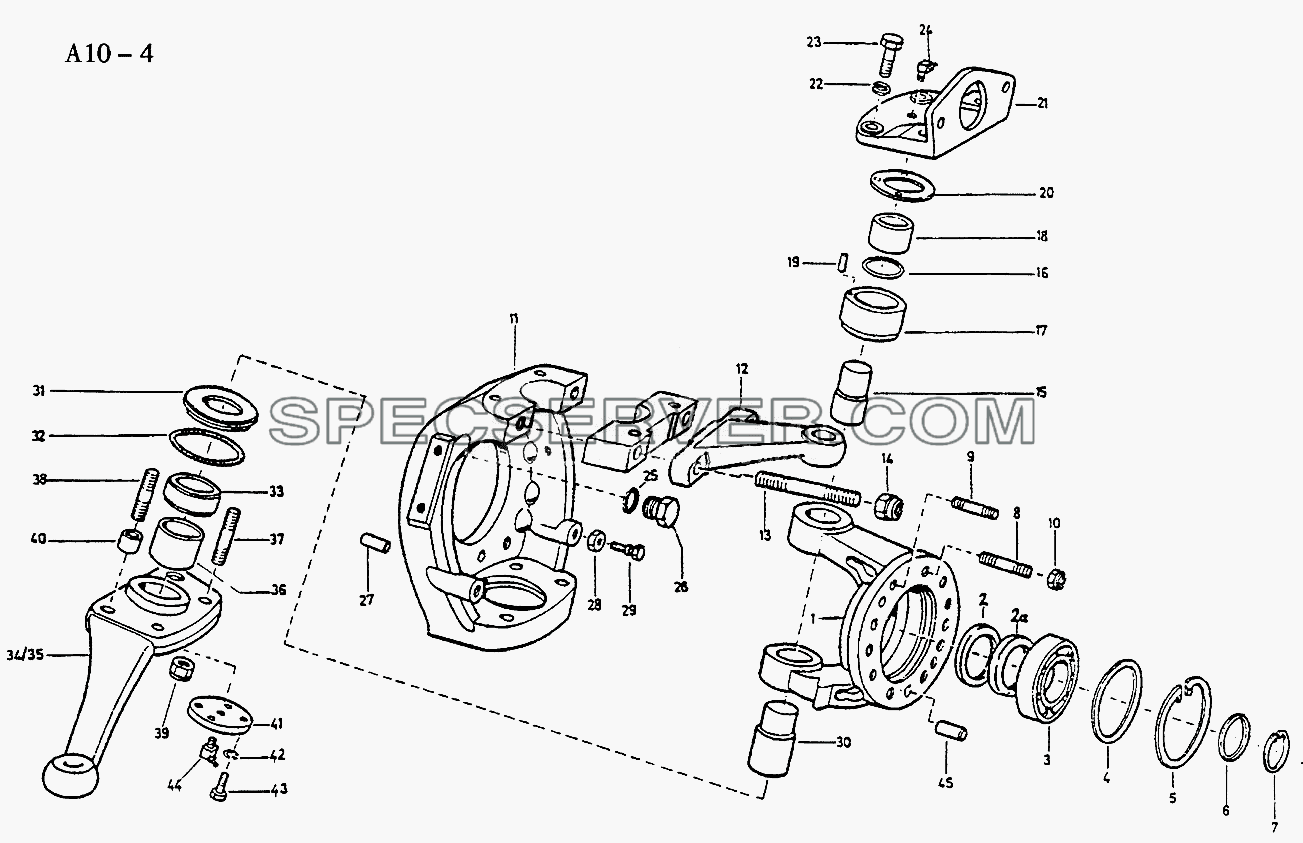

FRONT AXLE FORK OF FRONT DRIVE AXLE (A10-4) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000410016 [Front axle fork]	Front axle fork
-		AZ9100410110 [Gasket]	Gasket
-		Q151B18100TF2 [Screw]	Screw
1		199100410007 [Front axle fork C]	Front axle fork C
2		190003078645 [Gasket]	Gasket
3		190003311467 [Ball bearing]	Ball bearing
4		1880 410065 [Washer]	Washer
5		190003934520 [Circlip]	Circlip
6		1880 420030 [Washer]	Washer
7		190003933482 [Circlip]	Circlip
8		190003810002 [Stud]	Stud
9		Q151B1645TF2 [Screw]	Screw
10		190003888627 [Nut]	Nut
11		199000410039 [Steering knuckle]	Steering knuckle
12		WG9000410033 [Steering arm]	Steering arm
13		Q151B18130TF2 [Cap screw]	Cap screw
15		199100410006 [Knuckle pin]	Knuckle pin
16		1880 410052 [O-ring]	O-ring
17		199100410009 [Bearing bush]	Bearing bush
18		199100410002 [Bush]	Bush
19		Q5210814 [Cyl.pin]	Cyl.pin
20		199000410023 [Shim]	Shim
20		199000410024 [Shim]	Shim
20		199000410025 [Shim]	Shim
20		199000410026 [Shim]	Shim
21		1880 410073 [Bracket]	Bracket
22		Q40314 [Spring washer]	Spring washer
23		Q151B1440 [Screw]	Screw
24		190003963114 [Grease nipple]	Grease nipple
25		190003098026 [Gasket]	Gasket
26		199000410120 [Air breather assembly]	Air breather assembly
27		Q5211626 [Cyl.pin]	Cyl.pin
28		199012410005 [Nut]	Nut
29		1880 410059 [Screw]	Screw
30		199100410003 [Knuckle pin]	Knuckle pin
31		199000410022 [Patch]	Patch
32		1586 340002 [Gasket]	Gasket
33		WG880 410049 [Thrust roller beating]	Thrust roller beating
34		199000410031 [Tie rod arm assembly L.]	Tie rod arm assembly L.
35		199000410032 [Tie rod arm assembly R.]	Tie rod arm assembly R.
36		1880 410029 [Bush]	Bush
37		Q151B1660TF2 [Screw]	Screw
40		1880 410068 [Bush]	Bush
41		199000410021 [Cover]	Cover
42		Q40308 [Spring washer]	Spring washer
43		Q150B0818 [Screw]	Screw
44		190003963114 [Grease nipple]	Grease nipple
45		Q5211635 [Cyl.pin]	Cyl.pin

BRAKE FOR FRONT WHEEL DRIVE AXLE (A10-5) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199000440018 [Brake shoe]	Brake shoe
-		199000440027 [Brake lining]	Brake lining
-		199100360059 [Chamber (right)]	Chamber (right)
-		DZ9100440001 [Bracket for chamber (left)]	Bracket for chamber (left)
-		DZ9100440002 [Bracket for chamber (right)]	Bracket for chamber (right)
-		WG9100340057 [Brake adjusting arm (right)]	Brake adjusting arm (right)
1		199112440003 [Brake drum]	Brake drum
2		Q2141020 [Screw]	Screw
3		1880 440019 [Sheet cover]	Sheet cover
4		Q150B0816 [Cap screw]	Cap screw
5		Q40308 [Spring washer]	Spring washer
6		199000440031 [Brake shoe C]	Brake shoe C
7		199000440029 [Brake lining]	Brake lining
8		WG880 340039 [Rivet]	Rivet
9		1880 440006 [Bearing bush]	Bearing bush
10		WG80 440008 [Distance plate]	Distance plate
11		190003872369 [Nut]	Nut
12		Q5005040 [Cotter pin]	Cotter pin
13		AZ910034 0012 [Spring]	Spring
14		1880 44 0032 [Bolt]	Bolt
21		1880 44 0010 [Washer]	Washer
22		1880 34 0023 [Gasket]	Gasket
24		1880 34 0022 [Washer]	Washer
25		1803 2 0046 [Washer]	Washer
25		1880 32 0028 [Adujsting Washer]	Adujsting Washer
25		1880 32 0029 [Adujsting Washer]	Adujsting Washer
25		1880 32 0030 [Adujsting Washer]	Adujsting Washer
26		190003933116 [Circlip]	Circlip
27		199100360058 [Chamber (left)]	Chamber (left)
28		Q41216 [Washer]	Washer
29		Q341B16 [Nut]	Nut
34		1880 340037 [Plug]	Plug
35		1880 440031 [Bearing bush]	Bearing bush
36		1880 440025 [Pin-brake shoe]	Pin-brake shoe
37		1880 440016 [Brake splider L.]	Brake splider L.
38		1880 440018 [Brake splider R.]	Brake splider R.
39		Q40314 [Spring washer]	Spring washer
40		Q151B1455 [Screw]	Screw
41		Q5211220 [Cyl.pin]	Cyl.pin
42		190003963114 [Grease nipple]	Grease nipple
43		1880 440035 [Adapter]	Adapter
44		Q72308T5F [Gasket]	Gasket
45		1880 440020 [Lever l.]	Lever l.
46		1880 440021 [Lever r.]	Lever r.
47		WG9100340017 [Bush]	Bush
48		WG9100340056 [Brake adjusting arm (left)]	Brake adjusting arm (left)
49		Q351B18T15 [Nut]	Nut
50		Q151B1870 [Screw]	Screw
51		190003933300 [Ring]	Ring
52		1880 44 0022 [Bracket-cam shaft]	Bracket-cam shaft
53		1880 44 0026 [Washer]	Washer
53		1880 44 0027 [Washer]	Washer
53		1880 44 0028 [Washer]	Washer
54		AZ9100440012 [Washer]	Washer
55		Q151C1230 [Screw]	Screw
56		190003963114 [Grease nipple]	Grease nipple
57		1880 440023 [Brake camshaft]	Brake camshaft
58		1880 440024 [Brake camshaft]	Brake camshaft
59		199000340027 [Pressure roller]	Pressure roller
