№		Номер детали	Наименование запчасти
-		AZ9132590051 [Bracket r.]	Bracket r.
-		AZ9132590062 [Bracket r.]	Bracket r.
-		AZ9638590002 [Bracket l.]	Bracket l.
-		AZ9638590004 [Bracket r.]	Bracket r.
-		WG9100590033 [Bracket r.]	Bracket r.
-		WG9100590126 [Bracket r.]	Bracket r.
1		WG9100590001 [Crossbar]	Crossbar
1		WG9118590001 [Crossbar]	Crossbar
2		WG1680590095 [Suppout]	Suppout
3		1480A 360058 [Washer]	Washer
4		Q151B1650 [Screw]	Screw
4		Q151B1660 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		Q150B1225 [Screw]	Screw
7		Q40312 [Spring]	Spring
8		Q150B0816 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		199100590020 [Bracket]	Bracket
10		AZ9124590001 [Bracket]	Bracket
10		AZ9132590050 [Bracket l.]	Bracket l.
10		AZ9132590061 [Bracket l.]	Bracket l.
10		AZ9638590001 [Bracket l.]	Bracket l.
10		AZ9638590003 [Bracket l.]	Bracket l.
10		WG9100590032 [Bracket l.]	Bracket l.
10		WG9100590034 [Bracket]	Bracket
10		WG9100590125 [Bracket l.]	Bracket l.
11		Q151B1440 [Screw]	Screw
12		Q151B1435 [Screw]	Screw
13		Q151B1450 [Screw]	Screw
14		Q40314 [Spring washer]	Spring washer
15		199112590102 [Bearing]	Bearing
15		WG9100590031 [Bearing]	Bearing
16		Q151C1230 [Screw]	Screw
17		Q151C1235 [Screw]	Screw
18		Q40312 [Spring washer]	Spring washer

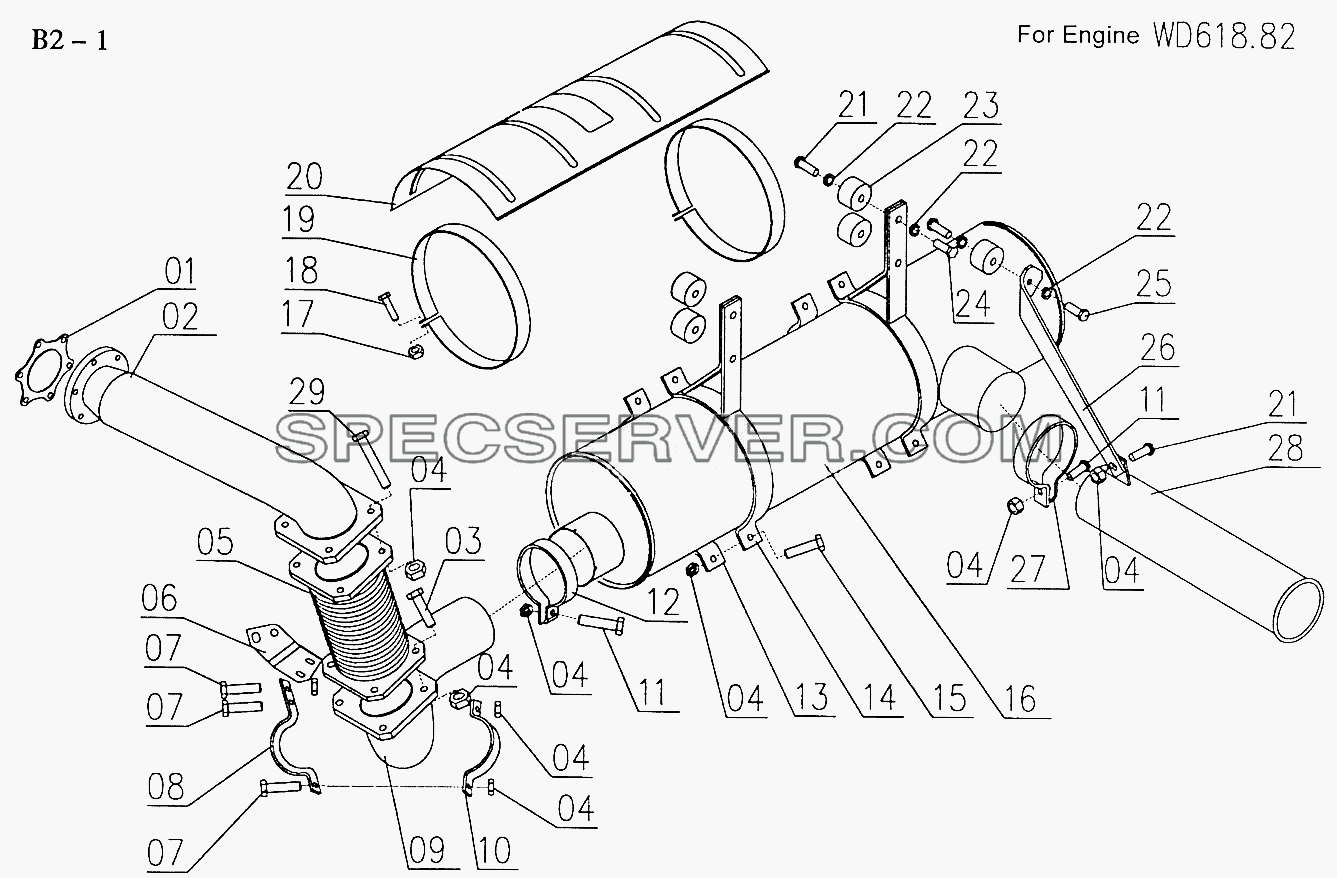

WD168 EXHAUST PIPING (B2-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9112540015 [Gasket]	Gasket
2		WG9100540198 [Exhaust pipe]	Exhaust pipe
3		Q150B1045Q [Screw]	Screw
4		Q33210 [Cheek nut]	Cheek nut
5		WG9112540001 [Corrugated flexible metal tube]	Corrugated flexible metal tube
6		AZ9112540476 [Bracket]	Bracket
7		Q150B1030 [Bolt]	Bolt
8		199112540162 [Clamp]	Clamp
9		WG9100540205 [Exhauxt pipe]	Exhauxt pipe
10		199112540161 [Clamp]	Clamp
11		Q150B1040 [Screw]	Screw
12		190003999960 [Pipe clamp]	Pipe clamp
13		AZ9112540621 [Clamp]	Clamp
14		AZ9112540619 [Bracket]	Bracket
15		Q150B1035 [Screw]	Screw
16		WG9112540623 [Muffler]	Muffler
17		Q33208 [Cheek nut]	Cheek nut
18		Q150B0830 [Bolt]	Bolt
19		AZ9000540064 [Fixing strap]	Fixing strap
20		AZ9112540625 [Sheet]	Sheet
21		Q150B1025 [Bolt]	Bolt
22		Q40310 [Spring washer]	Spring washer
23		WG84D410007 [Rubber cushion]	Rubber cushion
24		Q150B1022 [Screw]	Screw
25		Q150B1018 [Screw]	Screw
26		AZ9112540622 [Bracket]	Bracket
27		199112540113 [Clamp]	Clamp
28		1991125400490 [Tail pipe]	Tail pipe
29		Q150B1090Q [Bolt]	Bolt

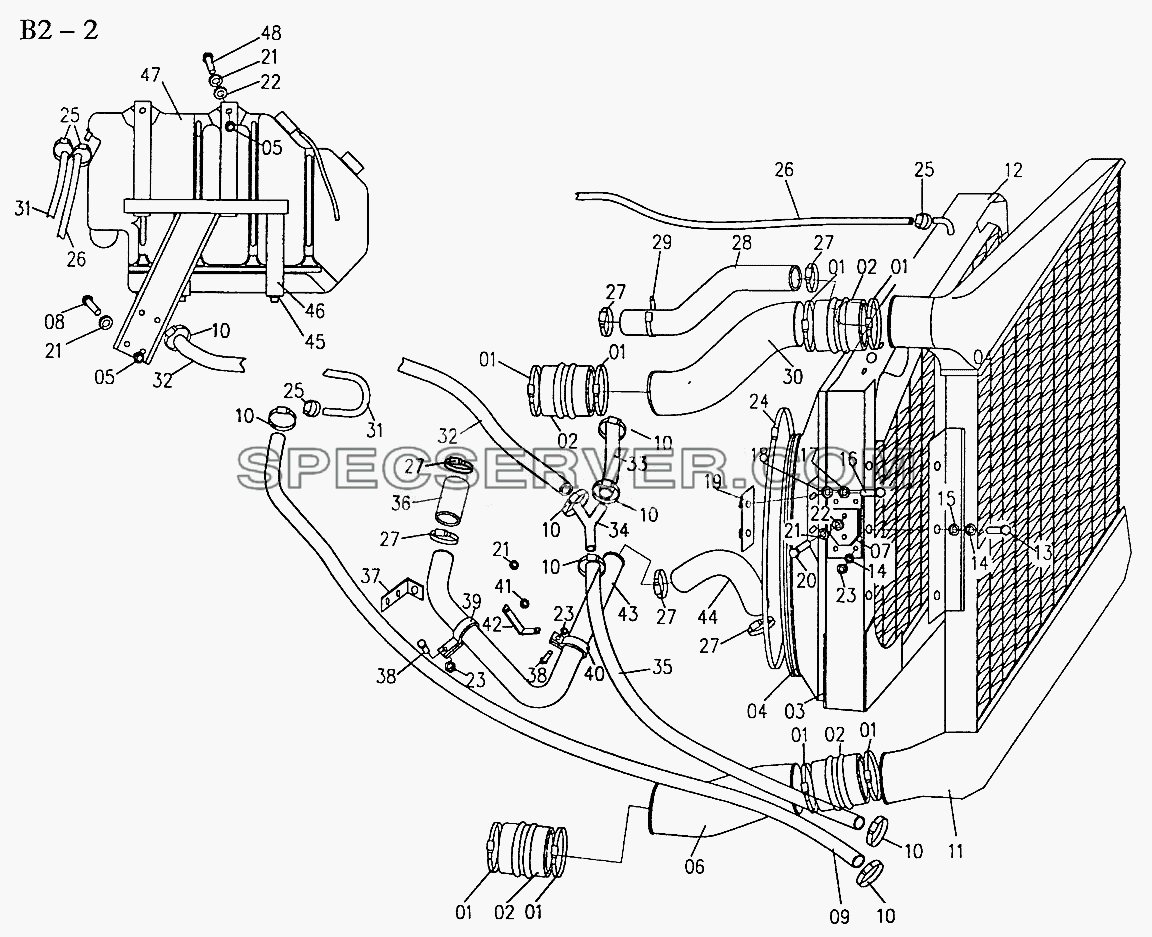

WD618 COOLING SYSTEM (B2-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		19003989315 [Clamp]	Clamp
2		WG9112530188 [Hose]	Hose
3		190003129804 [Seal belt]	Seal belt
4		AZ9112531008 [Shround]	Shround
5		Q340B10 [Nut]	Nut
6		WG9632530002 [Pipe]	Pipe
7		WG9100530161 [Rubber cushion]	Rubber cushion
8		Q150B1030 [Bolt]	Bolt
9		WG9112530468 [Hose]	Hose
10		190003989301 [Clamp]	Clamp
11		WG9112530008 [Aftercooler]	Aftercooler
12		WG9112531001 [Radiator]	Radiator
13		Q150B0816 [Bolt]	Bolt
14		Q40008 [Washer]	Washer
15		Q41208 [Spring washer]	Spring washer
16		Q150B0820 [Bolt]	Bolt
17		Q40308 [Spring washer]	Spring washer
18		Q40108 [Plain washer]	Plain washer
19		1780 530009 [Fastening rail]	Fastening rail
20		Q150B1018 [Bolt]	Bolt
21		Q40310 [Spring washer]	Spring washer
22		Q40110 [Plain washer]	Plain washer
23		Q33208 [Check nut]	Check nut
24		WG9003980206 [Clamp]	Clamp
25		190003989300 [Clamp]	Clamp
26		199114530428 [Hose]	Hose
27		190003989310 [Clamp]	Clamp
28		WG9112531002 [Hose]	Hose
29		190003171697 [Wire fastener]	Wire fastener
30		WG9632530001 [Pipe]	Pipe
31		199100530125 [Hose]	Hose
32		116100840031 [Hose]	Hose
33		WG9112530470 [Hose]	Hose
34		WG9100530126 [Junction pipe]	Junction pipe
35		AZ9112530469 [Hose]	Hose
36		WG9112530468 [Hose]	Hose
37		199100360165 [Bracket]	Bracket
38		Q150B0830 [Bolt]	Bolt
39		AZ9112531017 [Clamp]	Clamp
40		190003990037 [Clamp]	Clamp
41		190003932961 [Washer]	Washer
42		AZ9112531018 [Bracket]	Bracket
43		WG9112531016 [Water pipe]	Water pipe
44		WG9112531015 [Hose]	Hose
45		AZ9112530317 [Washer]	Washer
46		AZ9632530030 [Bracket]	Bracket
47		WG9632530333 [Expansion tank]	Expansion tank
48		Q150B1040 [Bolt]	Bolt

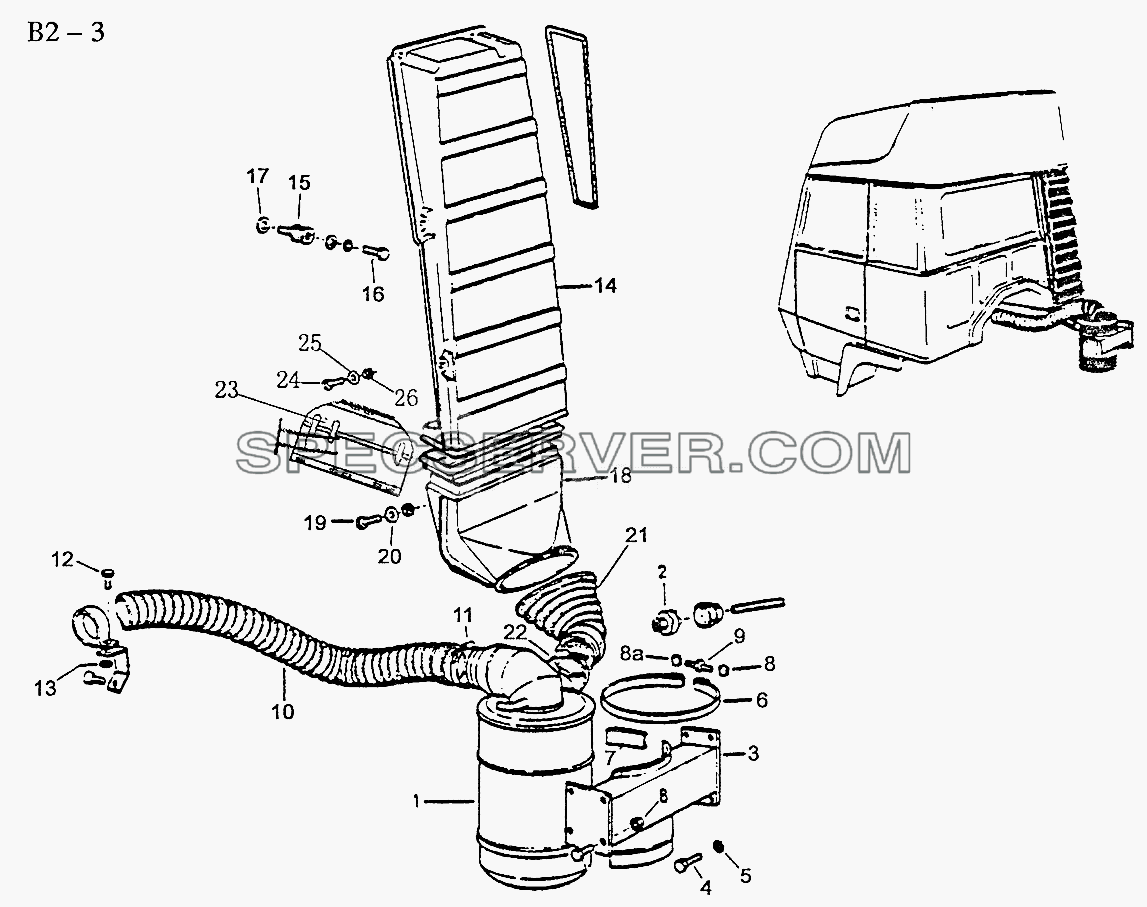

WD618 AIR FILTER FOR CAB WITH MED.AND HIGH-ROOF (B2-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9100770028 [Bellows]	Bellows
-		WG9112190066-1 [Filter element]	Filter element
1		WG9112190066 [Air filter]	Air filter
2		WG1200190040 [Switch]	Switch
3		AZ9112190063 [Bracket]	Bracket
4		Q151B1450 [Screw]	Screw
5		190003888458 [Nut]	Nut
6		WG9100190026 [Strap]	Strap
7		199100190065 [Stiffening plate]	Stiffening plate
8		1280 550027 [Bolt]	Bolt
8		1280 550028 [Bolt]	Bolt
9		1280 550029 [Tension screw]	Tension screw
10		WG9112190065 [Air hose]	Air hose
11		190003989318 [Clamp]	Clamp
11		199112190065 [Clamp]	Clamp
12		Q150B0820 [Screw]	Screw
13		Q33208 [Nut]	Nut
14		WG9112190085 [Air duct]	Air duct
15		JN162-1109070 [Silentbloc]	Silentbloc
16		Q150B0816 [Screw]	Screw
17		Q40208 [Washer]	Washer
18		WG9100190148 [Suction pipe]	Suction pipe
19		Q150B0835Q [Screw]	Screw
20		Q40208 [Washer]	Washer
21		AZ9112190095 [Siphon]	Siphon
22		190003989365 [Clamp]	Clamp
22		AZ9003980026 [Clamp]	Clamp
23		AZ9112190093 [Bracket]	Bracket
24		Q151B1030 [Screw]	Screw
25		Q40310 [Spring washer]	Spring washer
26		Q341B10 [Nut]	Nut

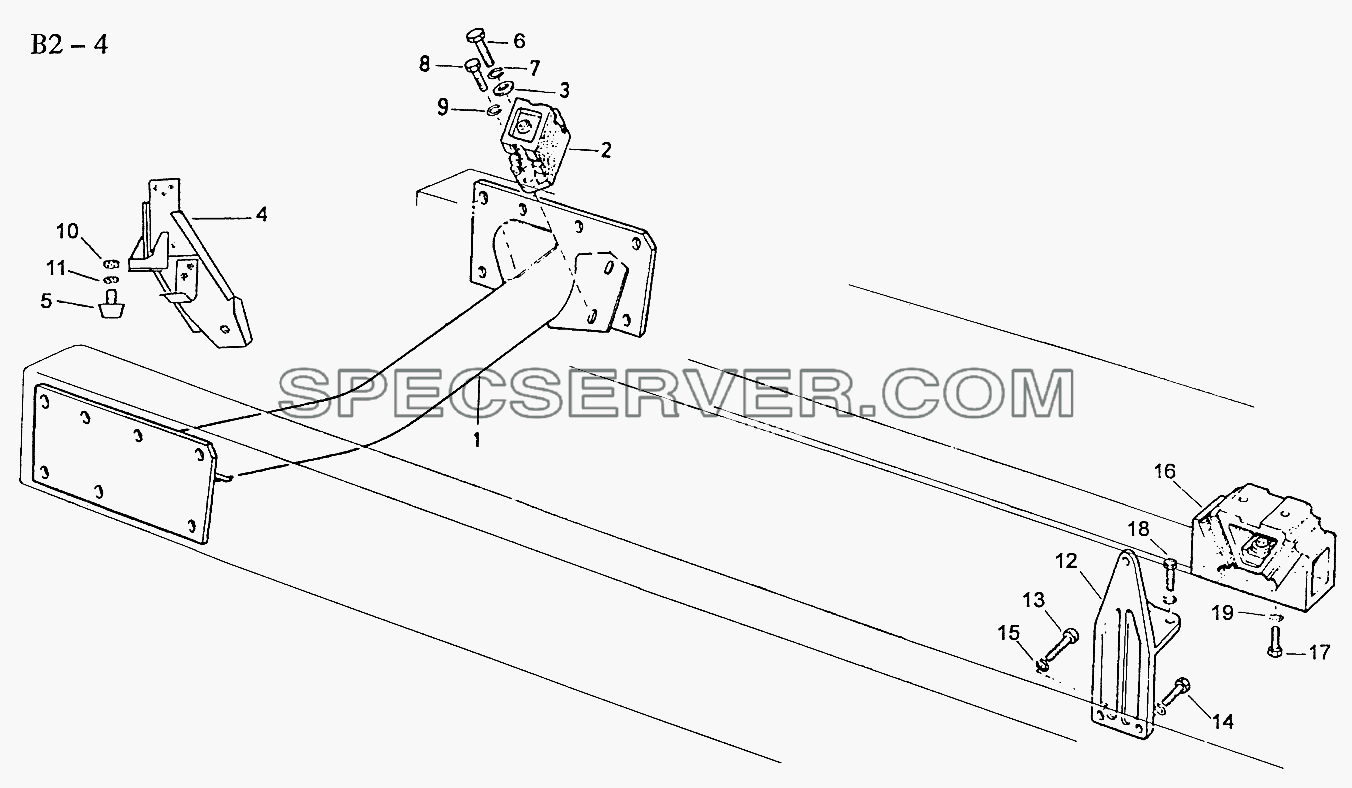

SUSPENSION FOR WD618 ENGINE (B2-4) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9100591017 [Bracket r.]	Bracket r.
-		WG9100591121 [Bracket r.]	Bracket r.
1		AZ9100590115 [Crossbar]	Crossbar
2		WG1680590095 [Support]	Support
3		1480A 360058 [Washer]	Washer
4		AZ9100591016 [Bracket l.]	Bracket l.
5		AZ9100591082 [Support]	Support
6		Q150B1222 [Screw]	Screw
7		Q40312 [Sping washer]	Sping washer
8		Q150B0816 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		Q340B12 [Nut]	Nut
11		Q41812 [Spring washer]	Spring washer
12		WG9100591120 [Bracket l.]	Bracket l.
13		Q151B1440 [Screw]	Screw
14		Q151B1450 [Screw]	Screw
15		Q40314 [Spring washer]	Spring washer
16		WG9100590031 [Bearing]	Bearing
17		Q151C1230 [Screw]	Screw
18		Q151C1235 [Screw]	Screw
19		Q40312 [Spring washer]	Spring washer

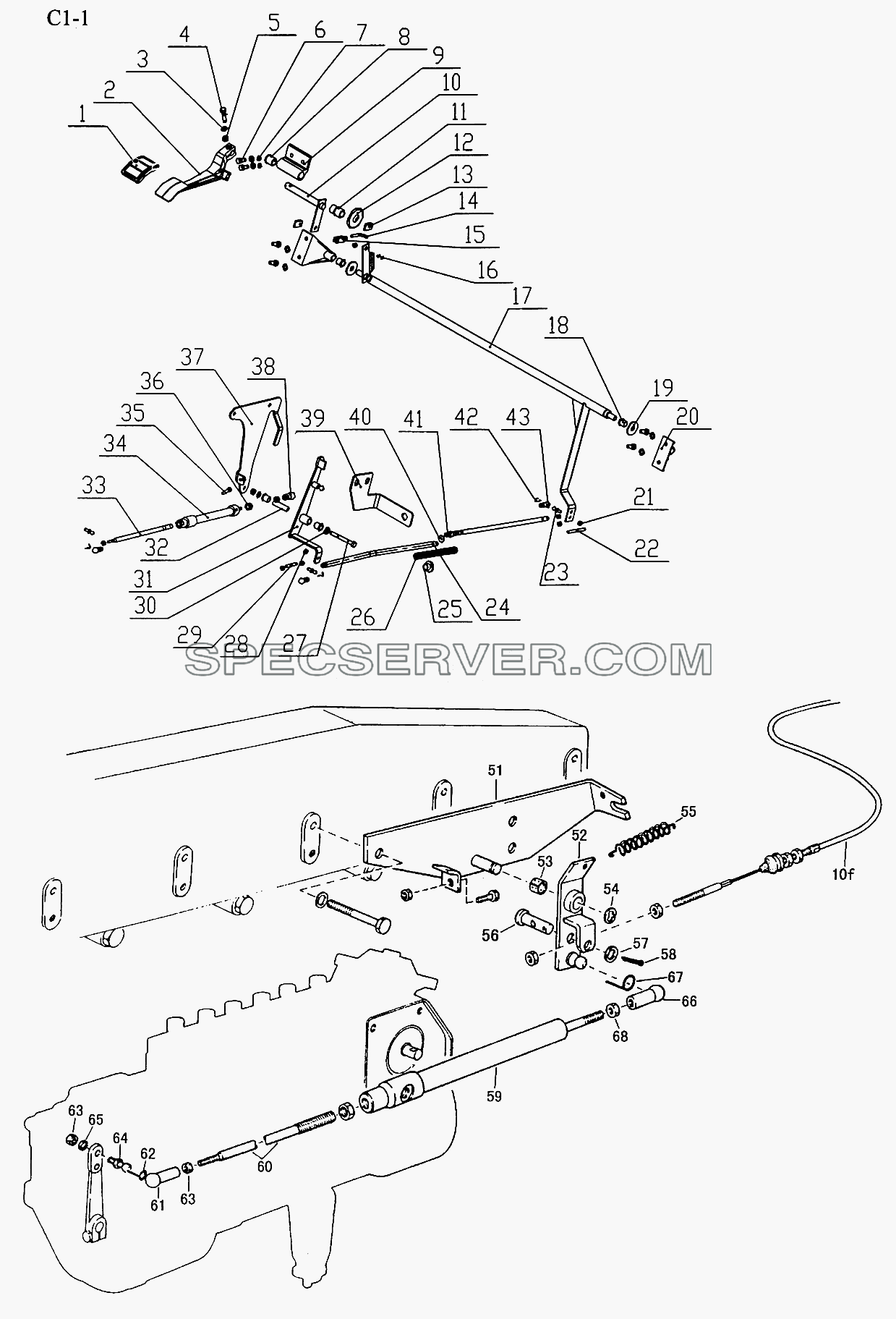

OPERATION DEVICE (C1-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1288 570057 [Spring]	Spring
-		1680 580023 [Clip]	Clip
-		AZ9719570073 [Bracket]	Bracket
-		AZ9719570085 [Plate]	Plate
-		Q150B0640 [Screw]	Screw
-		Q340B06 [Nut]	Nut
-		Q350B06T15 [Nut]	Nut
-		WG972557000 [Control cable]	Control cable
1		AZ9719570001 [Rubber footboard]	Rubber footboard
2		AZ9719470002 [Pedal]	Pedal
3		Q40108 [Washer]	Washer
4		Q150B0835 [Screw]	Screw
5		Q340B08 [Nut]	Nut
6		Q150B0820 [Screw]	Screw
7		Q40308 [Spring washer]	Spring washer
8		AZ9719570006 [Bush]	Bush
9		AZ9719570007 [Bracket]	Bracket
10		WG9719570003 [Control shaft]	Control shaft
10		WG9719570085 [Control shaft]	Control shaft
11		AZ9719570008 [Bush]	Bush
12		AZ9719570009 [Rubber ring]	Rubber ring
13		AZ9719570012 [Plastic clamp]	Plastic clamp
14		AZ9719570011 [Adjusting screw]	Adjusting screw
15		190003964412 [Fork head]	Fork head
16		Q43650 [Snap ring]	Snap ring
17		WG9719570015 [Lever]	Lever
18		AZ9719570023 [Bush]	Bush
19		Q40212 [Washer]	Washer
20		AZ9719570010 [Bracket]	Bracket
21		Q340B06 [Nut]	Nut
22		AZ9719570051 [Threaded bar]	Threaded bar
23		190003963313 [Ball pivot]	Ball pivot
24		AZ9719570040 [Brace rod]	Brace rod
25		AZ9719570060 [Sleeve]	Sleeve
26		AZ9719570061 [Spring]	Spring
27		Q150B0870 [Screw]	Screw
28		Q33206 [Nut]	Nut
29		AZ9719570052 [Threaded bar]	Threaded bar
30		AZ9719570034 [Rubber pad]	Rubber pad
31		AZ9719570029 [Lever]	Lever
32		AZ9719570033 [Spacer]	Spacer
33		199012570062 [Threaded rod]	Threaded rod
34		WG9100570002 [Operating cylinder]	Operating cylinder
35		Q150B0625 [Screw]	Screw
36		Q340B10 [Nut]	Nut
37		AZ9719570026 [Bracket]	Bracket
38		1900003963623 [Ball cup]	Ball cup
39		AZ9719570062 [Bracket]	Bracket
40		Q40206 [Washer]	Washer
41		AZ9719570045 [Brace rod]	Brace rod
42		190003936513 [Clip]	Clip
43		WG92570025 [Ball cup]	Ball cup
51		AZ9118570011 [Bracket]	Bracket
52		199100570018 [Lever]	Lever
53		WG99014180012 [Bush]	Bush
54		Q43680 [Snap ring]	Snap ring
55		199100570065 [Spring]	Spring
56		199012570084 [Bolt]	Bolt
57		Q40110 [Washer]	Washer
58		Q5003216 [Split pin]	Split pin
59		WG9100570002 [Operating cylinder]	Operating cylinder
60		AZ9118570003 [Threaded rod]	Threaded rod
61		WG92570025 [Ball cup]	Ball cup
62		190003936513 [Clip]	Clip
63		Q340B06 [Nut]	Nut
64		190003963313 [Ball pivot]	Ball pivot
65		Q40506 [Spring washer]	Spring washer
66		190003963623 [Ball cup]	Ball cup
67		190003936514 [Clip]	Clip
68		Q340B08 [Nut]	Nut
