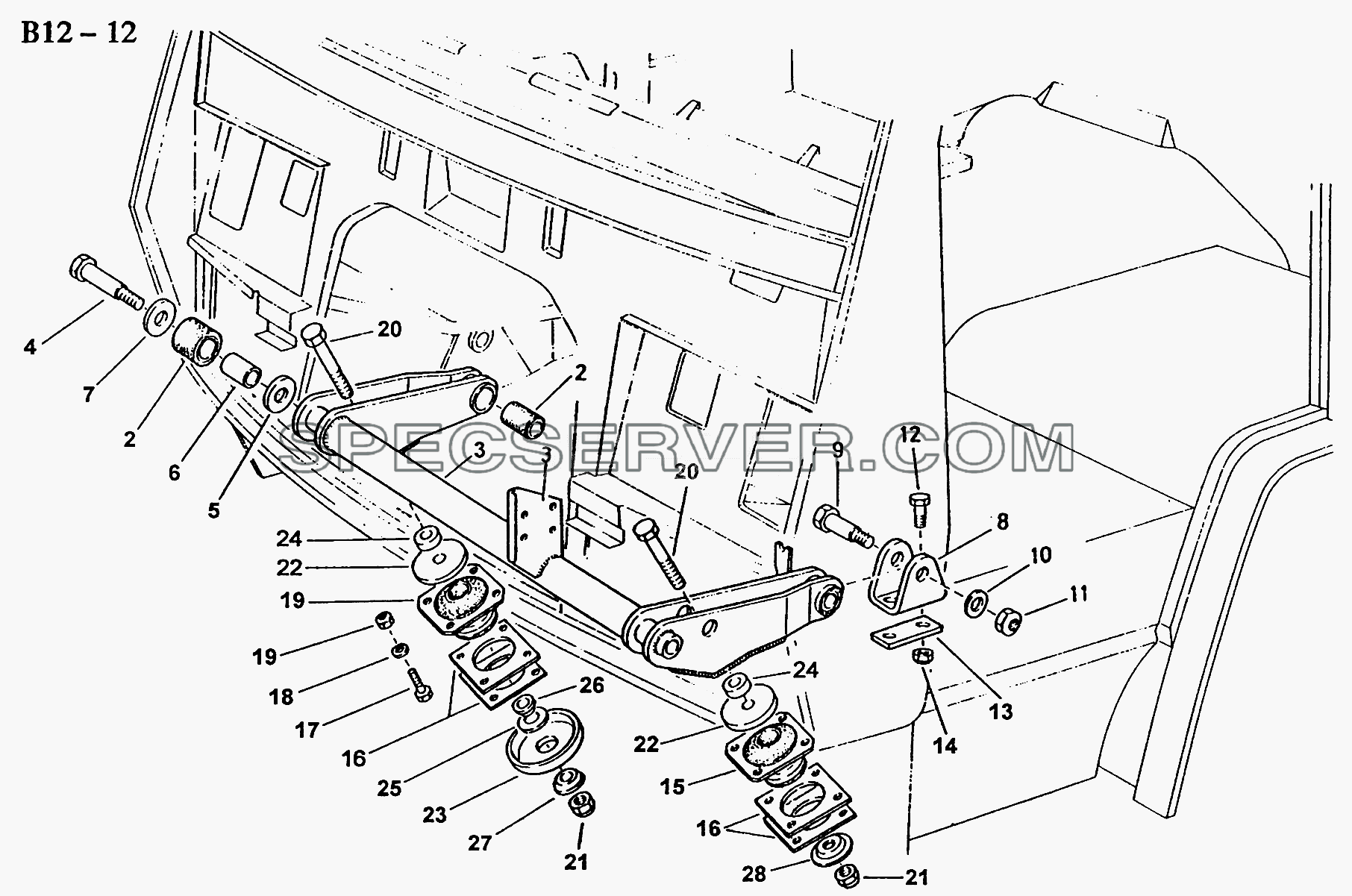

№		Номер детали	Наименование запчасти
2		116100430134 [Bush]	Bush
3		AZ1603430013 [Rocker assembly]	Rocker assembly
3		AZ1672430002 [Rocker assembly]	Rocker assembly
4		116100430128 [Turn shaft]	Turn shaft
5		1-99-907-038 [Washer]	Washer
6		16100430129 [Turn shaft bearing cover]	Turn shaft bearing cover
7		1-99-907-037 [Washer]	Washer
8		116020430024 [Bracket]	Bracket
9		WG1620430025 [Bolt]	Bolt
10		Q40016 [Washer]	Washer
11		90003888459 [Self-locking nut]	Self-locking nut
12		Q151C1235 [Hexagon head tap serrated bolt]	Hexagon head tap serrated bolt
13		1-99-974-145 [Connecting panel]	Connecting panel
14		190003888459 [Self-locking nut]	Self-locking nut
15		1782 410007 [Rubber bracket]	Rubber bracket
16		116100430035 [Front bracket]	Front bracket
17		Q150B0835Q [Hexagon head tap bolt]	Hexagon head tap bolt
18		Q40008 [Washer]	Washer
19		Q33208 [Hexagon head tap latch nut]	Hexagon head tap latch nut
20		Q151B16120 [Hexagon head tap bolt]	Hexagon head tap bolt
21		190003888459 [Self-locking nut]	Self-locking nut
22		WG1620430018 [Front bracket cover]	Front bracket cover
23		1-99-907-030 [Washer]	Washer
24		WG1600430019R [Ring]	Ring
25		Q41822 [Grower washer]	Grower washer
26		116020430137 [Space ring]	Space ring
27		116020430138 [Ball washer]	Ball washer
28		116020410013 [Down cover]	Down cover

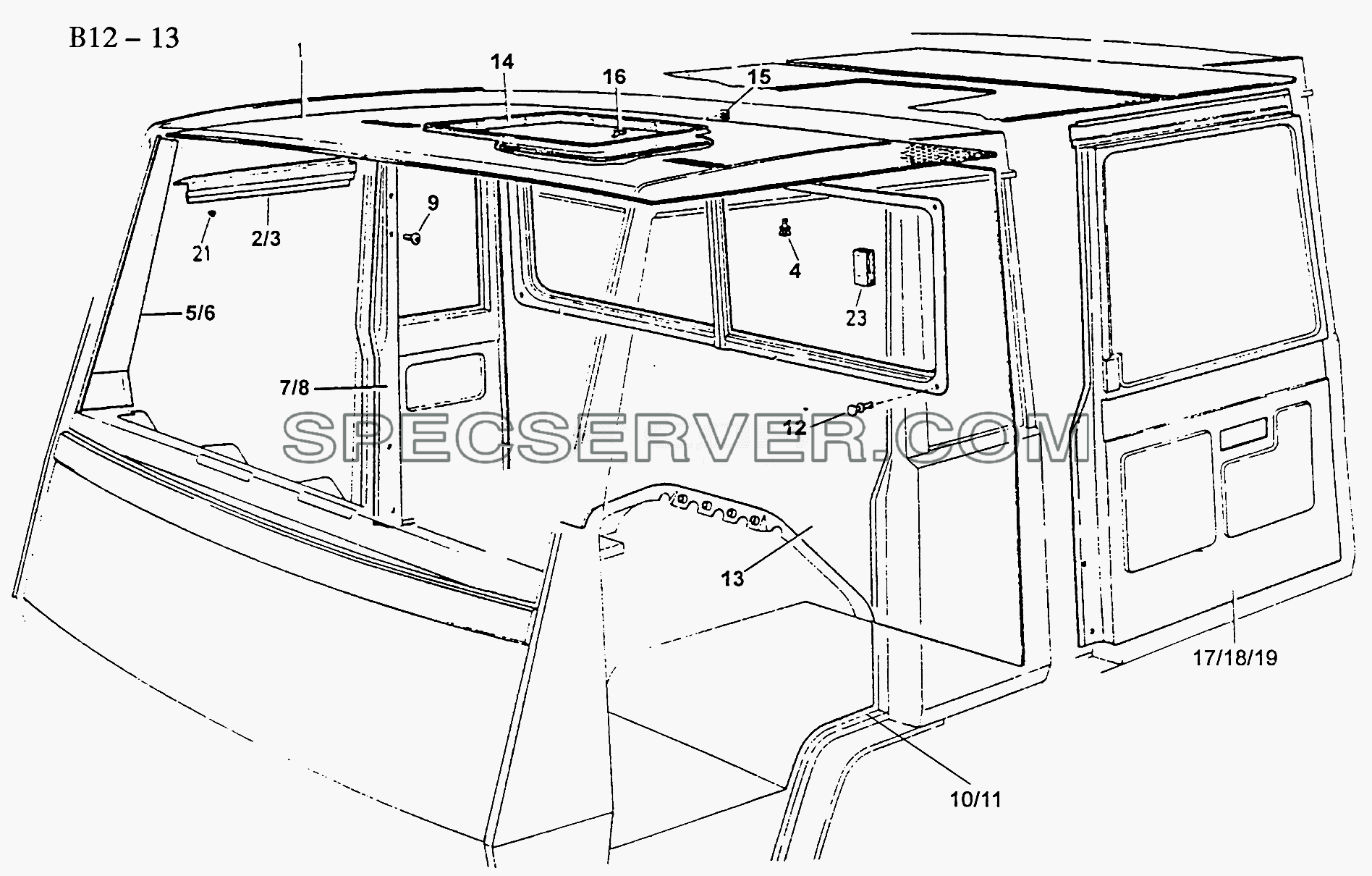

INTERNAL LINING (B12-13) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		116100610090 [Roof pad]	Roof pad
1		AZ1692610081 [Roof pad]	Roof pad
1		WG1630610005 [Roof pad]	Roof pad
1		WG1672612083 [Roof pad]	Roof pad
2		WG1600610174 [Left door up frame pad]	Left door up frame pad
2		WG1630610006 [Left door up frame pad]	Left door up frame pad
2		WG1692610023 [Left door up frame pad]	Left door up frame pad
2		WG1692610031 [Left door up frame pad]	Left door up frame pad
3		WG1600610173 [Right door up frame pad]	Right door up frame pad
3		WG1630610007 [Right door up frame pad]	Right door up frame pad
3		WG1692610022 [Right door up frame pad]	Right door up frame pad
3		WG1692610030 [Right door up frame pad]	Right door up frame pad
4		190003172951 [Plastic revit]	Plastic revit
5		116100610123 [Right post pad]	Right post pad
6		116100610124 [Left post pad]	Left post pad
7		WG1600610107 [Right side panel garnish]	Right side panel garnish
7		WG1672612009 [Side panel pad with window]	Side panel pad with window
7		WG1692612009 [Right side panel garnish]	Right side panel garnish
8		WG1600610108 [Left side panel garnish]	Left side panel garnish
8		WG1672612010 [Left side pad with window]	Left side pad with window
8		WG1692612010 [Left side panel garnish]	Left side panel garnish
9		116100610035 [Bolt]	Bolt
10		ZW1611610001 [Left door sealing strip]	Left door sealing strip
11		ZW1611610002 [Right door sealing strip]	Right door sealing strip
12		90003172951 [Plastic rivet]	Plastic rivet
13		WG1600610059 [Rear panel garnish]	Rear panel garnish
13		WG1630160062 [Rear panel garnish]	Rear panel garnish
13		WG1672610102 [Rear panel garnish]	Rear panel garnish
13		WG1672612001 [Rear panel garnish]	Rear panel garnish
13		WG1672612001 [Rear panel garnish]	Rear panel garnish
14		116100610047 [Roof window cover]	Roof window cover
15		90003699563 [Reed nut]	Reed nut
16		Q2714219 [Crosshead bolt]	Crosshead bolt
17		WG1692610013 [Right inner pad]	Right inner pad
18		WG1692610014 [Left inner pad]	Left inner pad
19		Q2714825 [Crosshead bolt]	Crosshead bolt
21		Q4400410T19 [Split mushroom self plugging rivet]	Split mushroom self plugging rivet
30		WG6102720020 [Door lamp switch]	Door lamp switch
31		WG6102720014 [Lamp in cab]	Lamp in cab
32		179100810050 [Bolb]	Bolb

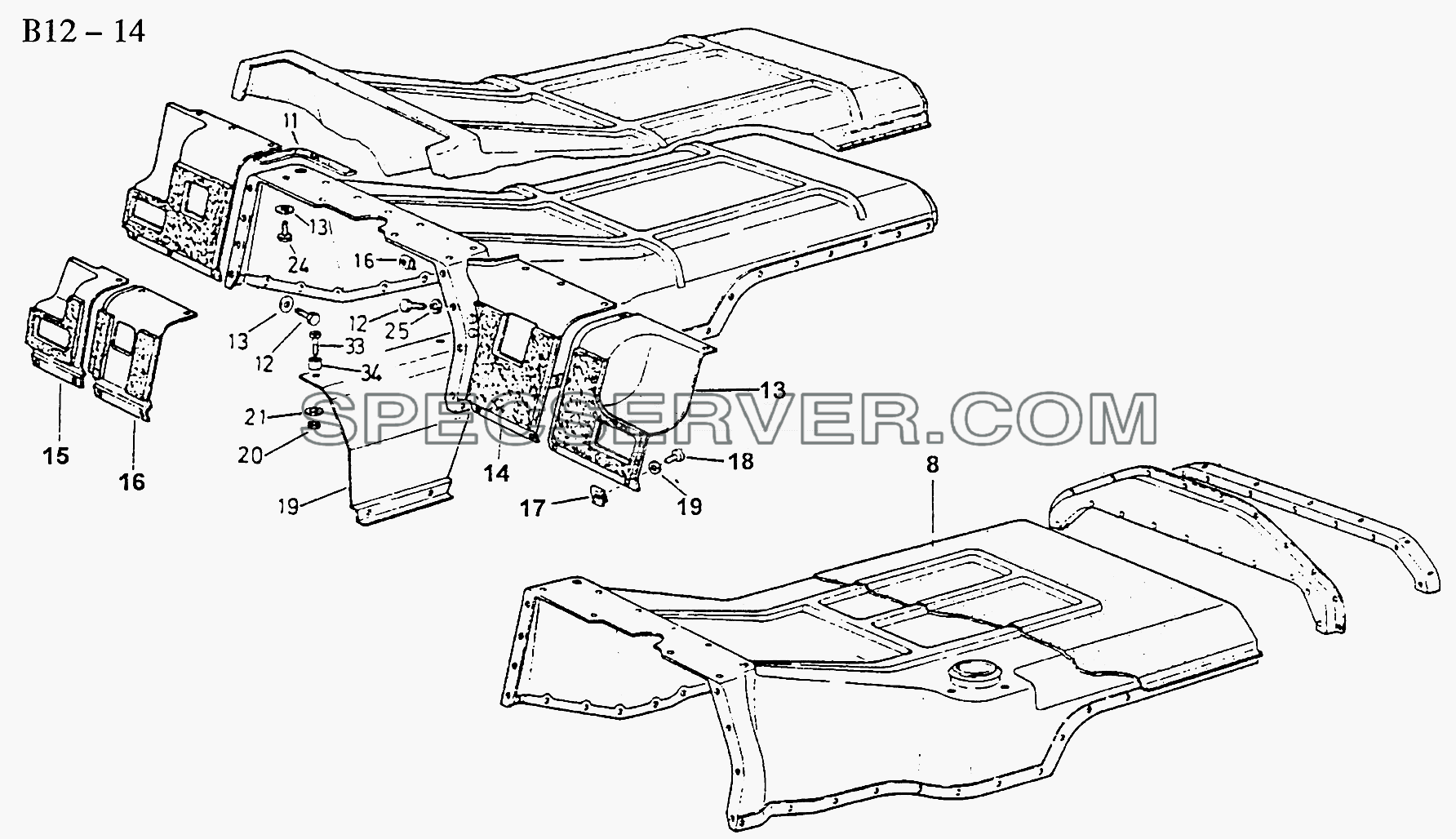

LINING FOR ENGINE HOOD (B12-14) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
8		116103620010 [Lining for engine hood]	Lining for engine hood
8		AZ1630620010 [Lining for engine hood]	Lining for engine hood
8		AZ1630620012 [Lining for engine hood]	Lining for engine hood
8		WG1630620011 [Lining for engine hood]	Lining for engine hood
13		116103610017 [Left firewall scaleboard]	Left firewall scaleboard
14		116103610072 [Protect board]	Protect board
15		116103610036 [Right firewall scaleboard I]	Right firewall scaleboard I
16		116103610037 [Right firewall scaleboard II]	Right firewall scaleboard II
17		90003699563 [Punch nut]	Punch nut
18		Q2714216 [Tapping screw]	Tapping screw
19		Q40205 [Washer]	Washer

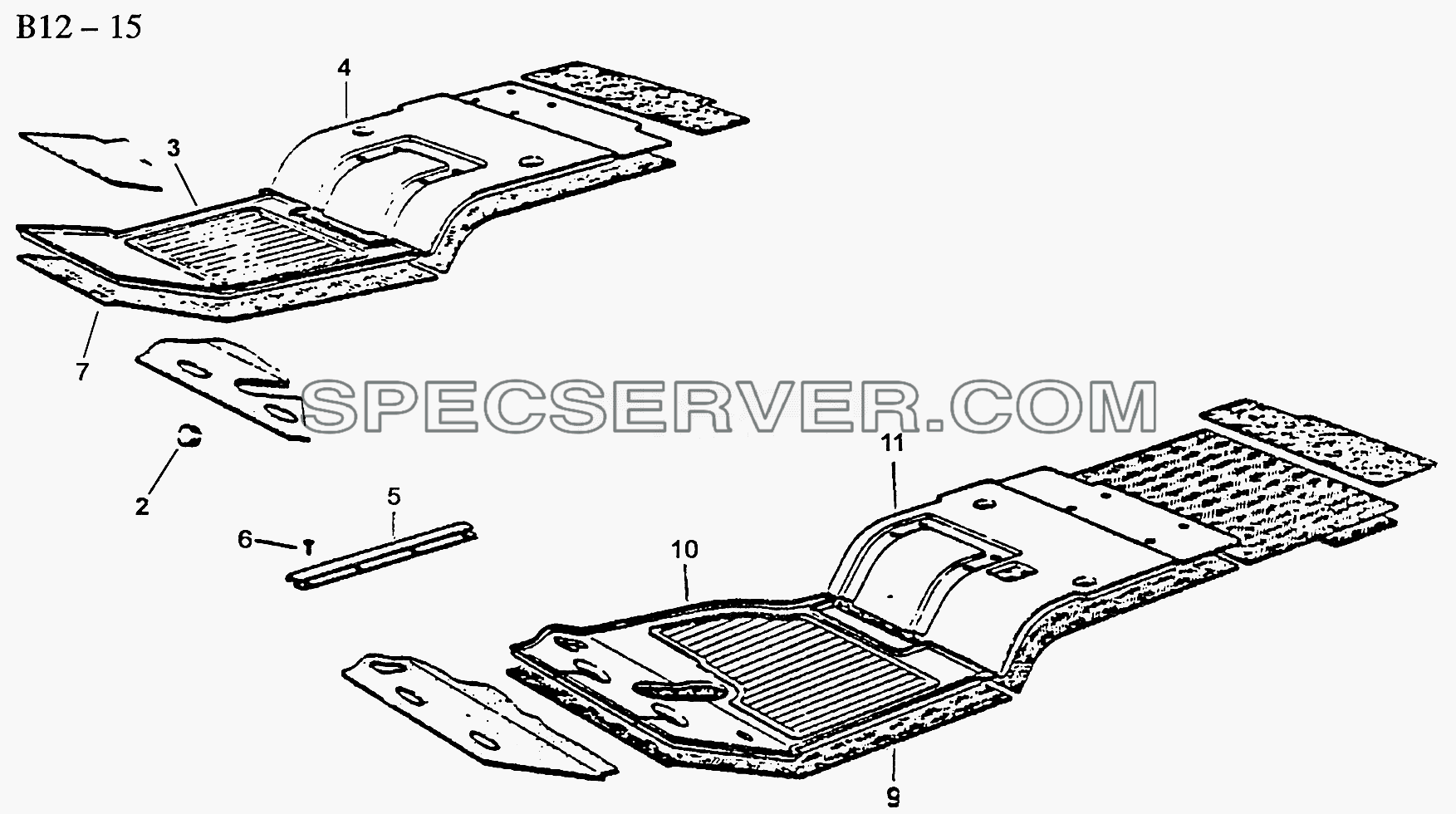

LINING (B12-15) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		1-99-960-010 [Rubber damping]	Rubber damping
3		116103620037 [Right front floor mat front]	Right front floor mat front
3		AZ1630620037 [Right front floor mat front]	Right front floor mat front
4		116103620039 [Right rear floor mat rear]	Right rear floor mat rear
4		AZ1613620139 [Right rear floor mat rear]	Right rear floor mat rear
4		AZ1630620002 [Floor mat rear]	Floor mat rear
5		116100520012 [Step sealing]	Step sealing
6		Q2762995 [Tapping screw]	Tapping screw
7		116192620047 [Right Felt]	Right Felt
9		116192620048 [Left felt]	Left felt
10		AZ1630620038 [Left front floor mat front]	Left front floor mat front
10		AZ1630620038 [Left front floor mat front]	Left front floor mat front
11		116103620040 [Left rear floor mat rear]	Left rear floor mat rear
11		AZ1613620140 [Left rear floor mat rear]	Left rear floor mat rear
11		AZ1630620001 [Floor mat rear]	Floor mat rear
12		99000580051 [Rubber cover]	Rubber cover

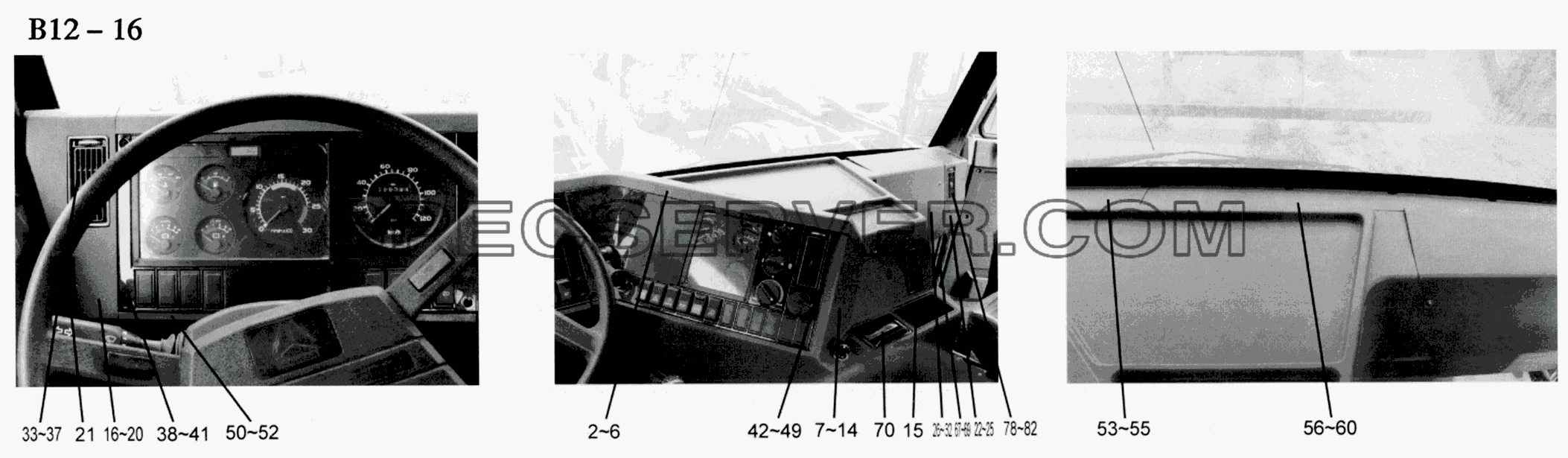

DASHBOARD FOR DRIVE LEFT (B12-16) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		AZ1630160004 [Instrument upper garnish]	Instrument upper garnish
3		Q2714816 [Crosshead bolt]	Crosshead bolt
4		Q39748202 [Reed nut]	Reed nut
5		Q40005 [Washer]	Washer
6		AZ1630160038 [Cover]	Cover
7		AZ1630160045 [Instrument middle garnish]	Instrument middle garnish
8		Q2714816 [Crosshhead bolt]	Crosshhead bolt
9		Q39748202 [Reed nut]	Reed nut
10		Q40005 [Washer]	Washer
11		Q150B0520 [Hexagon head tap bolt]	Hexagon head tap bolt
12		Q340B05 [Hexagon head tap nut]	Hexagon head tap nut
13		Q40205 [Washer]	Washer
14		Q40305 [Grower washer]	Grower washer
15		AZ1614160003 [Juice box]	Juice box
15		AZ1630160046 [Box of juice]	Box of juice
16		AZ1630160002 [Instrument left garnish]	Instrument left garnish
17		Q2714816 [Crosshead bolt]	Crosshead bolt
18		Q39748202 [Reed nut]	Reed nut
19		Q150B0520 [Hexagon head tap bolt]	Hexagon head tap bolt
20		Q40105 [Washer]	Washer
21		AZ1630160030 [Little bar of ventilator]	Little bar of ventilator
22		AZ1630160003 [Instrument right garnish]	Instrument right garnish
23		Q2714816 [Crosshead bolt]	Crosshead bolt
24		Q39748202 [Reed nut]	Reed nut
25		Q40105 [Washer]	Washer
26		AZ1630160006 [Electric equipment cover board assembly]	Electric equipment cover board assembly
27		AZ1630160041 [Hinge pin]	Hinge pin
28		Q5001610 [Split pin]	Split pin
29		1680K 750047 [Compress spring]	Compress spring
30		Q2714816 [Crosshead bolt]	Crosshead bolt
31		Q39748202 [Reed nut]	Reed nut
32		Q40005 [Washer]	Washer
33		AZ1630160007 [Upper ventilator assembly left]	Upper ventilator assembly left
34		Q214516 [Crosshead bolt]	Crosshead bolt
35		Q340B05 [Hexagon head tap nut]	Hexagon head tap nut
36		Q40005 [Washer]	Washer
37		AZ1630160048 [Pad]	Pad
38		AZ1630160011 [Left instrument]	Left instrument
39		Q2714816 [Crosshead bolt]	Crosshead bolt
40		Q39748202 [Reed nut]	Reed nut
41		Q40005 [Washer]	Washer
42		AZ1630160012 [Right instrument]	Right instrument
43		Q2714816 [Crosshead bolt]	Crosshead bolt
44		Q39748202 [Reed nut]	Reed nut
45		Q2714825 [Crosshead bolt]	Crosshead bolt
46		Q39748202 [Reed nut]	Reed nut
47		Q40005 [Washer]	Washer
48		AZ1630160043 [Cover]	Cover
49		Q2714213 [Crosshead bolt]	Crosshead bolt
50		AZ1630160013 [Instrument down garnish assembly left]	Instrument down garnish assembly left
51		Q340B06 [Hexagon head tap nut]	Hexagon head tap nut
52		Q40006 [Washer]	Washer
53		AZ1630160014 [Front panel inside garnish left]	Front panel inside garnish left
54		Q140820 [Crosshead bolt]	Crosshead bolt
55		Q40208 [Washer]	Washer
56		AZ1630160015 [Front panel down cover L]	Front panel down cover L
57		Q2714816 [Crosshead bolt]	Crosshead bolt
58		Q39748202 [Reed nut]	Reed nut
59		Q219748516 [Crosshead bolt]	Crosshead bolt
60		Q40205 [Washer]	Washer
61		AZ1630160020 [Ventilator left foot]	Ventilator left foot
62		Q2140516 [Crosshead bolt]	Crosshead bolt
63		Q40005 [Washer]	Washer
64		AZ1630160023 [Ventilator right foot]	Ventilator right foot
65		Q2140516 [Crosshead bolt]	Crosshead bolt
66		Q40005 [Washer]	Washer
67		AZ1630160032 [Handle]	Handle
68		Q150B0820 [Hexagon head tap nut]	Hexagon head tap nut
69		Q40208 [Washer]	Washer
70		AZ1630160031 [Ashtray assembly]	Ashtray assembly
71		AZ1630160017 [Left up ventilator (down)]	Left up ventilator (down)
72		AZ1630150117 [Joint plate]	Joint plate
73		AZ1630150118 [Center post assembly]	Center post assembly
74		AZ1630160049 [Rubber shade]	Rubber shade
75		AZ1630160060 [Finisher strip]	Finisher strip
77		AZ1630160063 [Finisher weather strip]	Finisher weather strip
78		AZ1630160008 [Right up ventilator assem (Mirror image)]	Right up ventilator assem (Mirror image)
79		Q2140516 [Crosshead bolt]	Crosshead bolt
80		Q340B05 [Hexagon head tap nut]	Hexagon head tap nut
81		Q40005 [Washer]	Washer
82		Q4400410 [Split mushroom self plugging rivet]	Split mushroom self plugging rivet
83		AZ1614160005 [Cup]	Cup

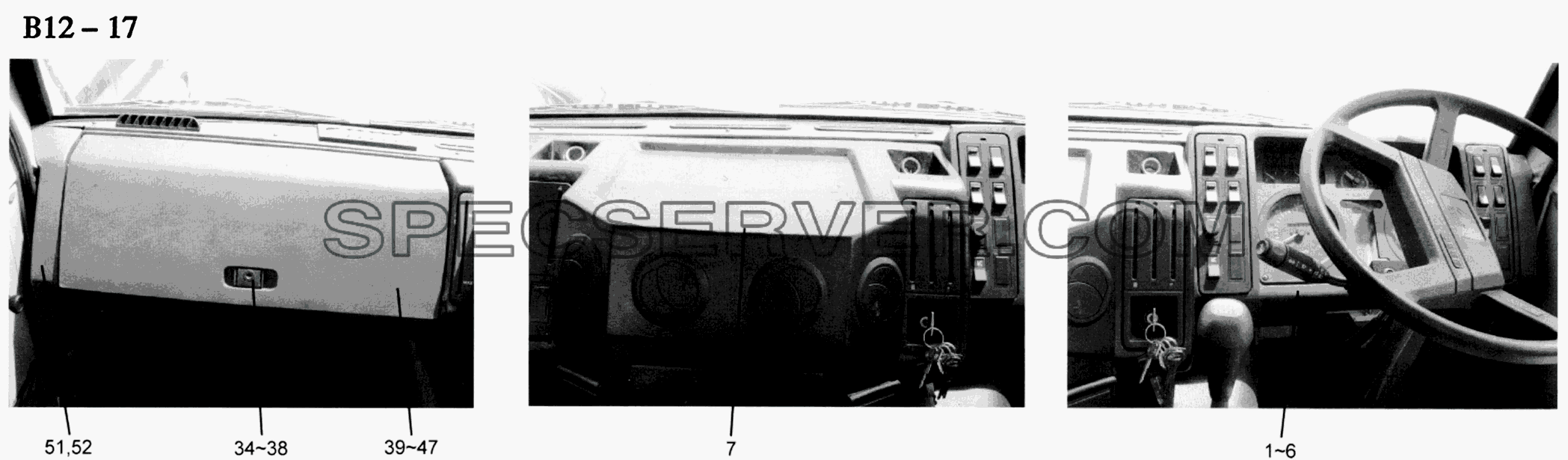

DASHBOARD FOR DRIVE RIGHT (B12-17) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		115203160075 [Instrument garnish]	Instrument garnish
2		190003880022 [Nut]	Nut
3		190003843157 [Screw]	Screw
4		Q40205 [Washer]	Washer
5		Q340B06 [Nut]	Nut
6		Q40206 [Washer]	Washer
7		AZ1600820211-7 [Garnish for air conditoner]	Garnish for air conditoner
7		WG1600160004 [Med.instrument garnish]	Med.instrument garnish
8		WG1600160006 [Cover]	Cover
9		116100160091 [Hinge I]	Hinge I
10		116100160093 [Hinge II]	Hinge II
11		116100160095 [Hinge III]	Hinge III
12		116100160097 [Pin]	Pin
13		116100160040 [Bracket]	Bracket
14		116100160041 [Cover]	Cover
15		190003880022 [Nut]	Nut
16		190003843157 [Screw]	Screw
17		190003822212 [Screw]	Screw
18		Q40205 [Washer]	Washer
19		Q150B0616 [Screw]	Screw
20		Q340B06 [Nut]	Nut
21		Q40206 [Washer]	Washer
22		Q150B0616 [Screw]	Screw
23		Q40206 [Washer]	Washer
24		116100160043 [Cover]	Cover
25		116100160044 [Cover]	Cover
26		116100160042 [Cover]	Cover
27		WG1600930016 [Nut]	Nut
28		115200160080 [Ashtray]	Ashtray
29		WG1600160008 [Box]	Вох
30		190003880022 [Nut]	Nut
31		Q2714825 [Screw]	Screw
32		Q40205 [Washer]	Washer
33		Q2540516 [Screw]	Screw
34		WG1600160092 [Lock of box]	Lock of box
35		190003843157 [Screw]	Screw
36		190003880022 [Nut]	Nut
37		Q40205 [Washer]	Washer
38		Q2300512 [Screw]	Screw
39		WG1600160060 [Cover of box]	Cover of box
40		115200160011 [Hinge A]	Hinge A
41		115200160010 [Hinge B]	Hinge B
42		115200160028 [Hinge C]	Hinge C
43		115200160011 [Pin for hinge]	Pin for hinge
44		190003880022 [Nut]	Nut
45		190003843157 [Screw]	Screw
46		Q2540516 [Screw]	Screw
47		Q40005 [Screw]	Screw
48		WG1600160059 [Progect plate]	Progect plate
49		Q340B06 [Nut]	Nut
50		Q40206 [Washer]	Washer
51		116100160016 [Step in grip r.]	Step in grip r.
52		116100160017 [Step in grip l.]	Step in grip l.
53		Q150B0812 [Screw]	Screw
54		Q40208 [Washer]	Washer
55		Q218B0850 [Screw]	Screw
56		1113040025 [Space sleeve]	Space sleeve
57		116100160020 [Cover]	Cover
58		190003880022 [Nut]	Nut
59		Q2714825 [Screw]	Screw
60		Q40205 [Washer]	Washer
61		190003179060 [Profil]	Profil
62		116100160065 [Ventilator]	Ventilator
63		116100160066 [Long ventilator]	Long ventilator
64		115200160055 [Right ventilator]	Right ventilator
65		115200160056 [Left ventilator]	Left ventilator
66		WG1600840022 [Nut]	Nut
67		190003120090 [Sealing profil]	Sealing profil
68		116103160065 [Bracket]	Bracket
69		Q150B0616 [Screw]	Screw
70		Q340B06 [Nut]	Nut
71		Q40206 [Washer]	Washer
