661

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

If the brake system indicator (red) comes on or blinks at the

same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

2

Parking Brake

 P. 554

If the brake system indicator (red) continuously comes on or blinks at

the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving, put the transmission into

(

P

.

If only the brake system indicator (red) is turned off, avoid using the

parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)

662

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

Reasons for the indicator to come on

Comes on when there is a problem with the EPS system.

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

If

Do not drive

 displays on the driver information interface,

immediately stop in a safe place and contact a dealer.

663

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

2

TPMS Calibration

 P. 463

If the compact spare tire causes the indicator to come on, change the
tire to a full-size tire. The indicator goes off after calibrating the TPMS.

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to first blink, and then stay on, change the
tire to a full- size tire. The indicator goes off after calibrating the TPMS.

2

TPMS Calibration

 P. 463

U.S. models

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

664

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

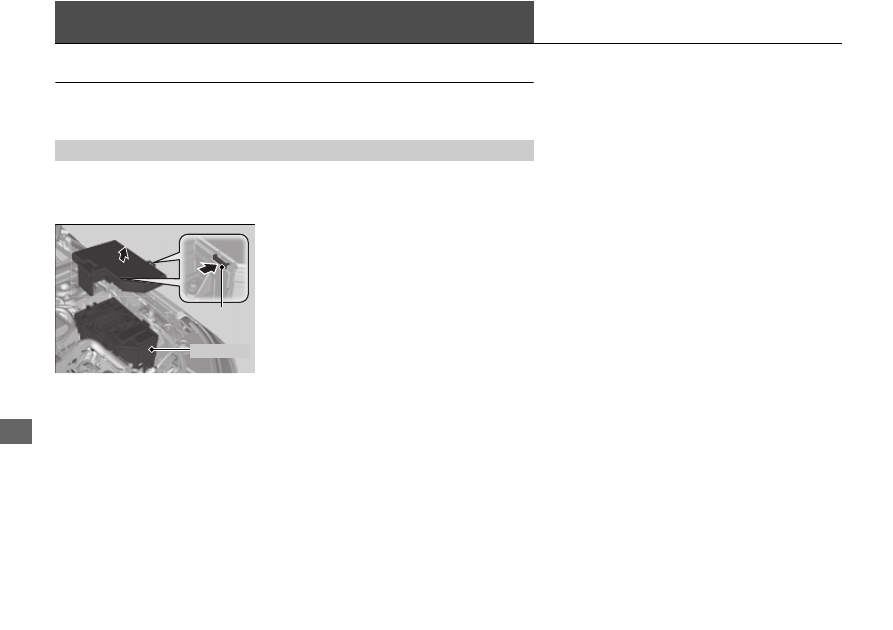

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

Engine Compartment Fuse Box

Fuse Box

Tab

665

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Circuit protected and fuse rating

Circuit Protected

Amps

1

BATTERY

125 A

2

-

40 A

-

40 A

F/BOX OPTION

60 A

-

40 A

F/BOX OPTION2

40 A

DC/DC2

(30 A)

F/BOX MAIN

60 A

3

-

40 A

-

40 A

-

40 A

RR DEFROSTER

40 A

-

40 A

HTR MTR

40 A

-

40 A

4

-

30 A

ABS/VSA MTR

40 A

DC/DC

(30 A)

-

30 A

IG MAIN

30 A

-

30 A

R/M2

30 A

5

ST MAGNETIC SW

30 A

WIPER

30 A

EPS

70 A

R/M1

30 A

ABS/VSA FSR

40 A

MAIN FAN

30 A

F/BOX MAIN2

40 A

6

 SUB FAN

30 A

7

 IG MAIN2

30 A

8

-

-

9

EVP

*

(30 A)

10

AUDIO SUB

*

(7.5 A)

11

-

-

12

-

-

13

H/STRG

*

(10 A)

14

-

-

15

FR FOG

*

(10 A)

16

MG CLUTCH

10 A

17

WASHER

15 A

18

HORN

10 A

19

BACK UP

15 A

20

AUDIO

*

(15 A)

21

-

-

22

DBW

15 A

23

EOP

*

(20 A)

24

BACKUP FI-ECU

10 A

25

IGP

15 A

Circuit Protected

Amps

26

TCU

(15 A)

27

LCM L

(15 A)

28

INJ

*

(15 A)

29

STOP

10 A

30

LCM R

(15 A)

31

IG COIL

15 A

32

-

-

33

HAZARD

15 A

34

AUDIO SUB VST

*

(7.5 A)

35

-

-

36

AUDIO VST MAIN

(30 A)

37

BACKUP2

(30 A)

38

-

-

39

-

-

40

VBACT

*

(10 A)

41

IGPS [LAF]

10 A

42

IG1 MON2

7.5 A

Circuit Protected

Amps

* Not available on all models

666

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

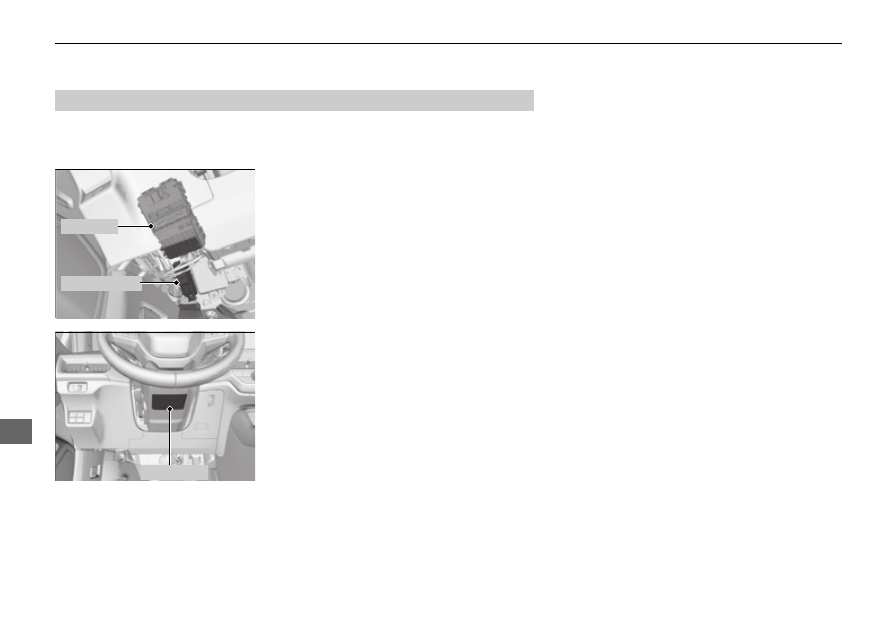

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.

Interior Fuse Box

Fuse Box

Sub Fuse Box

Fuse Label

667

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Circuit protected and fuse rating

Circuit Protected

Amps

1

P/W DR

20 A

2

P/W AS

20 A

3

P/W RR R

20 A

4

P/W RR L

20 A

5

OPTION

10 A

6

SRS

10 A

7

T/G MTR / TRUNK ACT

10 A

8

-

-

9

FR ACC SOCKET

20 A

10

DOOR LOCK

20 A

11

METER

10 A

12

OPTION3 (ST CUT)

10 A

13

OPTION2 (RR WIP)

*

(10 A)

14

OPTION6 (VB SOL)

10 A

15

DR DOOR UNLOCK

(10 A)

16

SUNROOF

*

(20 A)

17

SBW1

*

(10 A)

18

-

-

19

-

-

20

RR FOG

*

(10 A)

21

CARGO ACC SOCKET

*

(20 A)

22

SMART

10 A

23

DR DOOR LOCK

(10 A)

24

SBW2

*

(7.5 A)

25


10 A

26

SRS

10 A

27

ACG / D/V / ST CUT RLY

20 A

28

OPTION5

10 A

29

FUEL PUMP

15 A

30

L SIDE DOOR UNLOCK

10 A

31

R SIDE DOOR UNLOCK

10 A

32

-

-

33

-

-

34

-

-

35

-

-

36

OPTION3 (SUNSHADE)

*

(20 A)

37

IGA2

*

(15 A)

38

-

-

39

R SIDE DOOR LOCK

10 A

40

P/SEAT REC / RR HI

*

(20 A)

41

P/SEAT SLIDE / FR HI

*

(20 A)

42

-

-

43

A/C

10 A

44

DRL

10 A

45

ACC

10 A

46

ACC KEY LOCK

10 A

47

L SIDE DOOR LOCK

 10 A

48

H/SEAT

20 A

49

AS P/SEAT REC

*

(20 A)

50

P/LUMBER DR

*

(10 A)

51

P/LUMBER AS

*

(10 A)

52

RR H/SEAT

*

(20 A)

Circuit Protected

Amps

53

AS P/SEAT SLI

*

(20 A)

54

OPTION1 / FUEL LID

10 A

55

AUDIO AMP

*

(30 A)

56

ADS

*

(30 A)

Circuit Protected

Amps

A

BACKUP2 MAIN

(10 A)

B

AUDIO SUB VST

*

(7.5 A)

C

ACC VST

(10 A)

D

VST 1

(10 A)

E

AUDIO VST

(15 A)

F

EOP

*

(20 A)

G

-

-

H

VST 2

(10 A)

Circuit Protected

Amps

Sub Fuse Box

* Not available on all models

668

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

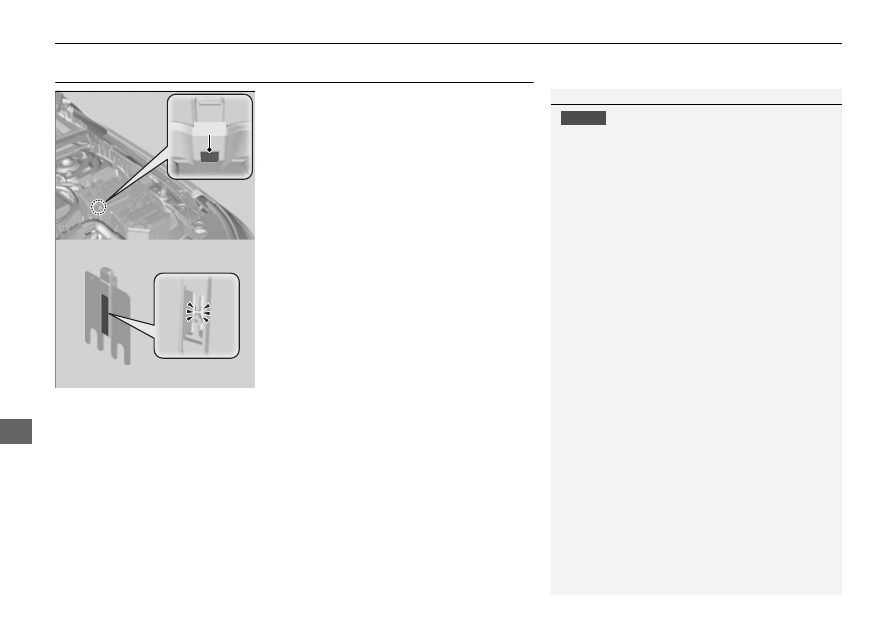

Check the main fuse in the engine
compartment fuse box.

u

Look the fuse through the hole.

u

If the fuse is blown, have it replaced by a
dealer.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 664

Replace fuse with a spare fuse of the same specified
amperage.

Main Fuse

Hole

669

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

4.

Check the combined fuses in the engine
compartment fuse box.

u

Look into the space between the fuses.

u

If the fuse is blown, have it replaced by a
dealer.

5.

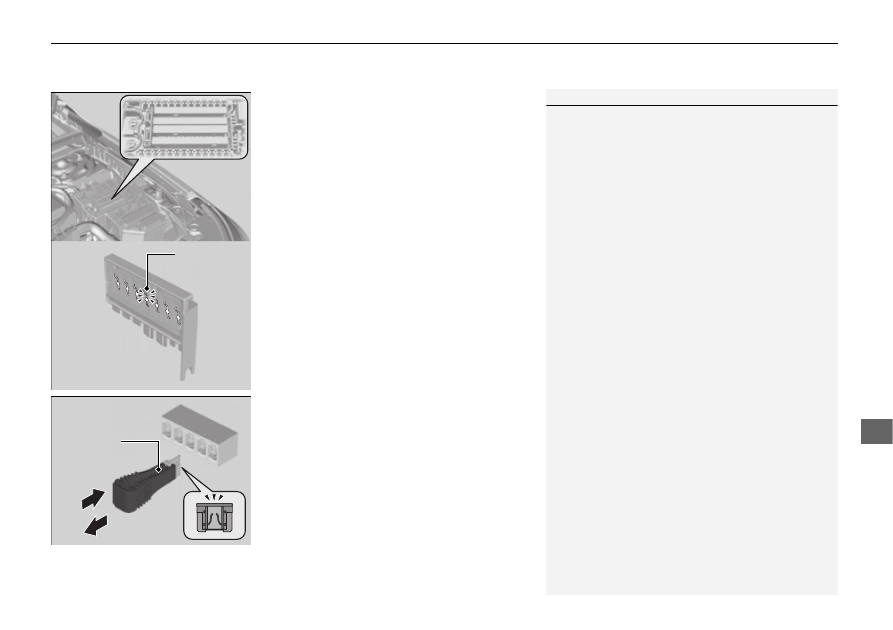

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined Fuse

Blown Fuse

Fuse Puller

670

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

2

Parking Brake

 P. 554

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

671

Han

d

lin
g the U

n

expected

If You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1.

Open the trunk.

2.

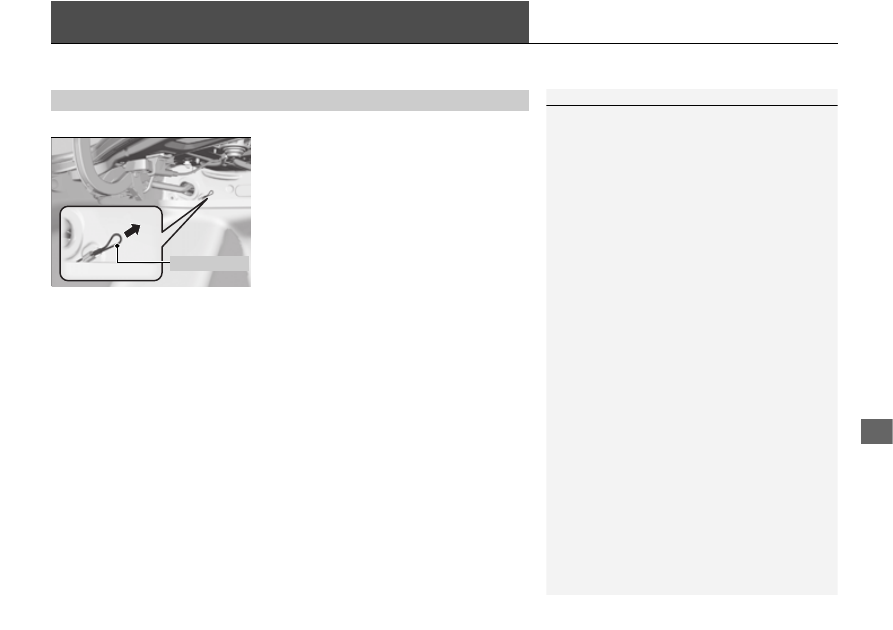

Pull the release cord toward you.

u

The release cord unlocks the fuel fill door
when it is pulled.

3.

Open the fuel fill door.

2

How to Refuel

 P. 576

What to Do if Unable to Unlock the Fuel Fill Door

1

If You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Release Cord

672

Han

d

lin
g the U

n

expected

If You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1.

Remove the cover with a key.

u

Wrap a key with a cloth to prevent
scratching the cover.

2.

Pull the release cord.

3.

Replace the cover.

What to Do if Unable to Open the Trunk

1

If You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Cord

673

Han

d

lin
g the U

n

expected

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1.

Turn off the engine.

2.

Press on the edge of the fuel fill door until
you hear a click when the driver’s door is
unlocked.

u

The fuel fill door opens.

3.

Take the funnel out of the tool case in the
trunk.

2

Types of Tools

 P. 640

4.

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5.

Fill the tank with fuel from the portable fuel
container.

u

Pour fuel carefully so you do not spill any.

6.

Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7.

Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

Stop the engine, and keep heat, sparks,
and flame away.

Handle fuel only outdoors.

Wipe up spills immediately.

Funnel

676

Info

rm

ation

Specifications

Vehicle Specifications

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

15.3 – 17.1 oz (435 – 485 g)

Lubricant Type

RL85HM (POE)

Quantity

6.7 – 7.5 cu-in (110 – 123 cm

3

)

1.5 L engine models

Engine Specifications

Fuel

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK

DILKAR8P8SY

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)

Light Bulbs

*1: Models without fog lights
*2: Models with fog lights

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

*

LED

Parking/Daytime Running Lights

LED

Front Side Marker Lights

LED

Front Turn Signal Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

LED

Rear Turn Signal Lights

21 W (Amber)

Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

21 W

*1

LED

*2

Rear License Plate Light

LED

Interior Lights

Map Lights

LED

Ceiling Light

LED

Front Ambient Lights LED
Vanity Mirror Lights

2.3 W

Center Console Light LED
Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

677

uu

Specifications

u

Continued

Info

rm

ation

Brake Fluid

Continuously Variable Transmission

Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.9 US qt (3.7 L)

Engine Oil

Engine Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.4 US qt (3.2 L)

Change
including
filter

3.7 US qt (3.5 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.51 US gal (5.72 L)
(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)

Tire

*1: Models with 17 inch wheel
*2: Models with 18 inch wheel

Regular

Size

215/50R17 91H

*1

235/40R18 91W

*2

Pressure
psi (kPa [kgf/cm

2

])

Front
33 (230 [2.3])

*1

33 (225 [2.25])

*2

Rear
33 (230 [2.3])

*1

32 (220 [2.2])

*2

Compact
Spare

Size

T125/80D16 97M

*1

T125/85D16 99M

*2

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7J

*1

18 x 8J

*2

Compact Spare

16 x 4T















Content      ..     39      40      41      42     ..
