573

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

d

lin

g the U

n

expected

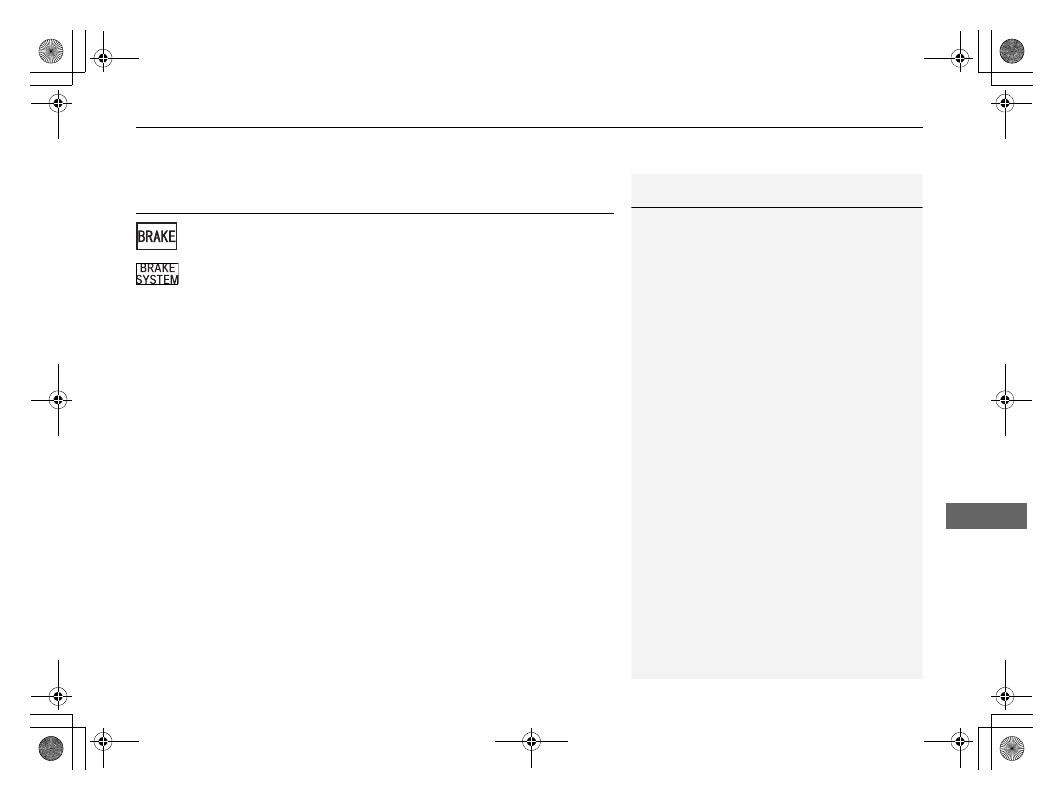

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

If the brake system indicator (red) comes on or blinks at the
same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

2

Parking Brake

 P. 468

If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving
Put the transmission into

(

P

.

If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.

574

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin

g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

Reasons for the indicator to come on

Comes on when there is a problem with the EPS system.

What to do when the indicator comes on

Stop the vehicle in a safe place and turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

575

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin

g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire

*

 is installed, the indicator will either come on or

it will first blink for about one minute, then stay on.

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

2

TPMS Calibration

 P. 406

If the compact spare tire

*

 causes the indicator to come on, change the

tire to a full-size tire. The indicator goes off after calibrating the TPMS.

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 causes the indicator to first blink, and then stay on, change

the tire to a full-size tire. The indicator goes off after calibrating the
TPMS.

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

576

uu

Indicator, Coming On/Blinking

u

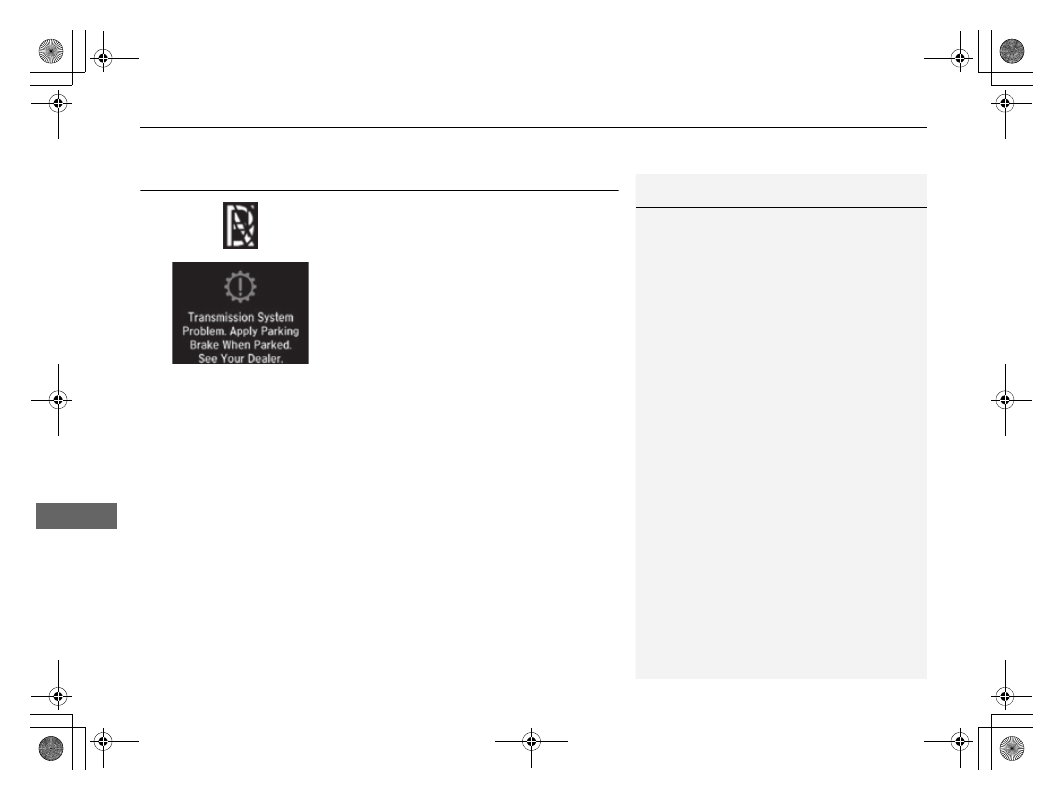

If the Transmission System Indicator Blinks along with the Warning Message

Han

d

lin

g the U

n

expected

If the Transmission System Indicator Blinks along
with the Warning Message

Reasons for the indicator to blink

The transmission is malfunctioning.

What to do when the indicator blinks

Immediately have your vehicle inspected by
a dealer.

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to turn on the power system.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2

Emergency Towing

 P. 583

577

Continued

Han

d

lin

g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

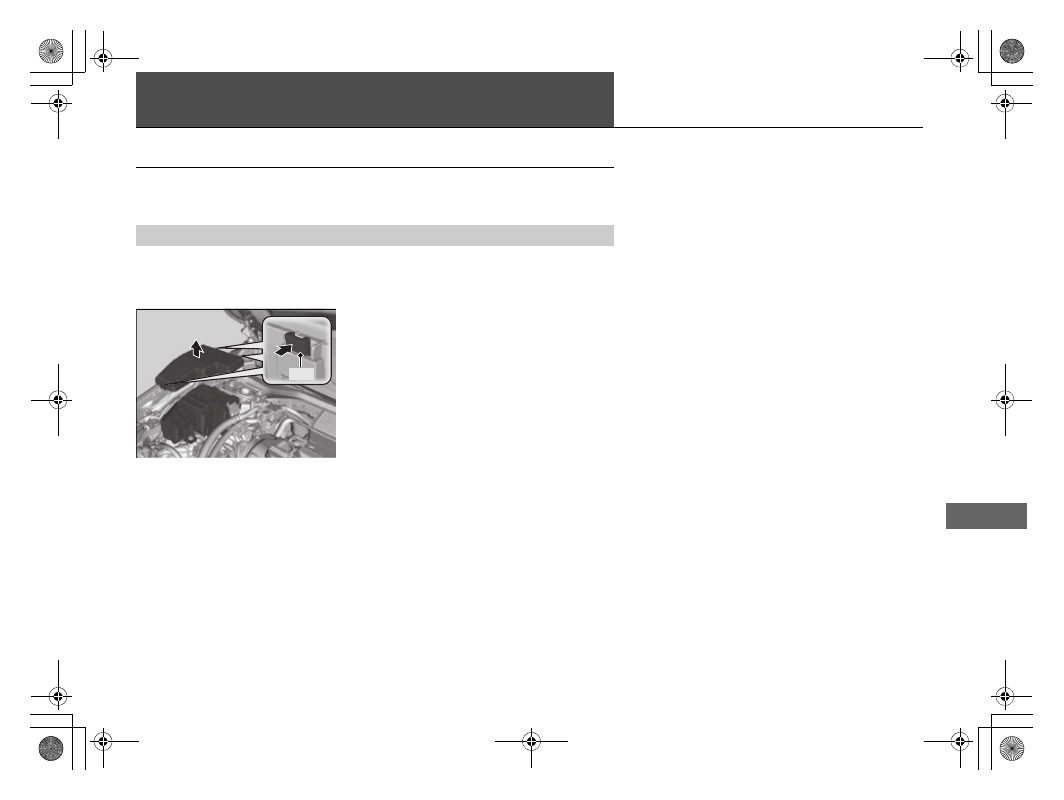

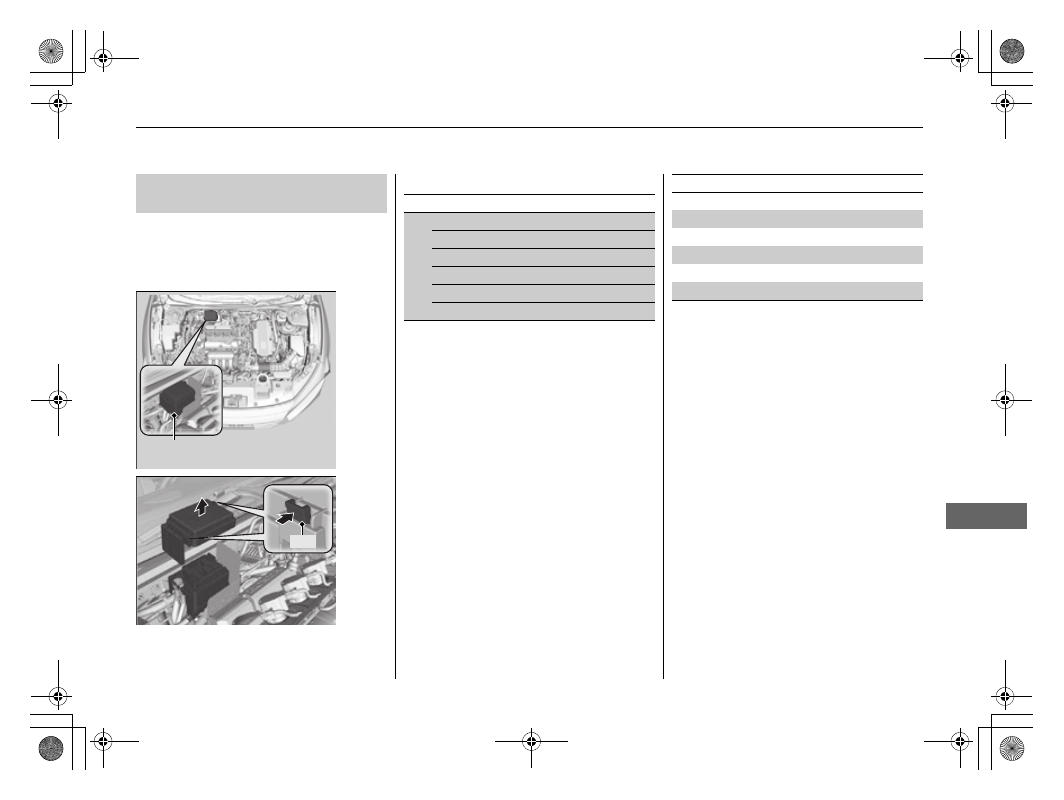

Located near the washer fluid. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

Engine Compartment Fuse Box Type A

Tab

578

uu

Fuses

u

Fuse Locations

Han

d

lin

g the U

n

expected

Circuit protected and fuse rating

Circuit Protected

Amps

1

MAIN FUSE

150 A

IG MAIN 1

30 A

SUB FAN MTR

30 A

IG MAIN 2

30 A

OP FUSE MAIN

30 A

ESB

40 A

ENG EWP

30 A

2

WIPER MOTOR

30 A

R/M 2

30 A

P-ACT

30 A

R/M 1

30 A

COOLING FAN

30 A

EPS

70 A

3

BLOWER MOTOR

40 A

ABS/VSA MOTOR

40 A

FUSE BOX OPTION

*

(40 A)

ABS/VSA FSR

40 A

PREMIUM AUDIO

*

(30 A)

REAR DEFROSTER

40 A

4

30  A

30  A

FUSE BOX 2

40 A

FUSE BOX 1

60 A

5

IGPS

7.5 A

6

VBU

10  A

7

IG HOLD1

10 A

8

PCU EWP

10 A

9

IGP

15 A

10

BACK UP

10 A

11

IGPS (LAF)

7.5 A

12

EVTC

20 A

13

HAZARD

10 A

14

IG COIL

15 A

15

DBW

15 A

16

STOP LIGHTS

10 A

17

18

19

AUDIO

15 A

20

FR FOG LIGHT

*

(15 A)

Circuit Protected

Amps

21

AS P/SEAT RECLINING

*

(20 A)

22

AS P/SEAT SLIDE

*

(20 A)

23

HORN

10 A

24

WASHER

15 A

25

SHIFTER

10 A

26

SMART

10 A

27

28

P-ACT UNIT

10 A

29

IGB

10 A

30

Circuit Protected

Amps

* Not available on all models

579

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin

g the U

n

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number. Push
the tabs to open the box.

Engine Compartment Fuse

Box Type B

Engine Compartment

Fuse Box Type B

Tab

Circuit protected and fuse rating

Circuit Protected

Amps

1

PTC2

40 A

PTC4

40 A

40 A

40 A

40 A

30 A

2

BATT SNSR

7.5 A

3

(7.5 A)

4

5

AUDIO SUB

*

(7.5 A)

6

7

(15 A)

Circuit Protected

Amps

* Not available on all models

580

uu

Fuses

u

Fuse Locations

Han

d

lin

g the U

n

expected

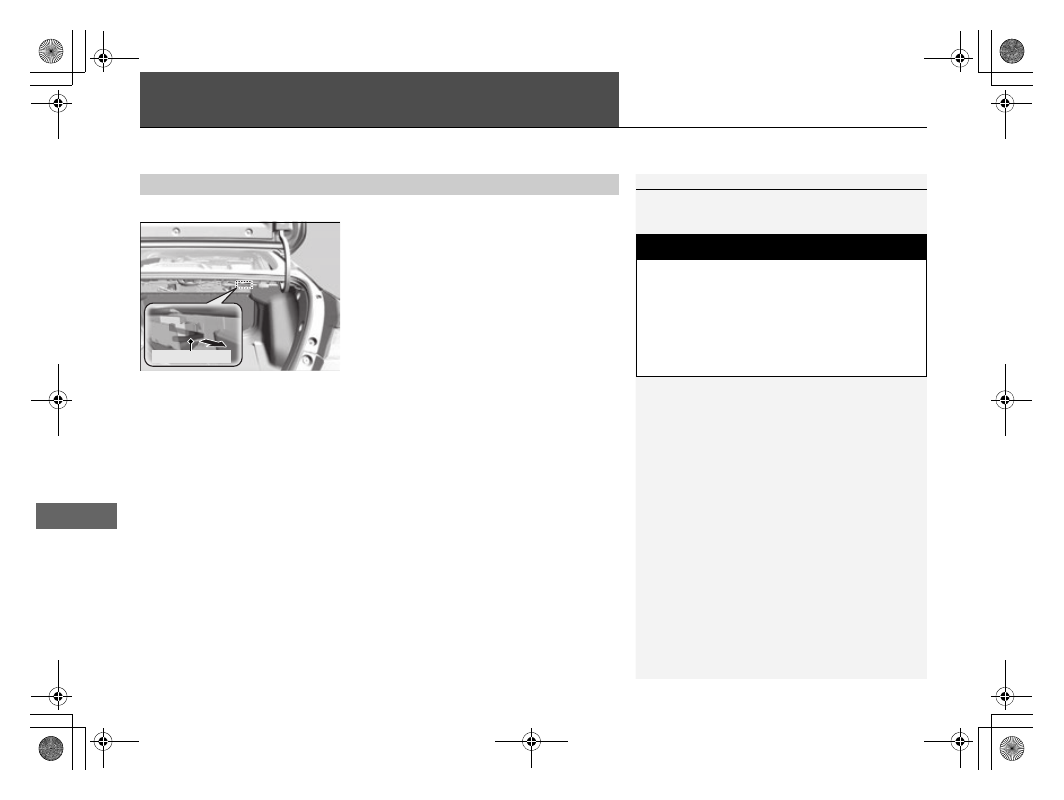

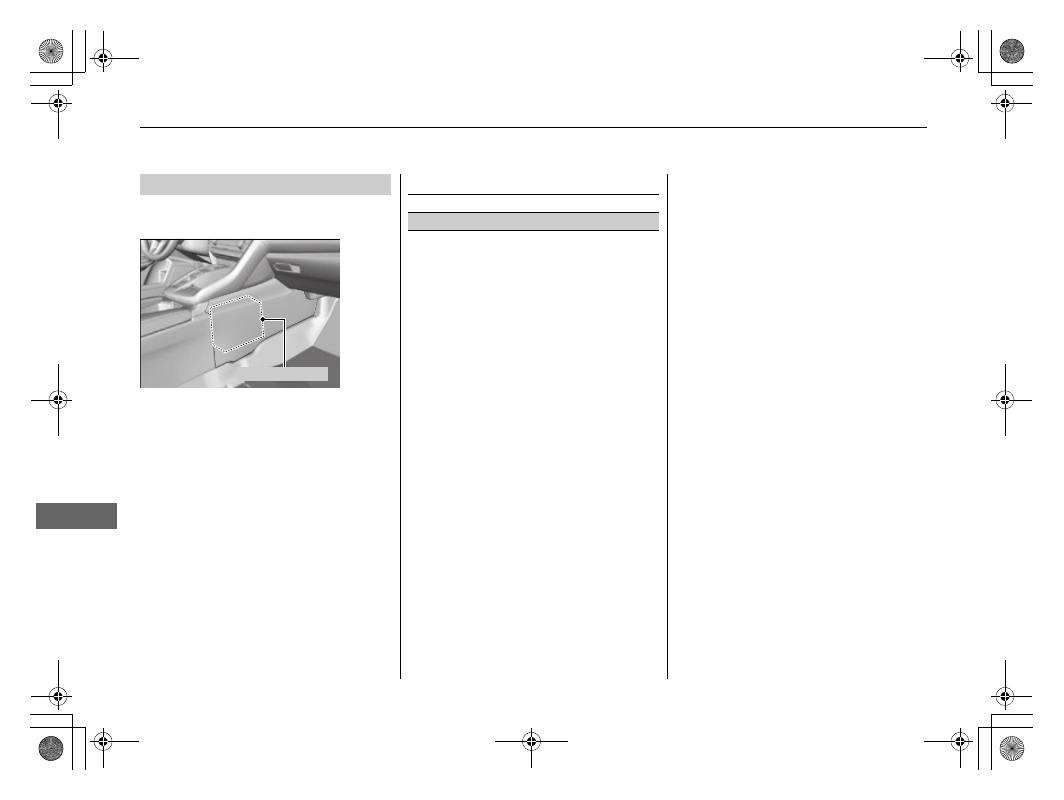

Located on 12-volt battery in the center
console.

Replacement of this fuse should be done by
a dealer.

Interior Fuse Box Type A

12-Volt Battery

Circuit protected and fuse rating

Circuit Protected

Amps

1

BATTERY FUSE

175 A

581

uu

Fuses

u

Fuse Locations

Han

d

lin

g the U

n

expected

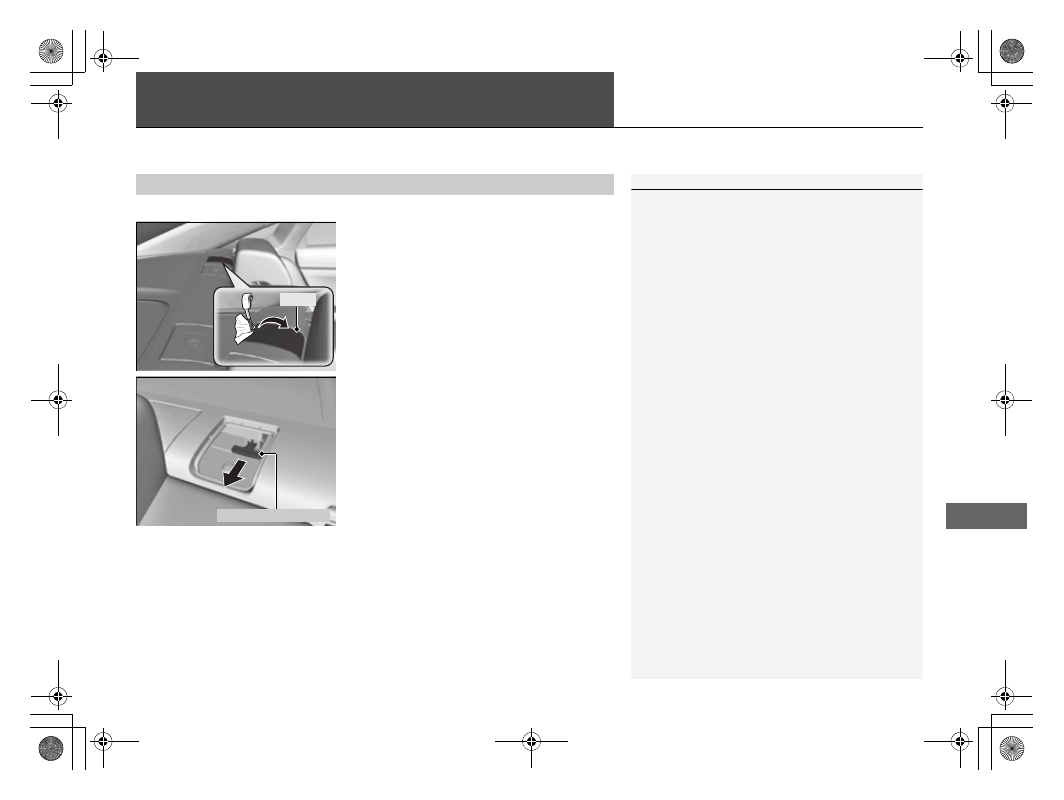

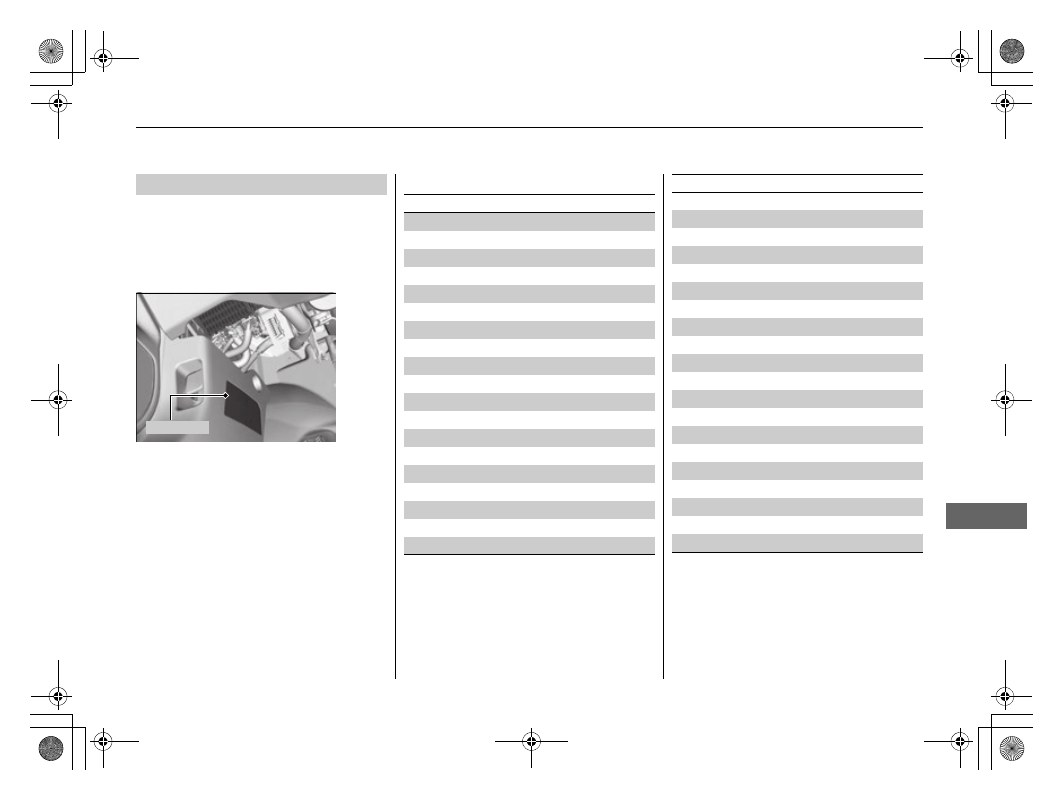

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box Type B

Fuse Label

Circuit protected and fuse rating

Circuit Protected

Amps

1

ACC

10 A

2

3

BATT ECU

10 A

4

SHIFTER

5 A

5

OPTION

10 A

6

P-ACT

5 A

7

METER

10 A

8

FUEL PUMP

15 A

9

AIRCON

10 A

10

11

IG1 MON

5 A

12

R SIDE DOOR LOCK

10 A

13

L SIDE DOOR UNLOCK

10 A

14

RR L P/W

20 A

15

AS P/W

20 A

16

DOOR LOCK

20 A

17

VBSOL

7.5 A

18

19

SUNROOF

*

(20 A)

20

ESB

5 A

21

ACG

10 A

22

DRL

7.5 A

23

24

25

DR DOOR LOCK

(10 A)

26

R SIDE DOOR UNLOCK

10 A

27

RR R P/W

20 A

28

DR P/W

20 A

29

FR ACC SOCKET

20 A

30

OPTION

10 A

31

DR P/SEAT REC

*

20 A

32

FR SEAT HEATER

*

20 A

33

DR P/SEAT SLI

*

20 A

34

ABS/VSA

10 A

35

SRS

10 A

36

HAC OP

20 A

37

BATT FAN

15 A

38

L SIDE DOOR LOCK

10 A

39

DR DOOR UNLOCK

10 A

Circuit Protected

Amps

* Not available on all models

582

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin

g the U

n

expected

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.

2.

Remove the fuse box cover.

3.

Check the large fuse in the engine
compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

5.

Check the large fuse in the vehicle interior.

u

If the fuse is blown, use a phillips-head
screwdriver to remove the screw and
replace it with a new one.

6.

Inspect the small fuses in the vehicle
interior.

u

If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

2

Fuse Locations

 P. 577

Replace fuse with a spare fuse of the same specified
amperage.

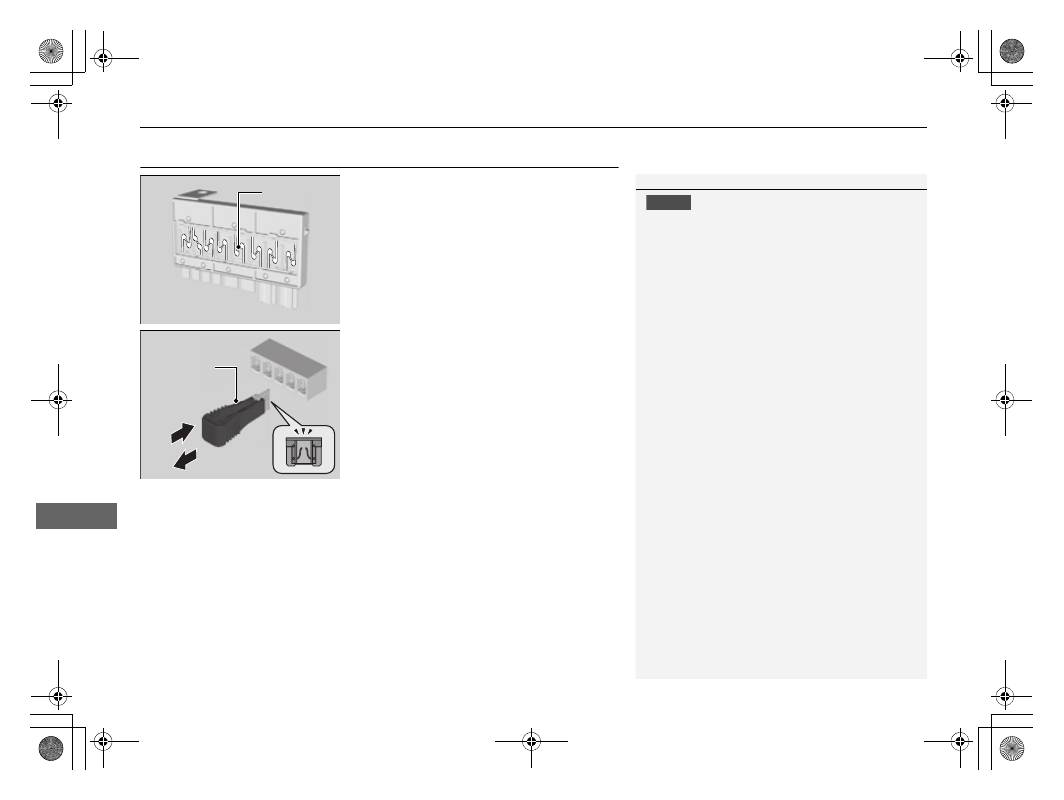

There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.

Combined

Fuse

Blown Fuse

Fuse Puller

583

Han

d

lin

g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

2

Parking Brake

 P. 468

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

584

Han

d

lin

g the U

n

expected

If You Cannot Unlock the Fuel Fill Door

If you cannot open the fuel fill door, use the following procedure.

1.

Open the trunk.

2.

Pull the release lever to the right.

u

The release lever unlocks the fuel fill door
when it is pulled.

3.

Open the fuel fill door.

2

How to Refuel

 P. 486

4.

Add fuel very slowly.

u

The automatic fuel tank vent valve does
not operate when the fuel fill door is
opened manually. Trying to add fuel too
rapidly when the vent valve is closed will
cause fuel vapors to be pushed out the
filler pipe and can cause a small amount
of liquid fuel to be spilled onto the
ground.

What to Do If Unable to Unlock the Fuel Fill Door

1

If You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

The automatic fuel tank vent does not operate when
using the manual fuel door release. Gradually release
pressure by slowly turning the fuel fill cap to the left.
If you hear a release of air, wait until it stops, then
continue to slowly remove the fuel fill cap.

3

WARNING

Gasoline vapors in tank are under pressure.

If using the manual fuel door release,
open the cap slowly to gradually release
pressure.

Stop the engine, and keep all sparks,
heat, and flame away.

Release lever

585

Han

d

lin

g the U

n

expected

If You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1.

Remove the built-in key from the keyless
remote.

2.

Wrap a cloth around the tip of the built-in
key. Put it into the cover (as shown in the
image) and remove the cover.

3.

Pull the trunk release lever toward you.

u

The trunk unlocks and opens.

What to Do If Unable to Open the Trunk

1

If You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Trunk Release lever

588

Info

rm

ation

Specifications

Vehicle Specifications

Air Conditioning

Model

INSIGHT

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.9 – 15.7 oz (395 – 445 g)

Lubricant Type

ND-OIL11 (POE)

Quantity

7.3 – 8.2 cu-in (120 – 135 cm

3

)

Engine Specifications

Fuel

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK

DILZKAR7C11H

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

10.6 US gal (40 L)

Tank Capacity

2.6 US qt (2.5 L)

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

*

LED

Parking/Daytime Running Lights

LED

Front Turn Signal Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

LED

Rear Turn Signal Lights

21 W (Amber)

Taillights/Rear Side Marker Lights

LED

Taillights

LED

Back-Up Lights

16 W

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

8 W

Ceiling Light

8 W

Ambient Lights

LED

Vanity Mirror Lights

2.3 W

Trunk Light

5 W

* Not available on all models

589

uu

Specifications

u

Info

rm

ation

Brake Fluid

Transmission Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda ATF DW-1

Capacity

Change

2.3 US qt (2.2 L)

Engine Oil

Engine Coolant

Inverter Coolant

Recommended

·Honda Genuine Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.3 US qt (3.1 L)

Change
including
filter

3.5 US qt (3.3 L)

Specified

Honda Long Life Antifreeze/Coolant Type 2

Ratio

50/50 with distilled water

Capacity

1.22 US gal (4.61 L)
(change including the remaining
0.14 US gal (0.52 L) in the reserve tank)

Specified

Honda Long Life Antifreeze/Coolant Type 2

Tire

*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Vehicles with optional spare tire

Regular

Size

215/55R16 93V

*1

215/50R17 91H

*2

Pressure
psi (kPa [kgf/cm

2

])

Front

35 (240 [2.4])

Rear

33 (230 [2.3])

*1

32 (220 [2.2])

*2

Compact
Spare

*3

Size

T125/80D16 97M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

16 x 7J

*1

17 x 7J

*2

Compact Spare

*3

16 x 4T















Content      ..     34      35      36      37     ..
