SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)

Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or internal generator. The High Voltage battery is charged from the generator
driven by the engine or regenerative braking.

When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, pressing the

EV

 button can manually enable EV (driven only on electricity) mode.

Energy efficiency

As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engine.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.

Battery types

There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.

*

 Not available on all models

12

Quick

 Referenc

e Guide

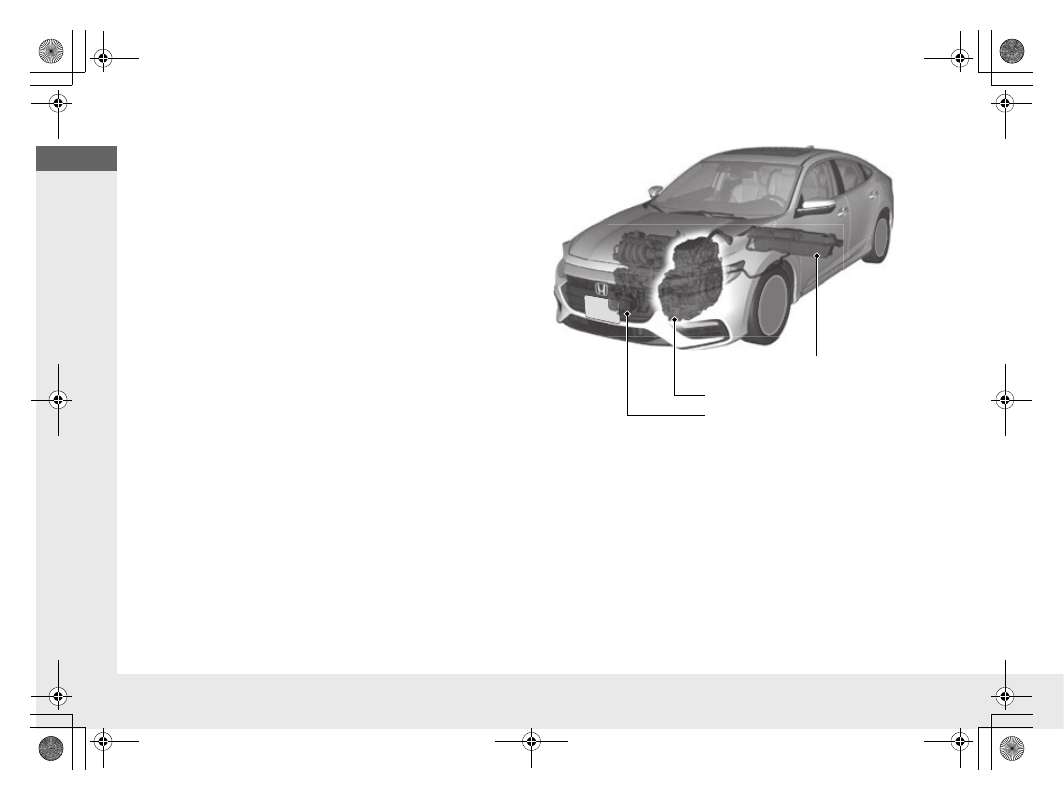

SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS

Gasoline Engine

– Runs the generator and under certain

conditions, drives the wheels directly.

Generator

– Starts the engine and generates electric power

when driven by the gasoline engine to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.

Electric Motor

– Provides propulsion to drive the wheels in

conjunction with the gasoline engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.

High Voltage Battery

– Provides electrical storage and serves

as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle.

(P414)

High Voltage Battery Charge Level Indicator

– Displays

battery state of charge.
When the indicator:

Displays two or less segments, EV mode is no longer available.

Displays ten segments, battery charge level is full.

High Voltage Battery

Generator & Electric Motor
Gasoline Engine

13

Quick

 Referenc

e Guide

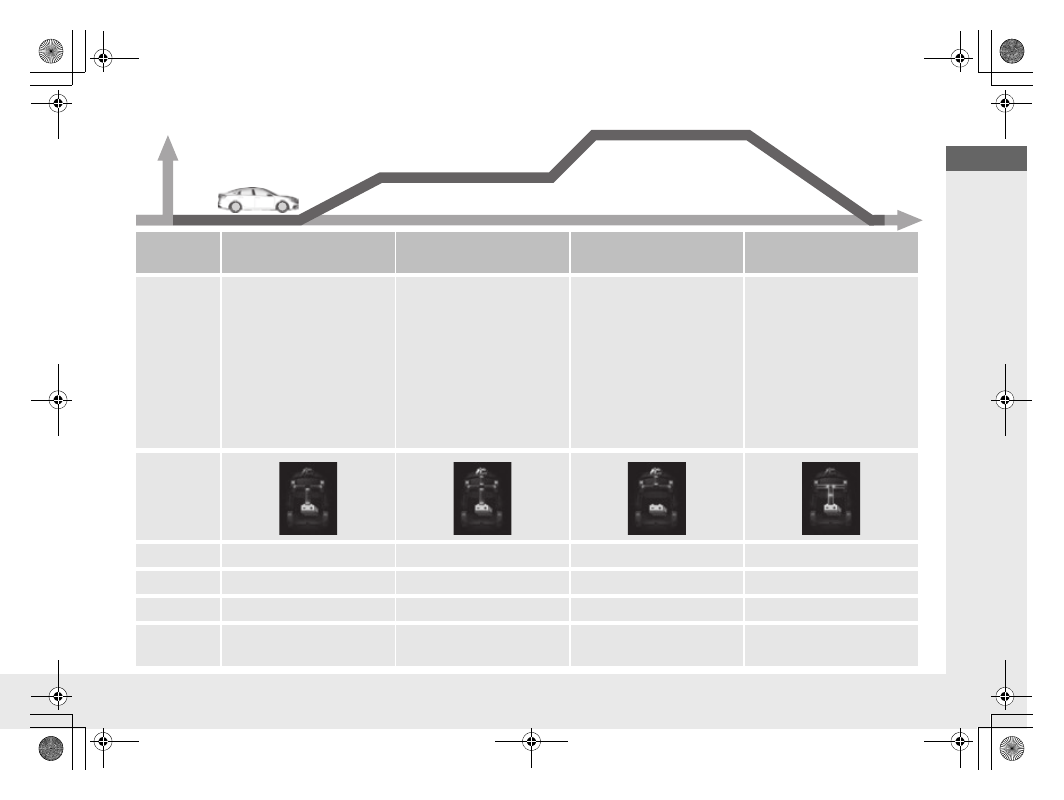

Operating

mode

Electric Vehicle (EV)

Hybrid (HV)

Engine (Direct Drive)

Regeneration

Driving

Speed

Stopped or driven at low speeds:

Only the electric motor
provides propulsion to the
wheels.

Driven in high-load conditions
(e.g., when accelerating, going
uphill):

The Electric Motor provides
propulsion to the wheels.

The gasoline engine drives the
generator, supplying
electricity to the electric
motor for added propulsion
or to the High Voltage battery
for charging.

Driven in high-speed, low-load
conditions:

The gasoline engine provides
propulsion to the wheels.

The High Voltage battery
supplies electricity to the
electric motor for added
propulsion.

The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.

The accelerator pedal is released
and the vehicle is decelerating.

The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.

Power Flow

Monitor

Electric motor

Stopped/Running

Running

Generating/Running

Regenerating

Generator

Stopped

Generating

No Output

Stopped/No Output

Engine

Stopped

Running

Running

Stopped/No Output

High Voltage

battery

Discharge

Charging/Discharge

Charging/Discharge

Charging

Vehicle
Speed

Time

14

Quick

 Referenc

e Guide

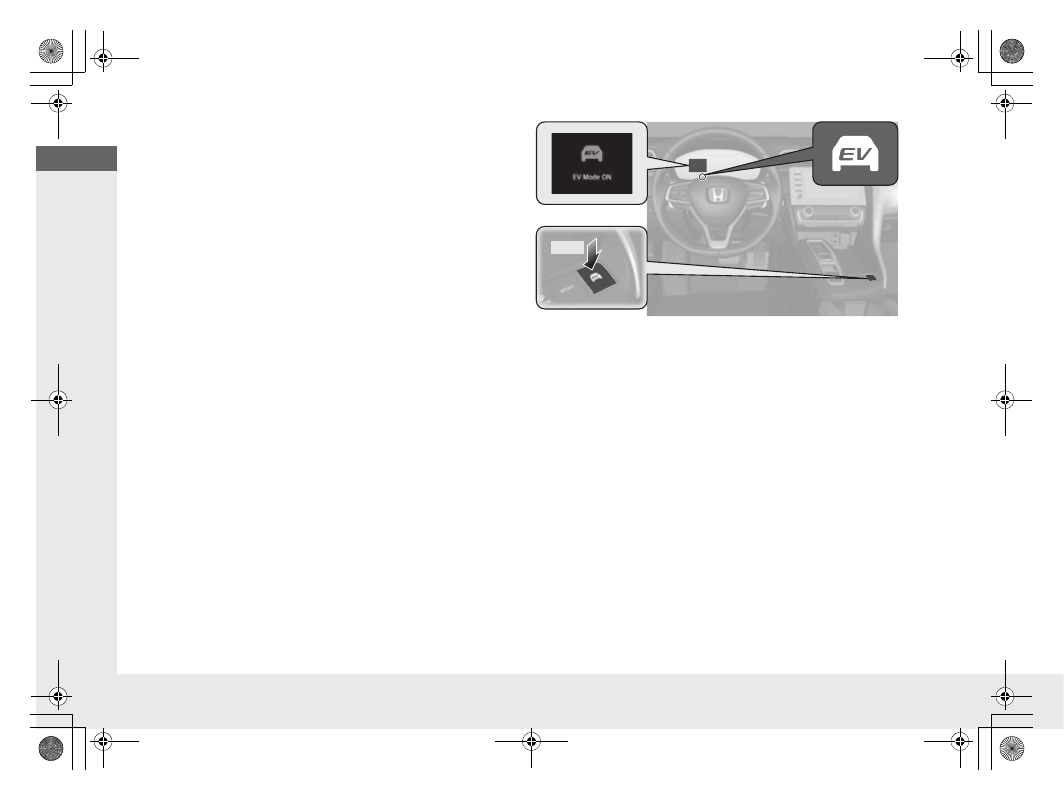

EV Button

EV mode is enabled by pressing the

EV

 button near the shift

button.

The

EV

 mode indicator comes on in the instrument panel when EV

mode is enabled.

Press the

EV

 button again to switch back to HV mode.

Some conditions, such as a low High Voltage battery level and a
high vehicle speed, may keep the system from manually switching
into EV mode. The beeper sounds and a message appears on the
driver information interface with the button pressed when EV
mode is disabled.

Shifts in vehicle, driving or road conditions may automatically
cancel EV mode and switch back to HV mode.

A message will appear on the driver information interface and EV mode may be canceled automatically when:

The High Voltage battery charge level is low.

Your vehicle speed is too high.

Your vehicle speed is above 25 mph (40 km/h) while the engine is in warming-up operation.

You fully depress the accelerator pedal.

You are driving on hilly road.

2

Driver Information Interface Warning and Information Messages

(P104)

Press

15

Quick

 Referenc

e Guide

Regenerative Energy and Regenerative Braking

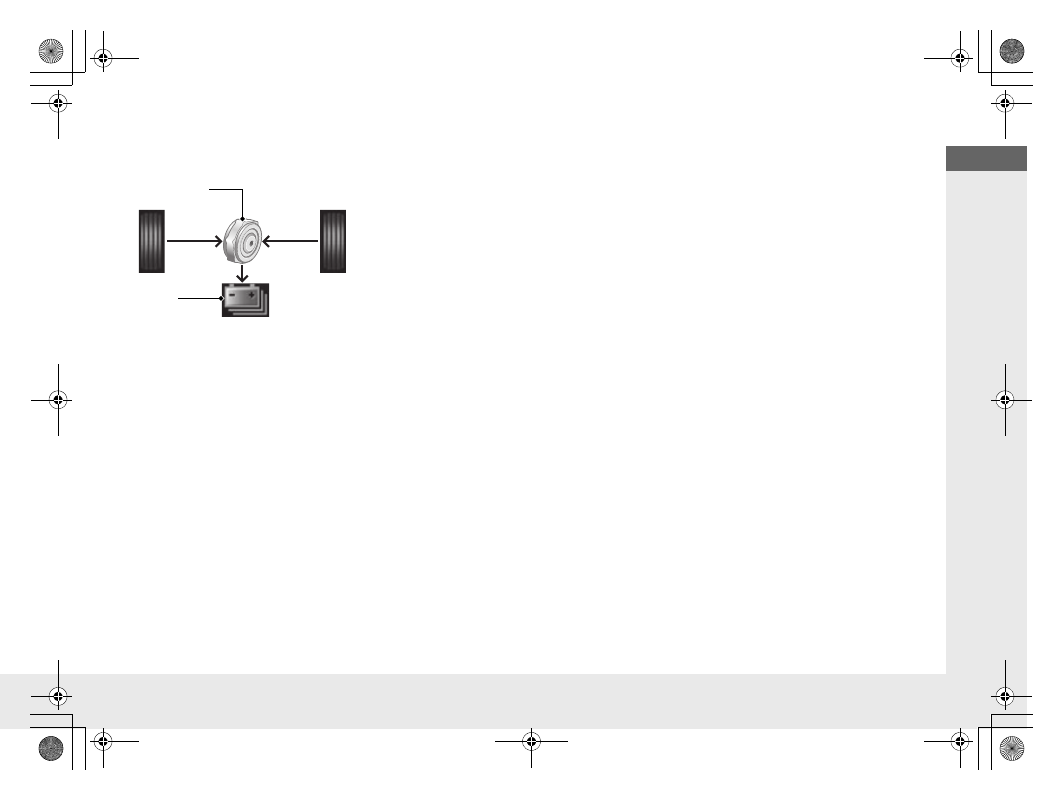

When the vehicle is decelerating or descending a hill, the electric motor acts as a generator that
recovers a portion of the energy that was used to accelerate the vehicle.
The regenerative force that the electric motor applies to the wheels when it is in regenerative
mode helps to slow the vehicle down in a manner similar to engine braking which is used on
conventional vehicles. If you want to slow the vehicle down at a faster rate without using the
brakes, you can use the deceleration paddle selector to increase the resistive force.

When regenerative braking is in
operation

Motor

High
Voltage
Battery

16

Quick

 Referenc

e Guide

Auto Engine Stop/Start

Your vehicle's gasoline engine automatically stops running during vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, auto engine stop may not activate.

The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.

The climate control system is in heavy use.

The High Voltage battery temperature is high or low.

The High Voltage battery is too low on charge.

Sounds Unique to the SPORT HYBRID i-MMD System

When you first start driving this vehicle, you will likely hear some unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of these sounds are unique to this vehicle’s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a
vehicle of this design. These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any
new or unusual noise should one develop.

After shutting off the engine, you may hear certain noises coming from the vehicle. Here’s the lowdown:

Noise from Under Vehicle:

 This noise is caused by the vacuum pump inside the fuel evaporation leakage check module (ELCM).

Depending on conditions, the pump will come on for about

15 minutes

 about

5 to 10 hours

 after engine shutoff. This noise is just normal

vehicle operation and doesn’t indicate a vehicle problem.

17

Quick

 Referenc

e Guide

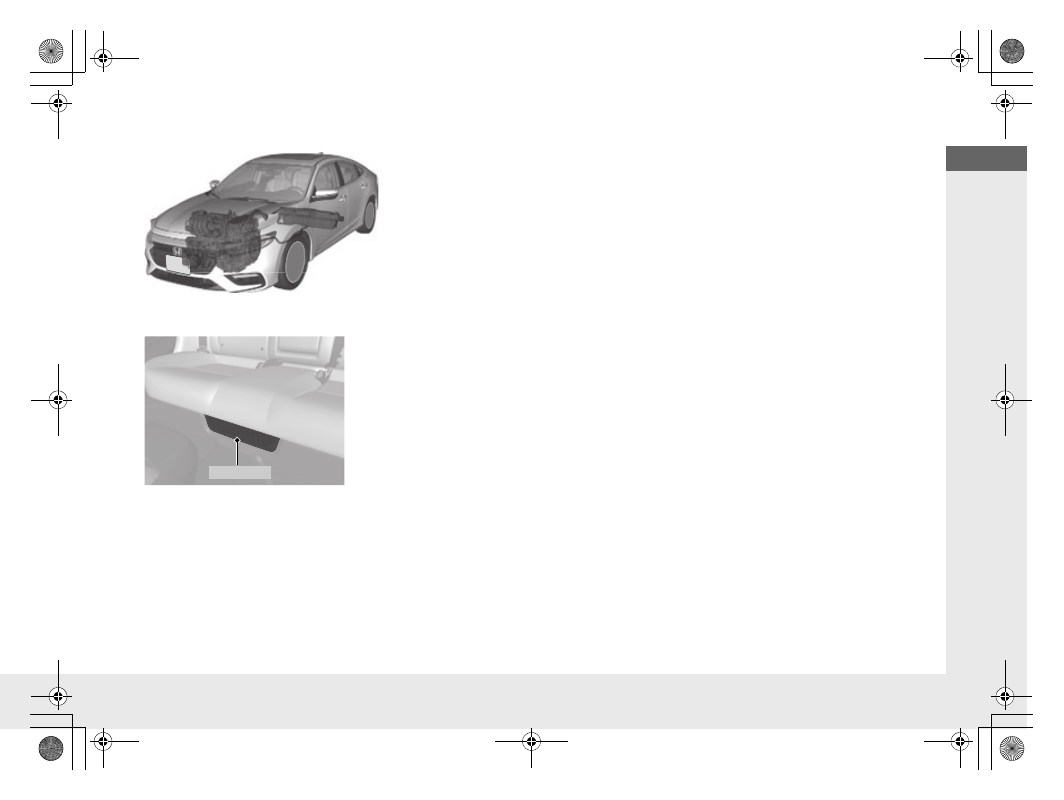

Safety Precautions

Do not touch the High Voltage system

Attempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system are performed by a dealer.

If a crash occurs

Be careful of electric shock hazard.

u

If a severe crash damages your vehicle’s High Voltage system, there is a possibility of

electrical shock due to exposed High Voltage components or wires. If this happens, do not
touch any of the High Voltage system components or any of its orange wires.

Avoid contact with High Voltage battery fluid.

u

The High Voltage battery contains a flammable electrolyte that could leak as a result of

a severe crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you
accidentally come into contact with the electrolyte, rinse the exposed skin or flush your
eyes with copious amounts of water for at least five minutes, and seek medical attention
immediately.

Use a fire extinguisher for an electrical fire.

u

Attempting to extinguish an electrical fire with even a small quantity of water, from a

garden hose for instance, can be dangerous.

Anytime the vehicle is damaged in a crash, have it repaired by a dealer.

Emergency Shutdown System for the High Voltage System

If the vehicle is involved in a crash, the emergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult a dealer.

Honda collects and recycles High Voltage batteries used in its vehicles – consult a dealer for
more information.

Do not cover the air intake.

If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery’s output and cause the
power system and 12-volt battery
charging system indicators to come
on.

Air Intake

18

Quick

 Referenc

e Guide

Eco Assist

®

 System

(P 401)

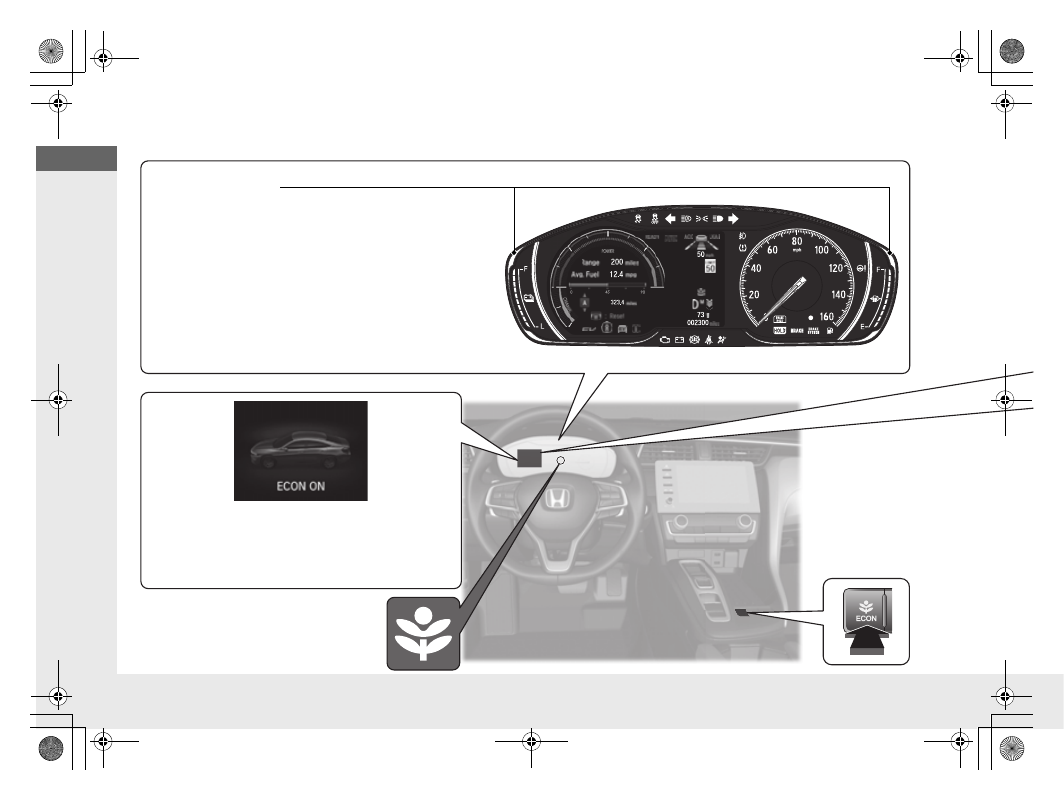

Ambient Meter

With SPORT mode off, the color
of the ambient meter changes to
green to indicate that the vehicle
is being driven in a fuel efficient
manner.

ECON Button

(P 401)

Helps maximize
fuel economy.

ECON Mode Indicator

(P 97)

Comes on when the

ECON

 button is

pressed.

The message is displayed

for a few seconds when the

ECON

 button is pressed.

19

Quick

 Referenc

e Guide

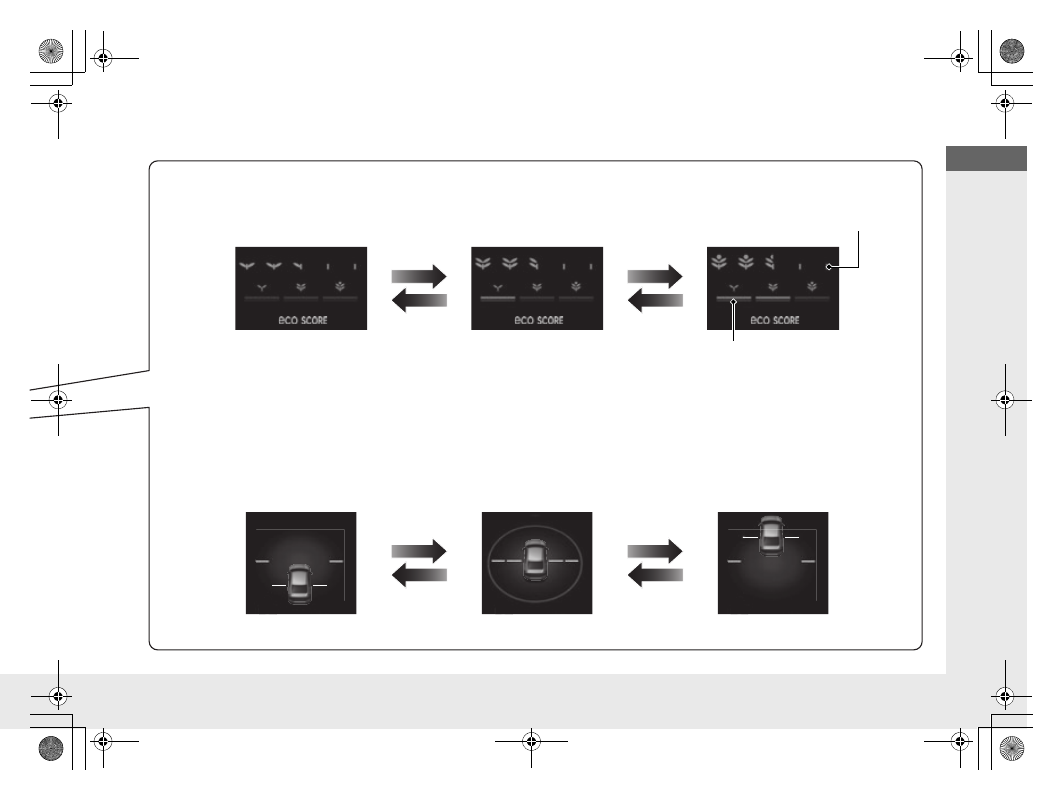

Drive Cycle Score/Lifetime Points

Comes on when the power mode is in VEHICLE OFF.

Eco Drive Display

Keep the vehicle icon near the center of the circle.

Drive Cycle Score

Lifetime Points

Fuel economy is:

Worse

Better

Best

Better

Worse

Aggressive

Deceleration

Moderate

Deceleration

Slow Acceleration/

Deceleration

Moderate

Acceleration

Aggressive

Acceleration

20

Quick

 Referenc

e Guide

Safe Driving

(P 39)

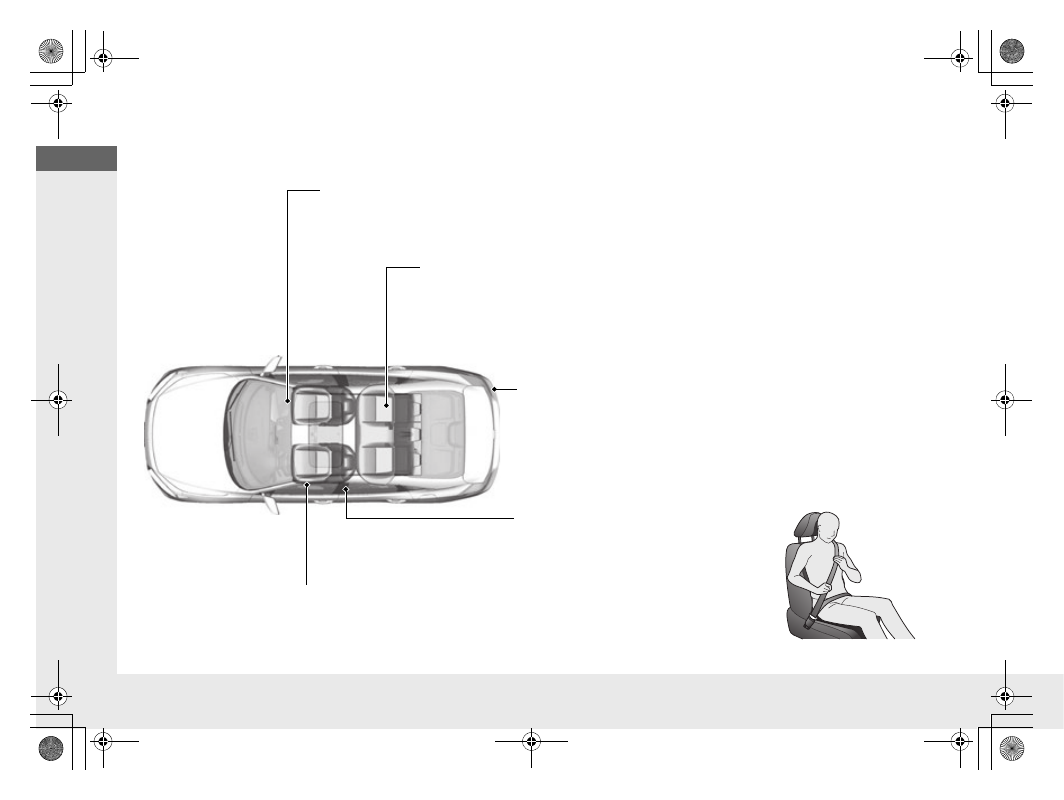

Airbags

(P 51)

Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.

Child Safety

(P 66)

All children 12 and younger should be seated in the rear seat.

Smaller children should be properly restrained in a forward-facing child seat.

Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard

(P 79)

Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P 43)

Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.

Seat Belts

(P 44)

Fasten your seat belt and sit upright well
back in the seat.

Check that your passengers are wearing
their seat belts correctly.

Fasten your lap belt as

low as possible.

21

Quick

 Referenc

e Guide

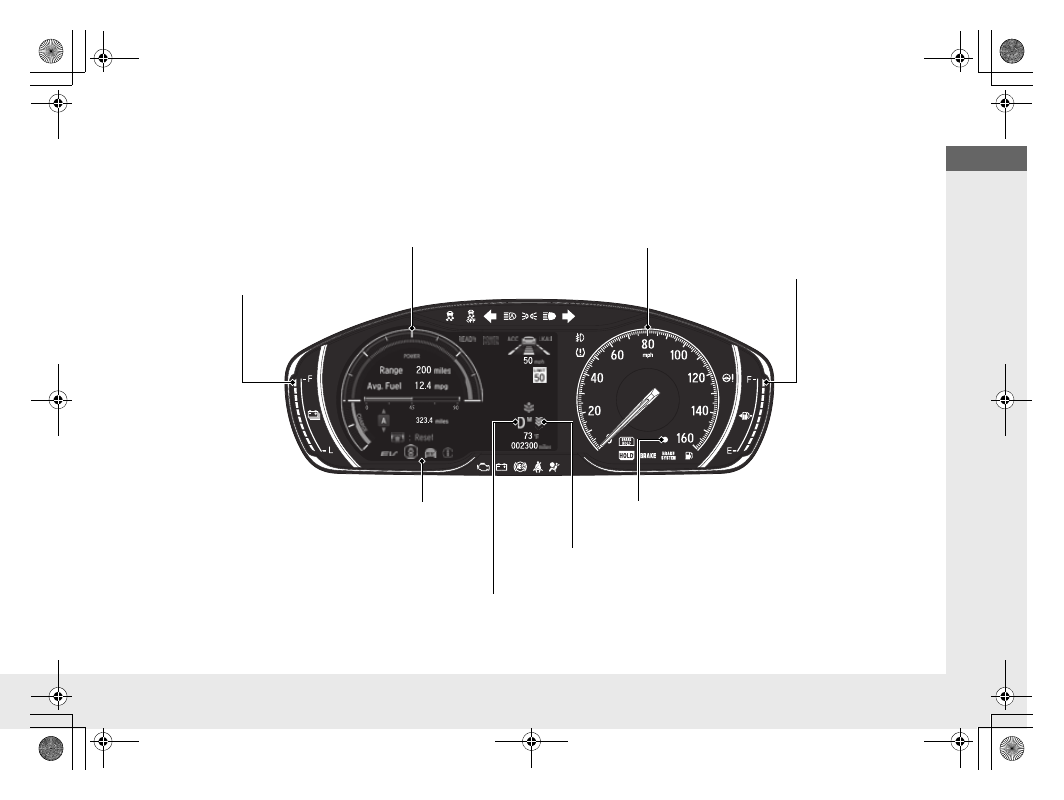

Instrument Panel

(P 81)

Indicators

(P 82)

/Driver Information Interface

(P 132)

/Gauges

(P 129)

Speedometer

Fuel Gauge

Driver Information Interface

Immobilizer System Indicator/
Security System Alarm Indicator

Shift Position Indicator/
Transmission System Indicator

Deceleration Paddle
Selector Indicator

POWER

/

CHARGE

 Gauge

High Voltage Battery
Charge Level Gauge

22

Quick

 Referenc

e Guide

Controls

(P 155)

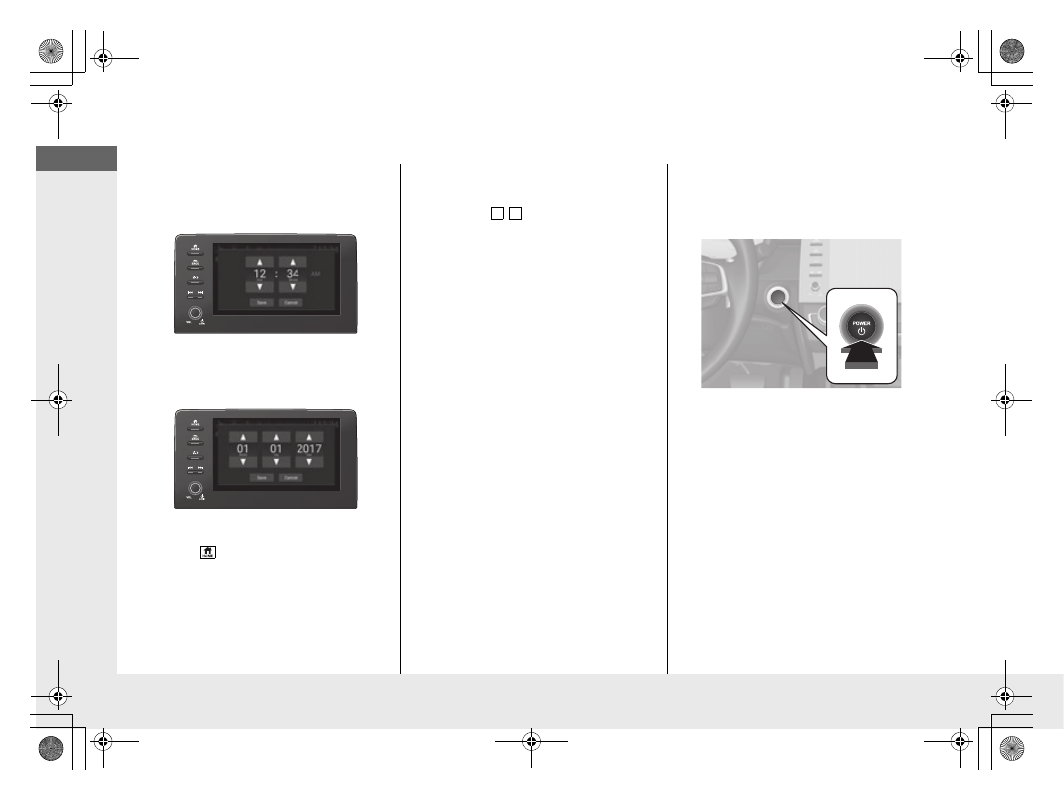

Clock

(P156)

To adjust time

To adjust date

a

Press

, then select

Settings

.

b

Select

System

, then

Day & Time

.

c

Select

Set Date & Time

.

d

Select

Automatic Date & Time

, then

select

OFF

.

e

Select

Set Date

 or

Set Time

.

f

Adjust the dates, hours and minutes by
selecting

/

.

g

Select

Save

 to set the date or time.

The clock is automatically updated through
the audio system.

3 4

POWER Button

(P181)

Press the button to change the vehicle’s
power mode.

23

Quick

 Referenc

e Guide

Turn Signals

(P 184)

Lights

(P 185)

Turn Signal Control Lever

Right

Left

Light Control Switches

Low Beam

High Beam

Flashing

Wipers and Washers

(P 192)

*1:Models with automatic intermittent

wipers

*2:Models without automatic intermittent

wipers

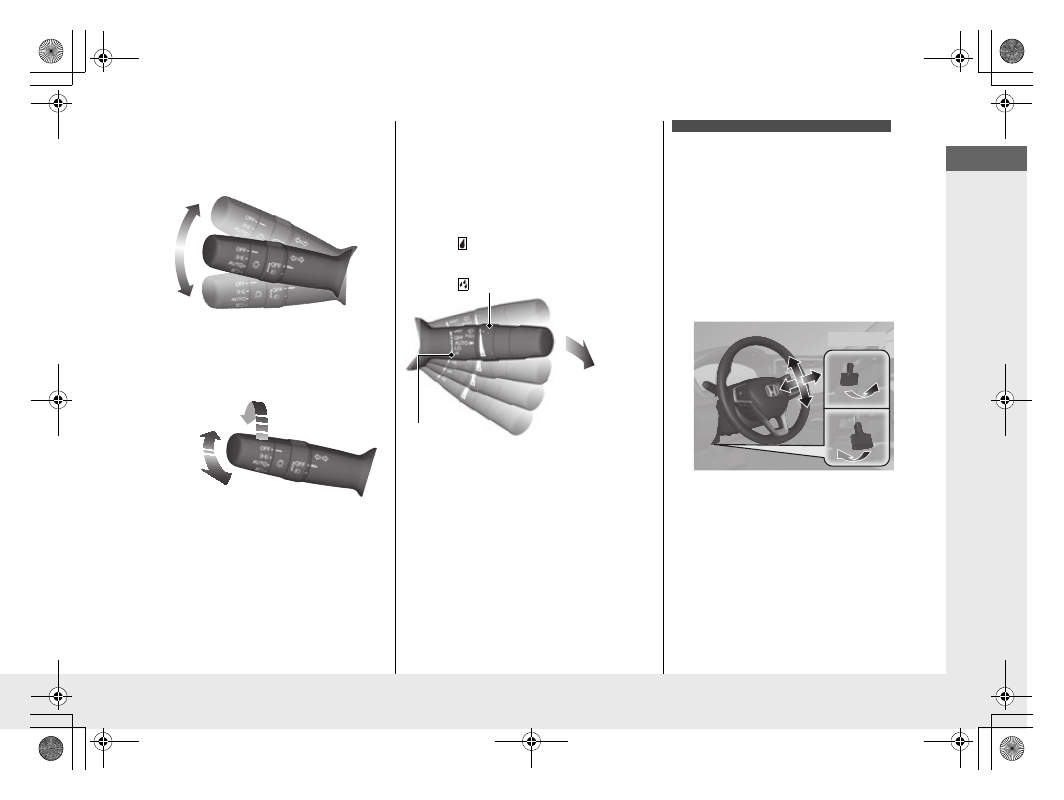

Wiper/Washer Control Lever

Adjustment Ring

(

-

: Low Sensitivity

*1

(

-

  : Lower speed, fewer sweeps

*2

(

+

: High Sensitivity

*1

(

+

  : Higher speed, more sweeps

*2

MIST
OFF
AUTO

*1

: Wiper speed varies automatically

INT

*2

: Low speed with intermittent

LO

: Low speed wipe

HI

: High speed wipe

Pull toward
you to spray
washer fluid.

AUTO

 should always be turned

OFF

 before

the following situations in order to prevent
severe damage to the wiper system:

Cleaning the windshield

Driving through a car wash

No rain present

Steering Wheel

(P 196)

To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.

Models with automatic intermittent wipers

To lock

To adjust

24

Quick

 Referenc

e Guide

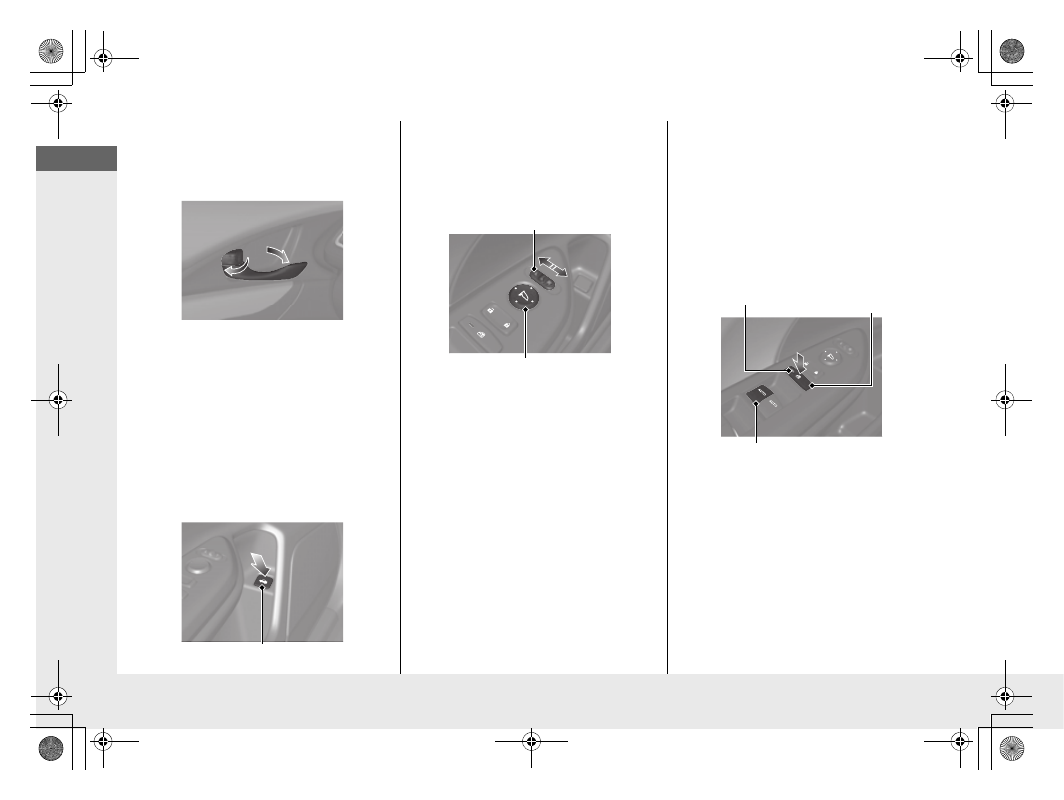

Unlocking the Front Doors
from the Inside

(P 168)

Pull either front door inner handle to
unlock and open it at the same time.

Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.

Trunk

(P 171)

Press and hold the trunk opener on the
driver’s door to unlock and open the
trunk.

Press the trunk release button on the
remote to unlock and open the trunk.

Press the trunk release button on the
trunk lid to unlock and open the trunk.

Trunk Opener

Power Door Mirrors

(P 198)

With the power mode in ON, move the
selector switch to

L

 or

R

.

Push the appropriate edge of the
adjustment switch to adjust the mirror.

Selector Switch

Adjustment Switch

Power Windows

(P 177)

With the power mode in ON, open and
close the power windows.

If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.

If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.

Power Window
Lock Button

Window Switch

Indicator

25

Quick

 Referenc

e Guide

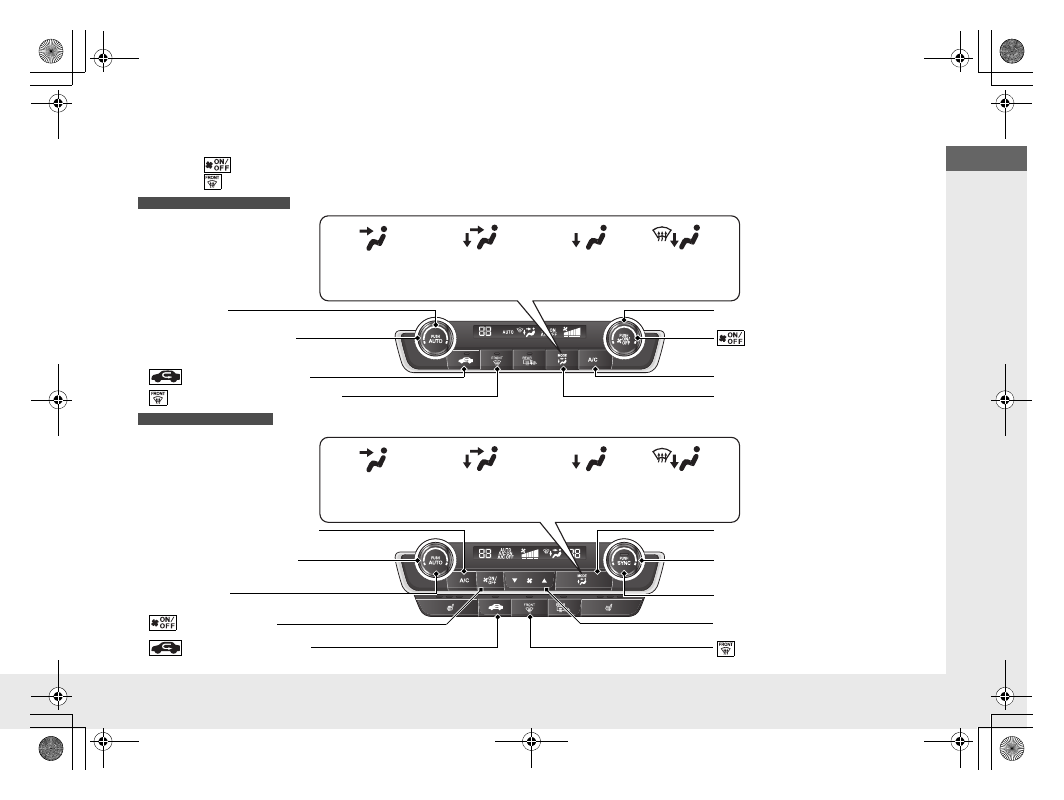

Climate Control System

(P 216)

Press the

AUTO

 button to activate the climate control system.

Press the

 button to turn the system on or off.

Press the

 button to defrost the windshield.

AUTO

 Button

Floor vents

Dashboard
vents

Dashboard
and floor
vents

Floor and
defroster
vents

Models without SYNC button

Temperature Control Dial

 (Recirculation) Button

 (Windshield Defroster) Button

Fan Control Dial

 (ON/OFF) Button

A/C

 (Air Conditioning) Button

MODE

 Control Button

Floor vents

Dashboard
vents

Dashboard
and floor
vents

Floor and
defroster
vents

A/C

 (Air Conditioning) Button

Driver’s Side Temperature
Control Dial

AUTO

 Button

 (ON/OFF) Button

 (Recirculation) Button

MODE

 Control Button

Passenger’s Side Temperature
Control Dial

SYNC

 (Synchronization) Button

 (Windshield Defroster) Button

Fan Control Button

Models with SYNC button

26

Quick

 Referenc

e Guide

Features

(P 223)

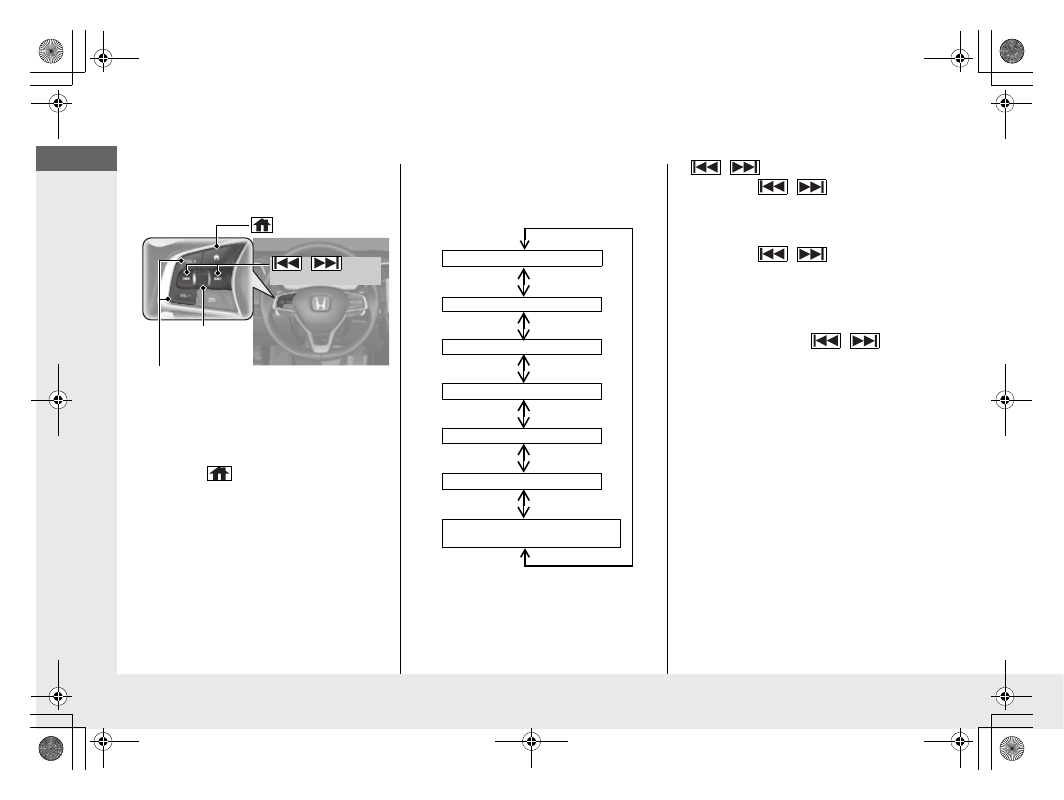

Audio Remote Controls

(P 227)

VOL

(

+

/

VOL

(

-

 (Volume) Buttons

Press to adjust the volume up/down.

Left Selector Wheel
When selecting the audio mode
Press the

 (home) button, then roll up

or down to select

Audio

 on the driver

information interface, and then press the
left selector wheel.

 /



(Seek/Skip) Buttons

Left Selector

Wheel

VOL

(

+

/

VOL

(

-

 (Volume) Buttons

 (home) Button

FM

AM

SiriusXM

®

USB1

USB2

Bluetooth

®

 Audio

Smartphone Connection

(Apple CarPlay/Android Auto)

Roll up or down:

 To cycle through the

audio modes, roll up or down and then

press the left selector wheel:

 /

 (Seek/Skip) Buttons

Radio:Press

 /

 to change the

preset station.

iPod, USB device,

Bluetooth

®

 Audio or

Smartphone Connection:

Press

 /

 to skip to the

beginning of the next song or
return to the beginning of the
current song.

USB device:

Press and hold

 /

 to

change a folder.

















Content      ..      1       2         ..





///////////////////////////////////////
