Parking Your Vehicle

u

Parking Sensor System

Driving

When the distance between your vehicle and obstacles becomes shorter

*1: At this stage, only the centre sensors detect obstacles.
*2:While Honda Parking Pilot is in operation, the sensors located on the sides of the front and rear bumpers can also operate.
*3:While Honda Parking Pilot is in operation, the intermittent beep sounds continuously or very short, and the indicator blinks in red or

amber.

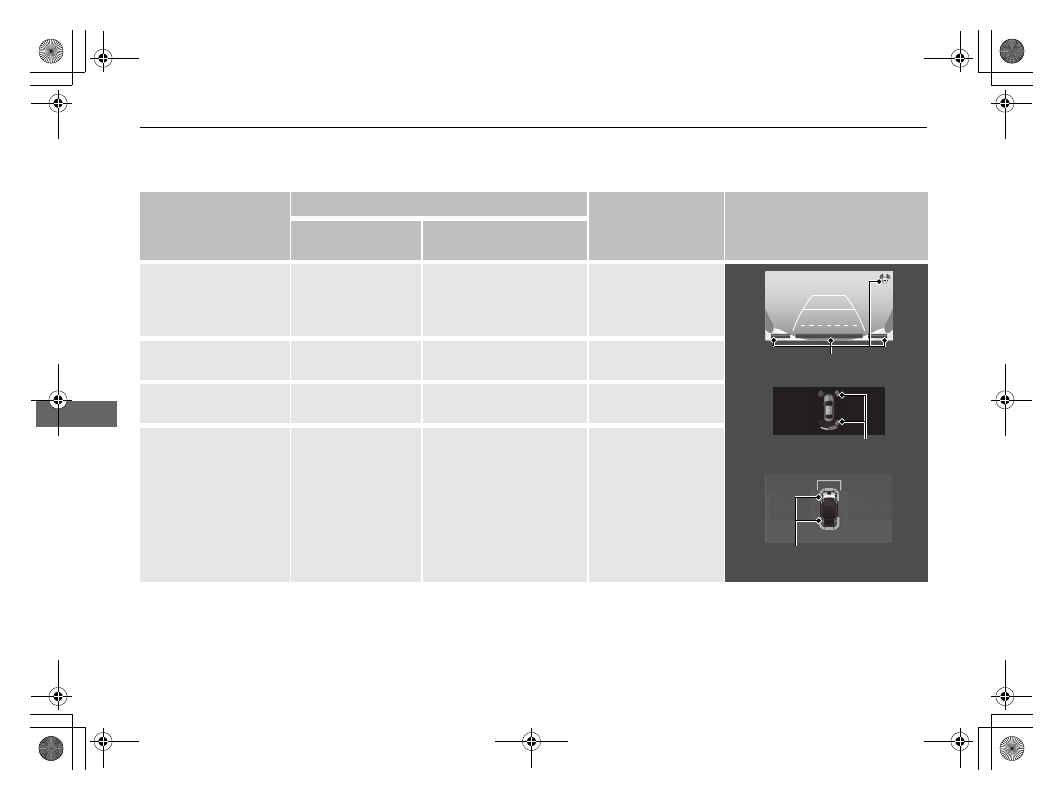

Length of the

intermittent beep

Distance between the Bumper and Obstacle

Indicator

Audio/information screen

Corner Sensors/

Side Sensors

*2

Centre Sensors

Moderate

Front: About 100-60 cm

(39-23 inches)

Rear: About 110-60 cm

(43-23 inches)

Blinks in Yellow

*1

Short

About 60-45 cm

(23-17 inches)

About 60-45 cm

(23-17 inches)

Blinks in Amber

Very short

*3

About 45-35 cm

(17-13 inches)

About 45-35 cm

(17-13 inches)

Blinks in Amber

*3

Continuous

*3

About 35 cm

(13 inches) or less

About 35 cm

(13 inches) or less

Blinks in Red

*3

Indicators light where the
sensor detects an obstacle.

Indicators light where the
sensor detects an obstacle

*2

.

Indicators light where the
sensor detects an obstacle

515

uu

Parking Your Vehicle

u

Parking Sensor System

Continued

Driving

Screen Operation

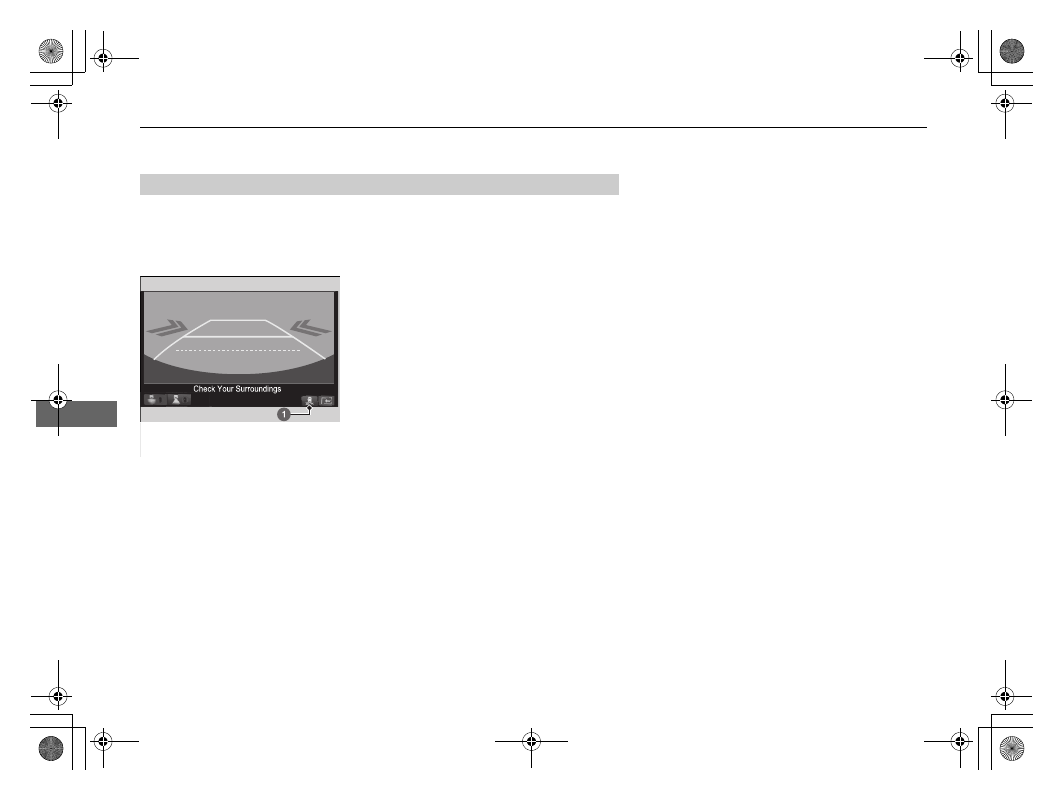

You can switch the display to normal display
or split display by touching the

 icon.

a

Normal Display

b

Split Display

c

 Icon

516

uu

Parking Your Vehicle

u

Parking Sensor System

Driving

517

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Continued

Driving

Cross Traffic Monitor

*

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient especially when you are getting out of a parking space
backwards.

The system activates when:

The power mode is in ON.

The Cross Traffic Monitor is turned on.

2

Cross Traffic Monitor On and Off

 P. 520

The transmission is in

(

R

.

Your vehicle is moving at 5 km/h (3 mph) or
lower.

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.

How the System Works

1

Cross Traffic Monitor

*

Cross traffic monitor may not detect or may delay
detecting an approaching vehicle, or may alert
detection without an approaching vehicle under the
following conditions:

An obstacle, such as another vehicle and a wall,
near your vehicle's rear bumper, is blocking the
radar sensor's scope.

Your vehicle is moving at the speed of about
5 km/h (3 mph) or higher.

A vehicle is approaching at the speed other than
between about 10 km/h and 25 km/h (6 mph and
16 mph).

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

3

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

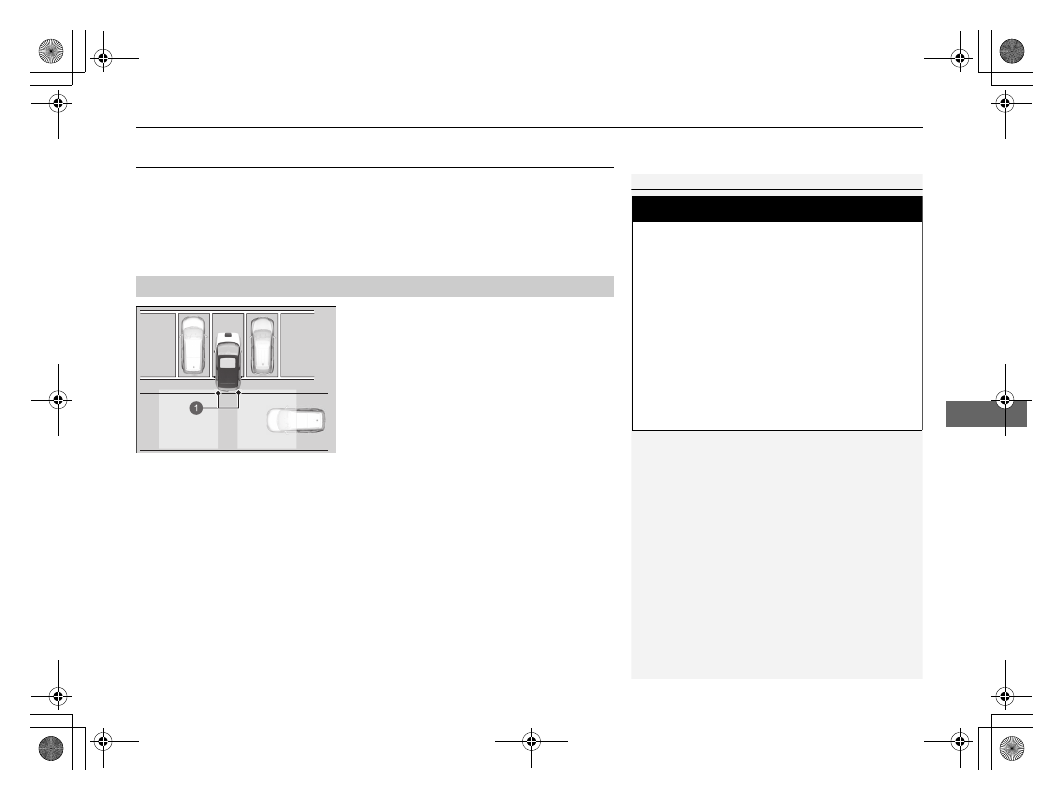

a

Radar sensors: Underneath the
rear bumper corners

* Not available on all models

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

518

Driving

1

Cross Traffic Monitor

*

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

When there is bad weather.

Your vehicle is on an incline.

Your vehicle is tilted due to a heavy load in the rear.

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

The rear bumper or the sensors have been improperly
repaired or the rear bumper has been deformed.
Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

The parking sensor system's alerting buzzer overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.

* Not available on all models

Continued

519

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

When the System Detects a Vehicle

1

When the System Detects a Vehicle

If the

 on the lower right changes to

 in amber

when the transmission is in

(

R

, mud, snow, ice and

other debris may have accumulated in the vicinity of
the sensor. The system is temporarily cancelled.
Check the bumper corners for any obstructions, and
thoroughly clean the area if necessary.

If the

 comes on when the transmission is in

(

R

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R

, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

a

Arrow Icon

b

Normal View

c

Wide View

520

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

Tap to turn the system on and off. The indicator comes on with the system on.
You can also switch the system on and off from the customized feature on the
audio/information screen.

2

Customized Features

 P. 327

Cross Traffic Monitor On and Off

a

Icon

521

Continued

Driving

Multi-View Rear Camera

*

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view.
The display automatically changes to the rear view when the transmission is put into

(

R

.

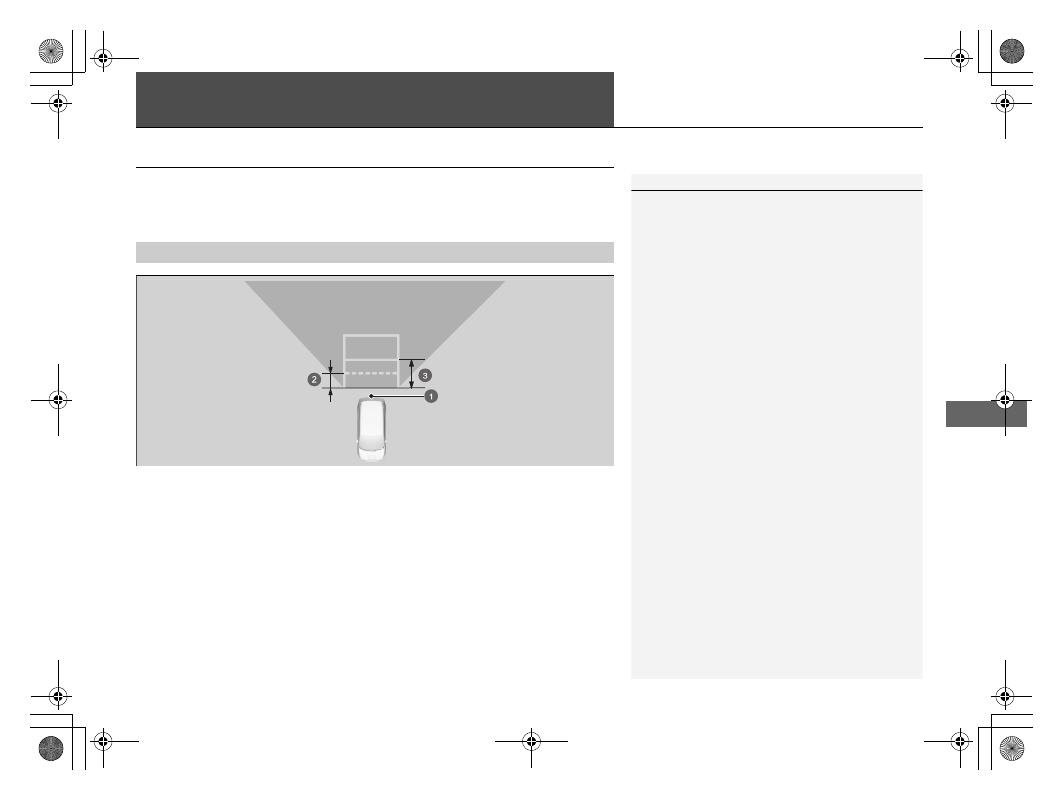

Multi-View Rear Camera Display Area

1

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

a

Camera

b

Approx. 50 cm (20 inches)

c

Approx. 1 m (39 inches)

* Not available on all models

uu

Multi-View Rear Camera

*

u

About Your Multi-View Rear Camera

522

Driving

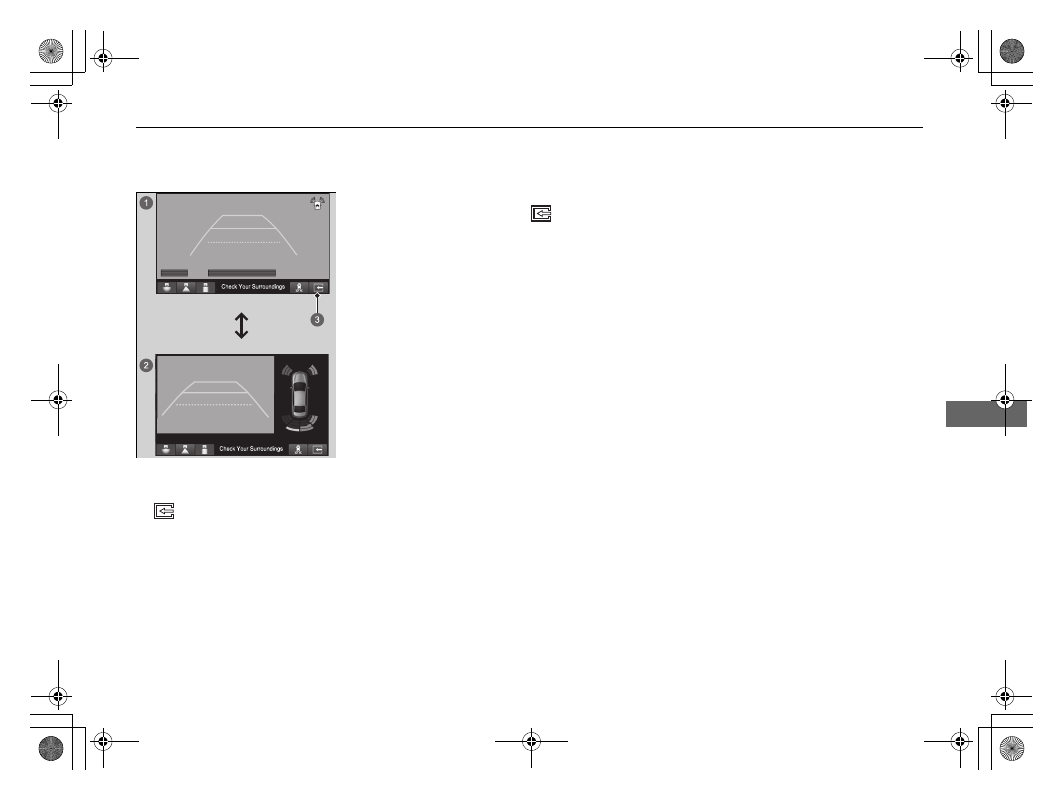

You can view three different camera modes on the audio/information screen.
Touch the appropriate icon to switch the mode.

If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next time you put the transmission into

(

R

.

If you were using Top down view mode before you turned off the power system,
Wide view mode will be activated the next time you set the power mode to ON
and put the transmission into

(

R

.

If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of

(

R

, Wide view mode will be activated the next time you

put the transmission into

(

R

.

1

About Your Multi-View Rear Camera

You can change the

Fixed Guideline

 and

Dynamic

Guideline

 settings.

2

Customized Features

 P. 327

Fixed Guideline
On:

Guidelines appear when you put the

transmission into

(

R

.

Off:

Guidelines do not appear.

Dynamic Guideline
On:

Guidelines move according to the steering wheel

direction.

Off:

Guidelines do not move.

When the parking sensor system detects any
obstacles, the indicator will display.

2

Parking Sensor System

 P. 512

a

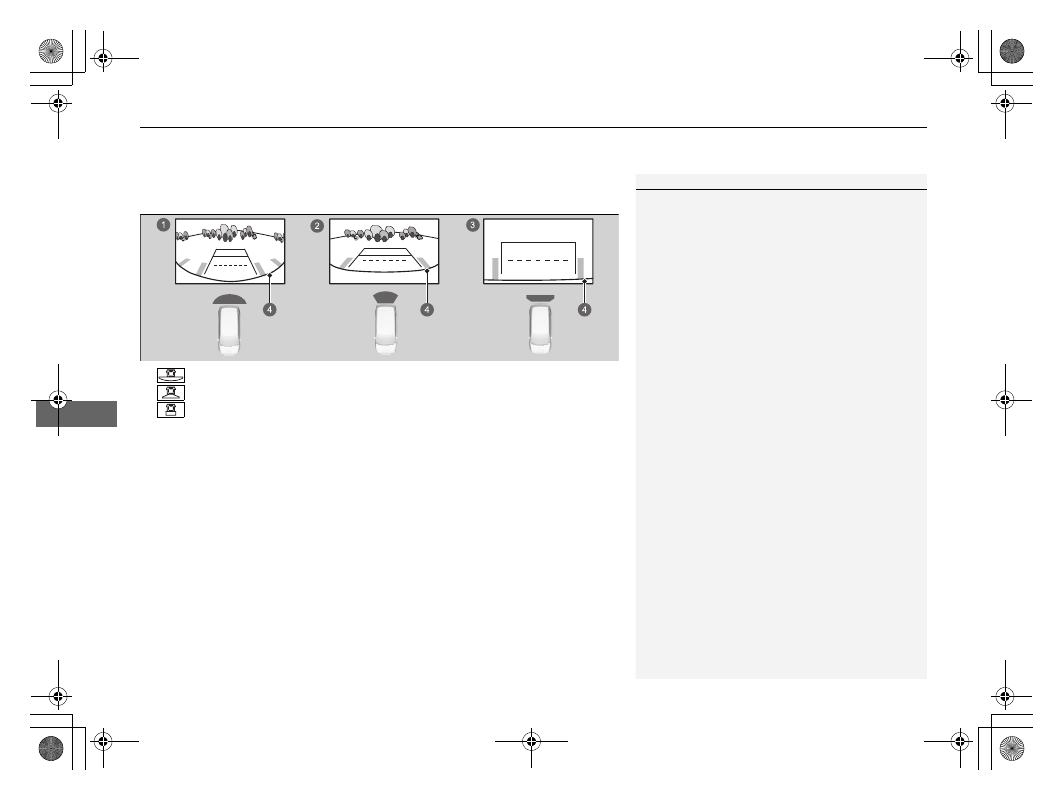

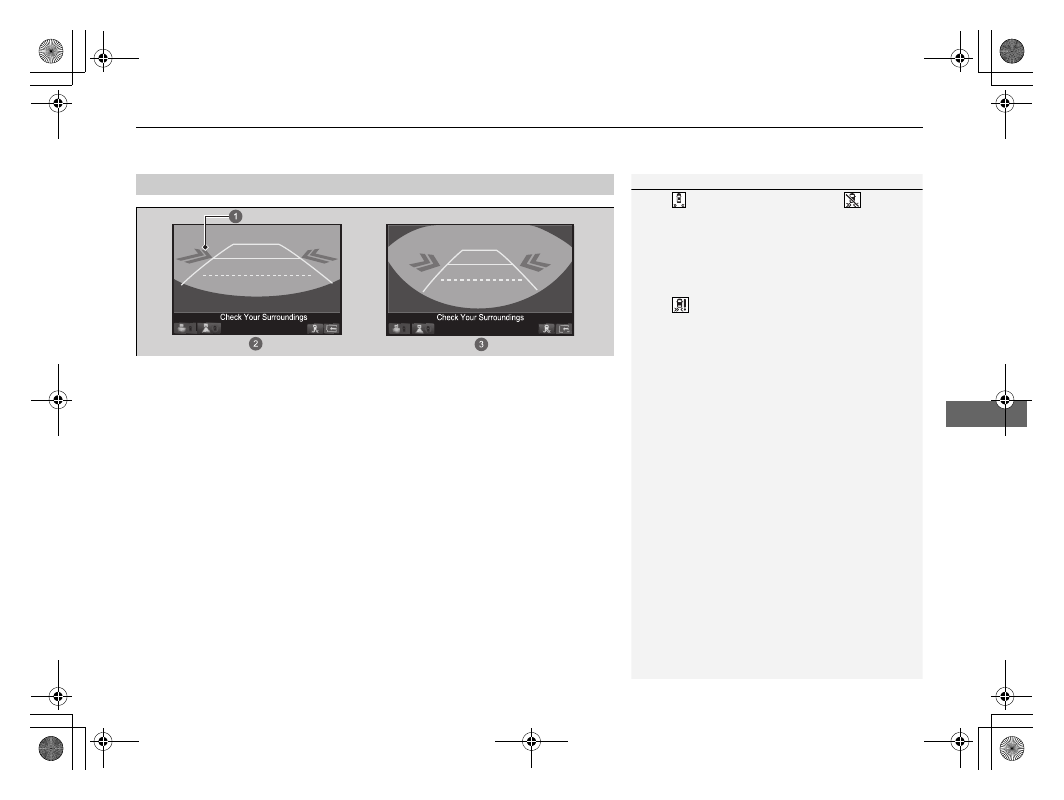

 Wide view mode

b

 Normal view mode

c

 Top down view mode

d

Bumper

523

Continued

Driving

Multi-View Camera

*

Is a four camera system that views areas commonly known as “blind spots” from
different angles, then displays the images on the audio/information screen. This
system can be used to:

Check for obstacles when you are moving in

(

R

.

2

Checking for Obstacles at the Back of Your Vehicle

 P. 530

Check the right and left sides of the vehicle while crossing at intersections with
poor visibility (obstructed view, etc.).

2

Checking from the front blind view at intersections

 P. 534

Check for obstacles in front of the vehicle when parking or maneuvering in
confined areas.

1

Multi-View Camera

*

The multi-view camera system does not eliminate all
blind spots. The system is for your convenience only.

3

WARNING

Failure to visually assess the area around
the vehicle (directly or by use of the
mirrors) may result in a crash causing
serious injury or death.

The areas shown in the multi-view camera
system display are limited. The display may
not show all pedestrians or other objects
around your vehicle.

Do not solely rely only on the multi-view
camera system display to assess whether it
is safe to move your vehicle.

3

WARNING

Failure to pay proper attention to your
surroundings while driving may result in a
crash causing serious injury or death.

To help mitigate the chances of a collision,
only look at the multi-view camera system
display when it is safe to do so.

* Not available on all models

uu

Multi-View Camera

*

u

524

Driving

For frontal views:

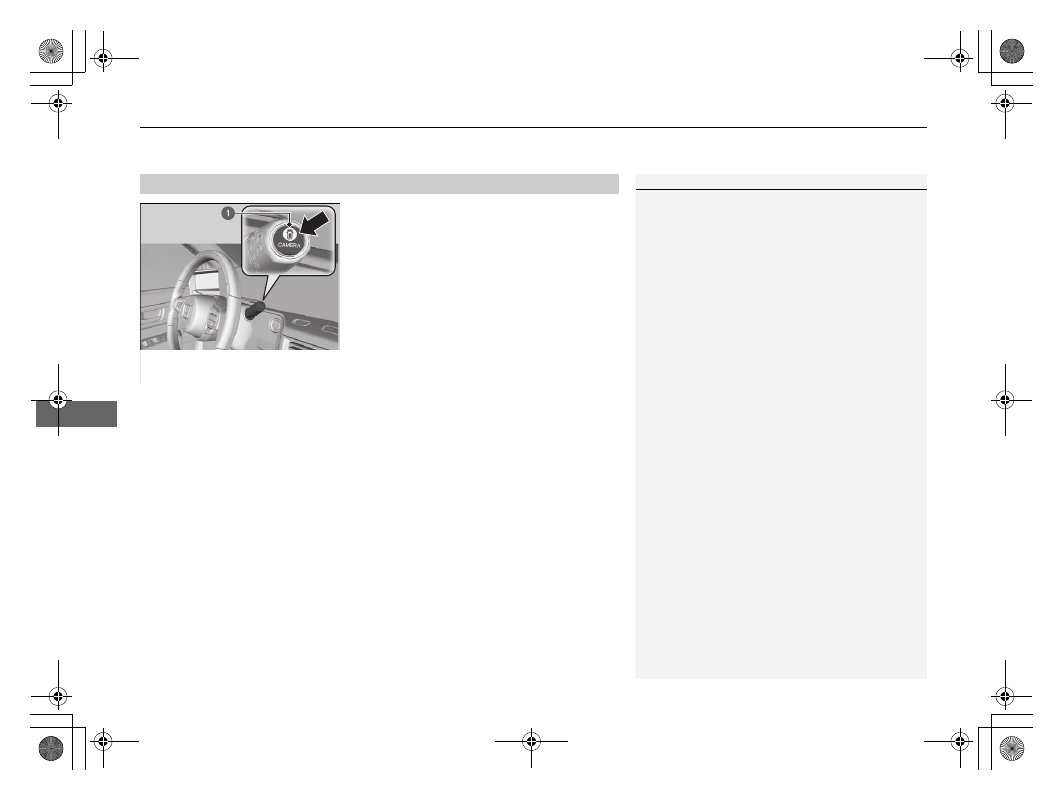

Press the

CAMERA

 button when the vehicle is

stationary or moving at 20 km/h (12 mph) or
slower. Press the button again to switch
camera views.

For rear reviews:

Change the shift position to

(

R

 when the

vehicle is stationary. Press the

CAMERA



button again to switch rear view mode.
You can customize the display setting.

2

Customized Features

 P. 327

Displaying an Image From the Multi-View Cameras

1

Multi-View Camera

*

Always keep the camera lenses clean and free from
debris.

When the parking sensor system detects any
obstacles, the indicator will display.

2

Parking Sensor System

 P. 512

When a vehicle is detected approaching from a rear
corner, Cross Traffic Monitor alerts you.

2

Cross Traffic Monitor

*

 P. 517

a

CAMERA

 button

* Not available on all models

Continued

525

uu

Multi-View Camera

*

u

Driving

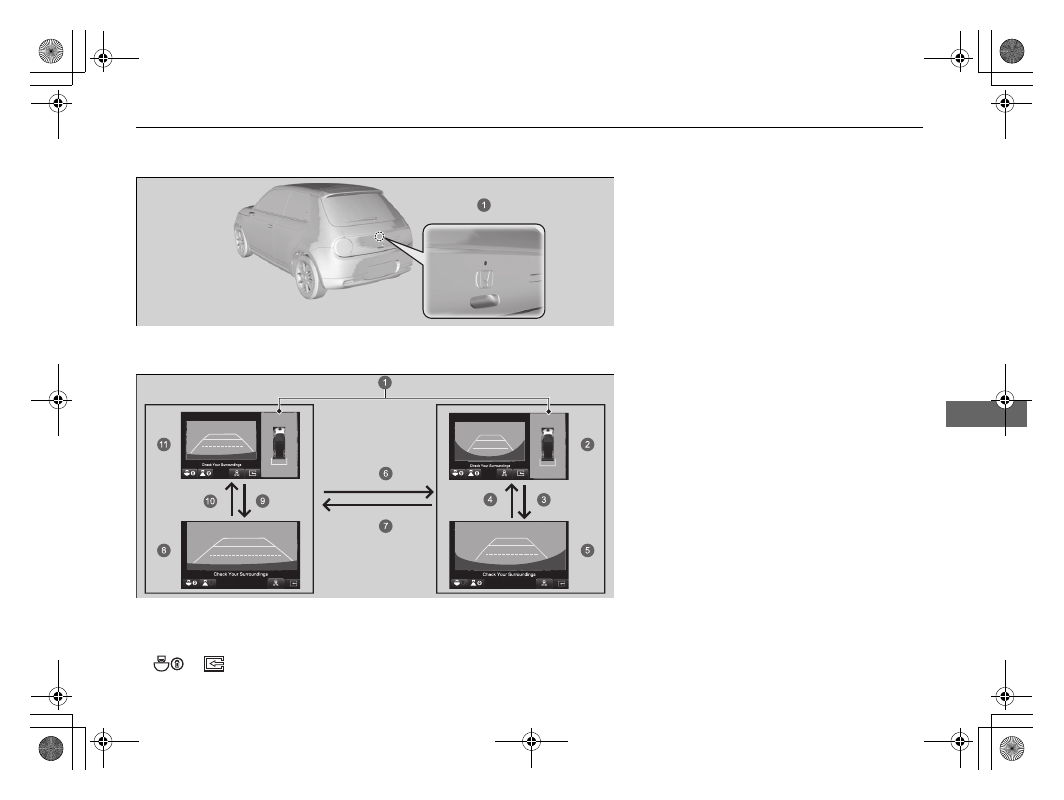

Camera Locations and Images

1

Camera Locations and Images

While Honda Parking Pilot is in operation, indicators
light where the camera detects an obstacle on the
Honda Parking Pilot Display.

a

indicators light where the camera
detects an obstacle

2

Honda Parking Pilot

*



P. 537

a

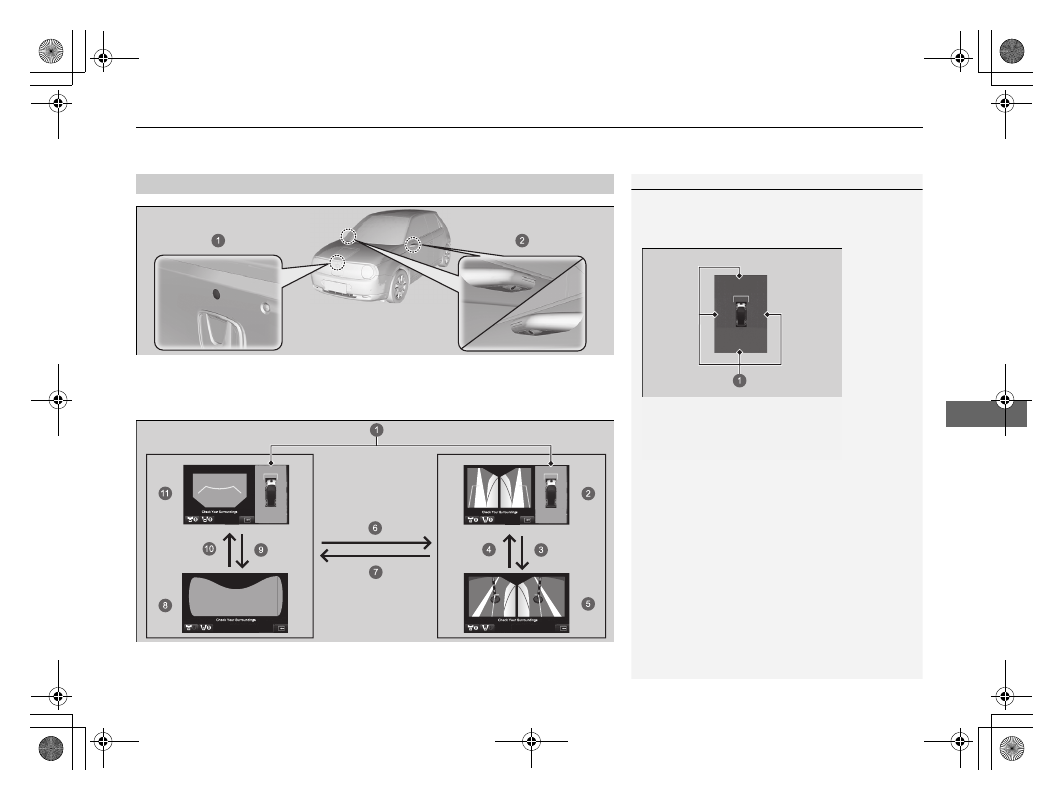

Front view Camera

b

Side view Cameras

* Not available on all models

526

uu

Multi-View Camera

*

u

Driving

The unique multi-view camera lenses make distances appear differently than they
actually are - objects seen on the audio/information screen may appear closer or
further away, and may be distorted. This becomes more apparent the further away
an object is from your vehicle.

*1: You can also switch the display by touching the view screen.

a

Ground View: An overhead view created by the combination of images captured
by four cameras.

b

Left and Right Side View + Ground View

c

 or

*1

d

 or

*1

e

Left and Right Side View

f

 or

 or

CAMERA

 button

g

 or

 or

CAMERA

 button

h

Front Blind View

i

 or

*1

j

 or

*1

k

Front View + Ground View

527

uu

Multi-View Camera

*

u

Continued

Driving

a

Rear view Camera

a

Ground View: An overhead view created by the combination of images captured
by four cameras.

b

Rear Wide View + Ground View

c

 or

*1

528

uu

Multi-View Camera

*

u

Driving

The unique multi-view camera lenses make distances appear differently than they
actually are - objects seen on the audio/information screen may appear closer or
further away, and may be distorted. This becomes more apparent the further away
an object is from your vehicle.

*1: You can also switch the display by touching the view screen.

d

 or

*1

e

Rear Wide View

f

 or

 or

CAMERA

 button

g

 or

 or

CAMERA

 button

h

Rear Normal View

i

 or

*1

j

 or

*1

k

Rear Normal View + Ground View

Continued

529

uu

Multi-View Camera

*

u

Driving

Following can be displayed when the multi-view camera system is on.

Fixed Guideline:

Helps you to get a sense of a distance between your vehicle and

the surroundings. The distance may appear differently than the actual distance.

Dynamic Guideline:

Indicates vehicle direction while the steering wheel is in the

current position.

Reference Lines and Guide Lines

1

Displaying an Image From the Multi-View Cameras

The navigation system is disabled when the shift
position is in

(

R

.

If you press the

CAMERA

 button while the vehicle

speed is more than 20 km/h (12 mph), the standby
screen appears.
When the vehicle speed is reduced below 20 km/h
(12 mph), the screen switches to a multi-view camera
system image.

The positions/distances indicated by the guide lines
and camera views on the display may differ from the
actual positions/distances due to the changes in the
vehicle height, road conditions, and other factors.
The guide lines should be used as a reference only.

The guide lines can be turned on and off using the
audio/information screen.

2

Customized Features

 P. 327

If you turn the guide lines off, they remain off until
you turn them back on.















Content      ..     31      32      33      34     ..
