uu

Airbags

u

Side Airbags

66

Safe Driving

When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.

When a side airbag deploys with little or no visible damage

Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle's framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.

When a side airbag may not deploy, even though visible damage appears
severe

It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was towards
the far front or rear of the vehicle, or when the vehicle's crushable body parts
absorbed most of the crash energy. In either case, the side airbag would not have
been needed nor provided protection even if it had deployed.

Operation

1

Side Airbags

Do not cover or replace the front seat-back covers
without consulting a dealer.
Improperly replacing or covering front seat-back
covers can prevent your side airbags from properly
deploying during a side impact.

Do not let the front passenger lean sideways with
their head in the deployment path of the side airbag.
An inflating side airbag can strike with strong force
and seriously injure the passenger.

a

Deployed Side Airbag

67

uu

Airbags

u

Side Curtain Airbags

Continued

Safe Driving

Side Curtain Airbags

The side curtain airbags help to protect the heads of the driver and any passengers
during a moderate-to-severe side impact.

The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.

Housing Locations

1

Side Curtain Airbags

The side curtain airbags are most effective when an
occupant is wearing their seat belt properly and
sitting upright, well back in their seat.

Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.

a

Side Curtain Airbag Location

68

uu

Airbags

u

Side Curtain Airbags

Safe Driving

The side curtain airbag is designed to deploy
in a moderate-to-severe side impact.

When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.

Operation

a

Deployed Side Curtain Airbag

69

uu

Airbags

u

Airbag System Indicators

Continued

Safe Driving

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the driver information interface.

When the power mode is set to ON

The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.

If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as soon as possible. If you
don't, your airbags and seat belt tensioners
may not work properly when they are needed.

Supplemental Restraint System (SRS) Indicator

1

Supplemental Restraint System (SRS) Indicator

3

WARNING

Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.

Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.

3

WARNING

Remove the rear-facing child restraint
system immediately from the front
passenger seat if the SRS indicator comes
on. Even if the passenger front airbag has
been deactivated, do not ignore the SRS
indicator.

The SRS system may have a fault which
could cause the passenger front airbag to
be activated, causing serious injury or
death.

70

uu

Airbags

u

Airbag System Indicators

Safe Driving

When the passenger airbag off
indicator comes on

The indicator stays on while the passenger’s
front airbag system is deactivated.

When a rear-facing child restraint system is
not in use in the front passenger seat,
manually turn the system back on. The
indicator should go off.

Passenger Front Airbag Off Indicator

71

uu

Airbags

u

Airbag Care

Safe Driving

Airbag Care

You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:

When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.

When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the seat
belt tensioners for the front seats and rear seats, and each seat belt that was worn
during the crash.

1

Airbag Care

The removal of airbag components from the vehicle is
prohibited.

In case of malfunction, or shutdown, or after the
airbag inflation/seat belt tensioner operation, ask a
qualified personnel for handling.

We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.

72

Safe Driving

Pop-up Hood System

About the Pop-up Hood System

The pop-up hood system is designed to help to reduce the possible head injuries of
a pedestrian if they experience a frontal impact with your vehicle.

Your vehicle strikes a pedestrian or other objects at moderate or higher speed.

When the pedestrian impact sensors detect a
certain amount of impact, the pop-up hood
system is activated and the rear of the bonnet
will raise.

The raised bonnet can help to reduce
pedestrian head injuries.

The power units are located in the vehicle
front side of the hinges.

The system activates when

How the system works

1

About the Pop-up Hood System

NOTICE

Do not attempt to open the bonnet after the pop-up
hood system has been activated. After the system
activation, make sure the raised bonnet does not
interfere with visibility, and then drive slowly and
carefully.

If the bonnet is not fully closed, it may not work
properly. Make sure the bonnet is fully closed before
driving.

3

WARNING

After the pop-up hood is activated, the
power unit components become extremely
hot and can cause burns. Do not touch the
power unit components until they have
cooled.

a

Bonnet

b

Hinge

c

Raises about 100 mm

d

Power Unit Component

e

Pedestrian Impact Sensors

Continued

73

uu

Pop-up Hood System

u

About the Pop-up Hood System

Safe Driving

The following conditions may also activate the system.

A severe impact on the underside of your vehicle.

Driving over speed bumps at high speed, or over a large pothole.

When the objects impact the pedestrian impact sensors.

The system may not activate if your vehicle is:

Impacted from the rear or side.

Tipped over or rolled over.

A pedestrian is struck at an angle.

Other factors, such as where, at which angle, or at what vehicle speed the impact
has occurred, may prevent the pop-up hood system from activating.

1

About the Pop-up Hood System

For the pop-up hood system to work properly:

Always use the same size tyres as the original. The
system may not read your vehicle speed correctly
with the different size tyres.

Never apply force to the system’s power unit. It can
be damaged if you slam the bonnet shut.

Do not impact the pedestrian impact sensors in the
front bumper.

Pop-up Hood System label is found under the
bonnet:

2

Label Locations

 P. 103

uu

Pop-up Hood System

u

Pop-up Hood System Care

74

Safe Driving

When the power mode is set to ON

A system warning message appears on the
driver information interface if there is a
potential problem with the pop-up hood
system.

Pop-up Hood System Care

You do not need to, and should not, perform any maintenance on or replace any
pop-up hood system components yourself.
However, if the pop-up hood system has ever activated, you need to have the
control unit, and other related parts replaced by a dealer.

System Warning Message for Pop-up Hood

1

System Warning Message for Pop-up Hood

3

WARNING

Ignoring the pop-up hood message can
result in a malfunction of the pop-up hood.
This can result in serious injury or death if
your vehicle impacts a pedestrian.

If the pop-up hood message comes on,
have your vehicle checked by a dealer as
soon as possible.

1

Pop-up Hood System Care

If the front bumper is damaged, have the vehicle
checked by a dealer even if the pop-up hood system
did not activate.

75

Continued

Safe Driving

Child Safety

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle crashes are the
number one cause of death of children aged 12 and under.

To reduce the number of child deaths and injuries, infants and children should be
properly restrained when they ride in a vehicle.

1

Protecting Child Passengers

Front Passenger’s Sun Visor

3

WARNING

NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG
in front of it, DEATH or SERIOUS INJURY to
the CHILD can occur.

3

WARNING

Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.

Any child too small for a seat belt should be
properly restrained in an approved child
restraint system. A larger child should be
properly restrained with a seat belt, using a
booster seat if necessary.

uu

Child Safety

u

Protecting Child Passengers

76

Safe Driving

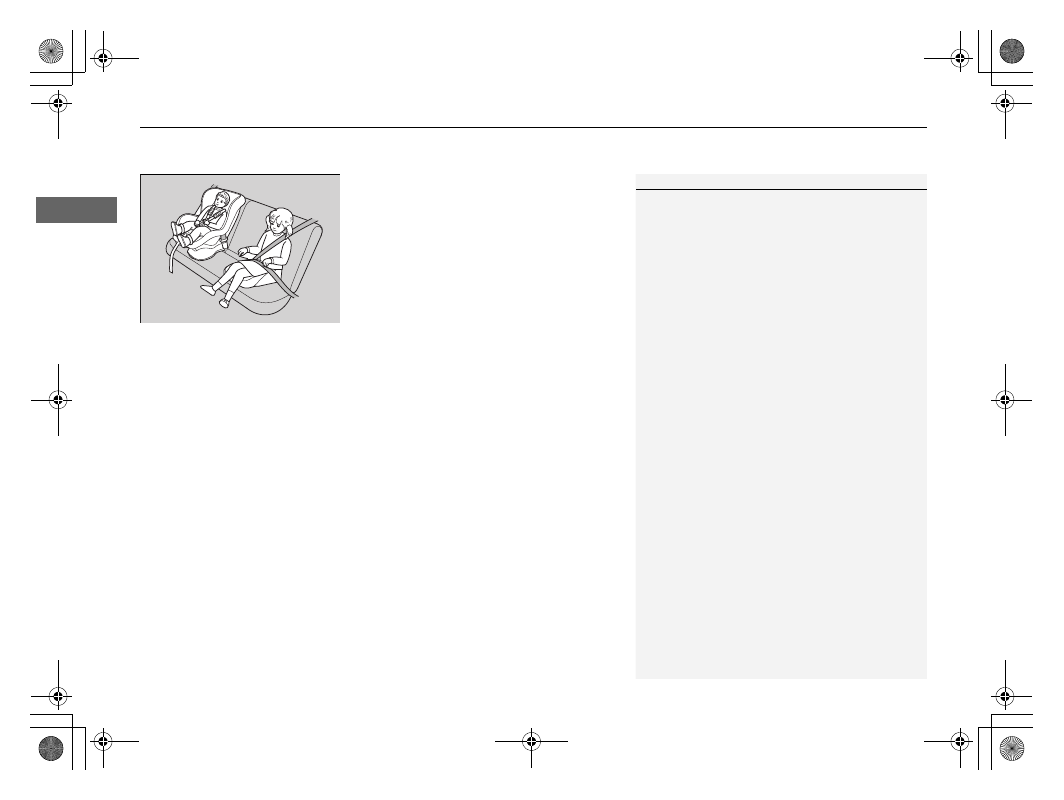

Children should sit properly restrained in a
rear seat. This is because:

An inflating front or side airbag can injure
or kill a child sitting in the front seat.

A child in the front seat is more likely to
interfere with the driver's ability to safely
control the vehicle.

Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.

1

Protecting Child Passengers

In many countries, the law requires all children aged 12
and under, and whose height are shorter than 150 cm
(60 inches) be properly restrained in a rear seat.

In many countries, it is required to use an officially
approved and suitable child restraint system for
transporting a child on any passenger seat. Check
your local legal requirement.

Child restraint systems must meet UN Regulation No. 44
or No. 129 or the regulations of the subject countries.

2

Selecting a Child Restraint System

 P. 81

77

uu

Child Safety

u

Protecting Child Passengers

Safe Driving

Never hold a child on your lap because it is impossible to protect them in the
event of a collision.

Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.

Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.

Any child who is too small to wear a seat belt must be properly restrained in an
approved child restraint system that is properly secured to the vehicle using the
seat belt or the child restraint anchorage system.

Do not allow children to operate the doors, windows or seat adjustments.

Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.

1

Protecting Child Passengers

WARNING:

Use the power window lock button to

prevent children from opening the windows. Using
this feature will prevent children from playing with
the windows, which could expose them to hazards or
distract the driver.

2

Opening/Closing the Power Windows



P. 194

WARNING:

Always take the ignition key with you

whenever you leave the vehicle alone or with other
occupants.

To remind you of the passenger’s front airbag hazard
and child safety, your vehicle has the warning label
on the passenger's side sun visor.
Please read and follow the instructions on the label.

2

Safety Labels

 P. 103

78

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

Safety of Infants and Small Children

An infant must be properly restrained in a rear-facing, reclining child restraint system
until the infant reaches the child restraint system manufacturer's weight or height
limit for the seat, and the infant is at least one year old.

Positioning a rear-facing child restraint
system

Child restraint system must be placed and
secured in a rear seating position.

u

We recommend that you install the child
restraint system directly behind the front
passenger’s seat, move the seat as far
forward as needed, and leave it
unoccupied.

u

Make sure that there is no contact
between the child restraint system and
the seat in front of it.
If there is, you may wish to get a smaller
rear-facing child restraint system.

Protecting Infants

1

Protecting Infants

As required by UN Regulation No. 94:

3

WARNING

Placing a rear-facing child restraint system
in the front seat can result in serious injury
or death if the passenger’s front airbag
inflates.

Always place a rear-facing child restraint
system in the back seat, not the front.

3

WARNING

NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG
in front of it, DEATH or SERIOUS INJURY to
the CHILD can occur.

Continued

79

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

When properly installed, a rear-facing child restraint system may prevent the driver
or a front passenger from moving their seat all the way back, or from locking their
seat-back in the desired position.

1

Protecting Infants

Many experts recommend use of a rear-facing child
restraint system for a child up to two years old if the
child’s height and weight are appropriate for a rear-
facing child restraint system.

Rear-facing child restraint systems should never be
installed in a front-facing position.

Always refer to the child restraint system
manufacturer’s instructions before installation.

If the passenger’s front airbag inflates, it can hit the
rear-facing child restraint system with great force,
which can dislodge or strike the system, and seriously
injure the child.

If it is absolutely unavoidable to install a rear-facing
child restraint system in the front passenger seat,
manually turn off the passenger front airbag system.

2

Passenger Front Airbag Off System

 P. 62

uu

Child Safety

u

Safety of Infants and Small Children

80

Safe Driving

If a child is at least one year old and has exceeded the weight and height limitations
of a rear-facing child restraint system, the child should be properly restrained in a
firmly secured front-facing child restraint system until they exceed the weight and
height limitations for the front-facing child restraint system.

Front-facing child restraint system
placement

We strongly recommend placing a front-
facing child restraint system in a rear seating
position.

Placing a front-facing child restraint system in the front seat can be hazardous. A
rear seat is the safest place for a child.

Protecting Smaller Children

1

Protecting Smaller Children

Educate yourself about the laws and regulations
regarding child restraint system use where you are
driving, and follow the child restraint system
manufacturer's instructions.

3

WARNING

Placing a front-facing child restraint system
in the front seat can result in serious injury
or death if the front airbag inflates.

If you must place a front-facing child
restraint system in front, move the vehicle
seat as far back as possible, and properly
restrain the child.

Continued

81

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

Some child restraint systems are lower anchorage compatible. Some have a rigid-
type connector while others have a flexible-type connector. Both are equally easy to
use. Some existing and previously owned child restraint systems can only be installed
using the seat belt. Whichever type you choose, follow the child restraint system
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximising
your child’s safety.

The flexible type may not be available in your country.

In seating positions and vehicles not equipped with lower anchorages, install a child
restraint system using the seat belt and a top tether for added security. This is
because all child restraint systems must be secured with the seat belt when the
lower anchorage system is not in use. In addition, the child restraint system
manufacturer may advise that a seat belt be used to attach an ISOFIX restraint
system once a child reaches a specified weight. Please read the child restraint system
owner’s manual for proper installation instructions.

Important consideration when selecting a child restraint system

Make sure the child restraint system meets the following three requirements:

The child restraint system is the correct type and size for the child.

The child restraint system is the correct type for the seating position.

The child restraint system is compliant with safety standards. We recommend a
child restraint system compliant with UN Regulation No. 44 or No. 129, or the
regulations of the subject countries. Look for the approval mark on the system
and the manufacturer’s statement of compliance on the box.

Selecting a Child Restraint System

1

Selecting a Child Restraint System

Installation of a lower anchorage-compatible child
restraint system is simple.

Lower anchorage-compatible child restraint systems
have been developed to simplify the installation
process and reduce the likelihood of injuries caused
by incorrect installation.















Content      ..     3      4      5      6     ..
