Braking

Collision Mitigation Braking System

(CMBS

)

Driving

The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS

may not go through all of

the stages before initiating the last stage.

■

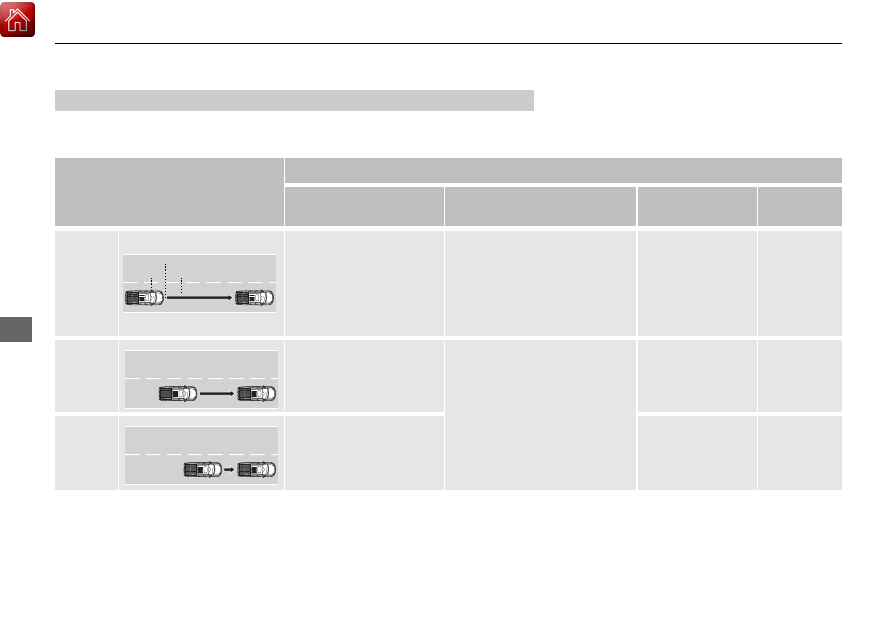

Collision Alert Stages

Distance between vehicles

CMBS

The sensors detect a

vehicle

Audible & Visual WARNINGS

Steering Wheel

Braking

Stage

one

There is a risk of a collision
with the vehicle ahead of
you.

When in Long, visual and
audible alerts come on at a
longer distance from a vehicle
ahead than in Normal setting,
and in Short, at a shorter
distance than in Normal.

In case of an
oncoming vehicle
detected, rapid
vibration is
provided.

—

Stage

two

The risk of a collision has
increased, time to respond
is reduced.

Visual and audible alerts.

—

Lightly

applied

Stage

three

The CMBS

determines

that a collision is
unavoidable.

—

Forcefully

applied

Your Vehicle

Vehicle
Ahead

Normal

Short

Long

Your
Vehicle

Vehicle
Ahead

Your
Vehicle

Vehicle
Ahead

Continued

497

Braking

Collision Mitigation Braking System

(CMBS

)

Driving

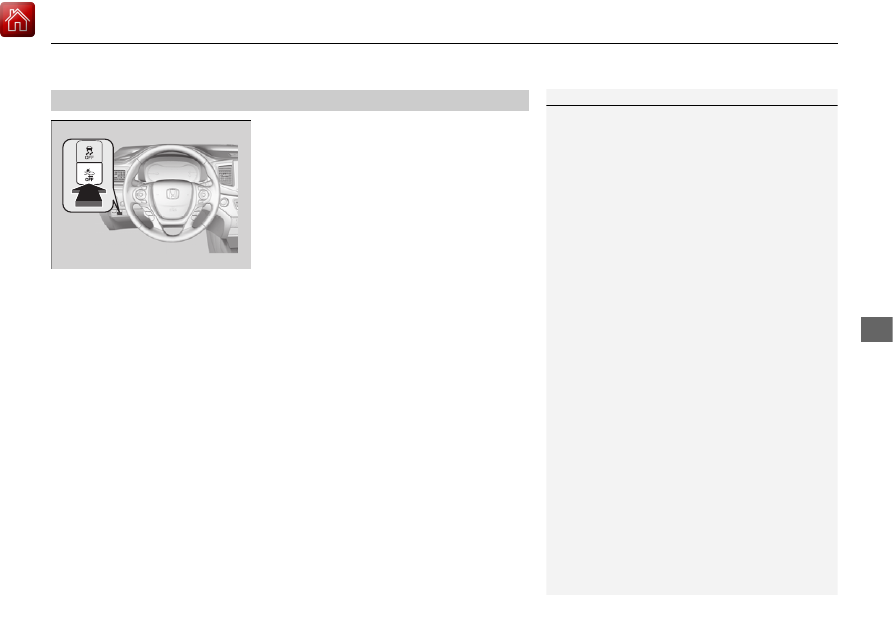

Press this button until the beeper sounds to
switch the system on or off.

When the CMBS

is off:

• The CMBS

indicator in the instrument

panel comes on.

• A message on the multi-information display

reminds you that the system is off.

The CMBS

is in the previously selected ON or

OFF setting each time you start the engine.

■

CMBS

On and Off

Collision Mitigation Braking System

(CMBS

)

The CMBS

may automatically shut off, and the

CMBS

indicator will come and stay on under certain

conditions:

2 CMBS

Conditions and Limitations P. 498

* Not available on all models

498

Braking

Collision Mitigation Braking System

(CMBS

)

Driving

The system may automatically shut off and the CMBS

indicator will come on under

certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the CMBS

functions.

2 Front Sensor Camera

P. 450

■

Environmental conditions

• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between objects and the background.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Roadway objects or structures are misinterpreted as vehicles and pedestrians.
• Reflections on the interior of the front windshield.

■

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on curvy, winding, or undulating roads.

■

CMBS

Conditions and Limitations

* Not available on all models

499

Braking

Collision Mitigation Braking System

(CMBS

)

Continued

Driving

■

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated, compact spare tire, etc.).

• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too hot.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.

500

Braking

Collision Mitigation Braking System

(CMBS

)

Driving

■

Detection limitations

• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is

too short.

• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you

at high speed.

• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small

vehicle.

• When there are animals in front of your vehicle.
• When you drive on a curved, winding or undulating road that makes it difficult for

the sensor to properly detect a vehicle in front of you.

• The speed difference between your vehicle and a vehicle or pedestrian in front of

you is significantly large.

• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squatting, or when their hands or raised or they

are running.

• When several pedestrians are walking ahead in a group.
• When the lead vehicle suddenly slows down.
• When the camera cannot correctly identify that a pedestrian is present due to an

unusual shape (holding luggage, body position, size).

501

Braking

Collision Mitigation Braking System

(CMBS

)

Continued

Driving

■

Automatic shutoff

CMBS

may automatically shut itself off and the CMBS

indicator comes and stays

on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an

extended period.

• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

Once the conditions that caused CMBS

to shut off improve or are addressed (e.g.,

cleaning), the system comes back on.

Braking

Collision Mitigation Braking System

(CMBS

)

502

Driving

The CMBS

may activate even when you are aware of a vehicle ahead of you, or

when there is no vehicle ahead. Some examples of this are:

■

When Passing

Your vehicle approaches another vehicle ahead of you and you change lanes to pass.

■

At an intersection

Your vehicle approaches or passes another vehicle that is making a left or right turn.

■

On a curve

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

■

Through a low bridge at high speed

You drive under a low or narrow bridge at high speed.

■

Speed bumps, road work sites, train tracks, roadside objects, etc.

You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects [such as a traffic sign and guard rail] on a curve or, when
parking, stationary vehicles and walls.

■

With Little Chance of a Collision

Collision Mitigation Braking System

(CMBS

)

For the CMBS

to work properly:

Always keep the radar sensor cover clean.

Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.

Do not paint, or apply any coverings or paint to radar
sensor area. This can impact CMBS operation.

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the
CMBS

off button and take your vehicle to a dealer.

* Not available on all models

503

Driving

Parking Your Vehicle

When Stopped

1. Depress the brake pedal firmly.
2. Firmly apply the parking brake.
3. Move the shift lever from

(

D to

(

4. Turn off the engine.

Always set the parking brake firmly, in particular if you are parked on an incline.

Parking Your Vehicle

Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

is shown

on the shift lever position Indicator.

When Stopped

NOTICE

The following can damage the transmission:

•

Depressing the accelerator and brake pedals
simultaneously.

•

Changing into

(

P before the vehicle stops

completely.

When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the items to malfunction or a fire
inside the vehicle.

504

Parking Your Vehicle

Parking Sensor System

Driving

Parking Sensor System

The corner and center sensors monitor obstacles near your vehicle. The beeper and
audio/information screen let you know the approximate distance between your
vehicle and the obstacle.

■

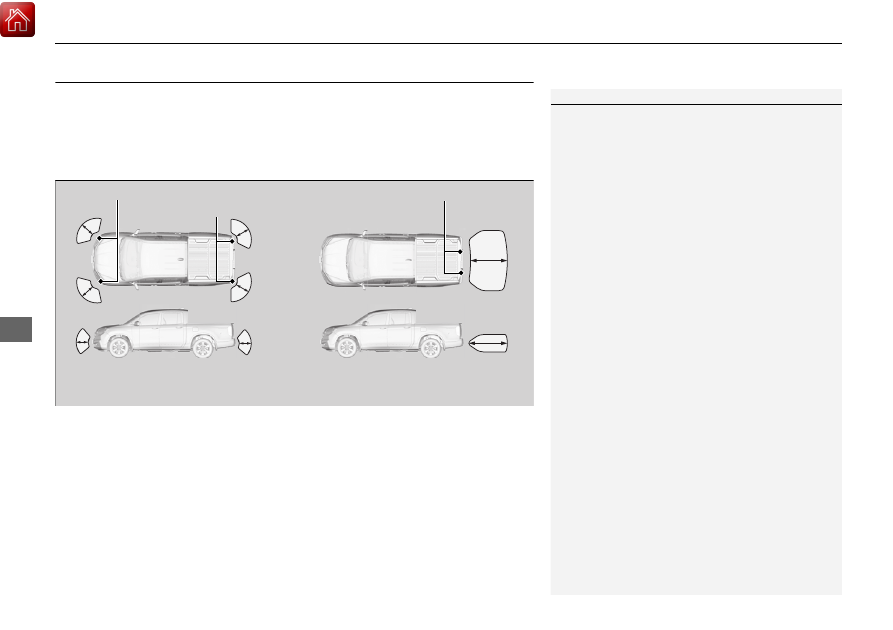

The sensor location and range

Parking Sensor System

Even when the system is on, always confirm if there is
no obstacle near your vehicle before parking.

The system may not work properly when:

•

The sensors are covered with snow, ice, mud or
dirt, etc.

•

The vehicle is on uneven surface, such as grass,
bumpy road, or a hill.

•

The vehicle has been out in hot or cold weather.

•

The system is affected by devices that emit
ultrasonic waves.

•

Driving in bad weather.

The system may not sense:

•

Thin or low objects.

•

Sonic-absorptive materials, such as snow, cotton,
or sponge.

•

Objects directly under the bumper.

Do not put any accessories on or around the sensors.

Front: Within about 24 in (60 cm) or less
Rear: Within about 32 in (80 cm) or less

Front Corner Sensors

Rear Corner Sensors

Rear Center Sensors

Within about 43 in (110 cm) or less

* Not available on all models

505

Parking Your Vehicle

Parking Sensor System

Continued

Driving

■

Parking sensor system on and off

With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicator in the button comes
on when the system is on.

The rear center and corner sensors start to
detect an obstacle when the shift lever is in

(

R, and the vehicle speed is less than 5 mph

(8 km/h).

The front corner sensors start to detect an
obstacle when the shift lever is not in

(

P, and

the vehicle speed is less than 5 mph (8 km/h).

Indicator

506

Parking Your Vehicle

Parking Sensor System

Driving

■

When the distance between your vehicle and obstacles behind becomes shorter

*1: At this stage, only the center sensors detect obstacles.

Length of the

intermittent beep

Distance between the Bumper and Obstacle

Indicator

Audio/information screen

Corner Sensors

Center Sensors

Moderate

—

Rear: About 43-32 in

(110-80 cm)

Blinks in Yellow

Short

Front: About 24-18 in

(60-45 cm)

Rear: About 32-22 in

(80-55 cm)

Rear: About 32-22 in

(80-55 cm)

Blinks in Amber

Very short

Front: About 18-14 in

(45-35 cm)

Rear: About 22-18 in

(55-45 cm)

Rear: About 22-18 in

(55-45 cm)

Continuous

Front: About 14 in

(35 cm) or less

Rear: About 18 in

(45 cm) or less

Rear: About 18 in

(45 cm) or less

Blinks in Red

Indicators light where the
sensor detects an obstacle

507

Parking Your Vehicle

Parking Sensor System

Driving

1. Make sure that the parking sensor system is not activated. Set the power mode to

VEHICLE OFF (LOCK).

2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for 10 seconds. Release the button when the indicator

in the button flashes.

4. Press the button again. The indicator in the button goes off.

The beeper sounds twice. The rear sensors are now turned off.

To turn the rear sensors on again, follow the above procedure. The beeper sounds
three times when the rear sensors come back on.

■

Turning off All Rear Sensors

Turning off All Rear Sensors

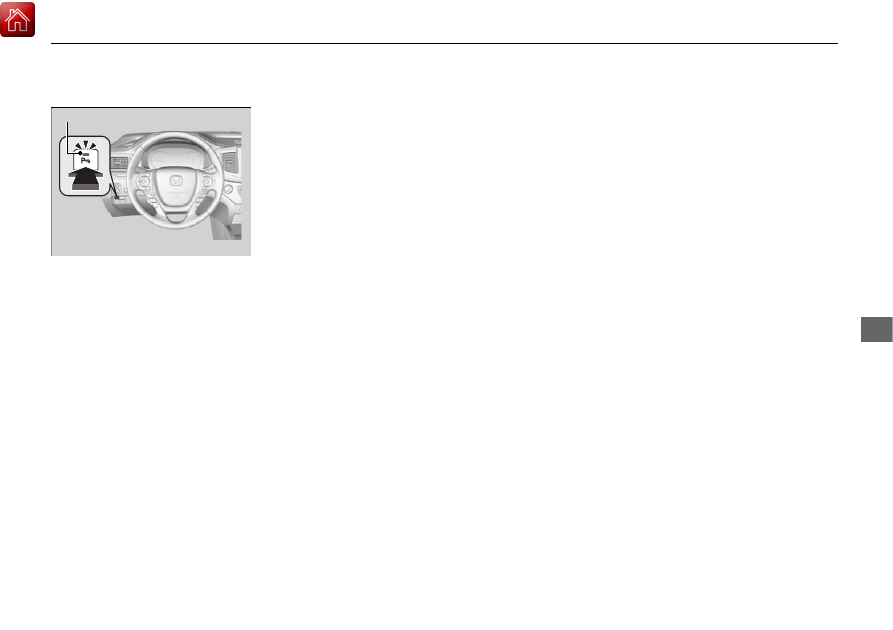

When you shift to

(

R, the indicator in the parking

sensor system button blinks as a reminder that the
rear sensors have been turned off.

508

Parking Your Vehicle

Cross Traffic Monitor

Driving

Cross Traffic Monitor

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.

The system is convenient when you are backing out of a parking space.

Cross Traffic Monitor

CAUTION

Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.

Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.

Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.

* Not available on all models

Continued

509

Parking Your Vehicle

Cross Traffic Monitor

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned

on.

2 Cross Traffic Monitor On and Off P. 511

• The shift lever is in

(

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

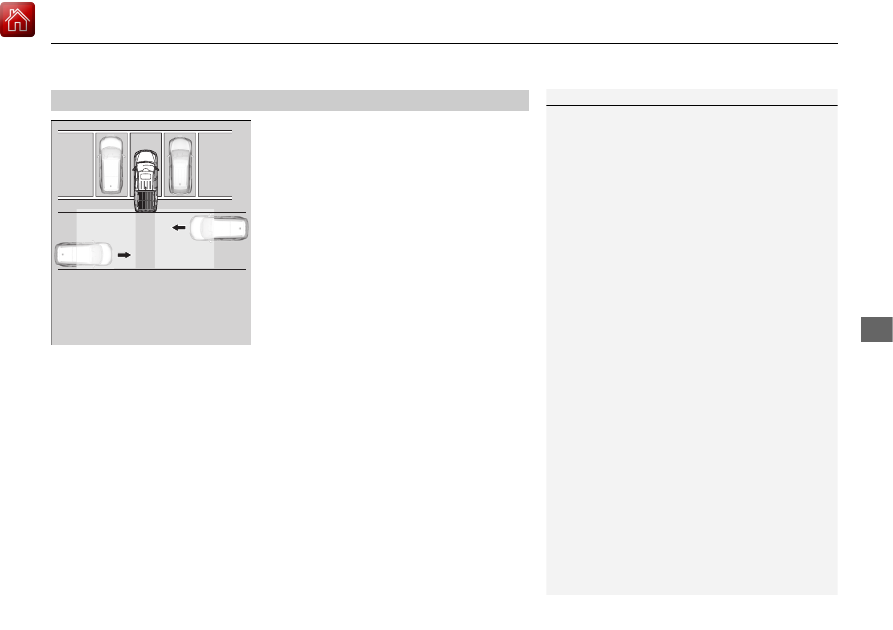

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may not detect or alert for pedestrians, bicycles, or stationary
objects.

■

How the System Works

Cross Traffic Monitor

Cross Traffic Monitor may not detect an approaching
vehicle, or may delay alerting you under the following
conditions:

•

A vehicle, which is parked adjacent to your vehicle,
is blocking the radar sensor’s view.

•

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

•

A vehicle is approaching at the speed other than
between about 6 and 16 mph (10 and 25 km/h).

•

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

•

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

•

When there is bad weather.

•

Your vehicle is on an incline.

•

Your vehicle is tilted due to a heavy load in the rear.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have a vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

* Not available on all models

Parking Your Vehicle

Cross Traffic Monitor

510

Driving

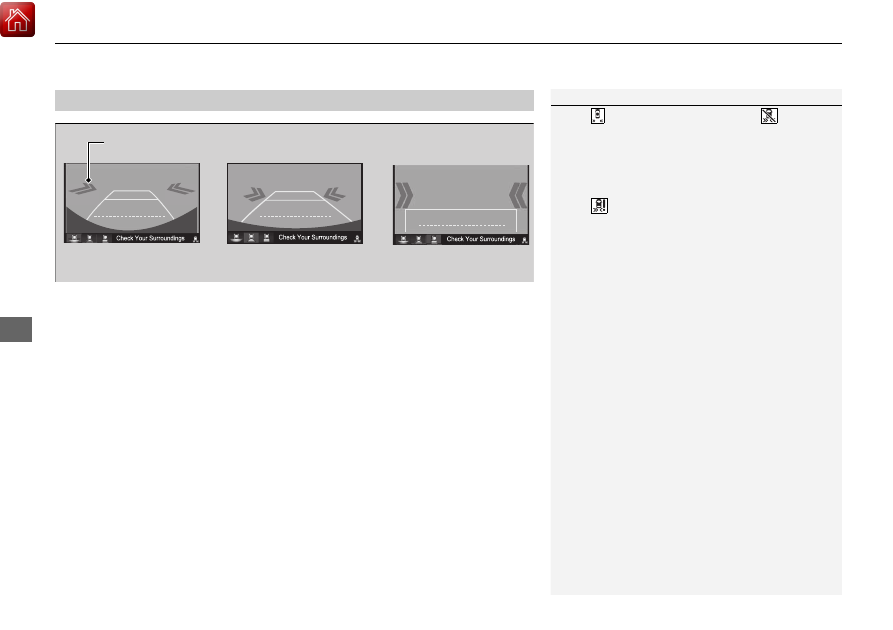

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

■

When the System Detects a Vehicle

When the System Detects a Vehicle

If the

on the lower right changes to

when the

shift lever is in

(

R, mud snow or ice may have

accumulated in the vicinity of the sensor. Check the
bumper corners for any obstructions, and thoroughly
clean the area if necessary.

If the

comes on when the transmission is in

(

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

Wide View

Normal View

Arrow Icon

Top Down View

511

Parking Your Vehicle

Cross Traffic Monitor

Driving

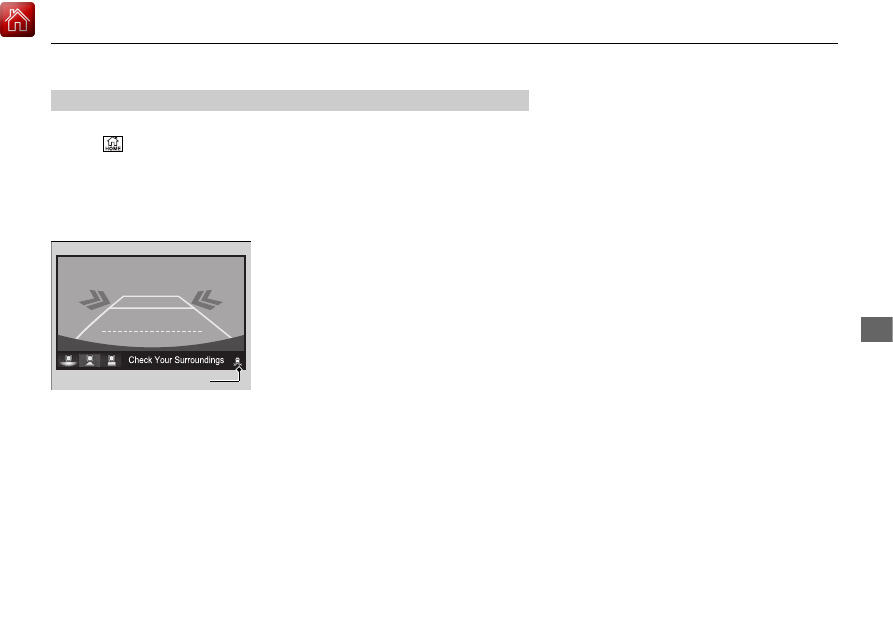

You can switch on and off the system using the audio/information screen.
1. Select .
2. Select Settings.
3. Select Camera.
4. Select Cross Traffic Monitor.
5. Select On or Off, then select OK.

The system can also be turned on and off on
the audio/information screen by pressing the
CTM icon.

■

Cross Traffic Monitor On and Off

CTM icon

Content .. 30 31 32 33 ..
