Operating the Switches Around the Steering Wheel

u

ENGINE START/STOP Button

144

Co
ntrols

Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it within its operational
range.

■

When the power mode is in ON

If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. Furthermore, a warning
message on the multi-information display
notifies the driver inside that the remote
outside of the vehicle.

■

When the power mode is in
ACCESSORY

If the smart entry remote is taken out of the
vehicle, and/or all the doors are closed, a
warning buzzer sounds from outside the
vehicle.

■

Smart Entry Remote Reminder

1

Smart Entry Remote Reminder

When the smart entry remote is within the system’s
operational range, and the driver’s door is closed, the
warning function cancels.

If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.

Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.

Do not put the smart entry remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may also go off even if the remote is
within the system’s operational range.

145

uu

Operating the Switches Around the Steering Wheel

u

Turn Signals

Co
ntrols

Turn Signals

The turn signals can be used when the power
mode is in ON.

■

One-touch turn signal

When you lightly push up or down and release
the turn signal lever, the exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.

Right Turn

Left Turn

146

uu

Operating the Switches Around the Steering Wheel

u

Light Switches

Co
ntrols

Light Switches

Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.

■

High beams

Push the lever forward until you hear a click.

■

Low beams

When in high beams, pull the lever back to
return to low beams.

■

Flashing the high beams

Pull the lever back, and release it.

■

Manual Operation

1

Light Switches

If you leave the power mode in VEHICLE OFF (LOCK)
with the lights on, a light on reminder chime sounds
when you open the driver’s door.

When the lights are on, the

 indicator in the

instrument panel will be on.

2 Indicators P. 74

Do not leave the lights on when the engine is off
because it will cause the battery to discharge.

If you sense that the level of the headlights is
abnormal, have the vehicle inspected by a dealer.

High Beams

Flashing the high beams

Low Beams

Turns on parking, side marker,
tail, and rear license plate lights

Turns on headlights, parking,
side marker, tail, and rear
license plate lights

Continued

147

uu

Operating the Switches Around the Steering Wheel

u

Light Switches

Co
ntrols

Automatic lighting control can be used when
the power mode is in ON.

When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.

u

You can change the auto light sensitivity
setting.

2 Customized Features P. 318

The headlights comes on when you unlock a
door in dark areas with the headlight switch in
AUTO.

u

Once you lock the door, the headlights
will go off.

■

Automatic Operation (automatic lighting control)

1

Automatic Operation (automatic lighting control)

We recommend that you turn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.

The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.

Light Sensor

Models with automatic
intermittent wipers

Models without automatic
intermittent wipers

Light Sensor

Models with Display Audio

uu

Operating the Switches Around the Steering Wheel

u

Light Switches

148

Co
ntrols

The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.

The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF (LOCK), take the remote with
you, and close the driver’s door.

If you set the power mode to VEHICLE OFF (LOCK) with the headlight switch on, but
do not open the door, the lights turn off after 10 minutes (three minutes, if the
switch is in the AUTO position).

The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.

■

Headlight Integration with Wiper

■

Automatic Lighting Off Feature

1

Automatic Operation (automatic lighting control)

Adjust the auto light sensitivity as follows:

Setting

The exterior lights come on

when the ambient light is at

Max

High

Mid

Low

Min

Bright

Dark

1

Headlight Integration with Wiper

This feature activates while the headlights are off in
AUTO.
The instrument panel brightness does not change
when the headlights come on.

When the ambient light is dark, the automatic
lighting control feature overrides, and the headlights
come on with or without the wipers sweeping more
than several times.

1

Automatic Lighting Off Feature

You can change the headlight auto off timer setting.

2 Customized Features P. 318

Models with Display Audio

149

uu

Operating the Switches Around the Steering Wheel

u

Fog Lights

*

Co
ntrols

Fog Lights

*

When the headlights are on, turn the fog light
switch on to use the fog lights.

1

Fog Lights

*

When the fog lights are on, the indicator in the
instrument panel will be on. They go off when the
headlights turn off, or when the daytime running
lights are on.

2 Indicators P. 74

Fog Light Switch

* Not available on all models

150

uu

Operating the Switches Around the Steering Wheel

u

Daytime Running Lights

Co
ntrols

Daytime Running Lights

The daytime running lights come on when the following conditions have been met:
• The power mode is in ON.
• The headlight switch is off.
• The parking brake is released.

The daytime running lights are off once the headlight switch is turned on, or when
the head light switch is in AUTO and it is getting darker outside.

151

uu

Operating the Switches Around the Steering Wheel

u

Auto High-Beam (High Beam Support System)

*

Continued

Co
ntrols

Auto High-Beam (High Beam Support System)

*

Uses the camera attached, monitors the space ahead of your vehicle, and
automatically changes the low beam headlights to high beam headlights when
necessary.

1

Auto High-Beam (High Beam Support System)

*

The auto high-beam determines when to change the
headlight beams by responding to the brightness of
the lights ahead of your vehicle. In the following
cases, the system may not respond to the lights
properly:

•

The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.

•

Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).

•

Other light sources, such as streetlights and electric
billboards are illuminating the road ahead.

•

The brightness level of the road ahead constantly
changes.

•

The road is bumpy or with many curves.

•

A vehicle cuts in front of you, or a vehicle in front
of you is not in the preceding or oncoming
direction.

•

Your vehicle is tilted with a heavy load in the rear.

If you find the timing of beam changes inconvenient
for driving, change the headlight beams manually.

■

The headlight switch is in AUTO.

■

The lever is in the low beam
position.

■

The system recognizes that you
are driving at night and the low
beam headlights come on.

■

The vehicle speed is above 25 mph
(40 km/h).

The system operates when:

The camera is not detecting any lights coming from preceding or oncoming
vehicles: The headlights change to high beams.

15-degrees

The camera detects lights coming from a preceding or oncoming vehicle: The
headlights are returned to low beams.

The camera monitors the range within the 30-degrees view angle. The distance
that the camera can detect lights ahead differs depending on conditions, such as
the brightness of the lights and the weather.

The system changes between high and low beam headlights when:

* Not available on all models

uu

Operating the Switches Around the Steering Wheel

u

Auto High-Beam (High Beam Support System)

*

152

Co
ntrols

Turn the headlight switch in AUTO and pull
the headlight lever to low beam.

2 Light Switches P. 146

The auto high-beam indicator comes on.

■

Temporary cancellation

The auto high-beam system operation is temporarily canceled while:
• You are continuously driving at a speed below 15 mph (24 km/h).
• The vehicle speed is below 6 mph (10 km/h).
• The windshield wipers run at high speed for more than a few seconds.

The system operation resumes once the condition that caused it to cancel improves.

■

To Operate the System

1

Auto High-Beam (High Beam Support System)

*

For the auto high-beam to work properly:

•

Do not place an object that reflects light on the
dashboard.

•

Keep the windshield around the camera clean.
When cleaning the windshield, be careful not to
apply the windshield cleanser to the camera lens.

•

Do not attach an object, sticker or film to the area
around the camera.

•

Do not touch the camera lens.

If the camera receives a strong impact, or repairing of
the area near the camera is required, consult a dealer.

To help reduce the likelihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a shady area or face the front
of the vehicle away from the sun. If you use a
reflective sun shade, do not allow it to cover the
camera housing. Covering the camera can
concentrate heat on the camera.

Headlight Switch

* Not available on all models

153

uu

Operating the Switches Around the Steering Wheel

u

Auto High-Beam (High Beam Support System)

*

Co
ntrols

■

To manually cancel the system temporarily

You can cancel the operation when you manually change the headlights to high
beams. Push the lever forward until you hear a click, or lightly pull the lever towards
you to flash high beams. The auto high-beam indicator goes off.

If you want the auto high-beam operation to resume at once, pull the lever towards
you.

Disable the system when the vehicle is parked
with the power mode is in ON and the light
switch is in the AUTO position.
To disable the system: Pull the light switch
lever towards you and hold it for 40 seconds.
The auto high-beam indicator in the meter will
blink twice.
To enable the system: Pull the light switch
lever towards you and hold it for 30 seconds.
The auto high-beam indicator in the meter will
blink once.

■

To Disable the System

1

Auto High-Beam (High Beam Support System)

*

If the Can Not Operate:

 message appears:

•

Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.

1

To Disable the System

The auto high-beam is in the previously selected
disabled or enabled setting each time you start the
engine.

* Not available on all models

154

uu

Operating the Switches Around the Steering Wheel

u

Wipers and Washers

Co
ntrols

Wipers and Washers

The windshield wipers and washers can be
used when the power mode is in ON.

■

MIST

The wipers run at high speed until you release
the lever.

■

Wiper switch (OFF, INT

*1

/AUTO

*2

, LO, HI)

Move the lever up or down to change the
wiper settings.

■

Adjusting wiper operation

*

Turn the adjustment ring to adjust wiper
operation.

■

Washer

Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.

*1 : Models with manual intermittent operation
*2 : Models with automatic intermittent operation

■

Windshield Wipers/Washers

1

Wipers and Washers

NOTICE

Do not use the wipers when the windshield is dry.
The windshield will get scratched, or the rubber
blades will get damaged.

Turn the washers off if no washer fluid comes out.
The pump may get damaged.

The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.

If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.

NOTICE

In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in this condition may damage
the wipers. Use the defroster and heated windshield

*



to warm the windshield, then turn the wipers on.

If the wipers stop operating due to an obstacle such
as the build-up of snow, park the vehicle in a safe
place as soon as possible.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.

Intermittent Time
Adjustment Ring

MIST

INT

*1

/AUTO

*2

OFF

LO: Low speed wipe

HI: High speed wipe

Pull to
use
washer.

Lower speed, fewer sweeps

Higher speed, more sweeps

* Not available on all models

155

uu

Operating the Switches Around the Steering Wheel

u

Wipers and Washers

Co
ntrols

When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.

The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.

■

Auto sensitivity adjustment

When the wiper function is set to AUTO, you
can adjust the sensitivity of the rain fall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.

Sensor sensitivity

■

Automatic Intermittent Wipers

*

1

Automatic Intermittent Wipers

*

The rainfall sensor is in the location shown below.

NOTICE

AUTO should always be turned OFF before the
following situation in order to prevent severe damage
to the wiper system:

•

Cleaning the windshield

•

Driving through a car wash

•

No rain present

Rainfall Sensor

Low sensitivity

High sensitivity

* Not available on all models

156

uu

Operating the Switches Around the Steering Wheel

u

Rear Defogger/Heated Door Mirror

*

 Button

Co
ntrols

Rear Defogger/Heated Door Mirror

*

 Button

Press the rear defogger and heated door mirror

*

 button to defog the rear window

and mirrors when the power mode is in ON.

The rear defogger and heated door mirrors

*



automatically switch off after 10-30 minutes
depending on the outside temperature.

Heated Windshield Button

Press the heated windshield button to deice
the windshield when the power mode is in
ON.

1

Rear Defogger/Heated Door Mirror

*

 Button

NOTICE

When cleaning the inside of the rear window, be
careful not to damage the heating wires.
It is critical to wipe the window from side to side
along the defogger heating wires.

This system consumes a lot of power, so turn it off
when the window has been defogged or deiced.
Also, do not use the system for a long time while the
engine is idling. This may weaken the battery, making
it difficult to start the engine.

When the outside temperature is below 41°F (5°C),
the heated door mirror may activate automatically for
10 minutes when you set the power mode to ON.

Models with Heated Door Mirror

Canadian models

1

Heated Windshield Button

This system activates automatically if the temperate is
below 4°C, then deactivates after 15 minutes. After
that, the heated windshield button must be pressed
to activate the system again for another 15 minutes.

* Not available on all models

157

uu

Operating the Switches Around the Steering Wheel

u

Brightness Control

Co
ntrols

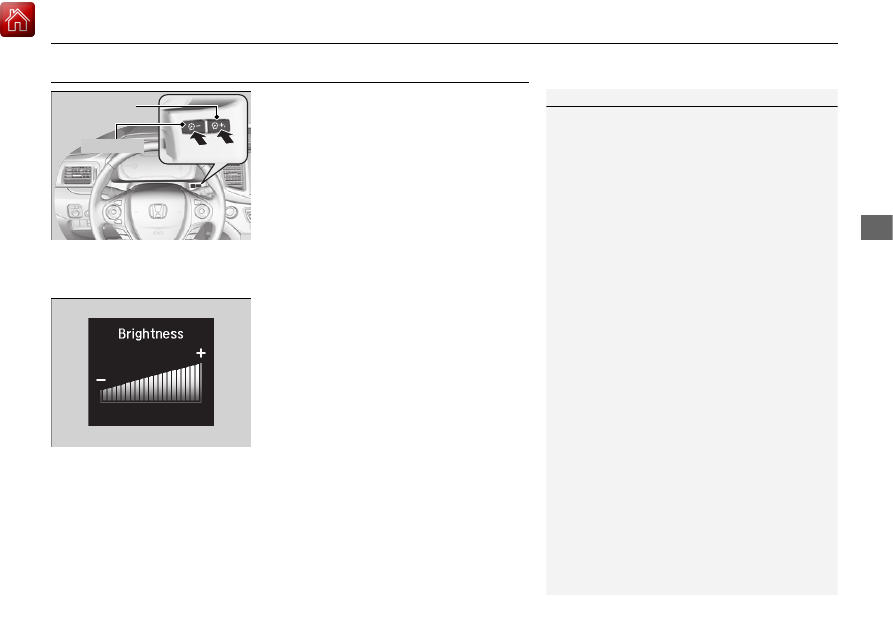

Brightness Control

When the power mode is in ON, you can use
the

(

+ or

(

- button to adjust instrument

panel brightness.
To brighten: Press the

(

+ button.

To dim: Press the

(

- button.

You will hear a beep when the brightness
reaches minimum or maximum. Several
seconds after you have adjusted the
brightness, you will be returned to the
previous screen.

■

Brightness level indicator

The brightness level is shown on the multi-
information display while you are adjusting it.

1

Brightness Control

Instrument panel brightness varies, depending on
whether the exterior lights are on or off. The
instrument panel dims to reduce glare when they are
on.

If you press the

(

+ button until the brightness display

is up to max, the beeper sounds. This cancels the
reduced instrument panel brightness when the
exterior lights are on.

The brightness can be set differently for when the
exterior lights are on, and when they are off.

(

+ Button

(

- Button

158

uu

Operating the Switches Around the Steering Wheel

u

Driving Position Memory System

*

Co
ntrols

Driving Position Memory System

*

You can store two driver’s seat (except for power lumbar) and door mirror positions
with the driving position memory system.
When you unlock and open the driver’s door with a remote transmitter or smart
entry system, the seat and door mirrors adjust automatically to one of the two preset
positions.

When you enter the vehicle, the multi-information display briefly shows you which
remote transmitter you used to unlock the vehicle.
• DRIVER 1 transmitter is linked to memory button 1.
• DRIVER 2 transmitter is linked to memory button 2.

The driver’s seat moves rearward depending
on the set seating position once you
• Stop the vehicle.
• Put the transmission in

(

P.

• Turn the engine off.
• Then open the driver’s door.
Once the power mode is in the ACCESSORY
position, the driver’s seat moves to the
DRIVER 1 or 2 preset position.

1

Driving Position Memory System

*

Using the audio/information screen, you can disable
the automatic seat and door mirrors adjustment
function.

2 Customized Features P. 318

The driver’s seat easy feature can be turned ON/OFF.

2 Customized Features P. 318

System Operation
The system will not operate if:

•

The vehicle speed is above 3 mph (5 km/h).

•

Either memory position button is pressed while the
seat is in motion.

•

The seat position is adjusted while in operation.

•

The memory 1 or 2 position is set fully to the rear.

To turn the memory position link settings back on,
repeat this procedure. The LED will blink once.

DRIVER 1

DRIVER 2

* Not available on all models

159

uu

Operating the Switches Around the Steering Wheel

u

Driving Position Memory System

*

Co
ntrols

1. Set the power mode to ON. Adjust the

driver’s seat and door mirrors to the desired
position.

2. Press the SET button.

u

You will hear the beeper, and the
memory button indicator light will blink.

3. Press and hold memory button

(

1 or

(

2

within five seconds of pressing the SET
button.

u

Once the seat and the outside mirror
positions have been memorized, the
indicator light on the button you pressed
stays on and you will hear two beeps.

1. Move the shift lever to

(

P.

2. Apply the parking brake.
3. Press a memory button (

(

1 or

(

2).

u

You will hear a beep, and the indicator
light will blink.

The seat and the door mirrors will
automatically move to the memorized
positions. When it has finished moving, you
will hear the beeper, and the indicator light
stays on.

■

Storing a Position in Memory

1

Storing a Position in Memory

After you press the SET button, the storing operation
will be canceled when:

•

You do not press the memory button within five
seconds.

•

You readjust the seat and door mirror position
before the double-beep.

•

You set the power mode to any position except
ON.

Memory Button 1

Memory Button 2

SET Button

■

Recalling the Stored Position

1

Recalling the Stored Position

The seat and the door mirrors will stop moving if you:

•

Press the SET button or memory button

(

1 or

(

2.

•

Adjust the seat position or door mirrors.

•

Shift into a position other than

(

P.

Memory Button 1

Memory Button 2
