319

uu

Audio System Basic Operation

u

Playing an iPod

Continued

Features

Playing an iPod

Connect the iPod using your USB connector to the USB port, then select the USB
mode.

USB Ports P. 245

 (Back) Icon

Select to go back to the previous
display.

Track Icons
Select

 or

 to change songs.

Select and hold to move rapidly
within a song.

VOL/

 AUDIO (Volume/Power)

Knob
Push to turn the audio system on
and off.
Turn to adjust the volume.

Cover Art

Audio/Information Screen

Play/Pause Icon

uu

Audio System Basic Operation

u

Playing an iPod

320

Features

1. Select Browse.
2. Select the items on that menu.

How to Select a Song from the Music Search List

1

Playing an iPod

Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.

If there is a problem, you may see an error message
on the audio/information screen.

iPod/USB Flash Drive P. 350

If you operate the music app on your iPhone/iPod
while the phone is connected to the audio system,
you may no longer be able to operate the same app
on the audio/information screen.
Reconnect the device if necessary.

If an iPhone is connected via Apple CarPlay, the iPod/
USB source will be unavailable and audio files on the
phone will be playable only within Apple CarPlay.

321

uu

Audio System Basic Operation

u

Playing an iPod

Features

You can select shuffle and repeat modes when playing a file.

Select

or .

To turn off a play mode

Select the mode you want to turn off.

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items

 Shuffle All Songs: Plays all available files in a

selected list (playlists, artists, albums, songs,
podcasts, genres, composers, or audiobooks) in
random order.

 Repeat Song: Repeats the current track.

322

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

Features

Playing a USB Flash Drive

Your audio system reads and plays audio files on a USB flash drive in either MP3,
WMA, or AAC

*1

 format.

Connect your USB flash drive to the USB port, then select the USB mode.

USB Ports P. 245

*1: Only AAC format files recorded with iTunes are playable on this unit.

 (Back) Icon

Select to go back to the previous
display.

Track Icons
Select

 or

 to change files.

Select and hold to move rapidly
within a track.

VOL/

 AUDIO (Volume/Power)

Knob
Push to turn the audio system on
and off.
Turn to adjust the volume.

Audio/Information Screen

Play/Pause Icon

Continued

323

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

Features

1. Select Browse.
2. Select the items on that menu.

How to Select a File from the Music Search List

1

Playing a USB Flash Drive

Use the recommended USB flash drives.

General Information on the Audio System

P. 353

WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays The selected file cannot
be played on this system
, then skips to the next
file.

If there is a problem, you may see an error message
on the audio/information screen.

iPod/USB Flash Drive P. 350

uu

Audio System Basic Operation

u

Playing a USB Flash Drive

324

Features

You can select repeat and random modes when playing a file.

Random/Repeat

Select

or .

To turn off a play mode

Select the mode you want to turn off.

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items
Random/Repeat

 Random in Category: Plays all files in the

current category in random order.

 Repeat Track: Repeats the current file.

325

uu

Audio System Basic Operation

u

Playing My Honda Music

Continued

Features

Playing My Honda Music

My Honda Music plays audio files that have been imported from a USB flash drive.
Your audio system supports audio files in either MP3, WMA, or AAC

*1

 format.

File Manager P. 290

*1: Only AAC format files recorded with iTunes are playable on this unit.

 (Back) Icon

Select to go back to the previous
display.

Track Icons
Select

 or

 to change files.

Select and hold to move rapidly
within a track.

VOL/

 AUDIO (Volume/Power)

Knob
Push to turn the audio system on
and off.
Turn to adjust the volume.

Audio/Information Screen

Play/Pause Icon

uu

Audio System Basic Operation

u

Playing My Honda Music

326

Features

1. Connect a USB device into the USB port.

USB Ports P. 245

2. Select More.
3. Select Import Files to My Honda Music.

u

The File Manager screen is displayed.

4. Transfer an audio file to your audio system.

How to Transfer a File P. 290

How to delete an audio file

1. Select More.
2. Select Delete Files from My Honda Music.

u

The File Manager screen is displayed.

3. Delete an audio file.

How to Delete a File P. 293

How to Transfer an Audio File

1

How to Transfer an Audio File

If there is no audio file in your audio system, the
system will automatically proceed to step 3 after
connecting a USB device.

Use the recommended USB flash drives.

General Information on the Audio System

P. 353

Continued

327

uu

Audio System Basic Operation

u

Playing My Honda Music

Features

1. Select Browse.
2. Select the items on that menu.

How to Select a File from the Music Search List

1

Playing My Honda Music

WMA files protected by digital rights management
(DRM) cannot be played.
The audio system displays The selected file cannot
be played on this system
, then skips to the next
file.

uu

Audio System Basic Operation

u

Playing My Honda Music

328

Features

You can select repeat and random modes when playing a file.

Random/Repeat

Select

or .

To turn off a play mode

Select the mode you want to turn off.

How to Select a Play Mode

1

How to Select a Play Mode

Play Mode Menu Items
Random/Repeat

 Random in Category: Plays all files in the

current category in random order.
Random All Tracks: Plays all files in random order.

 Repeat Track: Repeats the current file.

329

uu

Audio System Basic Operation

u

Playing Bluetooth® Audio

Continued

Features

Playing Bluetooth® Audio

Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Bluetooth® HandsFreeLink® (HFL) system.

Phone Setup P. 484

*1: Depending on the

Bluetooth

® device you connect, this function may not be displayed.

1

Playing Bluetooth® Audio

Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible.
To check if your phone is compatible, visit
http://www.handsfreelink.com/Honda/.

It may be illegal to perform some data device
functions while driving.

Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically connected.

The connected phone for Bluetooth® Audio can be
different.

If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.

In some cases, the name of the artist, album, or track
may not appear correctly.

Some functions may not be available on some
devices.

If a phone is currently connected via Apple CarPlay or
Android Auto, Bluetooth® Audio from that phone
will be unavailable. However, you can have a second
previously paired phone stream Bluetooth® Audio by
selecting

 from the Bluetooth® device list.

Phone Setup P. 484

Audio/Information
Screen

 (Back) Icon

Select to go back to
the previous display.

VOL/

 AUDIO

(Volume/Power)
Knob
Push to turn the
audio system on
and off.
Turn to adjust
the volume.

Repeat Icon

*1

Select to repeat the current
file.

Random Icon

*1

Select to play all files in
the current category in
random order.

Play/Pause Icon

Bluetooth Indicator
Appears when your
phone is connected
to HFL.

Track Icons
Select

or

to

change

tracks.

uu

Audio System Basic Operation

u

Playing Bluetooth® Audio

330

Features

1. Make sure that your phone is paired and

connected to the system.

Phone Setup P. 484

2. Select the Bluetooth® Audio mode.

If the phone is not recognized, another HFL-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.

To pause or resume a file

Select the play/pause icon.

1. Select Browse.
2. Select a search category (e.g., Albums).
3. Select an item.

u

The selection begins playing.

To Play Bluetooth® Audio Files

1

To Play Bluetooth® Audio Files

To play the audio files, you may need to operate your
phone. If so, follow the phone maker’s operating
instructions.

Switching to another mode pauses the music playing
from your phone.

You can change the connected phone by selecting
Change Device.

Phone Setup P. 484

Searching for Music

1

Searching for Music

Depending on the Bluetooth® device you connect,
some or all of the lists may not be displayed.

331

uu

Audio System Basic Operation

u

Playing Social Playlist

Continued

Features

Playing Social Playlist

The Honda CabinControl

TM

 smartphone app allows users to share audio files from

their devices to Social Playlist.
Unfortunately, the driver cannot select the audio files from the audio/information
screen. The driver can play in order of their choice only if they individually select each
song in the queue. The driver cannot rearrange the order of the playlist.

Wi-Fi Connection P. 338

1

Playing Social Playlist

For more information, check the Honda
CabinControl smartphone app instruction manual.

 (Back) Icon

Select to go back to
the previous display.

Track Icons
Select

 or

 to change files.

VOL/

 AUDIO

(Volume/Power)
Knob
Push to turn the
audio system on
and off.
Turn to adjust
the volume.

Audio/Information
Screen

Play/Pause Icon

Repeat Icon
Select to repeat the current
file.

Random Icon
Select to play all files in
random order.

Remove Icon
Select to remove
the file from the
playlist.

332

uu

Audio System Basic Operation

u

Playing Social Playlist

Features

1. Select .
2. Select Social Playlist.
3. Select Queue.
To play a file on the playlist:

u

Select the file.

To remove a file from the playlist:

u

Select

 on the file.

To clear the playlist:

u

Select Clear, and then select Request
Songs
 to reload a playlist.

To check the connected device:

u

Select Device List.

How to Edit the Playlist

333

uu

Audio System Basic Operation

u

HondaLink®

Continued

Features

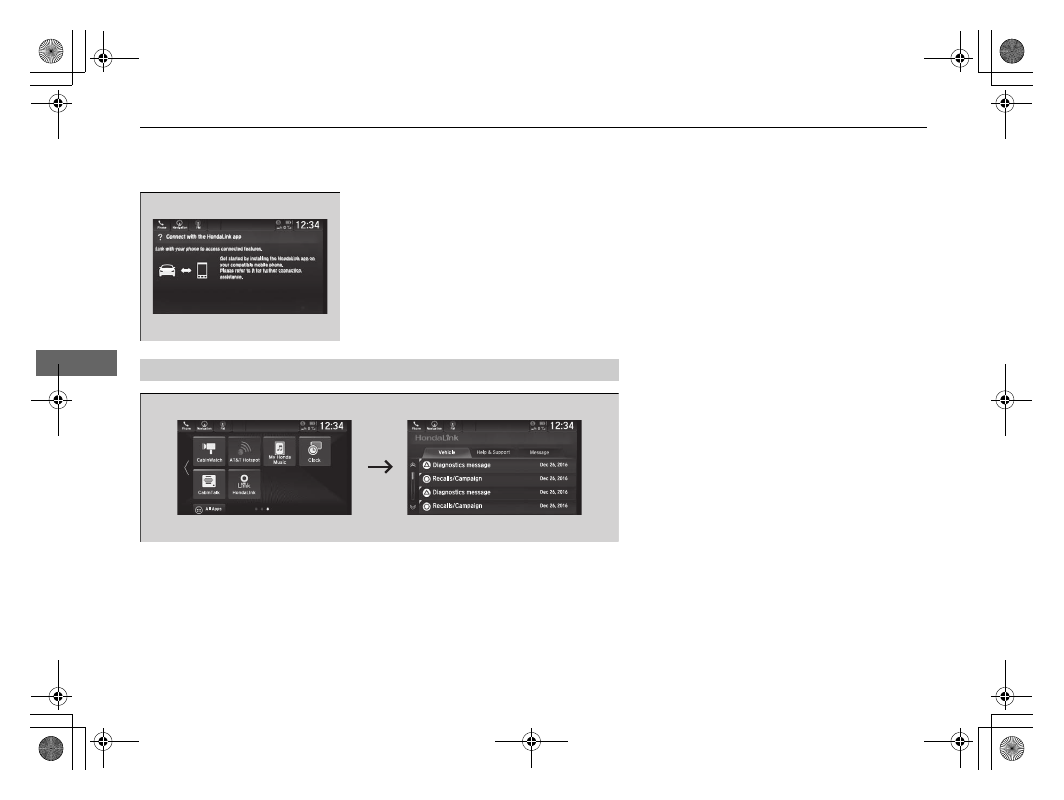

HondaLink®

HondaLink® connects you to the latest information from Honda. You can connect
your phone wirelessly through Wi-Fi or Bluetooth®.

Wi-Fi Connection P. 338
Phone Setup P. 484

Use the following procedure to connect to HondaLink® service.

To enable the HondaLink® service

You need to allow the consent of the location service to enable the HondaLink®
service.

Disable: Does not allow this consent.
Enable Once: Allows only one time. (Shows
again next time.)
Always Enable: Allows anytime. (Never
show again.)

To Connect to HondaLink® Service

1

HondaLink®

The HondaLink® connect app is compatible with most
iPhone and Android phones.

Some cell phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.

When Apple CarPlay or Android Auto is connected to
the audio system, HondaLink® can be accessed even
without a Wi-Fi connection.

334

uu

Audio System Basic Operation

u

HondaLink®

Features

To link with HondaLink®

You may see the connection guide screen
after launching HondaLink® when there is no
connection available.

Vehicle

Displays instruction messages when the vehicle needs service.

Help & Support

Displays tips for vehicle usage, and get support via road side or customer service
center.

HondaLink® Menu















Content   ..  19  20  21  22   ..
