If a Tire Goes Flat

u

Changing a Flat Tire

706

Han

d

lin
g the U

n

expected

5. Lower the vehicle and remove the jack.

Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)

The storage bag, bracket, mounting wing bolt
(A) and mounting wing bolt (B) are in the tool
case.

1. Put the flat tire in the storage bag provided

with your vehicle.

■

Storing the Flat Tire

1

Storing the Flat Tire

3

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.

Bracket

Mounting Wing Bolt (A)

Mounting Wing Bolt (B)

Storage Bag

707

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Continued

Han

d

lin
g the U

n

expected

2. Pull down the U-shaped carpet piece.
3. Remove the plastic screw with a coin.

4. Install the bracket and the mounting wing

bolt (A) on the attachment point, and
tighten the bolt.

5. Install the flat tire on the bracket with the

inside of the wheel facing toward you.

6. Install the mounting wing bolt (B) to the

bracket through one of the five wheel nut
holes, and tighten the bolt.

u

Poke a hole in the storage bag as
needed.

Plastic Screw

Carpet Piece

Mounting
Wing Bolt
(A)

Bracket

Mounting Wing Bolt (B)

708

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

■

Storing a flat tire on the folded third row seat

1. Turn over the flap on the left side of the

cargo area floor.

2. Pull down the U-shaped carpet piece and

remove the plastic screw with a coin.

3. Place the flat tire face down on the

attachment point.

4. Put the tire mounting wing bolt (B) in the

attachment point through one of the five
wheel nut holes, and tighten the bolt.

u

Poke a hole in the storage bag as
needed.

Plastic Screw

Mounting
Wing Bolt
(B)

709

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin
g the U

n

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the driver information interface, but this is normal.

If you replace the tire with a specified regular tire, the warning message on the
driver information interface and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).

■

TPMS with Tire Fill Assist and the Compact Spare Tire

1

TPMS with Tire Fill Assist and the Compact Spare Tire

The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.

Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mounted inside the tire behind
the valve stem.

710

Han

d

lin
g the U

n

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the driver information interface.
• If the To Start, Hold Remote Near Start Button message appears

2 If the Remote Battery is Weak P. 711

u

Make sure the remote is in its operating range.

2 ENGINE START/STOP Button Operating Range P. 186

Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
• If the interior lights are dim or do not come on at all

2 Battery P. 684

• If the interior lights come on normally

2 Fuses P. 724

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 538

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 179

Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 119

Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 730

If the problem continues:

2 Emergency Towing P. 731

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2 Jump Starting P. 713

711

uu

Engine Does Not Start

u

If the Remote Battery is Weak

Han

d

lin
g the U

n

expected

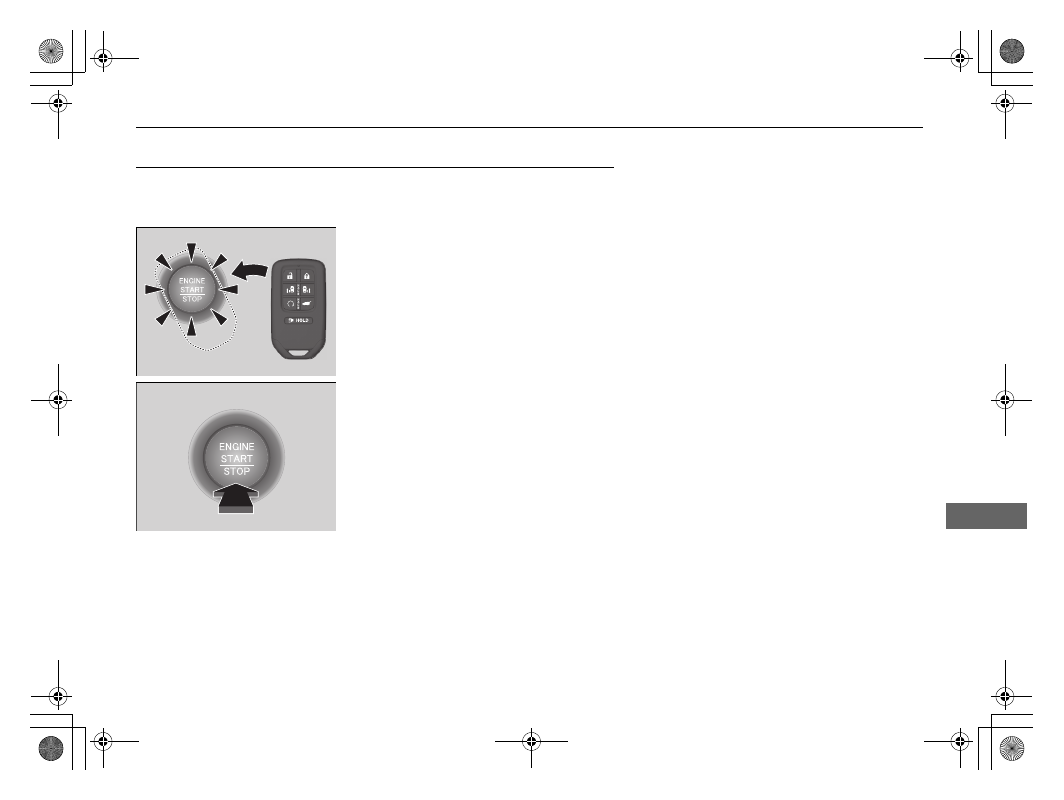

If the Remote Battery is Weak

If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t start. Start the engine as follows:

1. Touch the center of the ENGINE START/

STOP button with the H logo on the
remote while the ENGINE START/STOP
button is flashing. The buttons on the
remote should be facing you.

u

The ENGINE START/STOP button
flashes for about 30 seconds.

2. Depress the brake pedal and press the

ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

712

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin
g the U

n

expected

Emergency Engine Stop

The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The gear position automatically changes to

(

P after the vehicle comes to a complete

stop.

Then, the power mode changes to VEHICLE OFF.

Then press the ENGINE START/STOP button twice without depressing the brake
pedal to change the mode to VEHICLE OFF.

1

Emergency Engine Stop

Do not press the button while driving unless it is
absolutely necessary for the engine to be turned off.

U.S. models

Canadian models

713

Continued

Han

d

lin
g the U

n

expected

Jump Starting

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1. Connect the first jumper cable to your

vehicle’s battery + terminal.

2. Connect the other end of the first jumper

cable to the booster battery + terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

3. Connect the second jumper cable to the

booster battery - terminal.

4. Connect the other end of the second

jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.

5. If your vehicle is connected to another

vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

6. Attempt to start your vehicle’s engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

■

Jump Starting Procedure

1

Jump Starting

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

714

uu

Jump Starting

u

Han

d

lin
g the U

n

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order:

1. Disconnect the jumper cable from your vehicle’s engine mounting bolt.
2. Disconnect the other end of the jumper cable from the booster battery -

terminal.

3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

715

Continued

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:
• The temperature gauge pointer is at the

 mark or the engine suddenly loses

power.

• The Stop Driving When Safe. Engine Temperature Too Hot message appears

on the driver information interface.

• Steam or spray comes out of the engine compartment.

■

First thing to do

1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present: Keep the engine running and open the hood.

u

Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
pointer at the

 mark may damage the engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

uu

Overheating

u

How to Handle Overheating

716

Han

d

lin
g the U

n

expected

■

Next thing to do

1. Check that the cooling fan is operating and

stop the engine once the temperature
gauge pointer comes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2. Once the engine has cooled down, inspect

the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck and put the
cap back on.

2 Radiator P. 656

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Reserve
Tank

MIN

717

uu

Overheating

u

How to Handle Overheating

Han

d

lin
g the U

n

expected

■

The Stop Driving When Safe. Engine Temperature Too Hot Message
Appears On The Driver Information Interface.

The Stop Driving When Safe. Engine Temperature Too Hot message appears
on the driver information interface when the engine temperature is high.

2 Driver Information Interface Warning and Information Messages P. 102

1. Immediately park the vehicle in a safe place.

u

Press the

(

P button, and set the parking brake. Turn off all accessories and

turn on the hazard warning lights.

2. Keep the engine running, and wait until the message disappears.

u

If the message does not disappear, have the vehicle inspected at a dealer.

1

How to Handle Overheating

Continuing to drive with the Stop Driving When
Safe. Engine Temperature Too Hot message on
the driver information interface may damage the
engine.

718

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

If the Low Oil Pressure Symbol Appears

■

Reasons for the symbol to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the symbol appears

1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.

u

Add oil as necessary.

2 Oil Check P. 651

3. Start the engine and check the low oil pressure symbol.

u

The symbol disappears: Start driving again.

u

The symbol does not disappear within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

1

If the Low Oil Pressure Symbol Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

719

uu

Indicator, Coming On/Blinking

u

If the Malfunction Indicator Lamp Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

• Comes on when there is a problem with the engine emissions control

system.

• Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

720

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks

■

Reasons for the indicator to come on

• The brake fluid is low.
• There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the

transmission to slow the vehicle using engine braking.

■

Reason for the indicator to blink

• There is a problem with the electric parking brake system.

■

What to do when the indicator blinks

• Avoid using the parking brake and have your vehicle checked by a

dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.

2 If the Brake System Indicator (Red) Comes

On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 721

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system.
It returns to its original state in approximately one
minute.

U.S.

Canada

(Red)

721

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber)

Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

■

If the brake system indicator (red) comes on or blinks at the

same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

2 Parking Brake P. 602

•If the brake system indicator (red) continuously comes on or blinks at

the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving
Press the

(

P button.

•If the brake system indicator (amber) comes on alone, avoid using the

parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)
