OWNER _________________________________________________________

______________________________________________________________________________

ADDRESS _______________________________________________________

STREET

_________________________________ _________________________________ ___________________

CITY

STATE/PROVINCE/TERRITORY

ZIP CODE/

POSTAL CODE

V. I. N. ___________________________________________________________

DELIVERY DATE __________________________________________________

(Date sold to original retail purchaser)

DEALER NAME ___________________ DEALER NO. ___________________

ADDRESS _______________________________________________________

STREET

_________________________________ _________________________________ ___________________

CITY

STATE/PROVINCE/TERRITORY

ZIP CODE/

POSTAL CODE

OWNER'S SIGNATURE ___________________________________________

DEALER'S SIGNATURE ___________________________________________

This owner's manual should be considered a
permanent part of the vehicle and should
remain with the vehicle when it is sold.

This owner's manual covers all models of the
Element. You may find descriptions of
equipment and features that are not on your
particular model.

The information and specifications included
in this publication were in effect at the time of
approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or
change specifications or design at any time
without notice and without incurring any
obligation whatsoever.

POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d'un Manuel du Conducteur
en français, veuillez demander à
votre concessionnaire de
commander le numéro de pièce
33SCVC70

Owner's Identification

Congratulations! Your selection of a 2010 Honda Element was a wise
investment. It will give you years of driving pleasure.

One of the best ways to enhance the enjoyment of your new vehicle is to read
this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner's manual in your vehicle so
you can refer to it at any time.

Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.

Maintaining your vehicle according to the maintenance minder shown in the
instrument panel helps to keep your driving trouble-free while it preserves
your investment. When your vehicle needs maintenance, keep in mind that
your dealer's staff is specially trained in servicing the many systems unique
to your vehicle. Your dealer is dedicated to your satisfaction and will be
pleased to answer any questions and concerns.

As you read this manual, you will find
information that is preceded by a

symbol. This information is

intended to help you avoid damage to
your vehicle, other property, or the
environment.

Introduction

i

California Proposition 65 Warning

WARNING: This product contains or emits chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.

Event Data Recorders
This vehicle is equipped with one or more devices commonly referred to as event data recorders. These
devices record front seat belt use, front passenger seat occupancy, airbag deployment data, and the failure of
any airbag system component. This data belongs to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.

Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about powertrain performance. The data
can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It
may also be combined with data from other sources for research purposes, but it remains confidential.

Introduction

ii

Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.

To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.

Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.

You will find this important safety information in a variety of forms, including:

Safety Labels - on the vehicle.

Safety Messages - preceded by a safety alert symbol

and one of

three signal words: DANGER, WARNING, or CAUTION.

These signal words mean:

You WILL be KILLED or SERIOUSLY
HURT if you don't follow instructions.

You CAN be KILLED or SERIOUSLY
HURT if you don't follow instructions.

You CAN be HURT if you don't follow
instructions.

Safety Headings - such as Important Safety Reminders or Important
Safety Precautions.

Safety Section - such as Driver and Passenger Safety.

Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please read it
carefully.

A Few Words About Safety

iii

Your Element has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher
ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and
rough terrain. It also provides good visibility so you can anticipate problems earlier.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high
center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a
significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly
more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear
seat belts.

For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page 214 of this manual and the

Off-Highway Driving Guidelines

section on page 238. Failure to operate your vehicle correctly might result in loss of

control, a crash, or rollover.

Important Handling Information

iv

Your Vehicle at a Glance (main controls)

....................................................................................................................

3

Driver and Passenger Safety (seat belts, SRS, and child protection)

...........................................................................

5

Instruments and Controls (indicators, gauges, dashboard, and steering column)

....................................................

55

Features (heating and cooling, audio, steering wheel, cruise control, and other convenience items)

......................

103

Before Driving (fuel, vehicle break-in, and cargo loading)

.......................................................................................

197

Driving (engine and transmission operation)

...........................................................................................................

213

Maintenance (minder, fluid checking, minor services, and vehicle storage)

...........................................................

241

Taking Care of the Unexpected (flat tire, jump starting, overheating, and fuses)

...................................................

281

Technical Information (vehicle specifications, tires, and emissions controls)

........................................................

305

Warranty and Customer Relations (U.S. and Canada only) (warranty and contact information)

........................

321

Index

..............................................................................................................................................................................

I

INDEX

Service Information Summary (fluid capacities and tire pressures)

...............................................................

last page

Contents

1

Contents
A convenient reference to the
sections in this manual.

Your Vehicle at a Glance
A quick reference to the main
controls in your vehicle.

Driver and Passenger Safety
Important information about the
proper use and care of your vehicle's
seat belts, an overview of the
supplemental restraint system, and
valuable information on how to
protect children with child restraints.

Instruments and Controls
Explains the purpose of each
instrument panel indicator and
gauge, and how to use the controls
on the dashboard and steering
column.

Features
How to operate the heating and air
conditioning system, the audio
system, and other convenience
features.

Before Driving
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.

Driving
The proper way to start the engine,
shift the transmission, and park; plus
what you need to know if you're
planning to tow a trailer.

Maintenance
The maintenance minder shows you
when you need to take your vehicle
to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.

Taking Care of the Unexpected
This section covers several problems
motorists sometimes experience, and
details how to handle them.

Technical Information
ID numbers, dimensions, capacities,
and technical information.

Warranty and Customer Relations
(U.S. and Canada only)
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual for detailed
information.

Index

Service Information Summary
A summary of the information you
need when you pull up to the fuel
pump.

Overview of Contents

2

ꭧ: If equipped

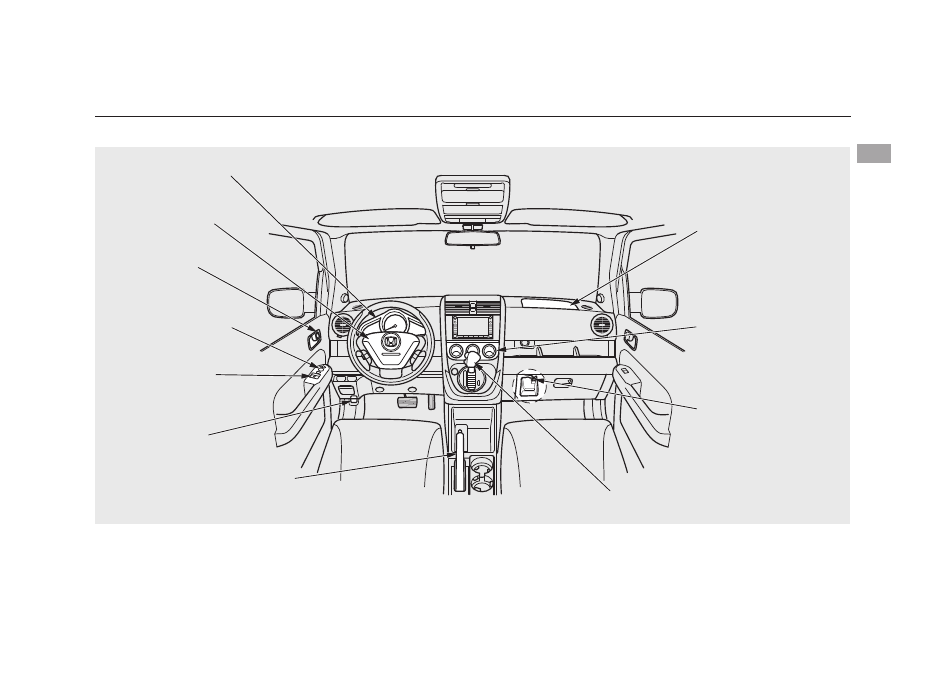

POWER DOOR
LOCK SWITCH
(P. 80)

POWER WINDOW
SWITCHES
(P. 92)

HOOD RELEASE
HANDLE
(P. 200)

A/T model with navigation system is shown.

AUTOMATIC TRANSMISSION (P. 219)
MANUAL TRANSMISSION (P. 217)

PARKING BRAKE
(P. 94)

HEATING/COOLING
CONTROLS
(P. 104)

PASSENGER'S
FRONT AIRBAG
(P. 9, 25)

DRIVER'S FRONT
AIRBAG (P. 9, 25)

INSTRUMENT PANEL (P. 57)
GAUGES (P. 64)

MIRROR CONTROLS
(P. 93)

USB ADAPTER CABLE

(P. 164, 177)

CONTINUED

Your Vehicle at a Glance

3

Your

Vehicle

at
a

Glance

ꭧ1: To use the horn, press the center pad of the steering wheel.

ꭧ2: If equipped

ꭧ3: Only on vehicles equipped with navigation system. Refer to the navigation system manual.

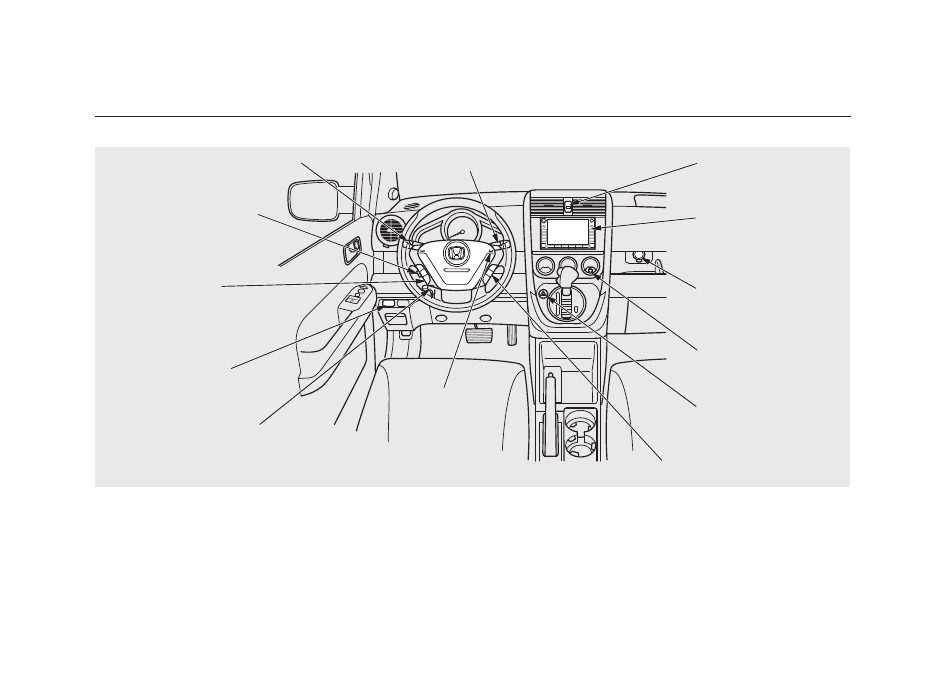

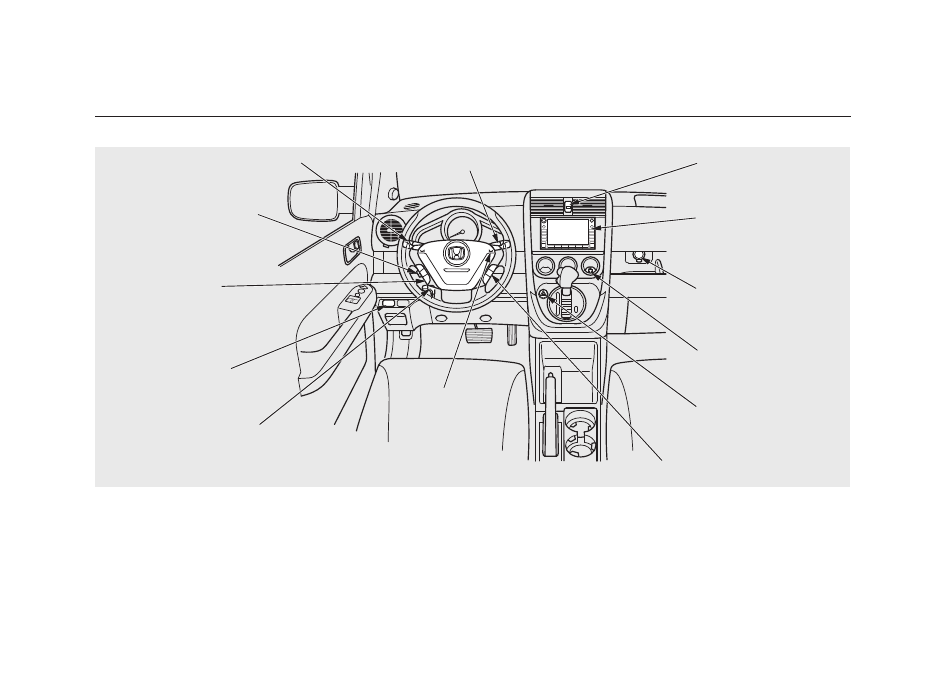

HEADLIGHTS/TURN SIGNALS
(P. 71)

REMOTE AUDIO
CONTROLS

ꭧ2

(P. 191)

A/T model with navigation system is shown.

STEERING WHEEL ADJUSTMENT
(P. 74)

CRUISE CONTROL BUTTONS
(P. 193)

WINDSHIELD WIPERS/WASHERS
(P. 70)

PASSENGER AIRBAG
OFF INDICATOR
(P. 32)

AUDIO SYSTEM
(P. 109)
DIGITAL CLOCK
(P. 189)

REAR WINDOW
DEFOGGER BUTTON
(P. 74)

ACCESSORY POWER
SOCKET
(P. 100)

HORN

ꭧ1

VSA OFF SWITCH
(P. 231)

HAZARD WARNING
BUTTON
(P. 73)

NAVIGATION SYSTEM
VOICE CONTROL
BUTTONS

ꭧ3

Your Vehicle at a Glance

4

This section gives you important
information about how to protect
yourself and your passengers. It shows
you how to use seat belts. It explains
how your airbags work. And it tells you
how to properly restrain infants and
children in your vehicle.

Important Safety Precautions

.............

6

Your Vehicle's Safety Features

..........

7

Seat Belts

.....................................

8

Airbags

........................................

9

Protecting Adults and Teens

...........

11

1. Close and Lock the Doors

........

11

2. Adjust the Front Seats

.............

11

3. Adjust the Seat-Backs

..............

12

4. Adjust the Head Restraints

......

13

5. Fasten and Position the Seat

Belts

..................................

14

6. Maintain a Proper Sitting

Position

..............................

15

Advice for Pregnant Women

........

16

Additional Safety Precautions

......

16

Additional Information About Your

Seat Belts

...............................

18

Seat Belt System Components

.....

18

Lap/Shoulder Belt

......................

19

Automatic Seat Belt

Tensioners

.............................

20

Seat Belt Maintenance

................

20

Additional Information About Your

Airbags

..................................

22

Airbag System Components

........

22

How Your Front Airbags Work

....

25

How Your Side Airbags Work

......

28

How Your Side Curtain Airbags

Work

.....................................

30

How the SRS Indicator Works

.....

31

How the Side Airbag Off

Indicator Works

.....................

32

How the Passenger Airbag Off

Indicator Works

.....................

32

Airbag Service

............................

33

Additional Safety Precautions

......

34

Protecting Children - General

Guidelines

..............................

35

All Children Must Be

Restrained

..............................

35

All Children Should Sit in a Back

Seat

.......................................

36

The Passenger's Front Airbag

Can Pose Serious Risks

...........

36

If You Must Drive with Several

Children

................................

38

If a Child Requires Close

Attention

................................

38

Additional Safety Precautions

......

39

Protecting Infants and Small

Children

.................................

40

Protecting Infants

.......................

40

Protecting Small Children

...........

41

Selecting a Child Seat

.....................

42

Installing a Child Seat

.....................

43

Installing a Child Seat with

LATCH

..................................

44

Installing a Child Seat with a

Lap/Shoulder Belt

..................

46

Installing a Child Seat with a

Tether

...................................

48

Protecting Larger Children

.............

49

Checking Seat Belt Fit

................

49

Using a Booster Seat

...................

50

When Can a Larger Child Sit in

Front

.....................................

50

Additional Safety Precautions

......

51

Carbon Monoxide Hazard

...............

52

Safety Labels

..................................

53

Driver and Passenger Safety

5

Driver

and

Passenger

Safety

You'll find many safety
recommendations throughout this
section, and throughout this manual.
The recommendations on this page
are the ones we consider to be the
most important.

Always Wear Your Seat Belt
A seat belt is your best protection in all
types of collisions. Airbags are
designed to supplement seat belts, not
replace them. So even though your
vehicle is equipped with airbags, make
sure you and your passengers always
wear your seat belts, and wear them
properly (see page 14).

Restrain All Children
Children age 12 and under should ride
properly restrained in a back seat, not
the front seat. Infants and small
children should be restrained in a
child seat. Larger children should use
a booster seat and a lap/shoulder belt
until they can use the belt properly
without a booster seat (see pages
35 - 51).

Be Aware of Airbag Hazards
While airbags can save lives, they can
cause serious or fatal injuries to
occupants who sit too close to them, or
are not properly restrained. Infants,
young children, and short adults are at
the greatest risk. Be sure to follow all
instructions and warnings in this
manual.

Don't Drink and Drive
Alcohol and driving don't mix. Even one
drink can reduce your ability to respond
to changing conditions, and your
reaction time gets worse with every
additional drink. So don't drink and
drive, and don't let your friends drink
and drive, either.

Pay Appropriate Attention to the
Task of Driving Safely
Engaging in mobile phone conversation
or other activities that keep you from
paying close attention to the road, other
vehicles and pedestrians could lead to a
crash. Remember, situations can
change quickly, and only you can
decide when it is safe to divert attention
away from driving.

Control Your Speed

Excessive speed is a major factor in
crash injuries and deaths. Generally, the
higher the speed, the greater the risk,
but serious injuries can also occur at
lower speeds. Never drive faster than is
safe for current conditions, regardless
of the maximum speed posted.

Keep Your Vehicle in Safe Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance (see page 243).

Important Safety Precautions

6

Table of Contents

Your vehicle is equipped with many
features that work together to protect
you and your passengers during a
crash.

Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the seat
belts in a crash.

However, you and your passengers
can't take full advantage of these
features unless you remain sitting in
the correct position and always wear
your seat belts. In fact, some safety
features can contribute to injuries if
they are not used properly.

The following pages explain how you
can take an active role in protecting
yourself and your passengers.

(5)

(7)

(11)

(8)

(3)

(4)

(9)

(1)

(2)

(8)

(10)

(2)

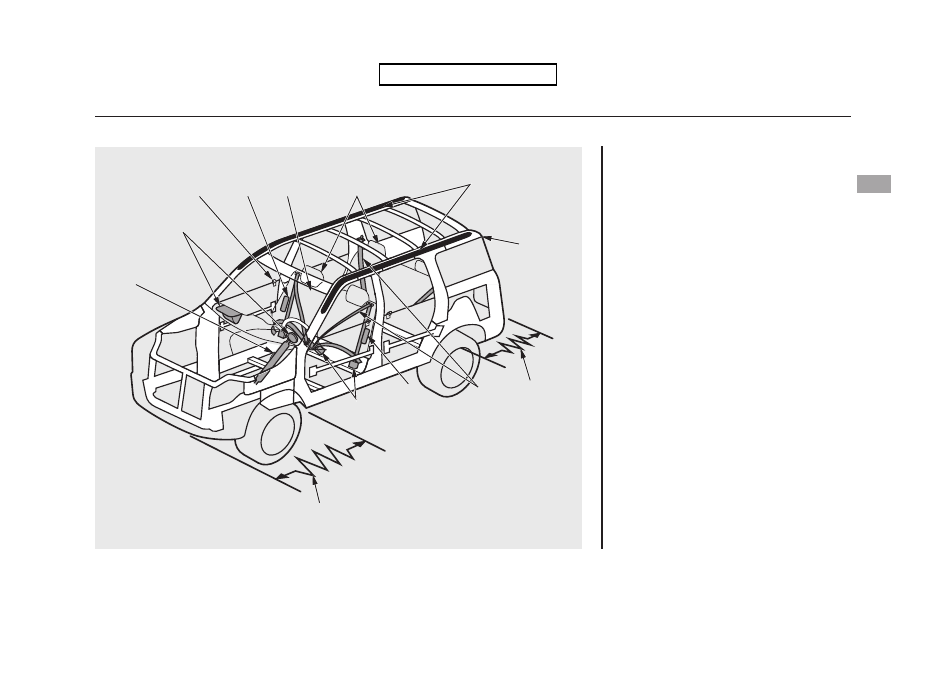

(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Front Seat Belt Tensioners
(11) Door Locks

(6)

Your Vehicle's Safety Features

7

Driver

and

Passenger

Safety

Table of Contents

Seat Belts
Your vehicle is equipped with seat
belts in all seating positions.

Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to fasten your seat belts.

Why Wear Seat Belts
Seat belts are the single most
effective safety device for adults and
larger children. (Infants and smaller
children must be properly restrained
in child seats.)

Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.

In addition, most states, all Canadian
provinces and territories require you
to wear seat belts.

Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has
airbags.

Be sure you and your
passengers always wear seat
belts and wear them properly.

When properly worn, seat belts:

Keep you connected to the vehicle
so you can take advantage of the
vehicle's built-in safety features.

Help protect you in almost every
type of crash, including:

– frontal impacts
– side impacts
– rear impacts
– rollovers

Help keep you from being thrown
against the inside of the vehicle
and against other occupants.

Keep you from being thrown out of
the vehicle.

Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.

Of course, seat belts cannot
completely protect you in every
crash. But in most cases, seat belts
can reduce your risk of serious
injury.

What You Should Do:
Always wear your seat belt, and
make sure you wear it properly.

Your Vehicle's Safety Features

8

Table of Contents

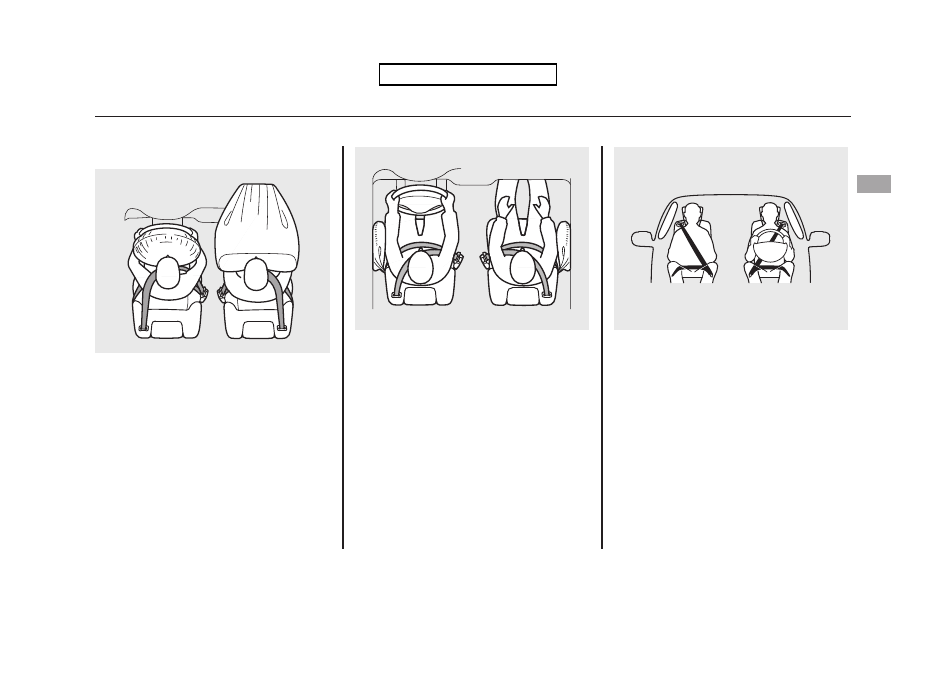

Airbags

Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page 25
for more information on how your
front airbags work).

Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page 28 for more
information on how your side airbags
work).

In addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact or rollover (see
page 30 for more information on how
your side curtain airbags work).

CONTINUED

Your Vehicle's Safety Features

9

Driver

and

Passenger

Safety

Table of Contents

The most important things you need
to know about your airbags are:

Airbags do not replace seat belts.
They are designed to supplement
the seat belts.

Airbags offer no protection in rear

impacts, or minor frontal or side

collisions.

Airbags can pose serious hazards.
To do their job, airbags must
inflate with tremendous force. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.

What you should do: Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.

The rest of this section gives more
detailed information about how you
can maximize your safety.

Remember however, that no safety
system can prevent all injures or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags
deploy.

Your Vehicle's Safety Features

10

Table of Contents

Introduction
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.

See pages 35 - 51 for important
guidelines on how to properly protect
infants, small children, and larger
children who ride in your vehicle.

1. Close and Lock the Doors
After everyone has entered the
vehicle, be sure the doors, the hatch,
and the tailgate are closed and
locked.

Your vehicle has a door and
tailgate open indicator on

the instrument panel to indicate
when a specific door, the tailgate or
the hatch is not tightly closed.

Locking the doors, the hatch, and the
tailgate reduces the chance of
someone being thrown out of the
vehicle during a crash, and it helps
prevent passengers from accidentally
opening a door, the hatch, or the
tailgate and falling out.

Locking the doors, the hatch, or the
tailgate also helps prevent an
outsider from unexpectedly opening
a door when you come to a stop.

See page 80 for how to lock the
doors, and page 61 for how the door
and tailgate indicator system works.

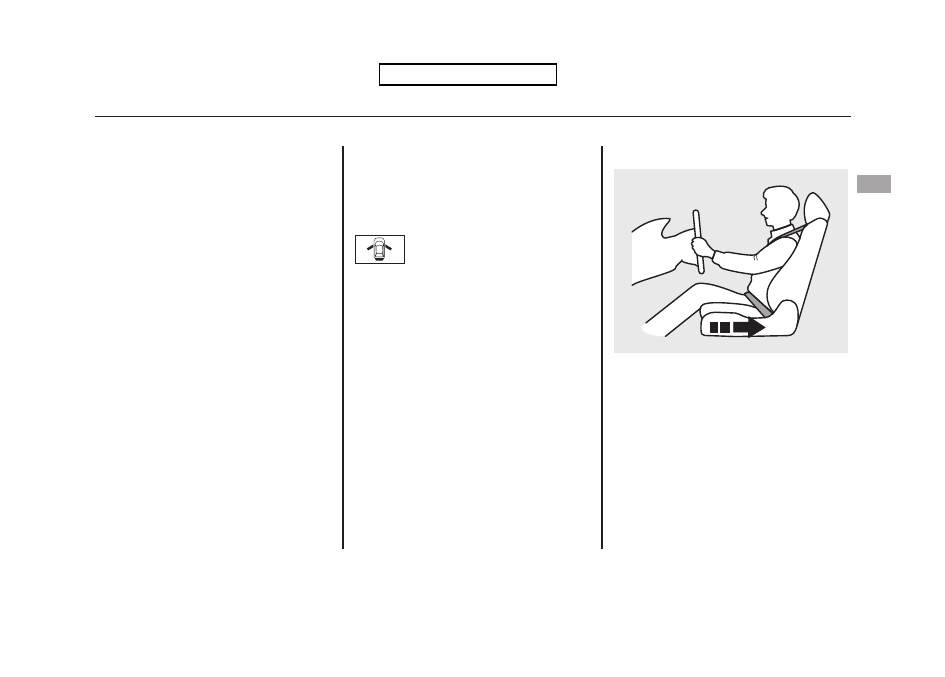

2. Adjust the Front Seats

Adjust the driver's seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.

If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.

CONTINUED

Protecting Adults and Teens

11

Driver

and

Passenger

Safety

Table of Contents















Content   ..    1  2   ..
