When Driving

Lane Keeping Assist System (LKAS)

416

Driving

Provides assistance to keep the vehicle in the center of the lane, when the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.

When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration as well as a warning display.

■

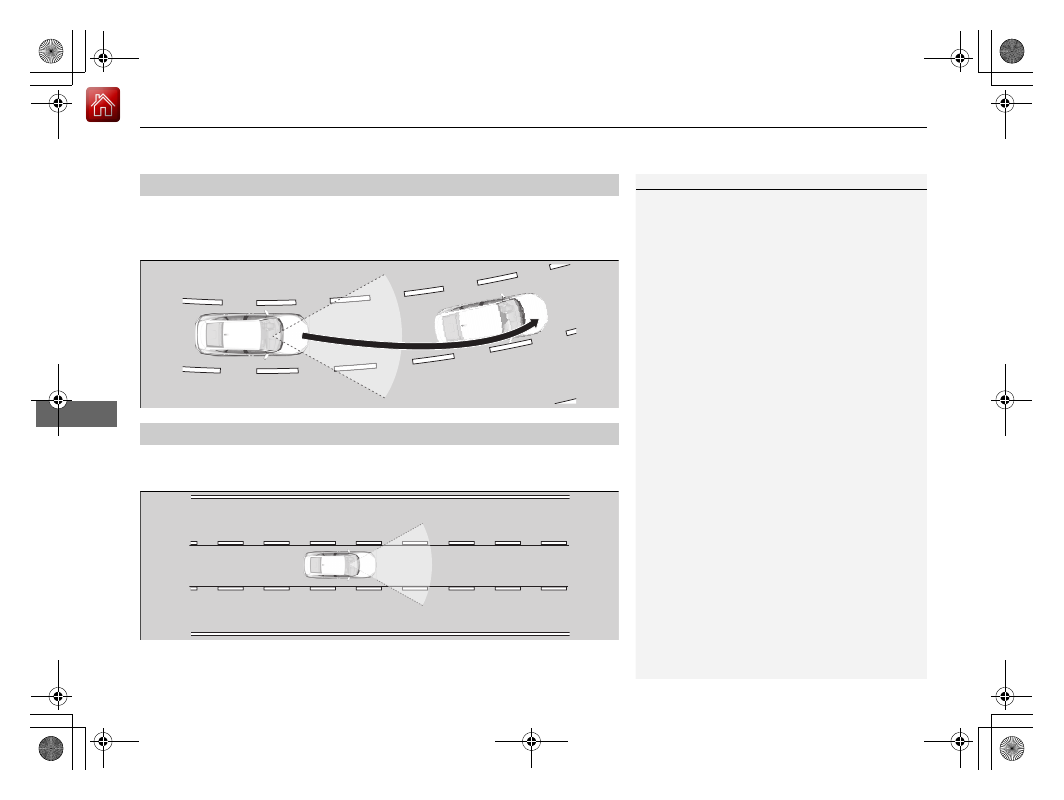

Lane Keep Support Function

Lane Keeping Assist System (LKAS)

The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.

When it fails to detect lanes, the system will
temporarily be canceled. When lane is detected,
system will recover automatically.

■

Lane Departure Warning Function

Warning Area

Continued

417

When Driving

Lane Keeping Assist System (LKAS)

Driving

The system can be used when the following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and

your vehicle is in the center of the lane.

• The vehicle speed is between 45 and 90 mph (72 and 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.

■

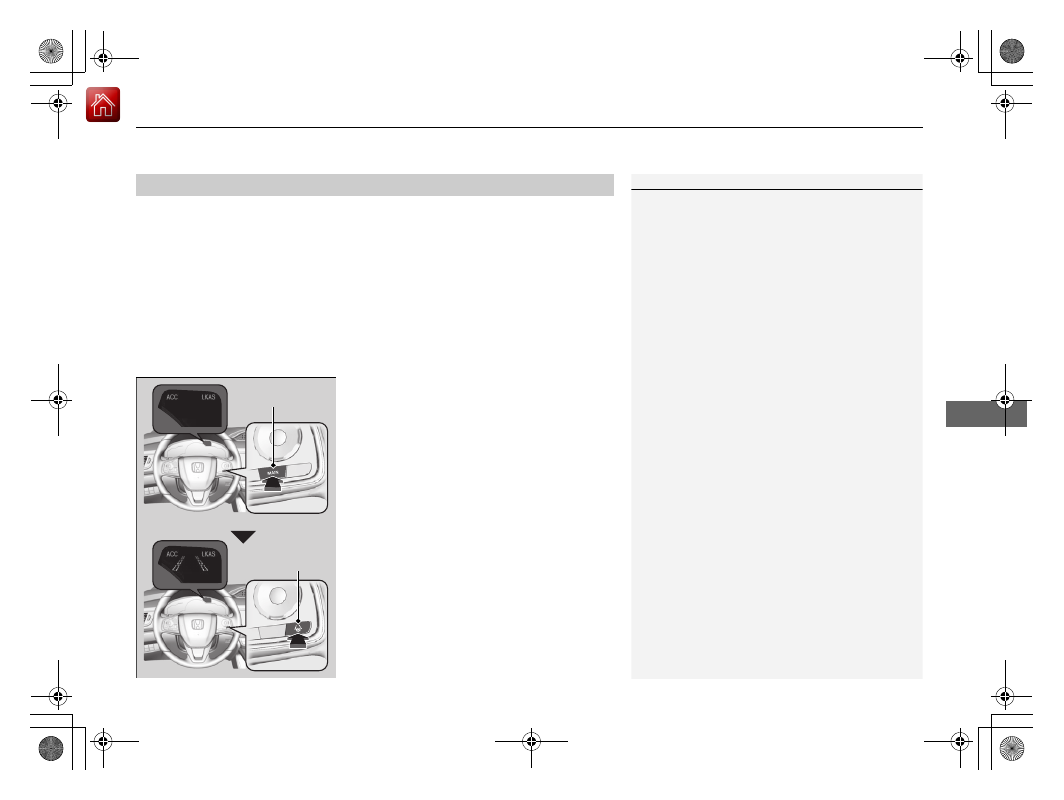

How to activate the system

1. Press the MAIN button.

The LKAS (green) is on in the driver
information interface.
The system is ready to use.

2. Press the LKAS button.

Lane outlines appear on the driver
information interface.
The system is activated.

■

When the System can be Used

When the System can be Used

If the vehicle drifts toward either left or right lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer.

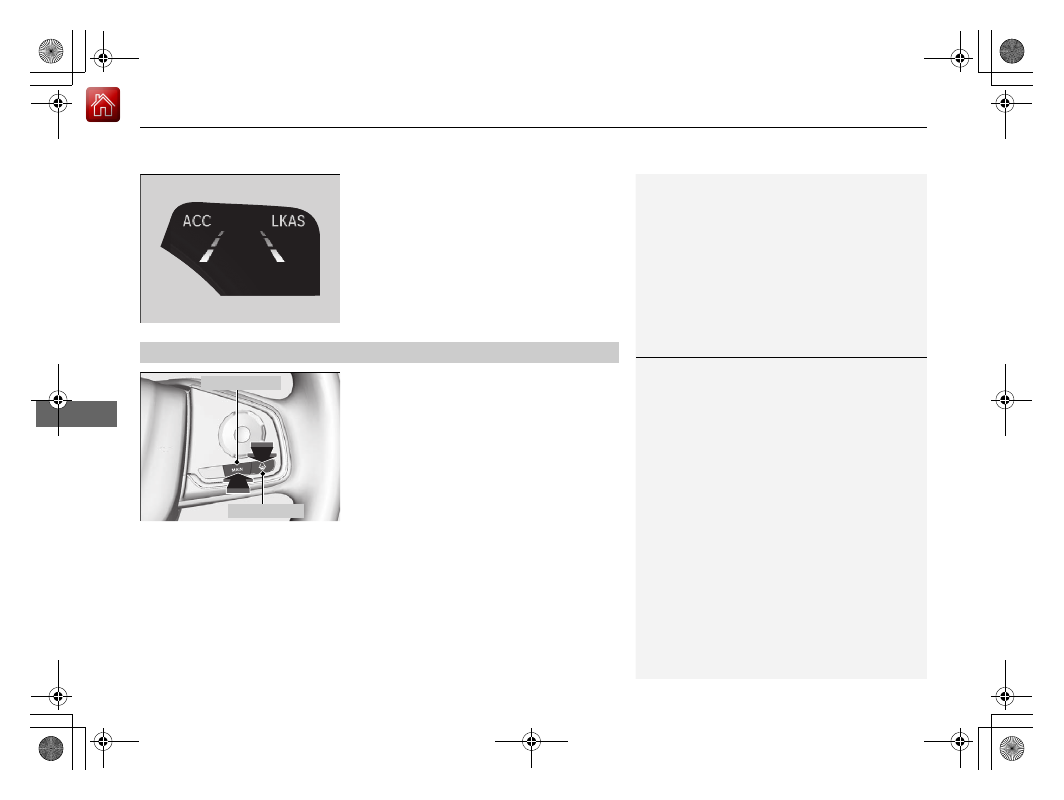

MAIN Button

LKAS Button

When Driving

Lane Keeping Assist System (LKAS)

418

Driving

3. Keep your vehicle near the center of the

lane while driving.

The dotted outer lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.

To cancel the LKAS:
Press the MAIN or LKAS button.

The LKAS is turned off every time you turn the
power system off, even if you turned it on the
last time you drove the vehicle.

■

To Cancel

To Cancel

Pressing the MAIN button also turns ACC with LSF
on and off.

MAIN Button

LKAS Button

419

When Driving

Lane Keeping Assist System (LKAS)

Continued

Driving

■

The system operation is suspended if
you:

• Set the wipers to HI.

Set the wiper switch to other than HI
resumes the LKAS.

• Decrease the vehicle speed to about 40

mph (64 km/h) or less.

Increasing the vehicle speed to about 45
mph (72 km/h) or more resumes the
LKAS.

• Depress the brake pedal.

The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.

■

The LKAS may automatically be suspended when:

• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exist, the LKAS automatically resumes.

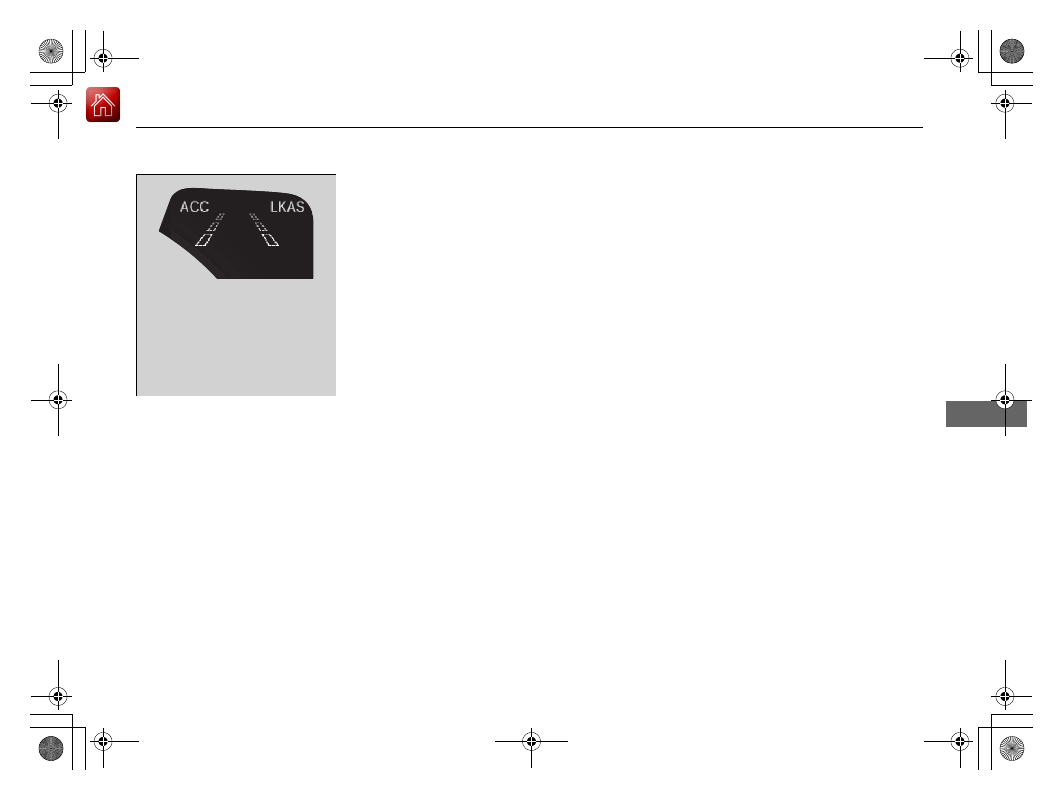

When the LKAS is suspended,
the lane lines on the driver
information interface change to
contour lines, and the beeper
sounds (if activated).

420

When Driving

Lane Keeping Assist System (LKAS)

Driving

■

The LKAS may automatically be canceled when:

• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including

the windshield, gets dirty.

• The ABS or VSA® systems engage.
A beeper will sound if the LKAS is automatically canceled.

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:

■

Environmental conditions

• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interior of the windshield.

■

LKAS Conditions and Limitations

421

When Driving

Lane Keeping Assist System (LKAS)

Driving

■

Roadway conditions

• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,

reflected lights, road spray, high contrast).

• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road

repairs or old lane markings.

• The roadway has merging, split, or crossing lines (e.g., such as at an intersection

or crosswalk).

• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white

lines (or yellow lines).

• Driving on roads with double lines.

■

Vehicle conditions

• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streaked or blocked by dirt, mud, leaves, wet

snow, etc.

• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,

improperly inflated tire, etc.).

• The vehicle is tilted due to a heavy load or suspension modifications.

422

When Driving

Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System

Driving

Vehicle Stability Assist (VSA®), aka Electronic
Stability Control (ESC), System

VSA® helps to stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine and motor output and selectively applying the
brakes.

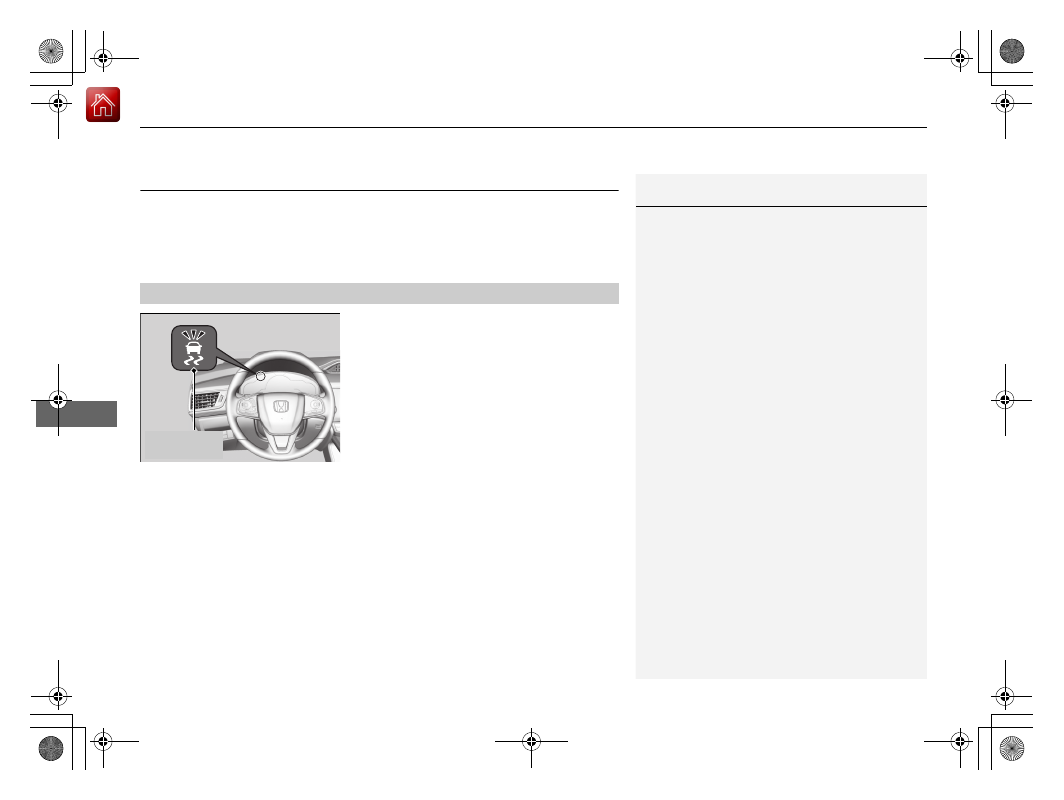

When VSA® activates, you may notice that the
engine and motor do not respond to the
accelerator. You may also notice some noise
from the hydraulic system. You will also see
the indicator blink.

■

VSA® Operation

Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System

The VSA® may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.

When the VSA® system indicator comes on and stays
on while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer immediately.

The indicators for the Vehicle Stability Assist (VSA®)
System, Vehicle Stability Assist (VSA®) OFF, low tire
Pressure/TPMS and Collision Mitigation Braking
System

(CMBS

) may come on along with a

message in the driver information interface after
reconnecting the 12-volt battery. Drive a short
distance at more than 12 mph (20 km/h). The
indicator should go off. If it does not, have your
vehicle checked by an authorized Honda Clarity Plug-
In Hybrid dealer.

VSA® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.

The main function of the VSA® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.

VSA® System
Indicator

423

When Driving

Vehicle Stability Assist (VSA®), aka Electronic Stability Control (ESC), System

Driving

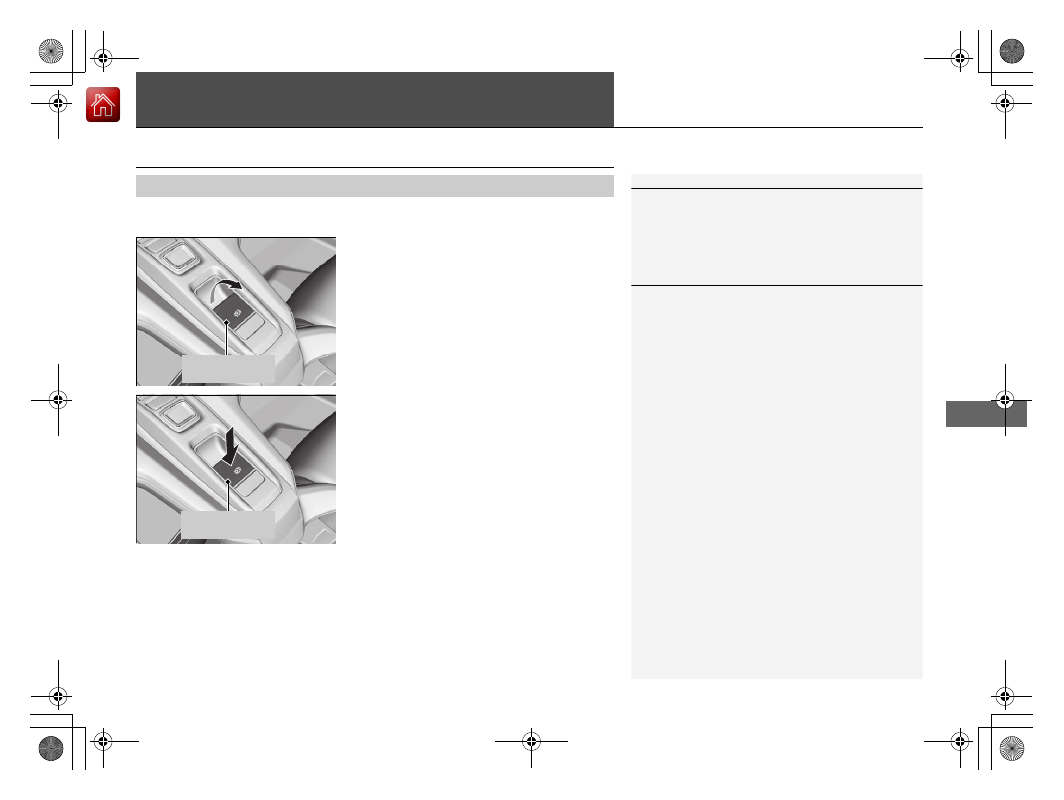

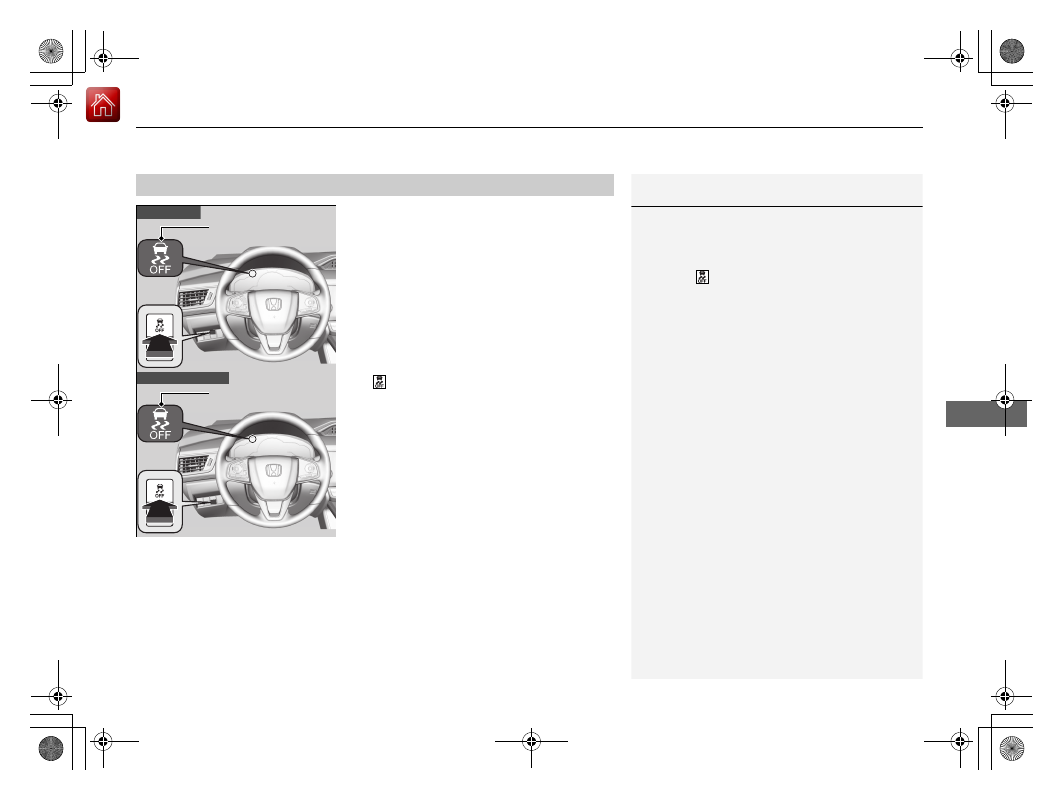

This button is on the driver side control panel.
To partially disable VSA® functionality/
features, press and hold it until you hear a
beep.

Your vehicle will have normal braking and
cornering ability, but traction control function
will be less effective.

To restore VSA® functionality/features, press
the

(VSA® OFF) button until you hear a

beep.

VSA® is turned on every time you turn the
power system on, even if you turned it off the
last time you drove the vehicle.

■

VSA® On and Off

Vehicle Stability Assist (VSA®), aka Electronic Stability Control
(ESC), System

In certain unusual conditions when your vehicle gets
stuck in shallow mud or fresh snow, it may be easier
to free it with the VSA® temporarily switched off.

When the

button is pressed, the traction control

function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the VSA® off if
you are not able to free it when the VSA® is on.

Immediately after freeing your vehicle, be sure to
switch VSA® on again. We do not recommend driving
your vehicle with the VSA® system switched off.

You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after turning the power
system on or while driving. This is normal.

VSA® OFF Indicator

U.S. models

Canadian models

VSA® OFF Indicator

424

When Driving

Agile Handling Assist

Driving

Agile Handling Assist

Lightly brakes each of the front and rear wheels, as needed, when you turn the
steering wheel, and helps support the vehicle’s stability and performance during
cornering.

Agile Handling Assist

The agile handling assist cannot enhance stability in
all driving situations. You still need to drive and
corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.

When the VSA® system indicator comes on and stays
on while driving, the agile handling assist does not
activate.

You may hear a sound coming from the engine
compartment while the agile handling assist is
activated. This is normal.

425

When Driving

Tire Pressure Monitoring System (TPMS)

Continued

Driving

Tire Pressure Monitoring System (TPMS)

Instead of directly measuring the pressure in each tire, the TPMS on this vehicle
monitors and compares the rolling radius and rotational characteristics of each
wheel and tire while you are driving to determine if one or more tires are
significantly under-inflated. This will cause the low tire pressure/TPMS indicator to
come on and a message to appear on the driver information interface.

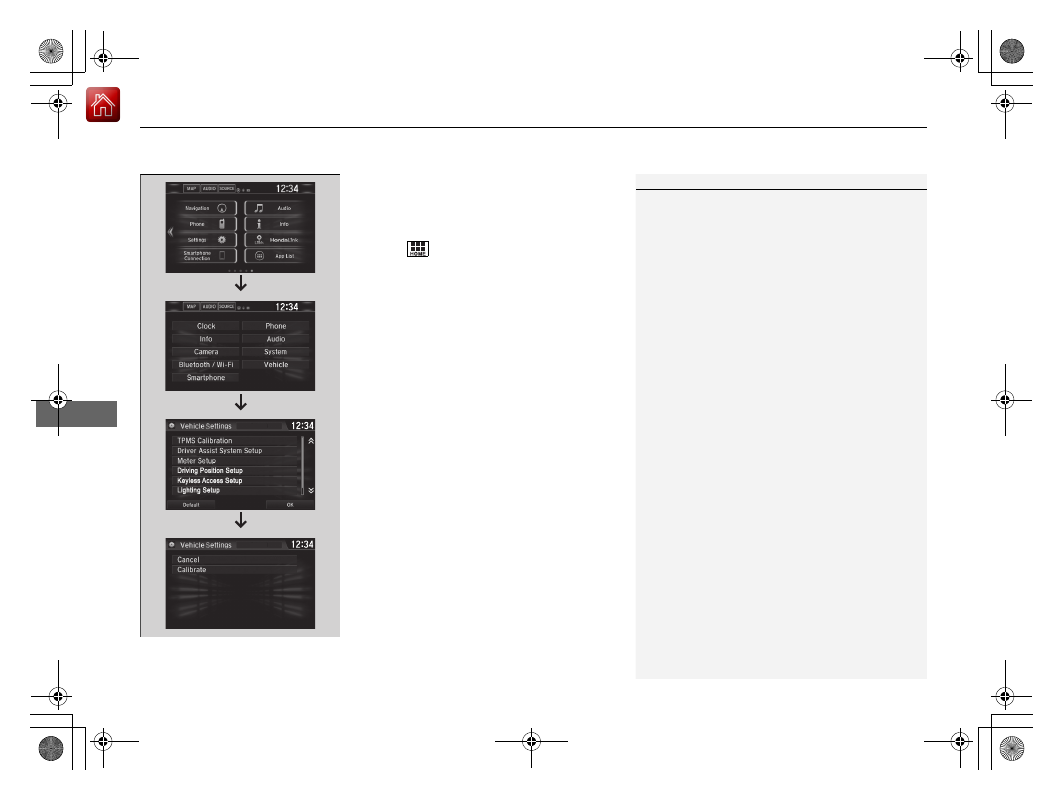

You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.

Before calibrating the TPMS:
• Set the cold tire pressure in all four tires.

2 Checking Tires P. 499

Make sure:
• The vehicle is at a complete stop.
• The gear position is in

(

• The power mode is in ON.

■

TPMS Calibration

Tire Pressure Monitoring System (TPMS)

The system does not monitor the tires when driving
at low speed.

Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come on.

Tire pressure checked and inflated in:

•

Warm weather can become under-inflated in
colder weather.

•

Cold weather can become over-inflated in warmer
weather.

The low tire pressure/TPMS indicator will not come
on as a result of over inflation.

The TPMS may not function properly if tire type and
size are mixed. Make sure to use the same size and
type of tire.

2 Checking and Maintaining Tires P. 499

The low tire pressure/TPMS indicator may come on
with a delay or may not come on at all when:

•

You rapidly accelerate, decelerate, or turn the
steering wheel.

•

You drive on snowy or slippery roads.

•

Snow chains are used.

The low tire pressure/TPMS indicator may come on
under the following conditions:

•

There is a heavier and uneven load on the tires,
such as when towing a trailer, than the condition at
calibration.

•

Snow chains are used.

When Driving

Tire Pressure Monitoring System (TPMS)

426

Driving

You can calibrate the system from the
customized feature on the audio/information
screen.
1. Set the power mode to ON.
2. Select .
3. Select Settings.
4. Select Vehicle.
5. Select TPMS Calibration.
6. Select Cancel or Calibrate.

When the calibration is complete, the
display returns to the customization
menu screen.

• If the Calibration Failed To Start.

message appears, repeat steps 4-6.

• The calibration process finishes

automatically.

TPMS Calibration

•

The calibration process requires approximately 30
minutes of cumulative driving at speeds between
30-65 mph (48-105 km/h).

•

During this period, if the power system is turned on
and the vehicle is not moved within 45 seconds, you
may notice the low tire pressure/TPMS indicator
comes on briefly. This is normal and indicates that
the calibration process is not yet complete.

If snow chains are installed, remove them before
calibrating the TPMS.

If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by an authorized
Honda Clarity Plug-In Hybrid dealer.

We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask an
authorized Honda Clarity Plug-In Hybrid dealer for
details.

The indicators for the Vehicle Stability Assist (VSA®)
System, Vehicle Stability Assist (VSA®) OFF, low tire
Pressure/TPMS and Collision Mitigation Braking
System

(CMBS

) may come on along with a

427

When Driving

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Continued

Driving

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation

Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.

(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflation pressure for those tires.)

As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale

when one or more of your tires is significantly under-inflated.

Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.

Driving on a significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle’s
handling and stopping ability.

428

When Driving

Tire Pressure Monitoring System (TPMS) - Required Federal Explanation

Driving

Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure telltale.

Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.

TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.

Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.

429

When Driving

LaneWatch

Continued

Driving

LaneWatch

LaneWatch is an assistance system that allows you to check the passenger side rear
areas displayed on the audio/information screen when the turn signal is activated to
the passenger’s side. A camera in the passenger side door mirror monitors these
areas and allows you to check for vehicles, in addition to your visual check and use
of the passenger door mirror. You can also keep the system on for your convenience
while driving.

LaneWatch

Important Safety Reminder
Like all assistance systems, LaneWatch has
limitations. Over reliance on LaneWatch may result in
a collision.

The LaneWatch function can be affected by weather,
lighting (including headlights and low sun angle),
ambient darkness, camera condition, and loading.

The LaneWatch may not provide the intended display
of traffic to the side and rear under the following
conditions:

•

Your vehicle’s suspension has been altered,
changing the height of the vehicle.

•

Your tires are over or under inflated.

•

Your tires or wheels are of varied size or
construction.

WARNING

Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.

Do not rely only on LaneWatch while
driving.

Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.

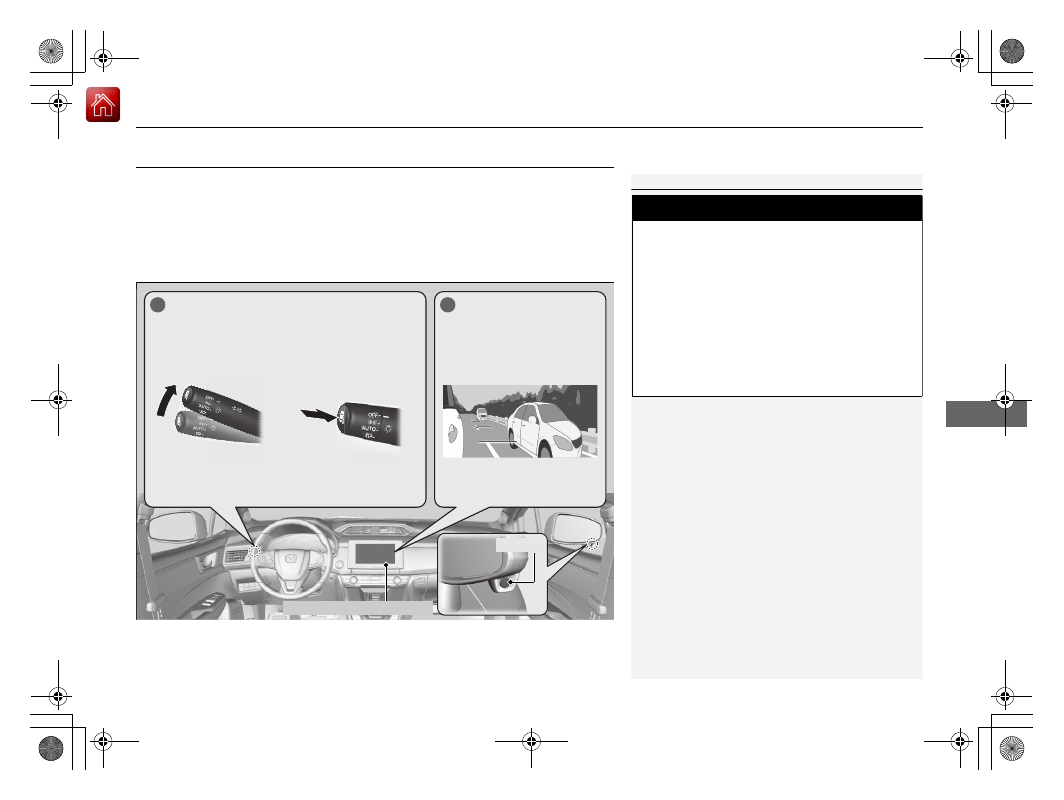

Camera

Move the turn signal
lever to the passenger
side.

Press the LaneWatch
button.

The passenger side view
display appears on the
audio/information screen.

The system activates when you:

The system deactivates when you press
the LaneWatch button again.

Audio/Information Screen

When Driving

LaneWatch

430

Driving

■

Customizing the LaneWatch settings

You can customize the following items using the audio/information screen.
• Show with Turn Signal: Selects whether LaneWatch monitor comes on when

you operate the turn signal light lever.

• Display Time after Turn Signal Off: Changes the length of time the LaneWatch

display stays on after you pull the turn signal lever back.

• Reference Line: Selects whether the reference lines appear on the LaneWatch

monitor.

• Display: Allows for display adjustments of items, such as brightness, contrast and

black level. This setting is part of the System setup group.

2 Customized Features P. 306

■

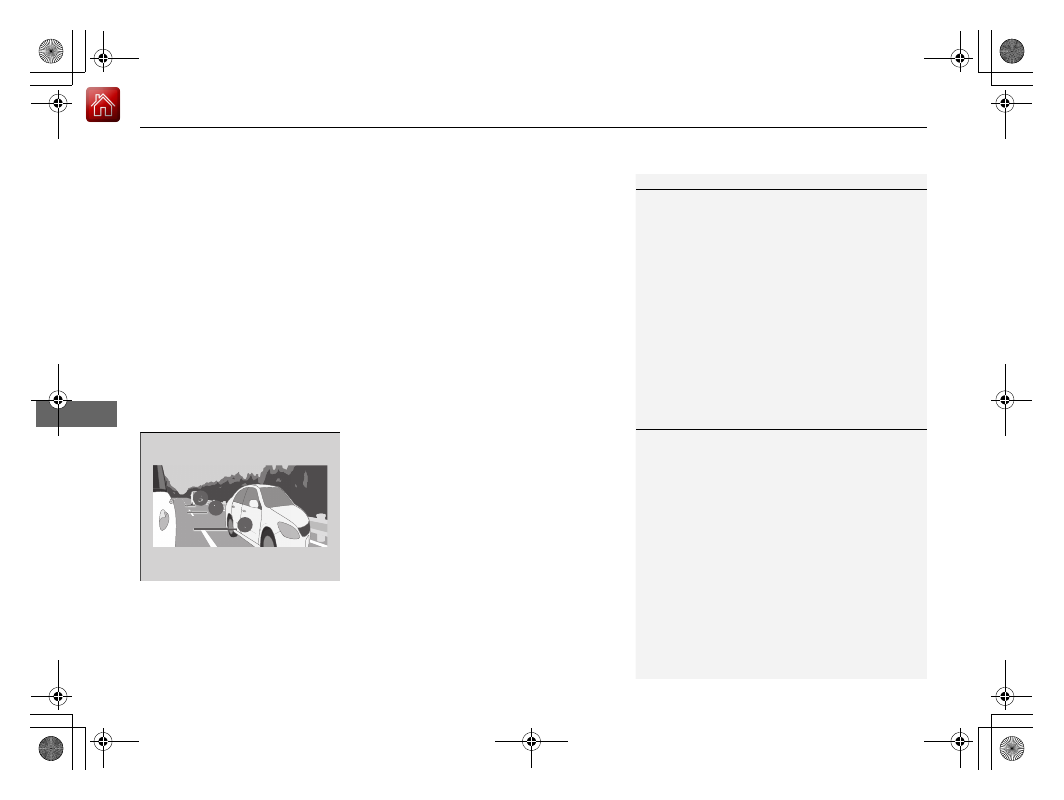

Reference Lines

Three lines that appear on the screen can give
an idea of how far the vehicles or objects on
the screen are from your vehicle, respectively.
If an object is near line 1 (in red), it indicates
that it is close to your vehicle whereas an
object near line 3 farther away.

LaneWatch

The LaneWatch camera view is restricted. Its unique
lens makes objects on the screen slightly look
different from what they are.

LaneWatch display does not come on when the gear
position is in

(

For proper LaneWatch operation:

•

The camera is located in the passenger side door
mirror. Always keep this area clean. If the camera
lens is covered with dirt or moisture, use a soft,
moist cloth to keep the lens clean and free of debris.

•

Do not cover the camera lens with labels or stickers
of any kind.

•

Do not touch the camera lens.

Reference Lines

The area around the reference line 1 (red) is very close to
your vehicle. As always, make sure to visually confirm
the safety of a lane change before changing lanes.

The distance between your vehicle and lines 1, 2 and
3 on the screen vary depending on road conditions
and vehicle loading. For example, the reference lines
on the screen may seem to appear closer than the
actual distances when the rear of your vehicle is more
heavily loaded.

Consult an authorized Honda Clarity Plug-In Hybrid
dealer if:

•

The passenger side door mirror, or area around it is
severely impacted, resulting in changing the
camera angle.

•

The LaneWatch display does not come on at all.

431

Continued

Driving

Braking

Brake System

Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manually or automatically release it.

■

To apply

The electric parking brake can be applied any
time the vehicle has battery, no matter which
position the power mode is in.

Pull the electric parking brake switch up gently
and securely.

The parking brake and brake system
indicator (red) comes on.

■

To release

The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.

The parking brake and brake system
indicator (red) goes off.

Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.

■

Parking Brake

Brake System

When you depress the brake pedal, you may hear a
whirling sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.

Parking Brake

You may hear the electric parking brake system
motor operating from the rear wheel area when you
apply or release the parking brake, or set the power
mode to OFF. This is normal.

The brake pedal may slightly move due to the electric
parking brake system operation when you apply or
release the parking brake. This is normal.

You cannot apply or release the parking brake if the
12-volt battery goes dead.

2 Jump Starting P. 539

If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released.

Electric Parking
Brake Switch

Content .. 25 26 27 28 ..
