Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

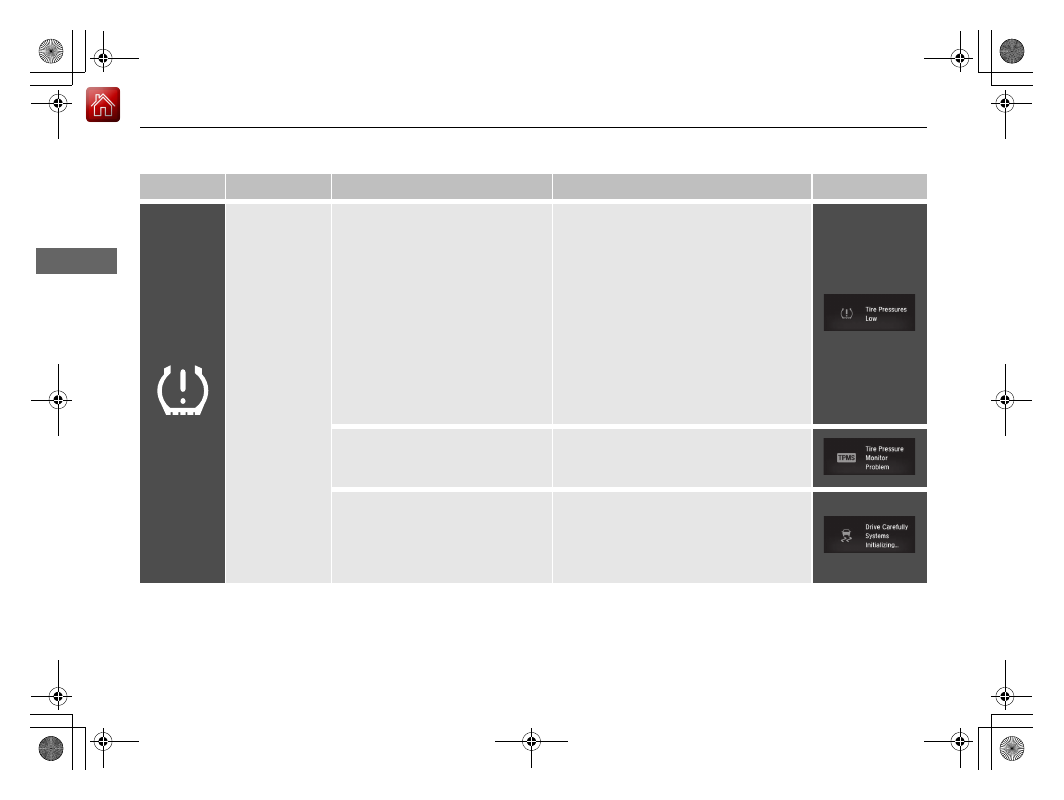

Low Tire
Pressure/TPMS
Indicator

●

Comes on for a few seconds when
you set the power mode to ON.

●

May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds, to
indicate the calibration process is
not yet complete.

●

Comes on and stays on when:
- One or more tires’ pressures are

determined to be significantly
low.

- The system has not been

calibrated.

●

Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.

●

Stays on after the tires are inflated to
the recommended pressures - The
system needs to be calibrated.

2 TPMS Calibration P. 425

●

Blinks for about one minute, and
then stays on if there is a problem
with the TPMS.

●

Blinks and remains on - Have your
vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.

●

Comes on if the TPMS is
deactivated temporarily after the
battery has been disconnected,
then re-connected.

●

Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by an authorized Honda Clarity
Plug-In Hybrid dealer.

97

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.

Indicator

Name

On/Blinking

Explanation

Message

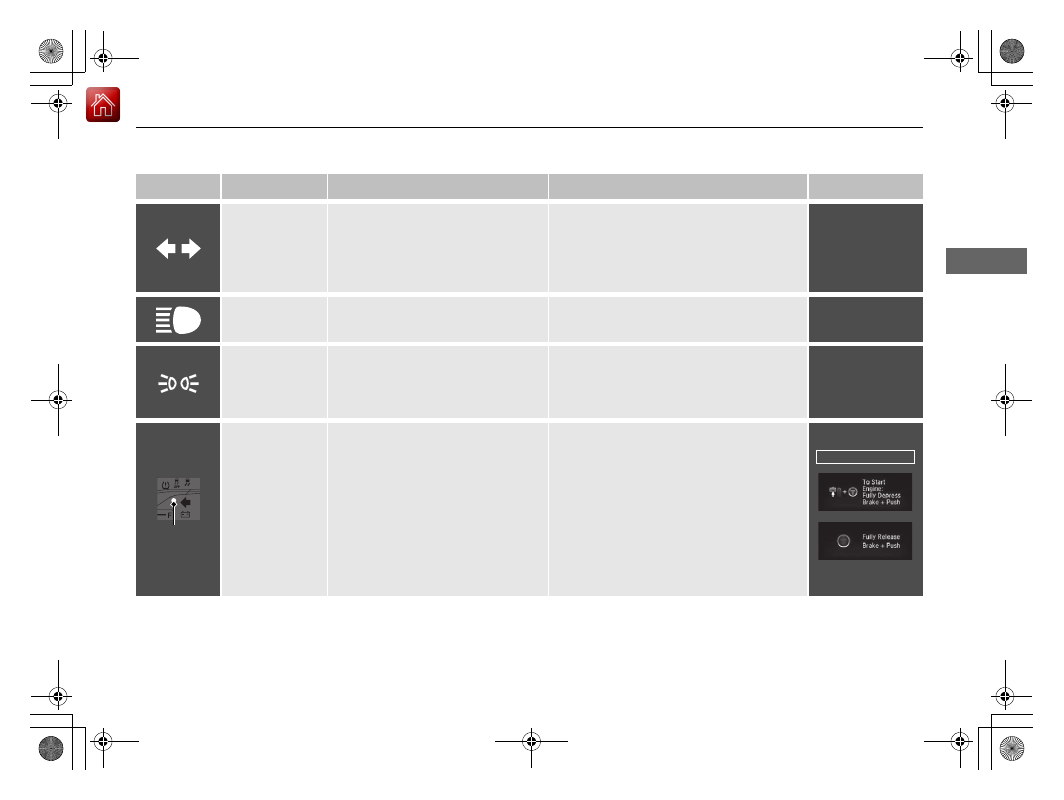

Turn Signal and
Hazard Warning
Indicators

●

Blinks when you operate the turn
signal lever.

●

Blinks along with all turn signals
when you press the hazard
warning button.

●

Does not blink or blinks rapidly -
Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer immediately.

—

High Beam
Indicator

●

Comes on when the high beam
headlights are on.

—

—

Lights On
Indicator

●

Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.

●

If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened.

—

Immobilizer
System Indicator

●

Blinks if the immobilizer system
cannot recognize the key
information.

●

Blinks - You cannot start the power
system. Set the power mode to VEHICLE
OFF

*1

, then select the ON mode again.

●

Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by an authorized Honda Clarity
Plug-In Hybrid dealer.

●

Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.

Indicator

Canadian models

98

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

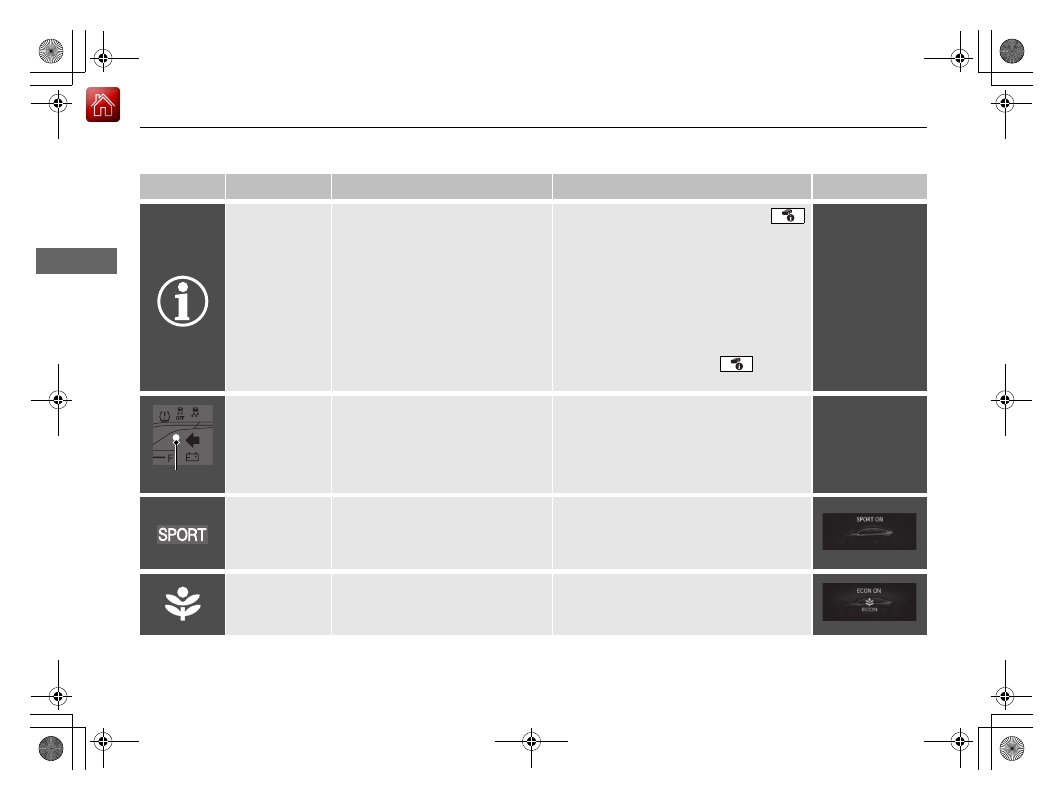

System Message
Indicator

●

Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.

●

While the indicator is on, press the



(display/information) button to see the
message again.

●

Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.

●

The driver information interface does not
return to the normal screen unless the
warning is canceled, or the

 button is

pressed.

—

Security System
Alarm Indicator

●

Blinks when the security system
alarm has been set.

2 Security System Alarm P. 153

—

SPORT Mode
Indicator

●

Comes on when you press the
SPORT button.

●

The ambient meter remains lit up
in red as long as sport mode is on.

2 SPORT Mode P. 389

ECON Mode
Indicator

●

Comes on when ECON mode is on.

2 ECON Mode P. 388

Indicator

99

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

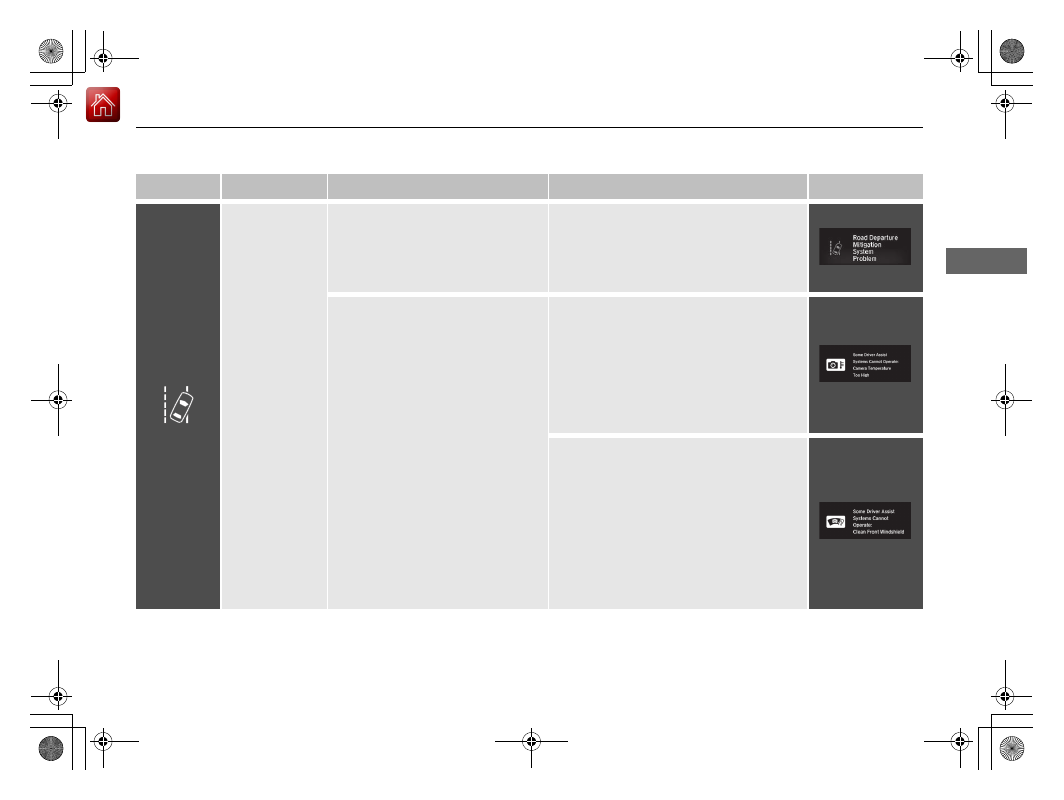

Road Departure
Mitigation
(RDM) Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem
with the RDM system.

●

Stays on constantly - Have your vehicle
checked by an authorized Honda Clarity
Plug-In Hybrid dealer.

●

Comes on when the RDM system
shuts itself off.

●

Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down sufficiently.

2 Front Sensor Camera P. 394

●

Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.

●

Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the indicator and message come
back on after you cleaned the area
around the camera.

2 Front Sensor Camera P. 394

100

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

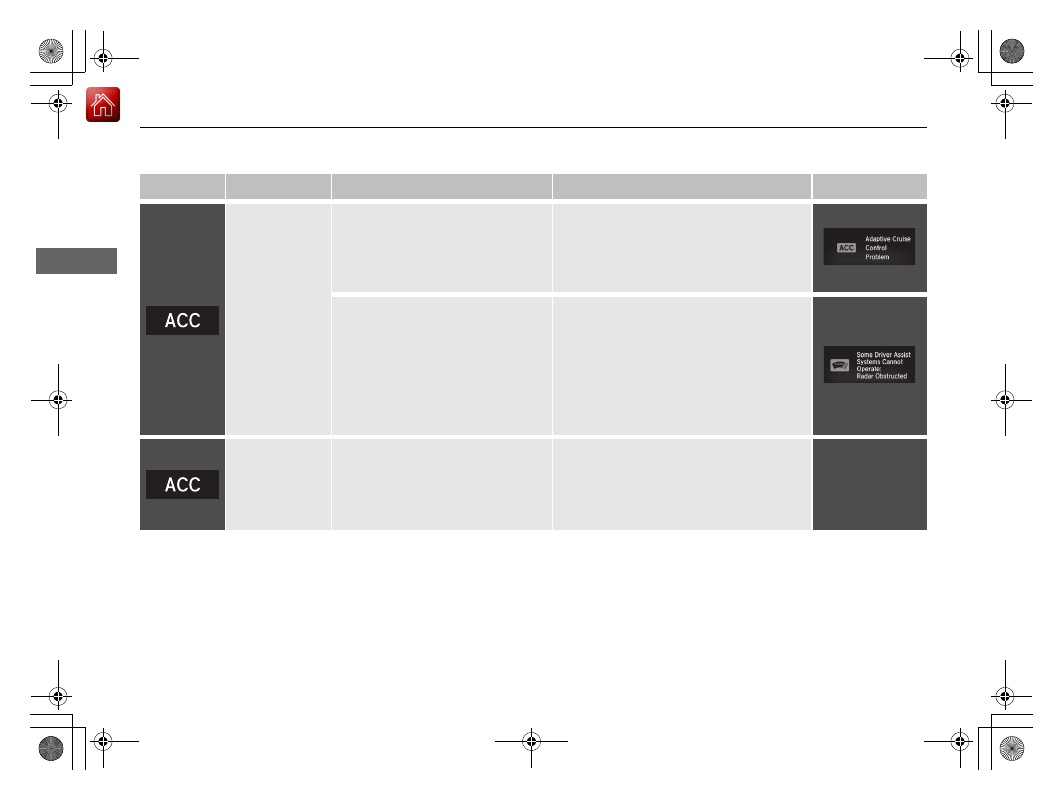

Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator
(Amber)

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem
with ACC with LSF.

●

Comes on while driving - Have your
vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.

●

Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a vehicle
in front.

●

May come on when driving in bad
weather (rain, snow, fog, etc.)

●

ACC with LSF has been
automatically canceled.

●

When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth.

●

Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the indicator does not disappear,
even after you clean the sensor cover.

Adaptive Cruise
Control (ACC)
with Low Speed
Follow (LSF)
Indicator (Green)

●

Comes on when you press the
MAIN button.

2 Adaptive Cruise Control (ACC) with

Low Speed Follow (LSF) P. 400

—

101

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

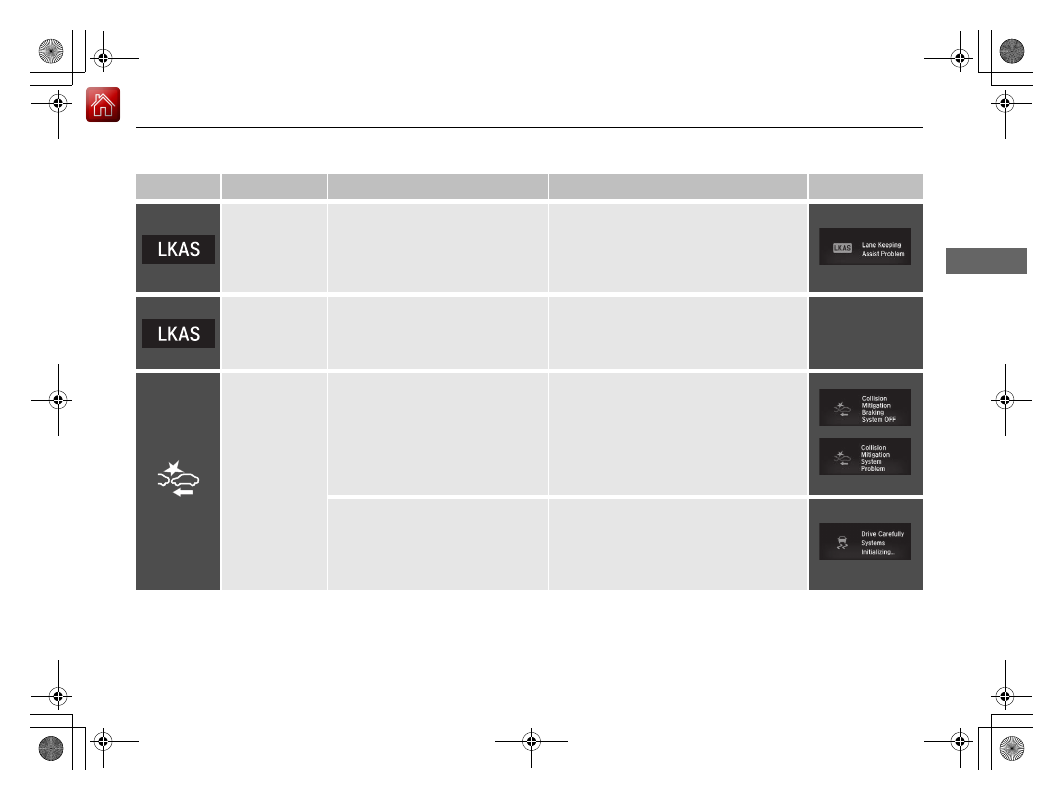

Lane Keeping
Assist System
(LKAS) Indicator
(Amber)

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on if there is a problem
with the LKAS.

●

Stays on constantly - Have your vehicle
checked by an authorized Honda Clarity
Plug-In Hybrid dealer.

Lane Keeping
Assist System
(LKAS) Indicator
(Green)

●

Comes on when you press the
MAIN button.

2 Lane Keeping Assist System (LKAS)

P. 415

—

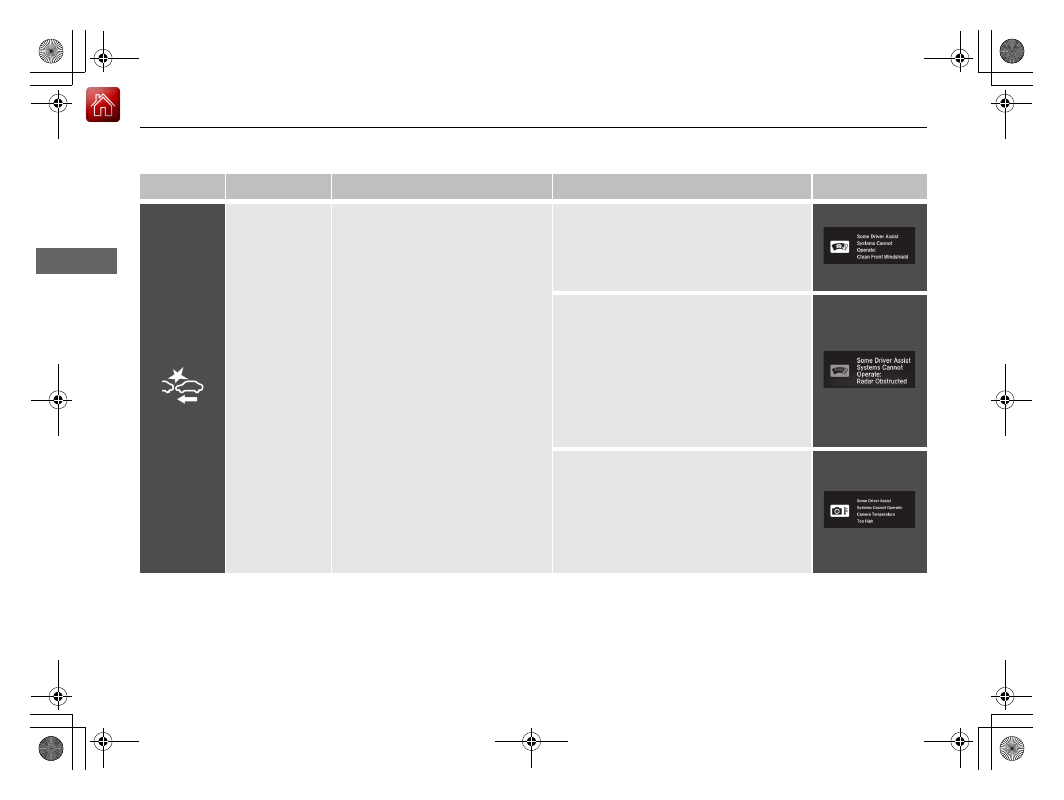

Collision
Mitigation
Braking
System

TM



(CMBS

TM

)

Indicator

●

Comes on for a few seconds when
you set the power mode to ON,
then goes off.

●

Comes on when you deactivate
the CMBS

TM

.

●

Comes on if there is a problem
with the CMBS

TM

.

●

Stays on constantly without the
CMBS

TM

 off - Have your vehicle checked

by an authorized Honda Clarity Plug-In
Hybrid dealer.

2 Collision Mitigation Braking

System

TM

 (CMBS

TM

) P. 439

●

Comes on if the CMBS is
deactivated temporarily after the
battery has been disconnected,
then re-connected.

●

Drive a short distance at more than 12
mph (20 km/h). The indicator should go
off. If it does not, have your vehicle
checked by an authorized Honda Clarity
Plug-In Hybrid dealer.

102

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Message

Collision
Mitigation
Braking
System

TM



(CMBS

TM

)

Indicator

●

Comes on when the CMBS

TM



system shuts itself off.

●

Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.

2 Front Sensor Camera P. 394

●

When the radar sensor gets dirty, stop
your vehicle in a safe place, and then
clean the sensor using a soft cloth.

●

Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid
dealer if the message does not disappear
even after you clean the sensor cover.

2 Collision Mitigation Braking

System

TM

 (CMBS

TM

) P. 439

●

Stays on - The temperature inside the
camera is too high. Use the climate
control system to cool down the camera.
The system activates when the
temperature inside the camera cools
down sufficiently.

2 Front Sensor Camera P. 394

103

uu

Indicators

u

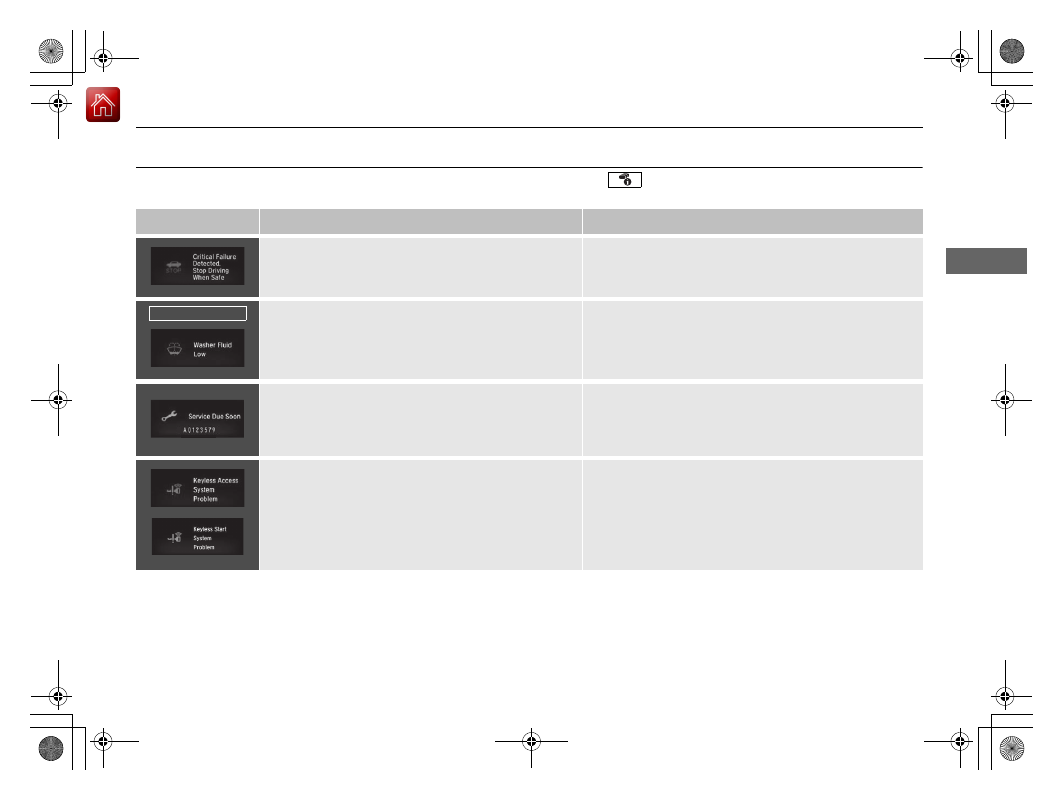

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Driver Information Interface Warning and Information Messages

The following messages appear only on the driver information interface. Press the

 (display/information) button to see the message

again with the system message indicator on.

Message

Condition

Explanation

●

Appears when the vehicle cannot be driven.

●

Immediately stop in a safe place.

●

Appears when the washer fluid gets low.

●

Refill the washer fluid.

2 Refilling Window Washer Fluid P. 493

●

Appears when the scheduled maintenance is due
soon.

●

Consequently, Service Due Now and Service Past
Due follow.

2 Warning Message and Maintenance Minder

Information on the Driver Information Interface
P. 476

●

Appears as soon as a problem is detected in the
smart entry system or push button starting system.

●

Appears constantly - Have your vehicle checked by an
authorized Honda Clarity Plug-In Hybrid dealer.

Canadian models

104

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

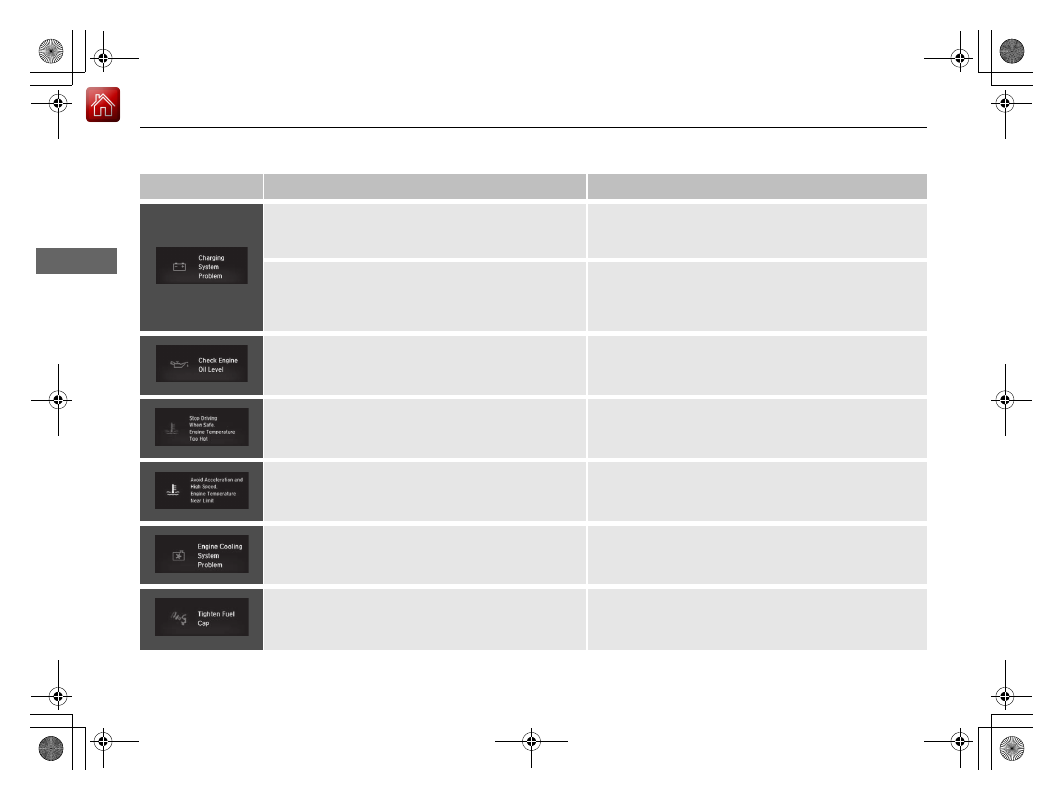

Appears when there is a problem with the sensor on
the 12-volt battery.

●

Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.

2 Checking the 12-Volt Battery P. 508

●

Appears along with the battery charging system
indicator when the battery is not charging.

●

Turn off the climate control system and rear defogger to
reduce electricity consumption.

2 If the 12-Volt Battery Charging System Indicator

Comes On P. 546

●

Appears when the engine oil pressure is low.

●

Appears while driving - Immediately stop in a safe
place.

2 If the Low Oil Pressure Warning Appears P. 545

●

Appears when the engine coolant temperature gets
abnormally high.

2 Overheating P. 542

●

Appears when the engine coolant temperature is
near its upper limit.

●

Drive slowly to prevent overheating.

●

Appears if there is a problem with the cooling
system.

●

Drive slowly to prevent overheating and have your
vehicle checked by an authorized Honda Clarity Plug-In
Hybrid dealer as soon as possible.

●

Appears when the fuel fill cap is loose or is not
installed.

2 Tighten Fuel Cap Message P. 547

105

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if the vehicle’s speed reaches about 10 mph
(15 km/h) with the fuel fill door opened.

●

Stop the vehicle and close the fuel fill door.

●

Appears when the fuel fill door has been open for 30
minutes.

●

Turn off the power system, reinstall the fuel cap, and
close the fuel fill door.
- If you still want to refuel, press the fuel fill door release

button to reopen the door.

106

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

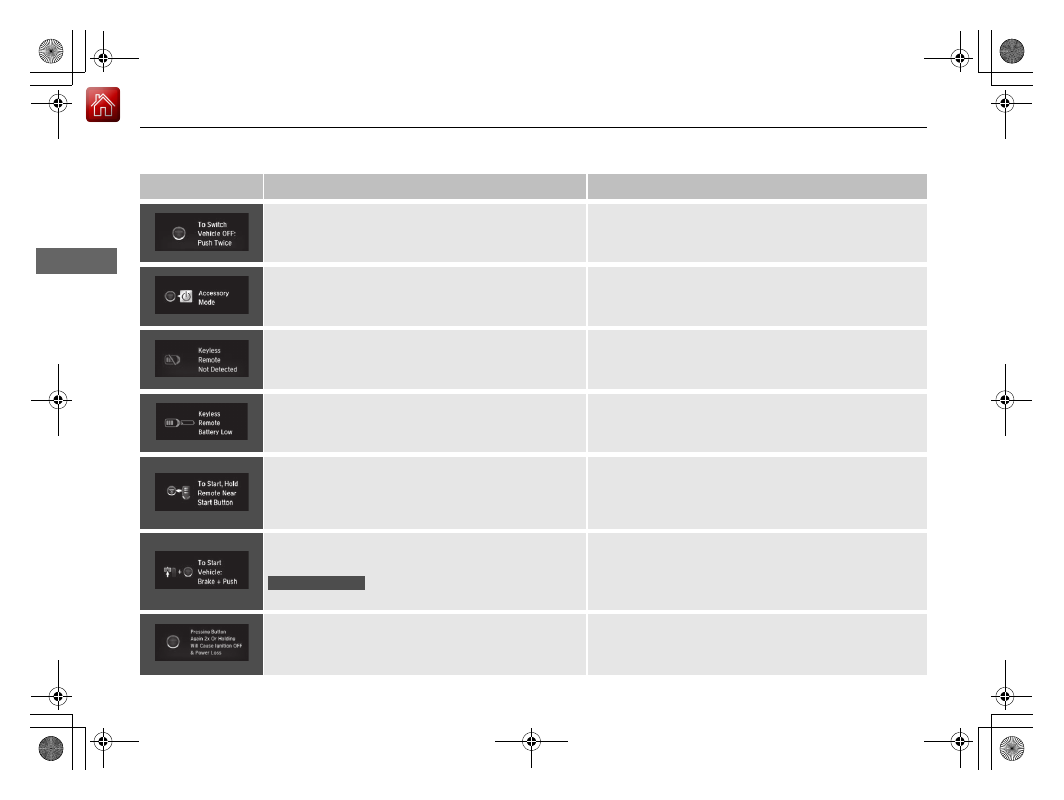

Appears after the driver’s door is opened when the
power mode is in ACCESSORY.

●

Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE
OFF.

●

Appears when the power mode is in ACCESSORY.

—

●

Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.

●

Disappears when you bring the smart entry remote back
inside the vehicle and close the door.

2 Smart Entry Remote Reminder P. 160

●

Appears when the smart entry remote battery
becomes weak.

●

Replace the battery as soon as possible.

2 Replacing the Button Battery P. 510

●

Appears if the smart entry remote’s battery is too
weak to turn on the power system or the key is not
within operating range to turn on the power system.
A beeper sounds six times.

●

Bring the back of the smart entry remote into contact
with the POWER button.

2 If the Smart Entry Remote Battery is Weak P. 537

●

Appears when you set the power mode to
ACCESSORY or ON.

●

Appears after you unlock and open the driver’s door.

2 Turning on the Power P. 376

●

Appears when the POWER button is pressed while
driving.

2 Emergency Power System Off P. 538

Canadian models

107

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

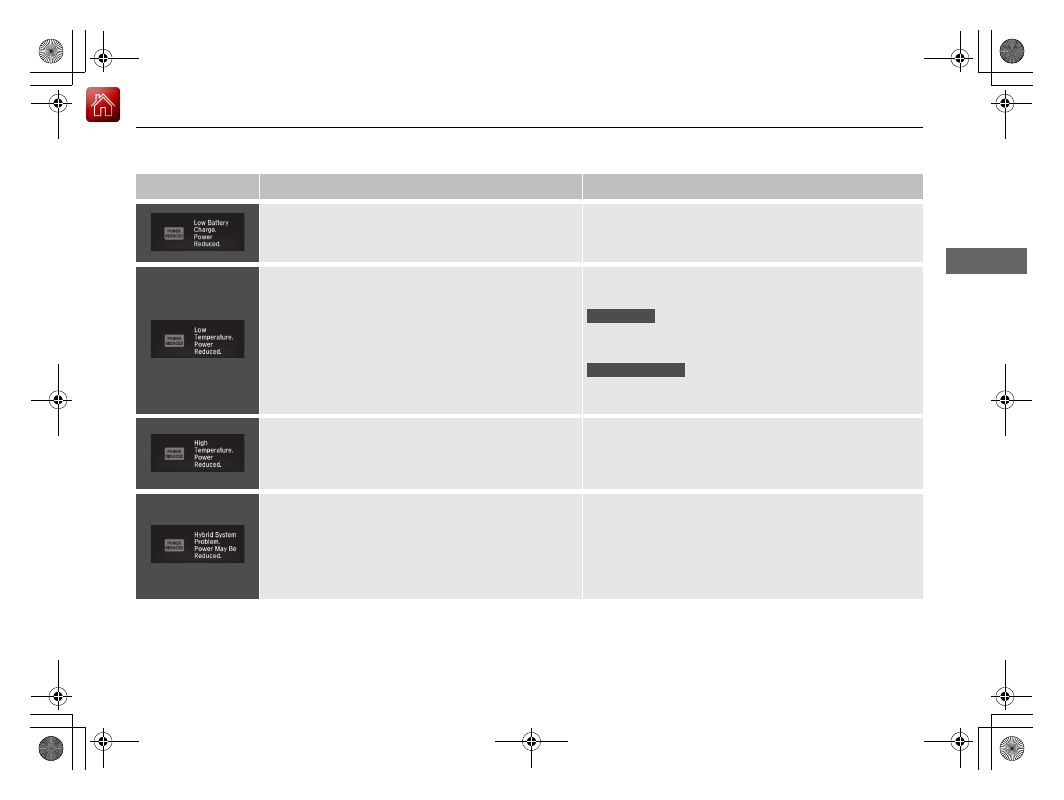

Appears when the high voltage battery charge level
is extremely low.

●

Caused by the low battery charge level -
Immediately charge the high voltage battery.

●

Appears when the power system temperature is low.

●

Your vehicle has less ability to accelerate and may be
harder to start on an incline.

●

In extremely cold climates, keep the vehicle stored in a
garage.

●

In extremely cold climates, keep the vehicle stored in a
garage and connect the charging connector.

●

Appears when the power system temperature is
high.

●

Your vehicle has less ability to accelerate and may be
harder to start on an incline.

●

Park in a safe place, and cool the system down.

2 Overheating P. 542

●

Appears if the power system is in diagnostic mode.

●

You may notice a decrease in available power. Have
your vehicle checked by an authorized Honda Clarity
Plug-In Hybrid dealer immediately.

●

As a result of diagnostics, the POWER SYSTEM
indicator may come on.

2 POWER SYSTEM Indicator P. 88

U.S. models

Canadian models

108

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

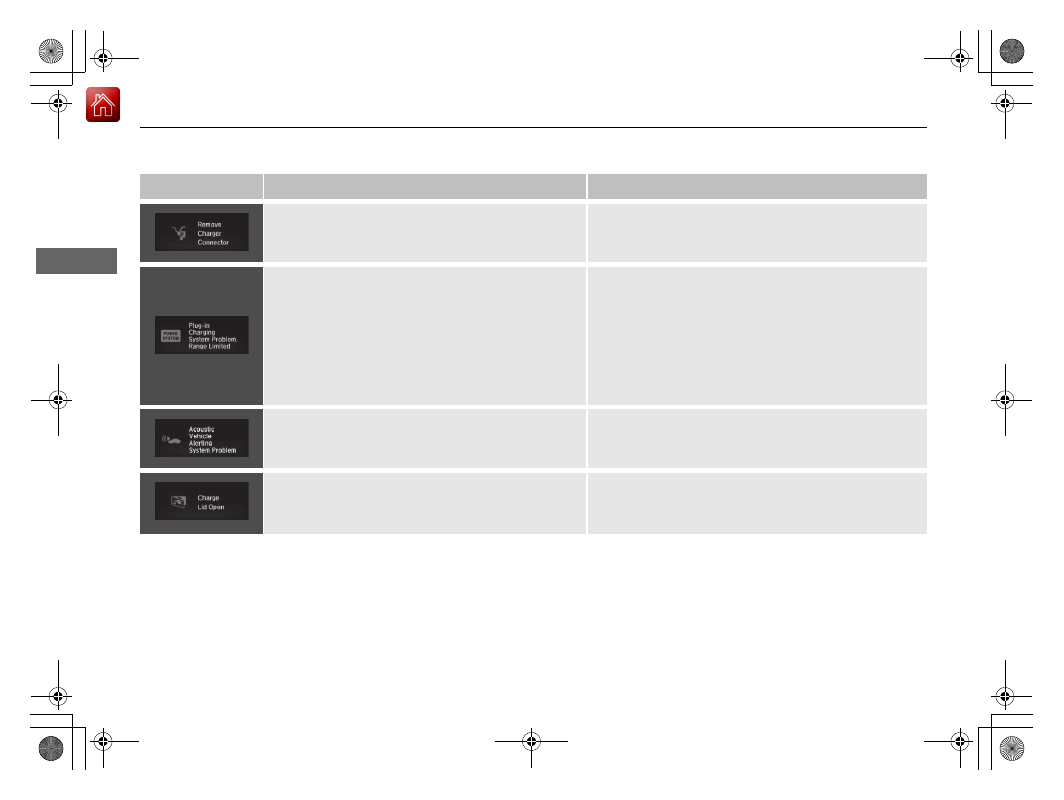

Appears when the charging connector is connected
to the inlet.

●

The vehicle does not move while the charging
connector is plugged into the inlet.

●

Appears when there is a problem with the standard
plug-in charging system or the charging station
outlet.

●

This message only - There may be a problem with the
charging station outlet. Refer to the instructions
provided at the station or consult a qualified technician.
If the outlet works properly, have the vehicle checked by
an authorized Honda Clarity Plug-In Hybrid dealer.

●

Comes on with the POWER SYSTEM indicator -
Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.

●

Appears if there is a problem with the acoustic
vehicle alerting system.

●

Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer immediately.

●

Appears when the charge lid is open.

●

Close the charge lid.

2 Charging P. 454

109

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

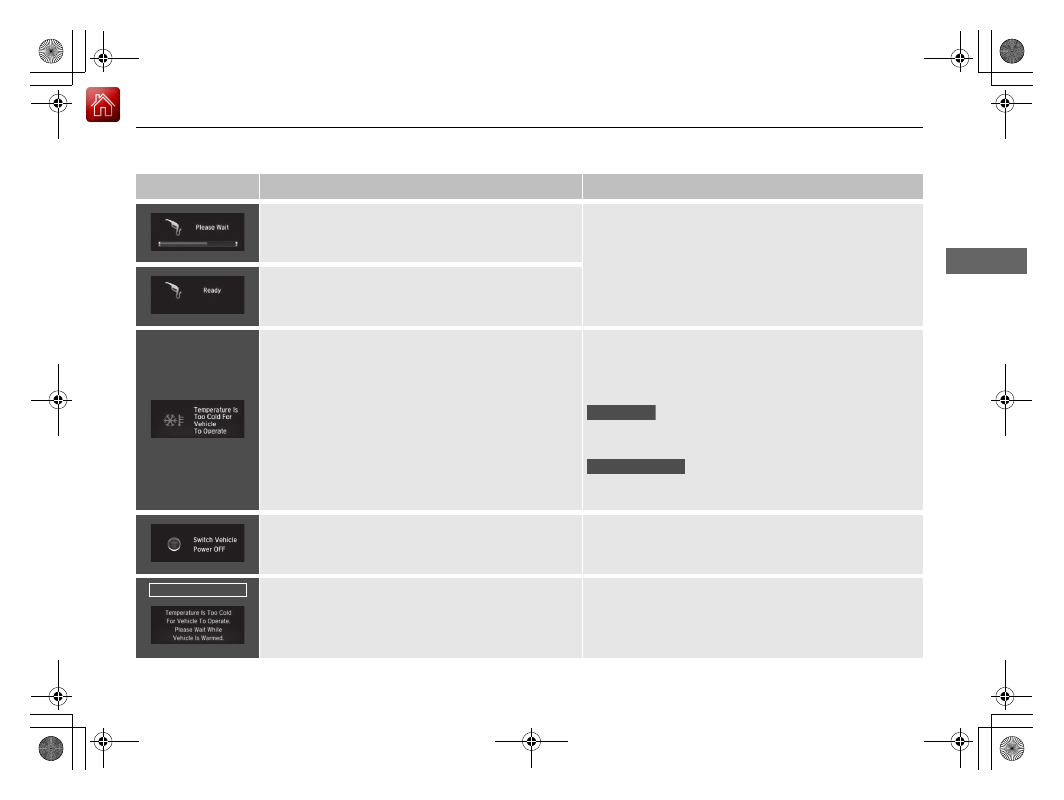

Appears when you press the fuel fill door release
button.

●

The display changes to Ready when the fuel vapor
pressure inside the fuel tank is released. You can start
refueling once Ready appears.

2 Refueling P. 451

●

Appears when the vehicle is ready to be refueled.

●

Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –22°F [–30°C] or below).

●

You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.

●

Consult an authorized Honda Clarity Plug-In Hybrid
dealer.

●

In extremely cold climates, keep the vehicle stored in a
garage.

●

In extremely cold climates, keep the vehicle stored in a
garage and connect the charging connector.

●

Appears when the charging connector is
disconnected while the power mode is in ON with
the charging connector connected.

●

Set the power mode to OFF, then set it back to ON if
you drive again.

2 Turning on the Power P. 376

●

Appears when the high voltage battery temperature
is too low to operate (approx. −22°F [−30°C]).

●

You can start the engine and use the climate control
system to warm up the interior.

●

You must wait for an increase in the high voltage
battery temperature to drive.

U.S. models

Canadian models

Canadian models

110

uu

Indicators

u

Driver Information Interface Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

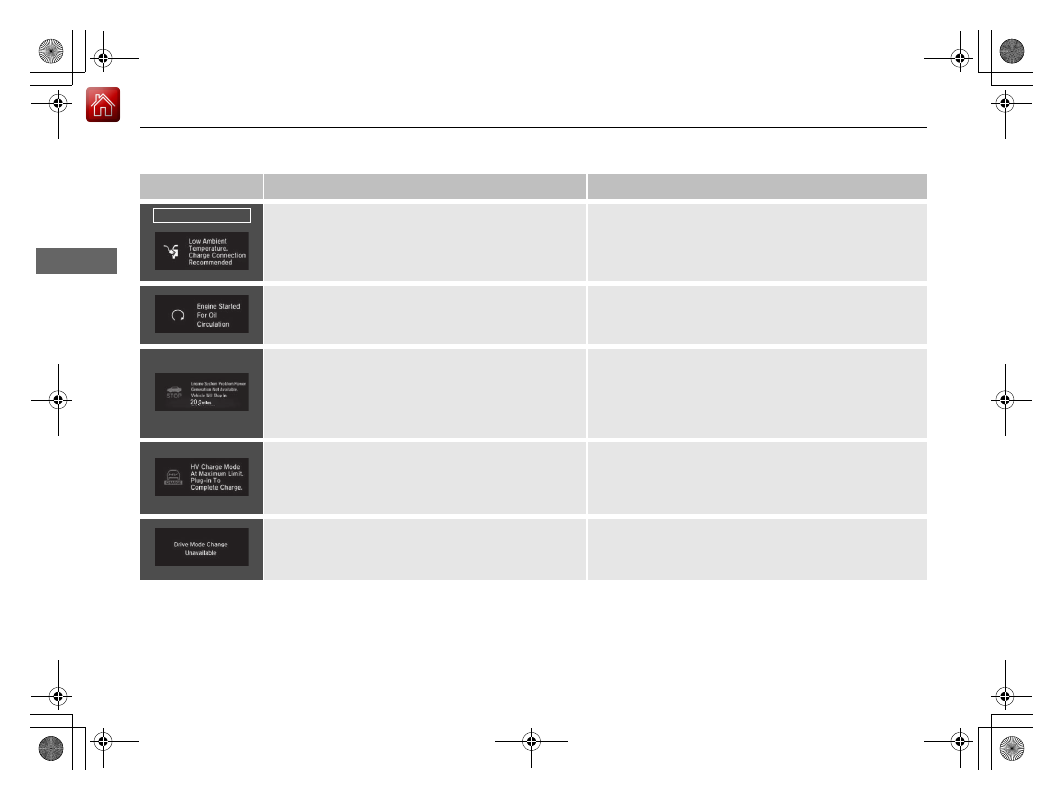

Appears when the outside temperature is low.

●

In extremely cold climates, keep the vehicle stored in a
garage or connect the charging connector.

2 Charging P. 454

●

Appears when the engine starts automatically when
the engine has not started for a long time.

—

●

Appears when the vehicle can run only in EV because
the failure that cannot generate power by the engine
failure or generator failure etc occurs.

●

The estimated distance you can travel on the
remaining power is displayed.

●

Have your vehicle checked by an authorized Honda
Clarity Plug-In Hybrid dealer.

●

Appears when you are unable to select the HV
Charge because the High Voltage battery charge
level is at maximum limit (12 segments) of the HV
Charge.

2 SPORT HYBRID i-MMD Plug-in (Intelligent Multi-

mode Drive Plug-in) P. 11

●

Appears if the drive mode cannot be changed due to
certain situations, such as a system error or adverse
driving conditions.

—

Canadian models

111

uu

Indicators

u

Driver Information Interface Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

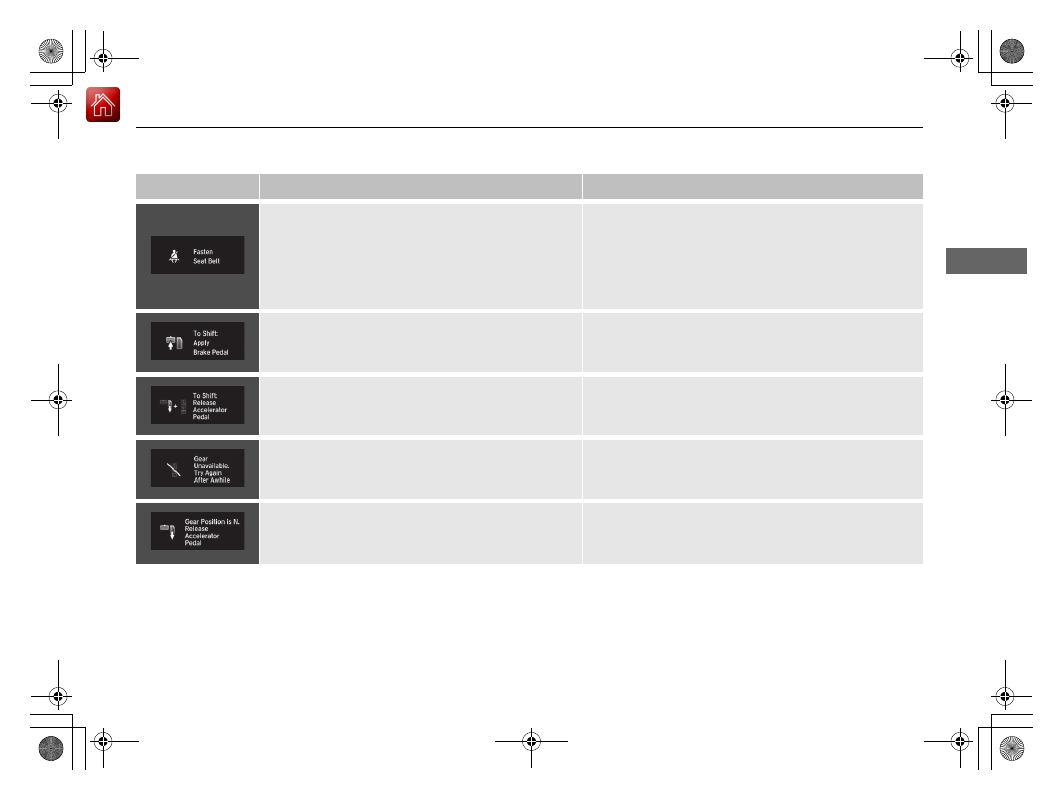

Appears when you set the power mode to ON
without fastening the driver’s seat belt.

●

Appears if the gear position has been automatically
changed to

(

P and the driver attempts to take the

vehicle out of

(

P but does not have his or her

seatbelt fastened.

●

Fasten the seat belt properly before you start to drive.

2 Shift Operation P. 384

●

Appears when you try to change the gear position
without depressing the brake pedal while the
transmission is in

(

P or

(

N.

●

Depress the brake pedal, then select a shift button.

●

Appears when you try to change the gear position
without releasing your foot off the accelerator pedal
while the transmission is in

(

P or

(

N.

●

Release your foot off the accelerator pedal, then select
a shift button.

●

Appears when the transmission system temperature
is too high.

●

Park in a safe place, and allow the system to cool down
sufficiently.

●

Appears when you depress the accelerator pedal
while the transmission is in

(

N.

●

Release the accelerator pedal.

●

Depress the brake pedal, then select a shift button to
start driving.
