Honda Civic Hatchback (2018 year). Instruction - part 41

642

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1. Park the vehicle on firm, level, and non-slippery surface and apply the parking

brake.

2. Move the shift lever to

(

2. Move the shift lever to

(

3. Turn on the hazard warning lights and turn the ignition switch to LOCK

(

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

Vehicles with a compact spare tire

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

NOTICE

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

The subwoofer

, a large black enclosure, is located

on the rear right side. Do not store anything in this
area. Doing so may compromise vehicle audio
performance.

Continuously variable transmission models

Manual transmission models

All models

* Not available on all models

Continued

643

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

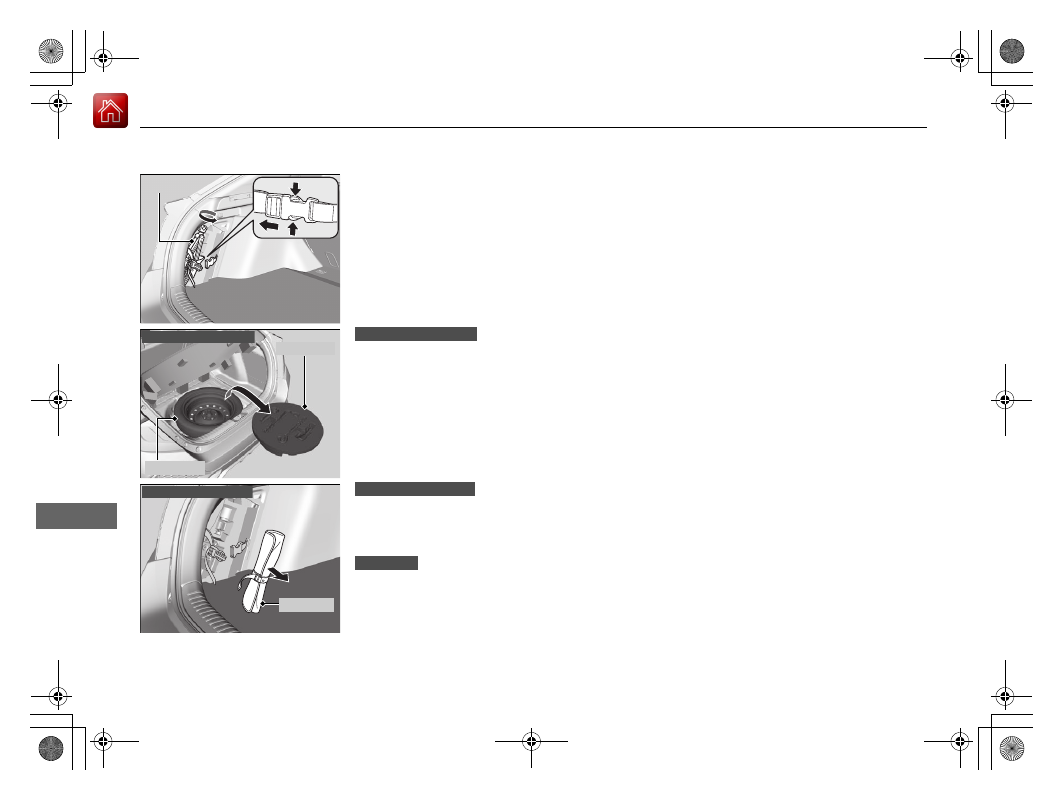

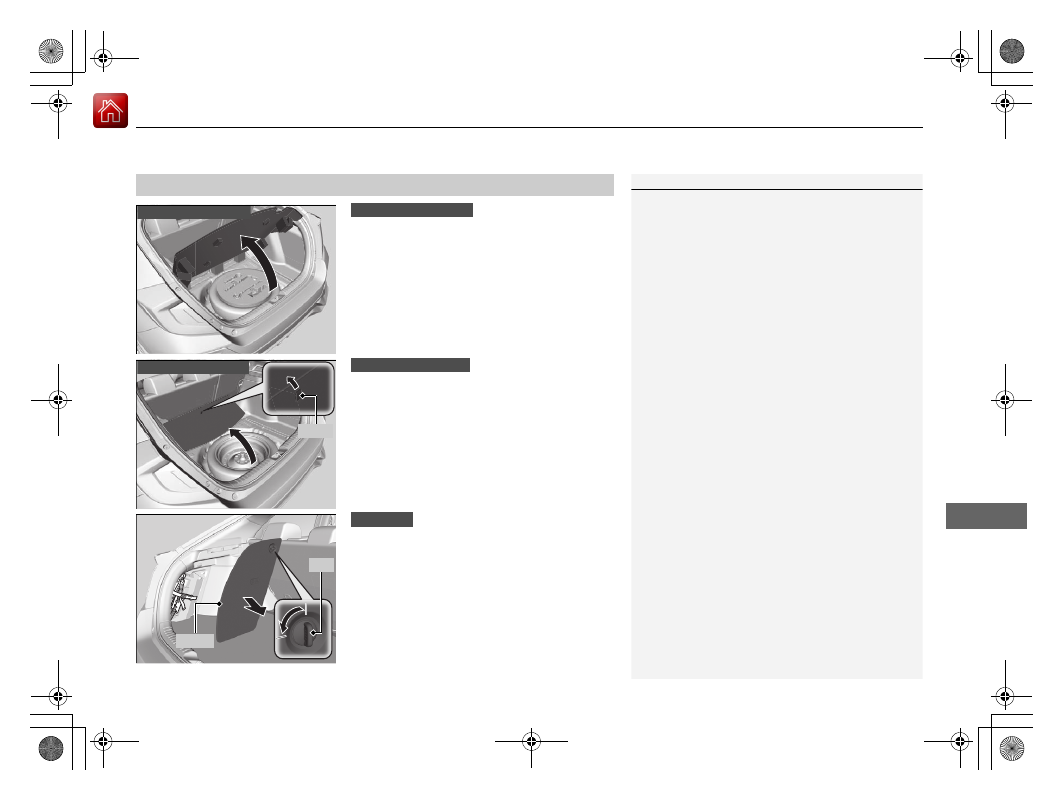

1. Open the cargo area floor lid.

1. Pull the strap on the cargo area floor lid and

open the lid.

2. Turn and pull the tab to open the

compartment cover located on the left side
of the cargo area.

■

Getting Ready to Replace the Flat Tire

Getting Ready to Replace the Flat Tire

The wheel nut wrench supplied with your vehicle is
specially adapted to fit the holder shaft. Do not use
any other tool.

Models with tool case

Models with tool bag

Strap

Models with tool bag

Tab

Cover

All models

644

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

3. Turn the jack’s end bracket to loosen it,

then remove it.

4. Take the tool case out of the cargo area.

Take the jack handle bar and wheel nut
wrench out of the tool case.

4. Take the tool bag out of the compartment.

Take the jack handle bar and wheel nut
wrench out of the tool bag.

5. Unscrew the wing bolt, and remove the

spacer cone. Then, remove the spare tire.

Jack

Tool Case

Spare Tire

Models with tool case

Models with tool bag

Tool bag

Models with tool bag

All models

645

If a Tire Goes Flat

Changing a Flat Tire

Continued

Han

lin
g the U

expected

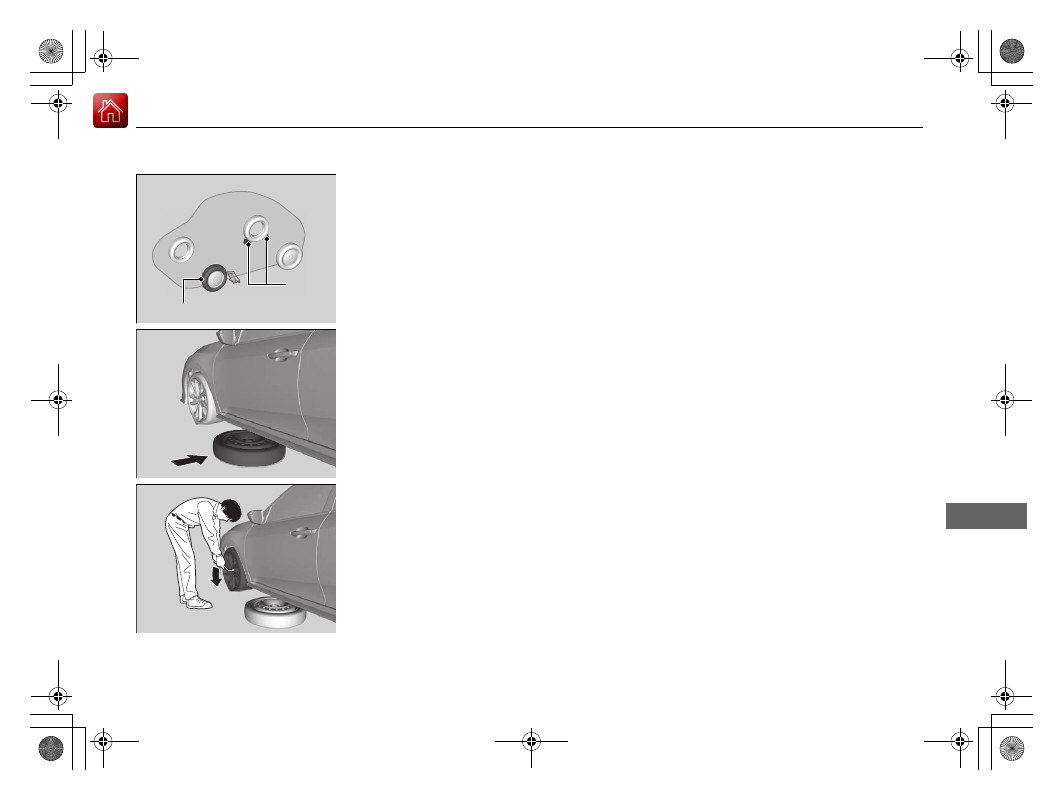

6. Place a wheel block or rock in front and rear

of the wheel diagonal to the flat tire.

7. Place the compact spare tire (wheel side up)

under the vehicle body, near the tire that
needs to be replaced.

8. Loosen each wheel nut about one turn

using the wheel nut wrench.

Wheel
Blocks

The tire to be replaced.

If a Tire Goes Flat

Changing a Flat Tire

646

Han

lin
g the U

expected

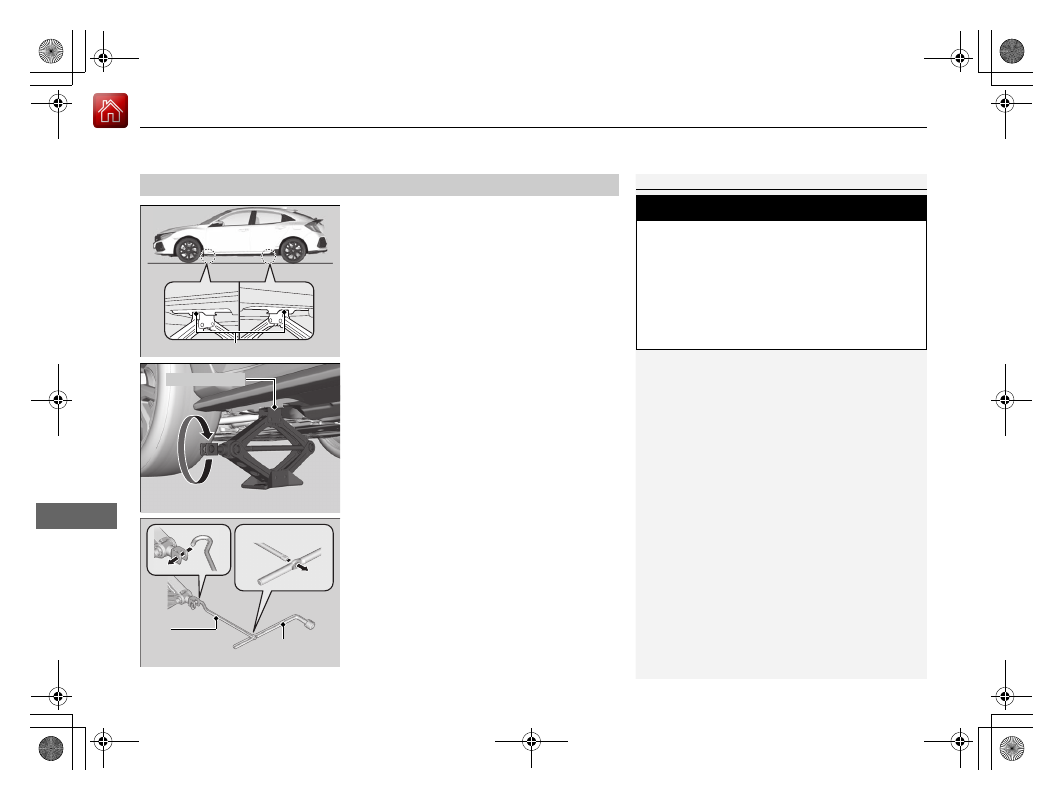

1. Place the jack under the jacking point

closest to the tire to be changed.

2. Turn the end bracket (as shown in the

image) clockwise until the top of the jack
contacts the jacking point.

Make sure that the jacking point tab is
resting in the jack notch.

3. Raise the vehicle, using the jack handle bar

and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.

Jacking Points

Jacking Point

Jack
Handle
Bar

Wheel Nut

Wrench as Jack Handle

Continued

647

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

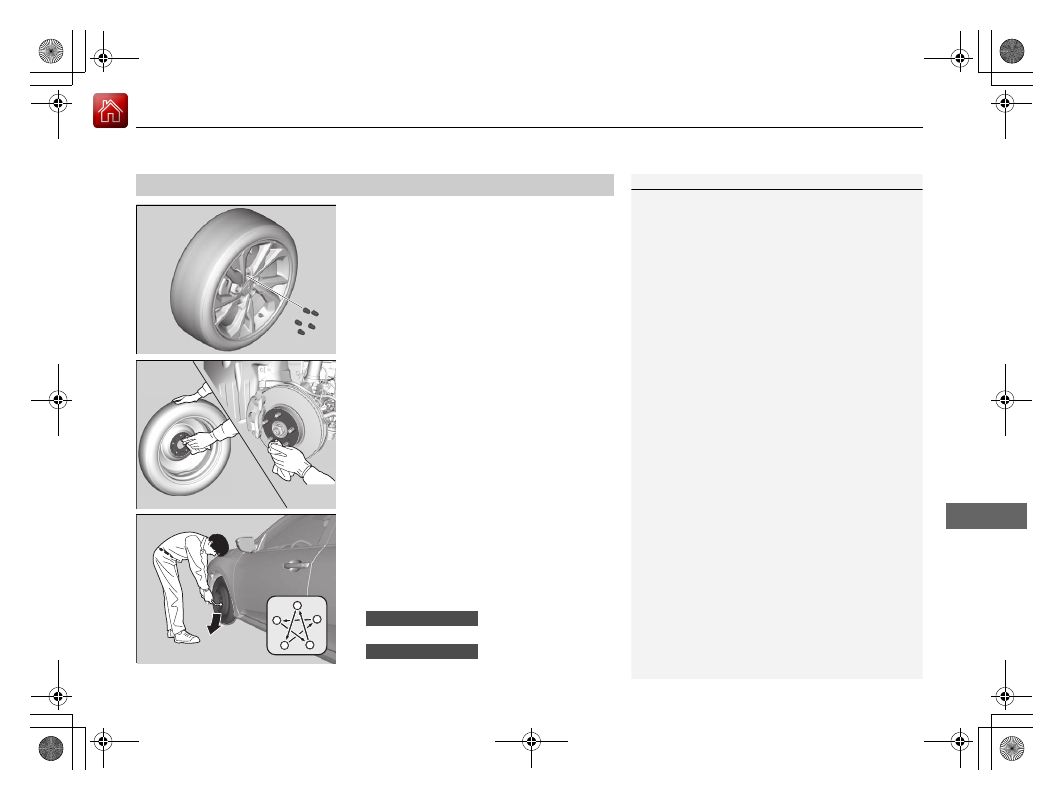

1. Remove the wheel nuts and flat tire.

2. Wipe the mounting surfaces of the wheel

with a clean cloth.

3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the

lips around the mounting holes, and stop
rotating.

5. Lower the vehicle and remove the jack.

Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:

80 lbf∙ft (108 N∙m, 11 kgf∙m)

94 lbf∙ft (127 N∙m, 13 kgf∙m)

■

Replacing the Flat Tire

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

1.5 L engine models

2.0 L engine models

If a Tire Goes Flat

Changing a Flat Tire

648

Han

lin
g the U

expected

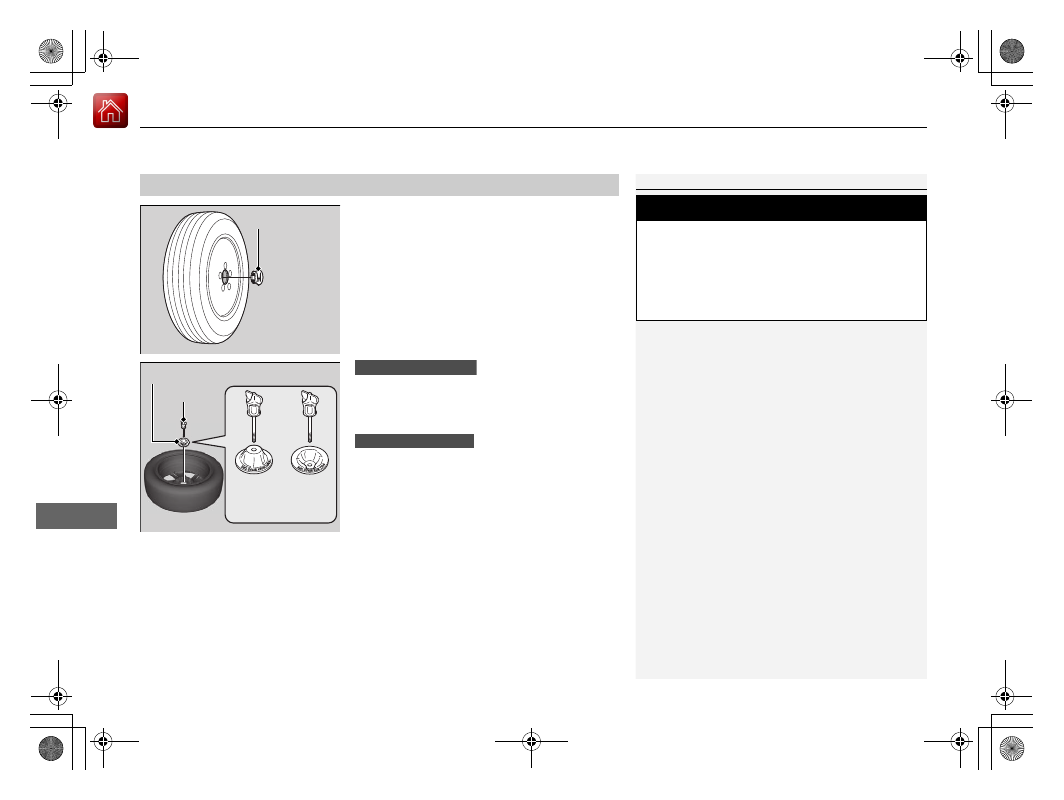

1. Remove the center cap.
2. Place the flat tire face down in the spare tire

well.

3. Remove the spacer cone from the wing

bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

4. Store the jack in the compartment on the

left side. Turn the jack’s end bracket to lock
it in place.

5. Securely put the jack handle bar and wheel

nut wrench back in the tool case. Store the
case in the cargo area.

5. Securely put the jack handle bar and wheel

nut wrench back in the tool bag. Store the
bag in the compartment.

■

Storing the Flat Tire

Storing the Flat Tire

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.

Center Cap

Spacer Cone

Wing Bolt

For
compact
spare tire

For full-
size tire

Models with tool case

Models with tool bag

649

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressures Low
appears on the driver information interface

, but this is normal.

Calibrate the TPMS when you replace the tire with a specified regular tire.

2 TPMS Calibration P. 527

■

TPMS and the Spare Tire

* Not available on all models

650

Han

lin
g the U

expected

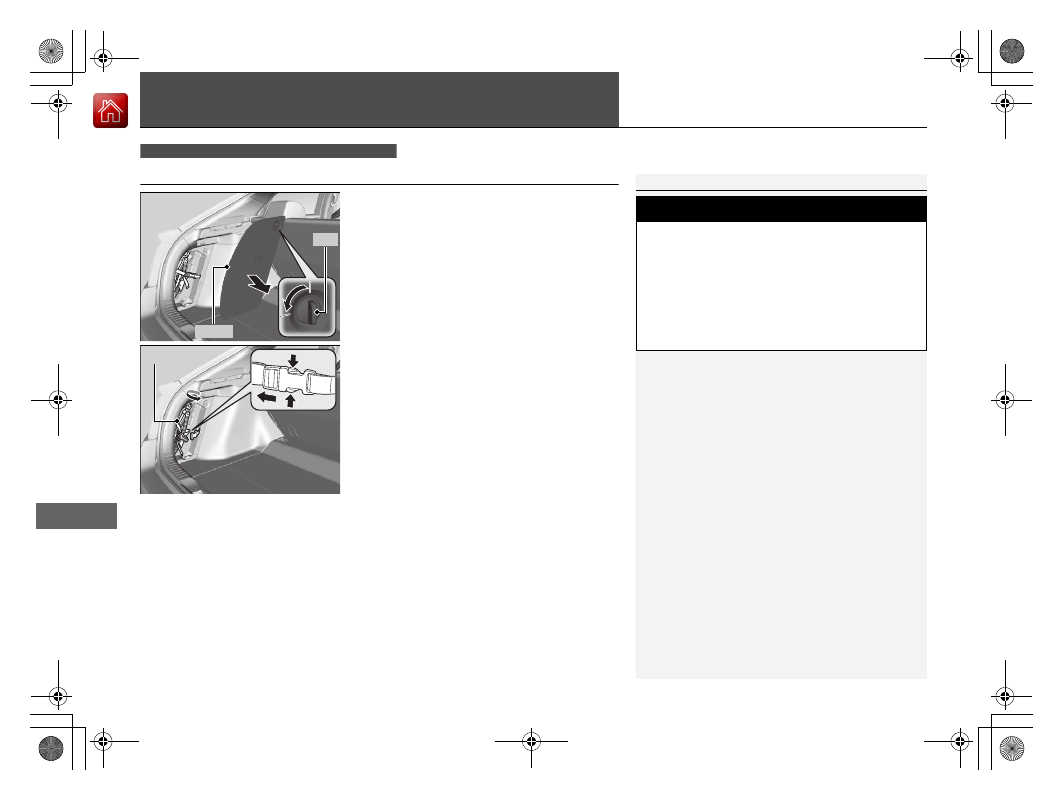

Handling of the jack

How to Set Up the Jack

1. Turn and pull the tab to open the

compartment cover located on the left side
of the cargo area.

2. Turn the jack’s end bracket to loosen it,

then remove it.

Canadian models with temporary tire repair kit

How to Set Up the Jack

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.

Tab

Cover

Jack

651

Handling of the jack

How to Set Up the Jack

Han

lin
g the U

expected

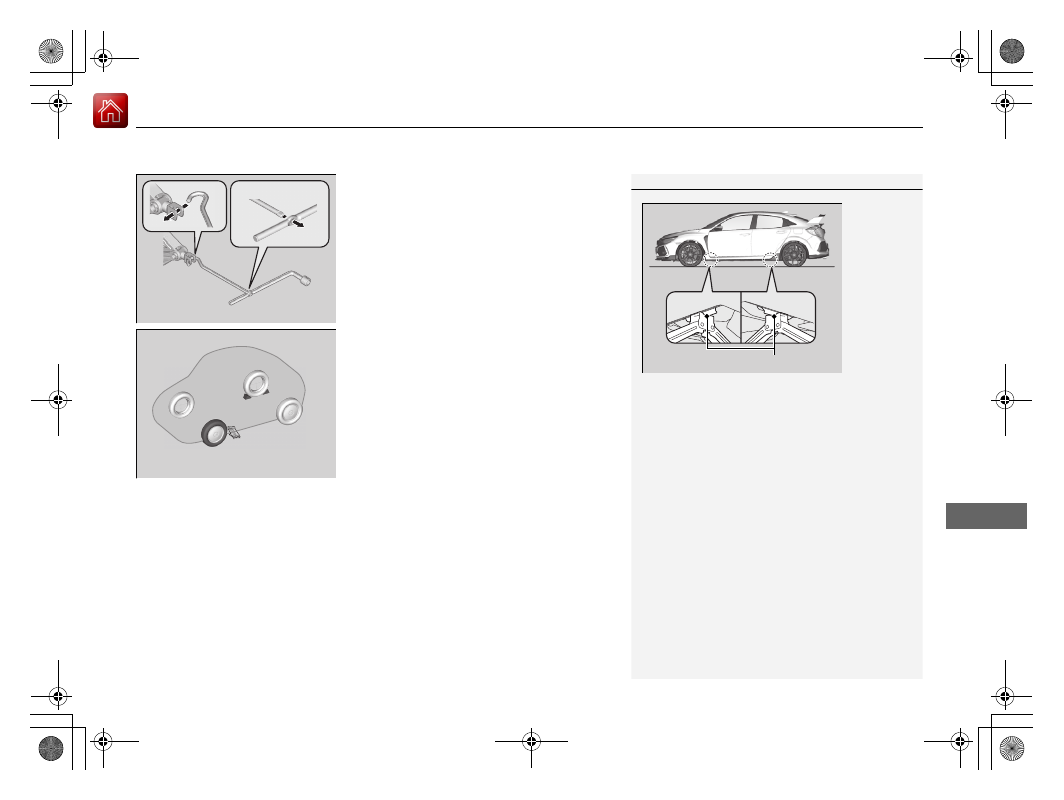

3. Raise the vehicle, using the jack handle bar

and the jack handle, until the tire is off the
ground.

4. Place a wheel block or rock in front and rear

of the wheel diagonal to the flat tire.

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

Jacking Points

652

Han

lin
g the U

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the driver information interface.

●

If the To Start, Hold Remote Near Start Button message appears

2 If the Smart Entry Remote Battery is Weak P. 653

Make sure the smart entry remote is in its operating range.

2 ENGINE START/STOP Button Operating Range P. 177

Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.

●

If the interior lights are dim or do not come on at all

2 Battery P. 613

●

If the interior lights come on normally

2 Fuses P. 668

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 449

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 168

Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 118

Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 671

If the problem continues:

2 Emergency Towing P. 672

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2 Jump Starting P. 655

Models with smart entry system

653

Engine Does Not Start

If the Smart Entry Remote Battery is Weak

Han

lin
g the U

expected

If the Smart Entry Remote Battery is Weak

If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, and the ENGINE START/STOP button
flashes, and the engine won’t start, start the engine as follows:

1. Touch the center of the ENGINE START/

STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.

The indicator flashes for about 30
seconds.

2. Depress the brake pedal (continuously

variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.

If you don’t depress the pedal, the mode
will change to ACCESSORY.

Models with smart entry system

654

Engine Does Not Start

Emergency Engine Stop

Han

lin
g the U

expected

Emergency Engine Stop

The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.

The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to

(

P after the vehicle

comes to a complete stop.

Then press the ENGINE START/STOP button twice without depressing the brake
pedal.

The power mode changes to VEHICLE OFF.

Models with smart entry system

Emergency Engine Stop

Do not press the button while driving unless it is
absolutely necessary for the engine to be turned off.

Continuously variable transmission models

Canadian continuously variable transmission models

Manual transmission models

655

Continued

Han

lin
g the U

expected

Jump Starting

Jump Starting Procedure

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1. Connect the first jumper cable to your

vehicle’s battery + terminal.

2. Connect the other end of the first jumper

cable to the booster battery + terminal.

Use a 12-volt booster battery only.

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

3. Connect the second jumper cable to the

booster battery - terminal.

■

Jump Starting Procedure

Jump Starting

Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

1.5 L engine models

2.0 L engine models

Booster Battery

Jump Starting

Jump Starting Procedure

656

Han

lin
g the U

expected

4. Connect the other end of the second

jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.

5. If your vehicle is connected to another

vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

6. Attempt to start your vehicle’s engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

Jump Starting

Battery performance degrades in cold conditions and
may prevent the engine from starting.

1.5 L engine models

2.0 L engine models

657

Jump Starting

Jump Starting Procedure

Han

lin
g the U

expected

Once your vehicle's engine has started, remove the jumper cables in the following
order.

1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -

terminal.

3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

What to Do After the Engine Starts

What to Do After the Engine Starts

The indicators for the Adaptive Cruise Control
(ACC)

, Adaptive Cruise Control (ACC) with Low

Speed Follow (LSF)

, Road Departure Mitigation

(RDM)

, Vehicle Stability Assist (VSA®) System,

Vehicle Stability Assist (VSA®) OFF, low tire Pressure/
TPMS

and Collision Mitigation Braking System

(CMBS

)

may come on when you turn the ignition

switch to ON

(

after reconnecting a battery.

Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not, have
your vehicle checked by a dealer.

* Not available on all models

Content .. 39 40 41 42 ..
