Honda Accord Sedan (2016 year). Instruction - part 7

96

uu

Gauges and Displays

u

Information Display

*

In

strum

e

nt Pa

nel

Information Display

*

The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.

Press the

 (Select/Reset) knob to change the display.

■

Switching the Display

1

Switching the Display

Each time you press the

 knob, the information

display changes as follows:

Some of the items on the information display also
appear on the audio/information screen. They also
change along with the information display changes
while the fuel consumption is shown.

Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature

Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature

Engine Oil Life

Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature

Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature

Select/Reset
Knob

* Not available on all models

Continued

97

uu

Gauges and Displays

u

Information Display

*

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the

 knob. The trip meter is

reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 505

■

Odometer

■

Trip Meter

■

Average Fuel Economy

■

Instant Fuel Economy

■

Engine Oil Life

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the

 knob.

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 298, 316

uu

Gauges and Displays

u

Information Display

*

98

In

strum

e

nt Pa

nel

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature indicator

Adjust the temperature reading up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON

(

w

*1

.

2. Press and hold the

 (Select/Reset) knob for 10 seconds or more while the

outside temperature is shown on the information display.

u

The information display goes into temperature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).

3. Release the

 knob when the right adjustment amount is shown.

u

The adjustment is complete.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Outside Temperature

■

Range

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

99

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

Multi-Information Display

*

The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges.
It also displays important messages such as warnings and other helpful information.

■

Main displays

Press the

 (information) button to change the display.

■

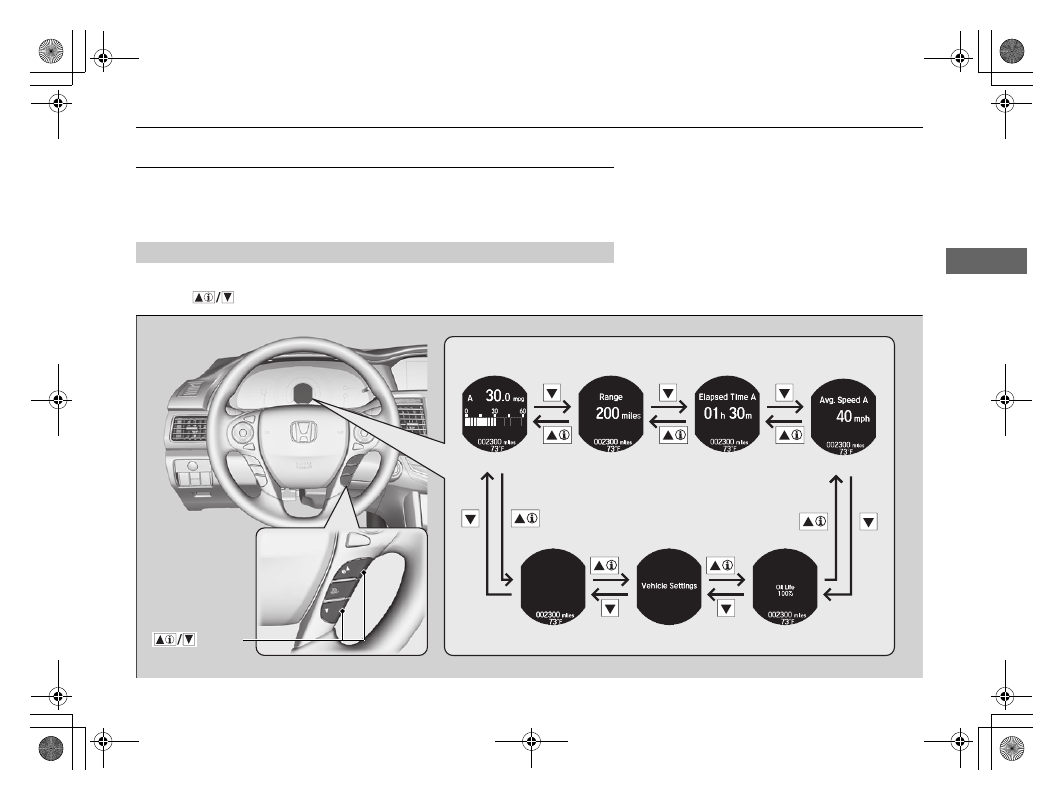

Switching the Display

Average Fuel Economy/
Instant Fuel Economy

Range

Elapsed Time

Average Speed

Blank Screen

Vehicle Settings

Engine Oil Life

 Button

* Not available on all models

100

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

■

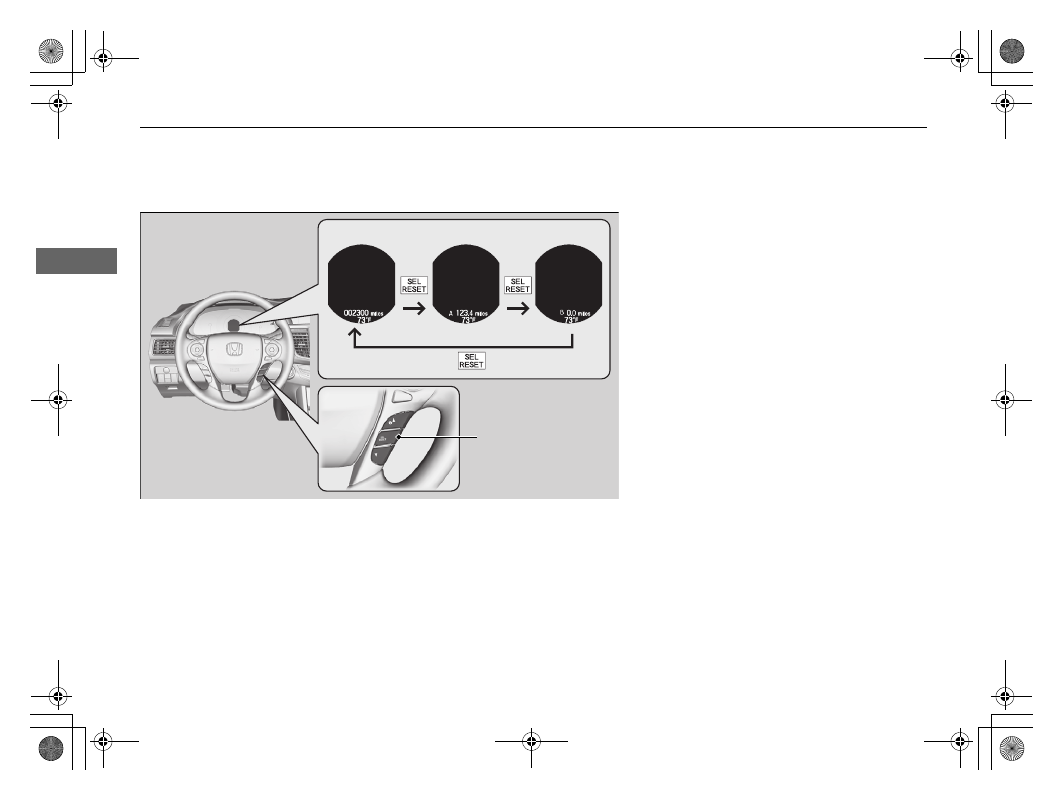

Lower displays

Press the SEL/RESET button to change the display.

Odometer

Trip A

Trip B

SEL/RESET
Button

Continued

101

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

Shows the time elapsed since Trip A or Trip B was reset.

■

Odometer

■

Trip Meter

■

Average Fuel Economy

■

Range

■

Elapsed Time

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.

1

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 103, 298, 316

1

Elapsed Time

You can change when to reset the elapsed time.

2 Customized Features P. 103, 298, 316

uu

Gauges and Displays

u

Multi-Information Display

*

102

In

strum

e

nt Pa

nel

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 505

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.

■

Average Speed

■

Instant Fuel Economy

■

Engine Oil Life

■

Outside Temperature

1

Average Speed

You can change when to reset the average speed.

2 Customized Features P. 103, 298, 316

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the multi-information display's customized
features to correct the temperature.

2 Customized Features P. 103, 298, 316

Continued

103

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

Use the multi-information display to customize certain features.

■

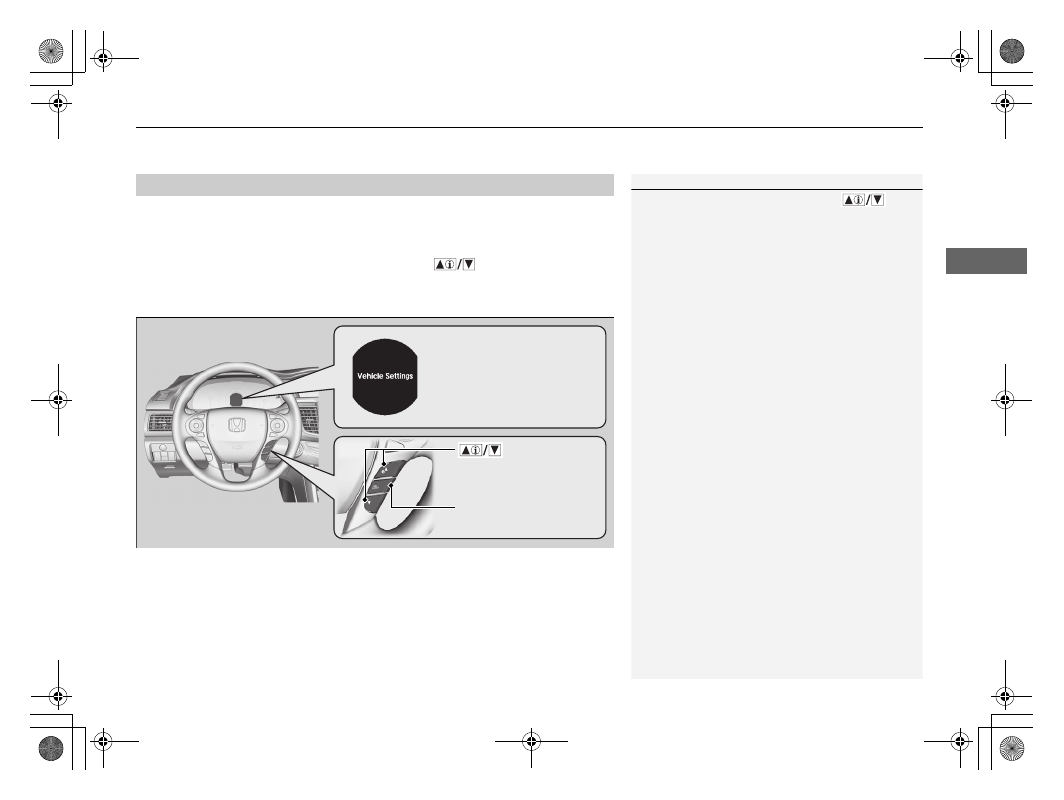

How to customize

Select the Vehicle Settings screen by pressing the

 button while the

ignition switch is in ON

(

w

*1

, and the vehicle is at a complete stop.

Press the SEL/RESET button.

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Customized Features

1

Customized Features

To customize other features, press the



button.

2 List of customizable options P. 106
2 Example of customization settings P. 110

Customization is possible when you see the driver’s
ID (Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.

When you customize settings: Shift to

(

P

 Button:

Changes the customize
menus and items.

Multi-Information Display:
Goes to Vehicle Settings.

SEL/RESET button:
Enters the selected item.

104

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

■

Customization flow

Press the

 button.

SEL/RESET

Vehicle Settings

“Trip A” Reset Timing

Language Selection

Adjust Outside Temp. Display

Memory Position Link

Door Unlock Mode

Keyless Access Light Flash

4

4

4

4

TPMS Calibration

Driver Assist System Setup

Meter Setup

Position Setup

Keyless Access Setup

SEL/RESET

SEL/RESET

SEL/RESET

SEL/RESET

“Trip B” Reset Timing

Fuel Efficiency Backlight

4

ACC Pre-Running Car Detect Beep

ACC Display Speed Unit

4

Keyless Start Guidance Screens

SEL/RESET

Keyless Access Beep

Forward Collision Warning Distance

4

4

4

Lane Keep Assist Suspend Beep

Road Departure Mitigation Setting

Remote Start System ON/OFF

*

* Not available on all models

105

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

Exit

4

4

4

Door Setup

Maintenance Reset

Default All

SEL/RESET

4

SEL/RESET

4

Lighting Setup

SEL/RESET

4

Key And Remote Unlock Mode

Auto Door Lock

Auto Door Unlock

Keyless Lock Answer Back

Security Relock Timer

Interior Light Dimming Time

Headlight Auto Off Timer

Auto Light Sensitivity

4

4

106

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

■

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

TPMS
Calibration

—

Calibrates the TPMS.

Cancel/Calibrate

Driver Assist
System
Setup

Forward Collision
Warning Distance

Changes at which distance the CMBS

TM

 alerts.

Long/Normal

*1

/Short

ACC Pre-Running Car
Detect Beep

Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.

On/Off

*1

ACC Display Speed Unit

Changes the ACC display speed unit.

mph

*1

/km/h

(U.S.)
mph/km/h

*1

(Canada)

Road Departure
Mitigation Setting

Changes the setting for the road departure
mitigation system.

Normal

*1

/Wide/Warning

Only

Lane Keep Assist
Suspend Beep

Causes the system to beep when the LKAS is
suspended.

On/Off

*1

107

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter Setup

Language Selection

Changes the displayed language.

English

*1

/French/Spanish

Adjust Outside Temp.
Display

Adjusts the temperature reading by a few degrees.

-5°F ~ ±0°F

*1

 ~ +5°F

(U.S.)
-3°C ~ ±0°C

*1

 ~ +3°C

(Canada)

“Trip A” Reset Timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.

With Refuel/IGN Off/
Manually Reset

*1

“Trip B” Reset Timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.

With Refuel/IGN Off/
Manually Reset

*1

Fuel Efficiency Backlight

Turns the ambient meter feature on and off.

On

*1

/Off

Keyless Start Guidance
Screens

Displays the push button start guidance when
conditions are met to change power mode.

On

*1

/Off

Driving
Position
Setup

Memory Position Link

Changes the driver's seat position to a stored
setting.

On

*1

/Off

108

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Keyless
Access
Setup

Door Unlock Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver Door Only

*1

/All Doors

Keyless Access Light
Flash

Causes some exterior lights to blink when you
unlock/lock the doors.

On

*1

/Off

Keyless Access Beep

Sets the beeper sound or not when you grab either
front door handle.

On

*1

/Off

Remote Start System
ON/OFF

*

Turns the remote engine start feature on and off.

ON

*1

/OFF

Lighting
Setup

Interior Light Dimming
Time

Changes the length of time the interior lights stay on
after you close the doors.

60sec/30sec

*1

/15sec

Headlight Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

*1

/0sec

Auto Light Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

*1

/Low/Min

* Not available on all models

109

uu

Gauges and Displays

u

Multi-Information Display

*

Continued

In

strum

e

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Door Setup

Auto Door Lock

Changes the setting for when the doors
automatically lock.

With Vehicle Speed

*1

/Shift

from P/Off

Auto Door Unlock

Changes the setting for when the doors
automatically unlock.

All Doors When Driver’s
Door Opens

*1

/All Doors

When Shifted To Park/All
Doors When Ignition
Switched Off/Off

Key And Remote Unlock
Mode

Sets up either the driver's door or all doors to unlock
on the first operation of the remote or built-in key.

Driver Door

*1

/ All Doors

Keyless Lock Answer
Back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

On

*1

/Off

Security Relock Timer

Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.

90sec/60sec/30sec

*1

Maintenance
Reset

—

Resets/Cancels the engine oil life display when you
have performed the maintenance service.

Cancel/Reset

Default All

—

Cancels/Resets all the customized settings as
default.

Cancel/Set

110

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

■

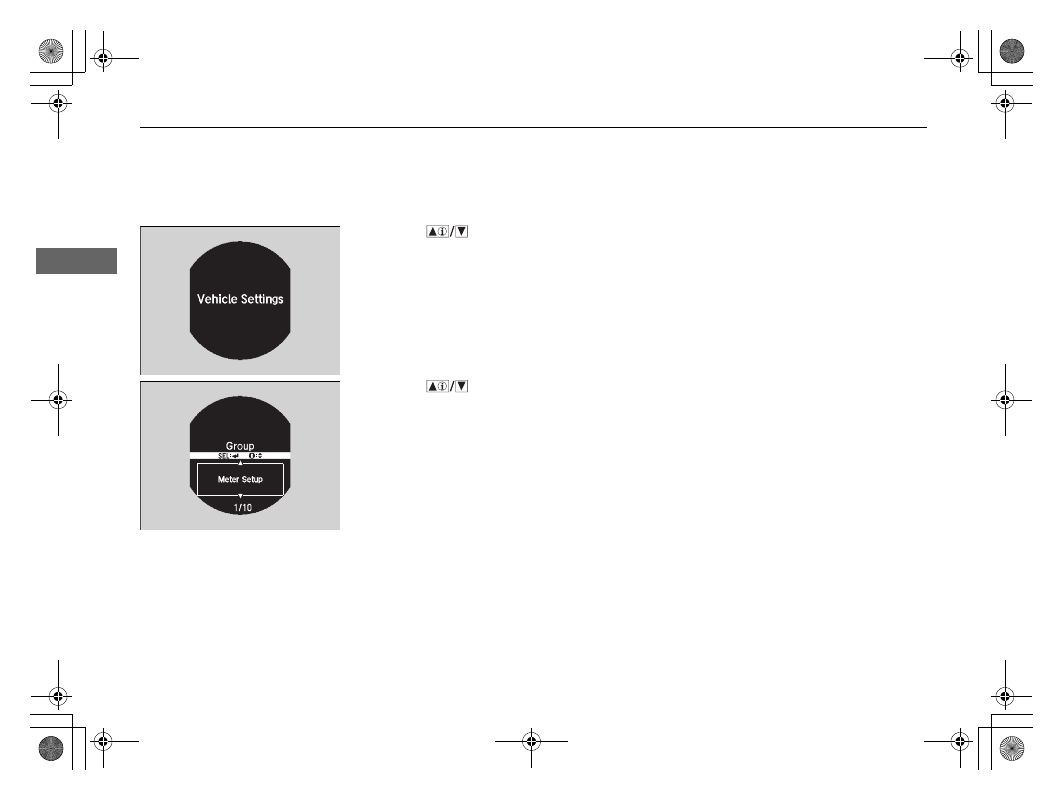

Example of customization settings

The steps for changing the “Trip A” Reset Timing setting to With Refuel are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.

1. Press the

 button to select Vehicle

Settings, then press the SEL/RESET
button.

2. Press the

 button until Meter

Setup appears on the display.

3. Press the SEL/RESET button.

u

Language Selection appears first in the
display.

111

uu

Gauges and Displays

u

Multi-Information Display

*

In

strum

e

nt Pa

nel

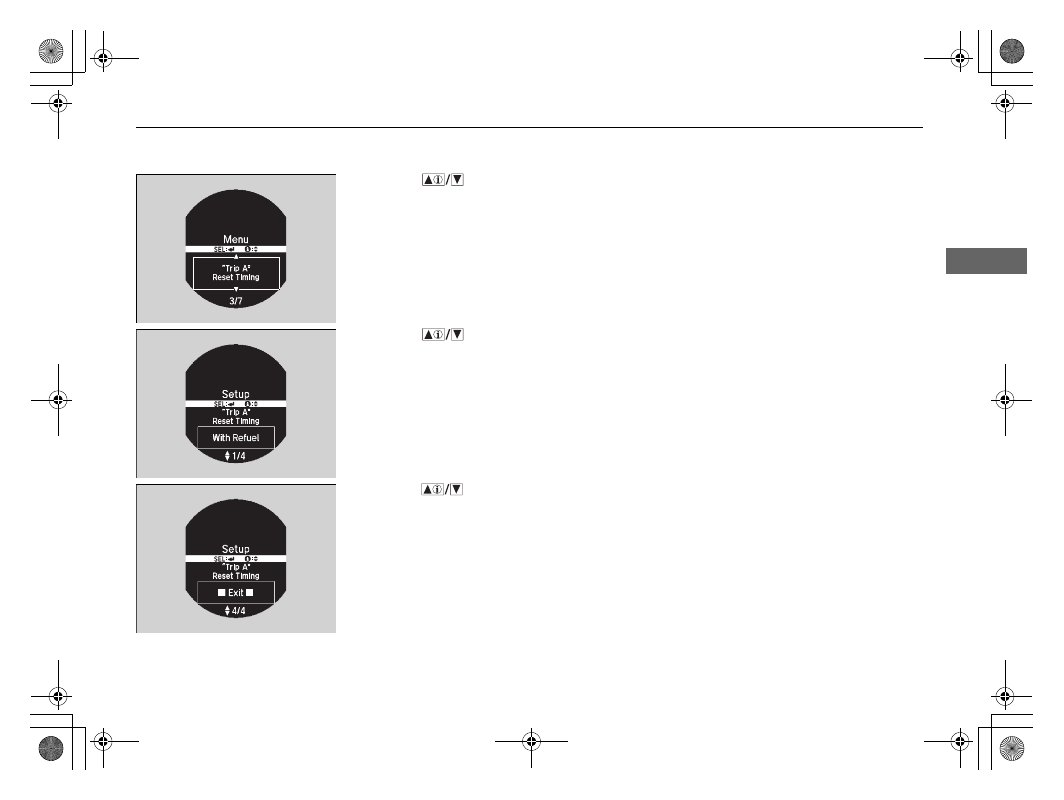

4. Press the

 button until “Trip A”

Reset Timing appears on the display, then
press the SEL/RESET button.

u

The display switches to the
customization setup screen, where you
can select With Refuel, IGN Off,
Manually Reset, or Exit.

5. Press the

 button and select With

Refuel, then press the SEL/RESET button.

u

The With Refuel Setup screen appears,
then the display returns to the
customization menu screen.

6. Press the

 button until Exit appears

on the display, then press the SEL/RESET
button.

7. Repeat Step 6 until you return to the

normal screen.
