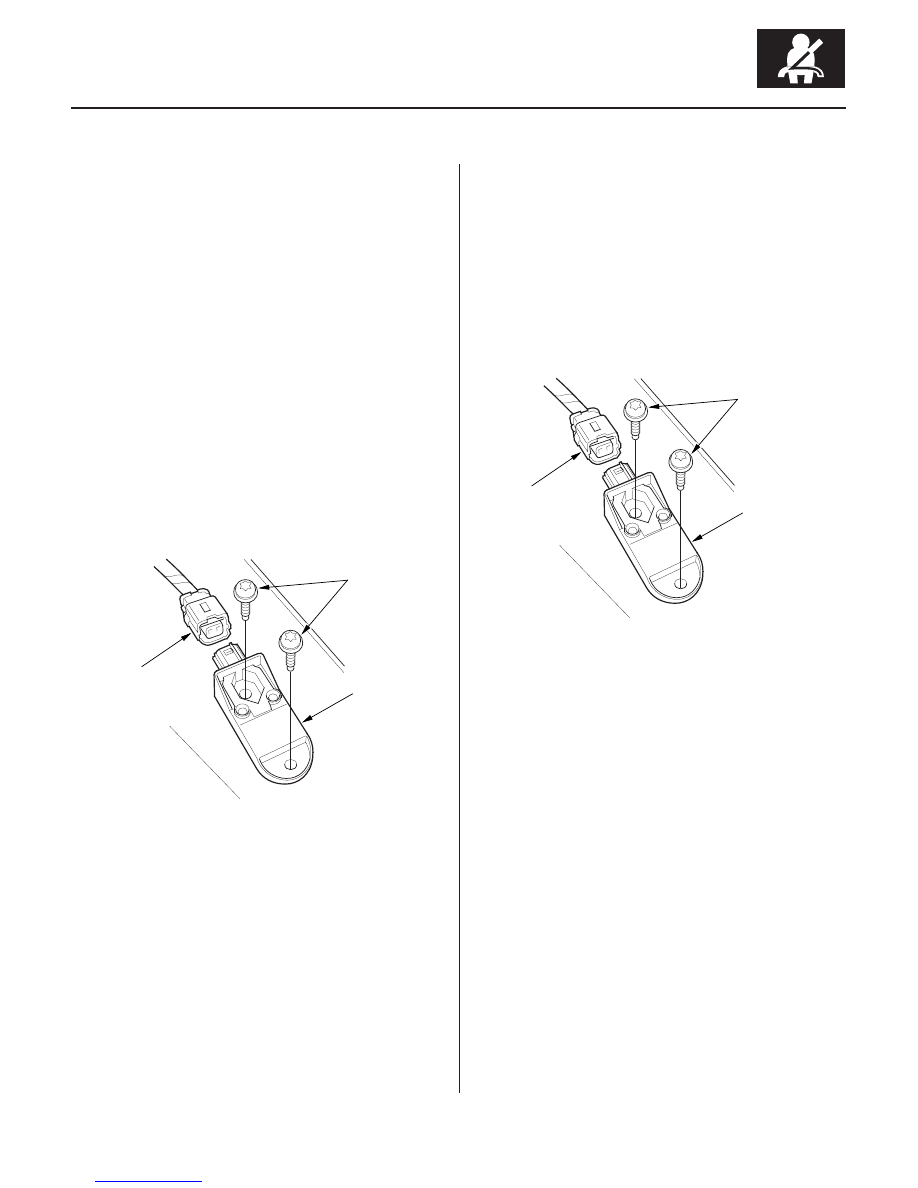

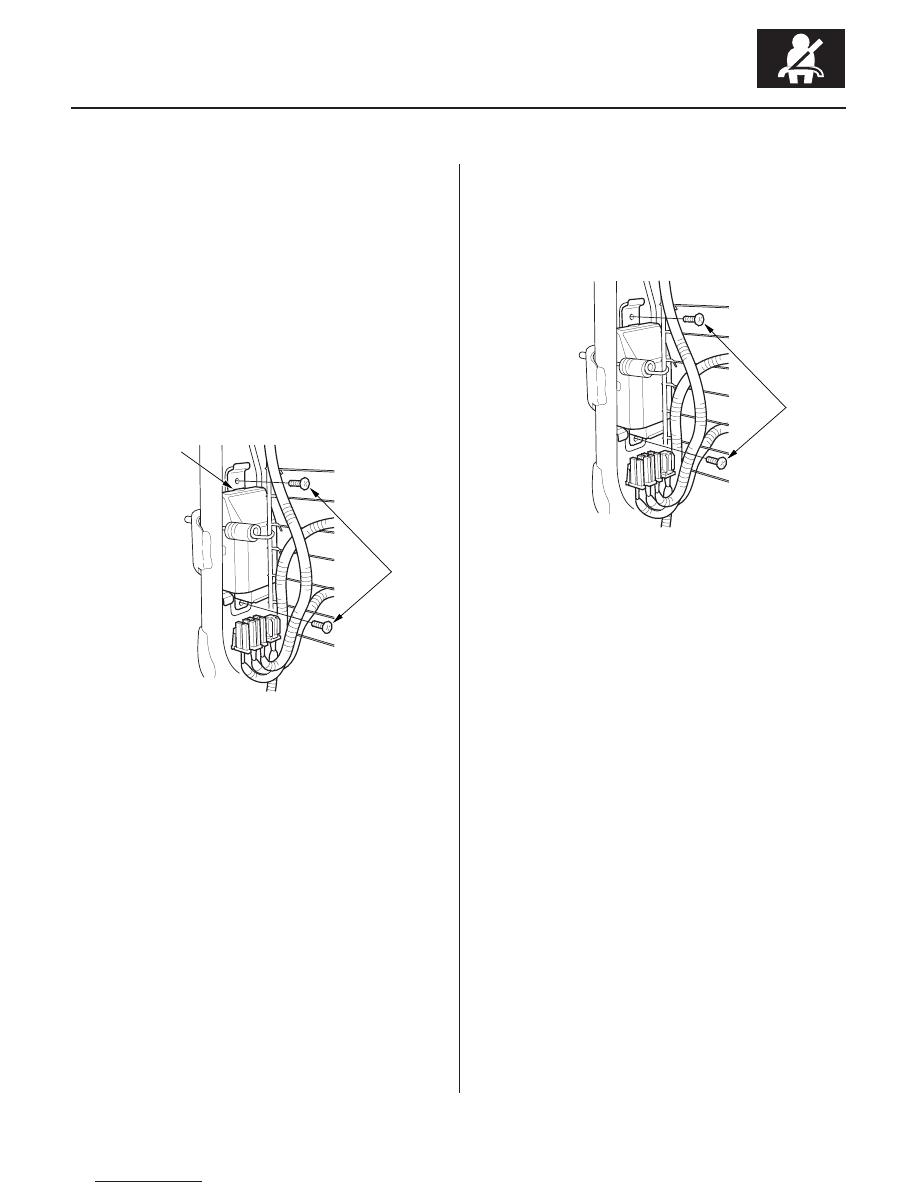

01 02 S0X4ASHH46400043771KBAT00 Removal (’02-04 Models) Installation (’02-04 Models) 23-387 OPDS Unit Replacement B A A NOTE: Review the seat replacement procedure before 1. Disconnect the battery negative cable, and wait at least 3 minutes before beginning work. 2. Disconnect the side airbag harness 2P connector (see step 4 on page 23-31). 3. Remove the seat assembly (see page 20-81) and seat-back cover (see page 20-102). 4. Disconnect the OPDS unit harness 8P connector and sensor connectors from the OPDS unit. 5. Remove the two screws (A) and the OPDS unit (B). 1. Place the new OPDS unit on the seat-back frame. Tighten the two screws (A), and connect the OPDS 2. Install the seat-back cover (see page 20-102). 3. Install the seat assembly (see page 20-81), then connect the side airbag harness 2P connector. 4. Reconnect the battery negative cable. 5. Set the seat-back in the normal position, and make sure there is nothing on the front passenger’s seat. 6. Initialize the OPDS unit. • ’02 Model (see page 23-40) 7. Calibrate the front passenger’s weight sensors unit (’03-04 Models) (see page 23-42). 8. After installing the OPDS unit, confirm proper system operation: Turn the ignition switch ON (II); 03/07/29 10:42:57 61S0X050_230_0387 |
