DTC 81-79:

’03-04 Models

DTC 85-79:

YES

NO

YES

NO

YES

NO

YES

NO

23-314

23-314

SRS

DTC Troubleshooting (cont’d)

Front Passenger’s Weight

Sensors Drift Check Failure

OPDS Sensor Drift Check Failure

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Turn the ignition switch OFF, and go to

step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Make sure nothing is on the front passenger’s seat.

4. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

The system is OK.

Remove the seat assembly (see page 20-81)

and front passenger’s weight sensors, then
reinstall them. Calibrate the front passenger’s
weight sensor unit (see page 23-42). Retry the
troubleshooting.

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Turn the ignition switch OFF, and go to

step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Make sure nothing is on the front passenger’s seat.

4. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

The system is OK.

Initialize the OPDS (see page 23-41). If the

problem is still present, replace the OPDS unit (see
page 23-387).

Does the SRS indicator stay on?

Does the SRS indicator go of f ?

Does the SRS indicator stay on?

Does the SRS indicator go of f ?

03/07/29 10:41:08 61S0X050_230_0314

S0X4ASIK791000R861XFAAT00

’03-04 Models

DTC 86-1x (86-10 to 86-19, 86-1A to 86-1F):

DTC 86-2x (86-20 to 86-29, 86-2A to 86-2F):

YES

NO

YES

NO

YES

NO

YES

NO

23-315

Faulty Seat-back Sensor

Faulty Support Sensor

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Check the connection at the OPDS sensor harness

connector and the OPDS unit connector.

Go to step 4.

Reconnect the OPDS sensor harness

connector, and clear the DTC.

4. Replace the OPDS sensor/seat back foam (see page

20-102), and reinitialize the OPDS (see page 23-41).

5. Erase the DTC memory, then check for DTC 86-1x

or 86-2x.

Go to step 6.

The system is OK.

6. Replace the OPDS unit (see page 23-387), and

reinitialize the OPDS.

7. Erase the DTC memory, then check for DTC 86-1x

or 86-2x.

Replace the SRS unit (see page 23-384).

The system is OK.

Does the SRS indicator stay on?

Ar e the connections OK ?

Is DT C 86-1x or 86-2x indicated?

Is DT C 86-1x or 86-2x indicated?

03/07/29 10:41:09 61S0X050_230_0315

01

02

S0X4ASIK791000R8731FAAT20

’03-04 Models

DTC 87-31:

YES

NO

YES

NO

YES

NO

23-316

SRS

DTC Troubleshooting (cont’d)

GRN

The Side Airbag Cutoff Indicator

Does Not Come On

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Make sure nothing is

on the front passenger’s seat.

4. Check the No. 9 (10A) fuse in the driver’s under-

dash fuse/relay box.

Go to step 5.

Repair the short to ground in the No. 9 (10A)

fuse circuit.

5.

from the OPDS unit.

6. Turn the ignition switch ON (II).

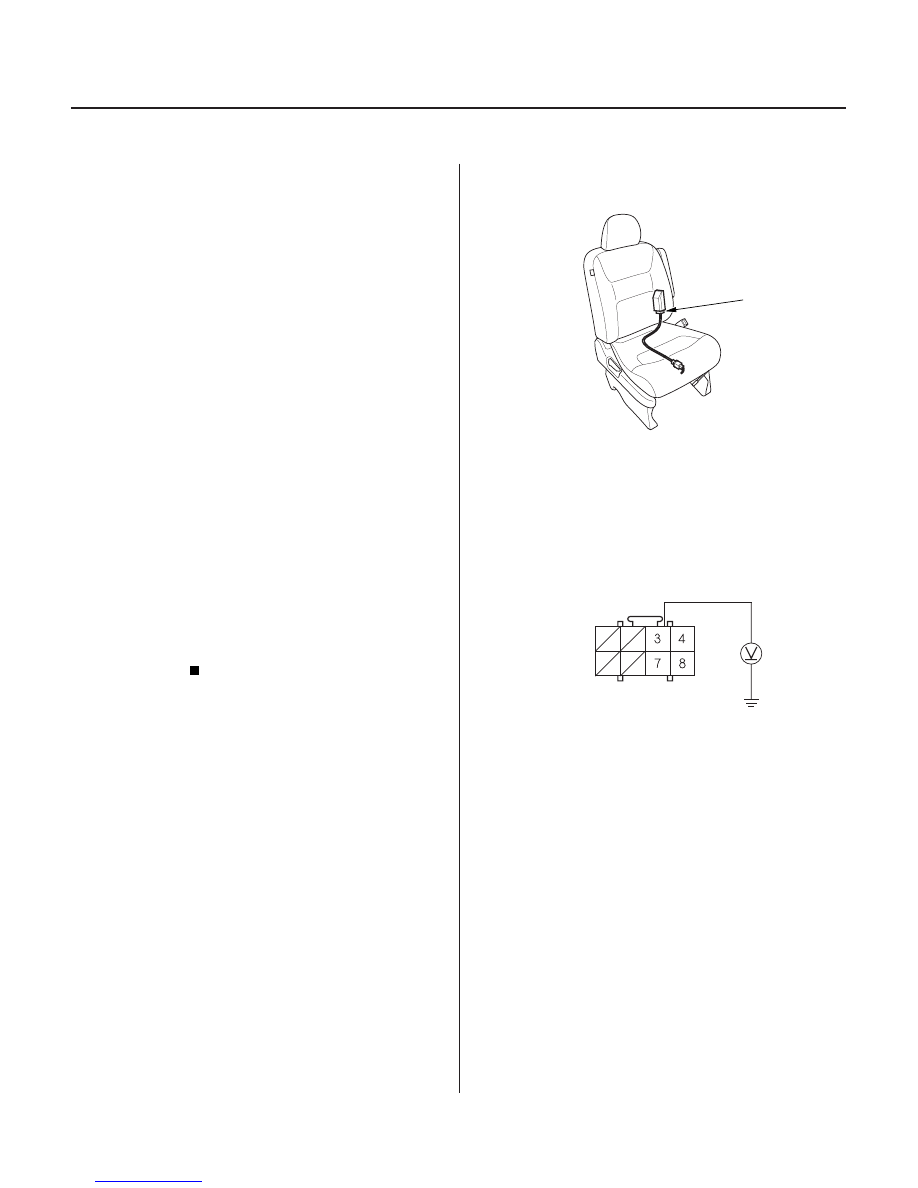

7. Check for voltage between the No. 3 terminal of the

There should be battery voltage.

Faulty OPDS unit; replace the OPDS unit (see

page 23-387).

Go to step 8.

Wire side of female terminals

Does the side air bag cutof f indicator stay on?

Is the f use OK ?

Is ther e batter y voltage?

03/07/29 10:41:09 61S0X050_230_0316

D

Disconnect the OPDS unit harness 8P connector D

OPDS unit harness 8P connector D and body ground.



OPDS UNIT HARNESS 8P CONNECTOR D

03

04

YES

NO

23-317

GRN

GAUGE ASSEMBLY CONNECTOR A (14P)

A

B

8. Turn the ignition switch OFF.

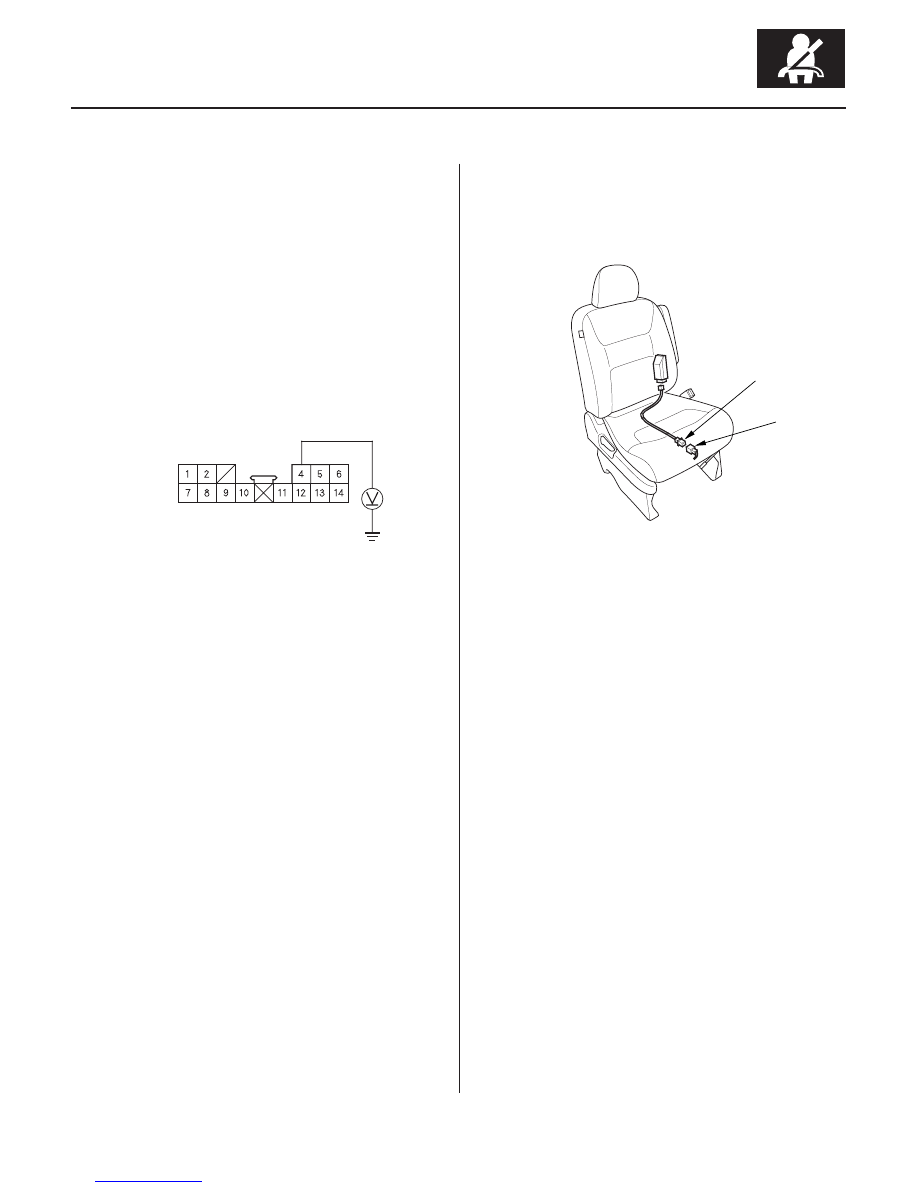

9. Backprobe the No. 4 terminal of gauge assembly

connector A (14P). Do not disconnect gauge
assembly connector A (14P) from the gauge
assembly (see page 22-100).

10. Turn the ignition switch ON (II).

11. Check for voltage between the No. 4 terminal of

gauge assembly connector A (14P) and body
ground. There should be battery voltage.

Go to step 12.

Go to step 16.

12. Turn the ignition switch OFF.

13. Disconnect the right side wire harness 4P

connector (A) from the OPDS unit harness 4P
connector (B).

(cont’d)

Wire side of female terminals

Is ther e batter y voltage?

03/07/29 10:41:09 61S0X050_230_0317
