DTC Troubleshooting (cont’d)

C851

A

RED/BLU

RED/WHT

SRS MAIN HARNESS 28P CONNECTOR

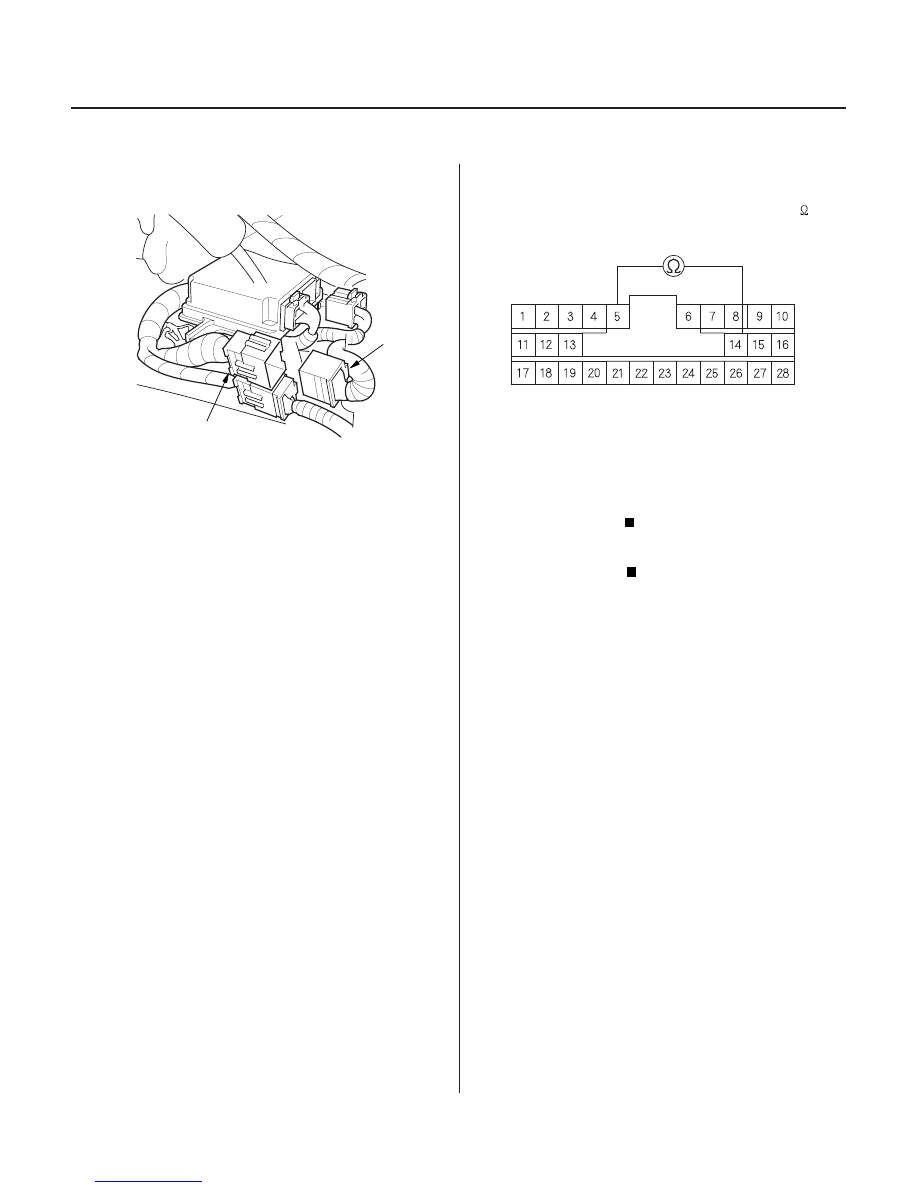

20. Disconnect SRS floor harness 28P connector (A)

from the SRS main harness connector C851.

21. Check resistance between the No. 5 and No. 14

terminals of the SRS main harness 28P connector.
There should be an open circuit, or at least 1 M

.

Short in the SRS floor harness; replace the

SRS floor harness.

Short in the SRS main harness; replace the

SRS main harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:37:59 61S0X050_230_0226

01

*01

S0X4AZBK791000R218XFAAT00

’03-04 Models

DTC 21-8x (21-80 to 21-89, 21-8A to 21-8F):

Special Tools Required

YES

NO

YES

NO

YES

NO

23-227

07SAZ-TB4011A

07TAZ-SZ5011A

A

A

07TAZ-SZ5011A

07SAZ-TB4011A

C551

Short to Power in Driver’s Seat Belt
Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-39).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

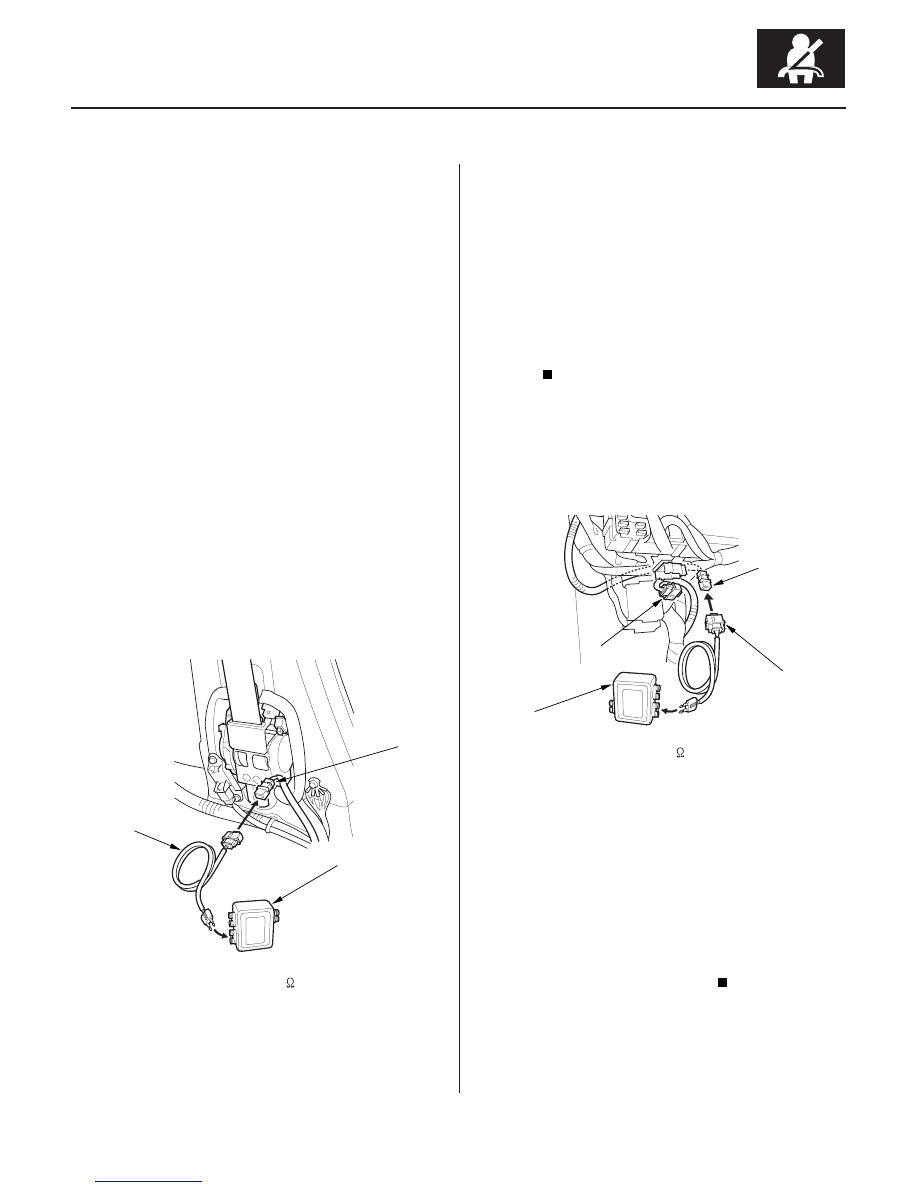

4. Disconnect the driver’s seat belt tensioner 2P

connector from the left side wire harness (A).

5. Connect the special tool (2

connector) to the left

side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-38).

Go to step 9.

Short to power in the driver’s seat belt

tensioner; replace the driver’s seat belt (see page
23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main harness 2P connector

C551 from the left side wire harness 2P
connector (A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short to power in the left side wire harness;

replace the left side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

(cont’d)

Does the SRS indicator stay on?

Is DT C 21-8x indicated?

Is DT C 21-8x indicated?

03/07/29 10:38:00 61S0X050_230_0227

02

03

04

YES

NO

23-228

SRS

DTC Troubleshooting (cont’d)

A

B

RED/WHT

RED/
BLU

SRS UNIT CONNECTOR B (28P)

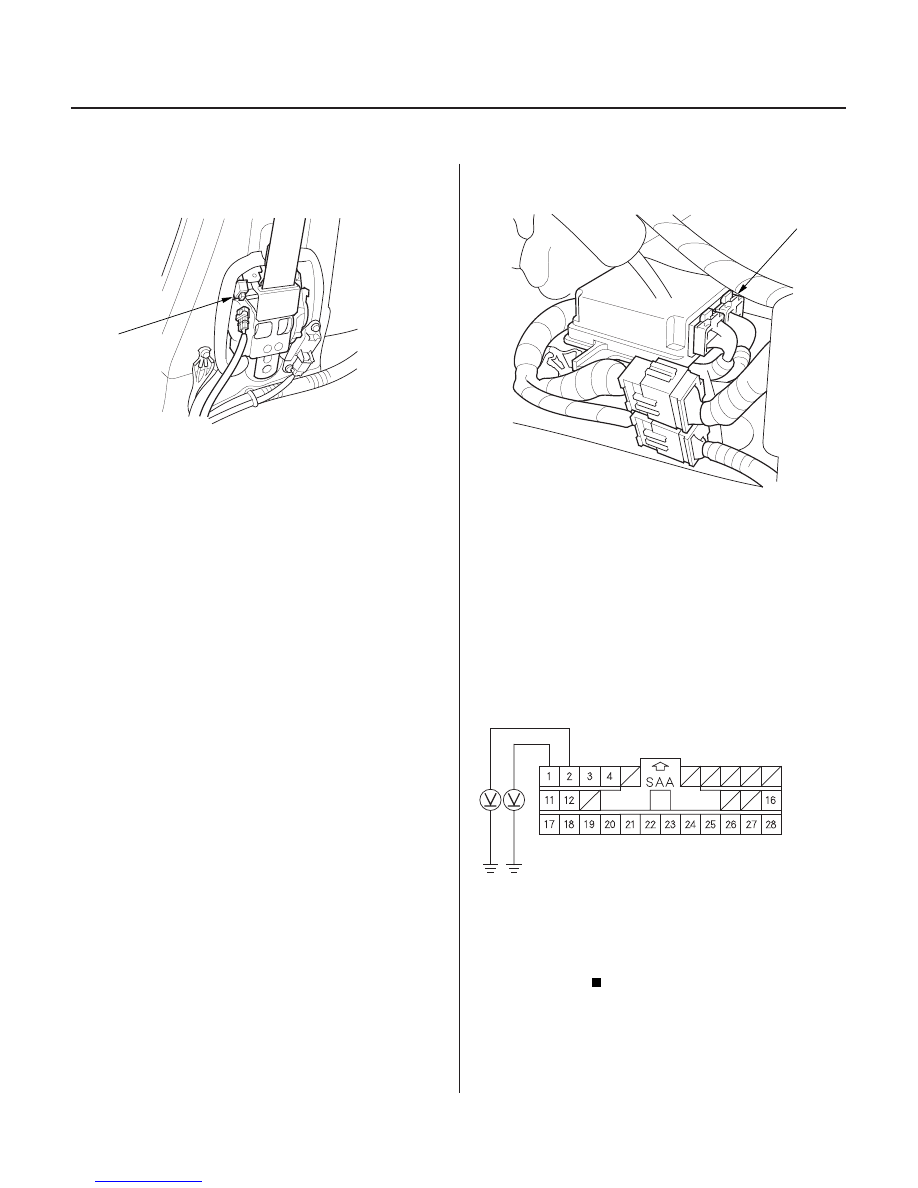

16. Disconnect the front passenger’s seat belt

tensioner connector (A).

17. Disconnect SRS unit connector B (28P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Reconnect the battery negative cable.

20. Turn the ignition switch ON (II).

21. Check for voltage between the No. 1 terminal of

SRS unit connector B (28P) and body ground, and
between the No. 2 terminal and body ground.
There should be 0.5 V or less.

Faulty SRS unit; replace the SRS unit (see

page 23-384).

Go to step 22.

Wire side of female terminals

Is the voltage as specif ied?

03/07/29 10:38:01 61S0X050_230_0228

*02

06

YES

NO

23-229

C851

A

RED/BLU

RED/WHT

SRS MAIN HARNESS 28P CONNECTOR

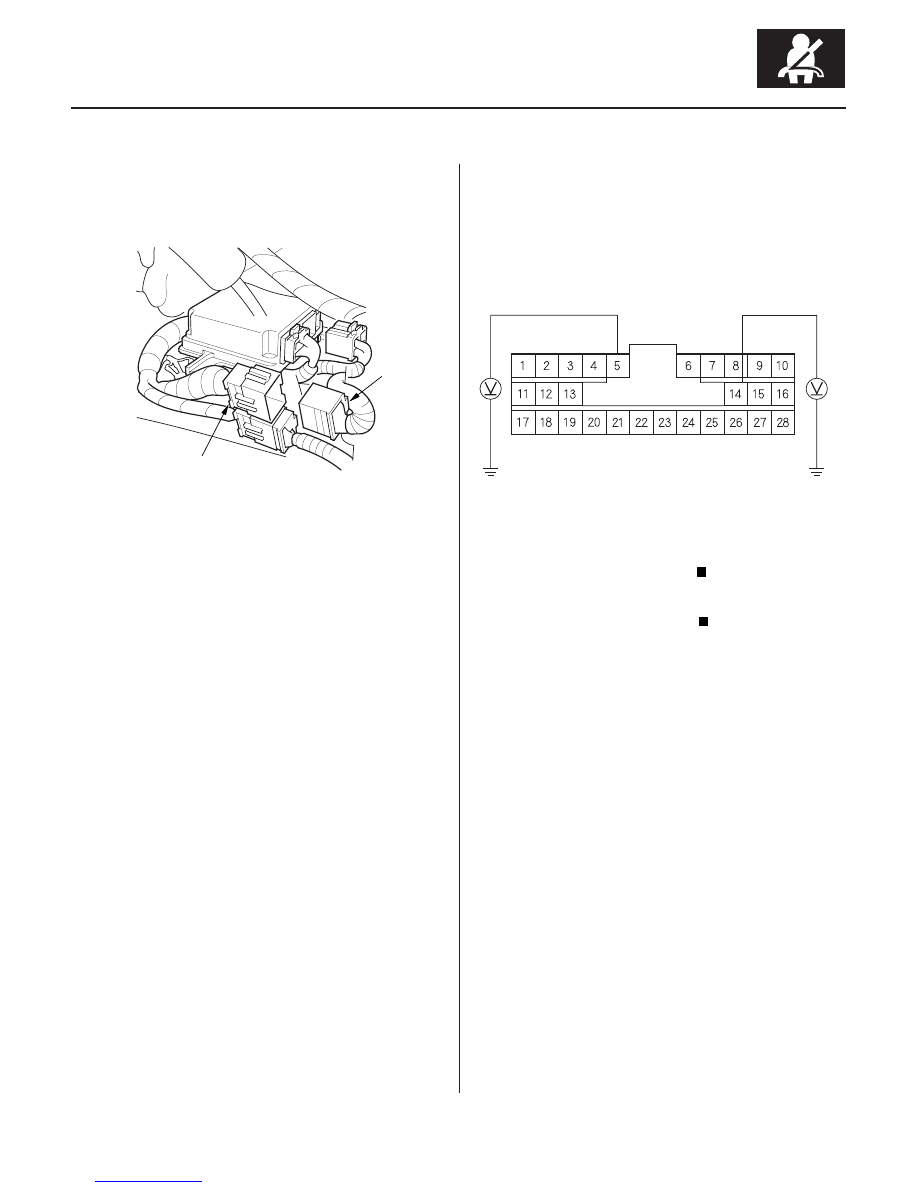

22. Turn the ignition switch OFF.

23. Disconnect SRS floor harness 28P connector (A)

from the SRS main harness connector C851.

24. Turn the ignition switch ON (II).

25. Check for voltage between the No. 5 terminal of the

SRS main harness 28P connector and body ground,
and between the No. 14 terminal and body ground.
There should be 0.5 V or less.

Short to power in the SRS floor harness;

replace the SRS floor harness.

Short to power in the SRS main harness;

replace the SRS main harness.

Wire side of female terminals

Is the voltage as specif ied?

03/07/29 10:38:01 61S0X050_230_0229
