DTC Troubleshooting (cont’d)

OPDS UNIT HARNESS CONNECTOR D (8P)

GRN

GAUGE ASSEMBLY CONNECTOR A (14P)

19. Turn the ignition switch OFF.

20. Disconnect the right side wire harness 4P

connector (A) from the OPDS unit harness 4P
connector (B).

21. Turn the ignition switch ON (II).

22. Check for voltage between the No. 3 terminal of the

OPDS unit harness connector D (8P) and body
ground. There should be 0.5 V or less.

Short to power in the right side wire harness

or dashboard wire harness; replace the faulty
harness.

Short to power in the OPDS unit harness;

replace the OPDS unit harness.

23. Turn the ignition switch OFF.

24. Backprobe the No. 4 terminal of gauge assembly

connector A (14P). Do not disconnect gauge
assembly connector A (14P) from the gauge
assembly (see page 22-100).

25. Turn the ignition switch ON (II).

26. Check for voltage between the No. 4 terminal of

gauge assembly connector A (14P) and body
ground. There should be battery voltage.

Go to step 27.

Go to step 31.

27. Turn the ignition switch OFF.

28. Disconnect the right side wire harness 4P

connector (A) from the OPDS unit harness 4P
connector (B).

Wire side of female terminals

Is the voltage as specif ied?

Is ther e batter y voltage?

03/07/29 10:36:37 61S0X050_230_0198

−

＊０２

０３

０４

YES

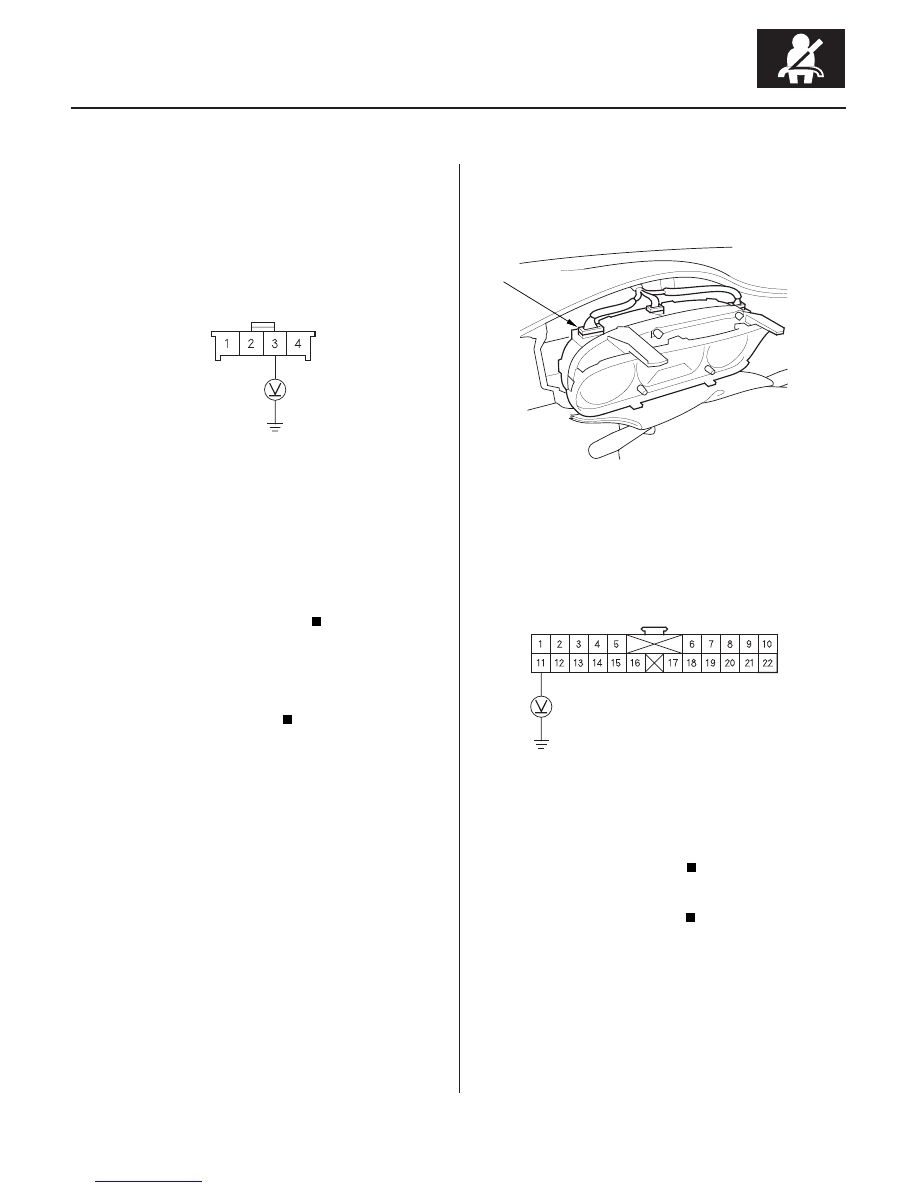

23-199

RIGHT SIDE WIRE HARNESS 4P CONNECTOR C861

GAUGE ASSEMBLY CONNECTOR B (22P)

29. Turn the ignition switch ON (II).

30. Check for voltage between the No. 3 terminal of the

right side wire harness 4P connector C861 and
body ground. There should be battery voltage.

Poor contact at the right side wire harness 4P

and OPDS unit harness 4P connectors or an open in
the OPDS unit harness. Check the connection
between the right side wire harness and OPDS unit
harness 4P connectors; if the connection is OK,
replace the OPDS unit harness.

Poor contact at gauge assembly connector

A (14P) or an open in the dashboard wire harness
or right side wire harness. Check gauge assembly
connector A (14P); if the connections are OK,
replace the faulty harness.

31. Turn the ignition switch OFF.

32. Disconnect gauge assembly connector B (22P) from

the gauge assembly.

33. Turn the ignition switch ON (II).

34. Check for voltage between the No. 11 terminal of

gauge assembly connector B (22P) and body
ground. There should be battery voltage.

Faulty side airbag cutoff indicator circuit;

replace the gauge assembly.

Open in the dashboard wire harness; replace

the dashboard wire harness.

(cont’d)

Wire side of female terminals

Is ther e batter y voltage?

03/07/29 10:36:37 61S0X050_230_0199

−

＊０３

０５

０６

YES

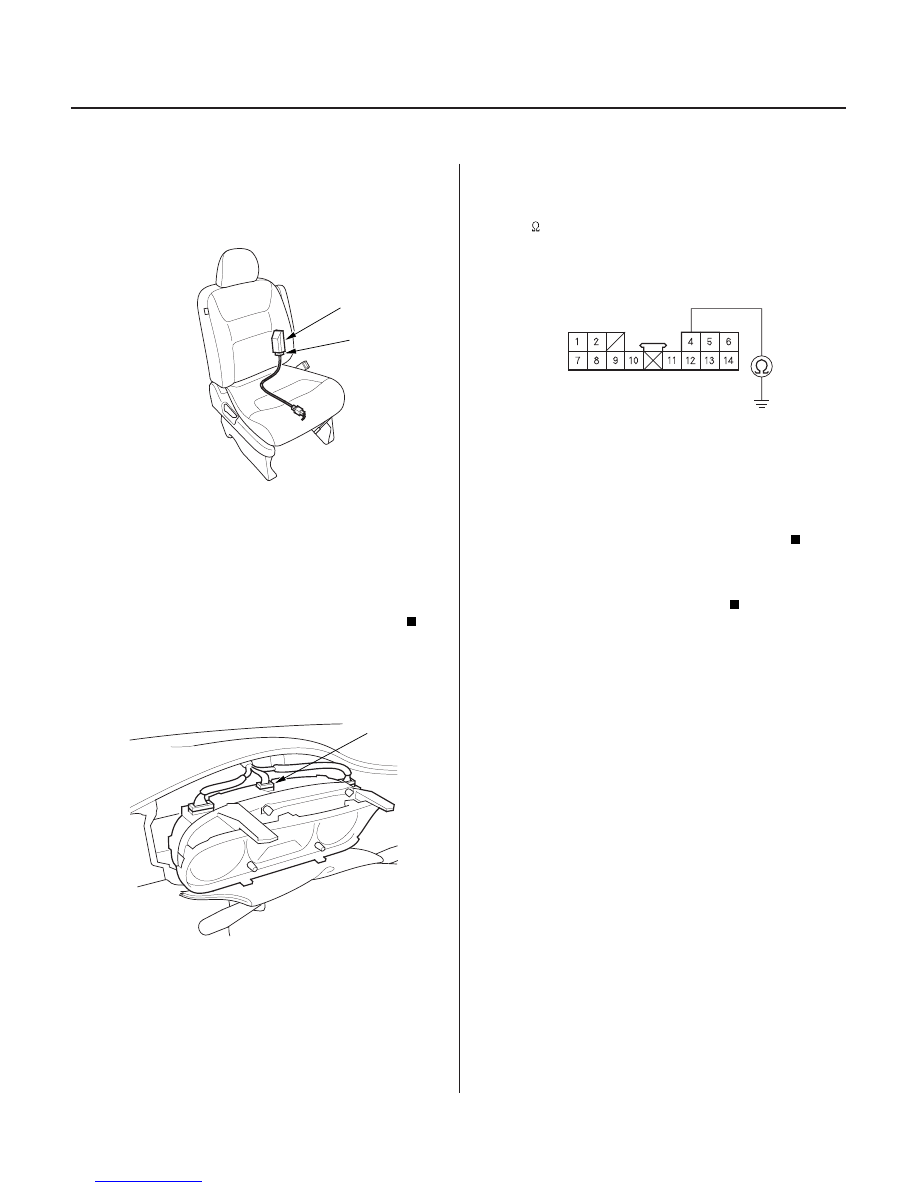

23-200

SRS

DTC Troubleshooting (cont’d)

GRN

GAUGE ASSEMBLY CONNECTOR A (14P)

35. Turn the ignition switch OFF.

36. Disconnect OPDS unit harness connector D (8P)

from the OPDS unit (A).

37. Turn the ignition switch ON (II).

Go to step 38.

Faulty OPDS unit; replace the OPDS unit.

38. Turn the ignition switch OFF.

39. Disconnect gauge assembly connector A (14P)

from the gauge assembly (see page 22-100).

40. Check resistance between the No. 4 terminal of

gauge assembly connector A (14P) and body
ground. There should an open circuit, or at least
1 M

Short to ground in the side airbag cutoff

indicator circuit; replace the gauge assembly.

Short to ground in the dashboard wire

harness A, right side wire harness or OPDS unit
harness; replace the faulty harness.

Wire side of female terminals

Does the side air bag cutof f indicator come on?

Is the r esistance as specif ied?

03/07/29 10:36:38 61S0X050_230_0200

−

Ｓ０Ｘ４ＡＣ５Ｋ７９１０００８１１５３ＦＡＡＴ００

’02 Model

DTC 15-3:

YES

23-201

Faulty OPDS Sensor

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

NOTE: Aftermarket devices (fluorescent lights,
laptop computers, etc.) used near the front
passenger’s seat-back can interfere with the seat-
back sensors and cause a false DTC 15-3. If one of
these devices was used, erase the DTC, operate the
device near the seat-back, and recheck for DTCs. If
DTC 15-3 is reset, erase it, and do not use the
device near the seat-back.

3. Check the connection at the OPDS sensor harness

connector and the OPDS unit connector.

Go to step 4.

Reconnect the OPDS sensor harness

connector, and clear the DTC.

4. Replace the OPDS sensor/seat back foam (see page

20-102), and reinitialize the OPDS (see page 23-40).

5. Erase the DTC memory, then check for DTC 15-3.

Go to step 6.

The system is OK.

6. Replace the OPDS unit (see page 23-387), and

reinitialize the OPDS.

7. Erase the DTC memory, then check for DTC 15-3.

Replace the SRS unit (see page 23-382).

The system is OK.

Does the SRS indicator stay on?

Ar e the connections OK ?

Is DT C 15-3 indicated?
