Honda Odyssey 2004. Manual - part 545

−

０１

＊０１

Ｓ０Ｘ４ＡＺ３Ｋ７９１０００８１０３３ＦＡＡＴ００

’02 Model

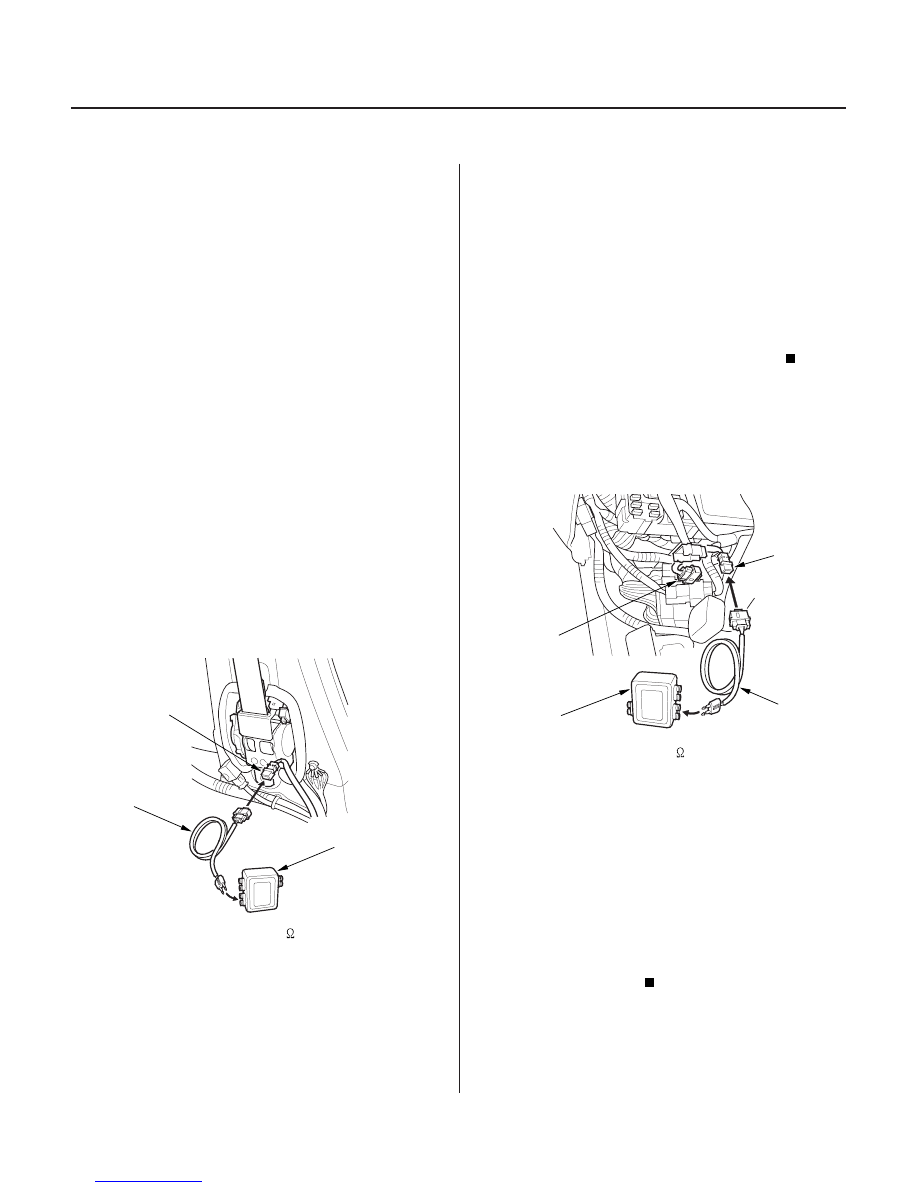

DTC 3-3:

Special Tools Required

YES

23-122

SRS

DTC Troubleshooting (cont’d)

07TAZ-SZ5011A

07SAZ-TB4011A

C551

07TAZ-
SZ5011A

07SAZ-TB4011A

Short to Another Wire or Decreased

Resistance in Driver’s Seat Belt Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s seat belt tensioner 2P

connector from the left side wire harness 2P
connector (A).

5. Connect the special tool (2

connector) to the left

side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short in the driver’s seat belt tensioner;

replace the driver’s seat belt (see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main harness 2P connector

C551 from the left side wire harness 2P connector
(A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short in the left side wire harness; replace the

left side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

Does the SRS indicator stay on?

Is DT C 3-3 indicated?

03/07/29 10:34:40 61S0X050_230_0122

−

０３

０４

０５

YES

23-123

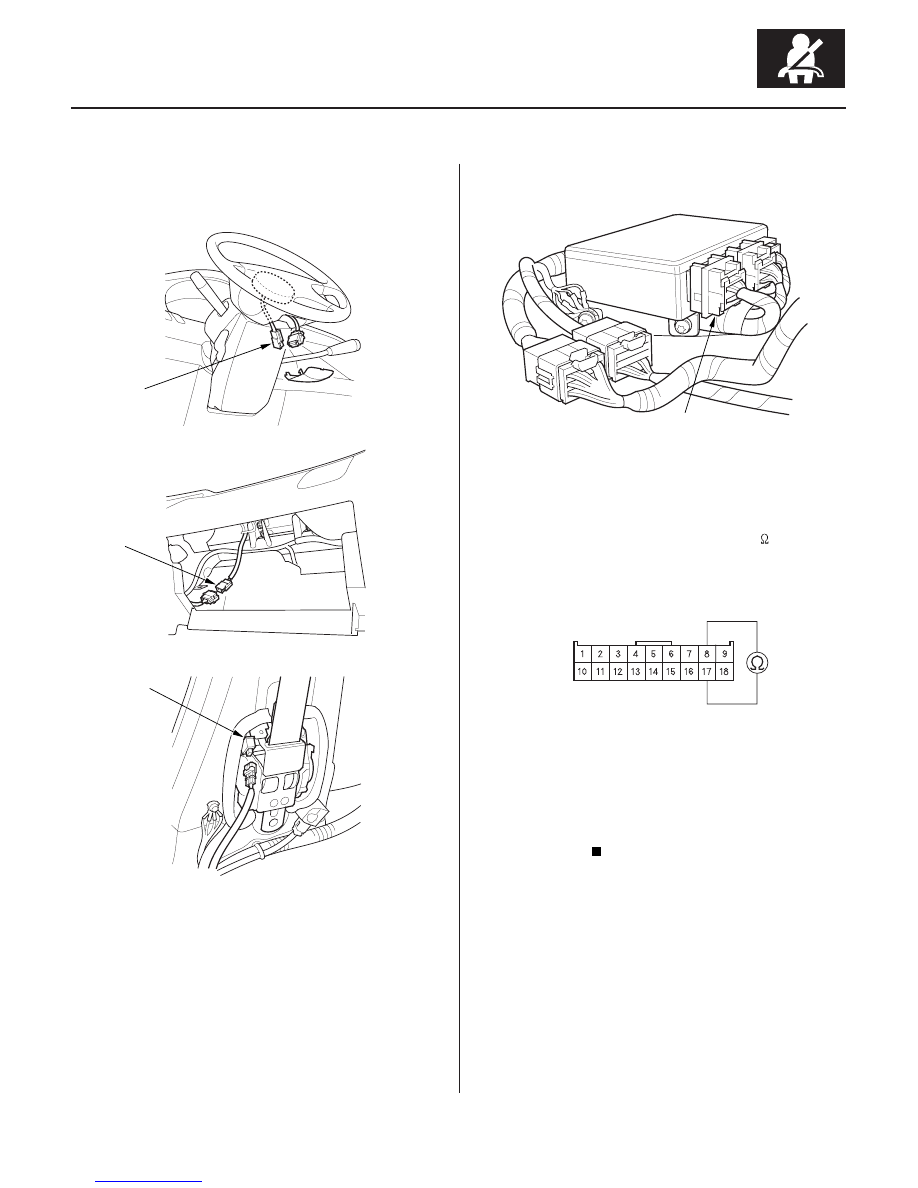

SRS UNIT CONNECTOR A (18P)

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and front
passenger’s seat belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the special tool from the SRS main

harness 2P connector.

19. Check resistance between the No. 8 and the No. 17

terminals of the SRS unit connector A (18P). There
should be an open circuit, or at least 1 M

Faulty SRS unit; replace the SRS unit (see

page 23-382).

Go to step 20.

(cont’d)

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:41 61S0X050_230_0123

−

＊０２

０７

YES

23-124

SRS

DTC Troubleshooting (cont’d)

C851

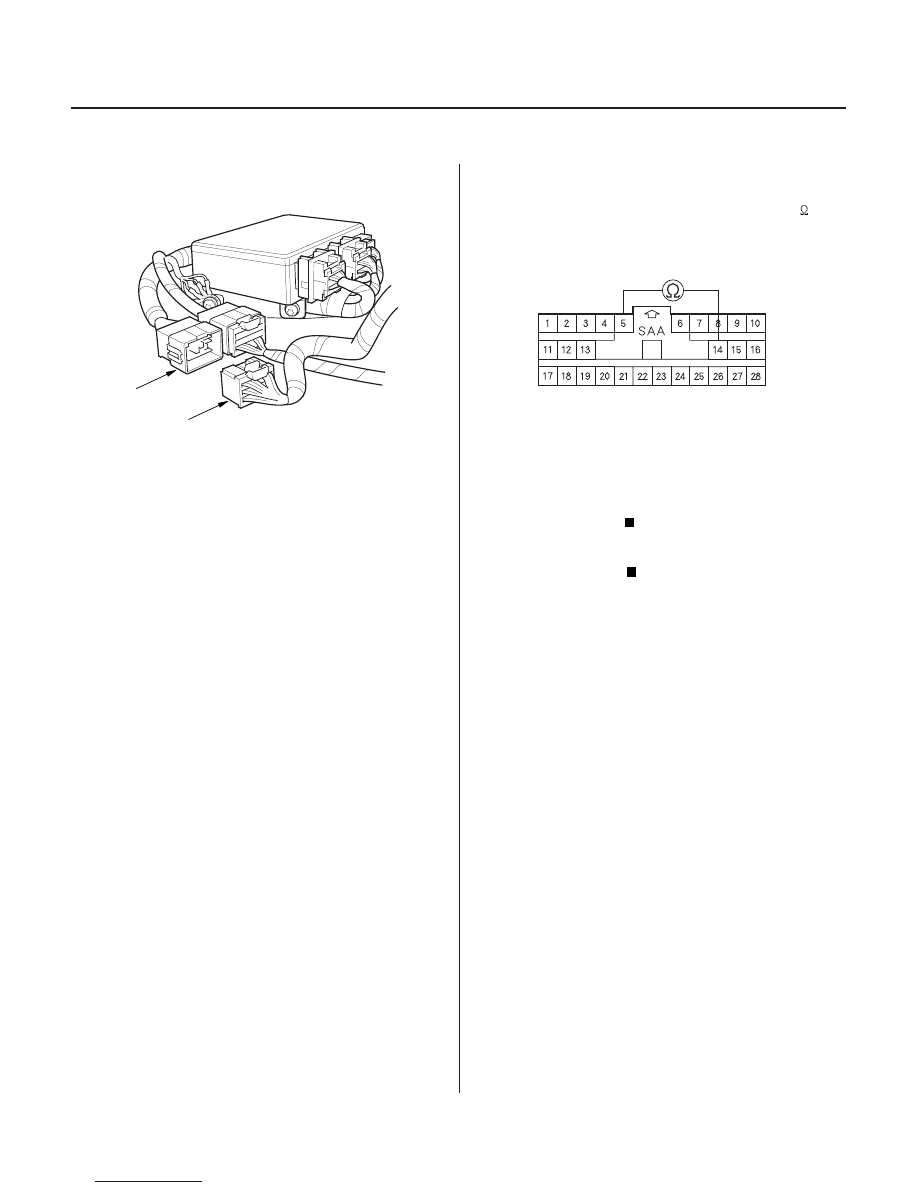

SRS MAIN HARNESS 28P CONNECTOR

20. Disconnect the SRS main harness 28P connector

(A) from the SRS floor harness 28P connector C851.

21. Check resistance between the No. 5 and the No. 14

terminals of the SRS main harness 28P connector.
There should be an open circuit, or at least 1 M

Short in the SRS floor harness; replace the

SRS floor harness.

Short in the SRS main harness; replace the

SRS main harness.

Wire side of female terminals

Is the r esistance as specif ied?

03/07/29 10:34:41 61S0X050_230_0124

−

０１

＊０１

Ｓ０Ｘ４ＡＺ３Ｋ７９１０００８１０３４ＦＡＡＴ００

’02 Model

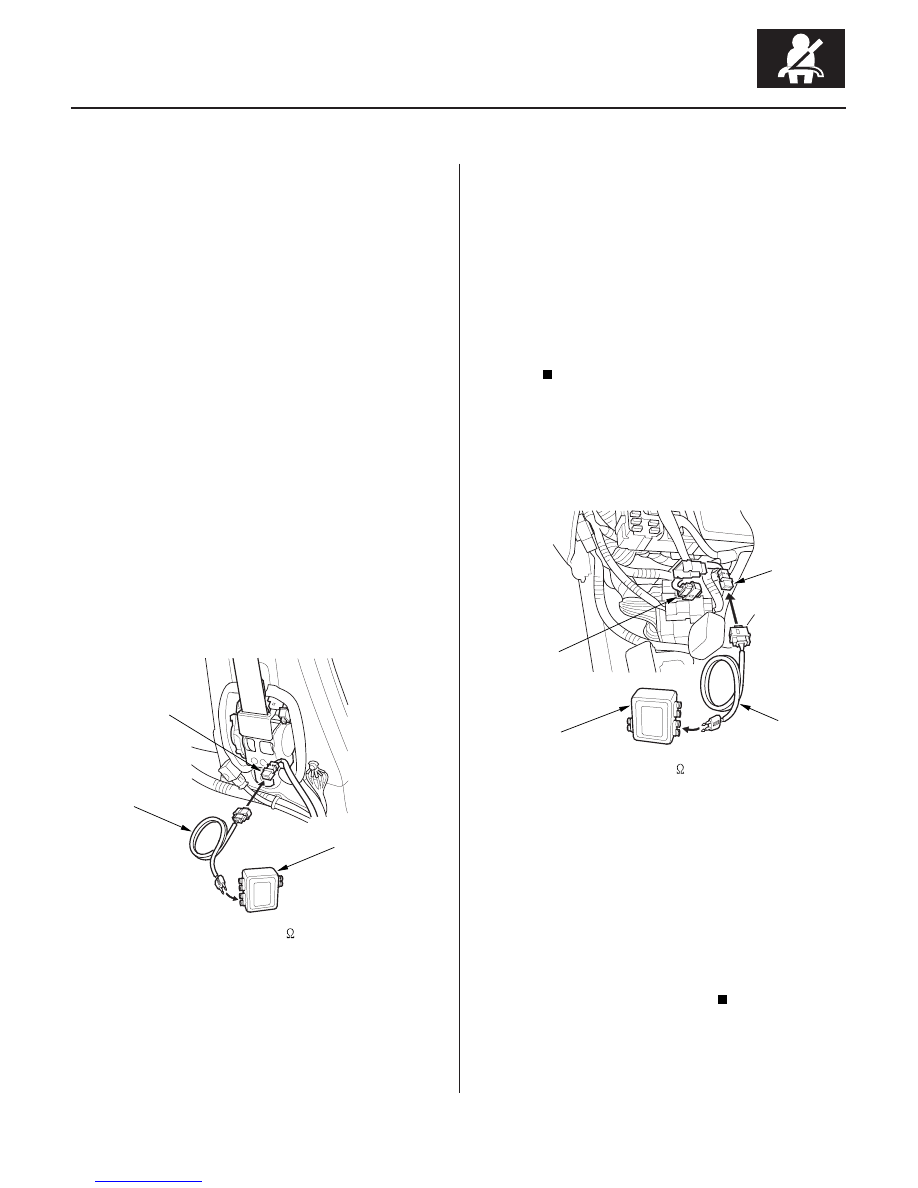

DTC 3-4:

Special Tools Required

YES

23-125

07TAZ-SZ5011A

07SAZ-TB4011A

C551

07TAZ-
SZ5011A

07SAZ-TB4011A

Short to Power in Driver’s Seat Belt

Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A

1. Erase the DTC memory (see page 23-38).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures (see
page 23-39).

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the driver’s seat belt tensioner 2P

connector from the left side wire harness 2P
connector (A).

5. Connect the special tool (2

connector) to the left

side wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC (see page 23-35).

Go to step 9.

Short to power in the driver’s seat belt

tensioner; replace the driver’s seat belt (see page
23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the SRS main harness 2P connector

C551 from the left side wire harness 2P connector
(A).

11. Connect the special tool (2

connector) to the SRS

main harness 2P connector.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short to power in the left side wire harness;

replace the left side wire harness.

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

(cont’d)

Does the SRS indicator stay on?

Is DT C 3-4 indicated?

03/07/29 10:34:42 61S0X050_230_0125
