Audio Unit Connector Inputs and Outputs (cont’d)

Cavity

Wire

Connect to

Cavity

Wire

Connect to

Cavity

Wire

Connect to

Cavity

Wire

Connect to

22-336

Rear Entertainment System (DVD)

System Description (cont’d)

B1

YEL

Rear controller and screen
(L ch2)

B9

BLU

Rear controller and screen
(audio 2 ground)

B2

GRN

Rear controller and screen
(R ch2)

B10

BRN/WHT

Rear controller and screen
(audio 2 shielding)

B3

Not used

B11

Not used

B4

BLU/GRN

Rear controller and screen
(video 2)

B12

ORN/BLU

Rear controller and screen
(video 2 ground)

B5

Not used

B13

BRN/WHT

Rear controller and screen
(video 2 shielding)

B6

Not used

B14

Not used

B7

ORN

Rear controller and screen
(BUS data input)

B15

ORN/BLU

Rear controller and screen
(BUS data output)

B8

BLU/GRN

Rear controller and screen
(BUS ground)

B16

BRN

Rear controller and screen
(BUS shielding)

C1

ORN

DVD player unit (L ch1)

C12

ORN/BLU

DVD player unit (R ch1)

C2

BLU/GRN

DVD player unit (audio 1
ground)

C13

BRN

DVD player unit
(audio 1 shielding)

C3

YEL

DVD player unit (serial data
input)

C14

GRN

DVD player unit
(serial data ground)

C4

BLU

DVD player unit (serial ground)

C15

BRN/WHT

DVD player unit (serial shielding)

C5

Not used

C16

Not used

C6

BLU

DVD player unit (video 1)

C17

RED

DVD player unit (video 1 ground)

C7

BRN

Auxiliary jack assembly (audio
shielding)

C18

BRN/BLK

DVD player unit
(video 1 shielding)

C8

ORN

Auxiliary jack assembly (L ch)

C19

BLU/GRN

Auxiliary jack assembly
(audio ground)

C9

ORN/BLU

Auxiliary jack assembly (R ch)

C20

Not used

C10

YEL/RED

Dash lights for DVD player unit,
rear controller and screen and
auxiliary jack assembly

C21

Not used

C11

Not used

C22

Not used

03/07/29 10:27:39 61S0X050_220_0338

―――

―――

―――

―――

―――

―――

―――

01

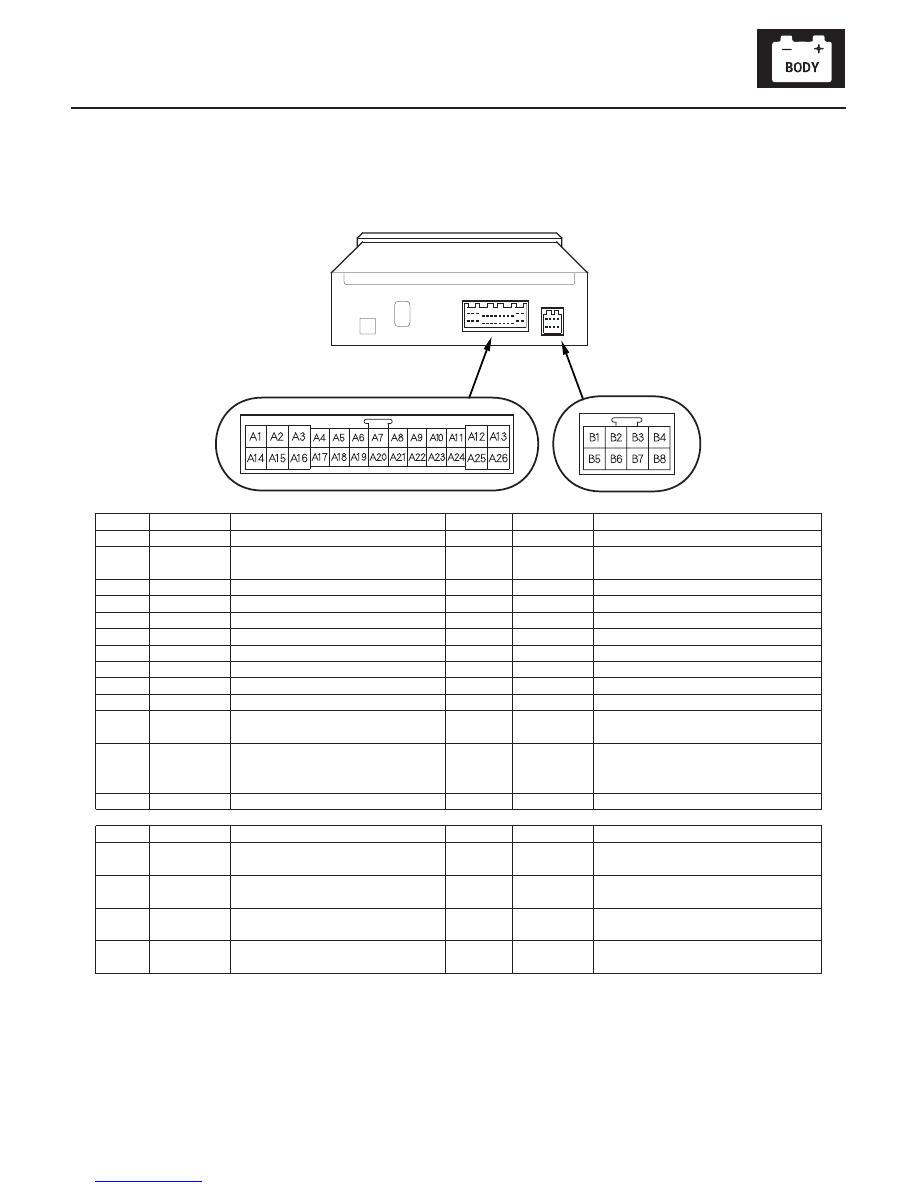

DVD Player Unit Connector Inputs and Outputs

Cavity

Wire

Connect to

Cavity

Wire

Connect to

Cavity

Wire

Connect to

Cavity

Wire

Connect to

22-337

When replacing a DVD player unit connector, match the wires to the cavities listed in the following table.

A1

WHT/BLU

Constant power

A14

BLK

Ground (G502)

A2

WHT/RED

ACC (Main stereo power
supply)

A15

Not used

A3

Not used

A16

Not used

A4

ORN

Audio unit (L ch1)

A17

BLU/GRN

Audio unit (audio 1 ground)

A5

ORN/BLU

Audio unit (R ch1)

A18

BRN

Audio unit (audio 1 shielding)

A6

YEL

Audio unit (serial data input)

A19

GRN

Audio unit (serial data output)

A7

BLU

Audio unit (serial ground)

A20

BRN/WHT

Audio unit (serial shielding)

A8

Not used

A21

Not used

A9

BLU

Audio unit (video 1)

A22

RED

Audio unit (video 1 ground)

A10

Not used

A23

BRN/BLK

Audio unit (video 1 shielding)

A11

BLU

Audio unit (security input)

A24

GRN

Rear controller and screen
(security input)

A12

YEL/RED

Dash lights for audio unit, rear
controller and screen and
auxiliary jack assembly

A25

Not used

A13

RED/BLK

Lights-on signal

A26

RED

Dash lights brightness controller

B1

YEL

Auxiliary jack assembly (L ch3)

B5

BLU

Auxiliary jack assembly (audio 3
ground)

B2

GRN

Auxiliary jack assembly (R ch3)

B6

BRN/WHT

Auxiliary jack assembly (audio 3
shielding)

B3

BLU

Auxiliary jack assembly
(video 3)

B7

RED

Auxiliary jack assembly (video 3
ground)

B4

WHT/GRN

Auxiliary jack assembly
(communication line check)

B8

BRN/BLK

Auxiliary jack assembly (video 3
shielding)

(cont’d)

03/07/29 10:27:39 61S0X050_220_0339

―――

―――

―――

―――

―――

―――

01

*07

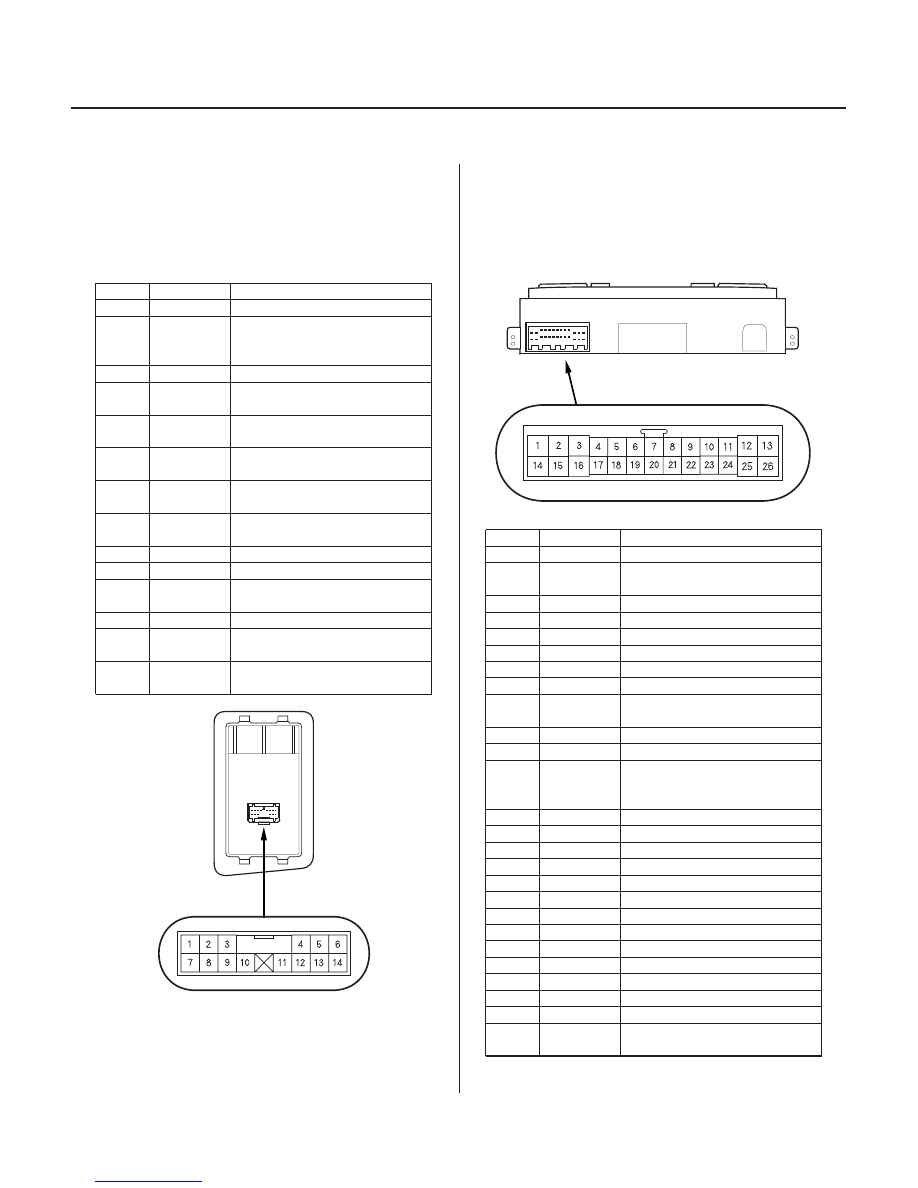

Auxiliary Jack Assembly Connector Inputs
and Outputs

Rear Controller and Screen Connector Inputs
and Outputs

Cavity

Wire

Connect to

Cavity

Wire

Connect to

22-338

Rear Entertainment System (DVD)

System Description (cont’d)

When replacing an auxiliary jack assembly connector,
match the wires to the cavities listed in the following
table.

1

BLK

Ground (G552)

2

WHT/RED

Dash lights for audio unit,
DVD player unit and rear
controller and screen

3

BRN

Audio unit (audio shielding)

4

BRN/BLK

DVD player unit
(video 3 shielding)

5

BRN/WHT

DVD player unit
(audio 3 shielding)

6

WHT/GRN

DVD player unit
(communication line check)

7

BLU/GRN

Audio unit
(headphone audio ground)

8

RED

DVD player unit
(video 3 ground)

9

BLU

DVD player unit (video 3)

10

YEL

DVD player unit (L ch3)

11

BLU

DVD player unit
(audio 3 ground)

12

GRN

DVD player unit (R ch3)

13

ORN

Audio unit
(headphone L ch output)

14

ORN/BLU

Audio unit
(headphone R ch output)

When replacing a rear controller and screen connector,
match the wires to the cavities listed in the following
table.

1

WHT/BLU

Constant power

2

WHT/RED

ACC (main stereo power
supply)

3

Not used

4

YEL

Audio unit (L ch)

5

GRN

Audio unit (R ch)

6

Not used

7

BLU

Audio unit (video)

8

Not used

9

GRN

DVD player unit (security
output)

10

ORN

Audio unit (BUS data input)

11

BLU/GRN

Audio unit (BUS ground)

12

YEL/RED

Dash lights for audio unit,
DVD player unit and auxiliary
jack assembly

13

RED/BLK

Lights-on signal

14

BLK

Ground (G552)

15

BLK

Ground (G552)

16

Not used

17

BLU

Audio unit (audio ground)

18

BRN/WHT

Audio unit (audio shielding)

19

Not used

20

RED

Audio unit (video ground)

21

BRN/BLK

Audio unit (video shielding)

22

BLU

Security input

23

ORN/BLU

Audio unit (BUS data output)

24

BRN

Audio unit (BUS shielding)

25

Not used

26

RED

Dash lights brightness
controller

03/07/29 10:27:40 61S0X050_220_0340

01

*01

*02

*03

S0X4A84K70300000000BBAT50

22-339

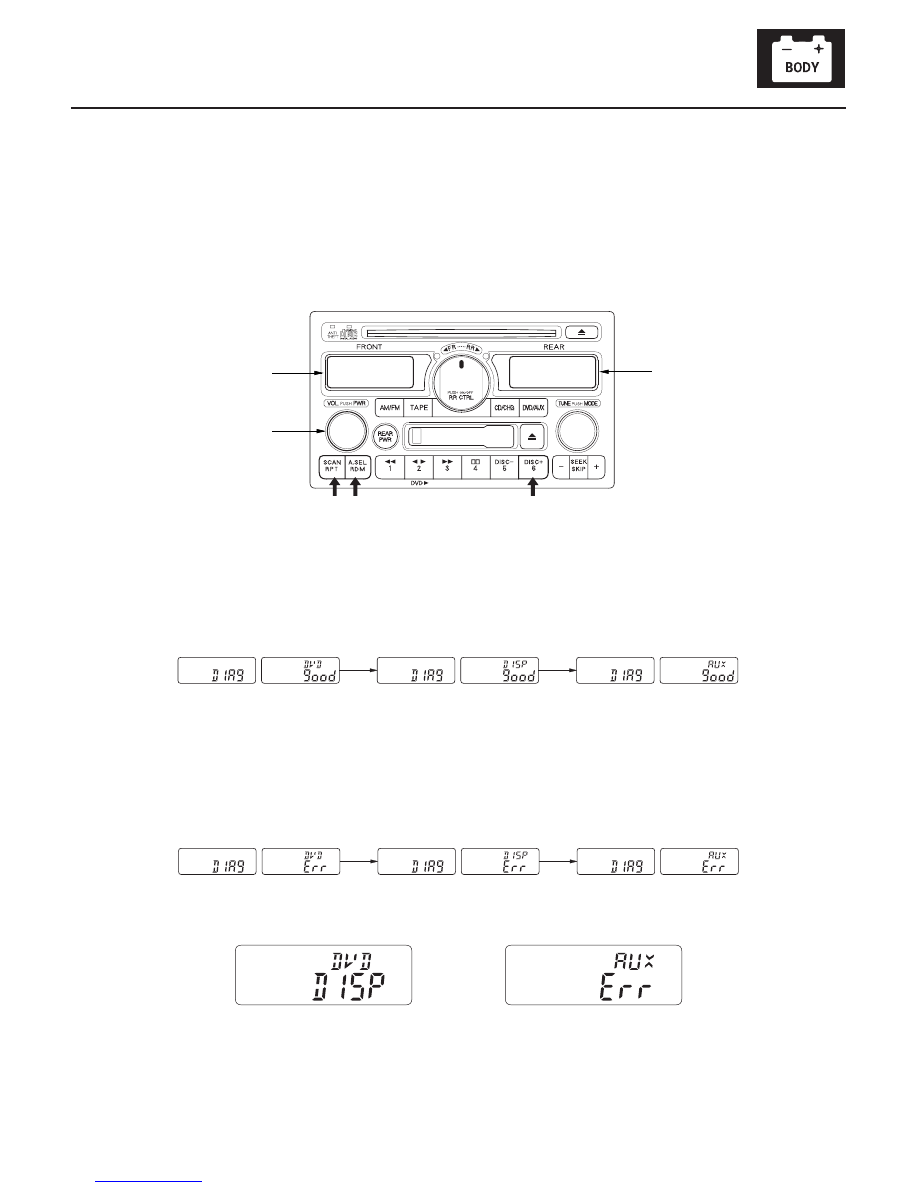

Self-diagnosis Procedure

A

B

C

3 sec

FRONT

REAR

3 sec

FRONT

REAR

FRONT

REAR

Normal:

3 sec

FRONT

REAR

3 sec

FRONT

REAR

FRONT

REAR

Faulty:

FRONT

REAR

The rear entertainment system has a self-diagnosis test. To run the self-diagnosis test, do the following:

1. Turn the ignition switch to the ACC (I) or ON (II) position.

2. Pushing the ‘‘VOL push PWR’’ knob (A).

3. To run the self-diagnosis test, simultaneously push and hold the buttons ‘‘DISC

6’’, ‘‘SCAN’’ and ‘‘A.SEL’’ for

more than 2 seconds.

4. Release the buttons when a diagnosis message (DIAG) shows in the ‘‘FRONT’’ display (B) and diagnosis indiction

shows in the ‘‘REAR’’ display (C) of the audio unit. It changes every 3 seconds for the DVD player unit (DVD), the
rear controller and screen (DISP), and auxiliary (AUX).

5. When there is no problem found, the system returns to normal operation automatically followed by a single

audiable deep.

6. When a problem is detected, the system will display which component has the error followed by three audiable

beeps.

• The error (Err) message will appear in the ‘‘REAR’’ display.
• If the DVD player or the rear controller and screen (DISP) has a malfunction, an indication will appear in the

‘‘FRONT’’ display.

• If the auxiliary (AUX) assembly has a malfunction, an indication will appear in the ‘‘REAR’’ display.

7. After the three beeps, the system will hold the displayed error as shown depending on which component has the

malfunction.

8. Turn the ignition switch OFF or push the ‘‘VOL push PWR’’ button to cancel the self-diagnosis function.
