Accessory Power Sockets

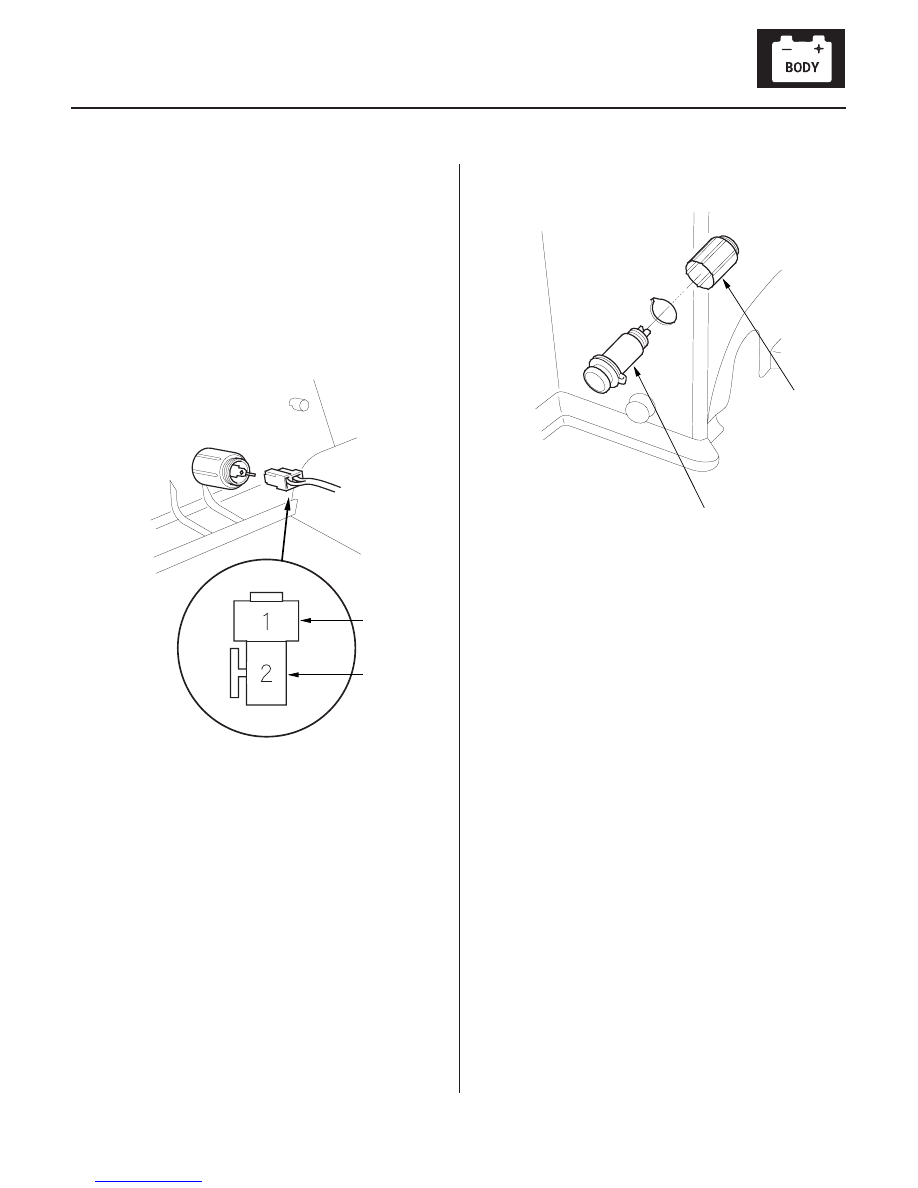

Front Accessory Power Socket Test/Replacement

BLK

WHT/RED

B

A

1. Remove the center pocket (see page 20-67).

2. Disconnect the 2P connector.

3. Inspect the connector terminals to be sure they are

all making good contact.

• If the terminals are bent, loose or corroded,

repair them as necessary, and recheck the
system.

• If the terminals look OK, go to step 4.

4. Turn the ignition switch to ACC (I).

5. Check for voltage between the No. 1 and No. 2

terminals.

• There should be battery voltage.
• If there is no battery voltage, check for:

– blown No. 8 (7.5A) fuse in the driver’s under-

dash fuse/relay box.

– faulty accessory power socket relay.
– poor ground (G 501, G581).
– an open in the wire.
– blown No. 9 (15A) in the passenger’s under-

dash fuse/relay box.

6. Remove the housing (A) and socket (B).

Wire side of
female terminals

03/07/29 10:22:37 61S0X050_220_0166

11

12

S0X4A00J54211512403FHAT10

22-165

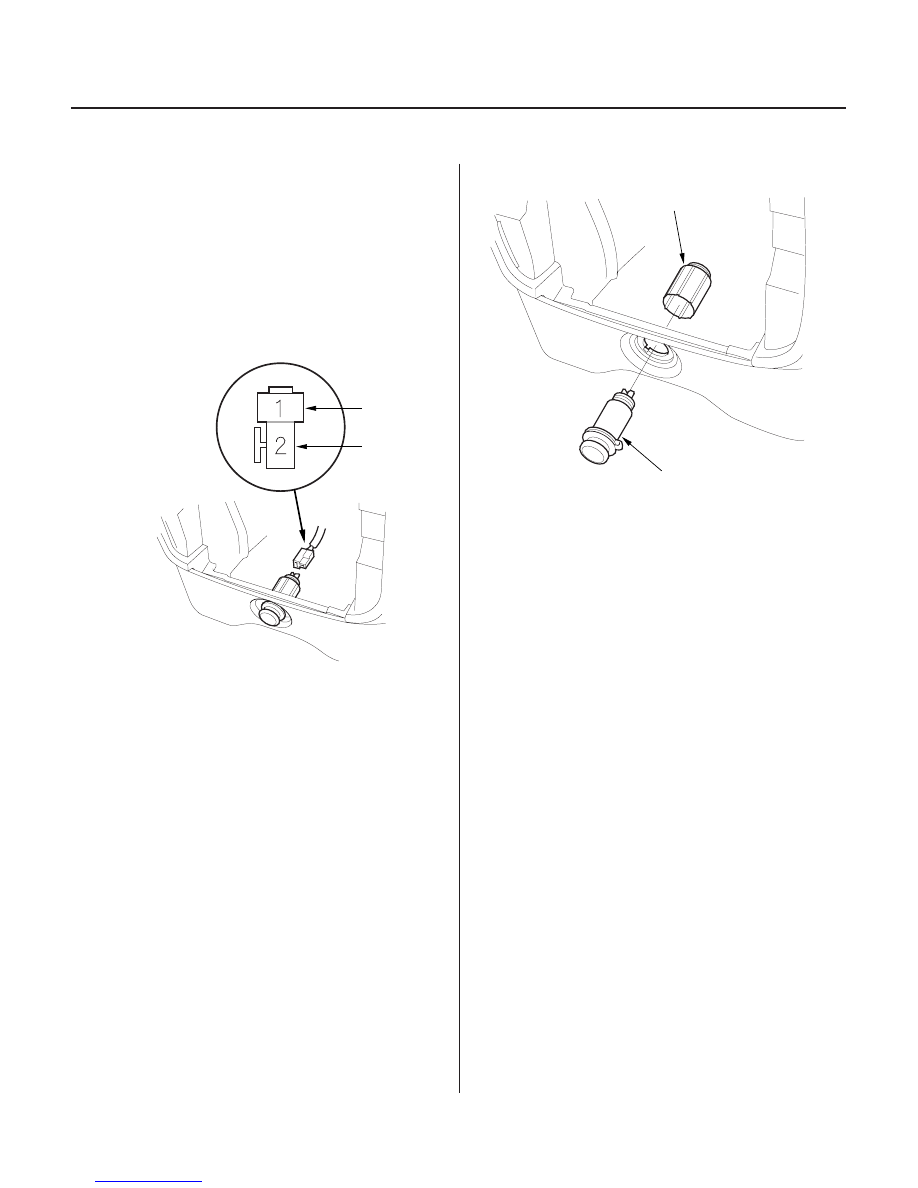

Rear Accessory Power Socket Test/Replacement

BLK

WHT/RED

B

A

1. Remove the left rear side trim panel (see page 20-

60).

2. Disconnect the 2P connector.

3. Inspect the connector terminals to be sure they are

all making good contact.

• If the terminals are bent, loose or corroded,

repair them as necessary, and recheck the
system.

• If the terminals look OK, go to step 4.

4. Turn the ignition switch to ACC (I).

5. Check for voltage between the No. 1 and No. 2

terminals.

• There should be battery voltage.
• If there is no battery voltage, check for:

– blown No. 8 (7.5A) fuse in the driver’s under-

dash fuse/relay box.

– faulty accessory power socket relay.
– poor ground (G 552, G581).
– an open in the wire.
– blown No.9 (15A) in the passenger’s under-

dash fuse/relay box.

6. Remove the housing (A) and socket (B).

Wire side of female terminals

03/07/29 10:22:37 61S0X050_220_0167

*01

S0X4A00G24166100000DAAT00

22-166

Rear Window Defogger

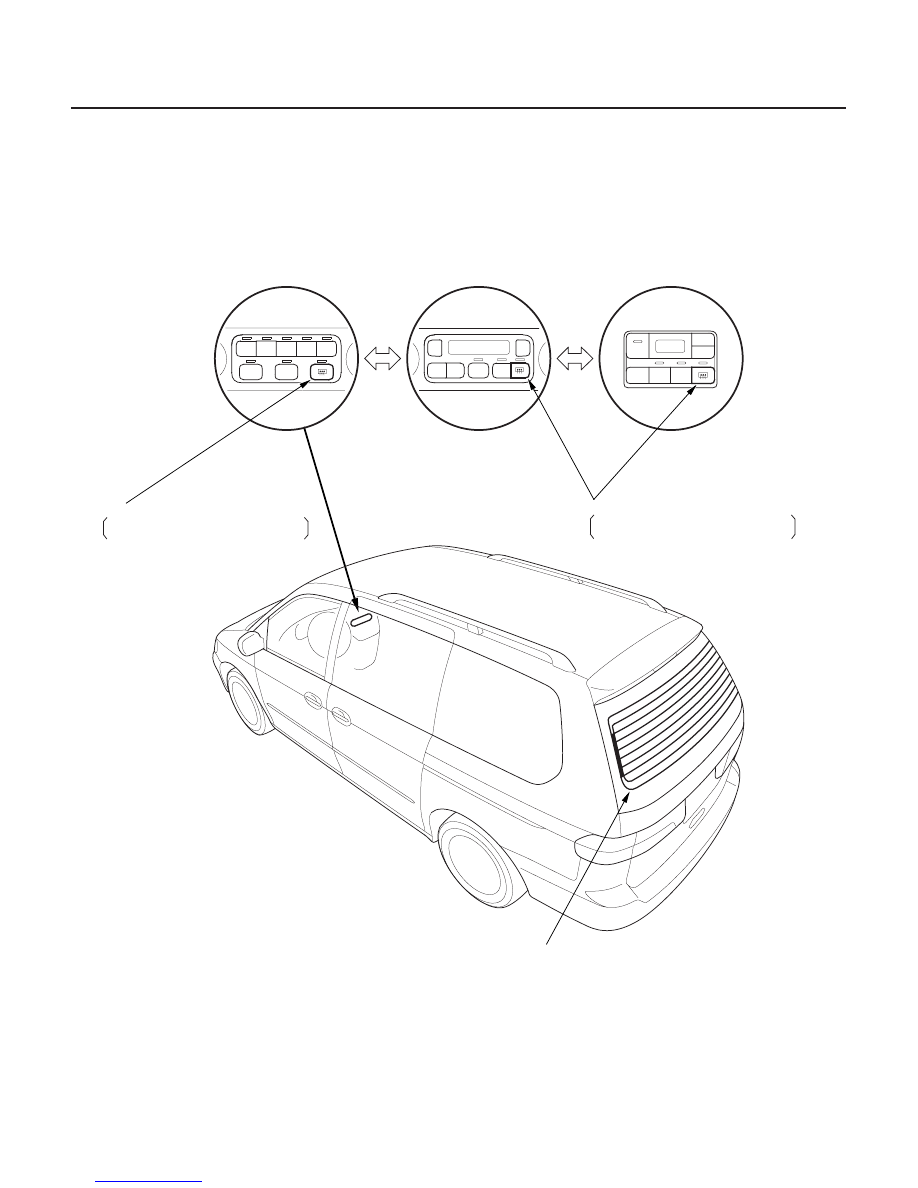

Component Location Index

REAR WINDOW DEFOGGER

HEATER CONTROL PANEL

REAR WINDOW DEFOGGER SWITCH

CLIMATE CONTROL UNIT

CLIMATE CONTROL UNIT

REAR WINDOW DEFOGGER SWITCH

Function Test, page 22-168
Defogger Wire Repair, page 22-168

The switch is built into the climate
control unit.

(Without Navigation System)

(With Navigation System)

The switch is built into the heater
control panel.

03/07/29 10:22:38 61S0X050_220_0168

*01

S0X4A00G24166100000EAAT00

22-167

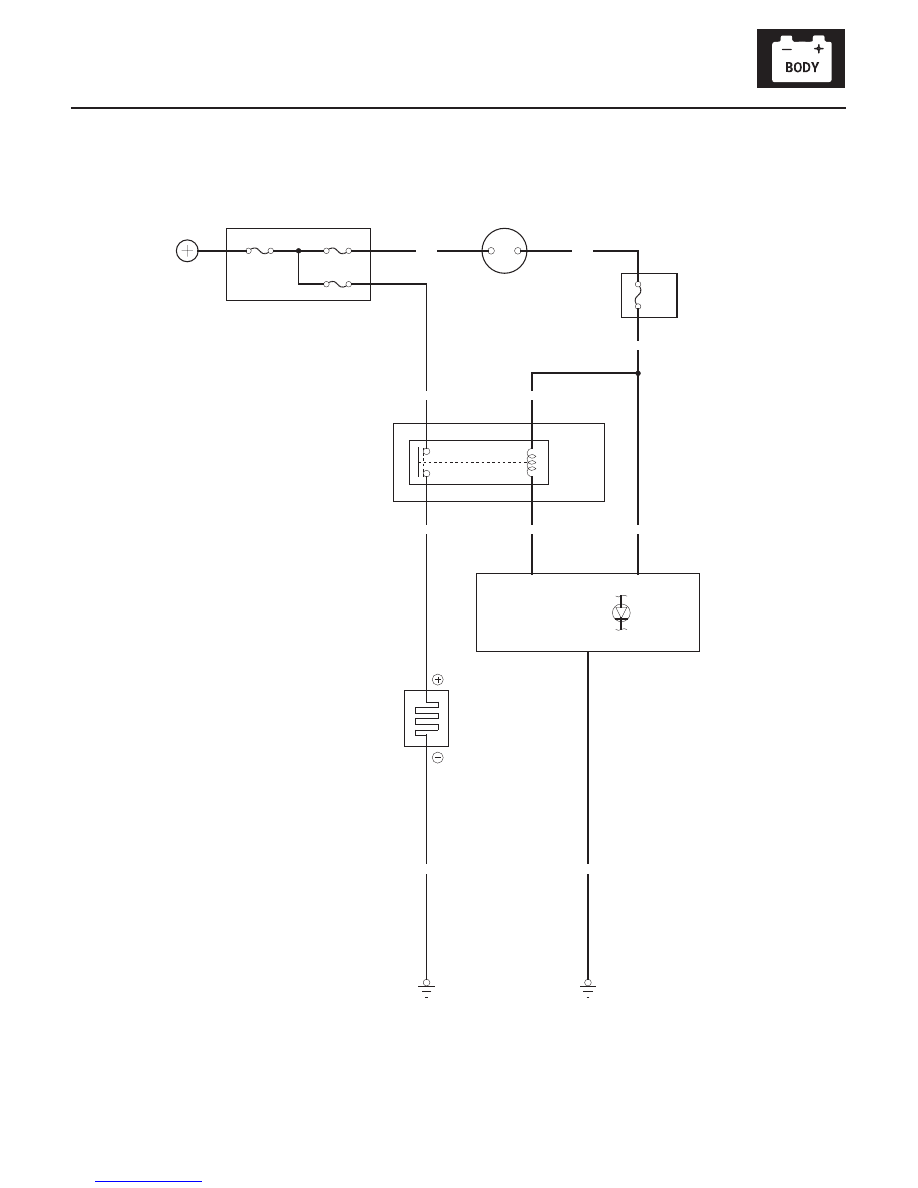

Circuit Diagram

*3 : Heater control panel

*2 : Climate control unit without navigation system

: 15

*1
*2 : 8

: 9

*3

*3 : 2

: 1

*2

*1 : 13

: 10

*1
*2 : 7

: 4

: Climate control unit with navigation system

*1

BLK

G552

*3

YEL

(7.5A)

No.3

BLK/YEL

BLK/YEL

G401

BLK

BLK/YEL

BRN/YEL

BLK/GRN

IG2

No.53 (30A)

BATTERY

No.41 (120A)

No.42 (50A)

UNDER HOOD FUSE / RELAY BOX

WHT

BAT

IGNITION SWITCH

WHT/GRN

DRIVER’S
UNDER DASH
FUSE/RELAY BOX

REAR
WINDOW
DEFOGGER
RELAY

PASSENGER’S
UNDER DASH
FUSE/RELAY BOX

CLIMATE CONTROL UNIT or
HEATER CONTROL PANEL
(Rear window defogger
switch and defogger
timer circuit built into
climate control unit or
heater control panel.)

REAR WINDOW
DEFOGGER
SWITCH
INDICATOR
(LED)

REAR
WINDOW
DEFOGGER

03/07/29 10:22:39 61S0X050_220_0169
