02

01

YES

NO

YES

NO

21-84

Climate Control

DTC Troubleshooting (cont’d)

CLIMATE CONTROL UNIT CONNECTOR B (26P)

OUTSIDE AIR TEMPERATURE SENSOR 2P CONNECTOR

BRN/WHT

BRN/WHT

CLIMATE CONTROL UNIT CONNECTOR B (26P)

OUTSIDE AIR TEMPERATURE SENSOR 2P CONNECTOR

YEL/GRN

YEL/GRN

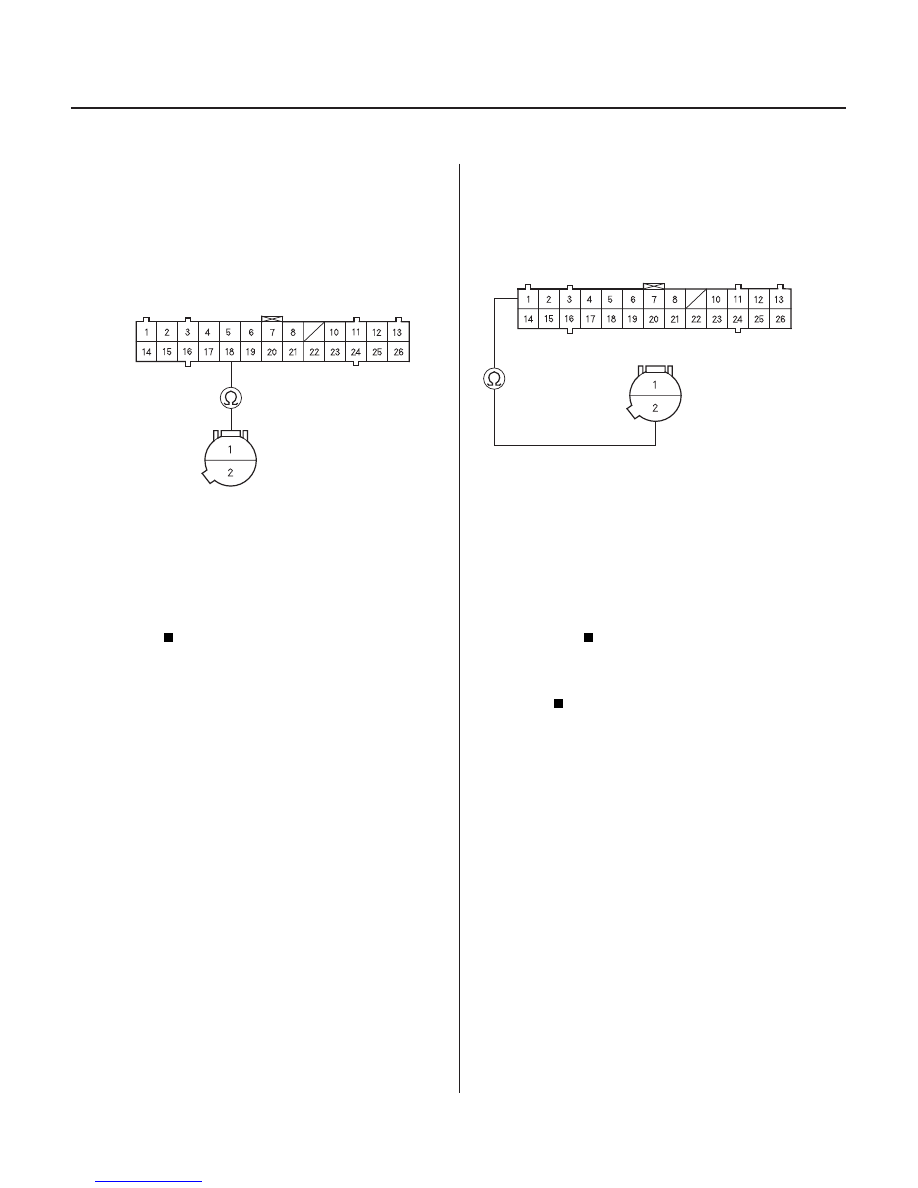

6. Disconnect climate control unit connector B (26P).

7. Check for continuity between the No. 18 terminal of

climate control unit connector B (26P) and the No. 1
terminal of the outside air temperature sensor 2P
connector.

Go to step 8.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

8. Check for continuity between the No. 1 terminal of

climate control unit connector B (26P) and the No. 2
terminal of the outside air temperature sensor 2P
connector.

Check for loose wires or poor connections at

climate control unit connector B (26P) and at the
outside air temperature sensor 2P connector. If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

03/07/29 10:12:52 61S0X050_210_0085

*01

*02

S0X4A10K71100087040FAAT00

DTC indicator D:

YES

NO

YES

NO

YES

NO

21-85

BRN/WHT

CLIMATE CONTROL UNIT CONNECTOR B (20P)

BRN/WHT

CLIMAE CONTROL UNIT CONNECTOR B (26P)

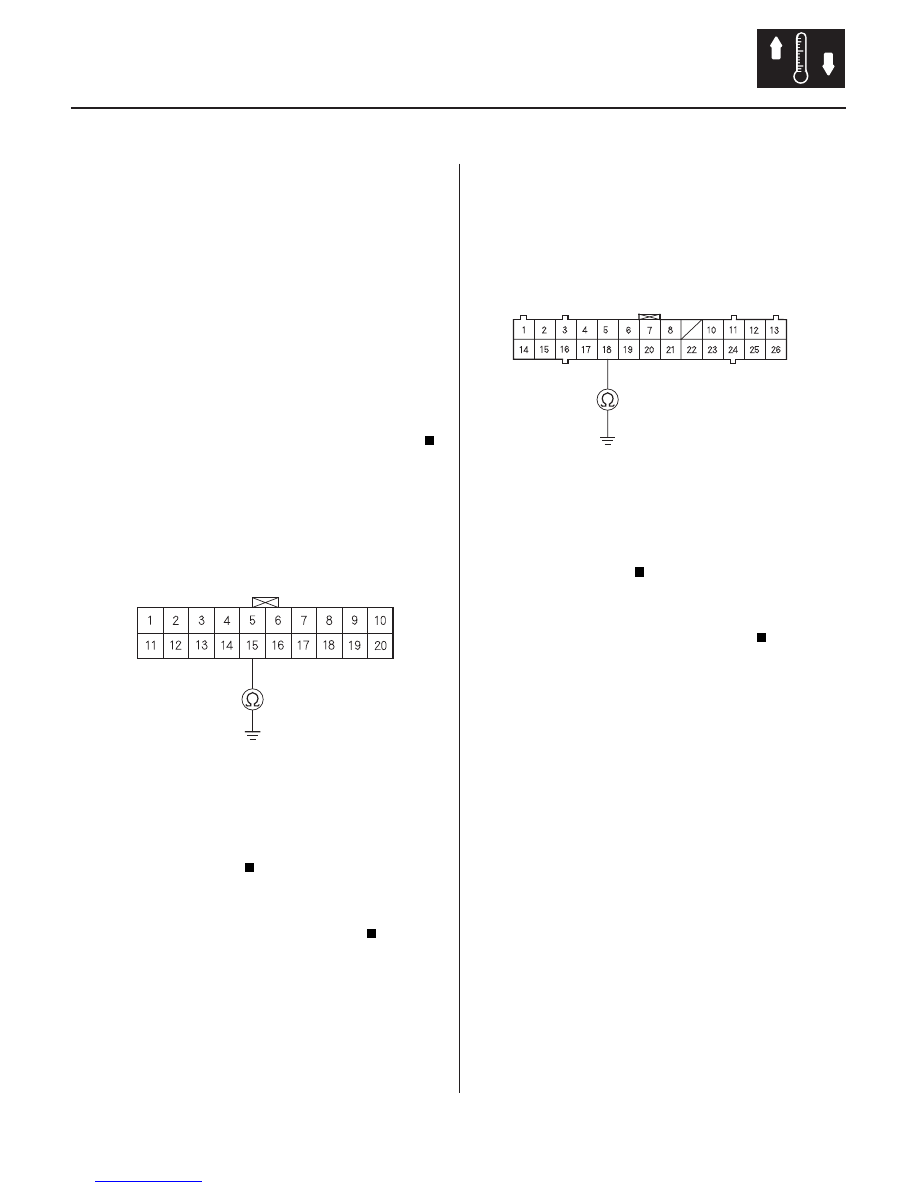

A Short in the Outside Air

Temperature Sensor Circuit

1. Remove the outside air temperature sensor (see

page 21-118).

2. Test the outside air temperature sensor (see page

21-118).

• Without Navigation System: Go to step 3.
• With Navigation System: Go to step 5.

Replace the outside air temperature sensor.

3. Disconnect climate control unit connector B (20P).

4. Check for continuity between the No. 15 terminal of

climate control unit connector B (20P) and body
ground.

Repair short to body ground in the wire

between the climate control unit and the outside air
temperature sensor.

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

5. Disconnect climate control unit connector B (26P).

6. Check for continuity between the No. 18 terminal of

climate control unit connector B (26P) and body
ground.

Repair short to body ground in the wire

between the climate control unit and the outside air
temperature sensor.

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Wire side of female terminals

Wire side of female terminals

Is the r esistance within the specif ications shown
on the gr aph?

Is ther e continuity?

Is ther e continuity?

03/07/29 10:12:52 61S0X050_210_0086

01

*01

S0X4A10K71100087050FAAT00

DTC indicator E:

YES

NO

YES

NO

YES

NO

YES

NO

21-86

Climate Control

DTC Troubleshooting (cont’d)

WHT/RED

SUNLIGHT SENSOR 2P CONNECTOR

WHT/RED

CLIMATE CONTROL UNIT CONNECTOR B (20P)

SUNLIGHT SENSOR 2P CONNECTOR

YEL/GRN

YEL/GRN

CLIMATE CONTROL UNIT CONNECTOR B (20P)

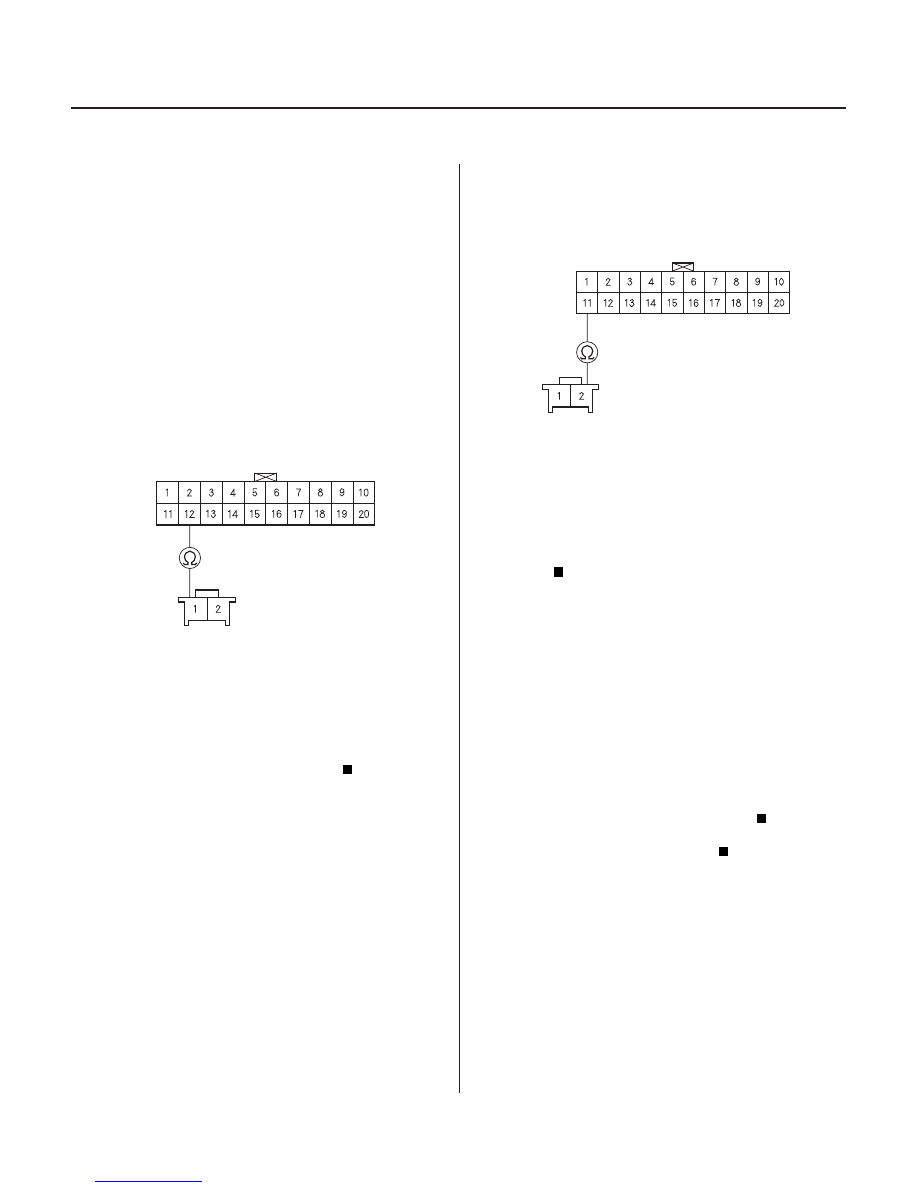

An Open in the Sunlight

Sensor Circuit

1. Disconnect the sunlight sensor 2P connector.

Go to step 8.

Go to step 2.

2. Disconnect climate control unit connector B (20P).

3. Check for continuity between the No. 12 terminal of

climate control unit connector B (20P) and the No. 1
terminal of the sunlight sensor 2P connector.

Go to step 4.

Repair open in the wire between the climate

control unit and the sunlight sensor.

4. Check for continuity between the No. 11 terminal of

climate control unit connector B (20P) and the No. 2
terminal of the sunlight sensor 2P connector.

Go to step 5.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

5. Reconnect the sunlight sensor 2P connector.

6. Reconnect climate control unit connector B (20P).

7. Test the sunlight sensor (see page 21-119).

Check for loose wires or poor connections at

climate control unit connector B (20P) and at the
sunlight sensor 2P connector. If the connections are
good, substitute a known-good climate control unit,
and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Replace the sunlight sensor.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Does the vehicle have a Navigation System?

Is ther e continuity?

Is ther e continuity?

Is the sunlight sensor OK ?

03/07/29 10:12:53 61S0X050_210_0087

*02

02

YES

NO

YES

NO

YES

NO

21-87

WHT/RED

WHT/RED

SUNLIGHT SENSOR 2P CONNECTOR

CLIMATE CONTROL UNIT CONNECTOR B (26P)

CLIMATE CONTROL UNIT CONNECTOR B (26P)

YEL/GRN

YEL/GRN

SUNLIGHT SENSOR 2P CONNECTOR

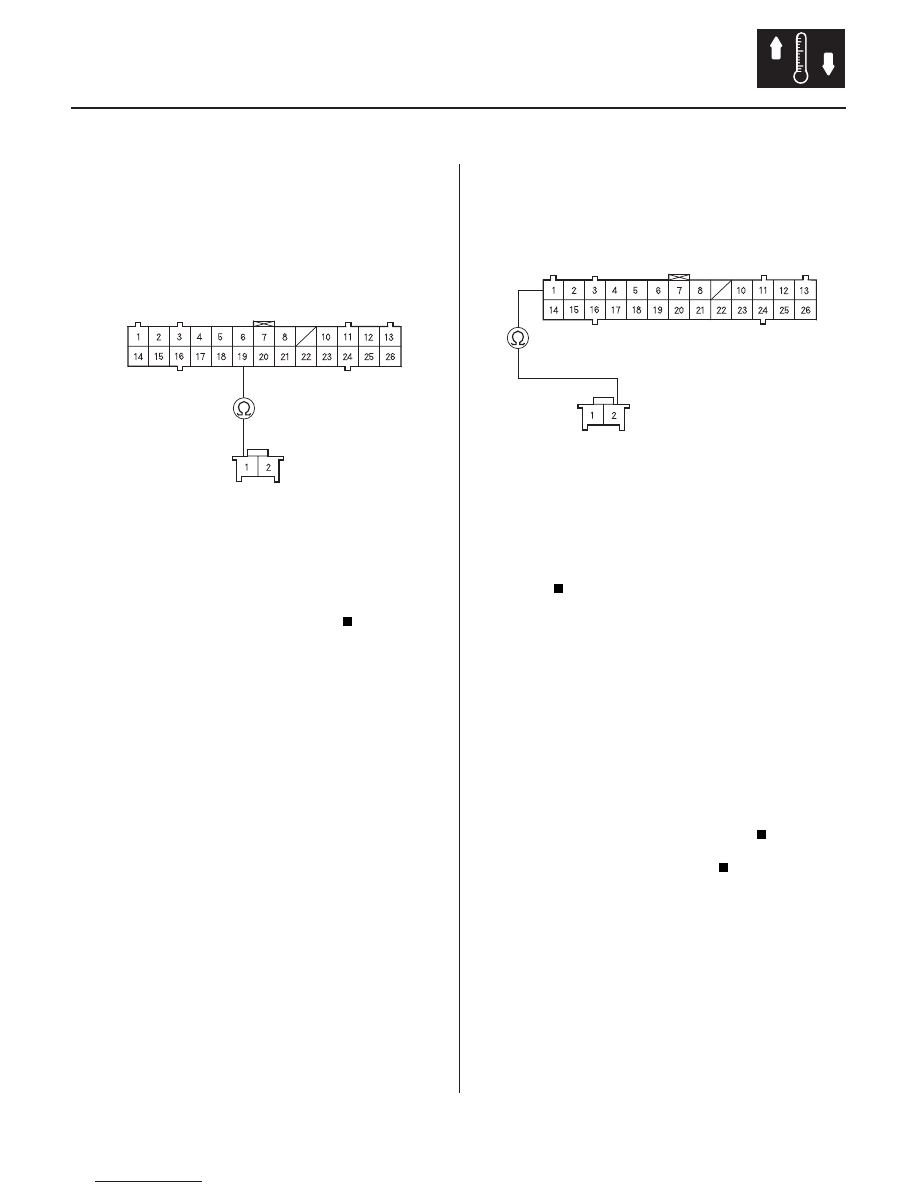

8. Disconnect climate control unit connector B (26P).

9. Check for continuity between the No. 19 terminal of

climate control unit connector B (26P) and the No. 1
terminal of the sunlight sensor 2P connector.

Go to step 10.

Repair open in the wire between the climate

control unit and the sunlight sensor.

10. Check for continuity between the No. 1 terminal of

climate control unit connector B (26P) and the No. 2
terminal of the sunlight sensor 2P connector.

Go to step 11.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

11. Reconnect the sunlight sensor 2P connector.

12. Reconnect climate control unit connector B (26P).

13. Test the sunlight sensor (see page 21-119).

Check for loose wires or poor connections at

climate control unit connector B (26P) and at the
sunlight sensor 2P connector. If the connections are
good, substitute a known-good climate control unit,
and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Replace the sunlight sensor.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

Is the sunlight sensor OK ?

03/07/29 10:12:53 61S0X050_210_0088
