Honda Odyssey 2004. Manual - part 367

＊０１

Ｓ０Ｘ４Ａ２２Ｊ４６１７０５５３７３１ＭＦＡＴ１０

20-110

Seats

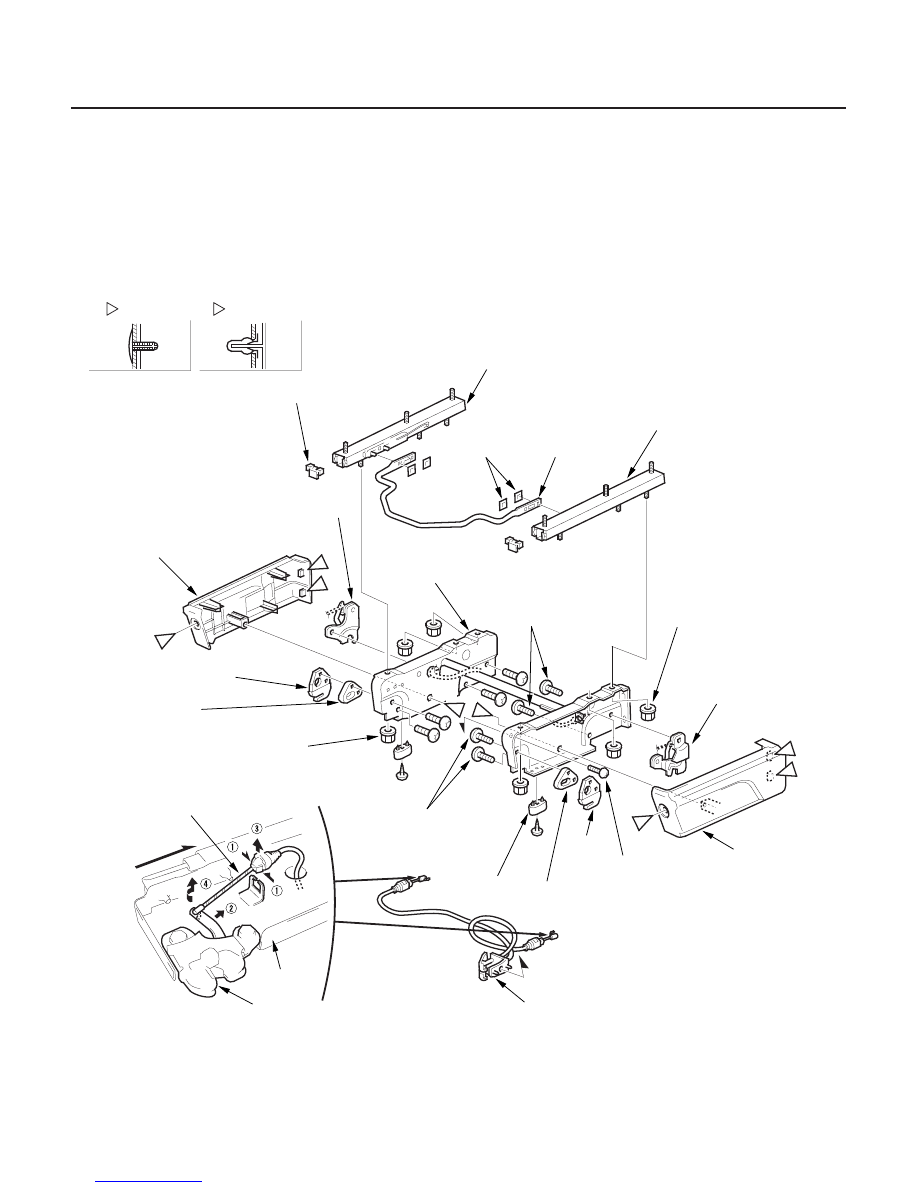

Second Row Seat Riser Disassembly/Reassembly - Bucket-type

FRONT END CAP

RIGHT SLIDE
ADJUSTER

FRONT LIFT
BAR

LEFT SLIDE ADJUSTER

RIGHT
LATCH

RIGHT RISER COVER

HOOK

HOOK SPACER
(Left second seat only)

RELEASE KNOB
ASSEMBLY CABLE

Forward

RISER

LATCH

RELEASE KNOB ASSEMBLY

DAMPER

HOOK SPACER
(Left second seat only)

LEFT
LATCH

LEFT
RISER
COVER

SPEED
NUTS

HOOK

: Clip, 4

Fastener Locations

: Clip, 4

RISER

A A

10 x 1.25 mm
38 N·m (3.9 kgf·m,
28 lbf·ft)

5 x 0.8 mm

8 x 1.25 mm
21 N·m (2.1 kgf·m,
15 lbf·ft)

10 x 1.25 mm
38 N·m (3.9 kgf·m,
28 lbf·ft)

8 x 1.25 mm
21 N·m (2.1 kgf·m,
15 lbf·ft)

NOTE:

• Take care not to kink the release knob assembly cable.
• Put on gloves to protect your hands.
• Replace any damaged clips with new ones.
• Apply liquid thread lock to the hook and latch mounting bolts.
• Apply multipurpose grease to the sliding portions of the slide adjuster.

Use a Torx T45 bit.

03/07/29 10:03:20 61S0X050_200_0112

＊０１

Ｓ０Ｘ４Ａ２３Ｊ４６１７０５５３７３１ＭＦＡＴ２０

For some ’99-01 models

20-111

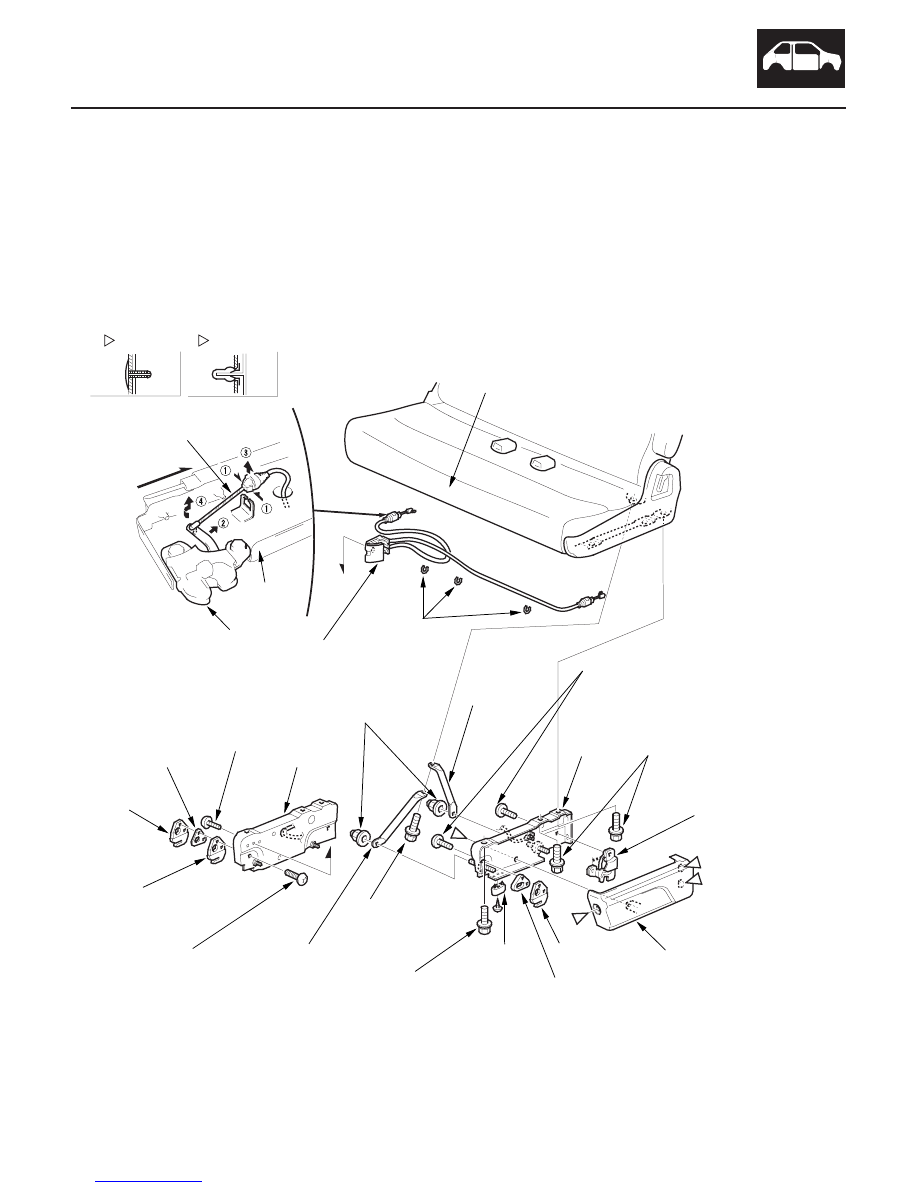

Second Row Seat Riser Disassembly/Reassembly - Bench-type

10 x 1.25 mm
38 N·m (3.9 kgf·m,
28 lbf·ft)

8 x 1.25 mm
22 N·m (2.1 kgf·m,
16 lbf·ft)

10 x 1.25 mm
38 N·m (3.9 kgf·m,
28 lbf·ft)

5 x 0.8 mm

10 x 1.25 mm
38 N·m (3.9 kgf·m,
28 lbf·ft)

LEFT
LATCH

LEFT
RISER

LEFT
RISER
COVER

LEFT
HOOK

LEFT HOOK
SPACER

DAMPER

HOOK

OUTSIDE
HOOK
SPACER

SEAT-BACK/
SEAT CUSHION

CLIPS

RELEASE
KNOB
ASSEMBLY

Fastener Locations

: Clip, 2

RELEASE KNOB
ASSEMBLY CABLE

Forward

RISER

LATCH

LEFT
CONNECTING
BRACKET A

LEFT
CONNECTING
BRACKET B

RIGHT HOOK
SPACER

RIGHT RISER

NOTE:

• Take care not to kink the release knob assembly cable.
• Put on gloves to protect your hands.
• The right riser disassembly/Reassembly is similar to the left except for any additional parts shown.
• Replace any damaged clips with new ones.
• Apply liquid thread lock to the hook and latch mounting bolts.

Replace.

Use a Torx T45 bit.

03/07/29 10:03:21 61S0X050_200_0113

＊０１

Ｓ０Ｘ４Ａ００Ｊ４６１７０５５３７６５ＫＢＡＴ００

＊０１

Ｓ０Ｘ４Ａ２２Ｊ４６１７０５５３５０３ＫＢＡＴ１０

Seat-back Cover

20-112

Seats

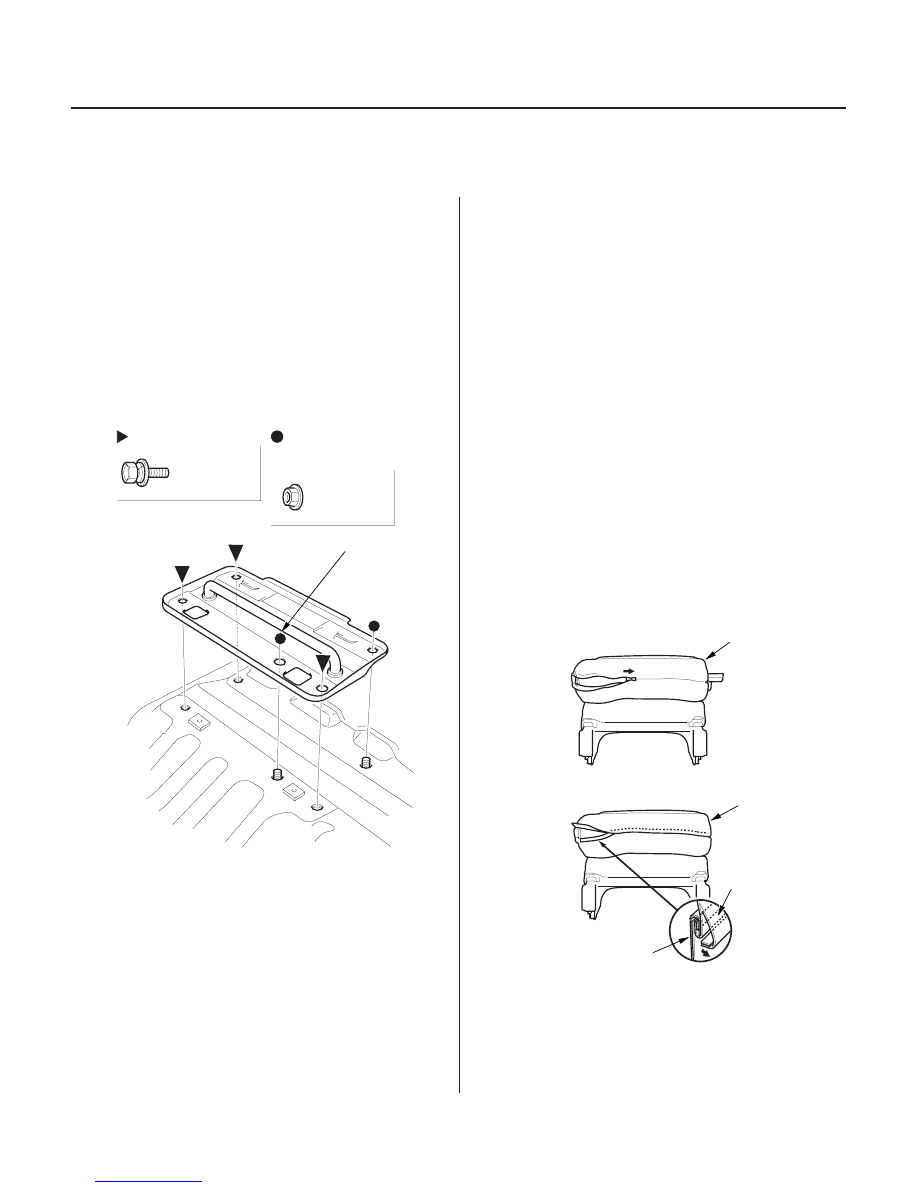

Second Row Seat Striker
Replacement

Second Row Seat Cover
Replacement - Bucket-type

Fastener Locations

10 x 1.25 mm
47 N·m
(4.8 kgf·m,
35 lbf·ft)

: Bolt, 3

: Nut

Outer striker, 2
Inner striker, 1

For outer striker only

With seat-back pocket (’99-01 models)

Without seat-back pocket (’99-04 models)

NOTE: Take care not to bend or scratch the interior trim
and body.

1. Remove these items:

• Second row seat
• Right center pillar lower trim panel (see page 20-

58)

• Rear carpet, as necessary (see page 20-65)

2. Remove the bolts and nut(s), then remove the

striker (A).

3. Install the striker in the reverse order of removal.

NOTE:

• Take care not to tear the seams or damage the seat

covers.

• Put on gloves to protect your hands.

1. Fold the seat-back foward.

2. Remove the second row seat.

3. Remove these items (see page 20-108):

• Center cover
• Recline cover

4. Remove these items (see page 20-102):

• Armrest, both sides
• Grab handle

5. Unzip the bottom of the seat-back cover (A) or

release the hook in the bottom of the seat-back
cover (A). Then raise the seat-back and fold back
the edge of the seat-back cover all the way around.

03/07/29 10:03:21 61S0X050_200_0114

１２

１３

０２

０３

20-113

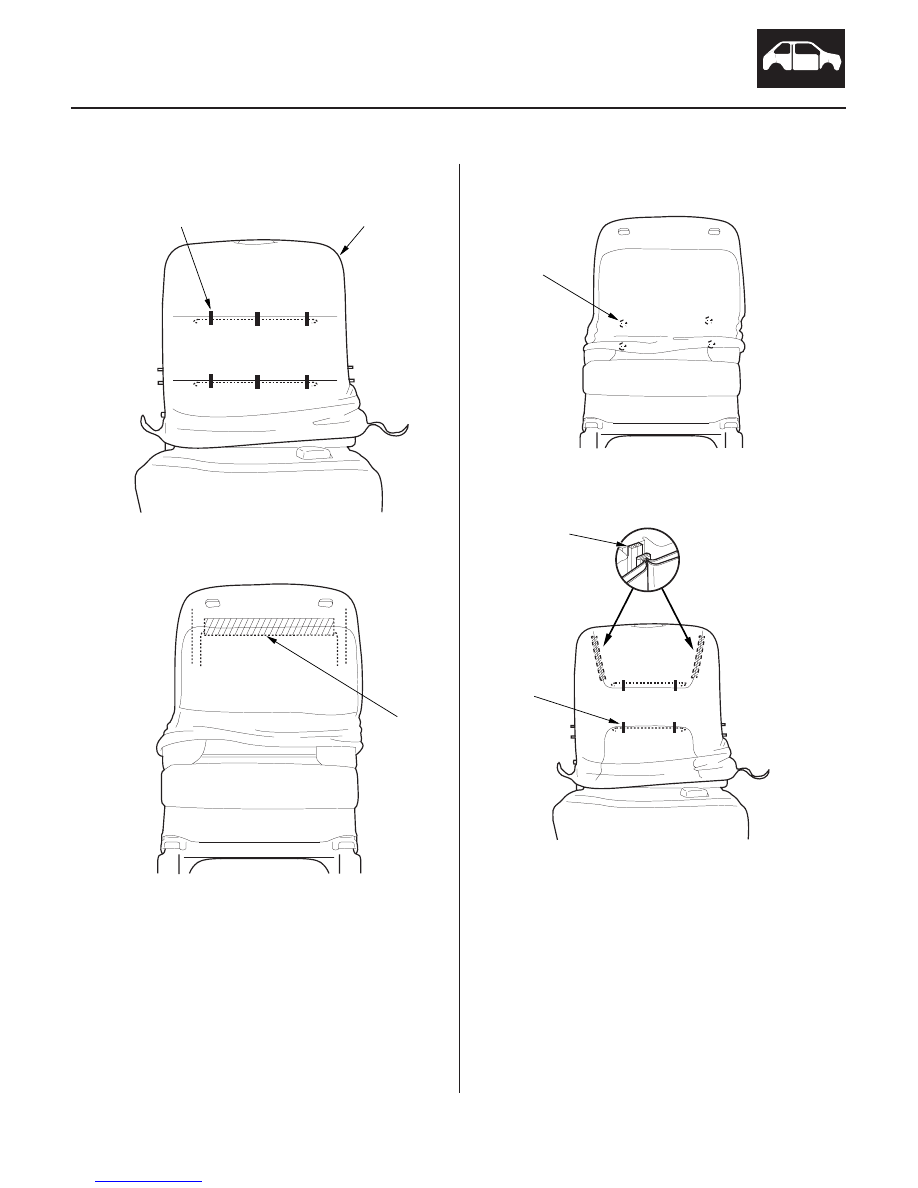

6. For ’99-01 models: Release the clips (A), and fold

back the seat-back cover (B).

7. For ’99-01 models: Release the hook (A) from

behind the seat-back.

8. For ’02-04 models: Release the inside springs (A)

from behind the seat-back.

9. For ’02-04 models: Release the clips (A) and

fasteners (B), and fold back the seat-back cover.
The leather seat is shown, the non-leather is similar.

(cont’d)

03/07/29 10:03:22 61S0X050_200_0115
