＊０１

＊０２

How to Troubleshoot DTCs

How to Retrieve DTCs

HDS (Honda Diagnostic System) Method

Service Check Signal (SCS) Circuit Method

19-42

ABS Components

General Troubleshooting Information (cont’d)

The troubleshooting flowchart procedures assume that
the cause of the problem is still present and the ABS
indicator is still on. Following the flowchart when the
ABS indicator does not come on can result in incorrect
diagnosis.
The connector illustrations show the female terminal
connectors with a single outline and the male terminal
connectors with a double outline.

1. Question the customer about the conditions when

the problem occured, and try to reproduce the
same conditions for troubleshooting. Find out
when the ABS indicator came on, such as during
ABS control, after ABS control, when the vehicle
was at a certain speed, etc.

2. When the ABS indicator does not come on during

the test-drive, but troubleshooting is done based on
the DTC, check for loose connectors, poor terminal
contact, etc., before you start troubleshooting.

3. After troubleshooting, clear the DTC and test-drive

the vehicle. Make sure the ABS indicator do not
come on.

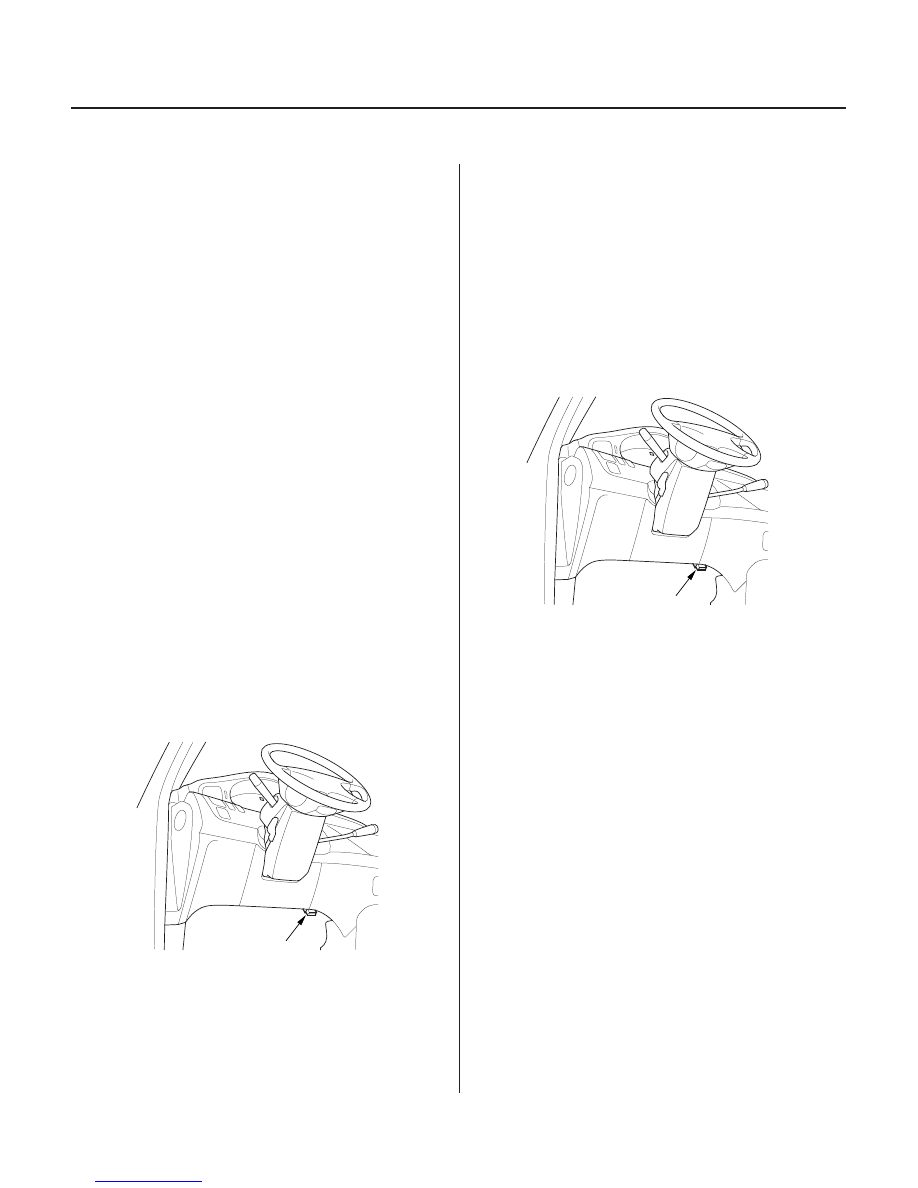

1. With the ignition OFF, connect the HDS to the 16P

data link connector (DLC) (A) located under the
driver’s side of the dashboard.

2. Turn the ignition ON (II), and follow the prompts on

the HDS to display the DTC(s) on the screen. After
determining the DTC, refer to the DTC
Troubleshooting Index.

NOTE: See the HDS help menu for specific
instructions.

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard.

2. Short the SCS circuit to body ground using the HDS.

3. Turn the ignition switch ON (II) without pressing the

brake pedal.

NOTE: If the brake pedal is pressed when turning
the ignition switch ON (II), the system shifts to the
DTC clearing mode.

03/07/29 09:54:18 61S0X050_190_0042

＊０５

＊０３

＊０４

How to Clear DTCs

HDS (Honda Diagnostic System) Method

Service Check Signal (SCS) Circuit Method

19-43

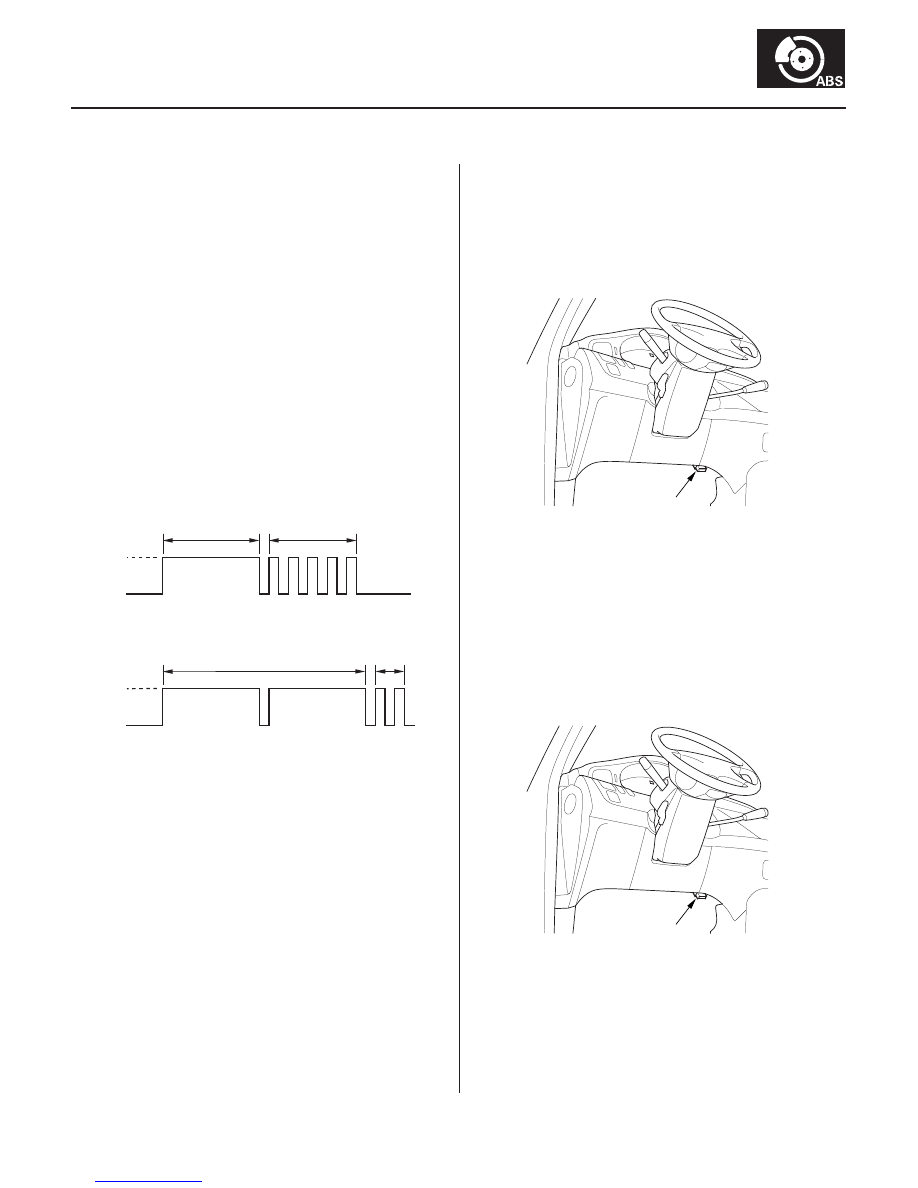

Example of DTC 15

OFF

Long blink

Short blinks
(5 times)

OFF

Example of DTC 22

Long blinks (2 times)

Short blinks
(2 times)

4. The blinking frenquency indicates the DTC. DTCs

are indicated by a series of long and short blinks.
One long blink equals 10 short blinks. Add the long
and short blinks together to determine the DTC.
After determining the DTC, refer to the DTC
Troubleshooting Index.

NOTE: If the DTC is not memorized, the ABS
indicator will go off for 3.6 seconds, and then come
back on.

The system will not indicate the DTC unless these
conditions are met:

• The brake pedal is not pressed.
• The ignition switch is turned ON (II).
• The engine is stopped.
• The SCS circuit is shorted to body ground before

the ignition switch is turned ON (II).

5. Turn the ignition switch OFF.

6. Disconnect the HDS from the DLC.

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard.

2. Turn the ignition switch ON (II), and clear the

DTC(s) by following the screen prompts on the HDS.

NOTE: See the HDS help menu for specific
instructions.

1. With the ignition switch OFF, connect the HDS to

the 16P data link connector (DLC) (A) under the
driver’s side of the dashboard.

2. Short the SCS circuit to body ground using the HDS.

3. Press the brake pedal.

(cont’d)

03/07/29 09:54:19 61S0X050_190_0043

19-44

ABS Components

General Troubleshooting Information (cont’d)

4. Turn the ignition switch ON (II) while keeping the

brake pedal pressed.

5. After the ABS indicator goes off, release the brake

pedal.

6. After the ABS indicator comes on, press the brake

pedal again.

7. After the ABS indicator goes off, release the brake

pedal again.

You cannot clear the DTC unless these conditions
are met:

• The vehicle speed is 6 mph (10 km/h) or less.
• The SCS circuit is shorted to body ground before

the ignition switch is turned ON (II).

• The brake pedal is pressed before the ignition

switch is turned ON (II).

8. After a few seconds, the ABS indicator blinks twice

and the DTC is cleared. If the indicator does not
blink twice, repeat steps 1 thru 7. If the ABS
indicator stays on after it blinks twice, check the
DTC, because a problem was detected during initial
diagnosis before shifting to DTC clearing mode.

9. Turn the ignition switch OFF.

10. Disconnect the HDS from the DLC.

03/07/29 09:54:19 61S0X050_190_0044

Ｓ０Ｘ４Ａ０７Ｄ１０６００００００００ＧＡＡＴ１０

DTC

Detection Item

Note

19-45

DTC Troubleshooting Index

DTC 11

Right-front wheel sensor (open/short to body ground/short to power)

(see page 19-58)

DTC 12

Right-front wheel sensor (electrical noise/intermittent interruption)

(see page 19-59)

DTC 13

Left-front wheel sensor (open/short to body ground/short to power)

(see page 19-58)

DTC 14

Left-front wheel sensor (electrical noise/intermittent interruption)

(see page 19-59)

DTC 15

Right-rear wheel sensor (open/short to body ground/short to power)

(see page 19-58)

DTC 16

Right-rear wheel sensor (electrical noise/intermittent interruption)

(see page 19-59)

DTC 17

Left-rear wheel sensor (open/short to body ground/short to power)

(see page 19-58)

DTC 18

Left-rear wheel sensor (electrical noise/intermittent interruption)

(see page 19-59)

DTC 21

Right-front pulser

(see page 19-60)

DTC 22

Left-front pulser

(see page 19-60)

DTC 23

Right-rear pulser

(see page 19-60)

DTC 24

Left-rear pulser

(see page 19-60)

DTC 31

Right-front inlet solenoid

(see page 19-61)

DTC 32

Right-front outlet solenoid

(see page 19-61)

DTC 33

Left-front inlet solenoid

(see page 19-61)

DTC 34

Left-front outlet solenoid

(see page 19-61)

DTC 35

Right-rear inlet solenoid

(see page 19-61)

DTC 36

Right-rear outlet solenoid

(see page 19-61)

DTC 37

Left-rear inlet solenoid

(see page 19-61)

DTC 38

Left-rear outlet solenoid

(see page 19-61)

DTC 41

Right-front wheel lock

(see page 19-64)

DTC 42

Left-front wheel lock

(see page 19-64)

DTC 43

Right-rear wheel lock

(see page 19-64)

DTC 44

Left-rear wheel lock

(see page 19-64)

DTC 51

Motor lock

(see page 19-65)

DTC 52

Motor stuck OFF

(see page 19-65)

DTC 53

Motor stuck ON

(see page 19-67)

DTC 54

ABS fail-safe relay

(see page 19-69)

DTC 61

Low battery voltage

(see page 19-71)

DTC 62

High battery voltage

(see page 19-71)

DTC 71

Different diameter tire

(see page 19-72)

DTC 81

Central Processing Unit (CPU) diagnosis, and ROM/RAM diagnosis

(see page 19-72)

03/07/29 09:54:19 61S0X050_190_0045
