Automatic Transmission

Shift Solenoid Valve B Test

Shift Solenoid Valve B Replacement

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

A

B

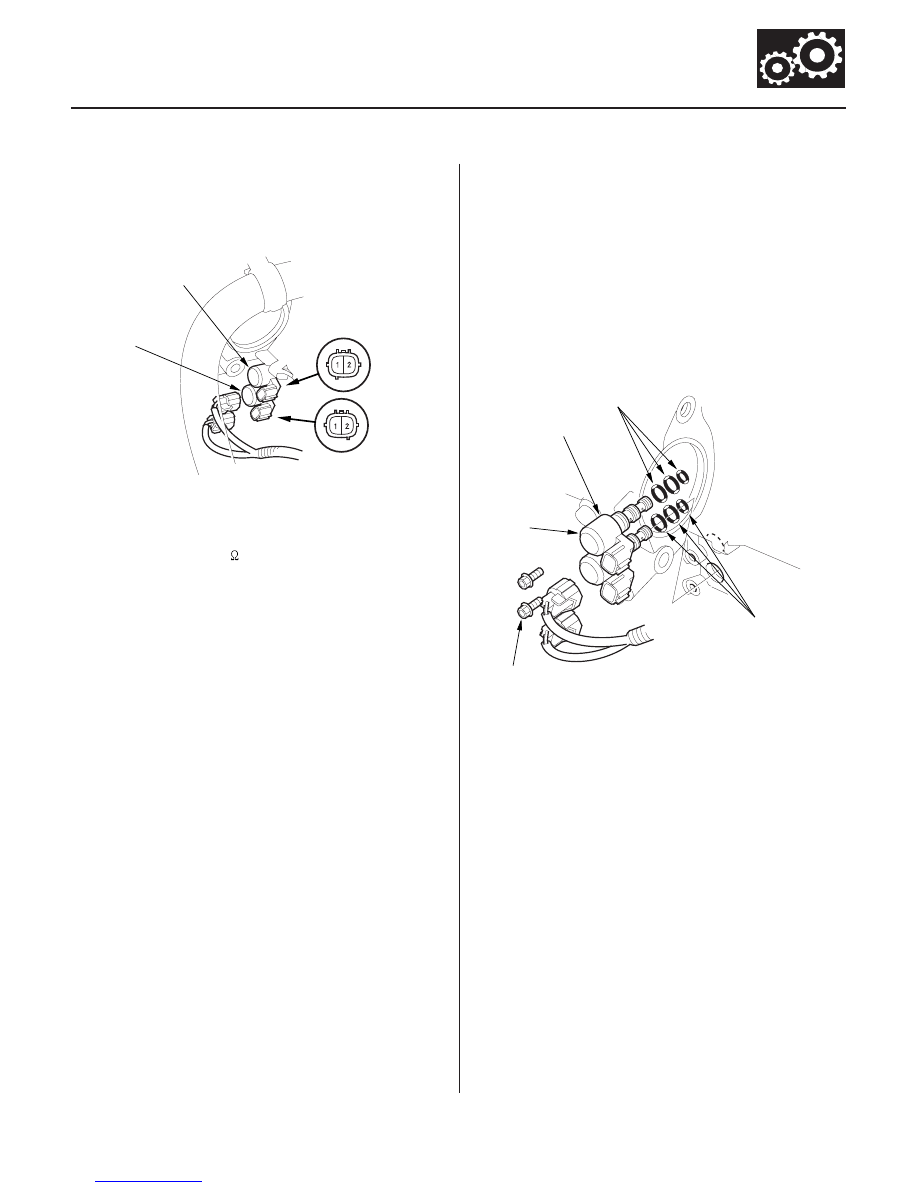

1. Disconnect the connector from the shift solenoid

valve B.

2. Measure shift solenoid valve B resistance at the

solenoid valve connector (blown).

3. Replace the shift solenoid valve B if the resistance

is out of standard.

4. If the resistance is within the standard, connect the

No. 2 terminal of the shift solenoid valve B
connector to the battery positive terminal, and
connect the No. 1 terminal to the battery negative
terminal. A clicking sound should be heard.
Replace the shift solenoid valve B if no clicking
sound is heard.

1. Remove the mounting bolt and the shift solenoid

valve B.

2. Install a new shift solenoid valve B (A) with new O-

rings (B). When installing the solenoid valve, do not
allow dust or other foreign particles to enter the
transmission.

3. Check the connector for rust, dirt, or oil, then

reconnect it.

03/07/29 09:40:14 61S0X050_140_0361

*01

S0X4AA1E10410654801FEAT10

*01

S0X4AA1E10410654801KBAT10

Standard: 12

25

14-359

14-359

Shift Solenoid Valve A and C Test

Shift Solenoid Valve A and C
Replacement

C

A

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

B

A

B

C

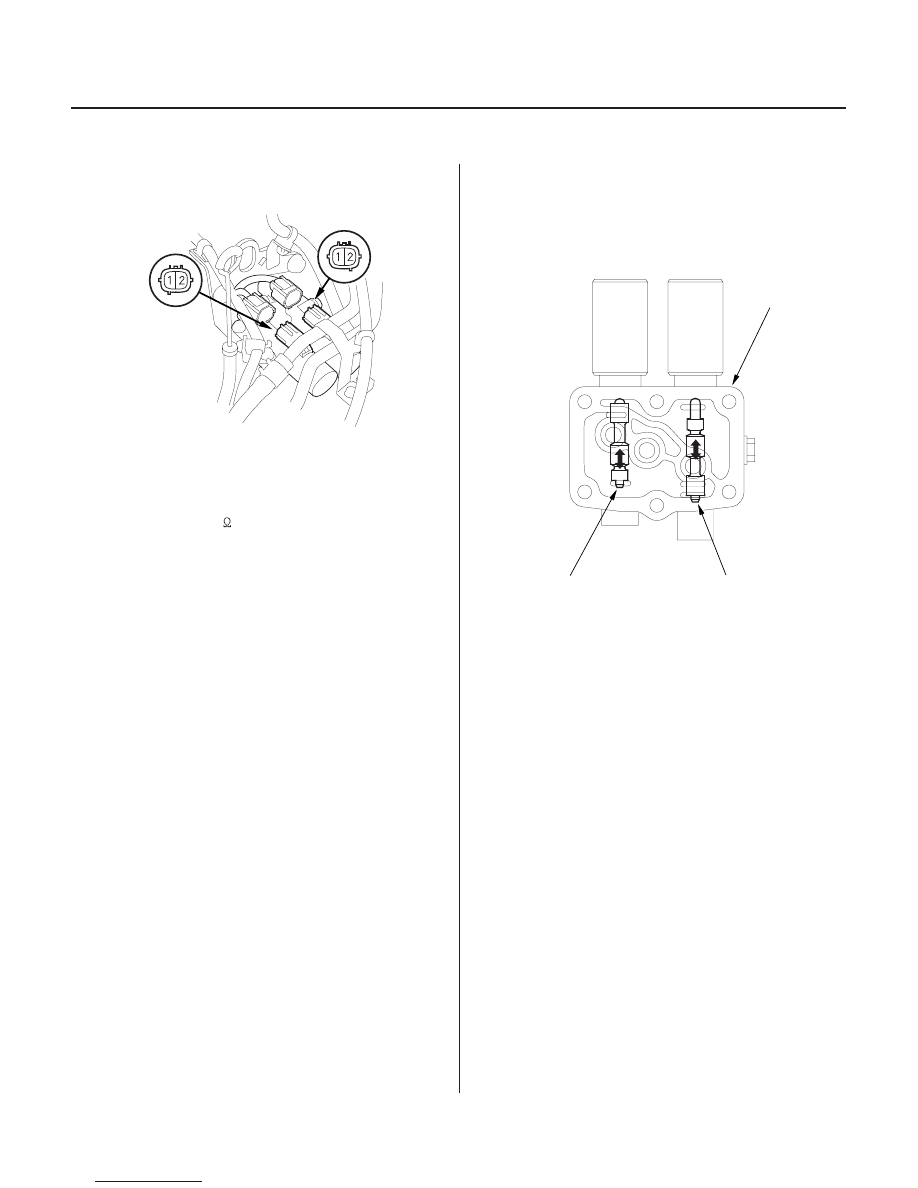

1. Remove the starter.

2. Disconnect the shift control solenoid valve A and C

connectors.

3. Measure the shift solenoid valve A and C resistance

at each solenoid valve connector.

4. Replace shift solenoid valve A or C if the resistance

is out of standard.

5. If the resistance is within the standard, connect the

No. 2 terminal of the shift solenoid valve A or C
connector to the battery positive terminal, and
connect the No. 1 terminal to the battery negative
terminal. A clicking sound should be heard.
Replace shift solenoid valve A or C if no clicking
sound is heard.

NOTE: If shift solenoid valves A and C are replaced or
removed at the same time, be sure to reinstall them
correctly. The connector color of shift solenoid valve A
is black, and the connector color of shift solenoid valve
C is brown.

1. If you are replacing shift solenoid valve C, remove

the starter.

2. Remove the mounting bolt and the shift solenoid

valve A.

3. Remove the mounting bolt and shift solenoid

valve C.

4. Install a new shift solenoid valve A or C with new

O-rings (B). While installing the valves, do not
allow dust or other foreign particles to enter the
transmission.

5. Check the connectors for rust, dirt, or oil, then

reconnect them.

6. Install the starter, if removed.

03/07/29 09:40:15 61S0X050_140_0362

01

*01

S0X4AA1E10410612223FEAT10

Standard: 3

10

14-360

Automatic Transmission

A/T Clutch Pressure Control Solenoid Valve A and B Test

A

B

A

B

C

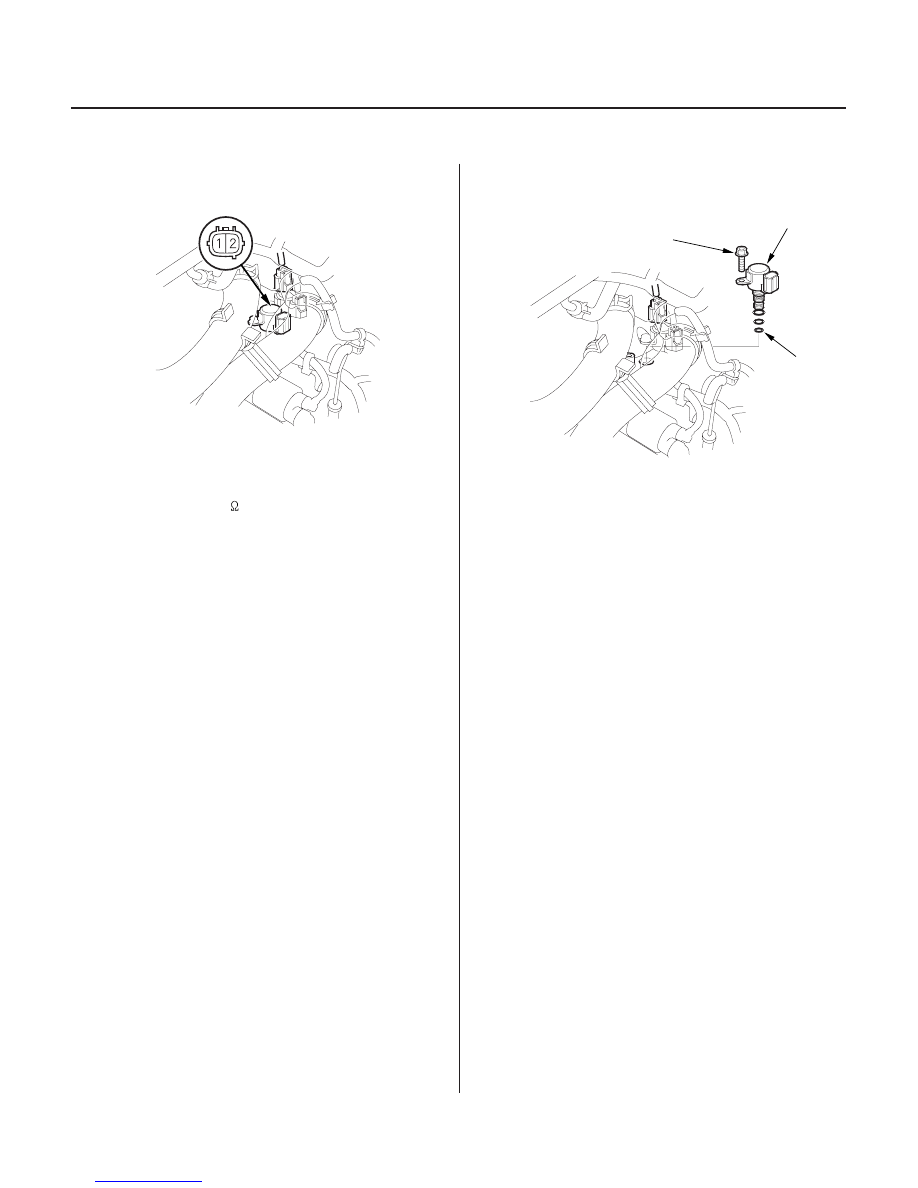

1. Disconnect the 2P connectors from the A/T clutch

pressure control solenoid valves A (A) and B (B).

2. Measure the A/T clutch pressure control solenoid

valves A and B resistances at each solenoid valve
connector.

3. If the resistance of either solenoid is out of

standard, replace A/T clutch pressure control
solenoid valves A and B.

4. Connect the No. 1 terminal of A/T clutch pressure

control solenoid valves A and B to the battery
positive terminal, and connect the No. 2 terminal to
the battery negative terminal. A clicking sound
should be heard. Remove A/T clutch pressure
control solenoid valves A and B, if no sound is
heard.

5. Check the fluid passage of the A/T clutch pressure

control solenoid valves for dust and dirt, and clean
the passage if necessary.

6. Connect the No. 1 terminal of A/T clutch pressure

control solenoid valves A and B to the battery
positive terminal, and connect the No. 2 terminal to
the battery negative terminal. Make sure the A/T
clutch pressure control solenoid valves A and B
move.

7. Disconnect one of the battery terminals and check

valve movement.

NOTE: You can see the valve movement through
the fluid passage in the mounting surface of the
solenoid valve body (C).

8. If either valve binds, or moves sluggishly, or if the

solenoid does not operate, replace the A/T clutch
pressure control solenoid valves A and B.

03/07/29 09:40:15 61S0X050_140_0363

01

S0X4AA1E10410612223KBAT00

14-361

A/T Clutch Pressure Control Solenoid Valve A and B Replacement

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

F

D

C

E

B

A

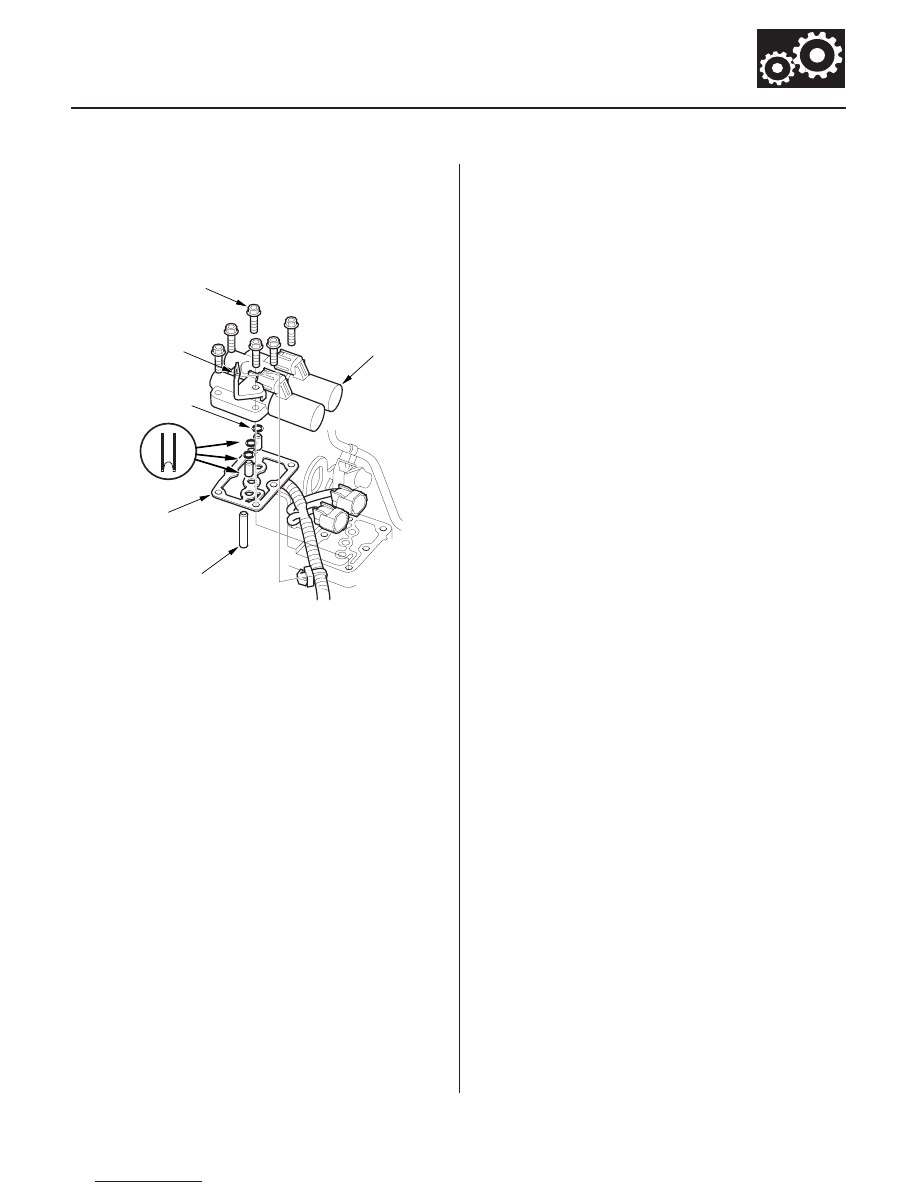

1. Remove the harness cover from the transmission

hanger.

2. Remove the mounting bolts and A/T clutch

pressure control solenoid valves A and B (A).

3. Clean the mounting surface and fluid passages of

A/T clutch pressure control solenoid valves A and B
and the transmission housing.

4. Place a new gasket (B) on the transmission housing,

then install the 8 x 18 mm ATF feed pipes (C) with
their filter sides into the transmission housing.

5. Install new O-rings (D) over the feed pipes, and

install the 8 x 40 mm ATF feed pipe (E).

6. Install new A/T clutch pressure control solenoid

valves A and B (A) and harness clamp bracket (F).

7. Check the A/T clutch pressure control solenoid

valve connectors for rust, dirt, or oil, then connect
them securely.

8. Install the harness cover on the transmission

hanger.
