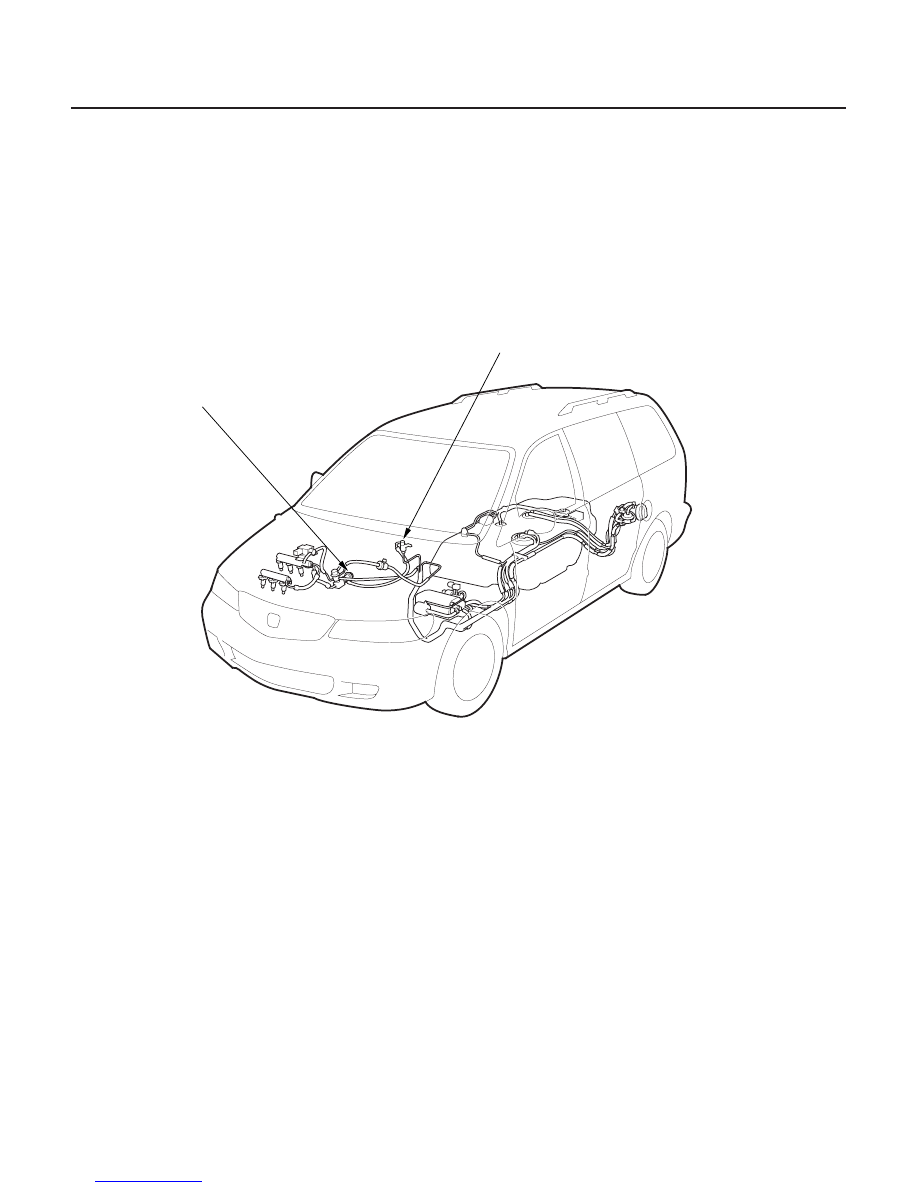

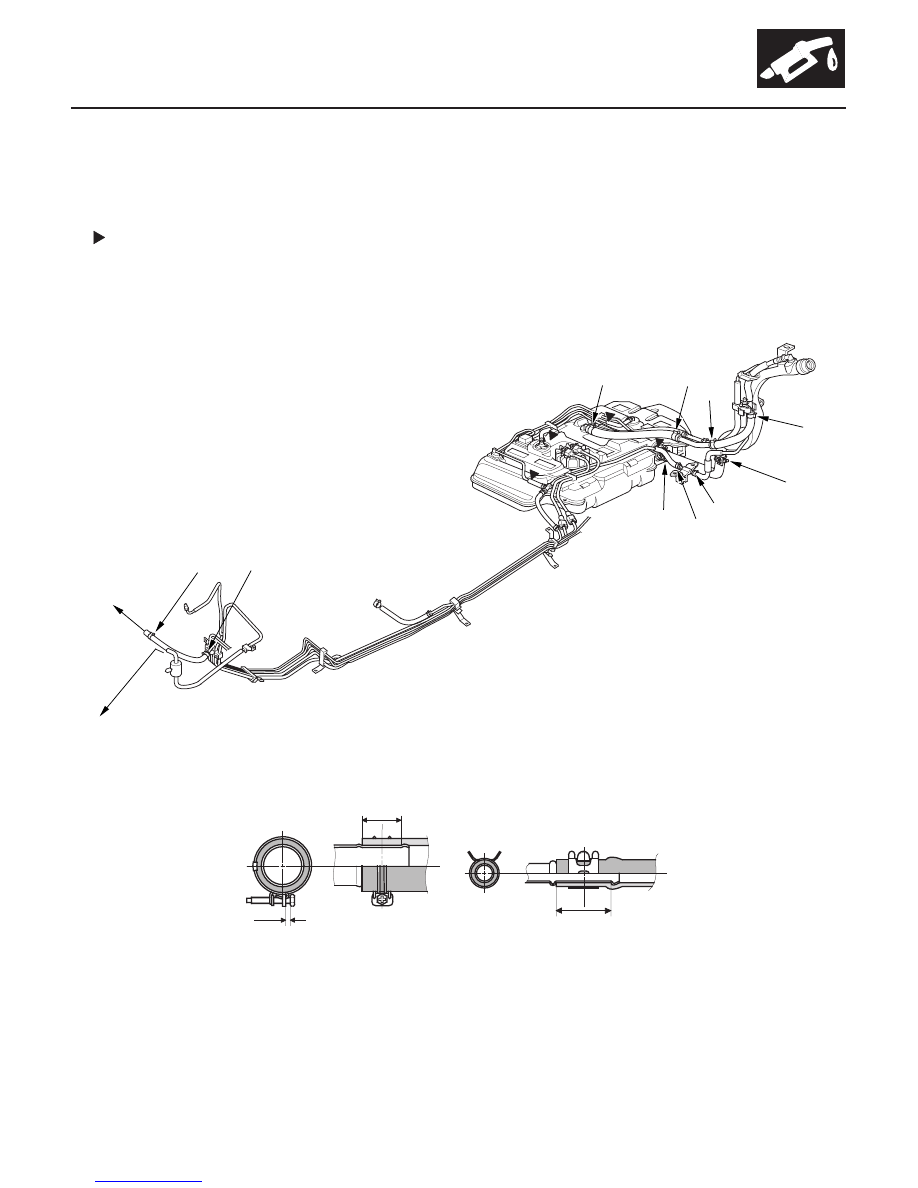

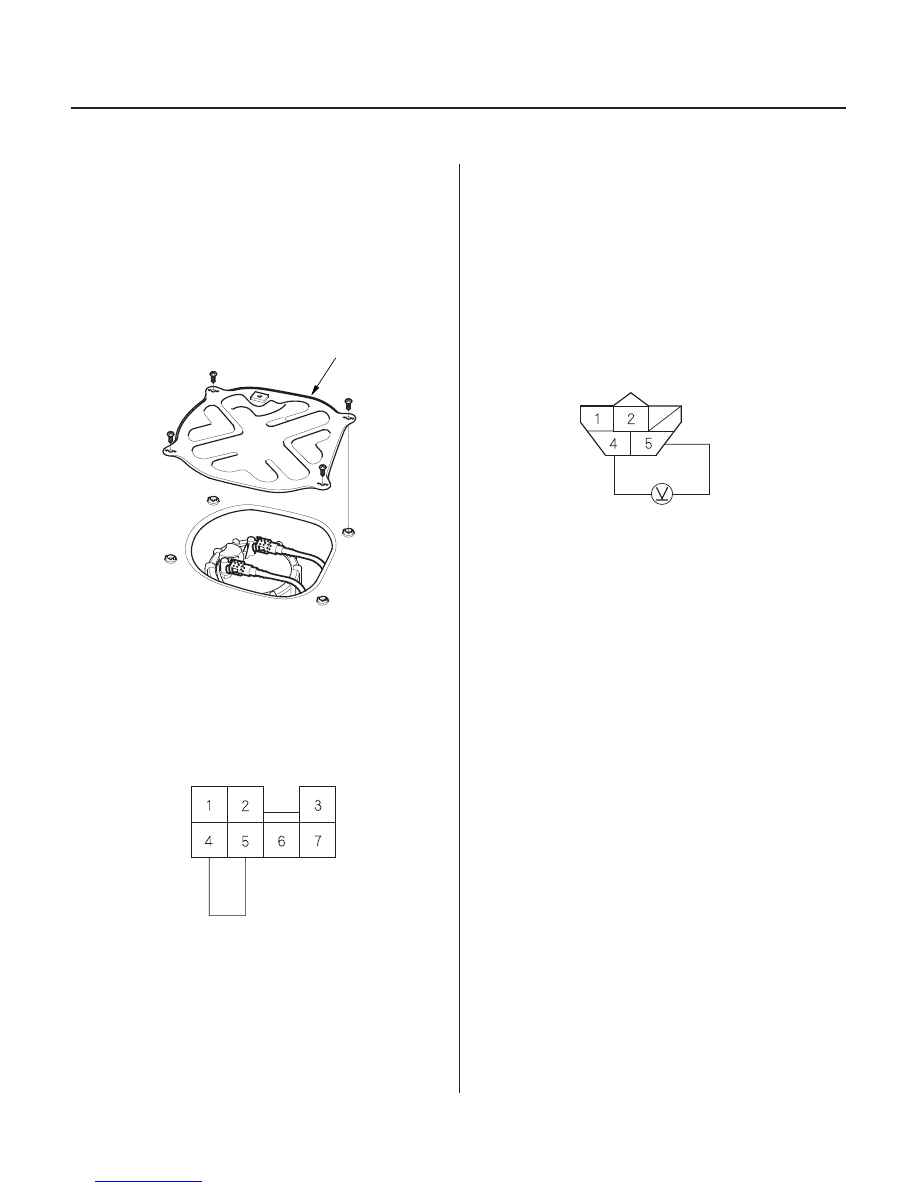

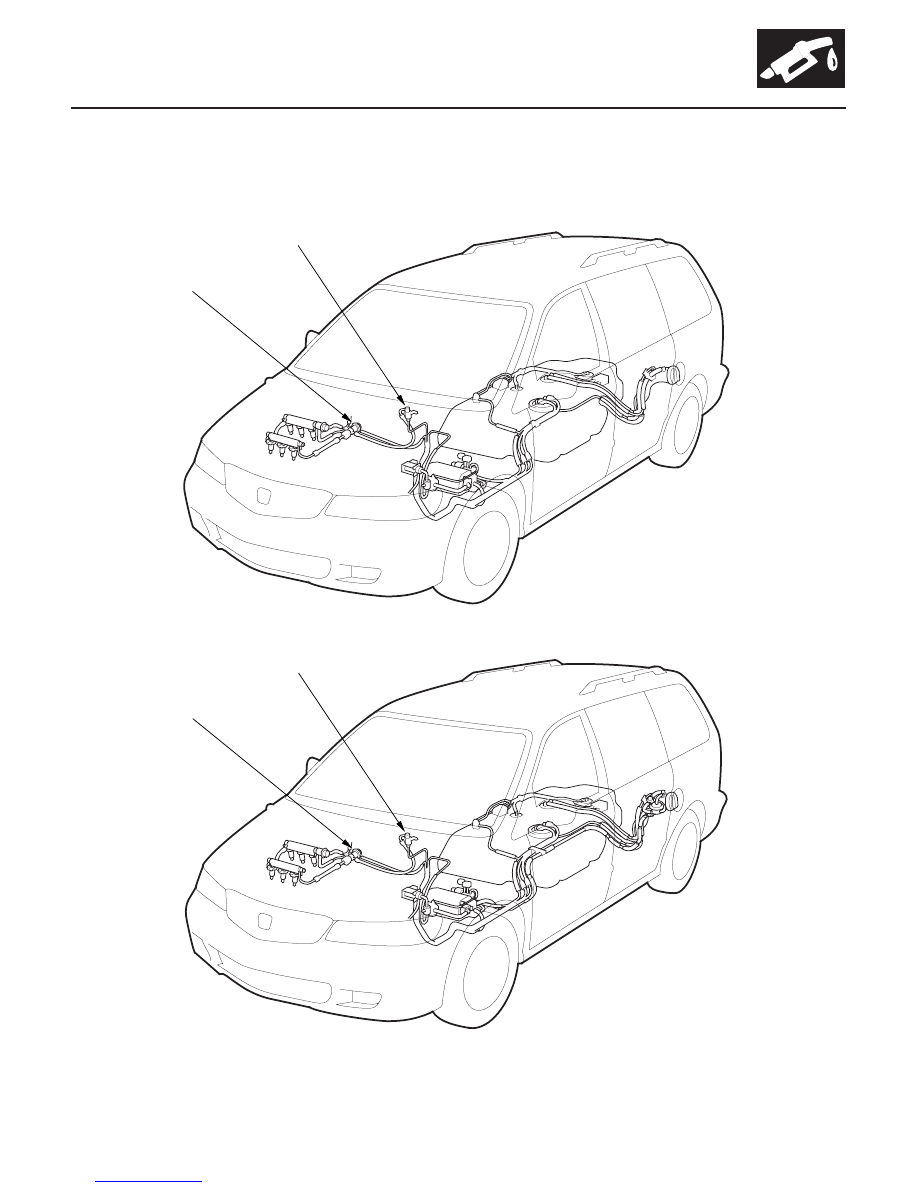

*03 *01 *02 S0X4A00A20326428301FEAT00 11-218 Fuel Supply System Fuel Pump Test A IGN 1 PGM-FI MAIN RELAY 7P CONNECTOR JUMPER WIRE FUEL PUMP FUEL PUMP 5P CONNECTOR FUEL PUMP GND (BLK) If you suspect a problem with the fuel pump, check that 1. Remove the rear seats and carpet. 2. Remove the access panel (A) from the floor. 3. Turn the ignition switch OFF, then disconnect the fuel pump 5P connector. 4. Connect PGM-FI main relay 7P connector terminals No. 4 and No. 5 with a jumper wire. 5. Turn the ignition switch ON (II). 6. Check that battery voltage is available between fuel pump 5P connector terminals No. 4 and 5. • If battery voltage is available, check the fuel pump ground. If the ground is OK, replace the • If there is no voltage, check the wire harness (see page 11-208). Wire side of female terminals Wire side of female terminals 03/07/29 09:24:26 61S0X050_110_0218 |
