Honda Odyssey 2004. Manual - part 73





01

02

03

04

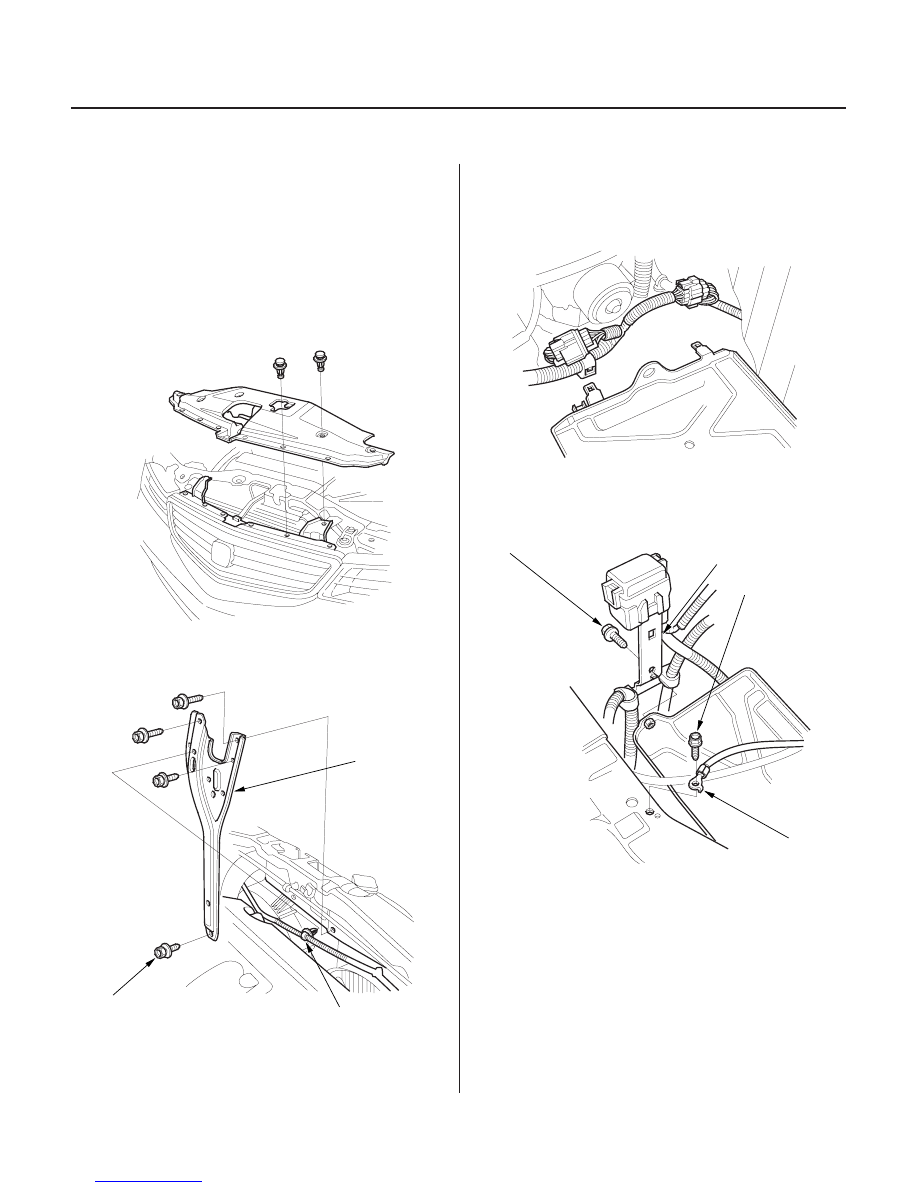

S0X4A00A14400049001KBAT00

10-16

Cooling System

Radiator and Fan Replacement

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

A

B

6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

B

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

A

1. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the
frequencies for the radio’s preset buttons.

2. Disconnect the negative cable from the battery first,

then disconnect the positive cable.

3. Drain the engine coolant (see page 10-13).

4. Remove the radiator cover.

5. Remove the harness clamp (A), then remove the

bulkhead bracket (B).

6. Remove the battery.

7. Remove the engine wire harness connectors from

the battery base.

8. Remove the ground cable (A) and relay box bracket

(B).

03/07/29 09:15:18 61S0X050_100_0016

05

06

07

08

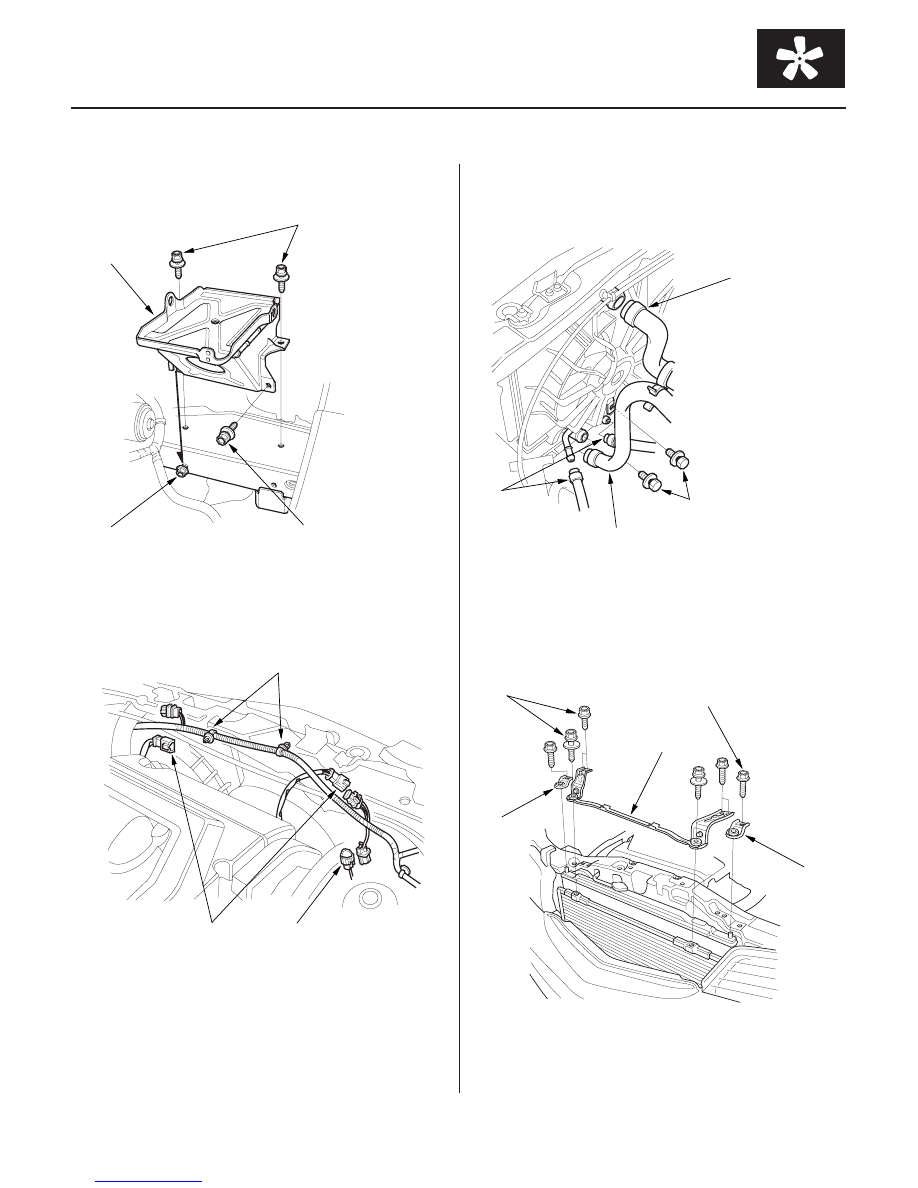

10-17

A
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

B
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

C

A
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

A

B

C

D
6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

B

C

A

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

A

A

B

9. Remove the three mounting bolts (A) and loosen

mounting bolt (B), then remove the battery base (C).

10. Remove the harness clamps (A), then remove the

fan motor connectors (B) and A/C compressor
clutch connector (C).

11. Remove the upper radiator hose (A), lower radiator

hose (B) and automatic transmission fluid (ATF)
cooler hoses (C). Plug the ATF cooler hoses and
lines.

12. Remove the two bolts (D) securing the ATF cooler

line.

13. Remove the radiator upper brackets/cushions (A)

and condenser bracket (B).

(cont’d)

03/07/29 09:15:20 61S0X050_100_0017

09

10

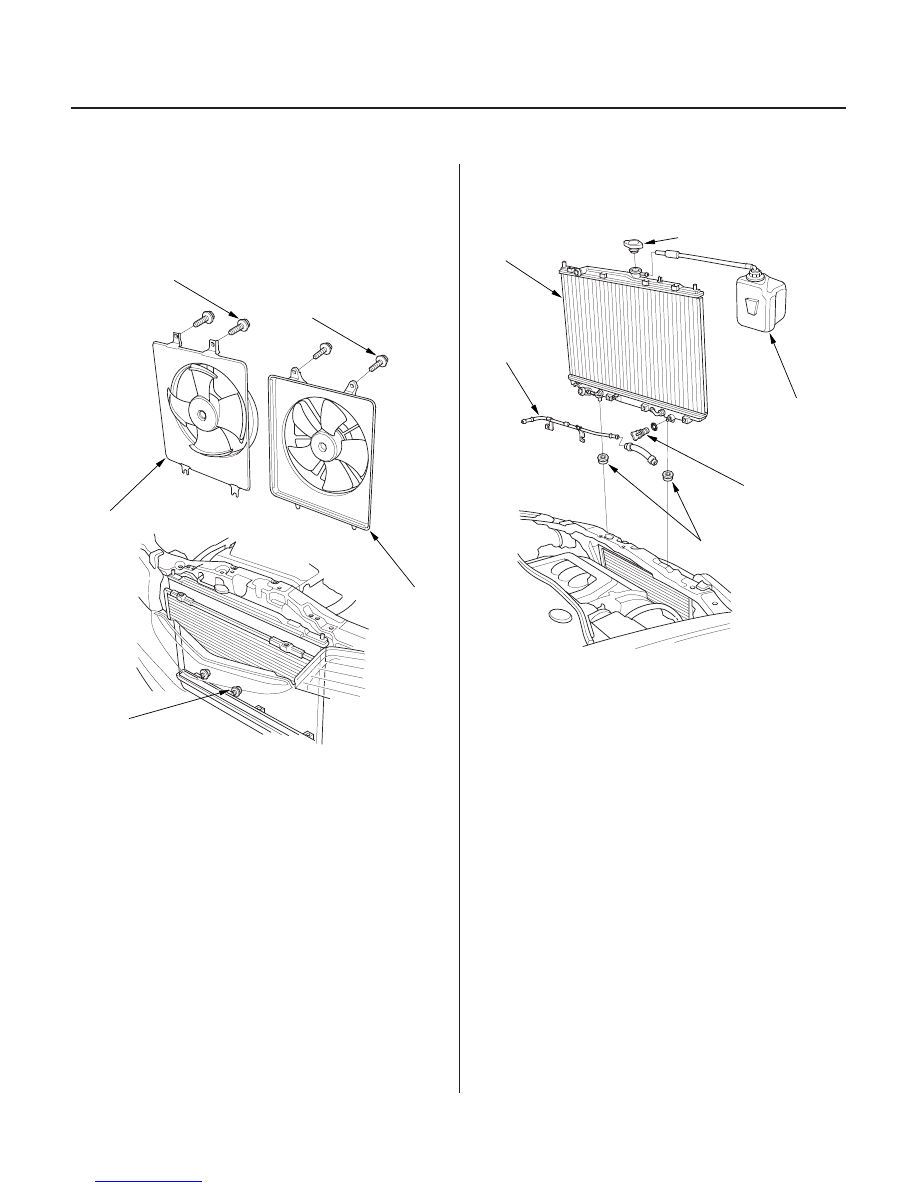

10-18

Cooling System

Radiator and Fan Replacement (cont’d)

C
6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

A
6 x 1.0 mm
7 N·m (0.7 kgf·m,
5 lbf·ft)

D
6 x 1.0 mm
9.8 N·m (1.0 kgf·m,
7.2 lbf·ft)

B

E

A

D

E

F

C

B

14. Remove the two bolts (A) securing the radiator fan

shroud, then remove the radiator fan shroud
assembly (B) from the battery side.

15. Remove the two condenser fan shroud upper

mounting bolts (C) securing the condenser fan
shroud, and loosen the two lower mounting bolts
(D) securing the condenser fan shroud, then
remove the condenser fan shroud assembly (E)
from the battery side.

16. Pull up the radiator (A), then remove the lower

cushions (B), ATF cooler line (C), radiator cap (D),
reservoir tank (E) and drain plug (F).

17. Install the radiator in the reverse order of removal.

18. Set the upper and lower cushions securely.

19. Fill the radiator with engine coolant and bleed the

air (see step 8 on page 10-13).

20. Enter the anti-theft code for the radio and the

navigation system, then enter the customer’s radio
station presets.

21. Perform the power window control unit reset

procedure (2003-2004 models) (see page 22-200).

22. Set the clock.

03/07/29 09:15:21 61S0X050_100_0018

01

S0X4A00A14426100000DAAT00

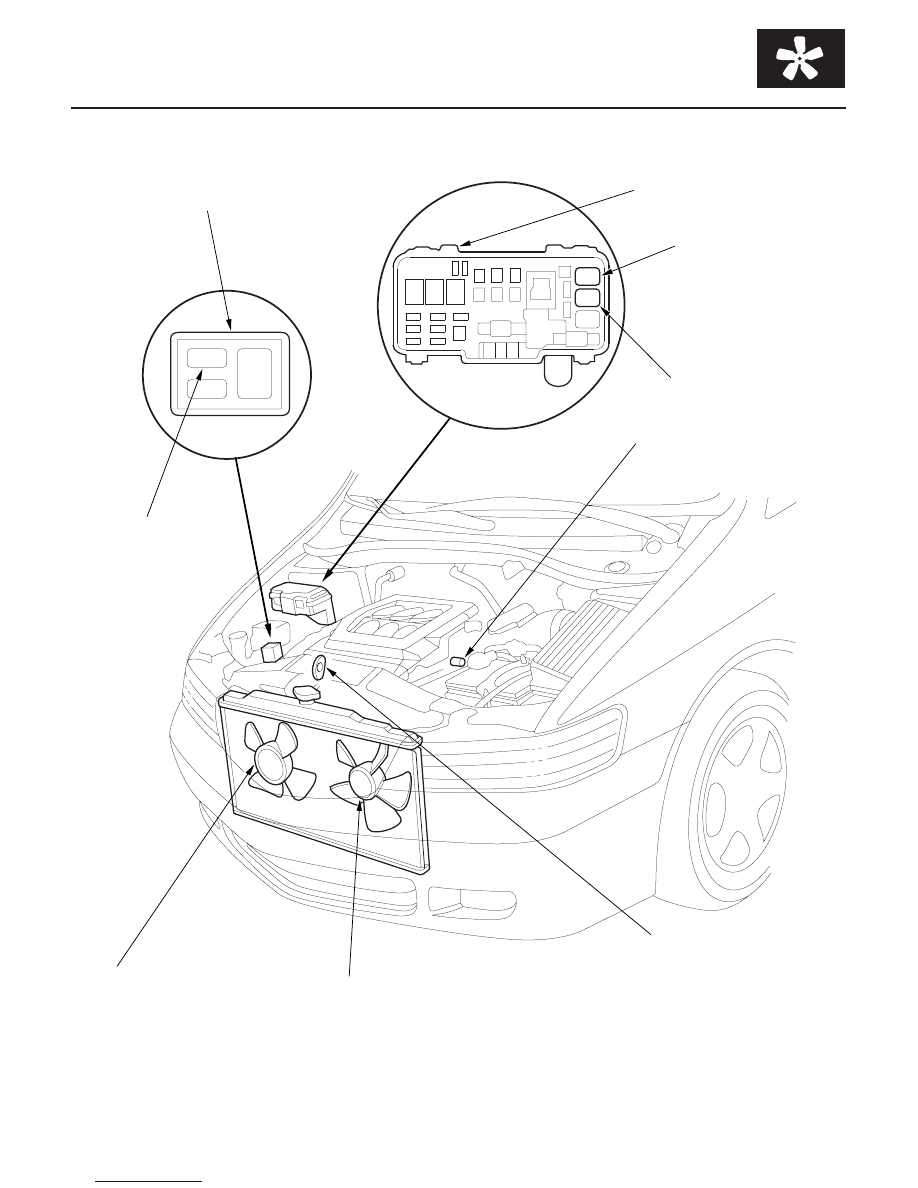

10-19

Fan Controls

Component Location Index

UNDER-HOOD
FUSE/RELAY BOX

RADIATOR FAN RELAY

A/C CONDENSER
FAN ASSEMBLY

RADIATOR FAN ASSEMBLY

CONDENSER FAN RELAY

RADIATOR FAN SWITCH A

RADIATOR FAN SWITCH B

RELAY BOX

RADIATOR FAN
MAIN RELAY

Test, page 22-88

Motor Test, page 10-11

Motor Test, page 10-11

Test, page 22-88

Test, page 10-25

Test, page 10-25

Test, page 22-88

03/07/29 09:15:22 61S0X050_100_0019
