5-18

Engine Assembly

Engine Installation (cont’d)

B

8 x 1.25 mm
9 N·m (0.9 kgf·m,
7 lbf·ft)

A

B

A

A

C

B
6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

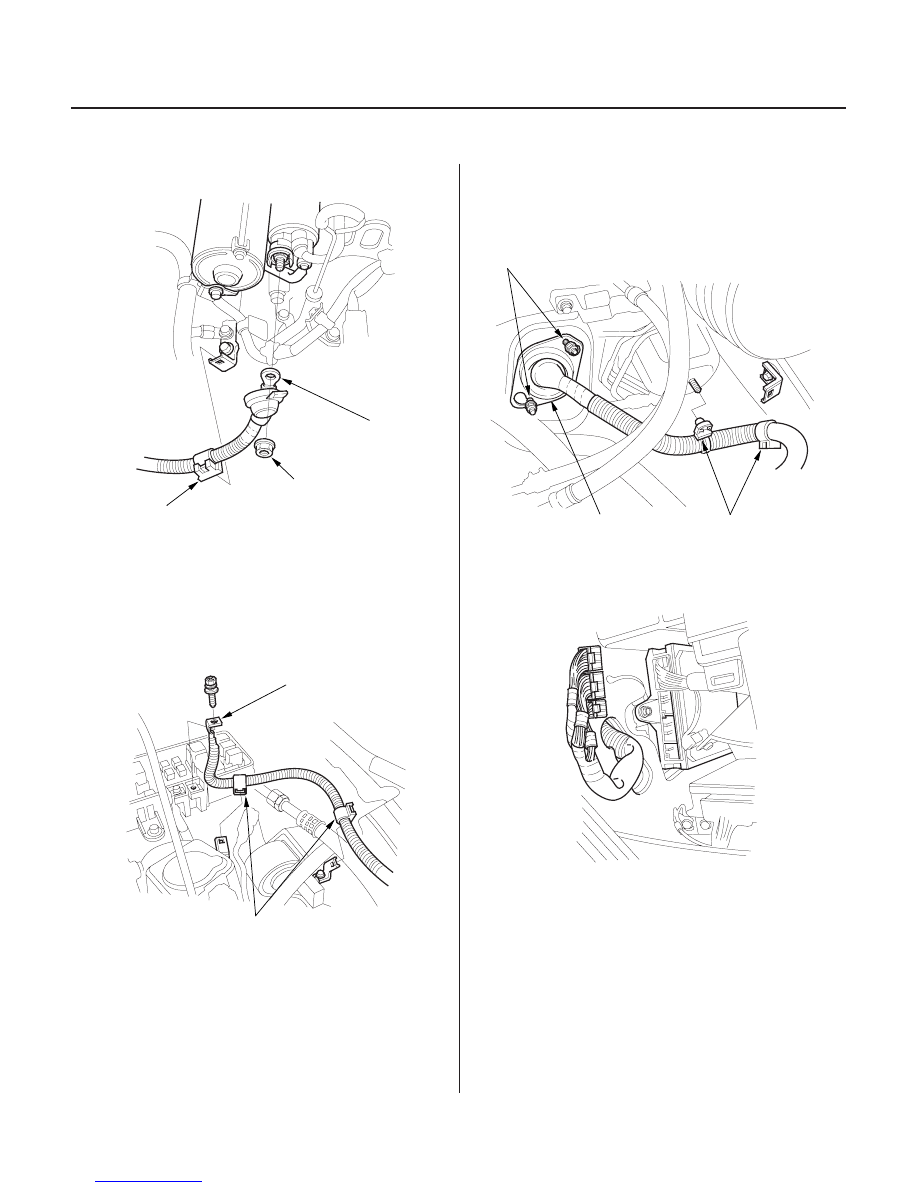

31. Install the starter cable (A) and harness clamp (B).

32. Install the alternator-compressor belt.

33. Loosely install the P/S pump and P/S pump belt.

34. Adjust the P/S pump belt (see step 3 on page 17-12).

35. Install the battery cable (A) on the under-hood fuse/

relay box, then install the harness clamps (B).

36. Push in the powertrain control module (PCM)

connectors. Install the grommet (A), then tighten
the grommet mounting nuts (B).

37. Install the harness clamps (C).

38. Connect the PCM connectors.

03/07/29 09:09:25 61S0X050_050_0018

23

02

24

03

1999-2001 models:

2002-2004 models:

1999-2001 models:

2002-2004 models:

5-19

B

A

A

A

B

C

22 N·m (2.2 kgf·m,
16 lbf·ft)

D

A

B

C

22 N·m
(2.2 kgf·m,
16 lbf·ft)

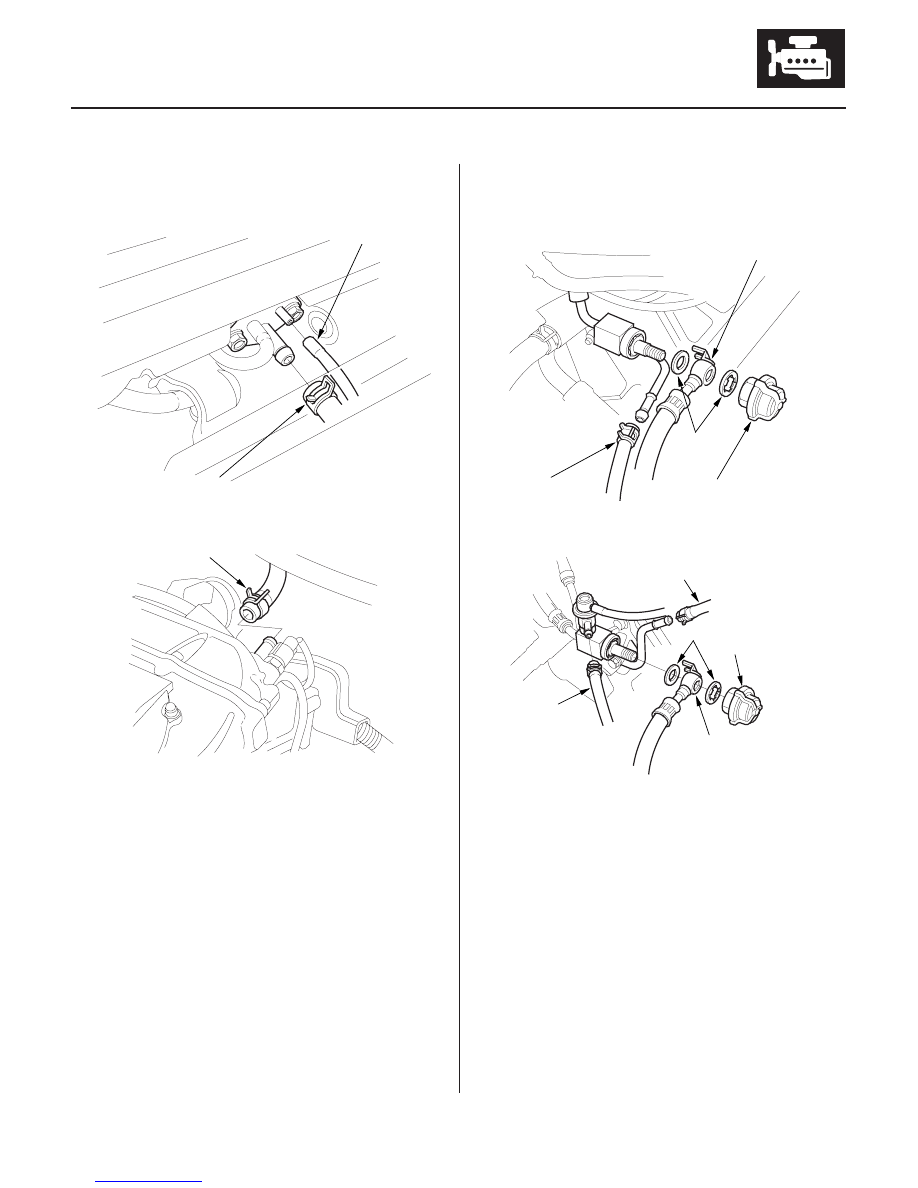

39. Install the brake booster vacuum hose (A).

40. Install the vacuum hose (B) (1999-2001 models).

41. Install the fuel feed hose (A) and fuel return hose

(B), using new washers (C).

42. Install the evaporative emission (EVAP) canister

hose (D) (2002-2004 models).

(cont’d)

03/07/29 09:09:25 61S0X050_050_0019

25

26

27

28

04

1999-2001 models:

2002-2004 models:

5-20

Engine Assembly

Engine Installation (cont’d)

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

B

C

A

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

A

D

C

B

D

A

C

B

43. Install the cruise control actuator cable, then adjust

it (see page 4-52).

44. Install the throttle cable, then adjust it (see page 11-

242).

45. Install the battery base.

46. Install the ground cable (A), relay box bracket (B)

and attach the harness clamp (C).

47. Connect the engine wire harness connectors on the

left side of the engine compartment.

48. Install the intake air duct (A), then install the

vacuum hose(s) (B) and breather pipe (C).

49. Install the EVAP canister hose (D) (1999-2001

models) or vacuum hose (D) (2002-2004 models).

03/07/29 09:09:27 61S0X050_050_0020

05

5-21

B

A

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

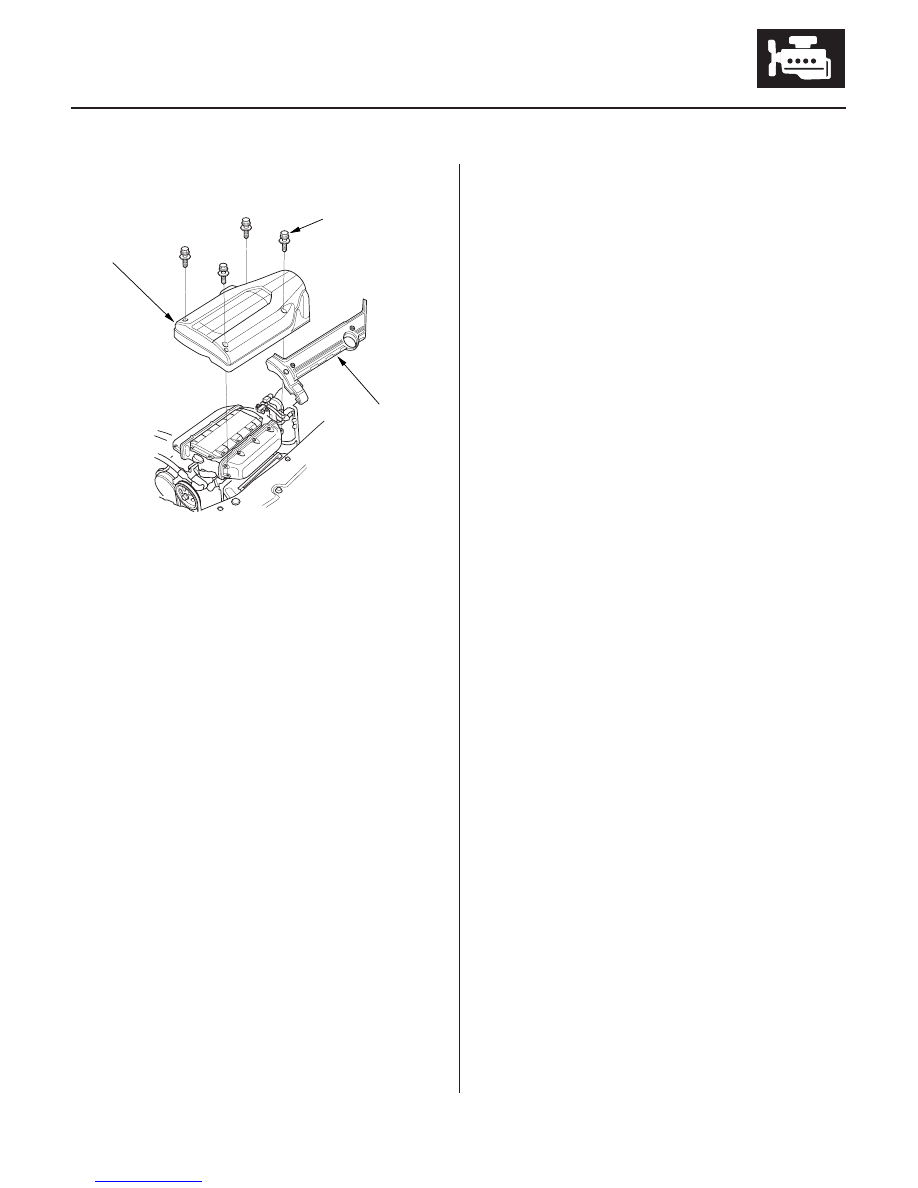

50. Install the ignition coil cover (A) and intake

manifold cover (B) (2002-2004 models).

51. Install the battery. Clean the battery posts and

cable terminals with sandpaper, then assemble
them and apply grease to prevent corrosion.

52. Refill the engine with engine oil (see page 8-5).

53. Refill the automatic transmission with ATF for

1999-2001 models (see page 14-137) or 2002-2004
models (see page 14-368).

54. Refill the radiator with engine coolant, and bleed

air from the cooling system with the heater valve
open (see page 10-13).

55. Move the shift lever to each gear, and verify that

the A/T gear position indicator follows the
transmission range switch.

56. Inspect for fuel leaks. Turn the ignition switch ON

(II) (do not operate the starter) so the fuel pump
runs for about 2 seconds and pressurizes the fuel
line. Repeat this operation two or three times, then
check for fuel leakage at any point in the fuel line.

57. Enter the anti-theft code for the radio and the

navigation system, then enter the customer’s radio
station presets.

58. Perform the PCM idle learn procedure (see page 11-

202), and power window control unit reset
procedure (2003-2004 models) (see page 22-200).

59. Inspect the idle speed (see page 11-201).

60. Inspect the ignition timing (see page 4-16).

61. Check the wheel alignment (see page 18-5).

62. Set the clock.
