Alternator Control System Test

YES

1999-2000 models:

2001 model:

2002-2004 models:

YES

4-24

Charging System

Charging Circuit Troubleshooting (cont’d)

BATTERY

ALTERNATOR
4P CONNECTOR

C (WHT/GRN)

PCM CONNECTOR C (31P)

ALTC
(WHT/GRN)

PCM CONNECTOR B (24P)

ALTC (WHT/GRN)

PCM CONNECTOR C (31P)

ALTC
(WHT/GRN)

1. Check for proper operation of the electrical load

detector (ELD) by checking the malfunction
indicator lamp (MIL) (see page 11-3). If a DTC is
present, diagnose and repair the cause before
continuing with this test.

2. Disconnect the alternator 4P connector from the

alternator.

3. Start the engine, and turn the headlights (high

beam) ON.

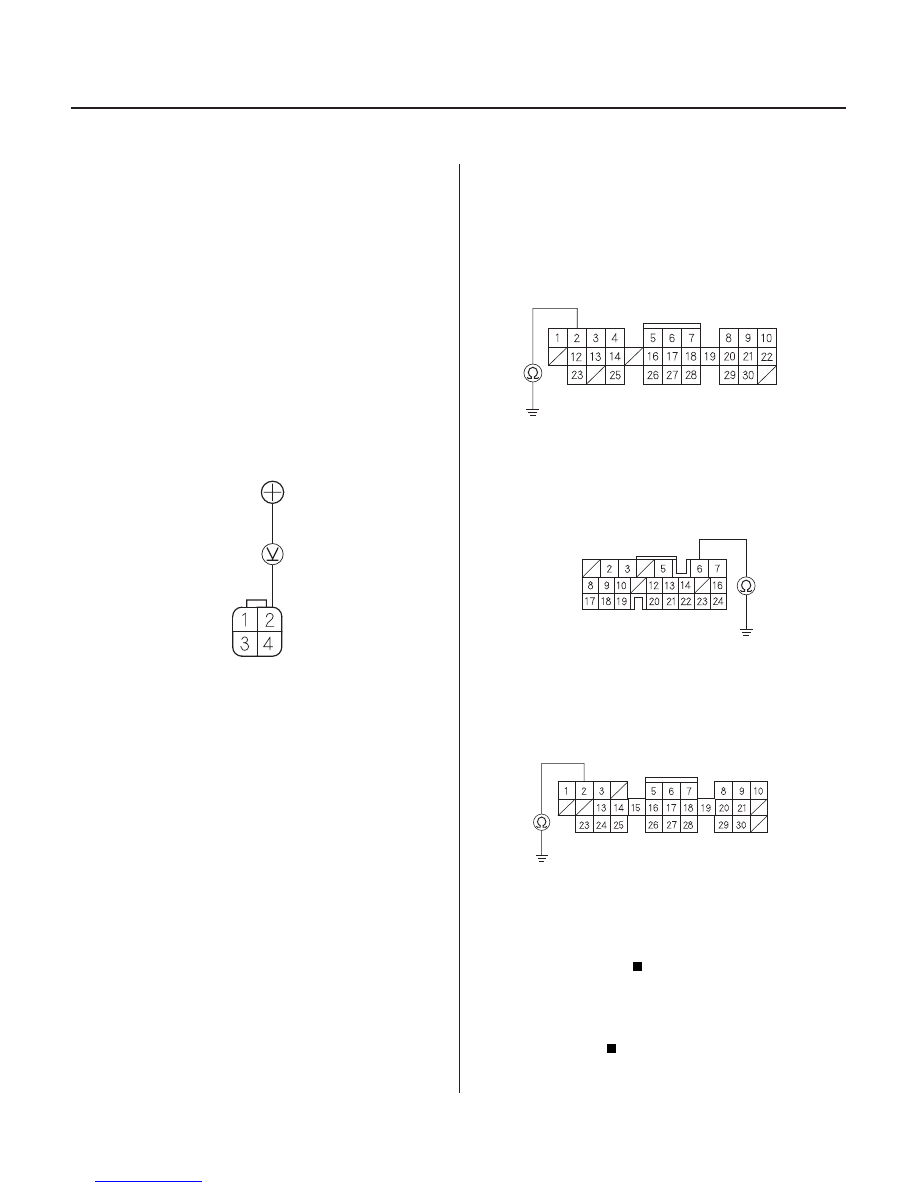

4. Measure voltage between the alternator 4P

connector terminal No. 2 and the positive terminal
of the battery.

Go to step 8.

Go to step 5.

5. Turn the headlight and ignition switch OFF.

6. Disconnect the powertrain control module (PCM)

connector C (31P) (1999-2000, 2002-2004 models)
or PCM connector B (24P) (2001 model).

7. Check for continuity between the PCM connector

terminal C2 (1999-2000, 2002-2004 models) or B6
(2001 model) and body ground.

Repair a short in the wire between the

alternator and PCM.

Substitute a known-good PCM, and recheck

(see page 11-5). If prescribed voltage is now
available, replace the original PCM
(see page 11-4).

Wire side of
female terminals

Wire side of female terminals

Is ther e 1 V or less?

Is ther e continuity?

03/07/29 09:07:30 61S0X050_040_0024

−

０３

０２

＊０１

1999-2000 models:

2001 model:

2002-2004 models:

YES

4-25

PCM CONNECTOR C (31P)

ALTC
(WHT/GRN)

C (WHT/GRN)

ALTERNATOR
4P CONNECTOR

ALTC
(WHT/GRN)

PCM CONNECTOR B (24P)

C (WHT/GRN)

ALTERNATOR
4P CONNECTOR

PCM CONNECTOR C (31P)

ALTC
(WHT/GRN)

C (WHT/GRN)

ALTERNATOR
4P CONNECTOR

8. Turn the headlight and ignition switch OFF.

9. Disconnect the negative cable from the battery.

10. Disconnect the PCM connector C (31P) (1999-2000,

2002-2004 models) or PCM connector B (24P) (2001
model) from the PCM.

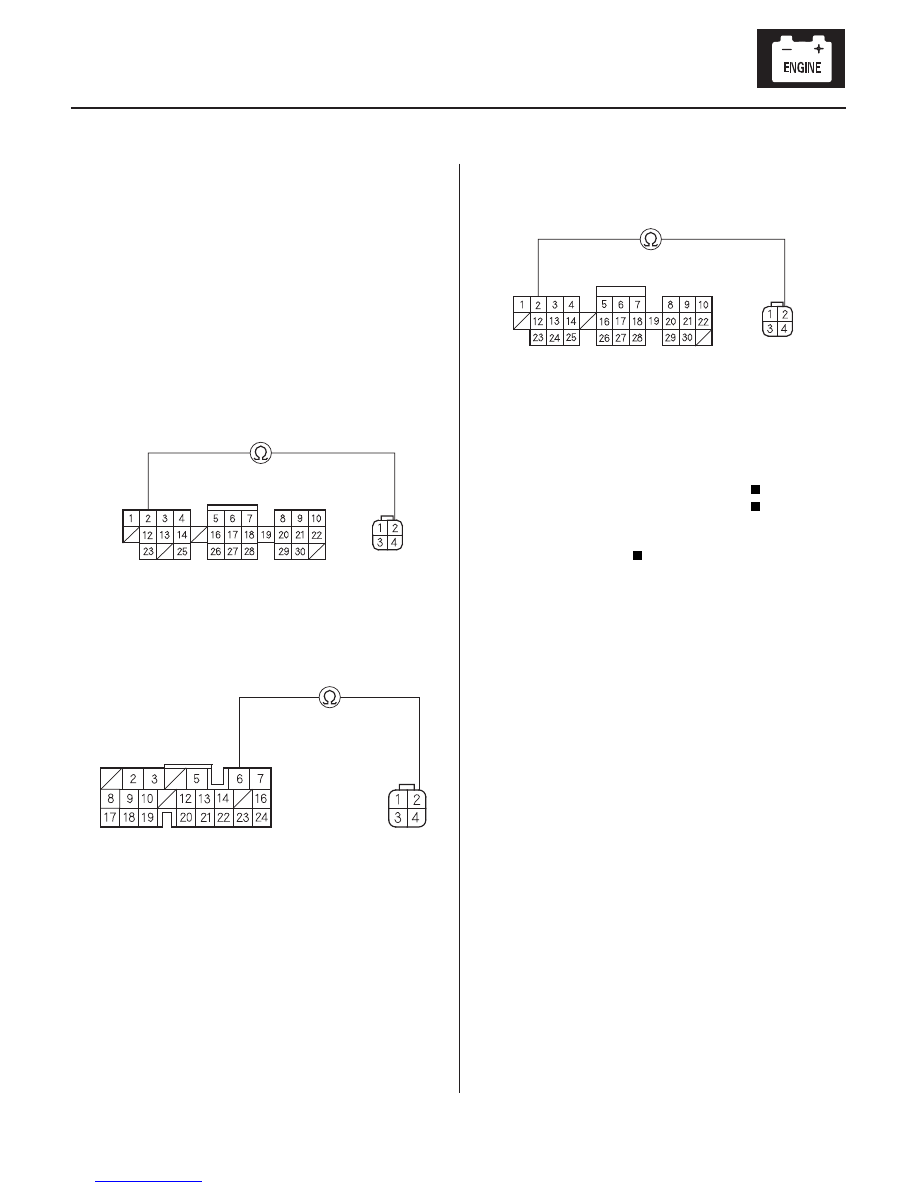

11. Check for continuity between the PCM connector

terminal C2 (1999-2000, 2002-2004 models) or B6
(2001 model) and alternator 4P connector terminal
No. 2.

Repair the alternator components:

1999-2001 models (see page 4-32).
2002-2004 models (see page 4-38).

Repair an open in the wire between the

alternator and PCM.

Wire side of female terminals

Is ther e continuity?

03/07/29 09:07:31 61S0X050_040_0025

０１

Ｓ０Ｘ４Ａ００Ａ１４１０００１２９２２ＭＡＡＴ００

＊０１

０１

Ｓ０Ｘ４Ａ００Ａ１４１０００１２９２２ＫＢＡＴ００

1999-2001 models

2002-2004 models

1999-2001 models:

2002-2004 models:

4-26

Charging System

Alternator-compressor Belt
Inspection

Alternator-compressor Belt
Replacement

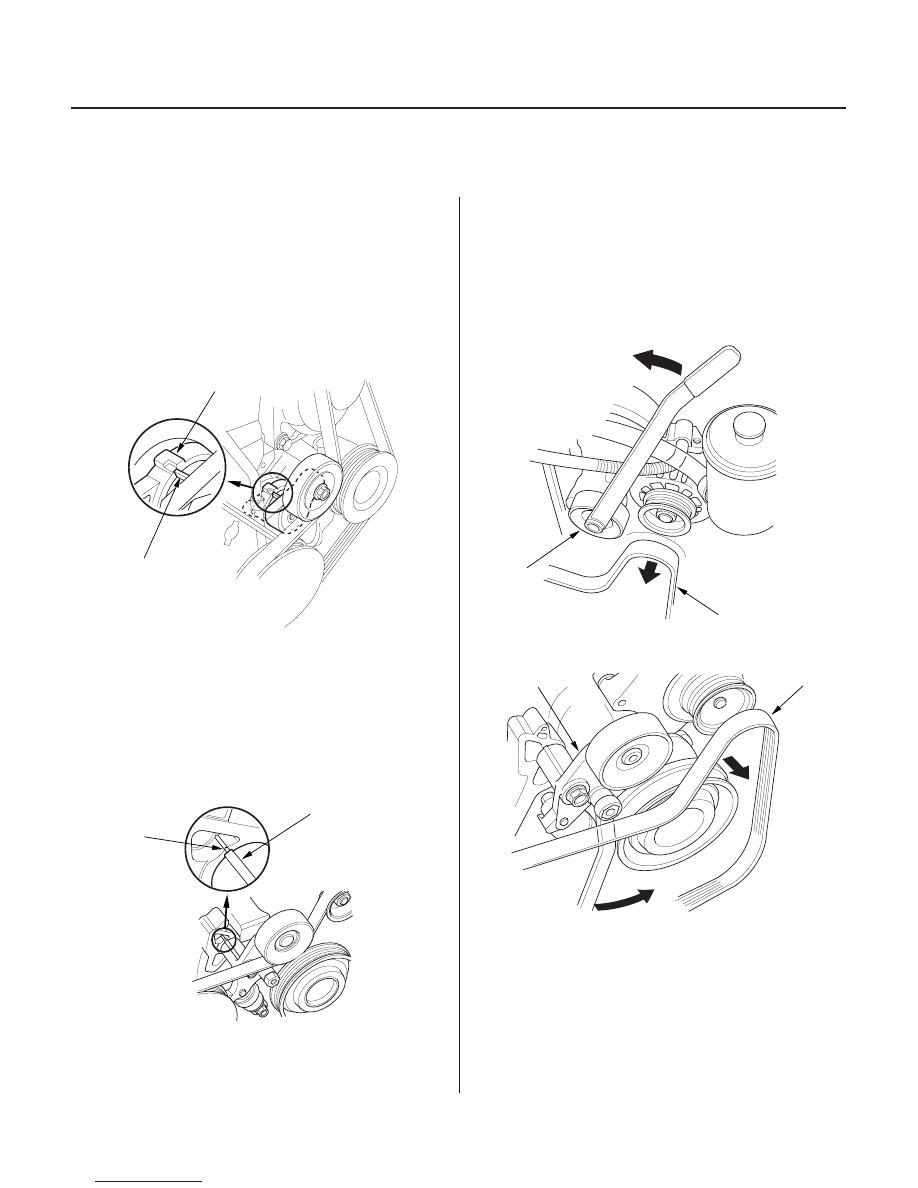

1. Inspect the belt for cracks and damage. If the belt is

cracked or damaged, replace it.

2. Check that the pointer (A) on auto-tensioner

housing is not beyond the edge of the indicator rib
(B) on the tensioner base. If pointer is beyond the
indicator rib, replace the alternator-compressor
belt.

1. Inspect the belt for cracks and damage. If the belt is

cracked or damaged, replace it.

2. Check that the pointer (A) on the oil pump is not

beyond the edge of the indicator rib (B) on the auto-
tensioner. If pointer is beyond the indicator rib,
replace the alternator-compressor belt.

1. Remove the splash shield (2002-2004 models) (see

step 28 on page 5-6).

2. Move the auto-tensioner (A) to relive tension from

the alternator-compressor belt (B), and remove the
belt.

3. Install the new belt in the reverse order of removal.

03/07/29 09:07:32 61S0X050_040_0026

０１

０２

Ｓ０Ｘ４Ａ００Ａ１４１０００１２９０１ＫＢＡＴ２０

4-27

Alternator Replacement

8 x 1.25 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

6 x 1.0 mm
12 N·m (1.2 kgf·m,
8.7 lbf·ft)

B
8 x 1.25 mm
22 N·m (2.2 kgf·m,
16 lbf·ft)

A
10 x 1.25 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

1. Make sure you have the anti-theft code for the radio

and the navigation system, then write down the
frequencies for the radio’s preset buttons.

2. Disconnect the negative cable from the battery first,

then disconnect the positive cable.

3. Remove the alternator-compressor belt (see page

4-26).

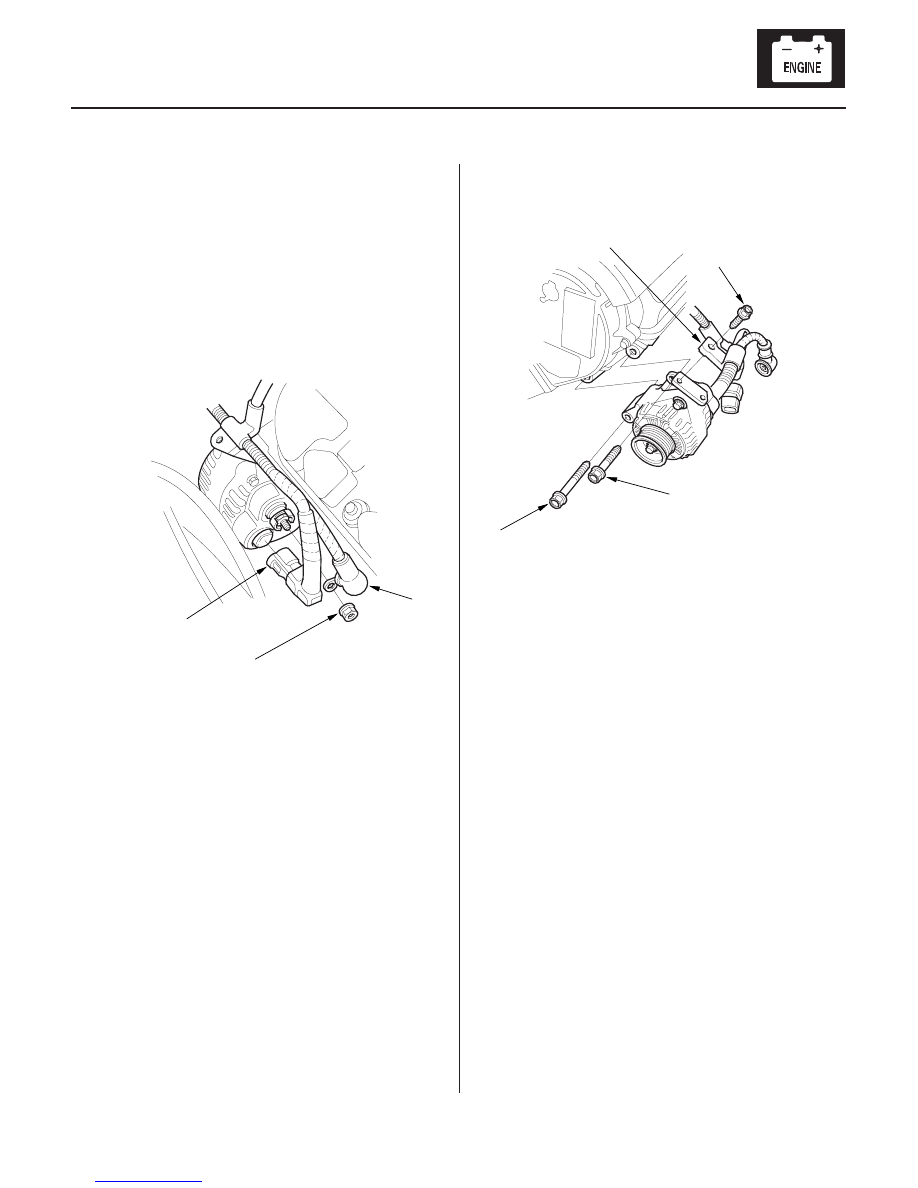

4. Disconnect the alternator 4P connector (A) and BLK

wire (B) from the alternator.

5. Remove the mounting bolt (A) and alternator

bracket mounting bolt (B), then remove the harness
clamp (C) from the alternator bracket.

6. Install in the reverse order of removal.

7. Enter the anti-theft code for the radio and the

navigation system, then enter the customer’s radio
station presets.

8. Perform the powertrain control module (PCM) idle

learn procedure (see page 11-202), and the power
window control unit reset procedure (2003-2004
models) (see page 22-200).

9. Set the clock.
