within 5 minutes of applying the liquid gasket.

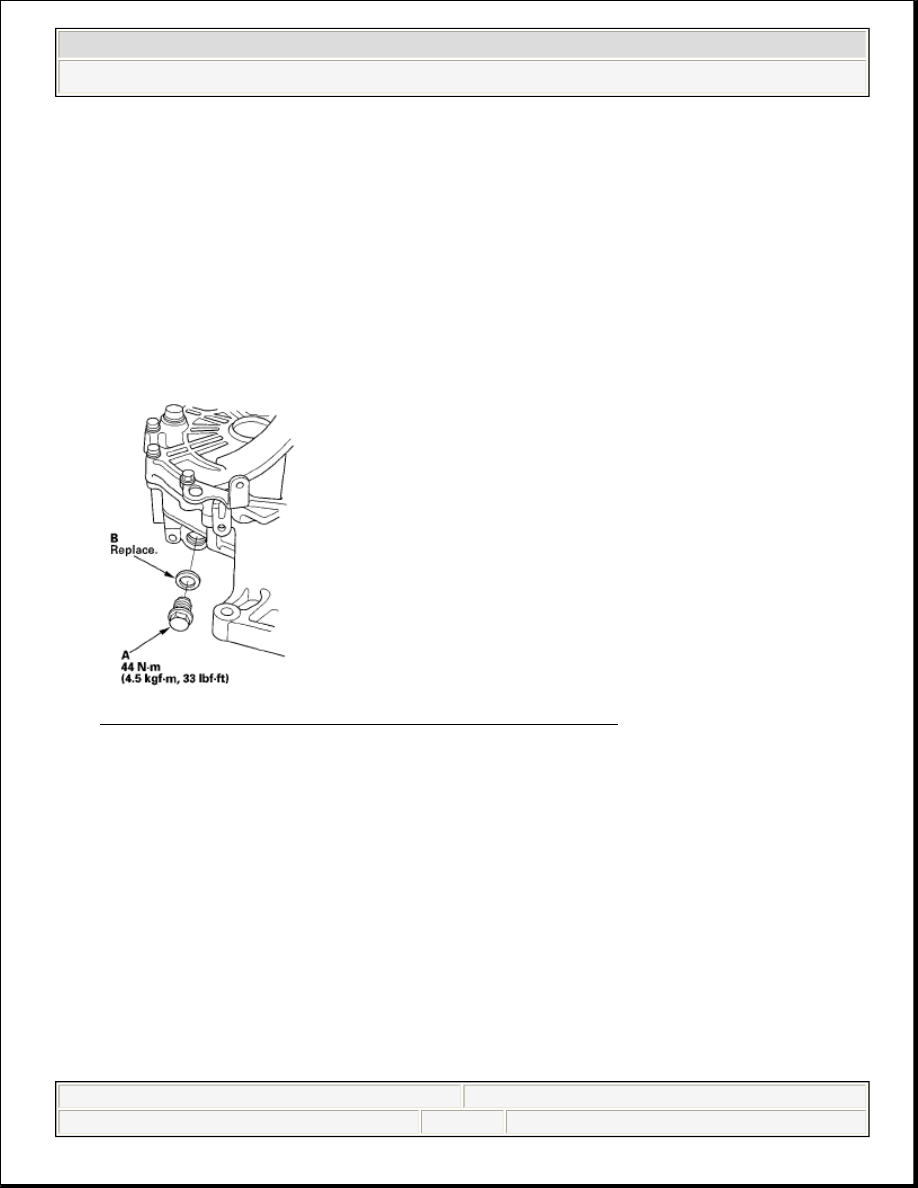

24. Install the 20 mm bolt (A) and new 20 mm washer (B).

Fig. 185: Identifying Bolt, Washer & Torque Spec.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

GEARSHIFT MECHANISM REPLACEMENT

NOTE:

If you apply liquid gasket P/N 08718-0012, the
component must be installed within 4 minutes.

If too much time has passed after applying the
liquid gasket, remove the old liquid gasket and
residue, then reapply new liquid gasket.

2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic

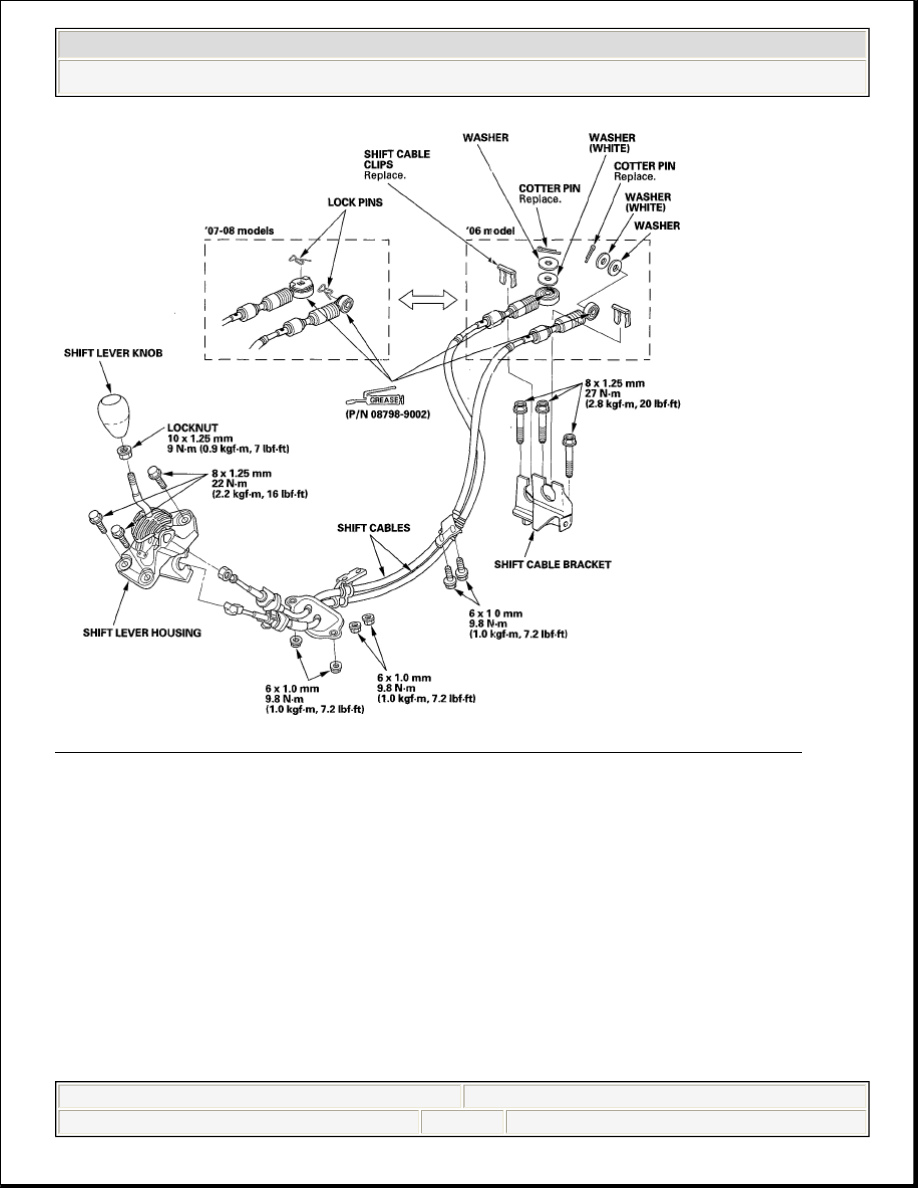

Fig. 186: Identifying Gearshift Mechanism Components w/Torque Specs.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

M/T DIFFERENTIAL

COMPONENT LOCATION INDEX

2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic

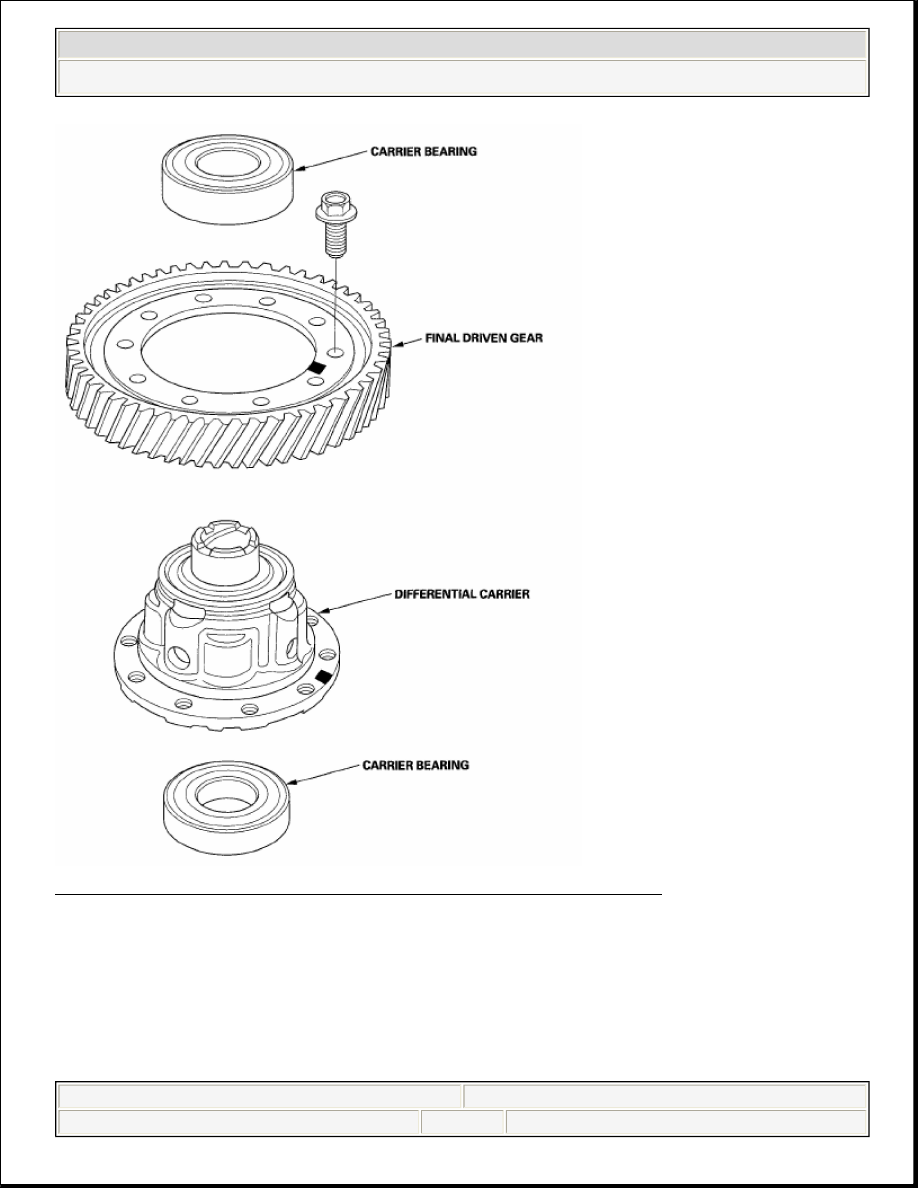

Fig. 187: Identifying M/T Differential Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DIFFERENTIAL CARRIER, FINAL DRIVEN GEAR REPLACEMENT

1. Remove the bolts in a crisscross pattern in several steps, then remove the final

driven gear (A) from the differential carrier (B).

2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic

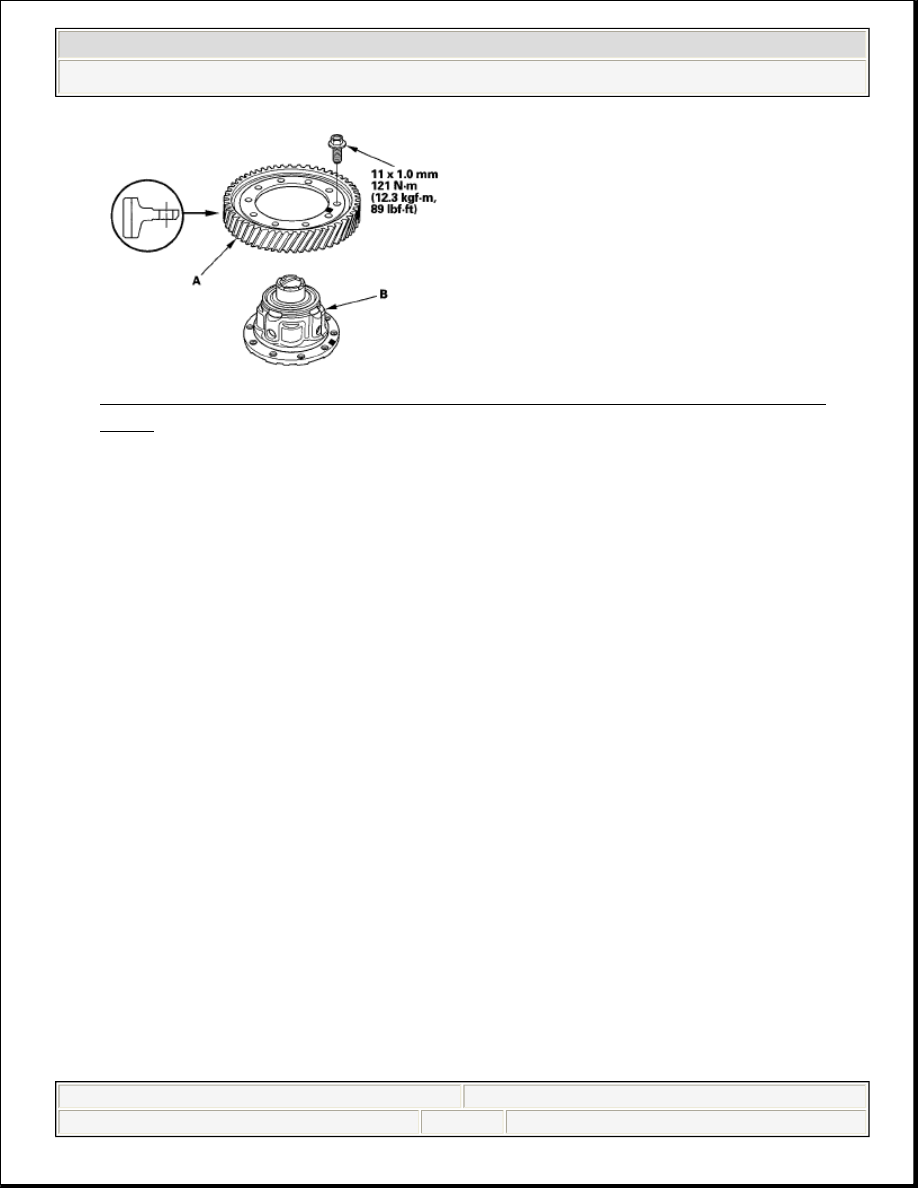

Fig. 188: Identifying Final Driven Gear, Differential Carrier & Torque
Spec.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the final driven gear with the chamfer on the inside diameter facing the

carrier. Tighten the bolts in a crisscross pattern in several steps.

CARRIER BEARING REPLACEMENT

Special Tools Required

Driver, 40 mm I.D. 07746-0030100

1. Check the carrier bearings for wear and rough rotation. If they rotate smoothly

and their rollers show no signs of wear, the bearings are OK.

2. Remove the carrier bearings (A) with a commercially available bearing puller

(B).

2008 Honda Civic LX

2006-08 TRANSMISSION Manual Transmission (6-Speed)(Except Hybrid) - Civic
