Honda Civic. Manual - part 445

Fig. 73: Pressing Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Seat the external snap ring (A) into the groove of the intermediate shaft (B).

Fig. 74: Identifying External Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the new outer seal (A) into the bearing support (B) using the oil seal

driver (C) and a press.

2008 Honda Civic GX

2006-08 DRIVELINE/AXLES Driveline/Axle - Civic (All Except Hybrid)

Fig. 75: Identifying Outer Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6-SPEED M/T MODEL (SI)

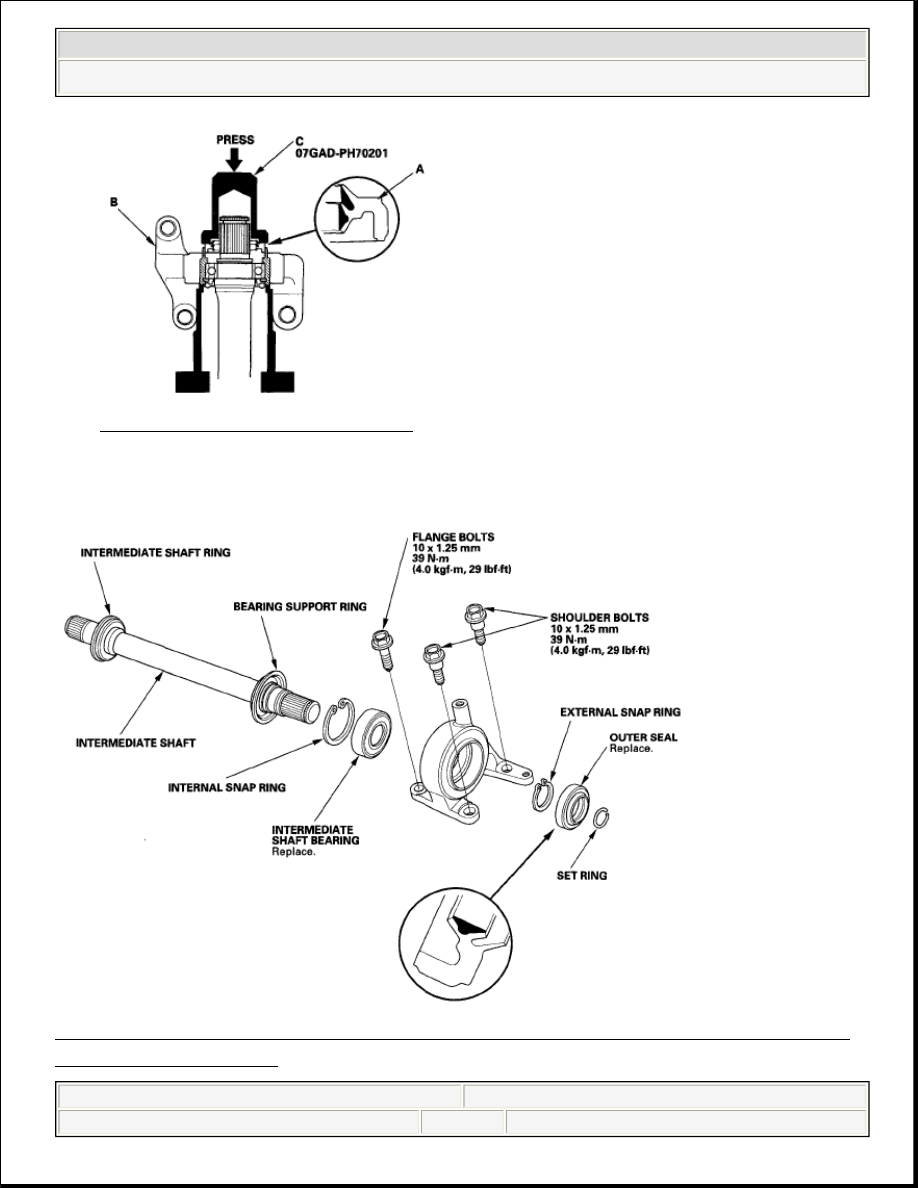

Fig. 76: Exploded View Of Intermediate Shaft - 6-Speed M/T Model (Si) With
Torque Specifications

2008 Honda Civic GX

2006-08 DRIVELINE/AXLES Driveline/Axle - Civic (All Except Hybrid)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Oil seal driver 07GAD-PH70201

Attachment, 52 x 55 mm 07746-0010400

Attachment, 35 mm I.D. 07746-0030400

Driver 07749-0010000

1. Clean the disassembled parts with solvent, and dry them with compressed air.

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the

52 x 55 mm attachment (C), driver (D), and a press.

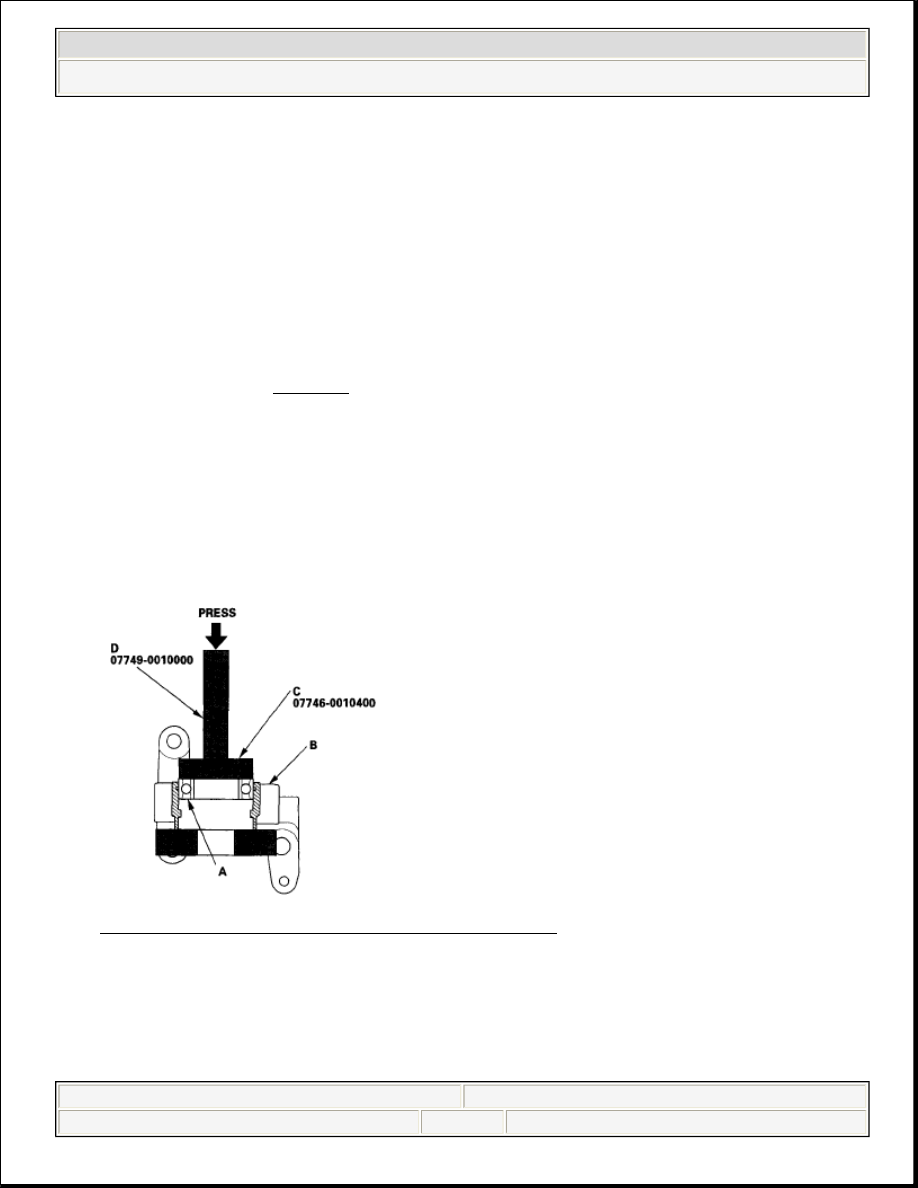

Fig. 77: Pressing Intermediate Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Seat the internal snap ring into the groove of the bearing support.

NOTE:

Refer to Fig. 76, as needed, during this procedure.

NOTE:

Do not wash the rubber parts with solvent.

2008 Honda Civic GX

2006-08 DRIVELINE/AXLES Driveline/Axle - Civic (All Except Hybrid)

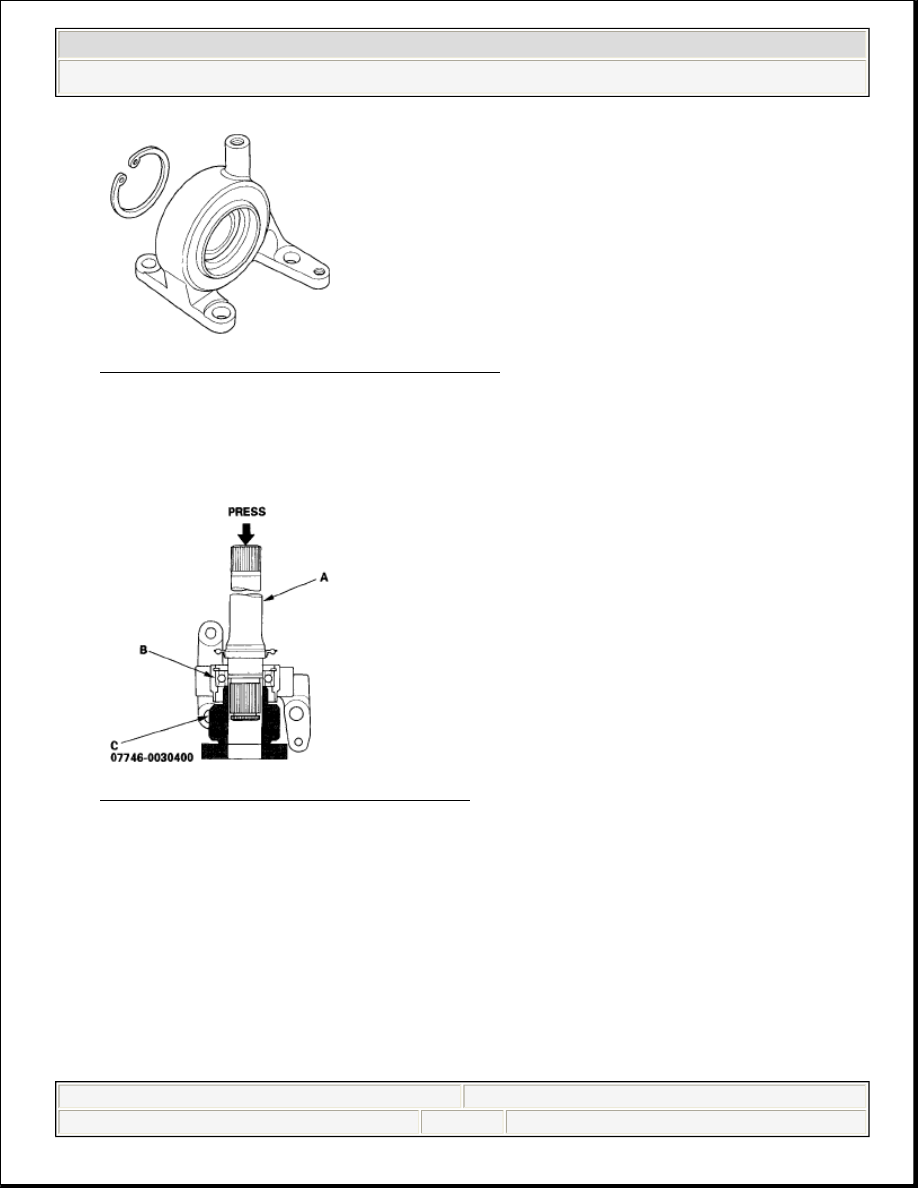

Fig. 78: Identifying Internal Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Press the intermediate shaft (A) into the new shaft bearing (B) using the 35 mm

I.D. attachment (C) and a press.

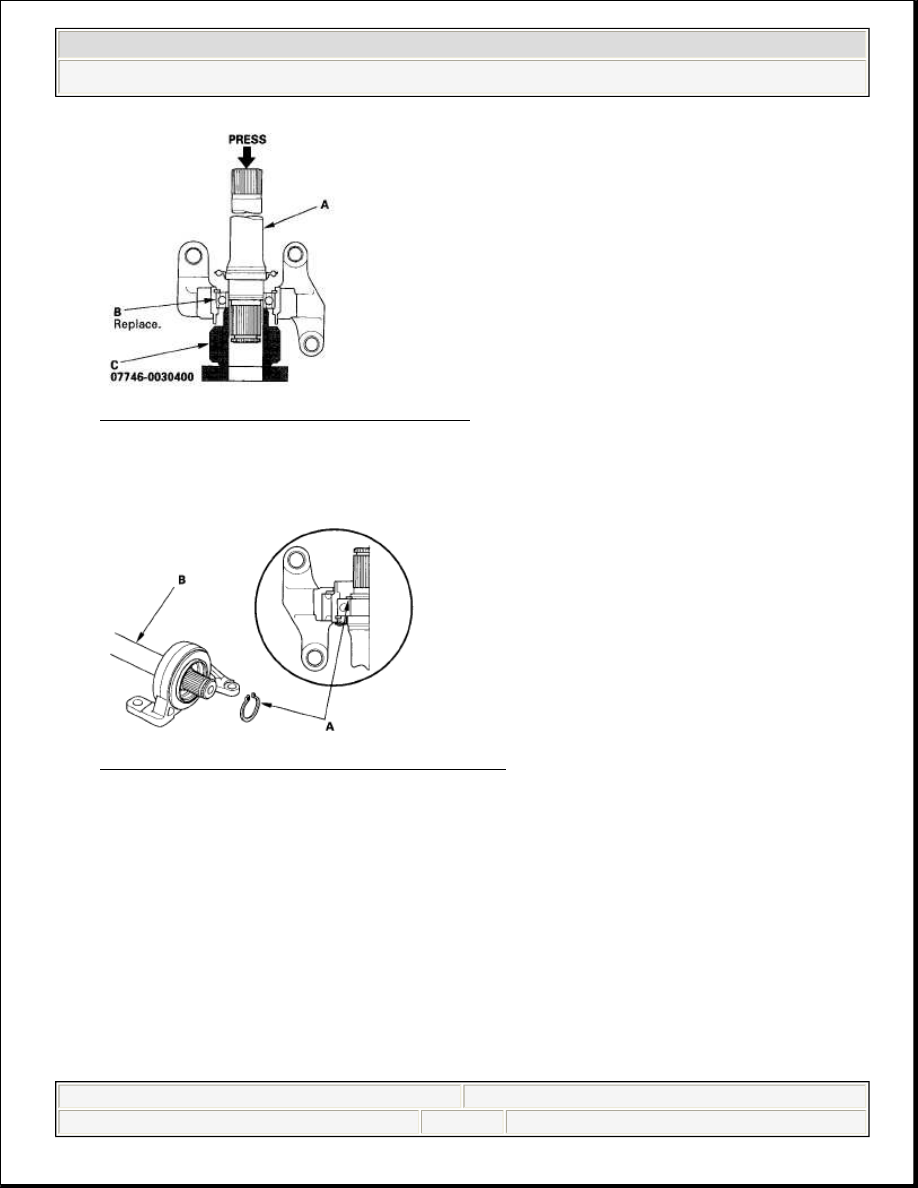

Fig. 79: Pressing Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Seat the external snap ring (A) into the groove of the intermediate shaft (B).

2008 Honda Civic GX

2006-08 DRIVELINE/AXLES Driveline/Axle - Civic (All Except Hybrid)
