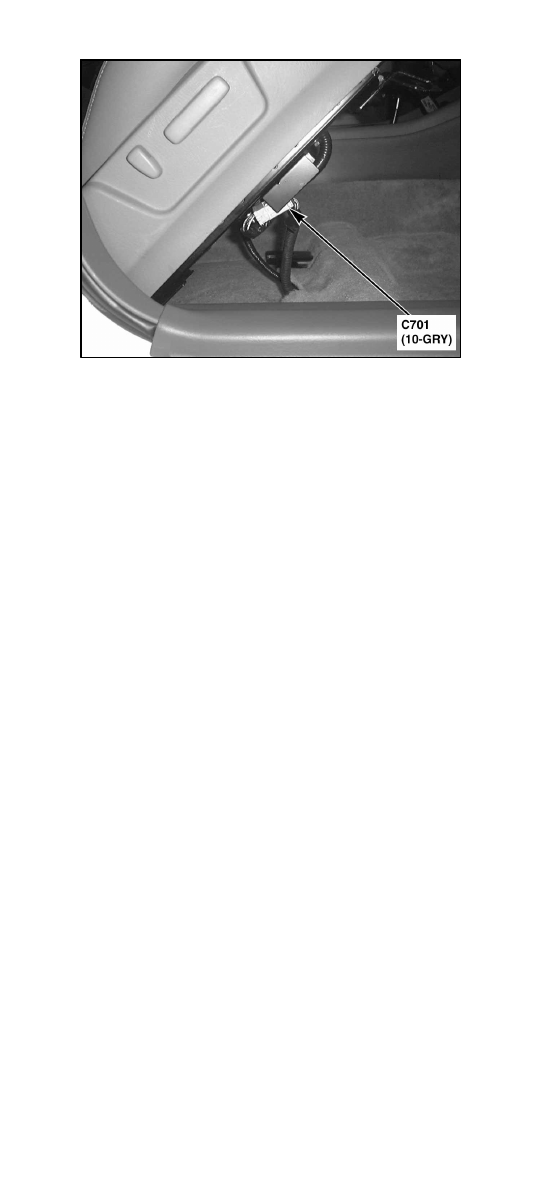

198. Right Side of Front Passenger Seat

(’01-’02 EX V6 Sedan)

199. Right Side of Trunk (Left Similar) (’01-’02 Sedan)

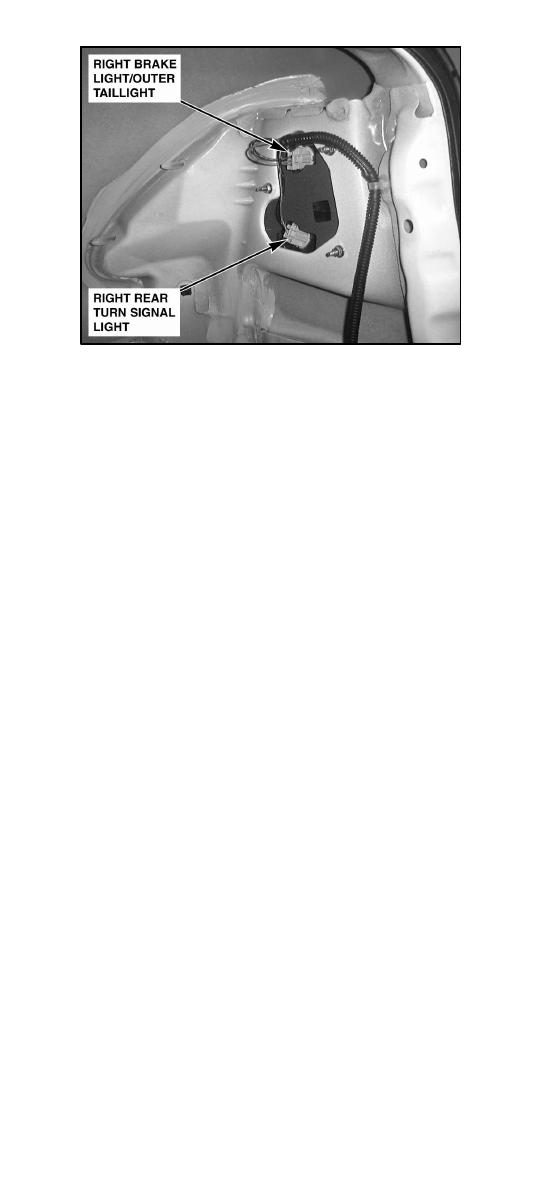

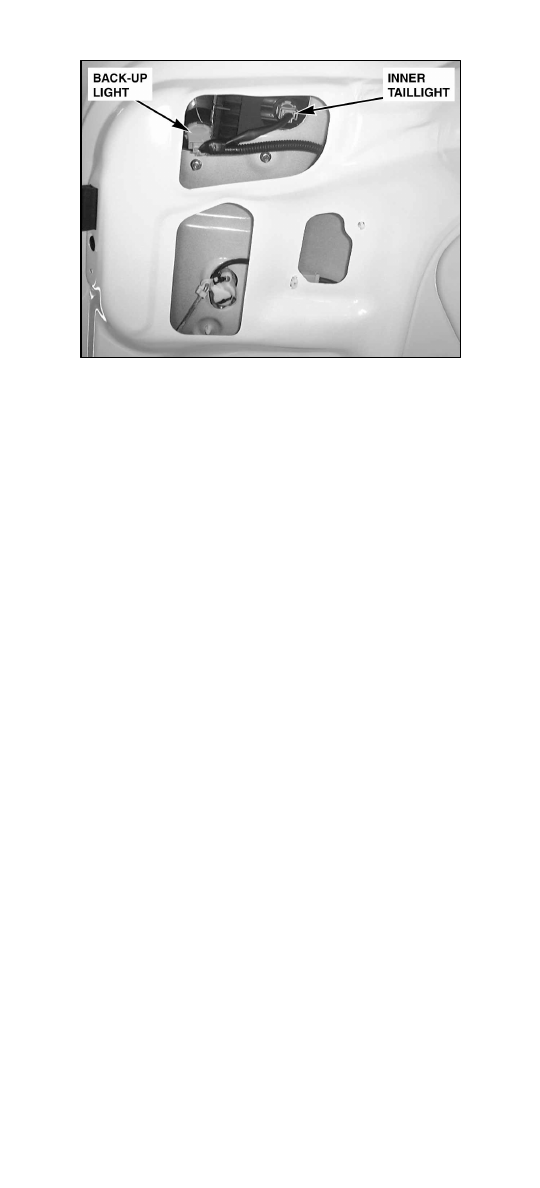

200. Right Rear of Trunk Lid (Left Similar)

(’01-’02 Sedan)

+

–

Connector Views

Coupe:

1 WHT/BLK

(Brake switch input)

2 WHT/GRN

(Safety indicator output)

3 GRN

(Brake light input)

4
5 BLK

(G601)

6 YEL

(Ignition input)

1

2

3

4

5

6

1.

Brake Light Failure Sensor

– Gray
– Left rear corner of trunk
– On rear wire harness

Sedan:

1
2 GRN

(Brake light input)

3 BLK

(G601)

4 WHT/GRN

(Safety indicator output)

5 YEL

(Fuse 9)

6 WHT/BLK

(Brake switch input)
