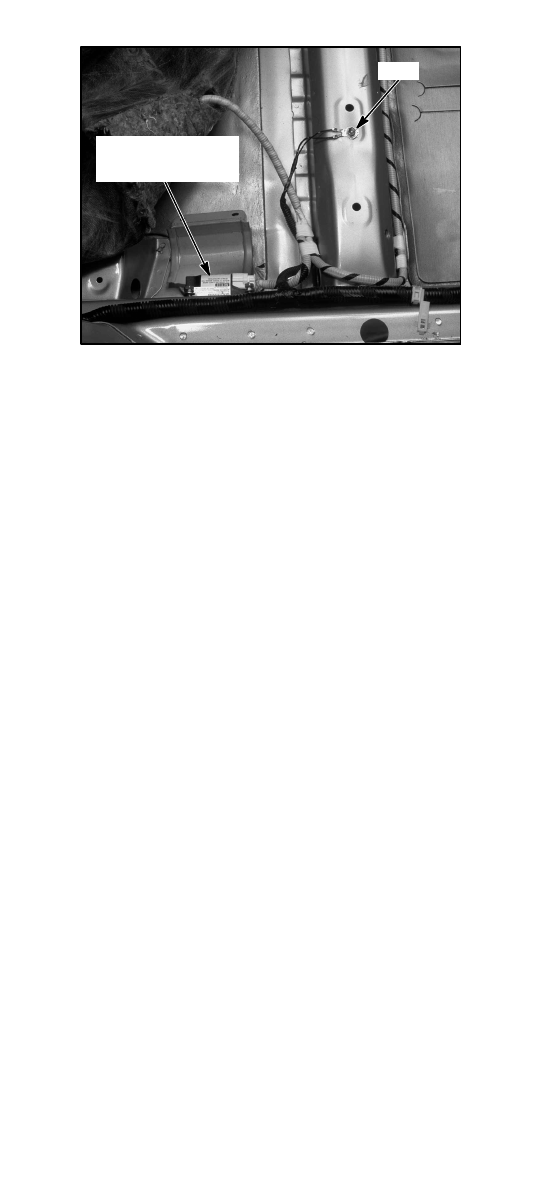

125. Below Front Passenger’s Seat, Carpet Pulled Back

G581

FRONT PASSENGER’S
SIDE IMPACT SENSOR
(’00-’02 Models)

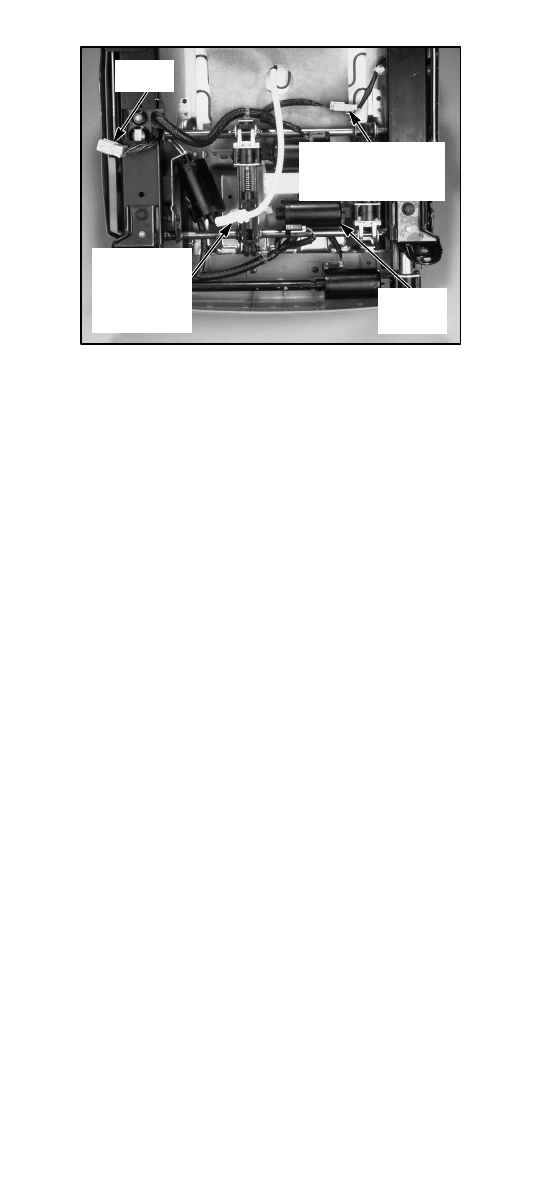

126. Left Side of Driver’s Seat (8-way)

CONNECTOR A
(6-GRY)

CONNECTOR B
(6-GRY)

DRIVER’S
POWER SEAT
ADJUSTMENT
SWITCH

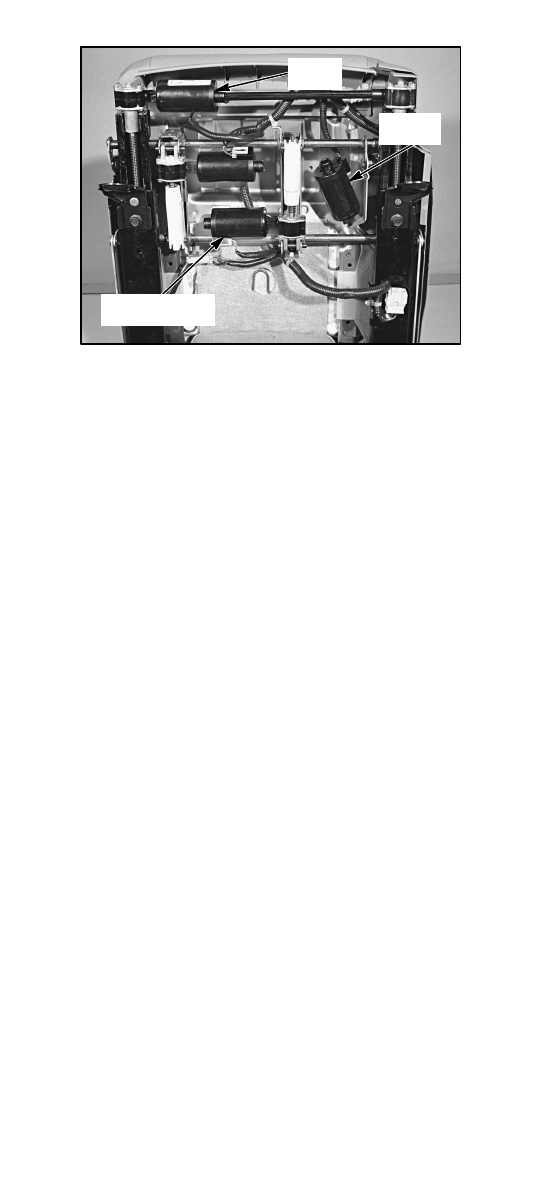

127. Underside of Driver’s Seat (8-way)

SLIDE
MOTOR

FRONT UP-DOWN
MOTOR

RECLINE
MOTOR

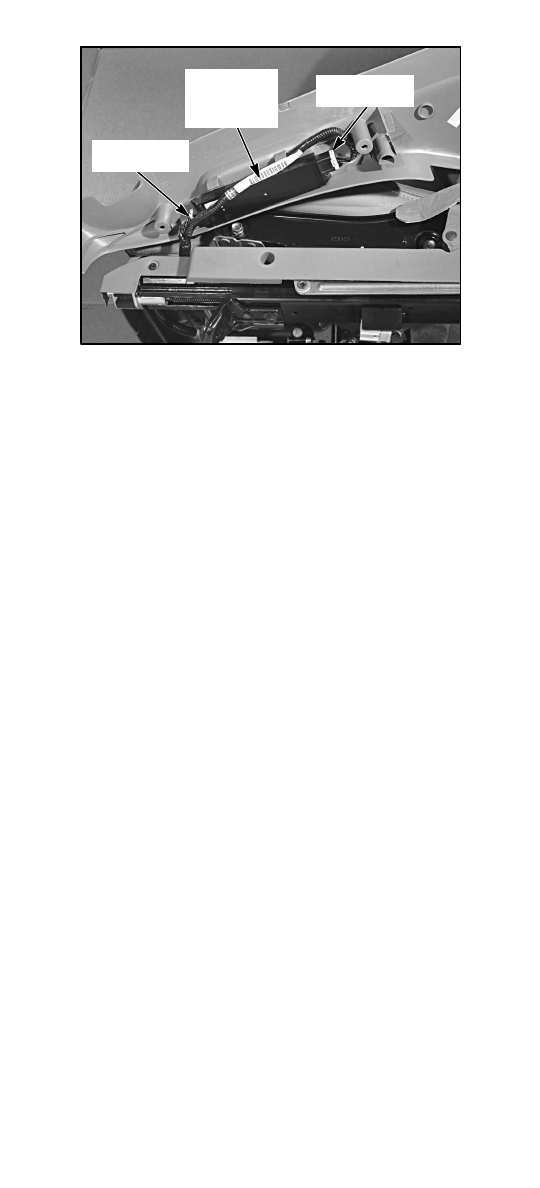

128. Underside of Driver’s Seat (8-way)

DRIVER’S SEAT BELT
SWITCH CONNECTOR
(2-GRY) (’98-’99 Models)
(3-GRY) (’00-’02 Models)

DRIVER’S
SIDE AIRBAG
INFLATOR
CONNECTOR
(2-YEL)
(’00-’02 Models)

REAR
UP-DOWN
MOTOR

C551
(10-GRY)
