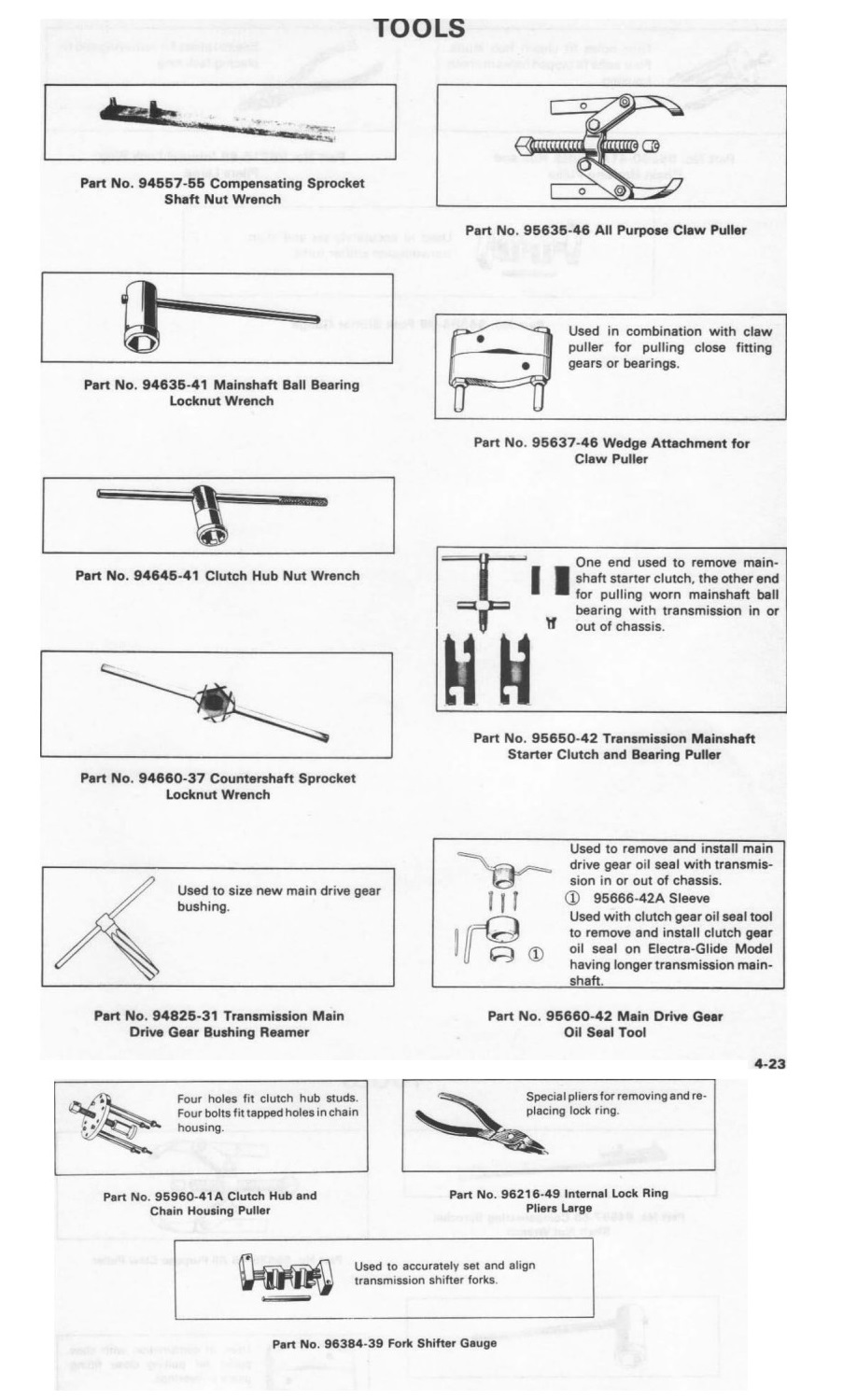

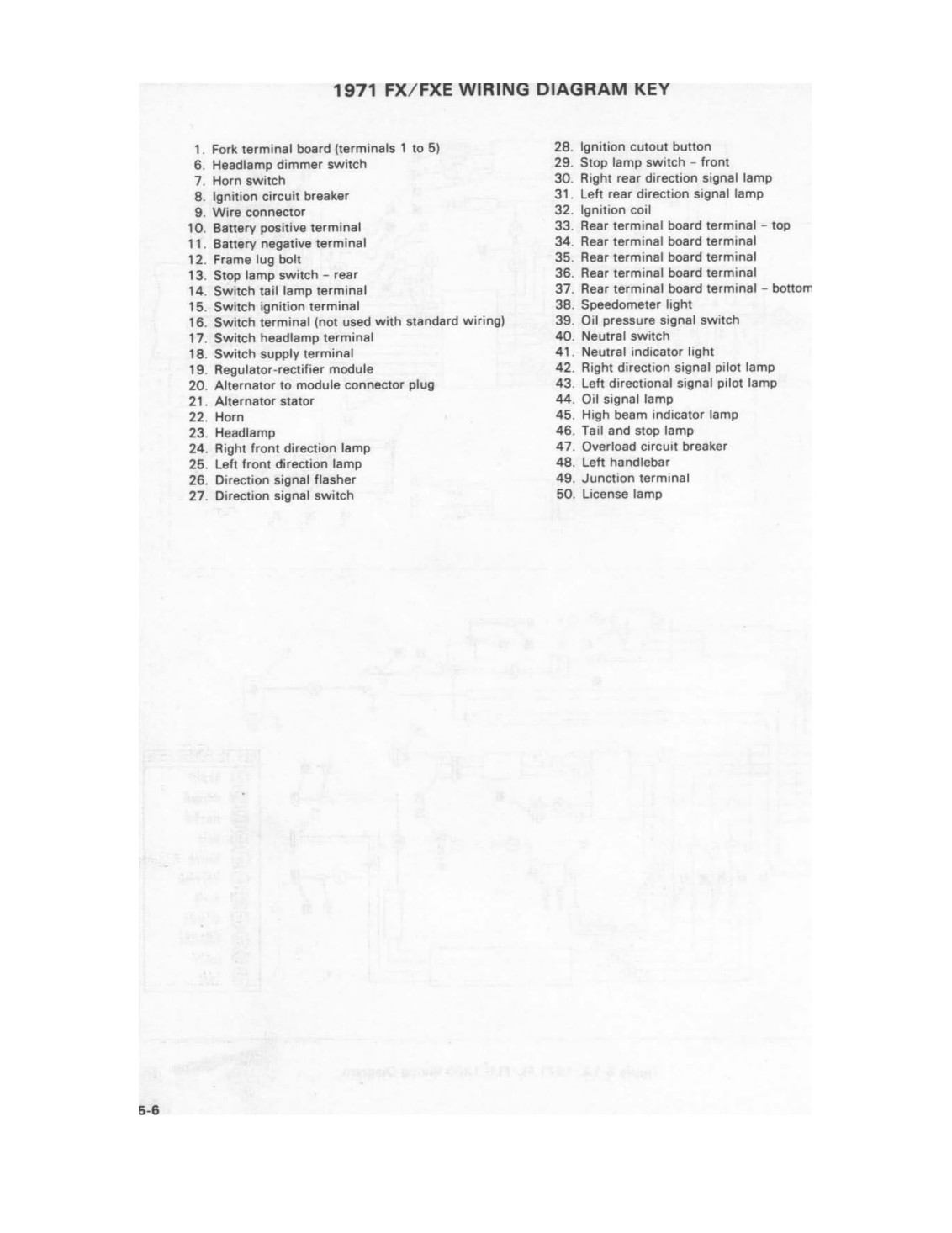

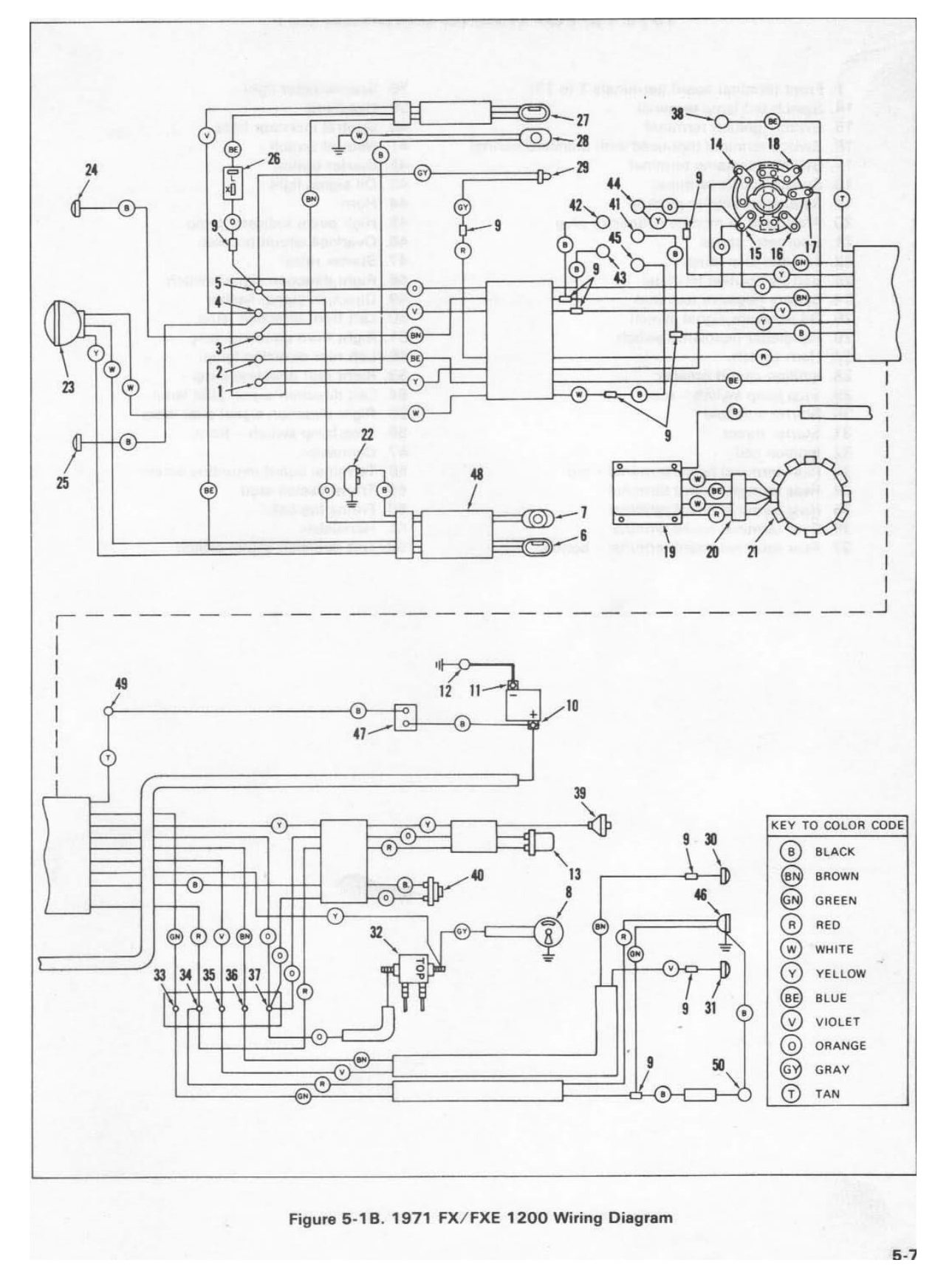

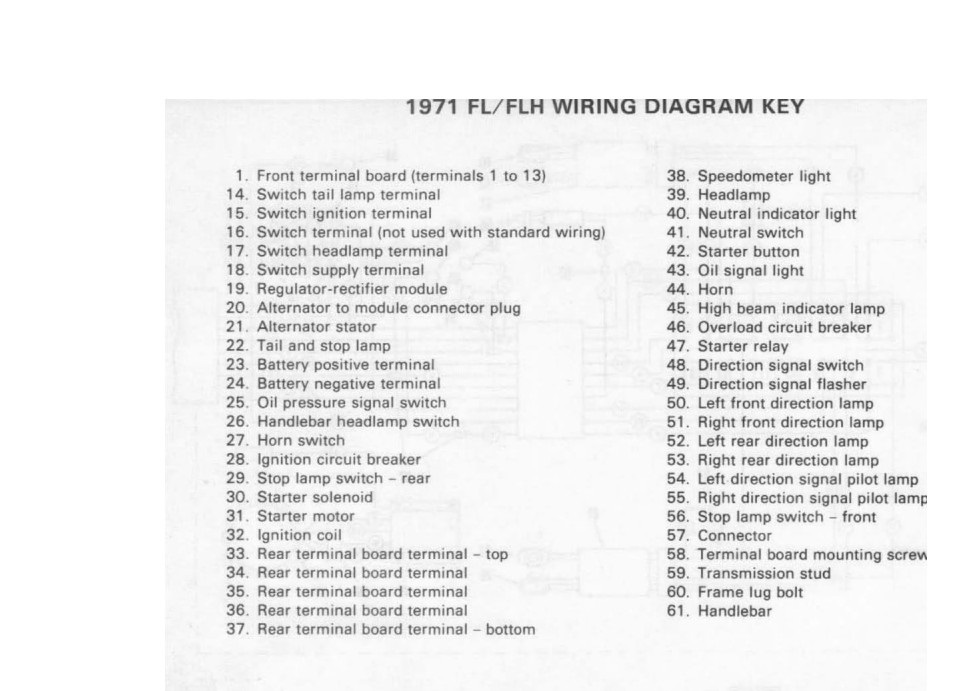

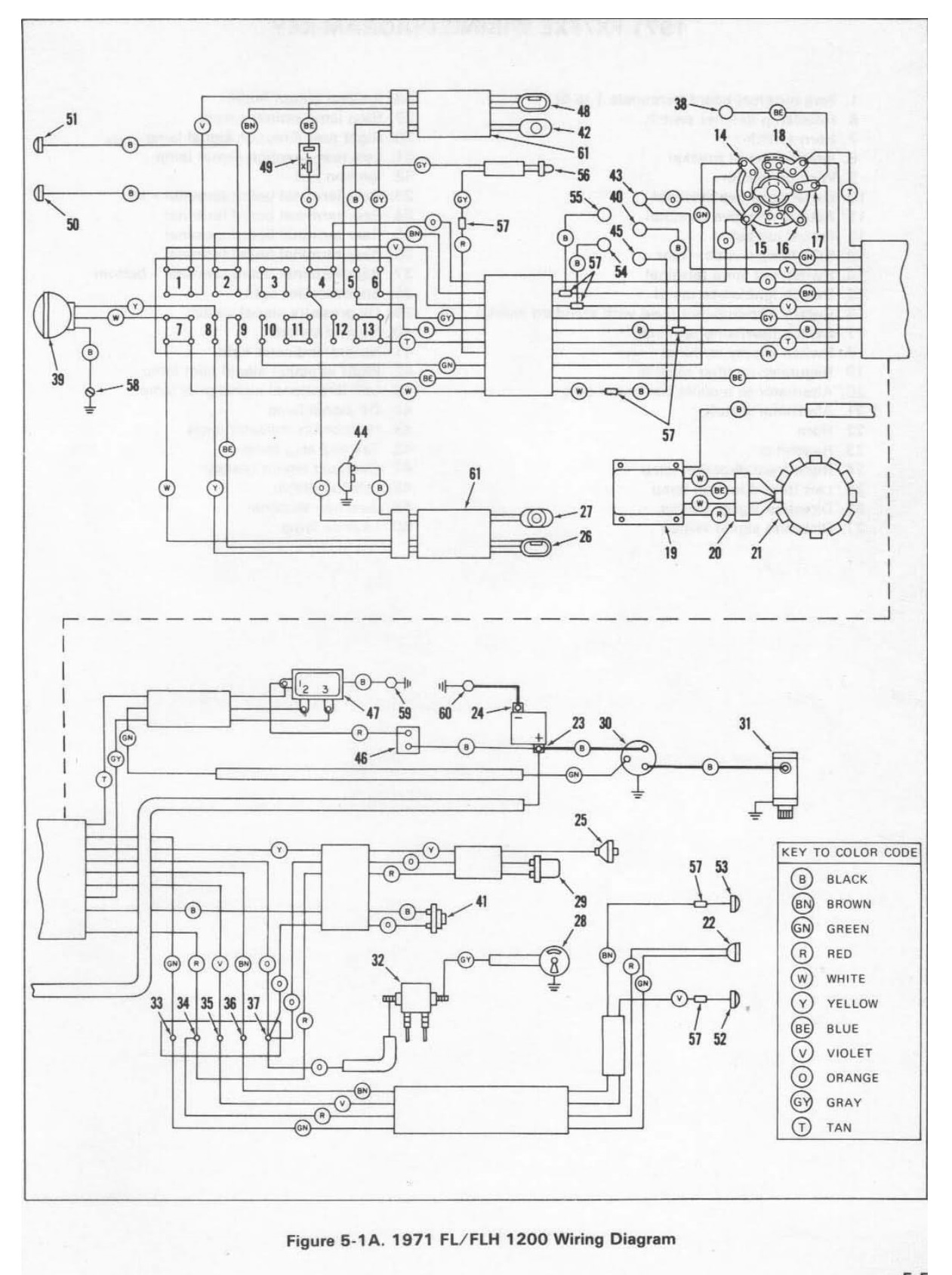

Harley Davidson (1970 to early 1978) Electra Glide FL/FLH-1200, Super Glide FX/FXE/FXS-1200. Service manual - page 11

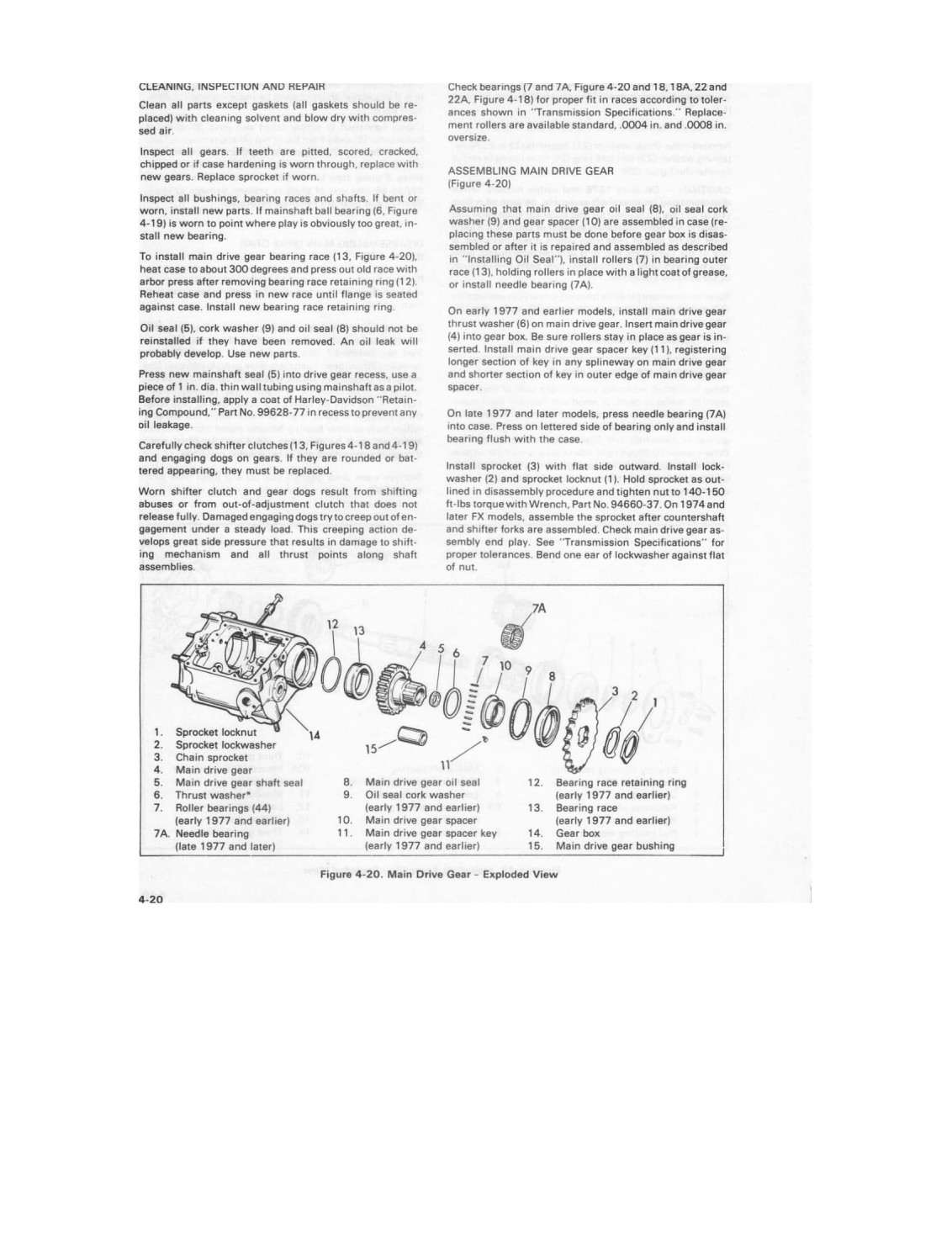

Inspect all parts generally for cracks, bent parts
and any wear that would impair intended functions. If hole in pawl
carrier is elongated, bushing (33) must be replaced or mechanism will
not shift properly.

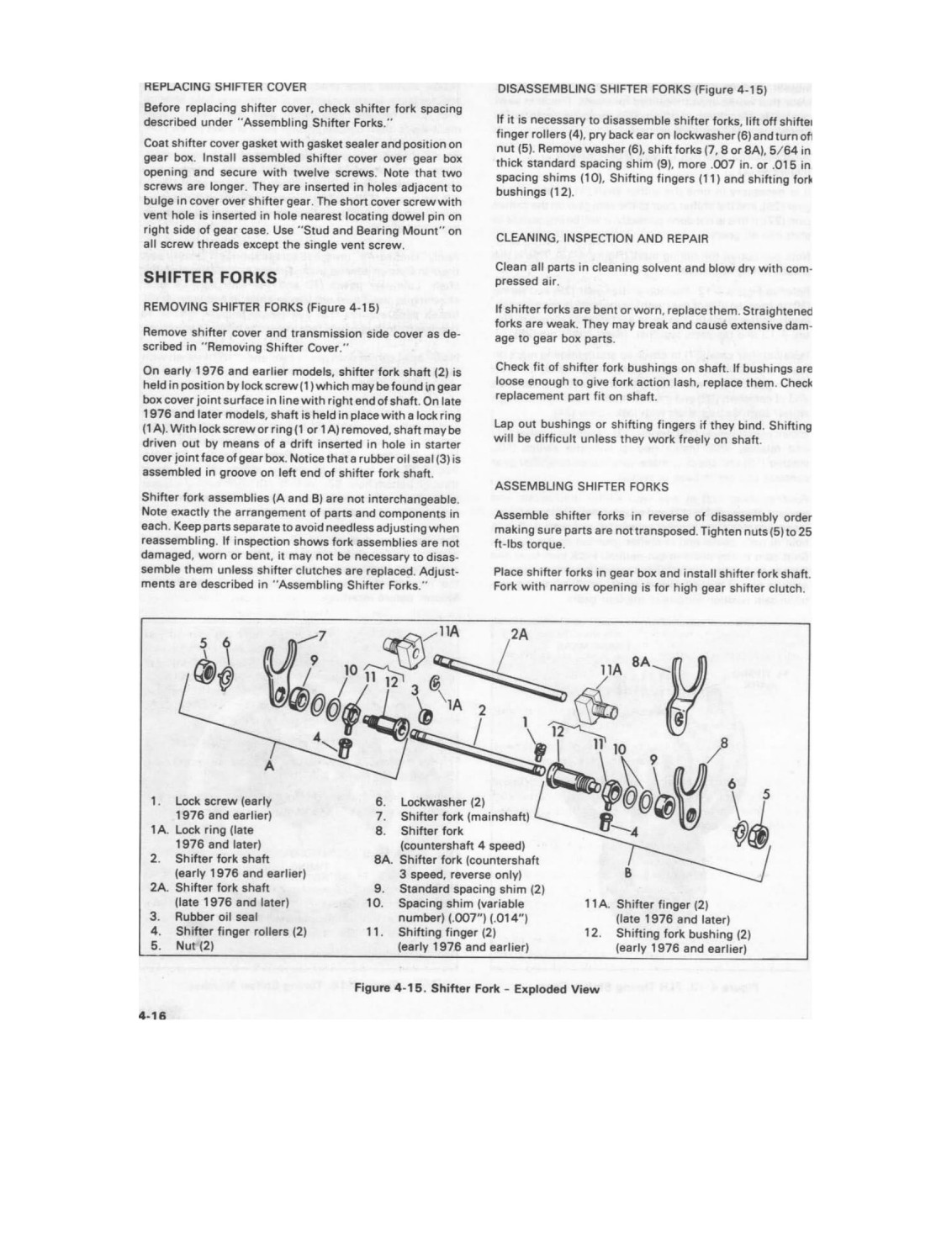

ASSEMBLING SHIFTER COVER (FOOT SHIFT)
(Figure 4-12)
It is necessary to time the shifter shaft (31) to the shifter gear (29),
and the shifter gear to the cam gear on the shifter cam (27). If this is
not done correctly, it will be impossible to shift into all gears

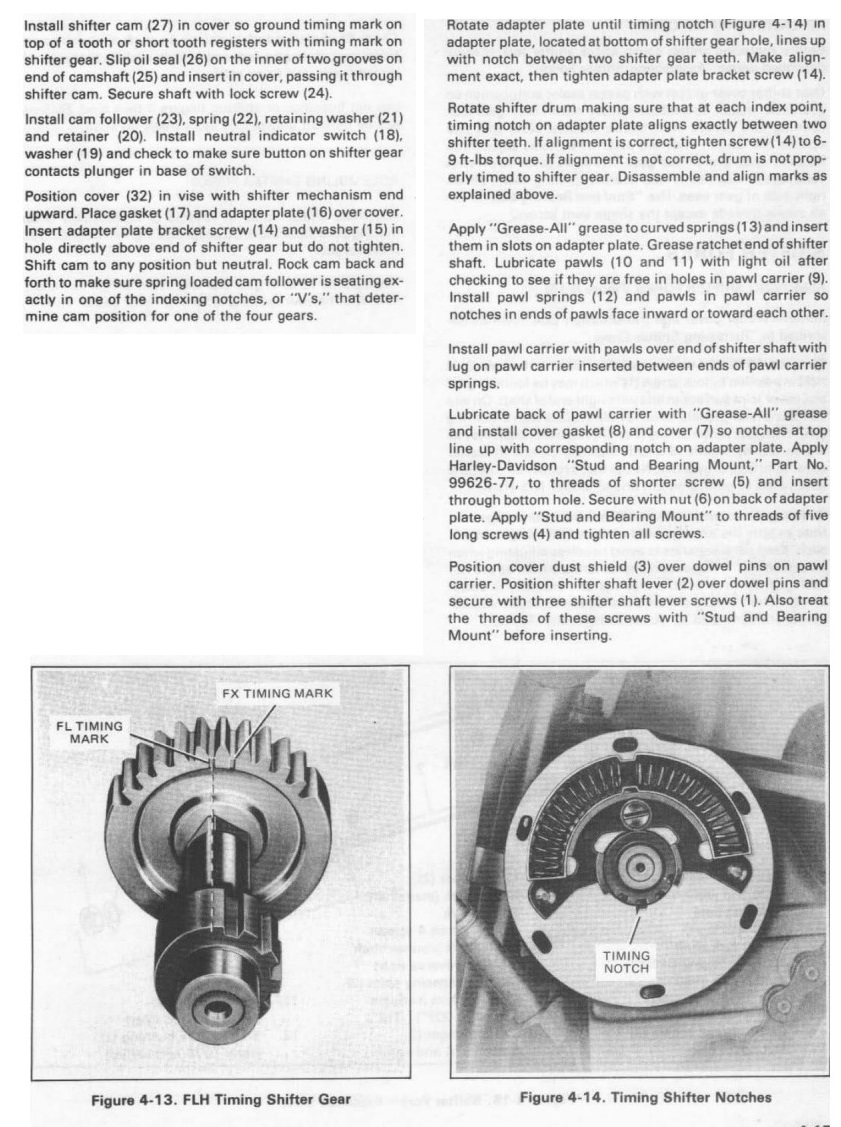

Note position of the timing mark (Figure 4-13). This is the proper
timing alignment.

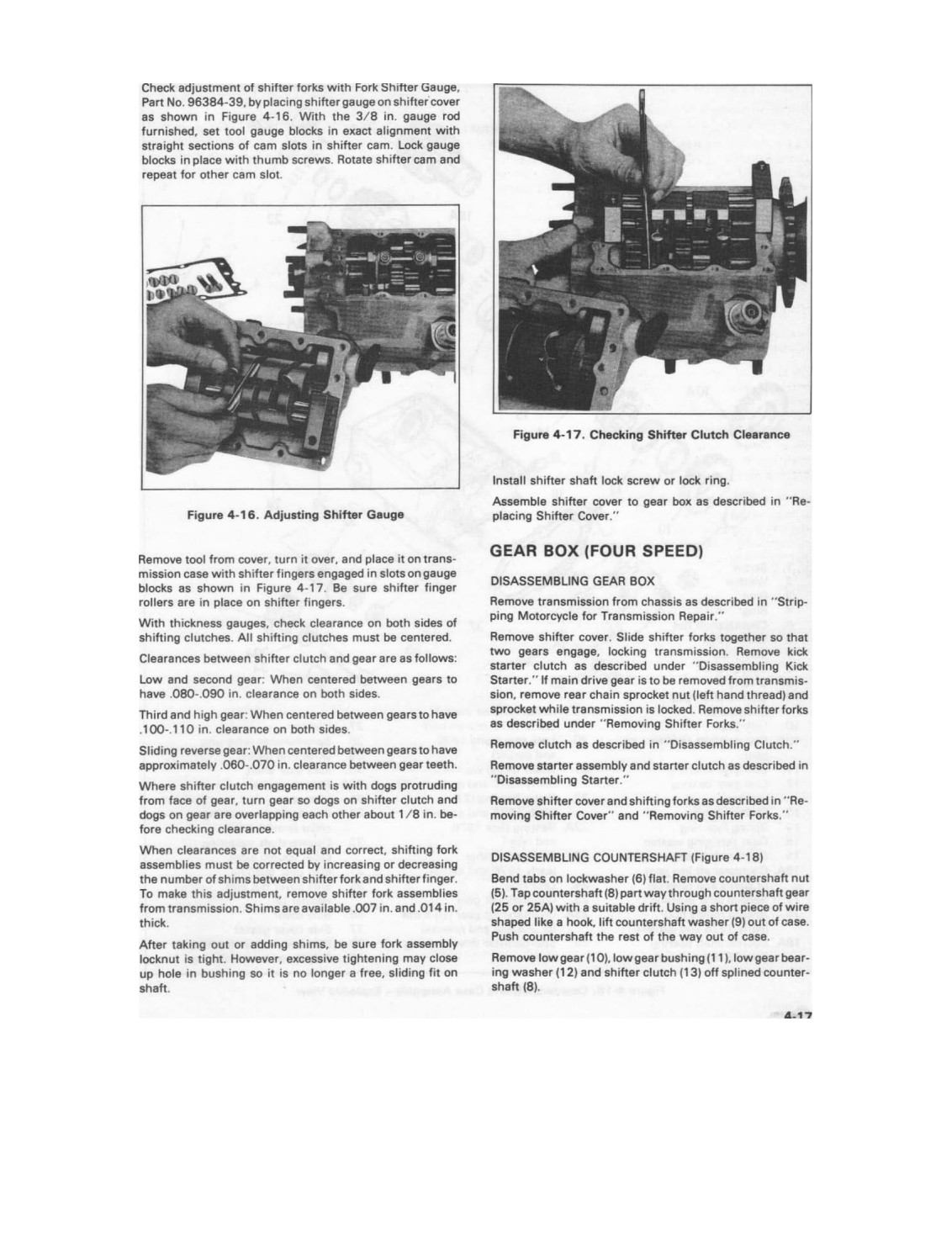

Refer to Figure 4-12. Position shifter gear (29) and spring (30) in
case, so side of gear with timing mark is toward case. Insert shifter
shaft (31) so parts are timed as shown in Figure 4-13 and tap parts
together Insert cotter pin (28).
