Harley Davidson 2007 Softail. Service manual - page 4

SUSPENSION ADJUSTMENTS
REAR SHOCK PRELOAD

PART NO.

HD-94455-89



SPECIALTY TOOL

Spanner wrench







The Softail rear shock absorber springs can be adjusted for the weight the motorcycle is to carry. Use the spanner wrench for this purpose.

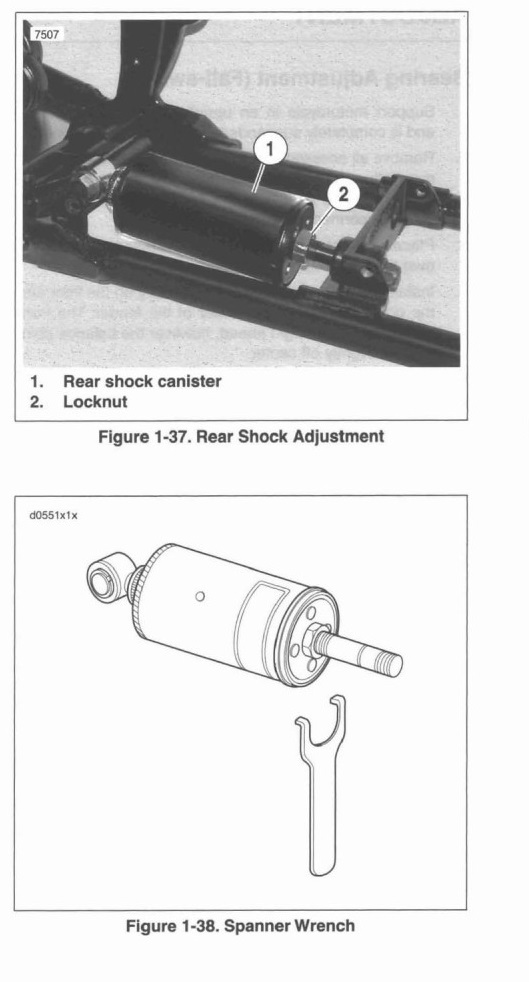

1. See Figure 1 -37. Loosen the locknuts (2).
Awarning
Be sure both shock absorbers are adjusted to same preload position. Improper adjustment can adversely affect stability and handling, which could result in death or serious injury. (00036a)

2. See Figure 1 -38. Use the SPANNER WRENCH (Part No. 94455-89) and extend or compress the springs to the rider’s desired position. Mark the adjuster plates so you adjust both springs to the same position.

a. Turning the adjuster plates OUT (toward the locknut) increases the spring preload to carry a heavier load.

b. Turning the adjuster plates IN (away from the lock-nut) decreases the spring preload to carry a lighter load.

3. Tighten the locknuts against the adjuster plates.
