Harley Davidson 2016 Dyna Models. Service manual - page 19

FUEL SYSTEM
SUBJECT PAGE NO.

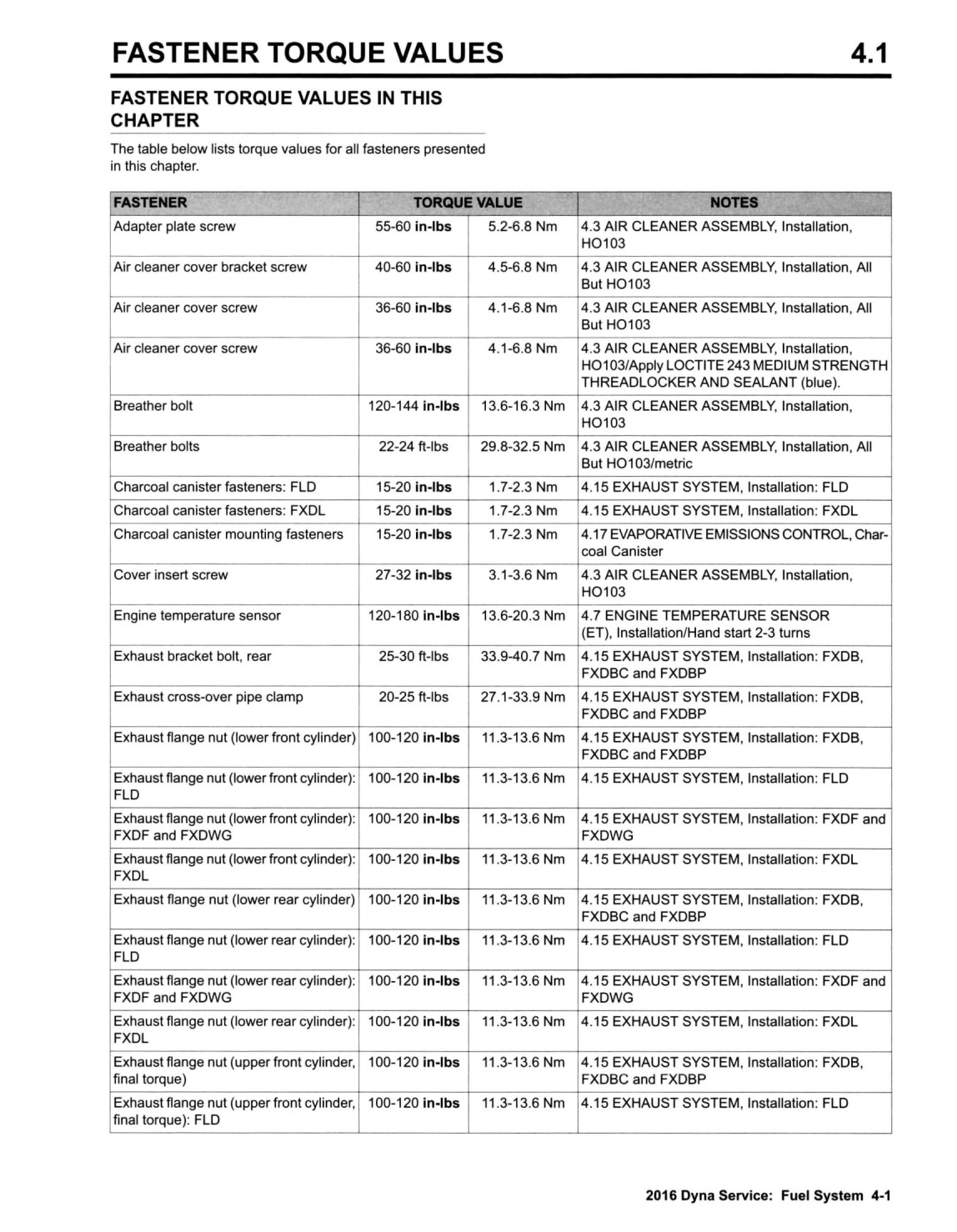

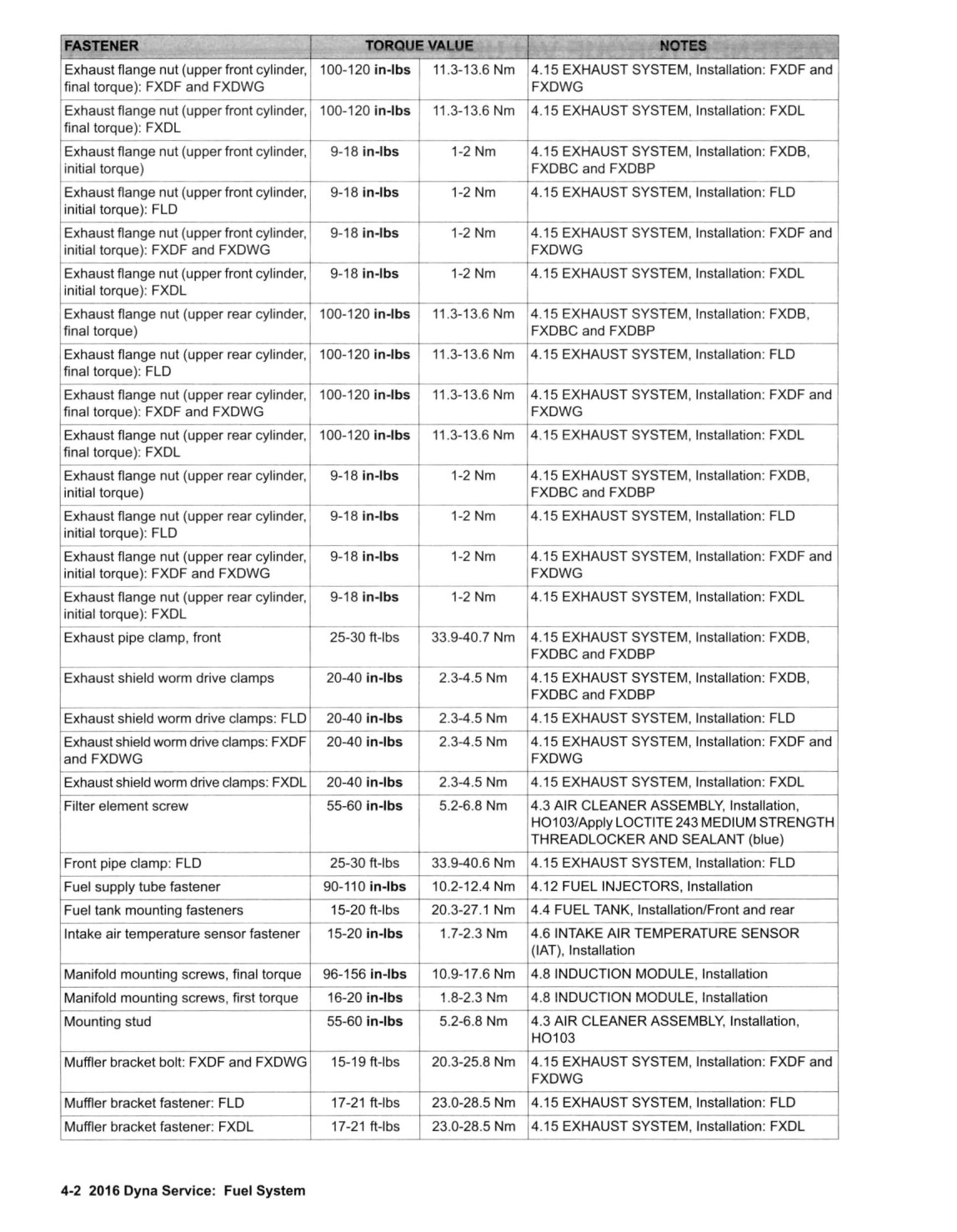

4.1 FASTENER TORQUE VALUES............................................................................. 4-1

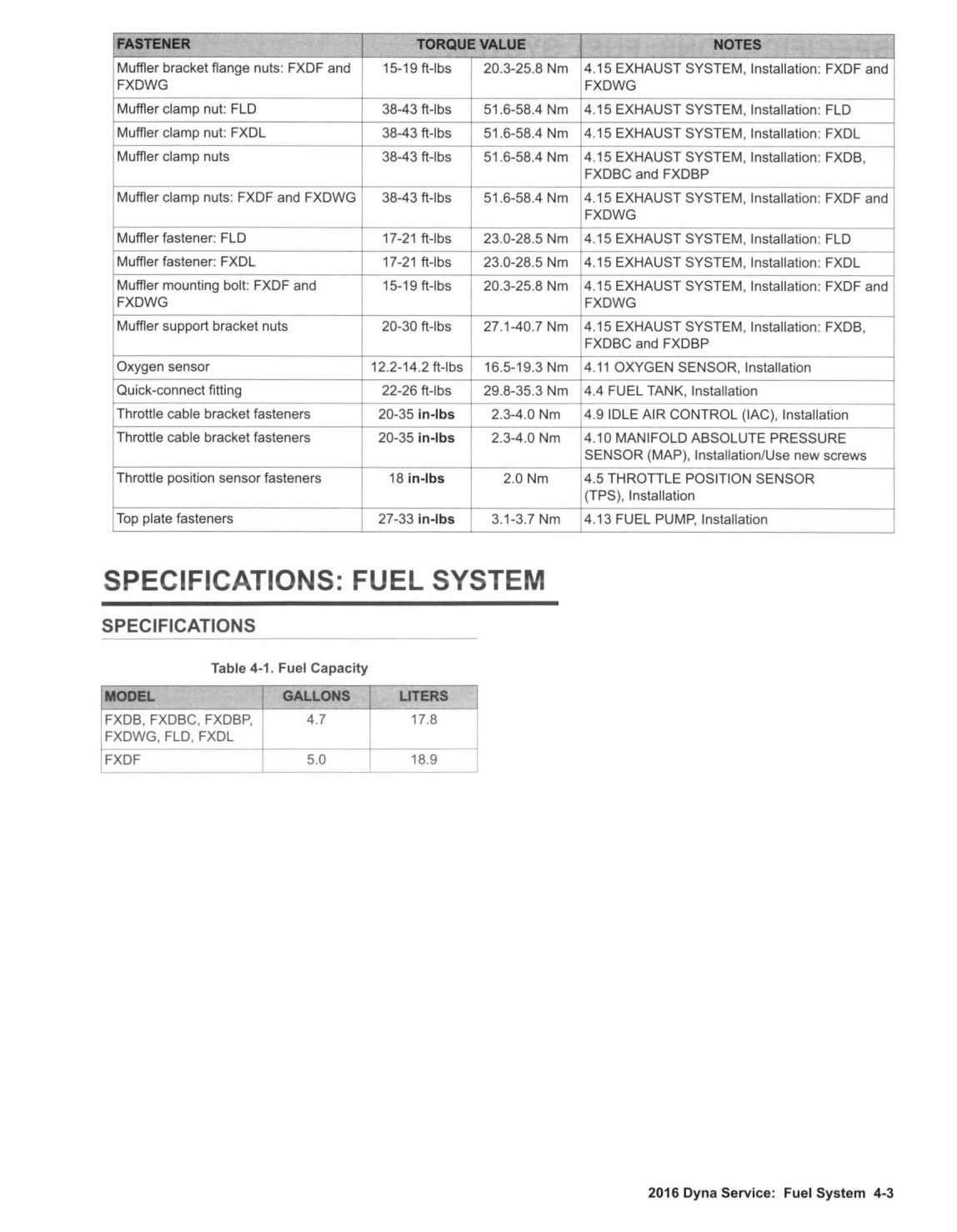

4.2 SPECIFICATIONS: FUEL SYSTEM....................................................................... 4-4

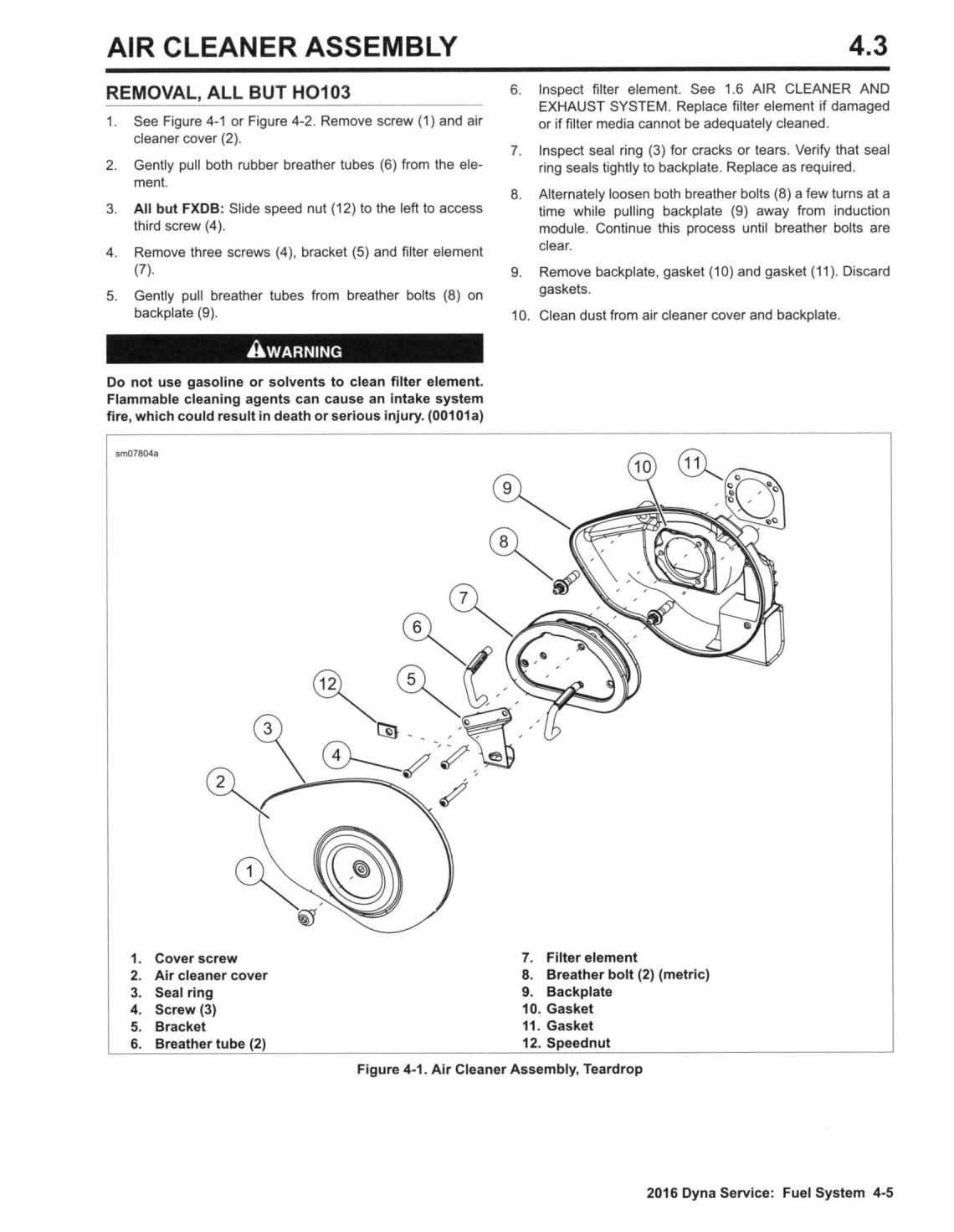

4.3 AIR CLEANER ASSEMBLY.................................................................................... 4-5

4.4 FUEL TANK............................................................................................................. 4-9

4.5 THROTTLE POSISITON SENSOR (TPS)............................................................. 4-12

4.6 INTAKE AIR TEMPERATURE SENSOR -IAT)...................................................... 4-13

4.7 ENGINE TEMPERATURE SENSOR (ET)............................................................. 4-14

4.8 INDUCTION MODULE........................................................................................... 4-16

4.9 IDLE AIR CONTROL (IAC).....................................................................................4-18

4.10 MANIFOLD ABSOLUTE PRESSURE SENSOR (MAP).......................................4-19

4.11 OXYGEN SENSOR..............................................................................................4-20

4.12 FUEL INJECTORS...............................................................................................4-21

4.13 FUEL PUMP.........................................................................................................4-23

4.14 FUEL PRESSURE TEST..................................................................................... 4-30

4.15 EXHAUST SYSTEM............................................................................................. 4-32

4.16 INTAKE LEAK TEST............................................................................................ 4-44

4.17 EVAPORATIVE EMISSIONS CONTROL............................................................. 4-46
